Number Sequences overhang Lecture 17 Nov 14 This

Number Sequences ? overhang Lecture 17: Nov 14

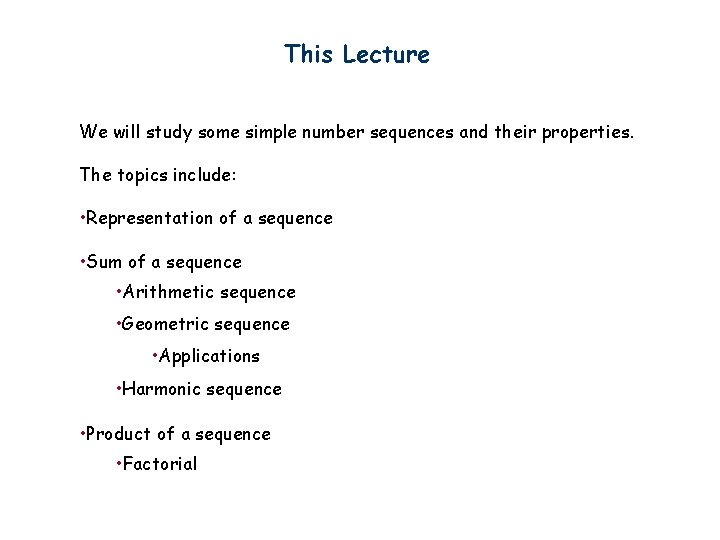

This Lecture We will study some simple number sequences and their properties. The topics include: • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • Product of a sequence • Factorial

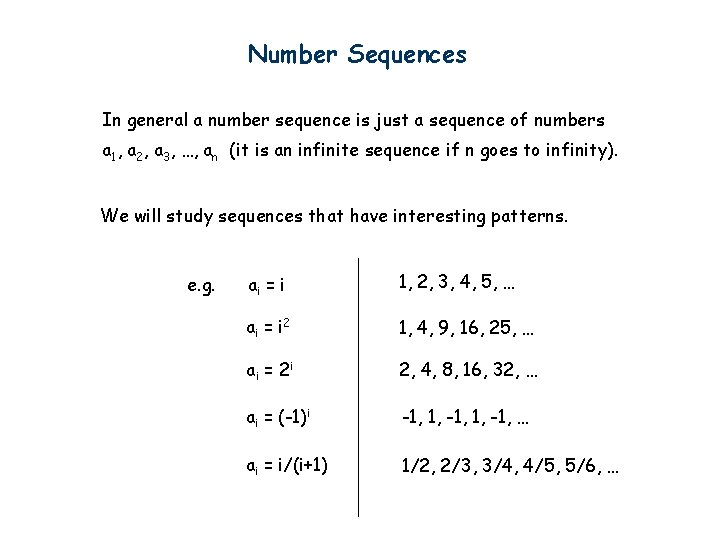

Number Sequences In general a number sequence is just a sequence of numbers a 1, a 2, a 3, …, an (it is an infinite sequence if n goes to infinity). We will study sequences that have interesting patterns. e. g. ai = i 1, 2, 3, 4, 5, … ai = i 2 1, 4, 9, 16, 25, … ai = 2 i 2, 4, 8, 16, 32, … ai = (-1)i -1, 1, -1, … ai = i/(i+1) 1/2, 2/3, 3/4, 4/5, 5/6, …

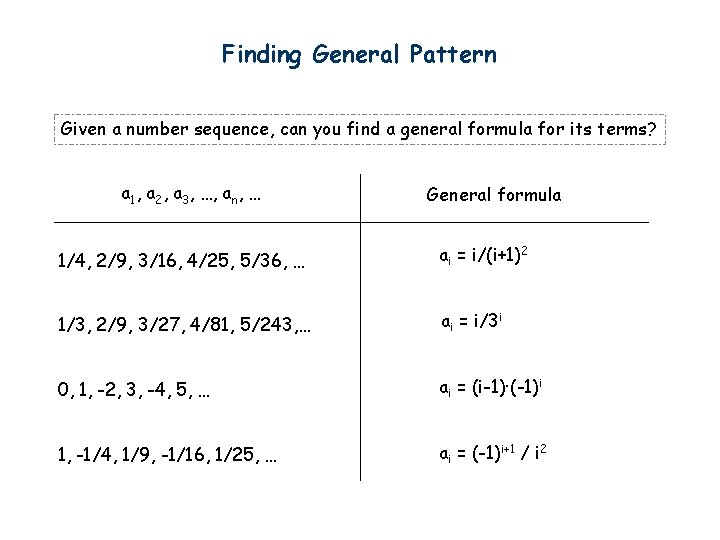

Finding General Pattern Given a number sequence, can you find a general formula for its terms? a 1, a 2, a 3, …, an, … General formula 1/4, 2/9, 3/16, 4/25, 5/36, … ai = i/(i+1)2 1/3, 2/9, 3/27, 4/81, 5/243, … ai = i/3 i 0, 1, -2, 3, -4, 5, … ai = (i-1)·(-1)i 1, -1/4, 1/9, -1/16, 1/25, … ai = (-1)i+1 / i 2

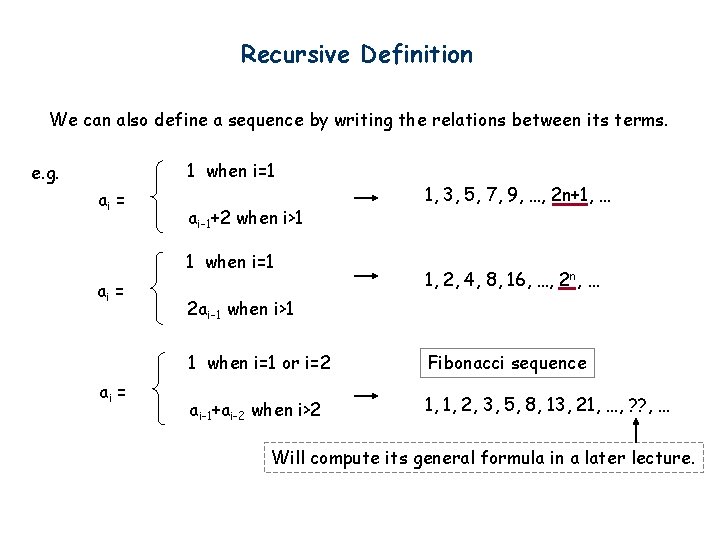

Recursive Definition We can also define a sequence by writing the relations between its terms. 1 when i=1 e. g. ai = ai-1+2 when i>1 1 when i=1 ai = 1, 3, 5, 7, 9, …, 2 n+1, … 1, 2, 4, 8, 16, …, 2 n, … 2 ai-1 when i>1 1 when i=1 or i=2 Fibonacci sequence ai-1+ai-2 when i>2 1, 1, 2, 3, 5, 8, 13, 21, …, ? ? , … Will compute its general formula in a later lecture.

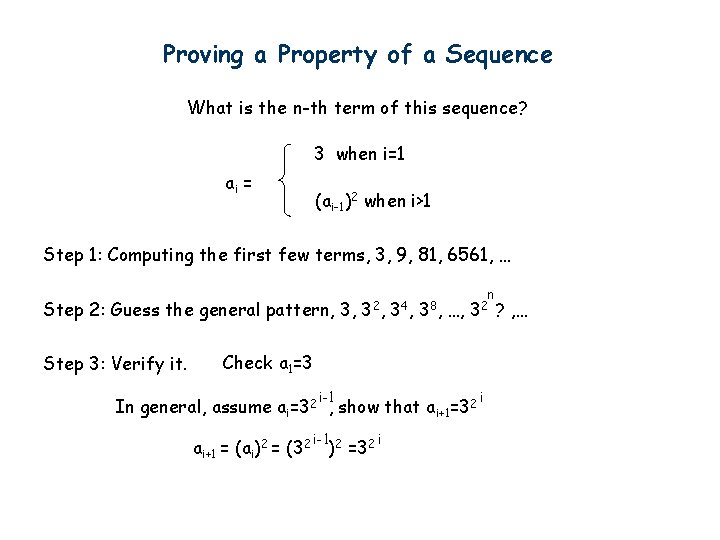

Proving a Property of a Sequence What is the n-th term of this sequence? 3 when i=1 ai = (ai-1)2 when i>1 Step 1: Computing the first few terms, 3, 9, 81, 6561, … Step 2: Guess the general pattern, 3, Step 3: Verify it. 3 2, 3 4, 3 8, …, n 32 Check a 1=3 i-1 In general, assume ai=32 , show that ai+1=32 i-1 ai+1 = (ai)2 = (32 )2 =32 i i ? , …

This Lecture • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • The integral method • Product of a sequence • Factorial

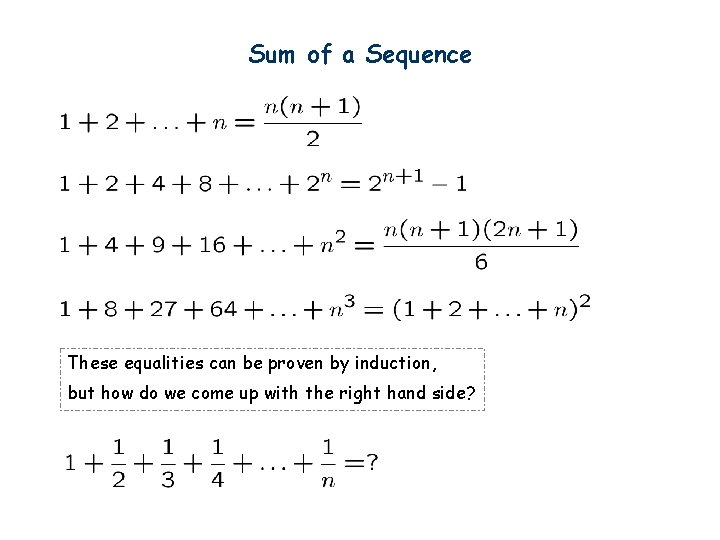

Sum of a Sequence These equalities can be proven by induction, but how do we come up with the right hand side?

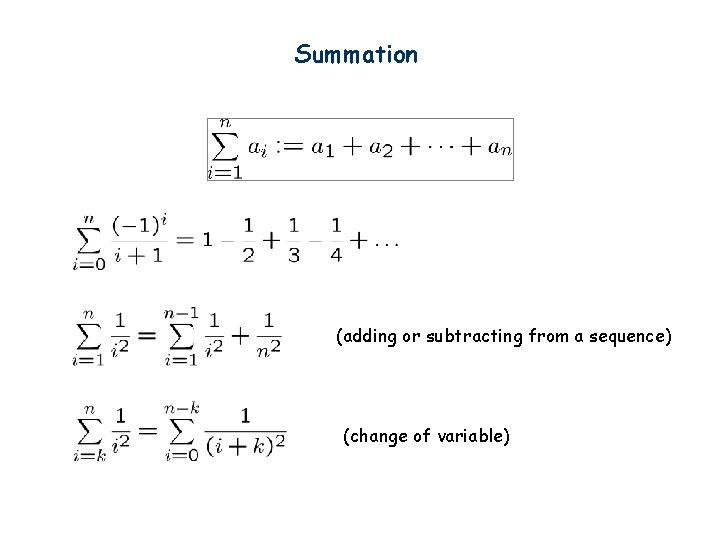

Summation (adding or subtracting from a sequence) (change of variable)

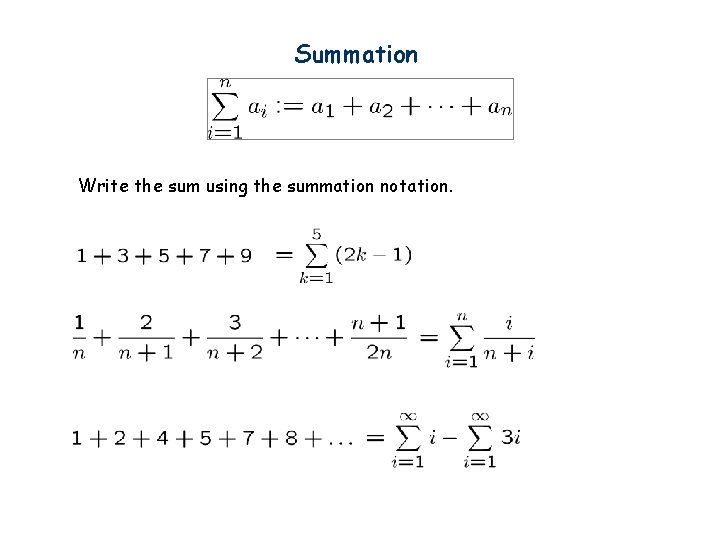

Summation Write the sum using the summation notation.

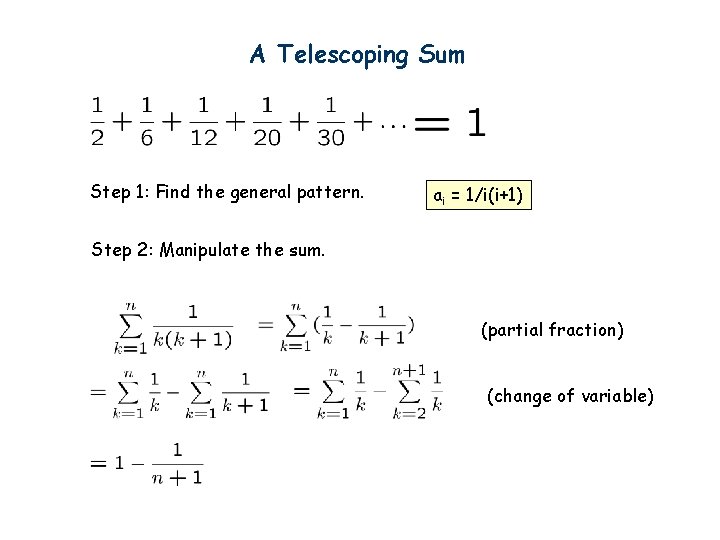

A Telescoping Sum Step 1: Find the general pattern. ai = 1/i(i+1) Step 2: Manipulate the sum. (partial fraction) (change of variable)

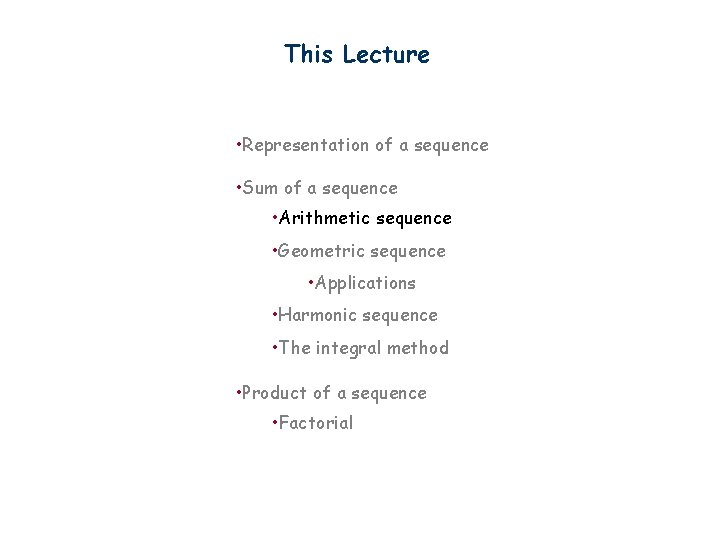

This Lecture • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • The integral method • Product of a sequence • Factorial

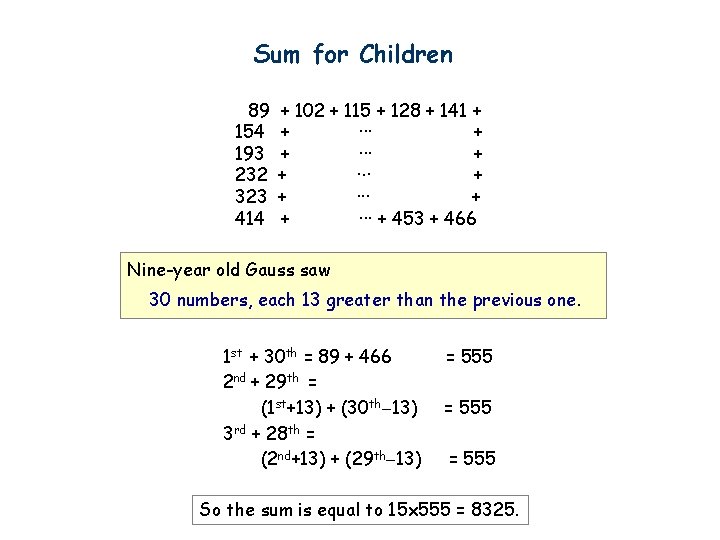

Sum for Children 89 154 193 232 323 414 + 102 + 115 + 128 + 141 + + ··· + + ··· + 453 + 466 Nine-year old Gauss saw 30 numbers, each 13 greater than the previous one. 1 st + 30 th = 89 + 466 2 nd + 29 th = (1 st+13) + (30 th 13) 3 rd + 28 th = (2 nd+13) + (29 th 13) = 555 So the sum is equal to 15 x 555 = 8325.

Arithmetic Sequence A number sequence is called an arithmetic sequence if a i+1 = ai+d for all i. e. g. 1, 2, 3, 4, 5, … 5, 3, 1, -3, -5, -7, … What is the formula for the n-th term? ai+1 = a 1 + i·d (can be proved by induction) What is the formula for the sum S=1+2+3+4+5+…+n? Write the sum S = 1 + 2 + 3 + … + (n-2) + (n-1) + n Write the sum S = n + (n-1) + (n-2) + … + 3 + 2 + 1 Adding terms following the arrows, the sum of each pair is n+1. We have n pairs, and therefore 2 S = n(n+1), and thus S = n(n+1)/2.

Arithmetic Sequence A number sequence is called an arithmetic sequence if a i+1 = ai+d for all i. What is a simple expression of the sum? Adding the equations together gives: Rearranging and remembering that an = a 1 + (n − 1)d, we get:

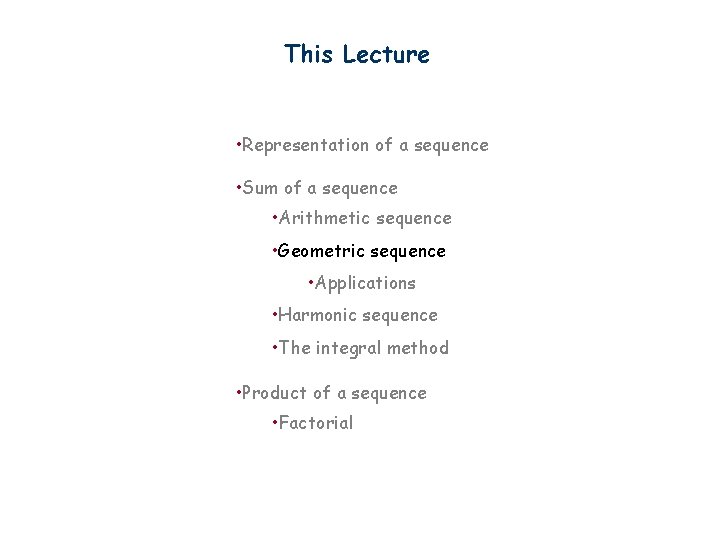

This Lecture • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • The integral method • Product of a sequence • Factorial

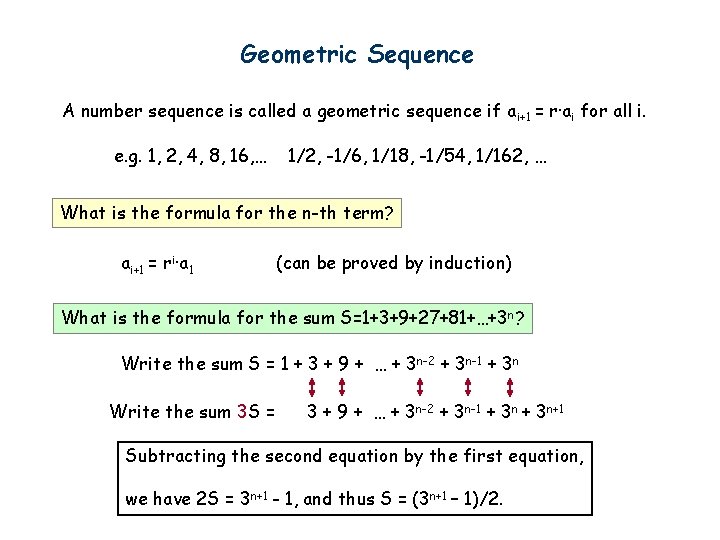

Geometric Sequence A number sequence is called a geometric sequence if a i+1 = r·ai for all i. e. g. 1, 2, 4, 8, 16, … 1/2, -1/6, 1/18, -1/54, 1/162, … What is the formula for the n-th term? ai+1 = ri·a 1 (can be proved by induction) What is the formula for the sum S=1+3+9+27+81+…+3 n? Write the sum S = 1 + 3 + 9 + … + 3 n-2 + 3 n-1 + 3 n Write the sum 3 S = 3 + 9 + … + 3 n-2 + 3 n-1 + 3 n+1 Subtracting the second equation by the first equation, we have 2 S = 3 n+1 - 1, and thus S = (3 n+1 – 1)/2.

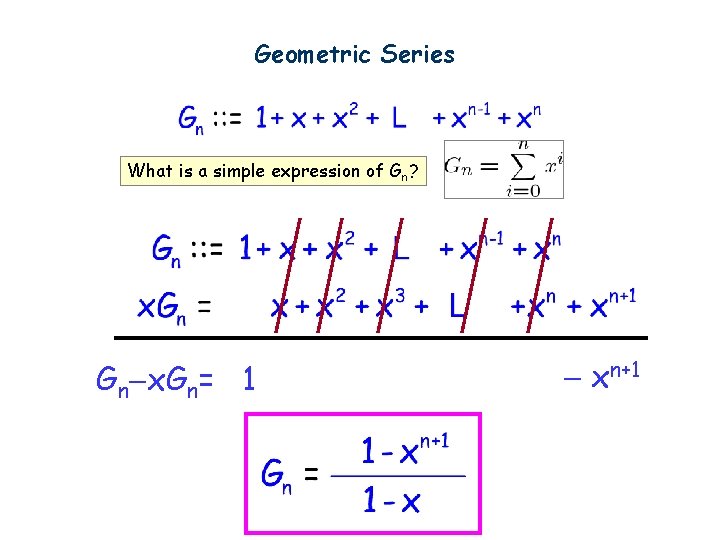

Geometric Series What is a simple expression of Gn? Gn x. Gn= 1 xn+1

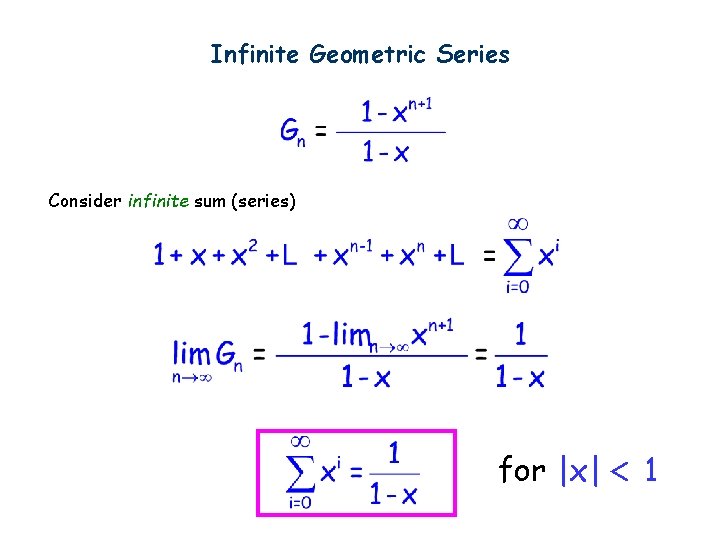

Infinite Geometric Series Consider infinite sum (series) for |x| < 1

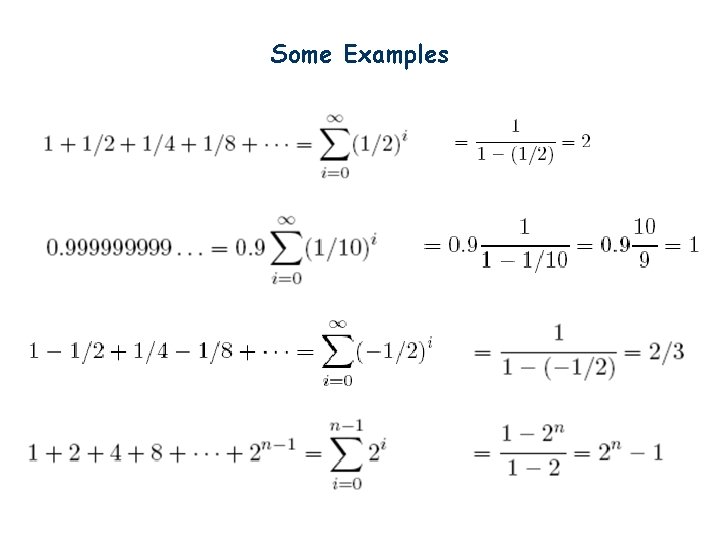

Some Examples

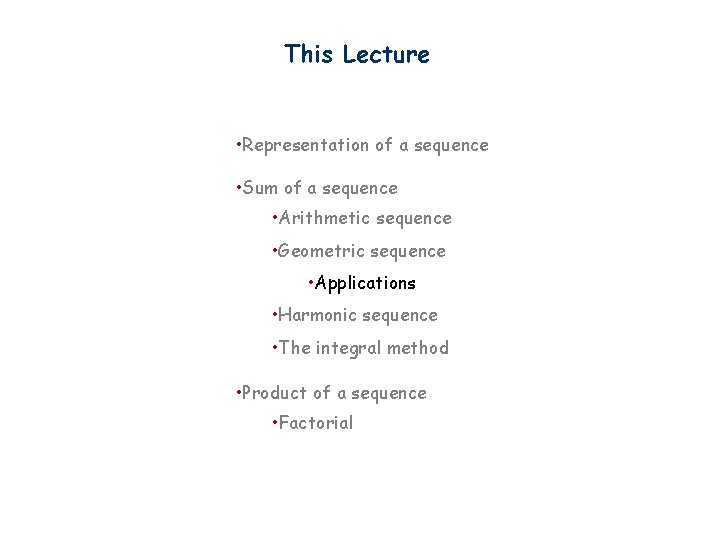

This Lecture • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • The integral method • Product of a sequence • Factorial

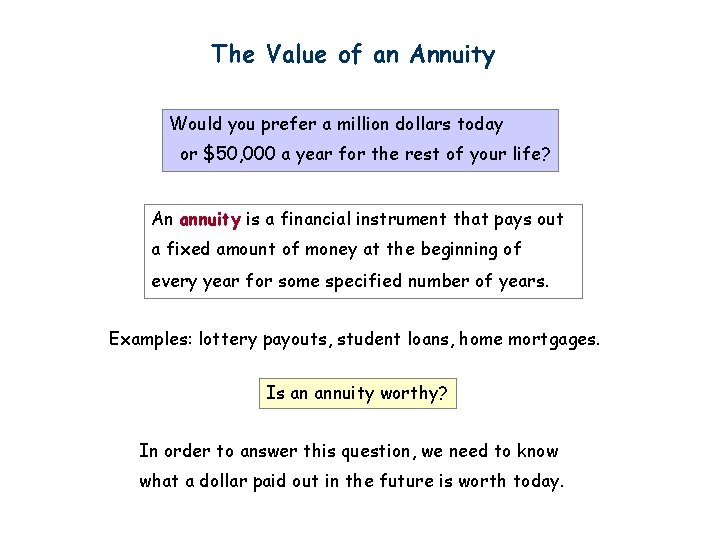

The Value of an Annuity Would you prefer a million dollars today or $50, 000 a year for the rest of your life? An annuity is a financial instrument that pays out a fixed amount of money at the beginning of every year for some specified number of years. Examples: lottery payouts, student loans, home mortgages. Is an annuity worthy? In order to answer this question, we need to know what a dollar paid out in the future is worth today.

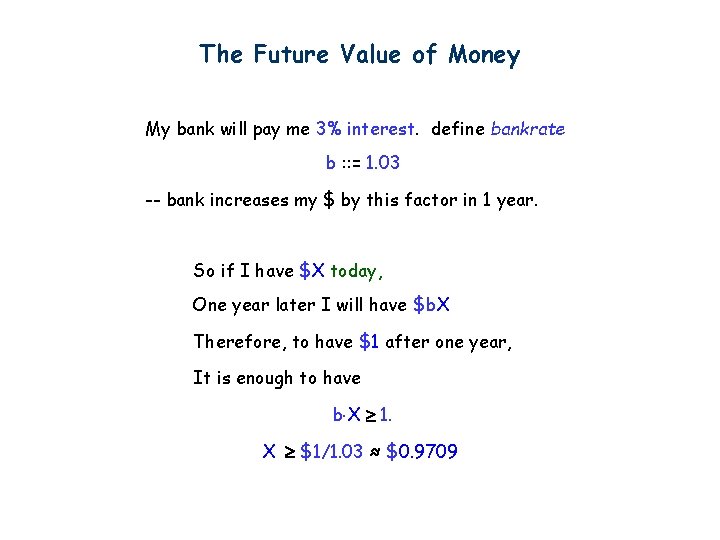

The Future Value of Money My bank will pay me 3% interest. define bankrate b : : = 1. 03 -- bank increases my $ by this factor in 1 year. So if I have $X today, One year later I will have $b. X Therefore, to have $1 after one year, It is enough to have b X 1. X $1/1. 03 ≈ $0. 9709

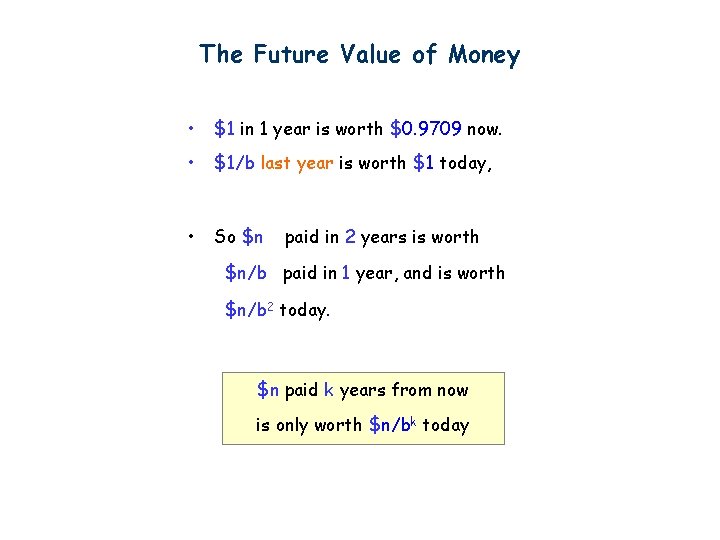

The Future Value of Money • $1 in 1 year is worth $0. 9709 now. • $1/b last year is worth $1 today, • So $n paid in 2 years is worth $n/b paid in 1 year, and is worth $n/b 2 today. $n paid k years from now is only worth $n/bk today

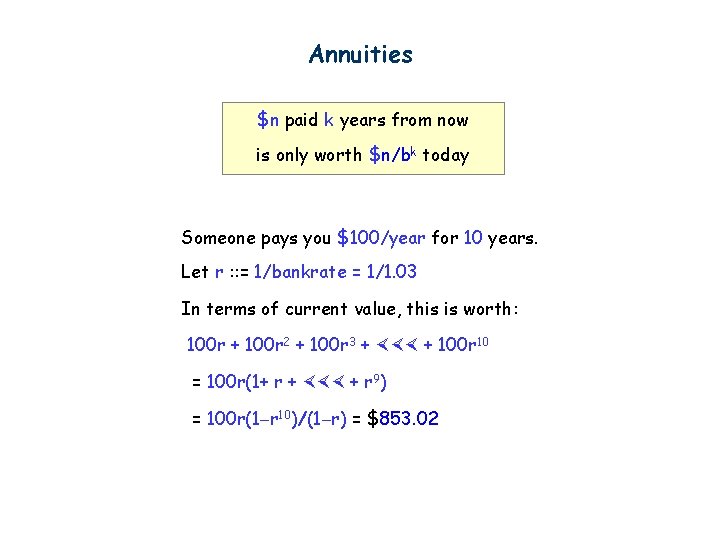

Annuities $n paid k years from now is only worth $n/bk today Someone pays you $100/year for 10 years. Let r : : = 1/bankrate = 1/1. 03 In terms of current value, this is worth: 100 r + 100 r 2 + 100 r 3 + + 100 r 10 = 100 r(1+ r + + r 9) = 100 r(1 r 10)/(1 r) = $853. 02

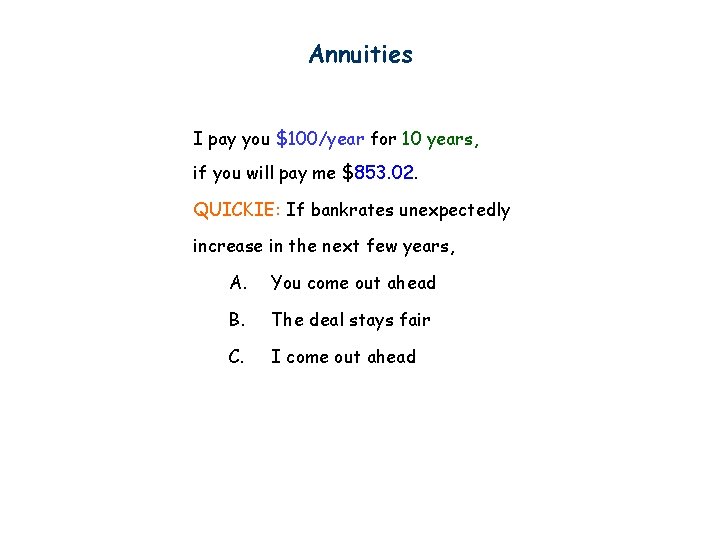

Annuities I pay you $100/year for 10 years, if you will pay me $853. 02. QUICKIE: If bankrates unexpectedly increase in the next few years, A. You come out ahead B. The deal stays fair C. I come out ahead

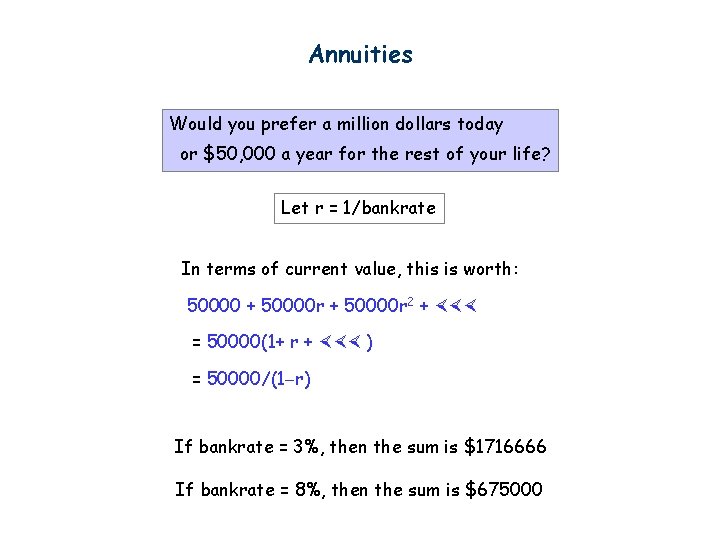

Annuities Would you prefer a million dollars today or $50, 000 a year for the rest of your life? Let r = 1/bankrate In terms of current value, this is worth: 50000 + 50000 r 2 + = 50000(1+ r + ) = 50000/(1 r) If bankrate = 3%, then the sum is $1716666 If bankrate = 8%, then the sum is $675000

This Lecture • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • The integral method • Product of a sequence • Factorial

Harmonic Number How large is ? Finite or infinite? 1 number 2 numbers, each <= 1/2 and > 1/4 Row sum is <= 1 and >= 1/2 4 numbers, each <= 1/4 and > 1/8 … Row sum is <= 1 and >= 1/2 2 k numbers, each <= 1/2 k and > 1/2 k+1 … Row sum is <= 1 and >= 1/2 The sum of each row is <=1 and >= 1/2.

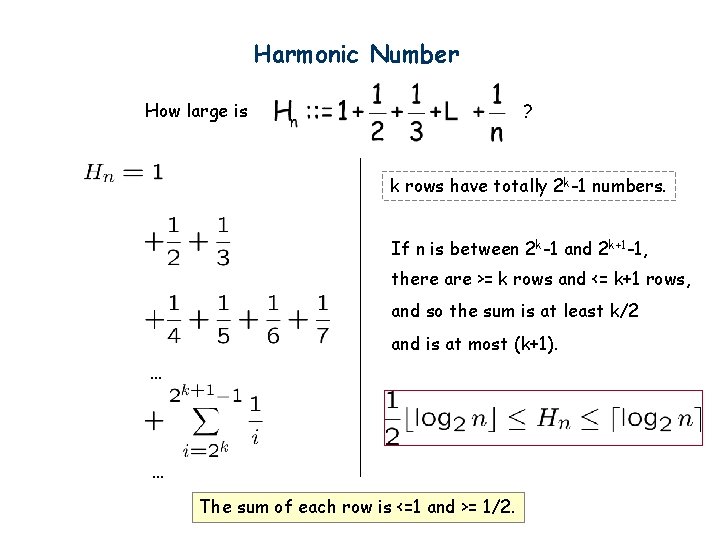

Harmonic Number How large is ? k rows have totally 2 k-1 numbers. If n is between 2 k-1 and 2 k+1 -1, there are >= k rows and <= k+1 rows, and so the sum is at least k/2 and is at most (k+1). … … The sum of each row is <=1 and >= 1/2.

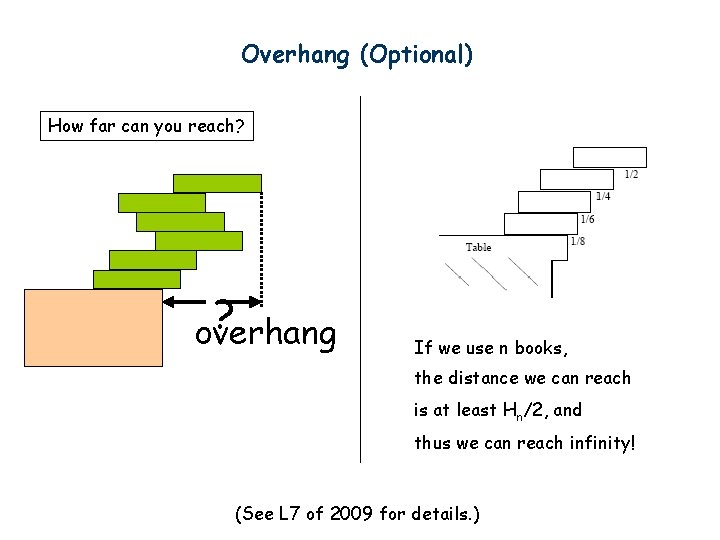

Overhang (Optional) How far can you reach? ? overhang If we use n books, the distance we can reach is at least Hn/2, and thus we can reach infinity! (See L 7 of 2009 for details. )

Double Summation What is ? A useful trick to deal with double sum is to “switch” the order of the summation. The sum we are computing is the sum of the numbers in this two dimensional table. The summation above is summing each row and then add the row sums.

Double Summation Alternatively, we can sum the columns and add the column sums. (after switching, the inner term does not depend on k)

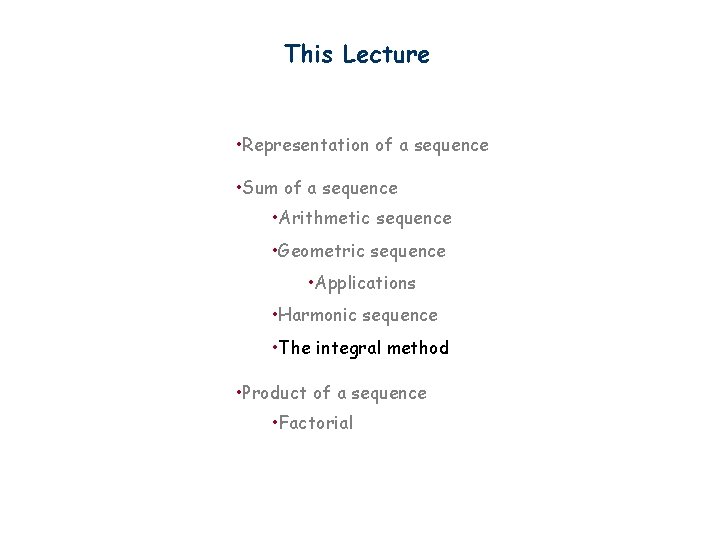

This Lecture • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • The integral method • Product of a sequence • Factorial

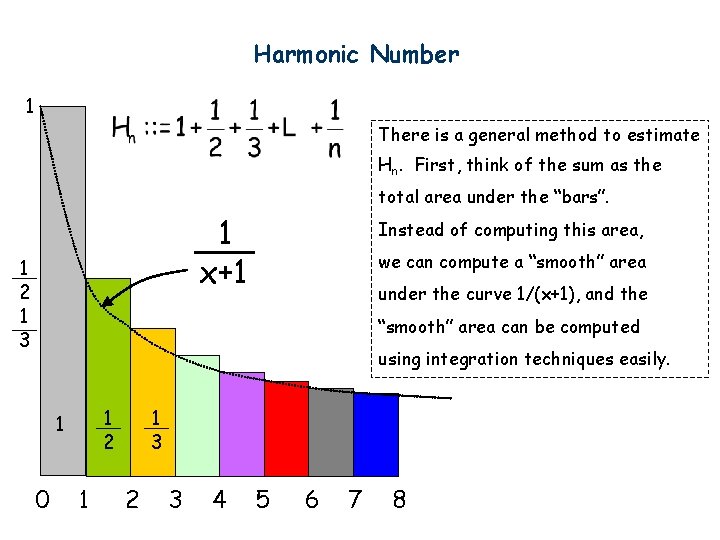

Harmonic Number 1 There is a general method to estimate Hn. First, think of the sum as the total area under the “bars”. 1 x+1 1 2 1 3 Instead of computing this area, we can compute a “smooth” area under the curve 1/(x+1), and the “smooth” area can be computed using integration techniques easily. 1 2 1 0 1 1 3 2 3 4 5 6 7 8

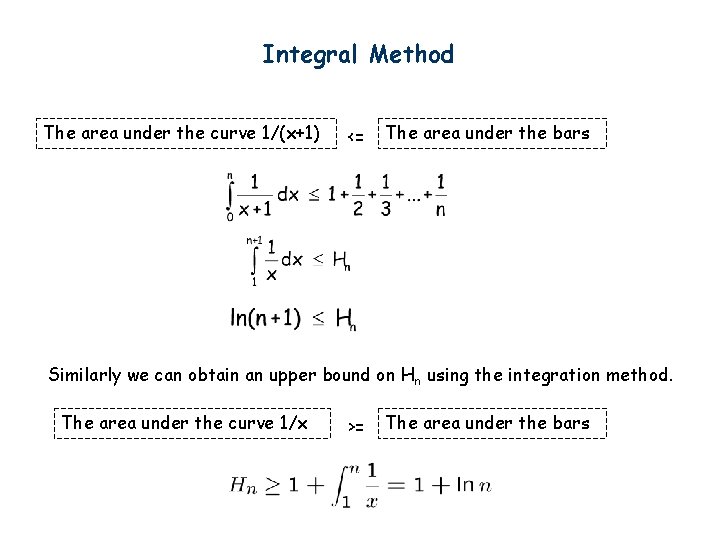

Integral Method The area under the curve 1/(x+1) <= The area under the bars Similarly we can obtain an upper bound on Hn using the integration method. The area under the curve 1/x >= The area under the bars

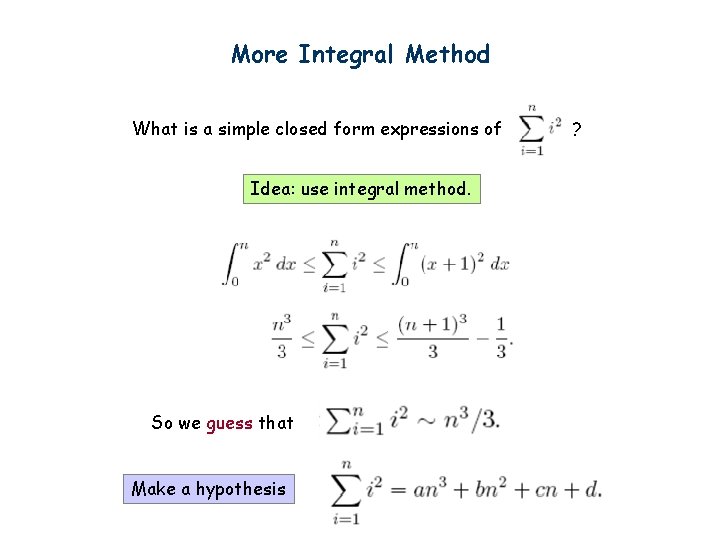

More Integral Method What is a simple closed form expressions of Idea: use integral method. So we guess that Make a hypothesis ?

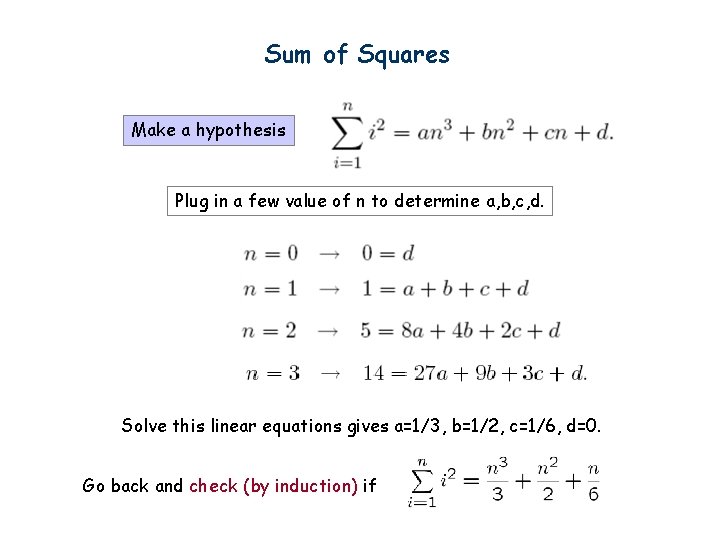

Sum of Squares Make a hypothesis Plug in a few value of n to determine a, b, c, d. Solve this linear equations gives a=1/3, b=1/2, c=1/6, d=0. Go back and check (by induction) if

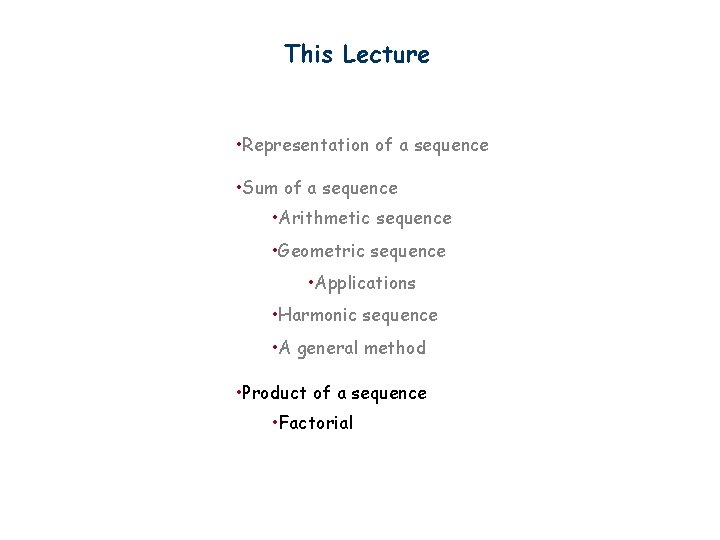

This Lecture • Representation of a sequence • Sum of a sequence • Arithmetic sequence • Geometric sequence • Applications • Harmonic sequence • A general method • Product of a sequence • Factorial

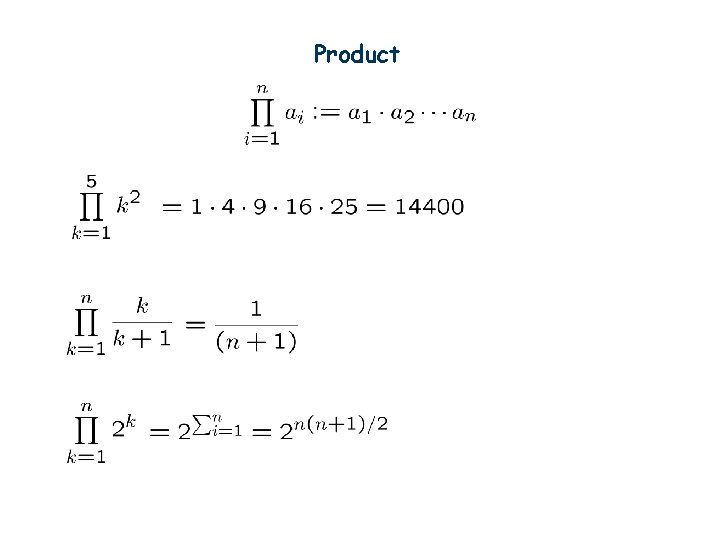

Product

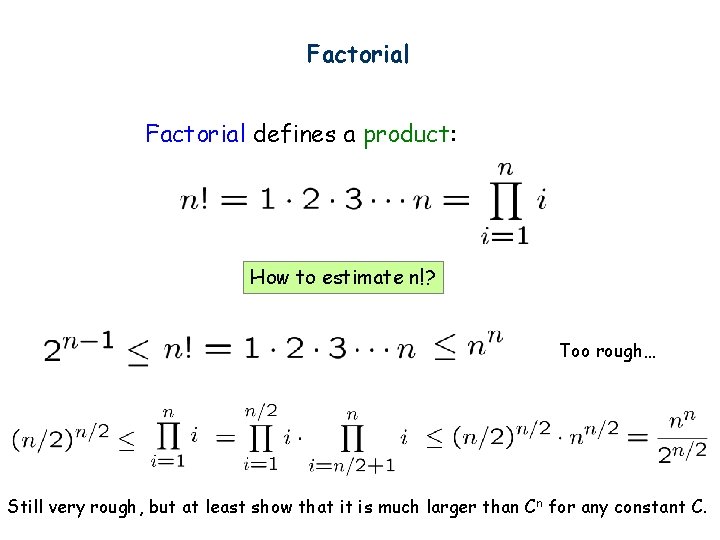

Factorial defines a product: How to estimate n!? Too rough… Still very rough, but at least show that it is much larger than C n for any constant C.

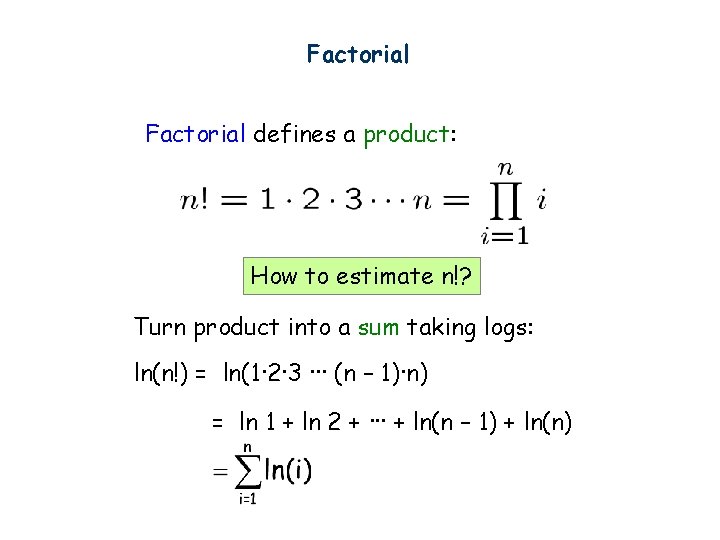

Factorial defines a product: How to estimate n!? Turn product into a sum taking logs: ln(n!) = ln(1· 2· 3 ··· (n – 1)·n) = ln 1 + ln 2 + ··· + ln(n – 1) + ln(n)

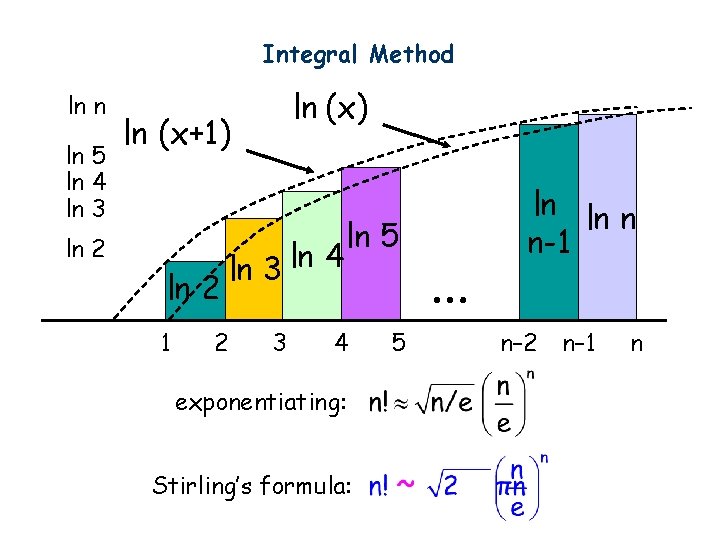

Integral Method ln n ln 5 ln 4 ln 3 ln 2 ln (x) ln (x+1) ln 2 1 ln 3 ln 4 2 3 ln 5 4 exponentiating: Stirling’s formula: 5 … ln ln n n-1 n– 2 n– 1 n

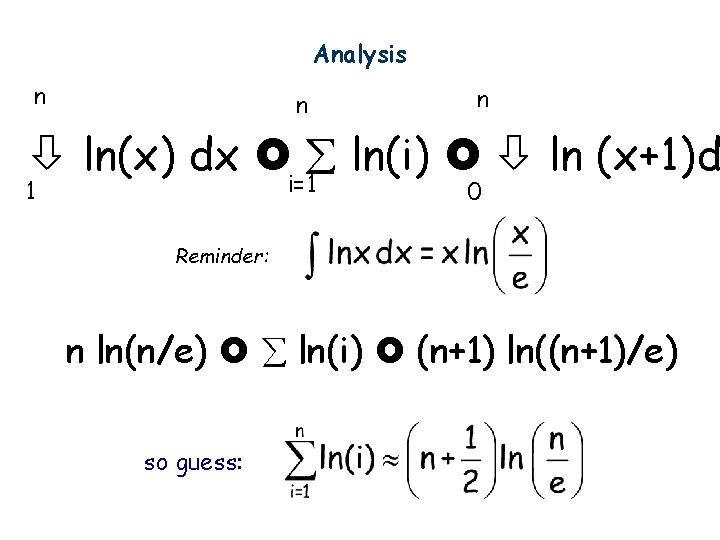

Analysis n n n ln(x) dx i=1 ln(i) ln (x+1)d 1 0 Reminder: n ln(n/e) ln(i) (n+1) ln((n+1)/e) so guess:

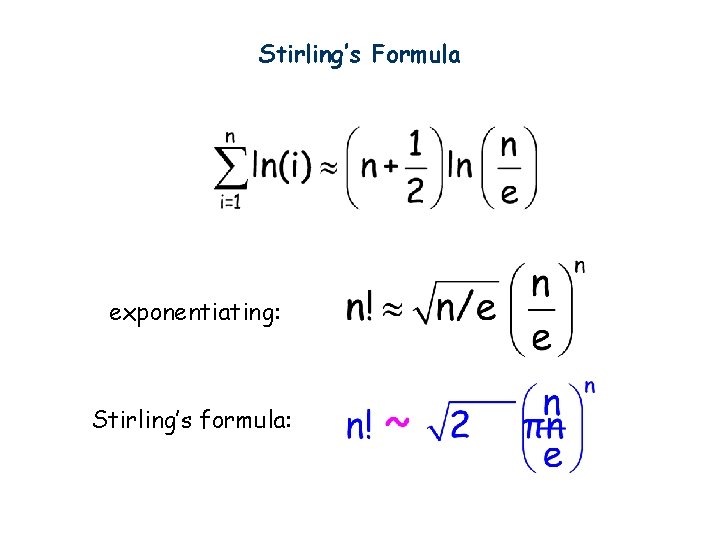

Stirling’s Formula exponentiating: Stirling’s formula:

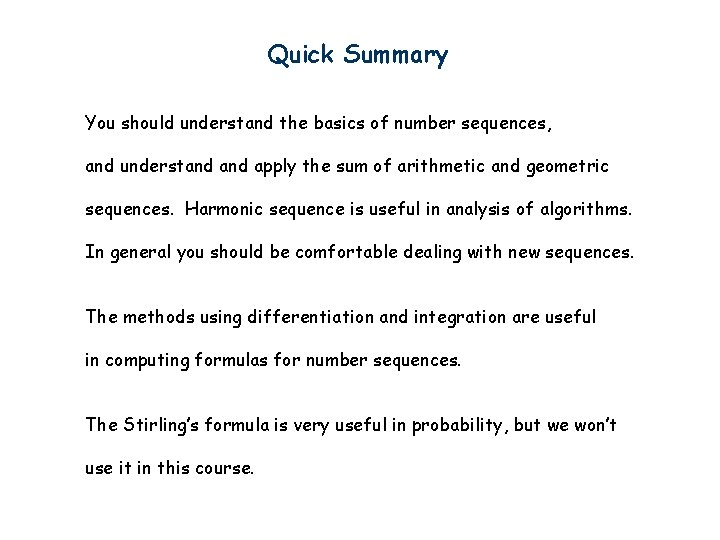

Quick Summary You should understand the basics of number sequences, and understand apply the sum of arithmetic and geometric sequences. Harmonic sequence is useful in analysis of algorithms. In general you should be comfortable dealing with new sequences. The methods using differentiation and integration are useful in computing formulas for number sequences. The Stirling’s formula is very useful in probability, but we won’t use it in this course.
