Nuclear Medicine Physics Radioiodine Therapy Jerry Allison Ph
- Slides: 47
Nuclear Medicine Physics Radioiodine Therapy Jerry Allison, Ph. D. Department of Radiology Medical College of Georgia
A note of thanks to Z. J. Cao, Ph. D. Medical College of Georgia And Sameer Tipnis, Ph. D. G. Donald Frey, Ph. D. Medical University of South Carolina for Sharing nuclear medicine presentation content
http: //www. hpschapters. org/northcarolina/fall 2008/TPM. 3. pdf
http: //www. hpschapters. org/northcarolina/fall 2008/TPM. 3. pdf
Thyroid Uptake/Imaging • I-123: 100 – 200 m. Ci ( only) § T 1/2 = 13. 2 h • 1 -131: 15 – 100 m. Ci ( & ) § T 1/2 = 8 d
Thyroid probe Measure thyroid uptake of I-131 in-vivo § 5× 5 cm Na. I(Tl) with 15 cm long conical collimator § pointing to neck and thigh (bkg) § calibration phantom with known activity for calculating uptake (pt capsule) § 1 – 2 cm difference in depth 10 – 40% difference in count rate

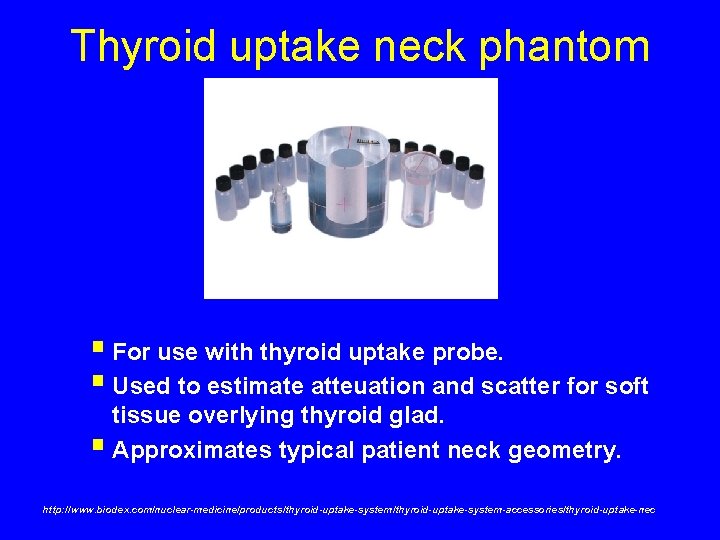

Thyroid uptake neck phantom § For use with thyroid uptake probe. § Used to estimate atteuation and scatter for soft tissue overlying thyroid glad. § Approximates typical patient neck geometry. http: //www. biodex. com/nuclear-medicine/products/thyroid-uptake-system-accessories/thyroid-uptake-nec
Thyroid http: //www. hpschapters. org/northcarolina/fall 2008/TPM. 3. pdf
- Emitters • - (beta) - 131 I, 90 Y, 153 Sm 2015 Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
- decay • A neutron decays to a proton, electron and antineutrino: n p + e- + . • e- and created inside the nucleus at the moment of decay and ejected instantaneously • AX AY z z+1 • e. g. 131 I 53 131 Xe 54 + e-

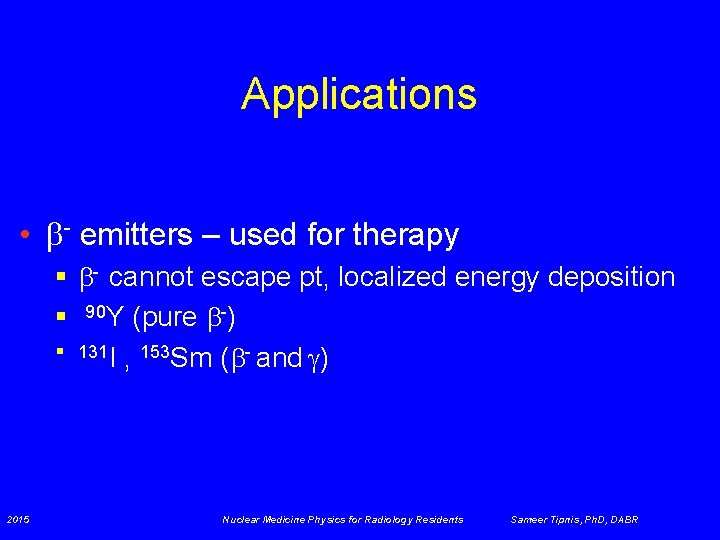

Applications • - emitters – used for therapy § - cannot escape pt, localized energy deposition § 90 Y (pure -) § 131 I , 153 Sm ( - and ) 2015 Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
131 I Production • Reactor produced as fission product
131 I Decay © Physics in Nuclear Medicine: Cherry, Sorenson and Phelps
131 I Decay https: //en. wikipedia. org/wiki/File: Iodine-131 -decay-scheme-simplified. svg
I-131 Absorbed Dose § 90% of pt dose is b; 10% by g http: //www. nuclearonline. org/PIby. Generic 2. htm
Written directive • Required for I-131 dose exceeding 30 μCi • Pregnancy test results • Order for the radiopharmaceutical is written twice § Once to order the drug § The second dosage usually represents the actual amount given § Route of administration • Must be signed by an authorized user
NM Written Directive for I-131 Therapy http: //www. gru. edu/services/ehs/radsafe/
Authorized User • A physician licensed to practice and who meets specific requirements (NRC) and identified as an AU on the institution’s license or permit § Board Certified (by appropriate Board) • Other physicians and technologists may work with byproduct material under the supervision of an AU • All radiopharmaceuticals dispensed or administered must be pursuant to an order (e. g. prescription) of an AU 2015 Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
• Authorized User 10 CFR 35. 290 Training for imaging and localization studies Has completed 700 hours of training and experience, including a minimum of 80 hours of classroom and laboratory training http: //www. nrc. gov/reading-rm/doccollections/cfr/part 035 -0290. html
• Authorized User 10 CFR 35. 390 Training for use of unsealed byproduct material for which a written directive is required Has completed 700 hours of training and experience, including a minimum of 200 hours of classroom and laboratory training http: //www. nrc. gov/reading-rm/doccollections/cfr/part 035 -0390. html
• Authorized User 10 CFR 35. 392 Training for the oral administration of sodium iodide I-131 requiring a written directive in quantities less than or equal to 1. 22 gigabecquerels (33 millicuries) Administering dosages to patients …, that includes at least 3 cases involving the oral administration of less than or equal to 1. 22 gigabecquerels (33 millicuries) of sodium iodide I 131 http: //www. nrc. gov/reading-rm/doccollections/cfr/part 035 -0392. html
• Authorized User 35. 394 Training for the oral administration of sodium iodide I-131 requiring a written directive in quantities greater than 1. 22 gigabecquerels (33 millicuries) Administering dosages to patients …, that includes at least 3 cases involving the oral administration of greater than 1. 22 gigabecquerels (33 millicuries) of sodium iodide I-131 http: //www. nrc. gov/reading-rm/doccollections/cfr/part 035 -0392. html
131 I studies For 131 I doses > 30 µCi a “written directive” which may only be issued by an AU is required for each treatment Radiology residents (under AU supervision) need to direct 3 treatments < 33 m. Ci and 3 > 33 m. Ci to be “AU Eligible” 2015 Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
Getting “AU Eligible” Radiology Residents who • Complete the requirements during their residency • Get “OK” from the residency director • Pass the RISE exam (part of core exam) § Radioisotope Safety Exam (~60 items) • • 2015 ~15 NM physics items ~15 NM safety items ~20 NM clinical items ~20 NM regulatory/administrative items Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
COMPLIANCE WITH NRC TRAINING AND EXPERIENCE REQUIREMENTS
Release of I-131 therapy patients • I-131 in patients may be excreted in their urine, perspiration and saliva and these body fluids can contaminate household surfaces. • Use separate bathroom • Shower/brush teeth frequently • Limit hugs, sleep alone • Limit visitors and co-workers • Limited length of stay time 26
Release of I-131 therapy patients • Avoid public transportation • Children, pregnant women and nursing mothers must stay at least 6’ away. • Written instructions must be provided to the patient to minimize radiation exposure to public if a member of the public could receive a dose greater than 1 m. Sv. 27
Radioiodine Safety Manuals at MCG http: //www. gru. edu/services/ehs/radsafe/
Radioiodine Procedures and Nursing Instructions http: //www. gru. edu/services/ehs/radsafe/
Signage • • Radioactive Material Entry Log Instructions No Housekeeping
Shoe covers, absorbent floor pads
Plastic sheeting, absorbent floor pad, furniture covers
Disposable trash container (hazardous)
Bed rails covered
Toilet cover
Sink cover
Vanity cover
Absorbent sink cover
Door handle covers
Release of I-131 therapy patients • A patient may be released if the total effective dose to any other individual (family or caregiver) is not likely to > 5 m. Sv • Patients receiving diagnostic nuclear medicine examinations can be released without any calculations • 131 I Therapy patients need special instructions 2015 Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
Radiation exposure rate around patient Typical exposure rate at 1 m from the patient soon after injection: • Most diagnostic radiopharmaceuticals: <1 m. R/hr (maximum dose to public 1 m. Sv/yr) • 18 F-FDG: • 131 I: ~5 - ~30 m. R/hr ~5 or ~30 m. R/hr for Graves or cancer dose respectively
Breast feeding Guidelines (recommended / not regulated) Radiopharmaceutical 131 I Na. I Cessation 123 I Na. I Cessation 67 Ga 201 Tl 123 I 2015 Citrate Cessation Chloride 96 hrs MIBG, 99 m. Tc WBC 99 m. Tc Recommendation MAA, 99 m. Tc RBC 48 hrs 12 hrs Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
Lactating 131 I therapy pts • Lactating breasts accumulate radioiodine § Patient breast dose can be quite high § Breast pump reduces breast dose • Lactating completely ceases 4 wks postpartum with no breast feeding • Ask pt to stop breastfeeding 15 days BEFORE therapy 2015 Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
Absorbed dose to fetus 99 m. Tc MAA 99 m. Tc sulfur colloid 99 m. Tc RBC 99 m. Tc DTPA 99 m. Tc diphosphonate 67 Ga citrate 111 In leukocytest 131 I (15% uptake) 123 I (15% uptake) 201 Tl chloride 133 Xe 0. 35 (m. Sv/m. Ci) 0. 35 0. 60 0. 35 0. 40 2. 50 4. 00 1. 00 0. 35 3. 00 0. 01 44
Fetal thyroid dose from 131 I • 131 I • • 2015 can rapidly cross the placenta Fetal thyroid starts concentrating 131 I after 11 to 12 th week post-conception Ability rapidly increases after 22 nd week Can result in hypothyroidism / ablation Critical to check pt for pregnancy before 131 I therapy Nuclear Medicine Physics for Radiology Residents Sameer Tipnis, Ph. D, DABR
Homeland security • Extremely sensitive radiation detectors are deployed in train stations, airports, tunnels, etc. • I-131 patients may set off alarms up to 95 days following a therapy procedure. • Give a letter containing radionuclide and hospital contact information. 46
What is major spill? • Activity released at location or on people § 100 m. Ci Tc-99 m or Tl-201 § 10 m. Ci Ga-67 or In-111 § 1 m. Ci I-131 • Radiation safety officer must be present. • Focus on containment, shielding, and decontaminating individuals
