Nu STAR ITS BACKGROUND AND CLUSTERS OF GALAXIES
Nu. STAR, ITS BACKGROUND AND CLUSTERS OF GALAXIES FABIO GASTALDELLO INAF, IASF-Milano And The Galaxy Clusters Nu. STAR Team
OUTLINE § The Nu. STAR satellite and its focusing capabilities in the hard X-ray band § Nu. STAR science with galaxy clusters: IC emission and very hot thermal emission § The components of the Nu. STAR background § First results on galaxy clusters
THE CHALLENGE OF FOCUSING HARD X-RAYS

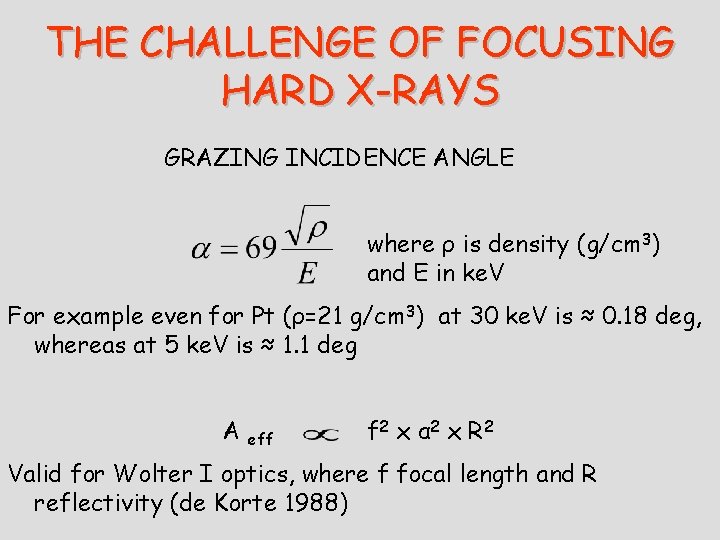

THE CHALLENGE OF FOCUSING HARD X-RAYS GRAZING INCIDENCE ANGLE where ρ is density (g/cm 3) and E in ke. V For example even for Pt (ρ=21 g/cm 3) at 30 ke. V is ≈ 0. 18 deg, whereas at 5 ke. V is ≈ 1. 1 deg A eff f 2 x α 2 x R 2 Valid for Wolter I optics, where f focal length and R reflectivity (de Korte 1988)
THE CHALLENGE OF FOCUSING HARD X-RAYS Multi-layers: grazing incidence + Bragg reflection N layers of heavy element/ light elements (high/low refractive index as W/Si or Pt/C) with spacing d which is a function of depth (e. g, Christensen et al. 1991)
THE Nu. STAR SATELLITE HARRISON+13
THE Nu. STAR SATELLITE HARRISON+13
THE Nu. STAR SATELLITE CZT detectors with Cs. I anticoincidence HARRISON+13
Intra-cluster medium (ICM) Thermal plasma Relativistic particles X-rays (10 -30%) Radio Galaxies (5%) Dark Matter Gravitational potential 1 E 0657 -156 THE BULLET CLUSTER Galaxy clusters are the most massive (M~1014 -1015 MSUN) objects in the Universe
EXTENDED RADIO EMISSION IN CLUSTERS Coma cluster Radio halos fill the volume of the clusters, Mpc extension. Given the short synchrotron lifetime electrons can’t simply diffuse. No detected polarization
EXTENDED RADIO EMISSION IN CLUSTERS A 3376 Radio relics linear structures of Mpc size, usually at the outskirts of the diffuse extended emission. 20%-50% detected polarization
CONNECTION WITH CLUSTER MERGERS
CONNECTION WITH CLUSTER MERGERS Radio halo bimodality of clusters: only luminous massive mergers have radio halos (strong support for primary models, i. e. reaccelerated electrons, not electrons produces in p-p collisions, i. e. “secondary models).
CONNECTION WITH CLUSTER MERGERS
IC IN GALAXY CLUSTERS
IC IN GALAXY CLUSTERS
IC IN GALAXY CLUSTERS
VERY HOT GAS IN GALAXY CLUSTERS
THE COMPONENTS OF THE Nu. STAR BKG § Instrumental background due to Compton scattered γrays and activation lines (passage trough SAA) § “Aperture” background § Reflection (solar + CXB) § Focused CXB
INSTRUMENTAL BKG Cs. I Fluorescence Activation Lines Continuum
APERTURE BKG
APERTURE BKG

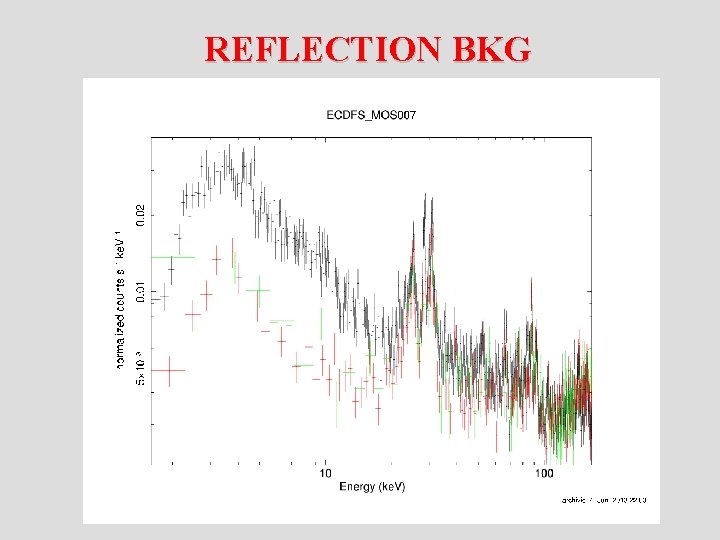

REFLECTION BKG
REFLECTION BKG Dark Earth is not Dark !
REFLECTION BKG Sunshine No sunshine
REFLECTION BKG TI LINE
THE COMPONENTS OF THE Nu. STAR BKG
Nu. STAR VIEW OF THE BULLET WIK+14
Nu. STAR VIEW OF THE BULLET WIK+14
Nu. STAR VIEW OF THE BULLET: IC DETECTION NO
COMA CENTER OBSERVATION 3 -10 ke. V 10 -20 ke. V GASTALDELLO+15
COMA NUSTAR SPECTRAL ANALYSIS
COMA TEMPERATURE MAP GASTALDELLO+15
COMA TEMPERATURE MAP GASTALDELLO+15
COMA THERMODYNAMIC MAPS “Entropy” = T/EM 1/3 “Pressure”=T EM 1/2 GASTALDELLO+15
CONSTRAINTS ON IC 90% upper limit no more stringent than recent results with non-imaging instruments. Mosaic more useful than central bright pointing
GHOST RAYS Ratio of fluxes Nu. STAR/pn. In black individual points, in red weighted average of sets of 6 region. A trend with distance from the optical axis is evident
GHOST RAYS Same plot as for Nu. STAR/pn but now for Nu. STAR/CXO The same trend is present
COMA MOSAIC N. J. Westergaard
COMA MOSAIC Dan WIK
COMA RAY TRACING SIMLATIONS N. J. Westergaard
COMING NEXT: A 523 Giovannini+11
COMING NEXT: A 523
Multiwavelength view of Abell 523. M. Girardi et al. MNRAS 2016; 456: 2829 -2847 © 2015 The Authors Published by Oxford University Press on behalf of the Royal Astronomical Society

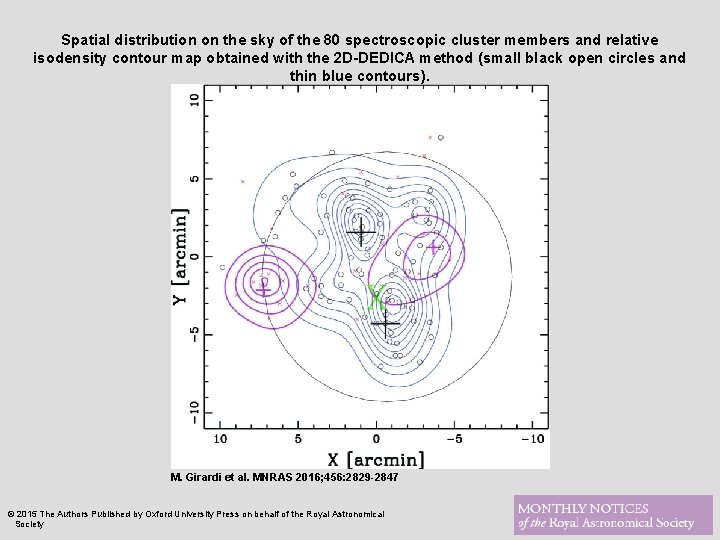

Spatial distribution on the sky of the 80 spectroscopic cluster members and relative isodensity contour map obtained with the 2 D-DEDICA method (small black open circles and thin blue contours). M. Girardi et al. MNRAS 2016; 456: 2829 -2847 © 2015 The Authors Published by Oxford University Press on behalf of the Royal Astronomical Society
Left panel: the azimuthally averaged brightness profile of the radio halo emission in A 523. M. Girardi et al. MNRAS 2016; 456: 2829 -2847 © 2015 The Authors Published by Oxford University Press on behalf of the Royal Astronomical Society
Chandra image in the 0. 5– 7 ke. V energy band smoothed on a 10 arcsec scale. M. Girardi et al. MNRAS 2016; 456: 2829 -2847 © 2015 The Authors Published by Oxford University Press on behalf of the Royal Astronomical Society
Temperature map (ke. V) showing that the northern cluster region is characterized by a higher temperature than the central and southern regions. M. Girardi et al. MNRAS 2016; 456: 2829 -2847 © 2015 The Authors Published by Oxford University Press on behalf of the Royal Astronomical Society
M. Girardi et al. MNRAS 2016; 456: 2829 -2847 © 2015 The Authors Published by Oxford University Press on behalf of the Royal Astronomical Society
Total halo radio power at 1. 4 GHz versus cluster X-ray luminosity in the 0. 1– 2. 4 ke. V band. M. Girardi et al. MNRAS 2016; 456: 2829 -2847 © 2015 The Authors Published by Oxford University Press on behalf of the Royal Astronomical Society

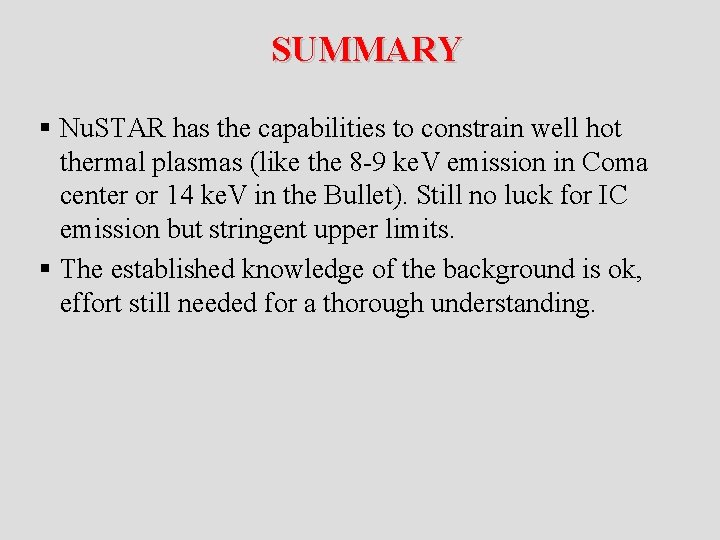

SUMMARY § Nu. STAR has the capabilities to constrain well hot thermal plasmas (like the 8 -9 ke. V emission in Coma center or 14 ke. V in the Bullet). Still no luck for IC emission but stringent upper limits. § The established knowledge of the background is ok, effort still needed for a thorough understanding.
