Background (Why? ) • Operating envelope of NSTX_CSU significantly greater than that of NSTX • Expansion is due to increased magnetic field strength (coil currents), changes to device geometry, new coils systems, increased pulse length, and new operating scenarios • New operating scenarios can result in forces, temperatures, and stresses to both the coils and mechanical structures that significantly exceed NSTX design limits • Access to full operating space would result in compromised structural integrity and in some cases could cause catastrophic failure • Mechanical solution alone is not feasible (complicated design, cost, schedule, and flexibility) and separate systems and limits can result in severe operating space limitations (e. g. , NSTX PF 4 -PF 5 simultaneous operation) • Project is determining critical set of values (forces, stresses, temperatures, combinations) that combined with their derivatives define the machine “state” with respect to machine integrity NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 2
Progress • Starting Final Design (delayed project start to ensure total scope defined) • Successful CDR 3/2011 – all chits resolved • Reached out to other installations (C-Mod and DIII-D) to “see what others are doing” • Preliminary system design (with drawings) complete • List of protection variables (some algorithms) from analysts • Recently completed PDR with external reviewer (W. Burke – C-Mod) • Work started on Systems Code • Commencing PDR chit resolution and Final Design – FDR in 2012 NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 3
Requirements • DCPS ↔ real-time machine integrity determination and protection utilizing fast programmable digital system • Protection is in “real-time” • The “state” (protection values and their derivatives) is continuously calculated on high-speed digital computer system and compared to predefined limits (like the current NSTX ISTP-001) • Algorithms will provide both instantaneous protection but also protect in a “first derivative” sense • Will not allow successive “full power” plasma attempts at a rate that exceeds the basic duty cycle of the NSTX_CSU (5 s / 1200 s = 0. 4 %) • Basic calculation interval similar to power supply response time (O(ms)) or less NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 4
Requirements • DCPS operation will be fail safe. It will be impossible to run the machine with the DCPS either faulted or in a powered off state • Protection will be effected via interface to existing Level 1 fault system • Any fault or failure on any DCPS unit will be considered genuine and cause a Level 1 fault • The DCPS will be a “standalone” system with respect to the laboratory network (security) • Where reasonable, “off the shelf” industry standard components will be used • Hardware and software design to allow for future expansion NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 5
Benefits • Easy reconfiguration – the DCPS algorithms and interlock limits can be easily changed in response to changing experimental requirements or changes in the state of the protected hardware • The DCPS is capable of monitoring and interlocking a set intersecting/competing objectives with both unmatched accuracy and redundancy • Algorithms can be exercised off-line for both post-shot evaluative analysis and for scenario development • The DCPS can provide data to other processes (psc, psrtc, etc. ) that can be used to modify process behavior (future) • New protection algorithms can be easily added to meet future needs NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 6
Benefits • Self-check algorithms can continuously monitor system health • Capable of providing simultaneous protection on multiple timescales (coils-power-supplies control systems, forces, stresses and strains, ans thermal processes) • Cost! NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 7
Schedule & Est. Cost • Final design complete – Summer 2012 • Systems code complete – Summer 2012 • Algorithm documentation complete – Spring 2012 • Real-time programming start – Fall 2013 • Testing – Winter/Spring 2014 • Project Complete: Spring 2014 • Estimated Total Project Cost: ~ $1. 8 M NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 8

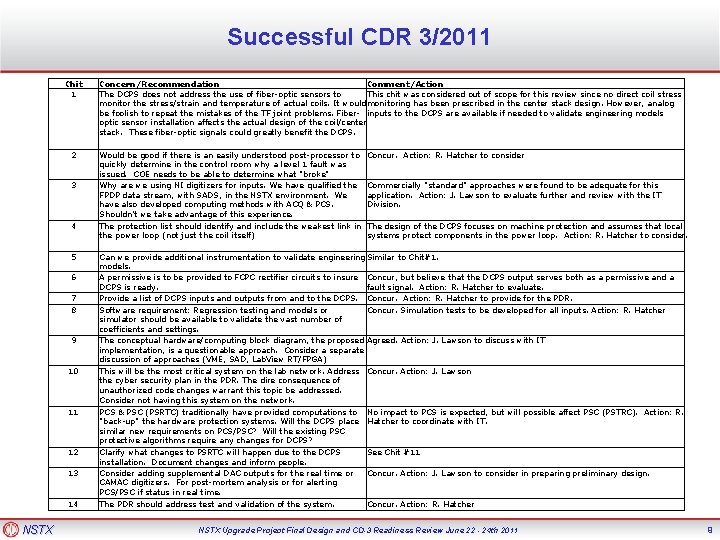

Successful CDR 3/2011 Chit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 NSTX Concern/Recommendation Comment/Action The DCPS does not address the use of fiber-optic sensors to This chit was considered out of scope for this review since no direct coil stress monitor the stress/strain and temperature of actual coils. It would monitoring has been prescribed in the center stack design. However, analog be foolish to repeat the mistakes of the TF joint problems. Fiber- inputs to the DCPS are available if needed to validate engineering models optic sensor installation affects the actual design of the coil/center stack. These fiber-optic signals could greatly benefit the DCPS. Would be good if there is an easily understood post-processor to quickly determine in the control room why a level 1 fault was issued. COE needs to be able to determine what "broke" Why are we using NI digitizers for inputs. We have qualified the FPDP data stream, with SADS, in the NSTX environment. We have also developed computing methods with ACQ & PCS. Shouldn't we take advantage of this experience. The protection list should identify and include the weakest link in the power loop (not just the coil itself) Concur. Action: R. Hatcher to consider Commercially "standard" approaches were found to be adequate for this application. Action: J. Lawson to evaluate further and review with the IT Division. The design of the DCPS focuses on machine protection and assumes that local systems protect components in the power loop. Action: R. Hatcher to consider. Can we provide additional instrumentation to validate engineering Similar to Chit#1. models. A permissive is to be provided to FCPC rectifier circuits to insure Concur, but believe that the DCPS output serves both as a permissive and a DCPS is ready. fault signal. Action: R. Hatcher to evaluate. Provide a list of DCPS inputs and outputs from and to the DCPS. Concur. Action: R. Hatcher to provide for the PDR. Software requirement: Regression testing and models or simulator should be available to validate the vast number of coefficients and settings. The conceptual hardware/computing block diagram, the proposed implementation, is a questionable approach. Consider a separate discussion of approaches (VME, SAD, Lab. View RT/FPGA) This will be the most critical system on the lab network. Address the cyber security plan in the PDR. The dire consequence of unauthorized code changes warrant this topic be addressed. Consider not having this system on the network. PCS & PSC (PSRTC) traditionally have provided computations to "back-up" the hardware protection systems. Will the DCPS place similar new requirements on PCS/PSC? Will the existing PSC protective algorithms require any changes for DCPS? Clarify what changes to PSRTC will happen due to the DCPS installation. Document changes and inform people. Consider adding supplemental DAC outputs for the real time or CAMAC digitizers. For post-mortem analysis or for alerting PCS/PSC if status in real time. The PDR should address test and validation of the system. Concur. Simulation tests to be developed for all inputs. Action: R. Hatcher Agreed. Action: J. Lawson to discuss with IT Concur. Action: J. Lawson No impact to PCS is expected, but will possible affect PSC (PSTRC). Action: R. Hatcher to coordinate with IT. See Chit #11 Concur. Action: J. Lawson to consider in preparing preliminary design. Concur. Action: R. Hatcher NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 9
Successful PDR 6/2011 Chit Concern/Recommendation • Preliminary design review generated 8 chits that will be considered and resolved during the next phase, Final Design NSTX Comment/Action 1 Develop strategy for relationship between PSRTC Concur. Strategies need to be developed, and are and DCPS considering two aspects: 1) Simulation expected to evolve as the DCPS design matures. Action R. of proposed shots for pre-shot planning, and 2) Hatcher PSRTC features to be retained, added, or deleted. 2 Have PSRTC have a "with" an "without" DCPS mode. 3 Develop strategy for relationship between water Concur. Action: R. Hatcher. system PLC and DCPS. Determine which failure modes should be detedcted by each, and determine which water systems signals are needed for DCPS, striving to avoid introduction of a large number of analog I/O. 4 Develop several scenarios for the upgrade using Other. The committee agreed that this would be useful, but upgrade geometry, currents, fields, etc for that it is out of scope for current DCPS requirements and algorithm testing design. Consider developing time-dependent scenarios. Action: R. Hatcher 5 Consider some peer reviews regarding software Concur. Action: R. Woolley/R. Hatcher structure to bring in the C-language optimization considerations into the design. 6 When looking at he "time to next shot"delay, have option to use coil currents from previous shot to determine the envelope of coil currents (maybe with a 10% increment/) Concur. 7 Fatigue calculations should be done elewhere since they are not real-time Action: R. Hatcher to make determination for the final design. 8 DCPS requirements document to be signed off prior to the FDR. Concur. Action: R. Hatcher Concur. Similar to Chit #1. Action: R. Hatcher to consider Action: R. Hatcher NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 10
Design • The DCPS will use redundancy, to the greatest extent possible, to increase reliability • Software will be written in modern, structured programming language • Software to include data archive and restore functionality • Fault causing self-check features will used in both hardware and software • A DCPS “post-processor” will be included to assist the operators in determining the cause of a fault • A software test suite will be used to validate DCPS functionality (e. g. , regression testing after changes) • Located indoors within a climate controlled environment (FCPC junction area) with a maximum temperature of 24 ºC • NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 11
Protection List • • • • NSTX PF coil supports Bus Bar stresses Outer leg insulation bond shear PF 2 bracket and bolt stress PF 3 bracket and weld stress Torques and stresses lid and spoke assembly (upper & lower) Vacuum vessel leg torque TF outer leg torque Axial forces on PF coils (single and combination) PF Coil moments (torque) Dome and PF rib stresses Coil thermal stresses Lid torque • • • Leg and brace Hilti’s™ (loads and moments) Knuckle clevis loads Ring loads and moments TF teeth torque TF joint bolts stresses Umbrella structure reinforcement (stress) OOP TF torque TF joint (forces, torques) TF coil torsional shear stress OH fatigue (long term) TF shear forces between TF turns, insulation, and insulating crown Coil temperatures (i 2 t heating) NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 12

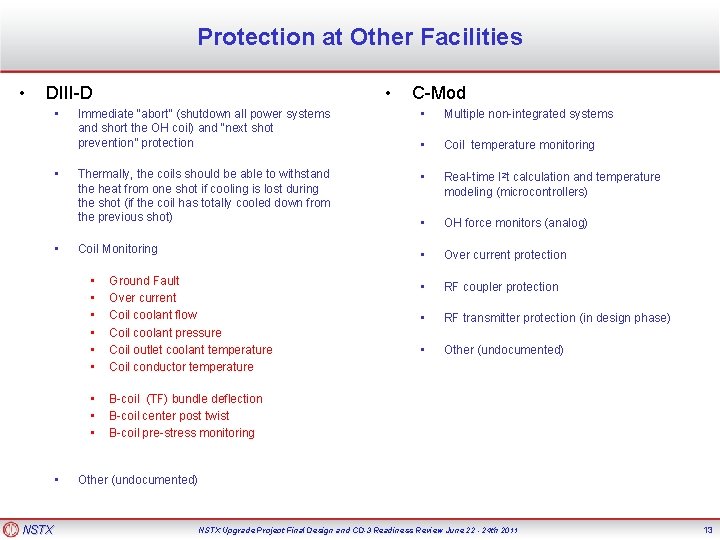

Protection at Other Facilities • • DIII-D • • NSTX C-Mod Immediate “abort” (shutdown all power systems and short the OH coil) and “next shot prevention” protection • Multiple non-integrated systems • Coil temperature monitoring Thermally, the coils should be able to withstand the heat from one shot if cooling is lost during the shot (if the coil has totally cooled down from the previous shot) • Real-time I 2 t calculation and temperature modeling (microcontrollers) • OH force monitors (analog) Coil Monitoring • Over current protection • RF coupler protection • RF transmitter protection (in design phase) • Other (undocumented) • • • Ground Fault Over current Coil coolant flow Coil coolant pressure Coil outlet coolant temperature Coil conductor temperature • • • B-coil (TF) bundle deflection B-coil center post twist B-coil pre-stress monitoring Other (undocumented) NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 13
Functional Description • The set of limiting values and their derivatives (state) define a “safe operating area” for the device. To ensure the integrity of the NSTX CSU mechanical structures the DCPS will : 1. Determine if any protection variable value exceeds the operating limit 2. Determine if a power supply fault would result in conditions causing DCPS fault 3. Determine if (given power supply response, present trajectory, etc. ) any DCPS limit would be breached prior to next calculation time 4. Predict a future time when it would be possible to attempt a plasma shot with a specified set of coil current envelopes 5. Determine a set of coil current envelopes allowable for a plasma attempt “right now 6. Compute and archive other quantities that over time can affect machine integrity because of fatigue 7. Evaluate acceptability of potential operating scenarios (static and transient) for a given DCPS configuration NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 14
Present (preliminary) Design There will be two identical DCPS units. Each unit will support 64 analog and up to 96 digital I/O channels INPUTS – Analog signals – all PF and TF currents, primary coil coolant flow rate, coolant t temperature, main cooling system pressure – Digital signals – status bits from other systems – All inputs will have over/under-voltage protection – All inputs will be electrically isolated from the DCPS (e. g. , optically coupled) – Digital Inputs: 5 V (TTL) or 24 V (high noise immunity) – Analog Inputs: ± 10 V – Reset Input: digital input (local pushbutton or remote electrical signal – FAULT HAS PRECEDENCE NSTX 4 k. Hz anti-aliasing filter cable fault detection NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 15
Present (preliminary) Design Outputs – – Faults – One latched fault output signal per DCPS unit Additional planned outputs for system monitoring Data output (via gateway computer) to control room Outputs will utilize optical isolation to the outside world Protection interlock level breached or projected to be breached prior to the next DCPS calculation time – The combination of coil currents and temperatures are such that a power supply fault would move the system to a state corresponding to a DCPS faulted state – Internal DCPS system integrity routines determine that there is a problem with the input data – Internal DCPS self-check routines determine that program or internal data structures are corrupted – Internal or External watchdog timer failure NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 16
Block Diagram with DCPS PSRTC PCS FCPC Analog Data In Digital Data In S i g n a l C o n d i t i o n i n g DCPS #1 DCPS #2 Level 1 FLT DCPS NSTX CSU NSTX Plasma Diagnostics NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 17

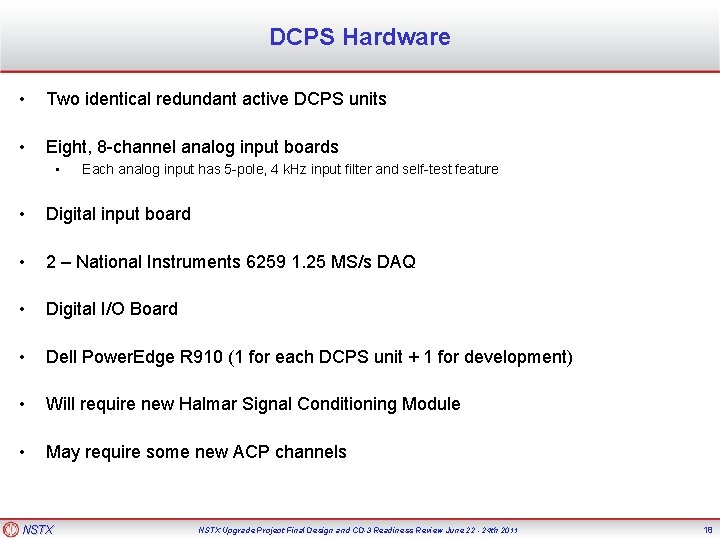

DCPS Hardware • Two identical redundant active DCPS units • Eight, 8 -channel analog input boards • Each analog input has 5 -pole, 4 k. Hz input filter and self-test feature • Digital input board • 2 – National Instruments 6259 1. 25 MS/s DAQ • Digital I/O Board • Dell Power. Edge R 910 (1 for each DCPS unit + 1 for development) • Will require new Halmar Signal Conditioning Module • May require some new ACP channels NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 18
Systems Code • Initial version will be written in Matlab™ and will be used to develop and test individual protection algorithms and integrated operation • Algorithms will be tested with NSTX operations scenarios using a reduced and scaled set of protection interlock values • Genesis of the eventual real-time DCPS code • Will be used as a test-bed for both algorithm and scenario development for NSTX_CSU NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 19
Example – Axial Force Calculation • Combinations PF coils currents and resulting magnetic fields can result in excessive axial forces • F = ∫∫ 2π r J x B dr dz • Loop over pairs of coil elements and compute force in each (Opera) • Subtract out self force term due to Bi from ∫∫ 2π ri Ji x (Bi + Bj) dr dz • Create matrix of Fij • Generate contracted matrix by combining multielement coil forces NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 20
Example – Axial Force Calculation PF 1 a. U PF 1 b. U PF 1 c. U PF 2 U PF 3 U PF 4 U PF 5 L PF 4 L PF 3 L PF 2 L PF 1 c. L PF 1 b. L PF 1 a. L OH Pl Axial force influence matrix. Influence coefficients are the force [lbf] due to 1 k. A in each coil as shown in the row and column of the matrix Each coil force can be represented as a summation quadratic in the current Painful to code and check and not easy to augment In the DCPS code this will be represented by a matrix multiplication Multiplication of matrices is an optimized operation (language feature or optimized library). Also, combo forces can be easily computed via matrix computation of the force vector multiplied by a matrix consisting of signed ones NSTX PF 1 a. U PF 1 b. U PF 1 c. U PF 2 U PF 3 U PF 4 U PF 5 L PF 4 L PF 3 L PF 2 L PF 1 c. L PF 1 b. L PF 1 a. L OH Pl 0. 0 552. 0 171. 1 111. 7 0. 2 -13. 2 -15. 3 -8. 1 -4. 7 -3. 5 -1. 0 -0. 4 -0. 3 -0. 6 -154. 1 -1. 0 -552. 0 0. 0 19. 8 50. 7 -13. 9 -10. 5 -11. 5 -5. 1 -2. 9 -2. 2 -0. 6 -0. 2 -0. 3 -194. 2 -0. 6 -171. 1 -19. 8 0. 0 96. 5 -19. 4 -12. 8 -13. 8 -6. 0 -3. 3 -2. 5 -0. 7 -0. 3 -0. 2 -0. 4 -129. 7 -0. 6 -111. 7 -50. 7 -96. 5 0. 0 -99. 3 -39. 0 -41. 0 -16. 1 -8. 8 -6. 5 -1. 7 -0. 6 -1. 0 -171. 8 -1. 3 -0. 2 13. 9 19. 4 99. 3 0. 0 -225. 4 -212. 0 -66. 8 -35. 6 -25. 9 -6. 5 -2. 2 -3. 5 -86. 5 -2. 7 13. 2 10. 5 12. 8 39. 0 225. 4 0. 0 -490. 5 -99. 9 -51. 8 -35. 6 -8. 8 -3. 3 -2. 9 -4. 7 -20. 8 -1. 5 15. 3 11. 5 13. 8 41. 0 212. 0 490. 5 0. 0 -204. 1 -99. 9 -66. 8 -16. 1 -6. 0 -5. 1 -8. 1 -19. 8 -1. 4 8. 1 5. 1 6. 0 16. 1 66. 8 99. 9 204. 1 0. 0 -490. 5 -212. 0 -41. 0 -13. 8 -11. 5 -15. 3 19. 8 1. 4 4. 7 2. 9 3. 3 8. 8 35. 6 51. 8 99. 9 490. 5 0. 0 -225. 4 -39. 0 -12. 8 -10. 5 -13. 2 20. 8 1. 5 3. 5 2. 2 2. 5 6. 5 25. 9 35. 6 66. 8 212. 0 225. 4 0. 0 -99. 3 -19. 4 -13. 9 0. 2 86. 5 2. 7 1. 0 0. 6 0. 7 1. 7 6. 5 8. 8 16. 1 41. 0 39. 0 99. 3 0. 0 96. 5 50. 7 111. 7 171. 8 1. 3 0. 4 0. 2 0. 3 0. 7 2. 5 3. 3 6. 0 13. 8 12. 8 19. 4 -96. 5 0. 0 19. 8 171. 1 129. 7 0. 6 0. 3 0. 2 0. 6 2. 2 2. 9 5. 1 11. 5 10. 5 13. 9 -50. 7 -19. 8 0. 0 552. 0 194. 2 0. 6 0. 3 0. 4 1. 0 3. 5 4. 7 8. 1 15. 3 13. 2 -0. 2 -111. 7 -171. 1 -552. 0 0. 0 154. 1 194. 2 129. 7 171. 8 86. 5 20. 8 19. 8 -20. 8 -86. 5 -171. 8 -129. 7 -194. 2 -154. 1 0. 0 1. 0 0. 6 1. 3 2. 7 1. 5 1. 4 -1. 5 -2. 7 -1. 3 -0. 6 -1. 0 0. 0 You would need a row in the matrix with 1’s in the positions corresponding the coils listed and 0’s in all other locations NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 21
System Testing • Systems code algorithm testing during upcoming NSTX run • Initial software tests comparing real-time software and systems code output • Code timing tests and code optimization with a second set of output comparison tests • Hardware testing • I/O, system latency, and system self-protection algorithm tests • Pre-operational tests to verify all algorithms using multiple scenarios with known outputs (can be used for future regression testing) • Integrated systems tests at reduced (e. g. , 25 %) fault levels NSTX Upgrade Project Final Design and CD-3 Readiness Review June 22 - 24 th 2011 22
