NPOESS Program Update Benjie Spencer Systems Engineering Division

NPOESS Program Update Benjie Spencer Systems Engineering Division 31 March 2008

Program Overview Mission • National, operational, polar-orbiting environmental monitoring capability • Converges Do. D & NOAA weather satellite programs • Incorporates new technology from NASA programs • International cooperation with European Metop satellite Benefits • Critical input to weather forecast models – NPOESS will improve accuracy and expedite data products • Greatly improved direct broadcast data to users worldwide • Science-quality data to all users – including research scientists and continuity of climate data records METOP NPOESS NPP/NPOESS 1730 1330 2130 Local Equatorial Crossing Time

Meeting Operational Needs Imagery Soil moisture Sea surface winds and temperature Six Key Performance Parameters Plus Atmospheric temperature and moisture & climate data

Advanced Cloud Imagery Improves Interpretation Current Cloud Imagery NPOESS Cloud Imagery Microwave Smoke Plume True Color Precip NRL Process Dust Fronts Black & White Visible True Color NO Winds Tough Problems Solved

NPOESS Provides Higher Spatial Resolution Tenerife Island Canary Islands February 19, 2004 POES – 1. 1 km POES: 11: 22 GMT(NOAA – 17) NPOESS: 14: 05 GMT (Simulated from Aqua MODIS) NPOESS – 400 m

Current Program Status • Performance on NPOESS Engineering, Manufacturing & Development program – System design meets requirements for improvements in data delivery for current and accurate weather forecasting – On track to deliver essential weather measurements and 14 of 26 essential climate variables – System capacity to accommodate de-manifested sensors and other sensors to provide additional monitoring • Currently re-manifesting OMPS-Limb and CERES on NPP • NPOESS sensors are in final testing for delivery for NPOESS Preparatory Project (NPP) launch – June 2010 in 1330 LTAN • NPOESS is on track for Jan 2013 launch of C 1 spacecraft

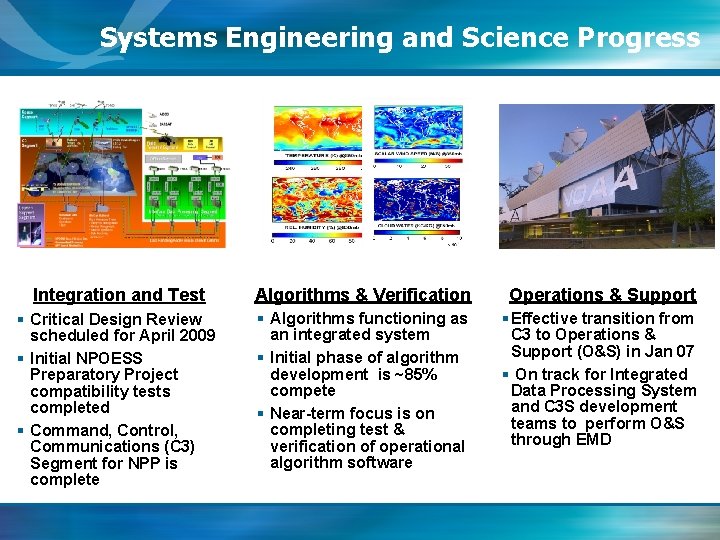

Systems Engineering and Science Progress Integration and Test Algorithms & Verification Operations & Support § Critical Design Review scheduled for April 2009 § Initial NPOESS Preparatory Project compatibility tests completed § Command, Control, Communications (C 3) Segment for NPP is complete § Algorithms functioning as an integrated system § Initial phase of algorithm development is ~85% compete § Near-term focus is on completing test & verification of operational algorithm software § Effective transition from C 3 to Operations & Support (O&S) in Jan 07 § On track for Integrated Data Processing System and C 3 S development teams to perform O&S through EMD

NPOESS Spacecraft Command Data Handling Attitude Control Power Electronics RF Comm Space Segment development on schedule for C 1 launch in 2013

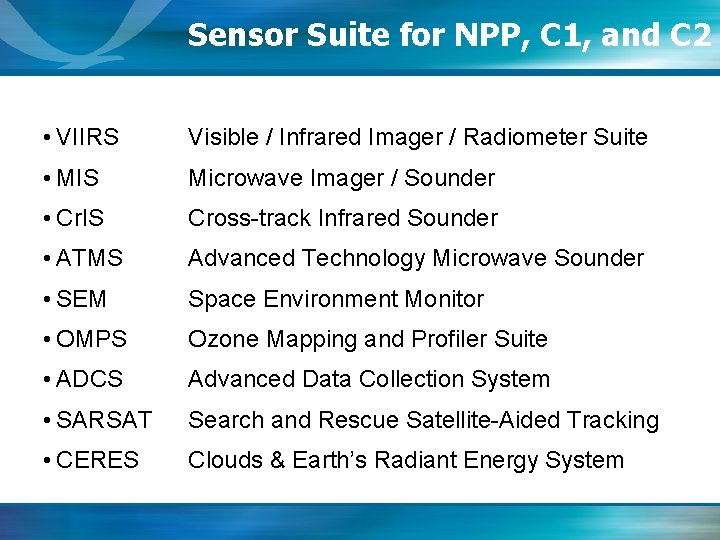

Sensor Suite for NPP, C 1, and C 2 • VIIRS Visible / Infrared Imager / Radiometer Suite • MIS Microwave Imager / Sounder • Cr. IS Cross-track Infrared Sounder • ATMS Advanced Technology Microwave Sounder • SEM Space Environment Monitor • OMPS Ozone Mapping and Profiler Suite • ADCS Advanced Data Collection System • SARSAT Search and Rescue Satellite-Aided Tracking • CERES Clouds & Earth’s Radiant Energy System

Sensor Suite for NPP, C 1, and C 2 Environmental Sensors developed through EMD contract VIIRS OMPS Cr. IS GPS (3) (2) Government Furnished Sensors separately developed ATMS CERES MIS SEM ADCS SARSAT TED DPU (2) (1) MEPED (2) (2)

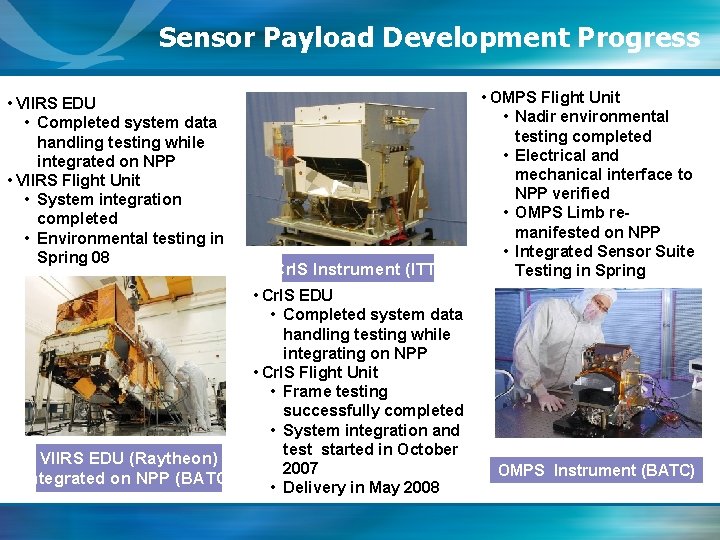

Sensor Payload Development Progress • VIIRS EDU • Completed system data handling testing while integrated on NPP • VIIRS Flight Unit • System integration completed • Environmental testing in Spring 08 VIIRS EDU (Raytheon) integrated on NPP (BATC) Cr. IS Instrument (ITT) • Cr. IS EDU • Completed system data handling testing while integrating on NPP • Cr. IS Flight Unit • Frame testing successfully completed • System integration and test started in October 2007 • Delivery in May 2008 • OMPS Flight Unit • Nadir environmental testing completed • Electrical and mechanical interface to NPP verified • OMPS Limb remanifested on NPP • Integrated Sensor Suite Testing in Spring OMPS Instrument (BATC)

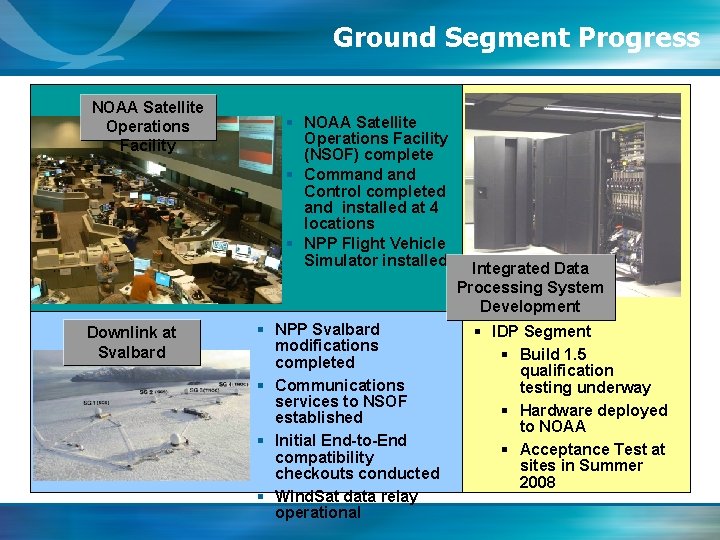

Ground Segment Progress NOAA Satellite Operations Facility Downlink at Svalbard § NOAA Satellite Operations Facility (NSOF) complete § Command Control completed and installed at 4 locations § NPP Flight Vehicle Simulator installed § NPP Svalbard modifications completed § Communications services to NSOF established § Initial End-to-End compatibility checkouts conducted § Wind. Sat data relay operational Integrated Data Processing System Development § IDP Segment § Build 1. 5 qualification testing underway § Hardware deployed to NOAA § Acceptance Test at sites in Summer 2008

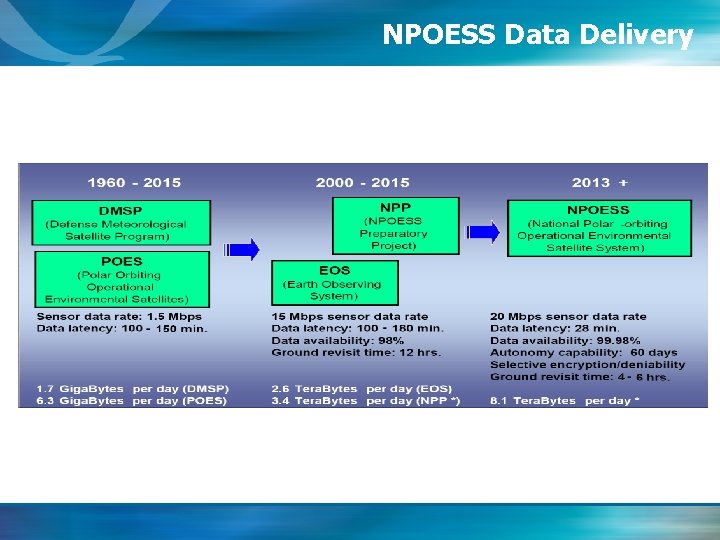

NPOESS Data Delivery

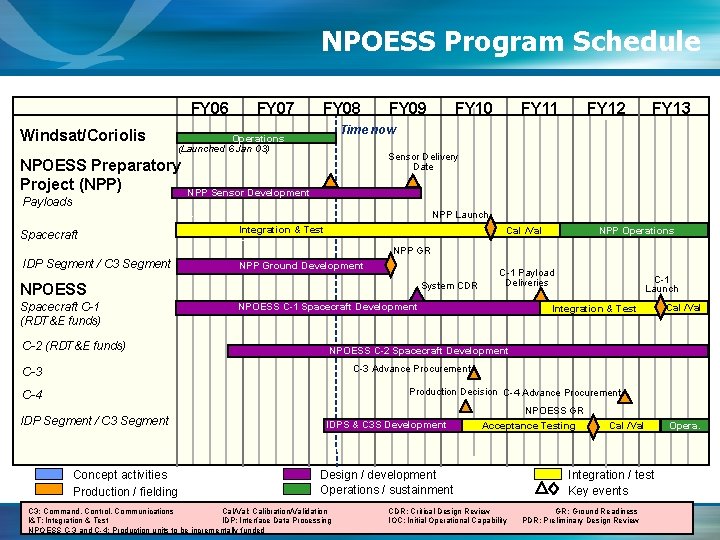

NPOESS Program Schedule FY 06 Windsat/Coriolis FY 07 FY 08 Payloads FY 11 FY 12 FY 13 Sensor Delivery Date NPP Sensor Development A Spacecraft FY 10 Time now Operations (Launched 6 Jan 03) NPOESS Preparatory Project (NPP) FY 09 A B NPP Launch Integration & Test B Cal /Val NPP Operations NPP GR IDP Segment / C 3 Segment NPP Ground Development System CDR NPOESS Spacecraft C-1 (RDT&E funds) C-2 (RDT&E funds) C-1 Payload Deliveries NPOESS C-1 Spacecraft Development C-1 Launch Integration & Test Cal /Val NPOESS C-2 Spacecraft Development C-3 Advance Procurement C-3 Production Decision C-4 Advance Procurement C-4 IDP Segment / C 3 Segment Concept activities Production / fielding IDPS & C 3 S Development NPOESS GR Acceptance Testing Design / development Operations / sustainment C 3: Command, Control, Communications Cal/Val: Calibration/Validation I&T: Integration & Test IDP: Interface Data Processing NPOESS C-3 and C-4: Production units to be incrementally funded CDR: Critical Design Review IOC: Initial Operational Capability Cal /Val Integration / test Key events GR: Ground Readiness PDR: Preliminary Design Review Opera.

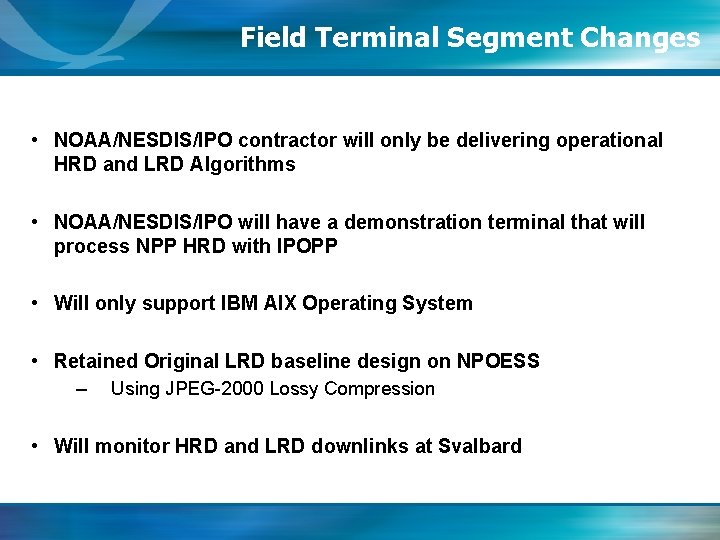

Field Terminal Segment Changes • NOAA/NESDIS/IPO contractor will only be delivering operational HRD and LRD Algorithms • NOAA/NESDIS/IPO will have a demonstration terminal that will process NPP HRD with IPOPP • Will only support IBM AIX Operating System • Retained Original LRD baseline design on NPOESS – Using JPEG-2000 Lossy Compression • Will monitor HRD and LRD downlinks at Svalbard

Field Terminal Segment - What Changed? Legend Satellite Down Link Field Terminal Data Flow Optional FT Data Flow NPOESS / NPP Satellites Mission and Ancillary Data (HRD/LRD Downlink) NGST Developed Removed NOAA TOC Satellite-SPE Interface Mission Support Data Server (C 3 S) Mission Status Data FT Interfaces • Ancillary Data (NCEP-GFS, FNMOC-NOGAPS, NISE) • Auxiliary Data • TLE FT-MSDS Interface (Optional) Satellite SPE Interface External-Data Source FT - TOC Interface (Optional) Field Terminal Segment Data Processor Element (DPE) Signal Processing Element (SPE) • Antenna / RF Processing • GPS and Timing • Satellite Scheduler • CCSDS Processing FT Operator - Mission Data - Mission Support Data - Satellite Pass Storage - TLE Extraction • Decryption (optional) Optional FT Interfaces SPE-DPE Interface Streaming APs • DPE Hardware - Processing - Storage > Mission Data FT Operator > Mission Support Data > Static Data • DPE Software - ING, PRO, INF, DMS, DDS Mission Application Element (MAE) DPE-MAE Interface • User-defined HDF Product Display FT Operator or User Product requests & HDF files

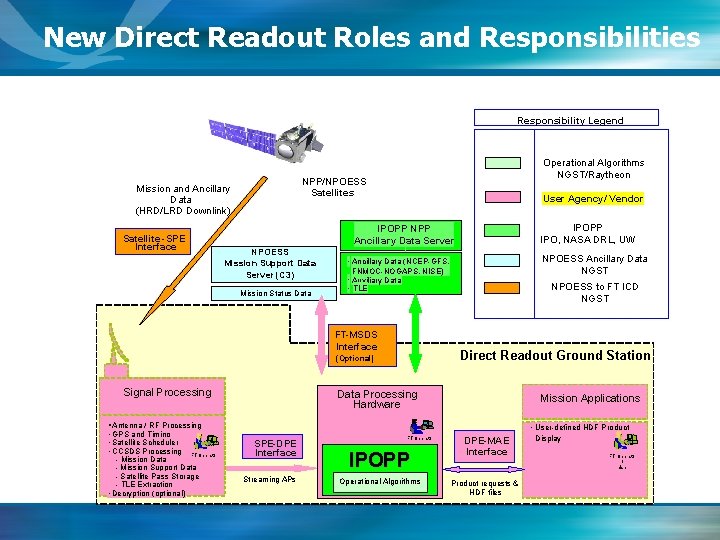

New Direct Readout Roles and Responsibilities Responsibility Legend NPP/NPOESS Satellites Mission and Ancillary Data (HRD/LRD Downlink) Satellite -SPE Interface Operational Algorithms NGST/Raytheon User Agency/ Vendor NPOESS Mission Support Data Server (C 3) Mission Status Data NPOESS to FT ICD NGST Direct Readout Ground Station (Optional) Signal Processing NPOESS Ancillary Data NGST • Ancillary Data (NCEP-GFS, FNMOC-NOGAPS, NISE) • Auxiliary Data • TLE FT-MSDS Interface • Antenna / RF Processing • GPS and Timing • Satellite Scheduler • CCSDS Processing FT Operator - Mission Data - Mission Support Data - Satellite Pass Storage - TLE Extraction • Decryption (optional) IPOPP IPO, NASA DRL, UW IPOPP NPP Ancillary Data Server Data Processing Hardware SPE-DPE Interface Streaming APs FT Operator IPOPP • Operational Algorithms Mission Applications DPE-MAE Interface Product requests & HDF files • User-defined HDF Product Display FT Operator or User

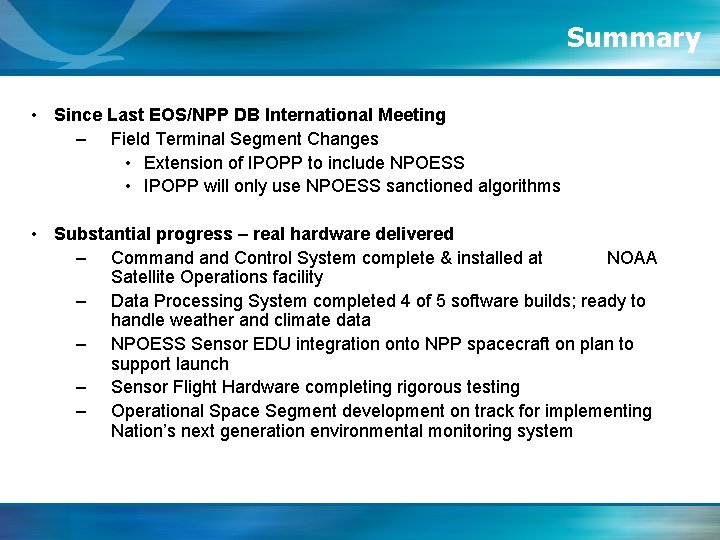

Summary • Since Last EOS/NPP DB International Meeting – Field Terminal Segment Changes • Extension of IPOPP to include NPOESS • IPOPP will only use NPOESS sanctioned algorithms • Substantial progress – real hardware delivered – Command Control System complete & installed at NOAA Satellite Operations facility – Data Processing System completed 4 of 5 software builds; ready to handle weather and climate data – NPOESS Sensor EDU integration onto NPP spacecraft on plan to support launch – Sensor Flight Hardware completing rigorous testing – Operational Space Segment development on track for implementing Nation’s next generation environmental monitoring system
