November, 2004 <month year> doc. : IEEE 802. 15 -<doc#> Project: IEEE P 802. 15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Application of 60 GHz WPAN] Date Submitted: [16 November, 2004] Source: [Keiichi Ohata] Company [NEC Corporation] Address [2 -9 -1 Seiran, Otsu, Shiga 520 -0833, Japan] Voice: [+81 -77 -537 -7683], FAX: [+81 -77 -537 -7689], E-Mail: [k-ohata@ab. jp. nec. com] Re: [] Abstract: [Ultra Fast Up- and Down-loading over Wireless Gigabit Ethernet ] Purpose: [Contribution for millimeter-wave study group ] Notice: This document has been prepared to assist the IEEE P 802. 15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P 802. 15. Submission 1 <author>, <company> Keiichi Ohata、 NEC

November, 2004 <month year> doc. : IEEE 802. 15 -<doc#> Application of 60 GHz WPAN Ultra Fast Up- and Down-loading over Wireless Gigabit Ethernet Keiichi Ohata NEC Corporation Submission 2 2 Slide <author>, <company> Keiichi Ohata、 NEC

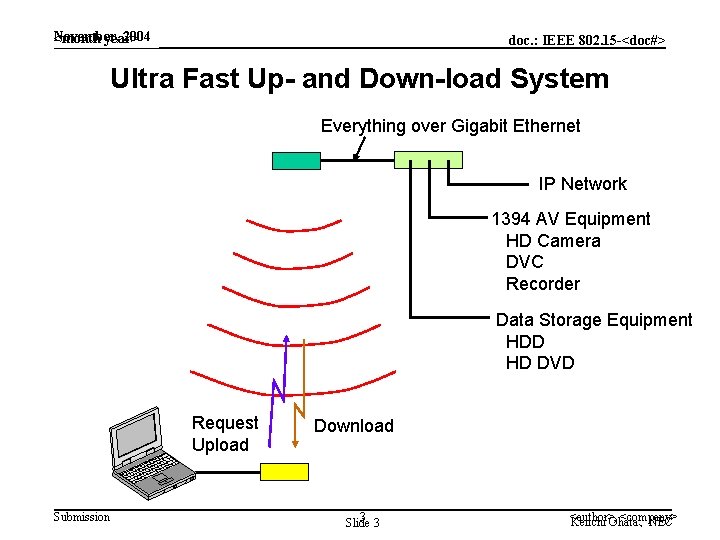

November, 2004 <month year> doc. : IEEE 802. 15 -<doc#> Ultra Fast Up- and Down-load System Everything over Gigabit Ethernet IP Network 1394 AV Equipment HD Camera DVC Recorder Data Storage Equipment HDD HD DVD Request Upload Submission Download 3 3 Slide <author>, <company> Keiichi Ohata、 NEC

November, 2004 <month year> doc. : IEEE 802. 15 -<doc#> 1000 Base-T Wireless Gigabit Ethernet Converting Gigabit Ethernet to Wireless Link Seamlessly 1. 25 Gbps Duplex Link Data I/O : 1000 Base-T (RJ 45 Connector) Alignment Free Using Wide Beam Antenna Submission 4 4 Slide <author>, <company> Keiichi Ohata、 NEC

November, 2004 <month year> doc. : IEEE 802. 15 -<doc#> Example of Error Free Transmission Area Distance from Center Axis (m) ・Oval-Shaped Beam Antenna 3 d. B Beam Width : 45 (Azimuth), 20 (Elevation) Gain~14 d. Bi DH=2 m Distance from Center Axis (m) Submission 5 5 Slide <author>, <company> Keiichi Ohata、 NEC
