November 2002 New Product Information for Russia Car

November 2002 New Product Information for Russia Car speaker PIONEER EUROPE NV

2002 Autumn new product information Car speaker u u u New Subwoofer lineup Additional Accelerate series u 17/13 cm　Separate speaker system u 6 x 9 5 way, 4 way & 2 way New High grade custom-fit series New Custom-fit separate speaker system Preview…New center speaker

Unit Subwoofers

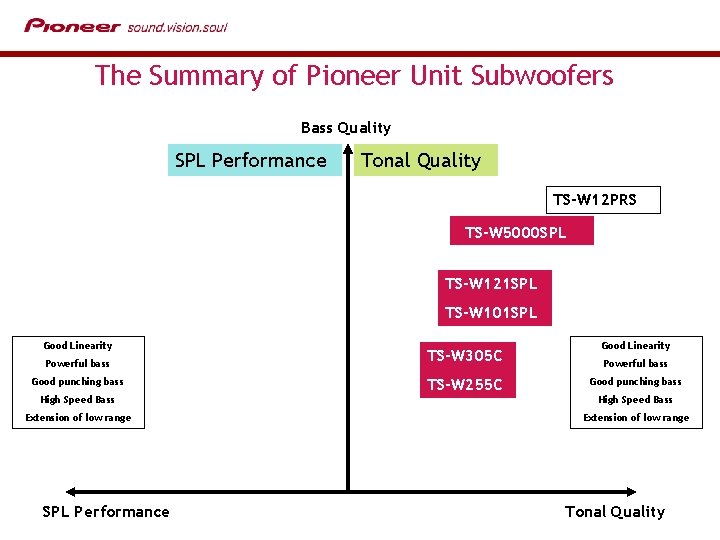

The Summary of Pioneer Unit Subwoofers Bass Quality SPL Performance Tonal Quality TS-W 12 PRS TS-W 5000 SPL TS-W 121 SPL TS-W 101 SPL Good Linearity TS-W 1001 DVC/C Powerful bass Good punching bass High Speed Bass Extension of low range TS-W 1201 DVC/C Good Linearity Powerful bass Good punching bass TS-W 305 C High Speed Bass TS-W 255 C Extension of low range TS-W 304 C TS-W 254 C SPL Performance Tonal Quality

The Summary of Pioneer Unit Subwoofers Bass Quality SPL Performance Tonal Quality TS-W 12 PRS TS-W 5000 SPL　 TS-W 121 SPL TS-W 101 SPL TS-W 1201 DVC/C Good Linearity TS-W 1001 DVC/C TS-W 305 C Powerful bass Good punching bass High Speed Bass Extension of low range TS-W 305 C TS-W 255 C Good Linearity Powerful bass Good punching bass High Speed Bass TS-W 255 C Extension of low range TS-W 304 C TS-W 254 C SPL Performance Tonal Quality

Concept of new subwoofers TS-W 5000 SPL　　 u Competition Class High Quality SPL subwoofers DVC MODELS Key features run through ・Flag-ship SPL driver for professional use Challenge to win the World record (2002 d. B Drag Racing World Final : Extreme 13+ 177. 6 d. B) Generate fresh impact to the Subwoofer market by Pioneer 　　・In order to achieve target performance, minimize the various loss as less as possible. →Excellent response for bass sound 　 Downsized u TS-W 121 SPL, W 101 SPL 　　・Downsized Version from COMP. SPL SW. ・More affordable SPL SW to aim more business 　　・High quality SW with wider use/application (Not only for Competition Use, but also for conventional use) High SPL capability for SPL Competition Solid bass with Punch, Power, Extension bass Sound u TS-W 305 C, W 255 C　　　　　 　　・Good performance SW in affordable price range 　　・ Succeed to essential technologies of upper models ・Much improved bass performance when played in big sound volume

Lineup u We will attack European subwoofer market by new models!

Technology of TS-W 5000 SPL Necessary for getting High SPL High Power Handling Technology High Power Handling Ceramic Coated Voice coil* 3 -Layer Fibre Woven Radial Rubber Surround * Louder Output Wide roll, Overhung Surround Design Triple stacked Magnets & Thick Plate, High Power Motor Assembly Strengthen Cone Rigidness Interlaced Carbon Fibre Reinforced IMPP Cone* Improved Output Ability and Minimize Energy loss ADMG(Aero Dynamic Magnetic Gap) Design Aluminum Die-Cast Deep Basket with Motor Grip Structure Extended / Vented Pole Yoke Design *: Patent Pending

TS-W 5000 SPL 3 -Layer Fiber Woven Radial Rubber Surround * Green frame: Vibration Parts tech. Orange frame: Magnetic circuit and other tech. Interlaced Carbon Fibre Reinforced IMPP Cone* Wide roll, Overhung Surround Design* Convex, Laminated Carbon Fibre/ Paper Composite Center Cap High Power Handling Ceramic Coated Voice coil* Aluminum Die-Cast Deep Basket with Motor Grip Structure Vented Aluminum Die-Cast Damper Support Triple stacked Magnets & Thick Plate, High Power Motor Assembly ADMG(Aero Dynamic Magnetic Gap) Design Extended / Vented Pole Yoke Design 8 -Gauge Wire Terminal Notice: This is not final sample’s photo. *: Patent Pending

3 Layer Fibre (Aramid-Fibre) Woven Radial Rubber Surround Honeycomb Pattern Aramid-Fibre Woven Cloth Inserted Surround 3 -Layer Fiber Woven Radial Rubber Surround *: The surround is required to precisely control the huge power handling and extended linear excursion. This design eliminates surround puckering at large excursion, resulting in louder, more controlled bass response with improved durability. The honeycomb pattern reinforcing cloth evenly distributes strength throughout the surround material, eliminating any weak points of surround and improving high power capability.

Results of 3 Layer Fibre Woven Radial Surround u Eliminated Surround Puckering A case of regular grade subwoofer It does not become dented. →Moreover it restrains “Rolling”. General Surround becomes dented. →It is bad influence for excursion ※ 3 Layer Fibre Woven Radial surround is adopted all new subwoofers! 3 Layer Fibre Woven Radial Surround Skin Inserted Cloth Skin(The back side of inserted cloth)

Wide roll, Overhung Surround Design: Overhung Surround provides 22% larger cone surface than general cone design to increase SPL.

Interlaced Carbon Fiber Reinforced IMPP Cone Skin Fibre Skin Interlaced Carbon Fiber Reinforced IMPP cone*: To prevent cone failure at high SPL, an extremely rigid yet lightweight cone was required. A new patent-pending IMPP cone using a special blend of Carbon fibers was developed. The long carbon fibres interlace together to form an incredibly resilient fibre weave, providing strength and rigidity for the cone.

High Power Handling Ceramic Coated Voice Coil Wire Primer (Ceramic Compound) Insulation Part (Ceramic Coating) Adhesive Part Cupper Wire The section of Ceramic Coat Voice coil wire High Power Handling Ceramic Coated Voice coil* Ceramic coated wire provides superior heat capability to double the input power handling capability. Ceramic coating insulates the voice coil wire, preventing short circuits due to over heating and dramatically improving reliability. Typical SPL competition subwoofers consistently “Burn” during competition, requiring frequent replacement. The Ceramic Coat Voice Coil virtually eliminates failures during SPL competition.

Aluminum Die-Cast Basket with Motor Grip Structure Deep Basket: Any flex or vibration in the basket structure would reduce the output energy of the woofer. A massive die-cast basket with huge 10 mm thick rigid spokes holds the top & bottom side of motor structure securely, effectively minimizing any undesired output loss and prevents resonance.

Triple stacked High Power Magnets & Thick Plate, High Power Motor Assembly : The massive motor structure provides more powerful force to move the cone assembly harder, which is required to overcome the huge air pressure resistance experienced in world record SPL level environment. Magnet weight is 9 kg(3 kg x 3)!!

ADMG(Aero Dynamic Magnetic Gap) Design & Extended / Vented Pole Yoke Design ADMG(Aero Dynamic Magnetic Gap) Design: Each pole piece and top plate have air channels in narrow magnetic gap, thereby reducing mechanical resistance by more than 10%. The result is greatly improved linearity at high power input. Air channel

Technology of W 121 SPL, W 101 SPL, W 305 C, W 255 C u Key features of TS-5000 SPL runs through lower class. Competition class High Quality SPL subwoofer TS-W 5000 SPL For High Power Handling Ceramic Coated Voice coil* TS-W 121 SPL & W 101 SPL TS-W 305 C & W 255 C 3 -Layer Fibre Woven Radial Rubber Surround * 3 -Layer Fibre Woven Radial Surround * Wide roll, Overhung Surround Design* Wide roll Surround Design Interlaced Carbon Fibre Reinforced IMPP Cone* Interlaced Glass Fibre/Carbon Fibre Reinforced IMPP Cone* Interlaced Aramid Fibre Reinforced IMPP Cone* For Strengthen Cone Rigidness Triple stacked Magnets & Thick Plate, High Power Motor Assembly Double stacked Magnets & Thick Plate, High Power Motor Assembly For Improved Output Ability and Minimize Energy loss ADMG(Aero Dynamic Magnetic Gap) Design For Louder Output Die-Cast Aluminum Deep Basket with Motor Grip Structure Die-Cast Aluminum Basket with Motor Grip Structure Extended/Vented Pole Yoke design Dual Mass magnet & High Power Motor Assembly Extended/Vented Pole Yoke design

TS-W 121 SPL & W 101 SPL 3 -Layer Fiber Woven Radial Surround * Interlaced Glass Fibre / Carbon Fibre Reinforced IMPP Cone* Wide roll Surround Design Silver Binding posts Terminal Convex, Laminated Carbon Fibre/ Paper Composite Center Cap Vented Aluminum Die-Cast Damper Support Double stacked Magnets & Thick Plate, High Power Motor Assembly Aluminum Die-Cast Basket with Motor Grip Structure Extended / Vented Pole Yoke Design *: Patent Pending

TS-W 305 C & W 255 C Wide roll, 3 -Layer Fiber Woven Radial Surround *: Interlaced Aramid Fibre Reinforced IMPP Cone*: Precisely controls the huge power handling and extended excursion, resulting in louder, more controlled bass response with improved durability, eliminates surround puckering This highly dense & rigid design produces low distortion, clean, extremely powerful bass. Also it eliminates “plastic sound” Convex, Cross Carbon Texture Design Center Cap Extended / Vented Pole Yoke Design: Dual Mass Magnet & High Power Motor Assembly: Powerful design to produce loud bass and improve the feeling of bass torque Greatly improves linearity during large excursion by expanding the magnetic field, allows for better heat dissipation and increased power handling *: Patent Pending

TS-W 5000 SPL 5000 W MAX. TS-W 5000 SPL 30 cm Dual 4Ω Voice Coils Subwoofer enclosure use for 5000 W max. / 2000 W nom. 30 cm Interlaced Carbon Fibre Reinforced IMPP cone with 3 -Layer Fiber Woven Radial Rubber Surround Wide Roll, Overhung Surround design Triple stacked High Power Magnets High Power handling Ceramic Coated 4 -Layer Long Voice Coil Extended/ Vented Pole Yoke ADMG(Aero Dynamic Magnetic Gap) Design Die-Cast Aluminum Deep Basket with Motor Grip Structure 8 -Gauge Wire terminal 18 -2, 000 Hz, 89 d. B (1 W/1 m)

TS-W 121 SPL & W 101 SPL TS-W 121 SPL 30 cm Dual 4ΩVoice coils Subwoofer enclosure use for TS-W 101 SPL 25 cm Dual 4ΩVoice Coils Subwoofer enclosure use for 2000 W max. / 400 W nom. 1500 W max. / 350 W nom. 30 cm Interlaced Glass Fibre/Carbon Fibre Reinforced IMPP cone with Wide Roll 3 -Layer Fiber Woven Radial Surround Double stacked High Power Magnets 4 -Layer Long Voice Coil Extended/ Vented Pole Yoke Die-Cast Aluminum Basket with Motor Grip Structure Silver Binding Post terminal UD-G 305(Option Acc. Grille) Applicable UD-W 300 S(Option enclosure box) Applicable 18 -2, 000 Hz, 89 d. B (1 W/1 m) 25 cm Interlaced Glass Fibre/Carbon Fibre Reinforced IMPP cone with Wide Roll 3 -layer Fiber Woven Radial Surround Double stacked High Power Magnets 4 -Layer Long Voice Coil Extended/ Vented Pole Yoke Die-Cast Aluminum Basket with Motor Grip Structure Silver Binding Post terminal UD-G 255(Option Acc. Grille) Applicable UD-W 250 S(option enclosure box) Applicable 18 -2, 500 Hz, 87 d. B (1 W/1 m) 2000 W MAX. 1500 W MAX.

TS-W 305 C & W 255 C 800 W MAX. TS-W 305 C 30 cm 4ΩSubwoofer for enclosure use 800 W max. / 400 W nom. 30 cm Interlaced Aramid Fiber Reinforced IMPP cone with Wide Roll 3 -layer Fiber Woven Radial Surround Dual Mass High Power Magnet 4 -Layer Long Voice Coil Extended/ Vented Pole Yoke Design UD-G 305(Option Acc. Grille) Applicable UD-W 300 S(Option enclosure box) Applicable 18 -2, 000 Hz, 89 d. B (1 W/1 m) Accessory Grille (Option accessory) for TS-W 305 C, W 255 C, W 121 SPL and W 101 SPL 　　“Accelerate series design taste“ 7 0 0 W M A X. TS-W 255 C 25 cm 4ΩSubwoofer for enclosure use 700 W max. / 350 W nom. 25 cm Interlaced Aramid fiber Reinforced IMPP cone with Wide Roll 3 -layer Fiber Woven Radial Surround Dual Mass High Power Magnet 4 -Layer Long Voice Coil Extended/ Vented Pole Yoke Design UD-G 255(Option Acc. Grille) Applicable UD-W 250 S(Option enclosure box) Applicable 18 -2, 500 Hz, 87 d. B (1 W/1 m)

Specifications of New subwoofer

Additional models

Series concept Keep whole concept. This series is targeted at young customers. u Powerful sound u u Sound tuning for Youth music lover. ( Techno-pop, House, Rock music, etc. . ) Loud & gives good kicking bass. Outstanding power handling capability Keep design concept　→　Aggressive cosmetic design u u The basic tone is Black & Silver. Spoke Grille in Car tuning image.

6 x 9　Russian lineup u Russian exclusive Strengthen 6 X 9 line up

A series Russian lineup u This series will be completed. Powerful !! Good Sound Quality Competitive Price

6”x 9” 4 0 0 W M A X. TS-A 6990 S 6”x 9” 5 -WAY SPEAKERS 400 W max. / 80 W nom. Russian exclusive 6”x 9” Interlaced Aramid Fibre Reinforced IMPP cone with Butyl Rubber edge 66 mm Ø PPC(Pearl poly-carbon) balanced dome midrange 37 mm Ø PET cone tweeter 18 mm & 13 mm Ø Super tweeters 25 -32, 000 Hz, 93 d. B (1 W/1 m) 4. 5 m cords Skin Long Aramid Fiber Skin u. Foamed PPC(Pearl poly-carbon) Diaphragm PPC is a light-weight material yet that delivers open sound character and smooth extended frequency response. Not only that but also it has a high inner loss that reduces distortion. The section of Interlaced Aramid fibre cone u. Interlaced Aramid fibre Reinforced IMPP cone This Aramid fibre which length is longer than paper fibre makes uniform rigidness. Moreover, it holds down abnormal deformation of the cone and can disperse the stress from voice coil.

6”x 9” 3 6 0 W M A X. TS-A 6920 6”x 9” 4 -WAY SPEAKERS Good Sound Quality 360 W max. / 80 W nom. 6”x 9” Crystalline IMPP cone woofer with Butyl Rubber edge 66 mm Ø PPC(Pearl poly-carbon) balanced dome midrange 18 mm Ø tweeter & super tweeter 25 -32, 000 Hz, 93 d. B (1 W/1 m) 4. 5 m cords u. Foamed PPC(Pearl poly-carbon) Diaphragm 3 4 0 W M A X. TS-A 6915 6”x 9” 4 -WAY SPEAKERS 340 W max. / 80 W nom. Russian exclusive 6”x 9” Crystalline IMPP cone woofer with Butyl Rubber edge 57 mm Ø PEI cone midrange 21 mm Ø tweeter 18 mm Ø super tweeter 25 -30, 000 Hz, 93 d. B (1 W/1 m) 4. 5 m cords

6”x 9” 2 4 0 W M A X. TS-A 6900 6”x 9” 2 -WAY SPEAKERS Competitive Price 240 W max. / 40 W nom. 6”x 9” Crystalline IMPP cone woofer 66 mm Ø cone tweeter 28 -26, 000 Hz, 93 d. B (1 W/1 m) 4. 5 m cords

Separate component 220 W MAX. Good Sound Quality Competitive Price TS-A 171 C 17 cm SEPARATE 2 -WAY SPEAKER SYSTEM 220 W max. / 60 W nom. 17 cm Ø Crystalline IMPP cone woofer with Rubber edge 28 mm Ø PEI balanced dome tweeter with Neodymium magnet Inline network cords 28 -30, 000 Hz, 92 d. B (1 W/1 m) Tweeter fitting kits included: Brackets for Renault/Peugeot, Surface mount slant spacer 1 6 0 W M A X. TS-A 131 C 13 cm SEPARATE 2 -WAY SPEAKER SYSTEM 160 W max. / 40 W nom. 13 cm Ø Crystalline IMPP cone woofer with Rubber edge　　　　　 28 mm Ø PEI balanced dome tweeter with Neodymium magnet Inline network cords 40 -30, 000 Hz, 91 d. B (1 W/1 m) Tweeter fitting kits included: Brackets for Renault/Peugeot, Surface mount slant spacer

High grade Custom -fit series & Custom- fit Separate speaker system

Key selling points u u Increased MAX. power Wide installation capability Includes Easy connecter for many kind of cars 　　　　 (H 1703, H 1303, H 177, H 137) …. Patent pending!! u. It was adopted Regular u This part has risen in the estimation of installers! u u custom-fit coaxial 17 cm. 10 cm Round/Square compatible basket frame. Cosmetic design change u u New Dark Blue color IMPP woofer cone with conical dome for H series. Blue Purple color IMPP woofer cone for TS-1785

Increased power handling capability u Max. power is bigger than current models.

H series Separate 1 8 0 W M A X. TS-H 1703 17 cm SEPARATE 2 -WAY SPEAKER SYSTEM 180 W max. / 50 W nom. 17 cm Ø IMPP cone woofer with Butyl Rubber edge Cone-integrated conical domes 26 mm Ø Metal coated PI balanced dome tweeter with Neodymium magnet Inline network cords 30 -30, 000 Hz, 91 d. B (1 W/1 m) Easy connecter Tweeter fitting kits included: Brackets for Renault/Peugeot, Brackets for Opel/Vauxhall/VW, Surface mount slant spacer 1 3 0 W M A X. TS-H 1303 13 cm SEPARATE 2 -WAY SPEAKER SYSTEM 130 W max. / 35 W nom. 13 cm Ø IMPP cone woofer with Butyl Rubber edge Cone-integrated conical domes 26 mm Ø Metal coated PI balanced dome tweeter with Neodymium magnet Inline network cords 40 -30, 000 Hz, 90 d. B (1 W/1 m) Easy connecter Tweeter fitting kits included: Brackets for Renault/Peugeot, Surface mount slant spacer

H series Coaxial 1 8 0 W M A X. TS-H 177 17 cm COAXIAL 2 -WAY SPEAKERS 180 W max. / 50 W nom. 17 cm Ø IMPP cone woofer Cone-integrated conical domes 26 mm Ø Metal coated PI balanced dome tweeter with Neodymium magnet Swivel Tweeter 30 -30, 000 Hz, 91 d. B (1 W/1 m) Easy connecter 1 3 0 W M A X. TS-H 137 13 cm COAXIAL 2 -WAY SPEAKERS 130 W max. / 35 W nom. 13 cm Ø IMPP cone woofer Cone-integrated conical domes 26 mm Ø Metal coated PI balanced dome tweeter with Neodymium magnet Swivel Tweeter 40 -30, 000 Hz, 90 d. B (1 W/1 m) Easy connecter

1 1 0 W M A X. TS-H 107 10 cm COAXIAL 2 -WAY SPEAKERS 110 W max. / 25 W nom. 10 cm Ø IMPP cone woofer Cone-integrated conical domes 26 mm Ø Metal coated PI balanced dome tweeter with Neodymium magnet 45 -30, 000 Hz, 91 d. B (1 W/1 m) 4. 5 m Speaker cords G 1046/G 1016 Removable ear type screw holes allows Two screw hole fixing. Example: Fiat 600, Renault Twingo II 1 1 0 W M A X. TS-H 467 4”x 6” COAXIAL 2 -WAY SPEAKERS 110 W max. / 25 W nom. 4”x 6” IMPP cone woofer Cone-integrated conical domes 26 mm Ø Metal coated PI balanced dome tweeter with Neodymium magnet 45 -30, 000 Hz, 90 d. B (1 W/1 m) 4. 5 m Speaker cords

Custom-fit Separate 1 7 0 W M A X. 1 8 0 W M A X. TS-1785 17 cm SEPARATE 2 -WAY SPEAKER SYSEM 170 W max. / 35 W nom. 17 cm Ø IMPP cone woofer Shallow basket design 26 mm Ø PEI balanced dome tweeter　　　　　　 Inline network cords 35 -30, 000 Hz, 90 d. B (1 W/1 m) Tweeter fitting kits included: Brackets for Renault/Peugeot, Brackets for Opel/Vauxhall/VW, Surface mount spacer

TS-CX 7 57 mm FULL RANGE CENTER SPEAKER 60 W max. / 20 W nom. 57 mm Aramid Fiber Cone Neodymium Magnet 150 -30, 000 Hz(Not decided) , 83 d. B (Not decided) Key selling points u u u New Driver for Better Sound Quality “Slim & Compact” Design Dash mount Stability Coming soon・・・ New Center Speaker

Thank you very much for your attention! PIONEER EUROPE NV
