Notebook Product Planning Department Version Rory Chen Edited

Notebook Product Planning Department Version Rory Chen Edited by: Coen van Loon Product Marketing EU

MSI Wind. Pad 100 W quick view Wind. Pad Overall Strength Portability 800 g (with 2 cell battery) IO Features full I/O (USB/mini HDMI/SD card/SIM card slot/docking connector) Exclusive AP Exclusive msi AP design (msi wind touch/easy face/msi magnifier tool/msi photo easy viewer) Function Preloaded software Supports multi touch Screen rotation functionality (G-sensor) Light sensor detect (ALS sensor) Dual camera (front/rear) HDMI port: connect to external monitor Microsoft Office Starter (Word + Excel 2010), Adobe Reader + flash player

Wind. Pad 100 W applications MSI Exclusive Easy Face Windows 7 office 2010 Starter MSI Photo easy viewer Windows 7 Live Essentials Adobe reader Adobe Flash player Silver Light

Feature • MSI Wind Touch UI Easy and convenient user interface for easy access Wind Touch UI combines work and fun into one interface. Wind Touch UI is specially created for an easy access to every-day applications like internet explorer, multimedia player, office etc.

Feature • MSI exclusive Easy Face recognition Easy face recognition is specially implemented for; security system & webpage login, easy MSN integration and data security.

Feature • MSI magnifier tool bar Magnifier tool bar is designed to enlarge your status bar icons including clock, internet connection, power options and volume control to enhance the user experience.

Feature • MSI photo easy viewer Easy viewer provides easy and friendly photo review experience. Users can extend / shrink and rotate photos in an easy way to avoid the need of difficult and expensive photo software.

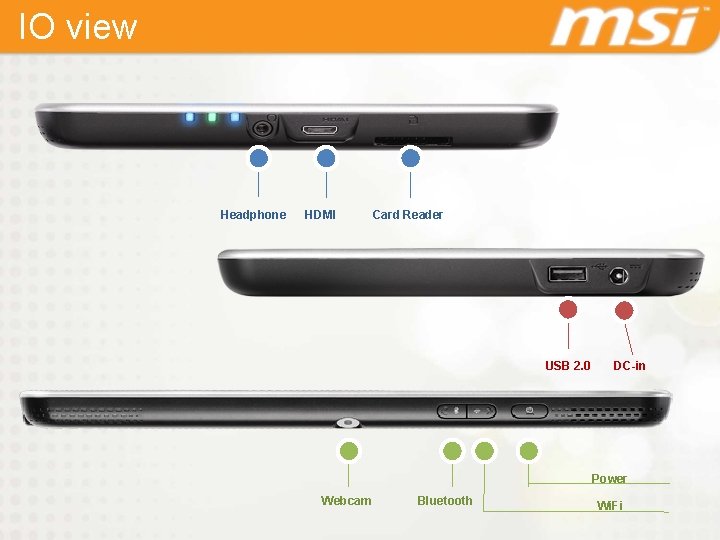

IO view Headphone HDMI Card Reader USB 2. 0 DC-in Power Webcam Bluetooth Wi. Fi

Function key view Webcam/ Volume up & down/ mute/ OK (enter key) Power bottom Webcam BT bottom Wi. Fi bottom

MSI Wind. Pad 100 W product spec Solution: Intel Menlow Z 530 OS: Window 7 Home Premium Display: 10. 1” 1024 x 600 (with multi-touch) Storage: 32 GB (SSD) Memory: 2 GB Wi. Fi: 802. 11 b/g/n Dimension: 274 x 173 x 18. 5 mm Weight: 800 g (with battery) G-sensor/ Light sensor IO ports: 1*USB, 1* mini HDMI, DC in, H/P out, SD card reader
