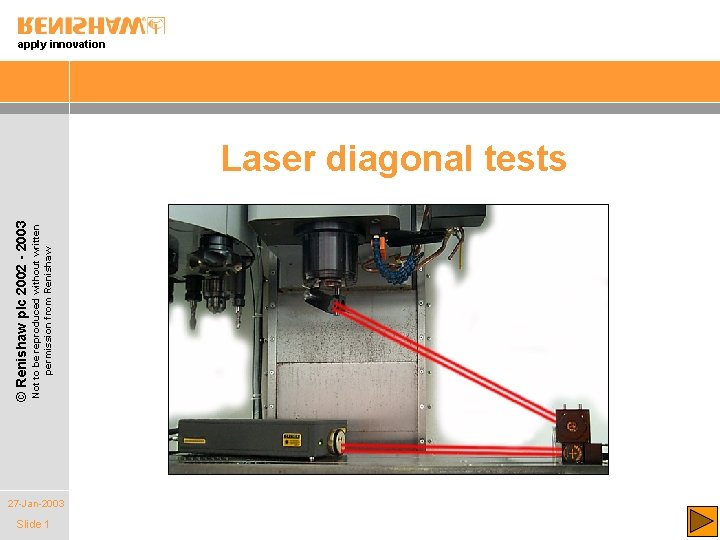

Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 apply innovation Laser diagonal tests 27 -Jan-2003 Slide 1

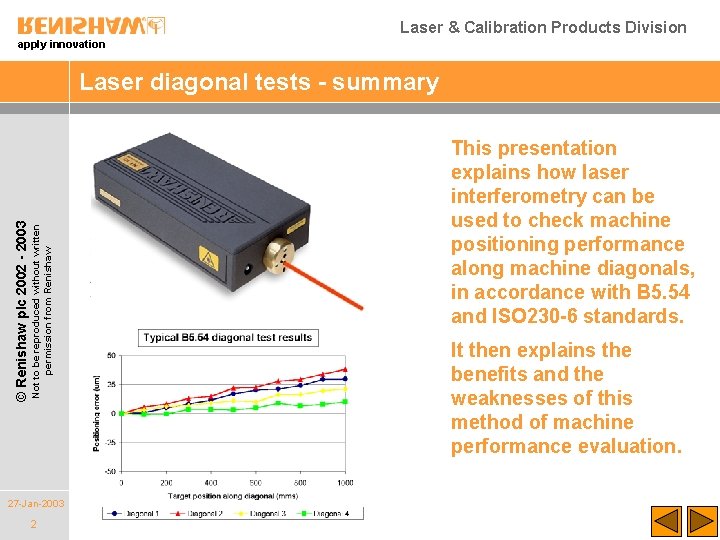

Laser & Calibration Products Division apply innovation Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 Laser diagonal tests - summary 27 -Jan-2003 2 This presentation explains how laser interferometry can be used to check machine positioning performance along machine diagonals, in accordance with B 5. 54 and ISO 230 -6 standards. It then explains the benefits and the weaknesses of this method of machine performance evaluation.

Laser & Calibration Products Division apply innovation Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 Laser diagonal tests - B 5. 54 and ISO 230 -6 27 -Jan-2003 3 l Laser diagonal tests for machining centres are described in B 5. 54 and ISO 230 -6 standards. l In these tests, a laser interferometer is used to measure the linear positioning accuracy of the machine as it moves along each of its four body diagonals in turn. l The figure shows a laser aligned (via a mirror) to one of four body diagonals.

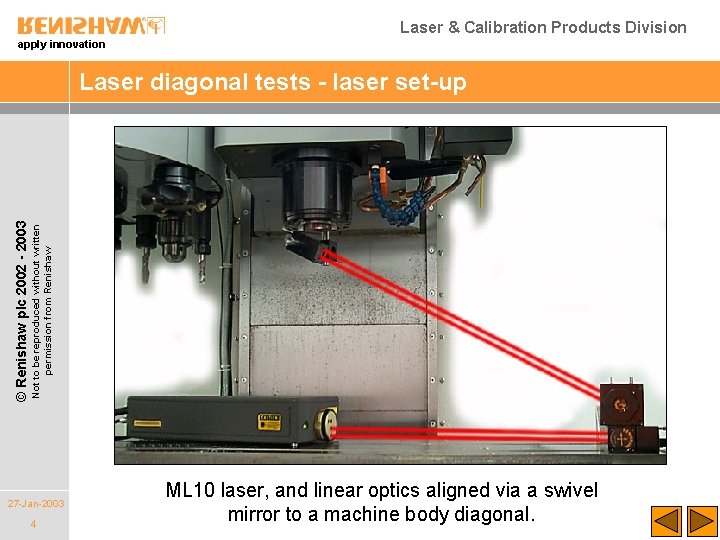

Laser & Calibration Products Division apply innovation Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 Laser diagonal tests - laser set-up 27 -Jan-2003 4 ML 10 laser, and linear optics aligned via a swivel mirror to a machine body diagonal.

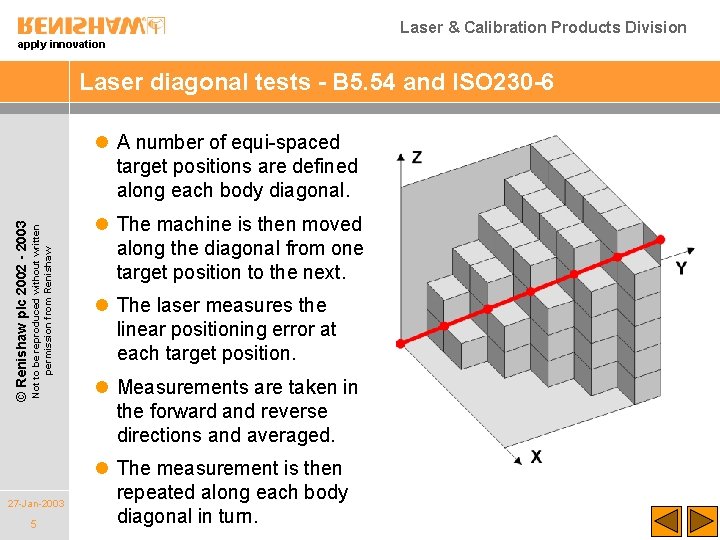

Laser & Calibration Products Division apply innovation Laser diagonal tests - B 5. 54 and ISO 230 -6 Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l A number of equi-spaced target positions are defined along each body diagonal. 27 -Jan-2003 5 l The machine is then moved along the diagonal from one target position to the next. l The laser measures the linear positioning error at each target position. l Measurements are taken in the forward and reverse directions and averaged. l The measurement is then repeated along each body diagonal in turn.

Laser & Calibration Products Division apply innovation Laser diagonal tests - presentation of results l Typically, results are presented graphically (as shown below). Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l In B 5. 54 the diagonal positioning accuracy is quoted from the diagonal with the largest range of error values. 27 -Jan-2003 6

Laser & Calibration Products Division apply innovation Laser diagonal tests - B 5. 54 and ISO 230 -6 Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 The American Standard B 5. 54: 1992 states 27 -Jan-2003 7 l The volumetric accuracy of a machine may be rapidly estimated by measuring the displacement accuracy of the machine along body diagonals. The International Standard ISO 230 -6: 2002 states l Diagonal displacement tests allow the estimation of the volumetric performance of a machine tool. and l Diagonal displacement tests may be used for acceptance purposes and as reassurance of machine performance where parameters of the test are used as a comparison index.

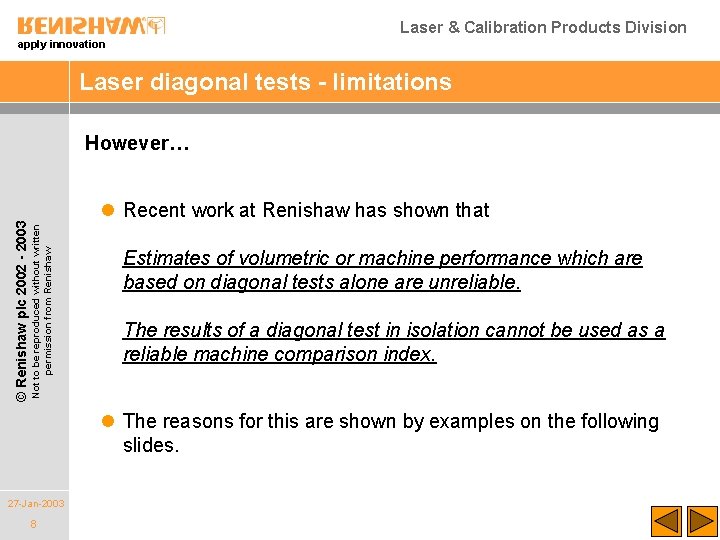

Laser & Calibration Products Division apply innovation Laser diagonal tests - limitations l Recent work at Renishaw has shown that Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 However… Estimates of volumetric or machine performance which are based on diagonal tests alone are unreliable. The results of a diagonal test in isolation cannot be used as a reliable machine comparison index. l The reasons for this are shown by examples on the following slides. 27 -Jan-2003 8

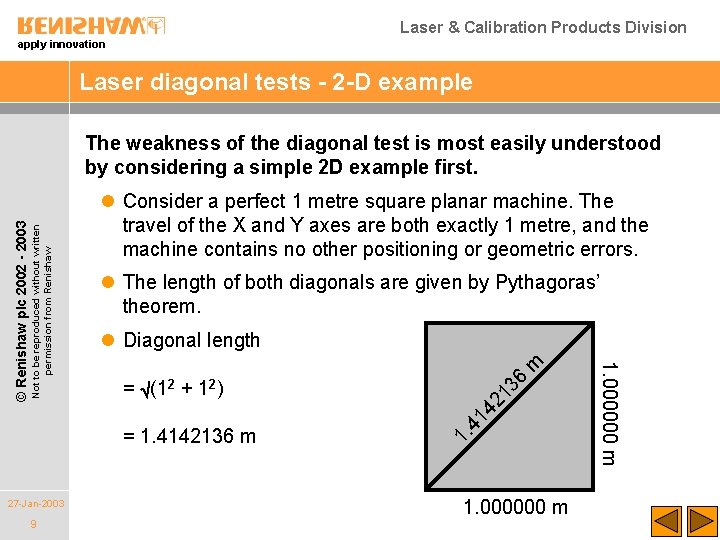

Laser & Calibration Products Division apply innovation Laser diagonal tests - 2 -D example l The length of both diagonals are given by Pythagoras’ theorem. = 1. 4142136 m 27 -Jan-2003 9 14 21 3 = (12 + 12) 6 m l Diagonal length 1. 4 Not to be reproduced without written permission from Renishaw l Consider a perfect 1 metre square planar machine. The travel of the X and Y axes are both exactly 1 metre, and the machine contains no other positioning or geometric errors. 1. 000000 m © Renishaw plc 2002 - 2003 The weakness of the diagonal test is most easily understood by considering a simple 2 D example first.

Laser & Calibration Products Division apply innovation l The length of the diagonals of this distorted machine are again given by Pythagoras’ theorem. l Diagonal length l Note that the diagonal length appears unchanged 27 -Jan-2003 10 6 14 21 3 = 1. 4142136 m m = (1. 0000252 + 0. 9999752) 1. 4 Not to be reproduced without written permission from Renishaw l Now imagine that the machine is distorted such that the X axis over-travels by 25 m/metre, and the Y axis under-travels by 25 m/metre. (Linear positioning errors of this magnitude are common in machines due to inaccuracies in the feedback system e. g ballscrew tensioning and thermal effects). 1. 000025 m 0. 999975 m © Renishaw plc 2002 - 2003 Laser diagonal tests - 2 D example

Laser & Calibration Products Division apply innovation Laser diagonal tests - 2 D example l Diagonal length of perfect machine = 1. 4142136 m l Diagonal length of distorted machine = 1. 4142136 m 27 -Jan-2003 11 1. 000000 m 14 21 3 6 m Distorted machine 1. 4 14 21 3 6 m Perfect machine 1. 000025 m 0. 999975 m Not to be reproduced without written permission from Renishaw l Both the perfect and the distorted machine show effectively identical results on a diagonal test even though the distorted machine contains positioning errors of over 25 microns. 1. 000000 m © Renishaw plc 2002 - 2003 l The diagonal lengths are the same (within 0. 001 m)

Laser & Calibration Products Division apply innovation Laser diagonal tests - 2 D example Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l It might be thought that this is a special case, which only occurs on a 2 -D machine if the error in the X axis motion is exactly equal and opposite to the error in the Y axis motion. 27 -Jan-2003 12 l This is not the case! l If any axis (or axes) shows an over-travel error whilst any another axis (or axes) shows an under-travel error, their combined effect on the body diagonal length will, to some extent, cancel. l These types of errors are common on machine tools. l The problem also occurs on 3 -D machines as shown by the table on the next slide.

Laser & Calibration Products Division apply innovation Laser diagonal tests - 3 D examples Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l The table shows the performance of three nominally identical 1 m 3 machine tools. l Each machine has a different combination of linear positioning errors in its axes. * Volumetric accuracy is defined as the length of the worst case error vector between the target and the actual machine position anywhere within the machine volume. 27 -Jan-2003 13 l Compare the diagonal and volumetric results.

Laser & Calibration Products Division apply innovation Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 Laser diagonal tests - 3 D examples 27 -Jan-2003 14 l Note the complete lack of correlation between the volumetric accuracy of these machines and their diagonal test results. l Machine A has the worst volumetric accuracy, but shows no error on the diagonal test. l Machine B has the best volumetric accuracy, but shows the worst diagonal test result. l Contrary to the statements in B 5. 54 and ISO 230 -6, it is clear that laser diagonal test results do not provide a reliable estimate of volumetric accuracy or performance and so cannot be used as a reliable comparison index between machines.

Laser & Calibration Products Division apply innovation Laser diagonal tests - squareness measurement Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l Although laser diagonal tests do not provide a reliable way of measuring a machine’s volumetric accuracy, they can provide a good way of measuring the squareness between two axes. l For the most accurate results it is recommended to measure face rather than body diagonals. (This reduces test time and improves sensitivity). l If the two face diagonal lengths are d 1 and d 2, then the machine squareness error (in radians) is given by; (1+m 2)(d 1 -d 2)/(m(d 1+d 2)) 27 -Jan-2003 15 where m = machine aspect ratio d 1 d 2

Laser & Calibration Products Division apply innovation Laser diagonal tests - squareness measurement Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l Accuracy of squareness result (angle) is improved if; 27 -Jan-2003 16 – The machine’s axes are of similar lengths (improves sensitivity). – The test is performed quickly to minimise any thermal changes between measurement of each diagonal length. l Graph shows effect of ± 1 and ± 5 ppm shifts in laser reading on the accuracy of squareness results for various aspect ratio machines.

Laser & Calibration Products Division apply innovation Laser diagonal tests - squareness measurement Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l Accuracy of squareness result (angle) is also improved if; 27 -Jan-2003 17 – The diagonals start and finish at identical X, Y or Z co-ordinates as shown opposite. (This ensures that the effects of other machine errors are eliminated). – Backlash is eliminated by moving in the same direction before each reading. Incorrect l Under good conditions it is possible to measure machine squareness within ± 1 arcsecond. l The technique is especially useful on large machines where access to a large mechanical reference square may be problematic. Correct

Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 apply innovation 27 -Jan-2003 Slide 18 Conclusion

Laser & Calibration Products Division apply innovation Laser diagonal tests - conclusion Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l Laser diagonal tests can provide a quick method of measuring a machine as it moves along a machine’s diagonals. 27 -Jan-2003 19 l With care, laser diagonal results can be used to accurately determine the squareness errors between axes. l Laser diagonal measurements are sensitive to multiple machine error sources, however. . . l It is possible for the effect of one error source on the diagonal to cancel another. l This will give a laser diagonal result that does not relate to the volumetric accuracy of the machine. l Therefore, laser diagonal tests in isolation, do not provide a reliable way of measuring machine volumetric accuracy.

Laser & Calibration Products Division apply innovation Laser diagonal tests - conclusion Not to be reproduced without written permission from Renishaw © Renishaw plc 2002 - 2003 l For a more reliable evaluation of machine performance, laser diagonal tests should be supplemented with other tests, such as ballbar circular tests and conventional laser linear, angular and straightness tests parallel to the machine’s axes. 27 -Jan-2003 20 l These tests are defined elsewhere in the American B 5. 54 and B 5. 57 Standards and the ISO 230 series of international standards. ML 10 laser head Linear optics Angular optics QC 10 ballbar Straightness optics
