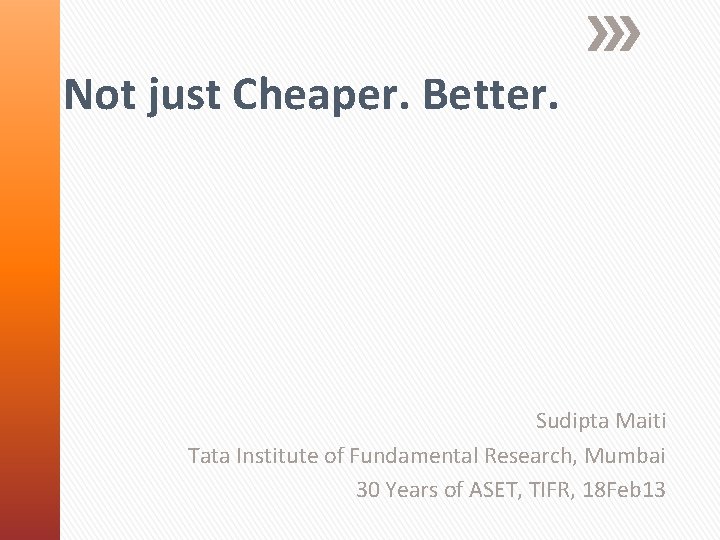

Not just Cheaper. Better. Sudipta Maiti Tata Institute of Fundamental Research, Mumbai 30 Years of ASET, TIFR, 18 Feb 13

Biology is not about cutting frogs anymore: Actually, it never was Robert Hooke’s microscope Source: Wikipedia

There is a revolution on in microscopy Label-free Multi-Photon microscopy of serotonin Sarkar et al. Frontiers in Membrane Physiology (2012)

Measuring sub-nm size, inside water If you cannot see it, feel it some other way “Fluorescence Correlation spectrometer (FCS)” Magde et al. (1972) Sengupta et al. , Methods (2002)

Cool Tools S. Hell (2009) You are only as good as your microscope

Combining FCS and Multiphoton An alignment-free instrument with high sensitivity Kaushalya et al. , US Patent no. 7, 705, 987 (2010)

FCS Workshop 2009 Teaching colleagues from 10 institutes how to build their own Sensitivity > commercially available Cost < 1/8 th Why couldn’t they do it before?

A culture of building instruments Source: JPK website) Cutting edge technology is only available in specific labs – until it is marketed When are our best labs going to put India on the map of cutting edge scientific instruments?

Perhaps soon! i 2 n Technologies, Bangalore Holmarc, Kochi (Technology from TIFR)

Not just cheaper. Better. A dual objective set-up: Half a million photons/sec from a single molecule (fast) Auto aligned 4 collection (Picosecond) Abhyankar et al. , Proc. SPIE (2012)

Why should we do it? • A step forward for someone else to build up the knowledge base • Recognition from peers all over the world • Promote the culture of instrument building among Indian labs and companies • Contribution to the economy (? )

Who should do it? With its extra-ordinary legacy of developing scientific instruments, TIFR MUST TAKE A LEAD Thanks to all my students and collaborators Thank you

Folding intermediates: progress in silico Folding of villin headpiece Computational Biophysics Group, UIUC Experimentalists are far from verifying it Optical: Fast, low resolution, NMR: Slow, high resolution

Fragments: concentration can change folding rate X Separation Unfolding Normal Amyloid aggregation Self-complimentarity Wolynes and coworkers, PNAS (2013) Amyloids: Aggregation and folding are intertwined

Concentration affects Amyloid-β aggregation kinetics Oligomers 150 n. M Monomer 15 n. M Nag et al. , J. Biol. Chem. (2011) Why are we interested in Aβ oligomers?

Amyloid-β intermediates are VERY interesting Bio-activity <100 nm Aggregation Number (FCS) T) (F RE Mi sfo ldi ng Coles et al. Biochemistry (1998) Crescenzi et al. Eur. J. Biochem (2002) <10 nm Petkova et al. PNAS (2002) How do we measure things at a sub -resolution level?

Time ( min) Photon bunching Diffusion time Time ( µs) Emitted photons Avg. fluorescence Emitted photons Photon statistics: Local excitation in a fluorescent solution Anti-bunching lifetime Time ( ns)

Auto-Correlation: extracting timescales of processes Fluorescence photon bunching and anti-bunching Lifetime (Confor mation) Diffusion (Size) Abhyankar et al. , Proc. SPIE (2012)

Folding: FRET measures conformation change Monomer Oligomer The monomer is “open”, while the oligomer (tetramer or larger) is a “closed” structure

1) Is there an intermediate structure? The major conformational change is between the monomer and the small oligomer, it remains similar thereafter 20

Need more detailed, more robust information 300 K, FCS measures size as a function of time 78 K, flash-frozen at appropriate size 240 K, lyophilized ss. NMR (with P. K. Madhu)

The ss. NMR-derived oligomer structure PDB : 2 BEG, Riek and Coworkers Tertiary F 19 -L 34 contact is also present Structure similar to fibrils found earlier Mithu et al. , Biophys. J. , 2011 ss. NMR shows that the small oligomer has a conformation broadly similar to the fibril

2) Origin of toxicity: does folding matter? Untreated 150 n. M Abeta treated Scale Bar ~ 10 µm A mixture of Aβ monomers and oligomers can bind to cell membranes Nag et al. , Biophys. J. (2010) But everyone has the monomers? ! 23

Do Aβ monomers bind to membranes? Monomers , HEK cells 0 minute 30 minute Oligomers (same concentration as monomers) 24 Membrane affinity drastically increases as monomers become oligomers

3) Which part of the molecule is the key? Looking at the core only : the short “S” peptide M L G I AβS – 18 -35 residues I A G K N S V F F A E D V G Folds into a hairpin very similar to the full length Aβ Muralidharan et al. , Chem. Phys. (2013), in press

Truncated peptide also shows cell attachment A 40 0 Minutes 30 Minutes A S Control

» But toxicity requires the unstructured part… Percent Cell viability 100 90 80 70 60 50 40 30 20 10 0 CTL Aβ 40 Aβ 10 -40 Aβ 14 -40 Aβ 17 -40 Aβ 22 -40 S Membrane binding may be necessary, but it is not sufficient for toxicity N-terminal part is required for subsequent events A dominant model for toxicity is the leakage of neurotransmitters from vesicles Also, analysis shows neurotransmitter packaging-related genes are affected

» The Questions and the answers 1) At what stage of aggregation does the molecule fold? As early as tetramer , perhaps earlier 2) Is there an intermediate structure? None detected 3) Does folding determine bioactivity? Yes, it seems to be required for membrane attachment 4) Which part of the molecule is the key? The core (18 -35) determines folding and membrane attachment, but unstructured N-terminus required for toxicity

The human parts which made this possible: Acknowledgements: Venus Singh Mithu P. K. Madhu C. Muralidharan S. Dandekar V. Vaidya D. Khushalani G. Walker Elisha Haas Eitan Lerner G. Krishnamoorthy M. Kombrabail (left to right) Christina Mc. Laughlin, Bidyut sarkar, Debanjan Bhowmik, Anand Kant Das, SM, C. Muralidharan, Bappaditya Chandra Also, Rajiv Abhyankar, and Suman Nag (Now in Stanford) Thank you 29 Lalit Borde National NMR Facility Funding: DIT, DBT, TIFR

TIRF measures ms vesicle docking events at the membrane Experiments with Amyloids are going on….

Even artificial SUVs show the same effect A rapid, cell free assay for Aβ bioactivity 31

Challenge: Excitation is in UV, but UV kills Solution: Multiphoton excitation (here 3 -photon excitation with 740 nm) Serotonin 350 nm ES 270 nm hν/3 hν hν 2 Intensity high enough to cause UV excitation GS Maiti et al. , Science , 1997 Kaushalya et al. , J. Neurosci. Res. (2008) Localized Excitation

The ss. NMR-derived oligomer structure PDB : 2 BEG, Riek and Coworkers Tertiary F 19 -L 34 contact is also present Structure similar to fibrils found earlier Mithu et al. , Biophys. J. , 2011 ss. NMR shows that the small oligomer has a conformation broadly similar to the fibril

» The Questions: 1) Does oligomer formation involve folding? 2) Is this structural change linked to function? 3) Which part of the peptide is responsible for which property? The Solutions: 1) 2) 3) 4) Size by FCS (Fluorescence Correlation Spectroscopy) Conformation by FRET (Forster Resonance Energy Transfer) Detailed conformation by solid state NMR (Flash-freezing after 1&2) Bio-activity by confocal (membrane attachment) and multiphoton microscopy (neurotransmitter imaging)

How do you do it experimentally ? If you cannot see it, feel it some other way A single molecule level “Fluorescence Correlation spectrometer” Magde, Elson and Webb, PRL (1972) Review: Maiti, Haupts and Webb, PNAS (1997)

Combined FCS, Antibunching and TCSPC (lifetime): Simultaneously measuring size and conformation (fast) Auto aligned 4 collection (Picosecond) Abhyankar et al. , Proc. SPIE (2012)

Time ( min) Photon bunching Diffusion time Time ( µs) Emitted photons Avg. fluorescence Emitted photons Photon statistics: Local excitation in a fluorescent solution Anti-bunching lifetime Time ( ns)

Conformation: Are the oligomers differently folded? Forster Resonance Energy Transfer (FRET) Acceptor DONOR Lifetime measures energy transfer |S 1> k. Tr Excitation k. R Dipole-dipole energy transfer efficiency ~ 1/ R 6 k. NR |S 0> 38 End-to-end distance A nanometric ruler for interchromophoric distance FÖrster (1948); Haugland Stryer (1976) misfolding

The process preserves the oligomers Before Lyophilization After Lyophilization
