NORTHEASTERN UNIVERSITY ISEC INTERDISCIPLINARY SCIENCE AND ENGINEERING COMPLEX
- Slides: 13
NORTHEASTERN UNIVERSITY ISEC INTERDISCIPLINARY SCIENCE AND ENGINEERING COMPLEX 15 MARCH 2016

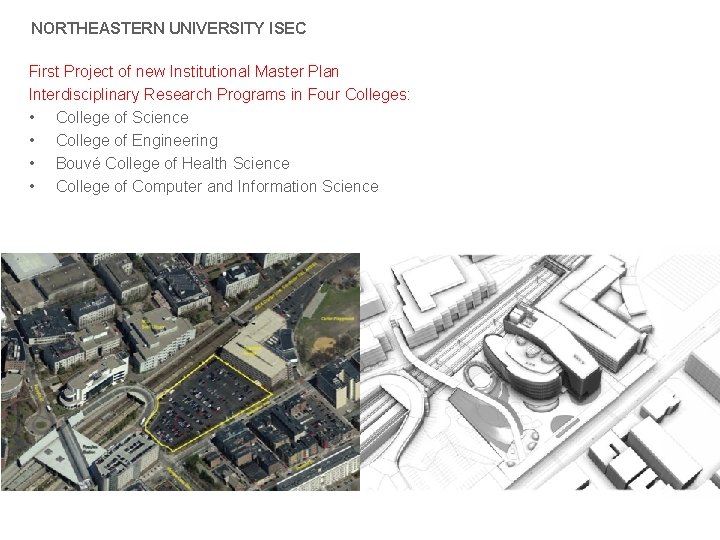

NORTHEASTERN UNIVERSITY ISEC First Project of new Institutional Master Plan Interdisciplinary Research Programs in Four Colleges: • College of Science • College of Engineering • Bouvé College of Health Science • College of Computer and Information Science

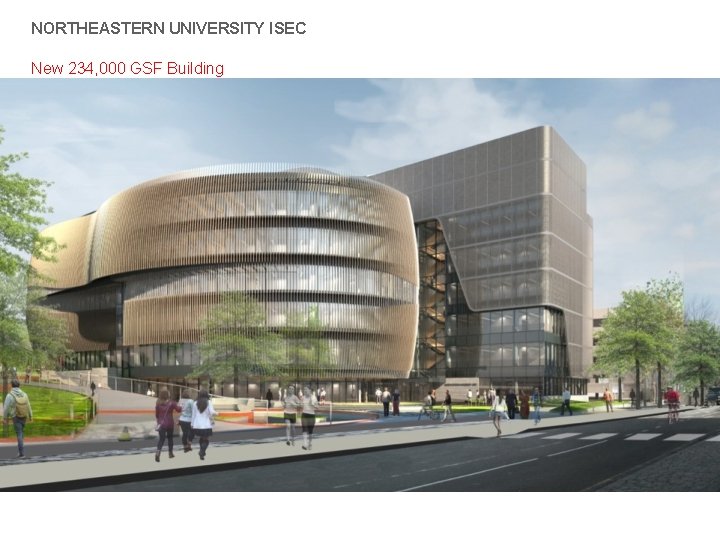

NORTHEASTERN UNIVERSITY ISEC New 234, 000 GSF Building

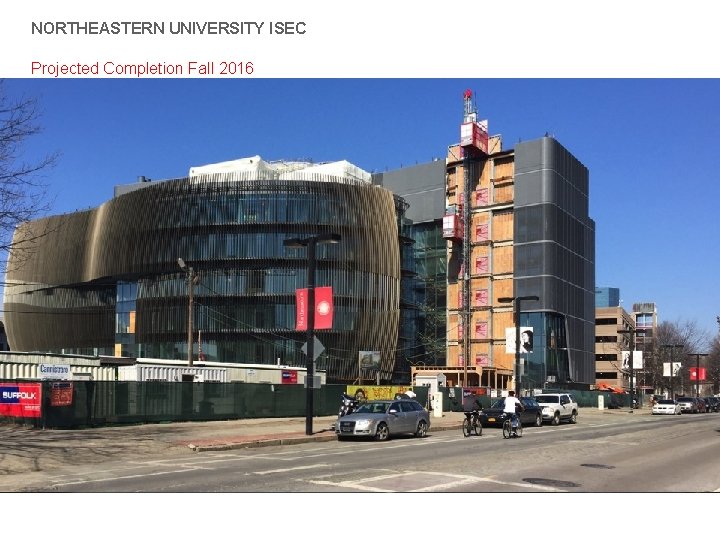

NORTHEASTERN UNIVERSITY ISEC Projected Completion Fall 2016
NORTHEASTERN UNIVERSITY ISEC Tracking LEED 103 44% 75% • • Gold k. Btu. sf-yr energy use intensity energy cost saving over code energy savings over typical lab Design and Programming Integration Advanced Technologies Implementation

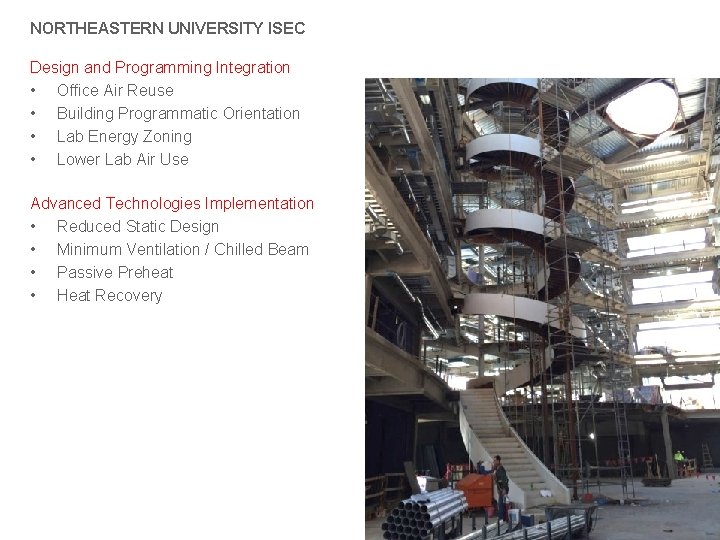

NORTHEASTERN UNIVERSITY ISEC Design and Programming Integration • Office Air Reuse • Building Programmatic Orientation • Lab Energy Zoning • Lower Lab Air Use Advanced Technologies Implementation • Reduced Static Design • Minimum Ventilation / Chilled Beam • Passive Preheat • Heat Recovery

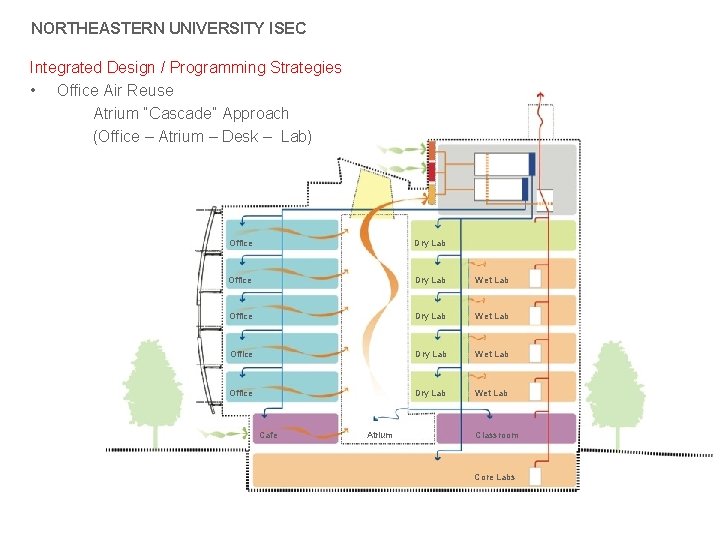

NORTHEASTERN UNIVERSITY ISEC Integrated Design / Programming Strategies • Office Air Reuse Atrium “Cascade” Approach (Office – Atrium – Desk – Lab) Office Dry Lab Wet Lab Office Dry Lab Wet Lab Cafe Atrium Classroom Core Labs

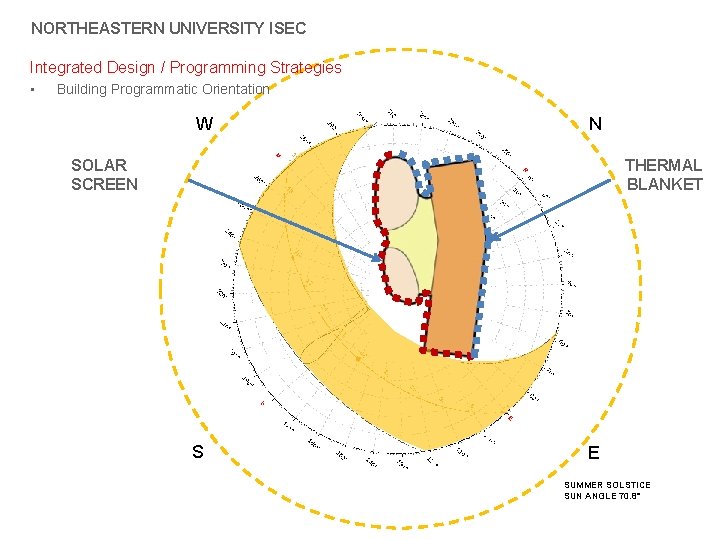

NORTHEASTERN UNIVERSITY ISEC Integrated Design / Programming Strategies • Building Programmatic Orientation W N SOLAR SCREEN THERMAL BLANKET S E SUMMER SOLSTICE SUN ANGLE 70. 8°
NORTHEASTERN UNIVERSITY ISEC Integrated Design / Programming Strategies • Building Programmatic Orientation W N LOW ENERGY PROGRAMS HIGH ENERGY PROGRAMS S E

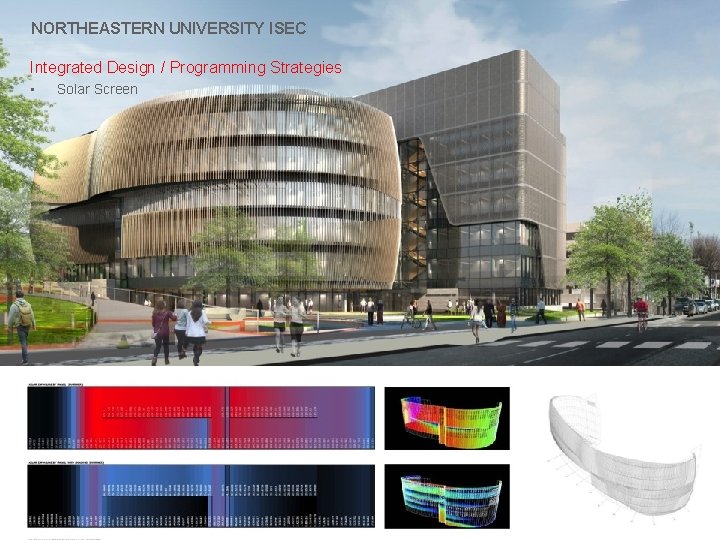

NORTHEASTERN UNIVERSITY ISEC NORTHEASTERN’S INTEGRATED SCIENCE AND ENGINEERING CENTER Integrated Design / Programming Strategies • Solar Screen
NORTHEASTERN UNIVERSITY ISEC Integrated Design / Programming Strategies • Solar Screen

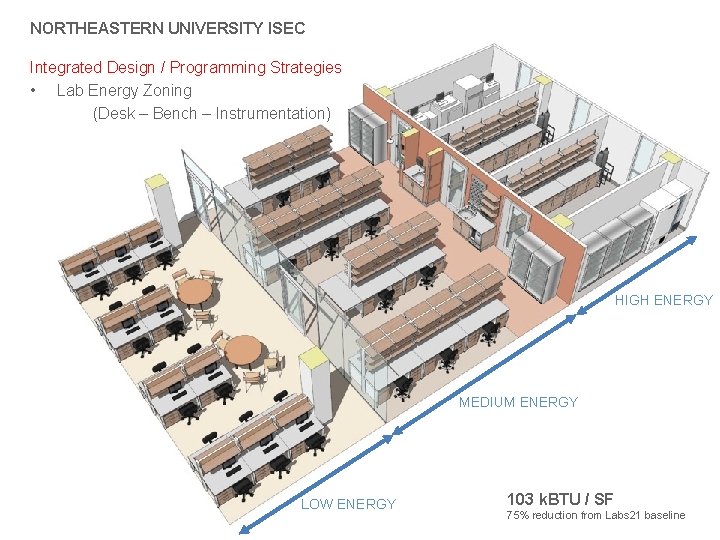

NORTHEASTERN UNIVERSITY ISEC Integrated Design / Programming Strategies • Lab Energy Zoning (Desk – Bench – Instrumentation) HIGH ENERGY MEDIUM ENERGY LOW ENERGY 103 k. BTU / SF 75% reduction from Labs 21 baseline

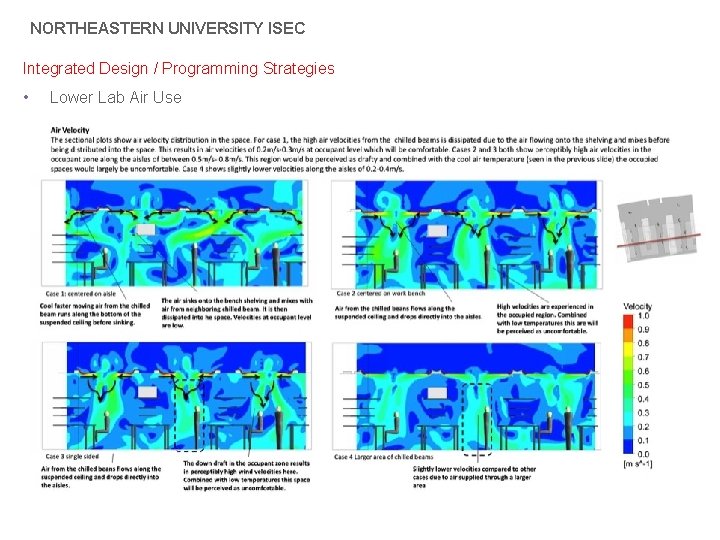

NORTHEASTERN UNIVERSITY ISEC Integrated Design / Programming Strategies • 13 Lower Lab Air Use
