North Zone Communications Committee Bendix King EPH and GPH Portable Radios July 2007 North Zone – Communications
BENDIX KING RADIOS And Mobile VHF Radios GETTING DOWN AND DIRTY IN A WILD LAND SETTING
OBJECTIVES v v v Specs. and Features General Functions (knobs and buttons) Talk Groups, Channels and the squelch Making Command Groups Adding Channels to Command Group Scan Lists and Priority Channel
Specifications & Features EPH: 210 Channels 15 Groups, each group has 14 channels GPH: 240 Channels 15 Groups, each has 16 channels Field Programmable Rechargeable battery and AA Battery “Clamshell” User Programmable Scan and Priority Scan User Programmable Repeater Access Tones Note: Group 15 left open for incident radio plan cloning July 2007 North Zone – Communica tions
Top Of Radio Squelch Volume Transmit Indicator (red) Channel Select Hi/Lo or RPT/DIR Scan Priority Busy Light (green) Remember, when the toggles are toward the front, the feature is OFF, when the toggles are toward the back, the feature is ON. When programming, all features should be in the OFF position North Zone July 2007 – Communica tions

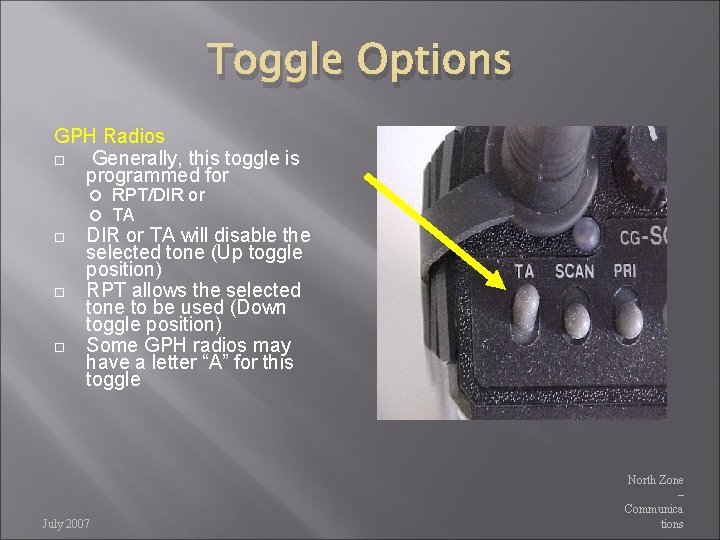

Toggle Options GPH Radios Generally, this toggle is programmed for RPT/DIR or TA will disable the selected tone (Up toggle position) RPT allows the selected tone to be used (Down toggle position) Some GPH radios may have a letter “A” for this toggle July 2007 North Zone – Communica tions
Switching Groups July 2007 Press “#” Enter desired group number Press “ENT” or wait five seconds Press “#” by itself to display the current group. North Zone – Communications
Making a Command group, (portable) v v v Select channel you want added to command group Press * repeat
Adding Channels To A Scan List Turn off SCAN & PRI Switch to desired channel. Press “ENT” to add to channel list. Beep will sound. Display will indicate “SCN” above channel description To scan to channels in the scan list, turn the SCAN toggle up Can’t scan across groups NOTE: Channels which should be in the scan list for an incident are: Command, Tactical, Air to Ground and Air Guard July 2007 North Zone – Communic ations
Deleting Channels From A Scan List Turn off SCN & PRI Turn channel selector to desired channel Press “CLR” button Channel removed from scan list July 2007 North Zone – Communic ations
Selecting A Tone Turn off SCN & PRI Press tone number on keypad. EPH Radios – The display will momentarily display a frequency name and disappear. This normal. “CG” will be displayed indicating a tone has been selected. GPH Radios – The letters CG followed with the selected tone number will be momentarily be displayed. July 2007 North Zone – Communic ations
The “#” Button Press “#” once to display the Group Press”#” again to display the channel and tone you are currently on. July 2007 North Zone – Communic ations
Priority Toggle There are several options for setting the PRI channel on either a EPH or GPH radio. As such, these settings may be agency specific. One of the more common settings is “Mode A”: With a scan list entered What ever the channel selector is turned to will become the PRI channel when the PRI toggle and the SCAN toggle are both in the UP position. You are now scanning what is in the scan list, but giving priority to any transmission received on the channel selected using the channel selector knob. If you no longer wish to use the PRI function, turn the PRI toggle down. You will still continue to scan your scan list July 2007 North Zone – Communic ations
After An Incident If your portable was cloned by the Communications Unit at the incident, have your agencies communication technician reprogram the radio with your agencies data file. This will ensure that all of the programming parameters are returned to their original settings. July 2007 North Zone – Communic ations
Mobile VHF Radio Objectives Moving around in Talk Groups Changing Channels Changing Tones Making a Command Group Making a Scan list Selecting Primary and Secondary Priority Channels Deleting Channels from a Scan List Deleting the Command Group

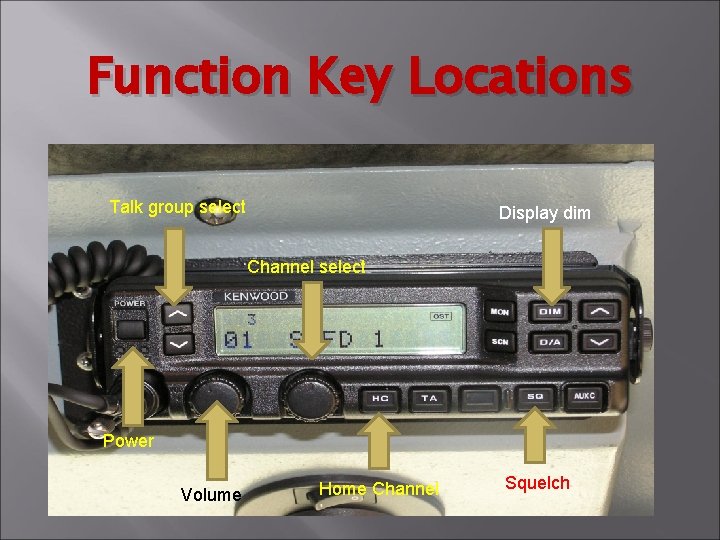

Function Key Locations Talk group select Display dim Channel select Power Volume Home Channel Squelch
Function Key Locations Add/delete from scan list Tone select Press twice for secondary priority Turn on scan Talk around Car to Car Add and delete from command group
Moving around in Groups (mobile) Up or down to desired talk group
Changing Cannels (mobile) Rotate to desired channel
Changing Tones (mobile) Up or down to desired tone
Making a Command group, (mobile) A command group is automatically made when you enter the first channel to the group by pushing and holding the AUXC button until the short beep and the command group icon, temporarily comes on. The command group will be placed on talk group #16. When you are done adding channels to the group, up or down arrow to talk group 16 and you will be on the new command group Command Group Icon Select channel and press (aux/c) until it beeps
Making a Scan List (mobile) Scan arrow Icon Add or Delete from Scan List
Selecting Priority Channels 2 HOLD
Selecting Priority Channels
Deleting a Scan List (mobile) Scan Icon gone Add or Delete from Scan List
Deleting a Command Group Command Icon is gone Press and hold till long beep and icon leaves
Learn to use it before you need it! Remember LCES! July 2007 North Zone – Communic ations
