NORTH AMERICAN 5 9 GHz DSRC STANDARDS DEVELOPMENT

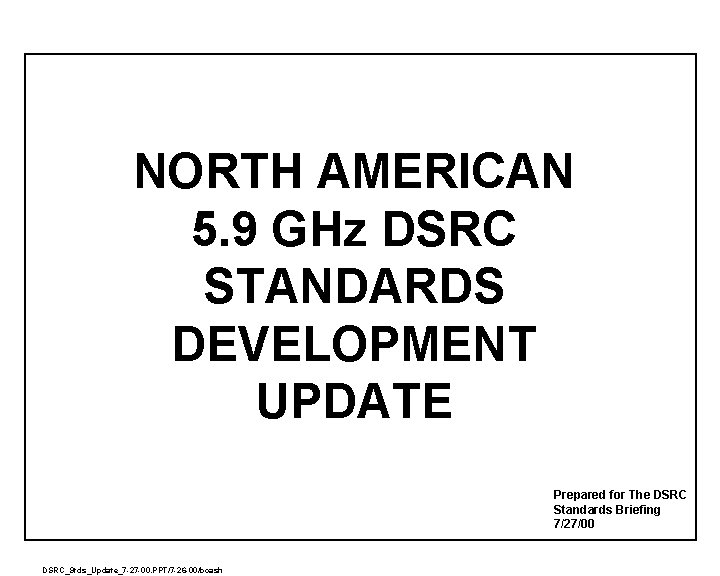

NORTH AMERICAN 5. 9 GHz DSRC STANDARDS DEVELOPMENT UPDATE Prepared for The DSRC Standards Briefing 7/27/00 A DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash

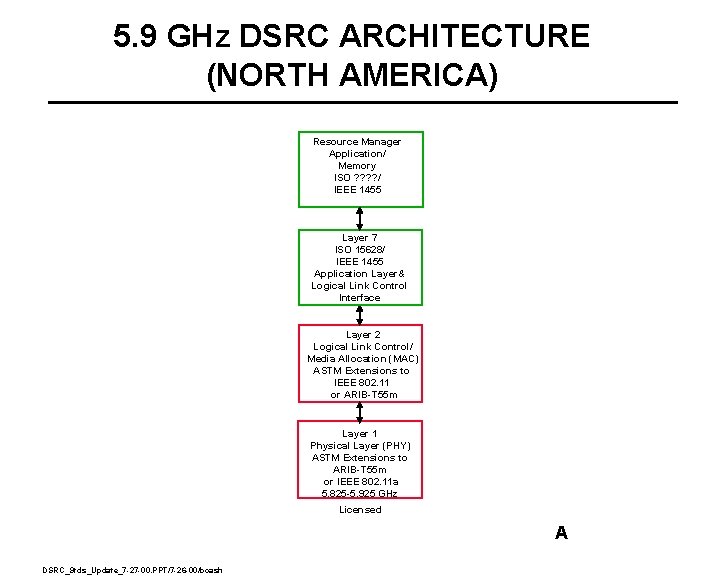

5. 9 GHz DSRC ARCHITECTURE (NORTH AMERICA) Resource Manager Application/ Memory ISO ? ? / IEEE 1455 Layer 7 ISO 15628/ IEEE 1455 Application Layer& Logical Link Control Interface Layer 2 Logical Link Control/ Media Allocation (MAC) ASTM Extensions to IEEE 802. 11 or ARIB-T 55 m Layer 1 Physical Layer (PHY) ASTM Extensions to ARIB-T 55 m or IEEE 802. 11 a 5. 825 -5. 925 GHz Licensed A DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash

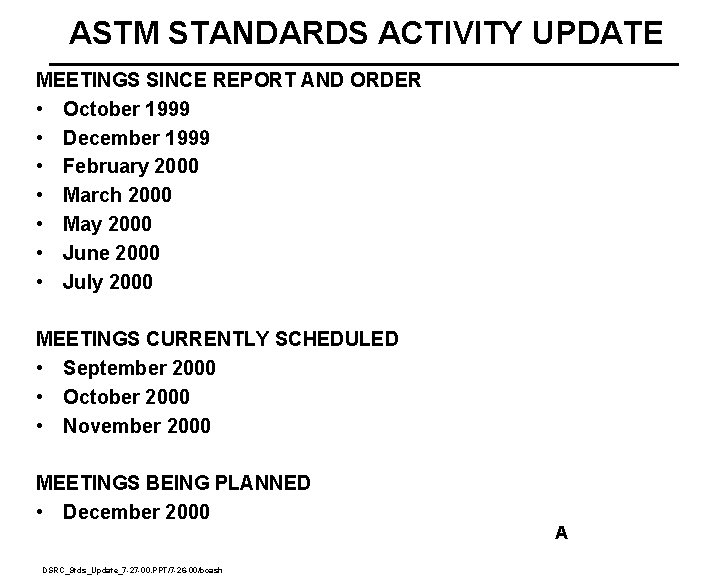

ASTM STANDARDS ACTIVITY UPDATE MEETINGS SINCE REPORT AND ORDER • October 1999 • December 1999 • February 2000 • March 2000 • May 2000 • June 2000 • July 2000 MEETINGS CURRENTLY SCHEDULED • September 2000 • October 2000 • November 2000 MEETINGS BEING PLANNED • December 2000 DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash A

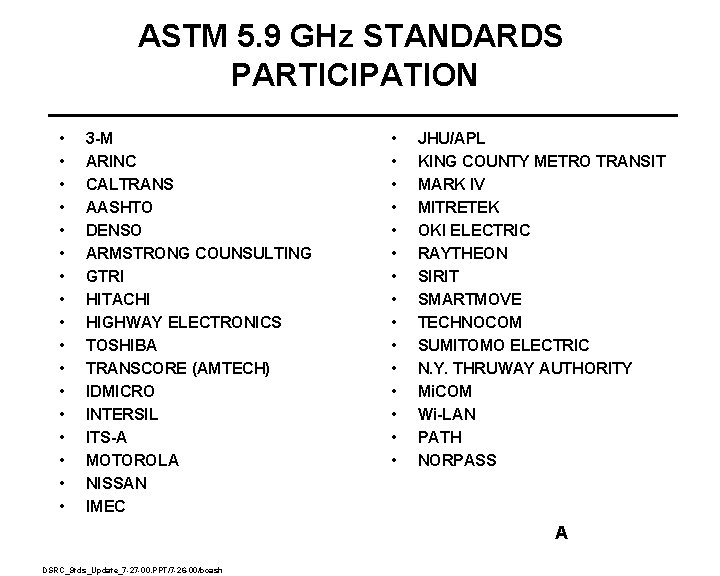

ASTM 5. 9 GHz STANDARDS PARTICIPATION • • • • • 3 -M ARINC CALTRANS AASHTO DENSO ARMSTRONG COUNSULTING GTRI HITACHI HIGHWAY ELECTRONICS TOSHIBA TRANSCORE (AMTECH) IDMICRO INTERSIL ITS-A MOTOROLA NISSAN IMEC • • • • JHU/APL KING COUNTY METRO TRANSIT MARK IV MITRETEK OKI ELECTRIC RAYTHEON SIRIT SMARTMOVE TECHNOCOM SUMITOMO ELECTRIC N. Y. THRUWAY AUTHORITY Mi. COM Wi-LAN PATH NORPASS A DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash

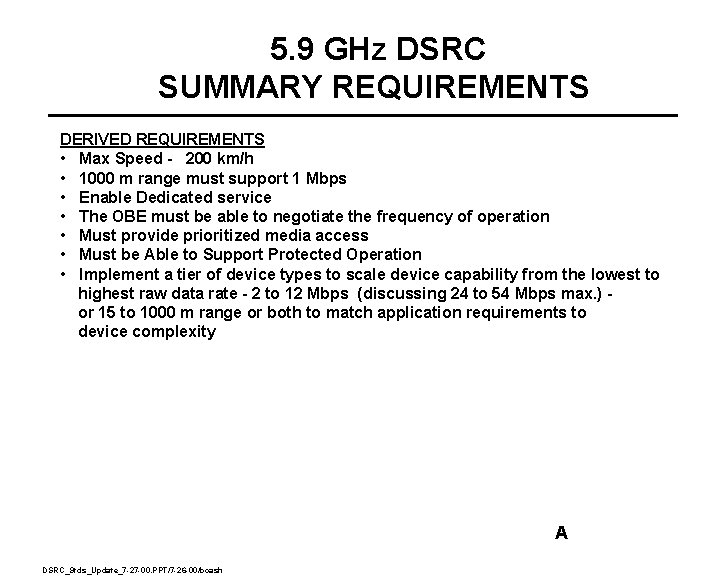

5. 9 GHz DSRC SUMMARY REQUIREMENTS DERIVED REQUIREMENTS • Max Speed - 200 km/h • 1000 m range must support 1 Mbps • Enable Dedicated service • The OBE must be able to negotiate the frequency of operation • Must provide prioritized media access • Must be Able to Support Protected Operation • Implement a tier of device types to scale device capability from the lowest to highest raw data rate - 2 to 12 Mbps (discussing 24 to 54 Mbps max. ) or 15 to 1000 m range or both to match application requirements to device complexity A DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash

DSRC BAND CAPABILITIES This chart shows the comparison between the 902 to 928 MHz and the 5. 9 GHz (5850 -5925 MHz) band DSRC equipment capabilities. As long as the applications are installed singly on each beacon, have limited requirements, and are spaced more than five range lengths apart, the 902 to 928 MHz equipment will be adequate. However, the 902 to 928 MHz equipment does not have the capability or the spectrum to meet all the requirements of at least High Rate Data Download, Signal Preemption, Transit Signal Priority, Transit Vehicle Data Transfer, Intersection Collision Avoidance, In-vehicle Signing, Work Zone Warning, and the potential proliferation of Electronic Payment Services. In addition, 902 to 928 MHz implemented applications may also eventually suffer from interference due to overcrowding of 902 to 928 MHz DSRC installations and other band users. PARAMETERS 902 - 928 MHz Band 5850 - 5925 MHz Band SPECTRUM USED 12 MHz (909. 75 to 921. 75 MHz) 75 MHz DATA RATE 0. 5 Mbps 2 Mbps - 27 Mbps COVERAGE Large distances between communication zones Overlapping communication zones needed and allowed ALLOCATION STATUS No protection Primary Status (high protection) INTERFERENCE POTENTIAL Many 900 MHz Phones, Many Rail Car AEI Readers, Many Spread Spectrum Devices, Wind Profile Radars Sparsely located Military Radars, Very Sparsely located Satellite Uplinks MAXIMUM RANGE 300 ft 1000 to 3000 ft CHANNEL CAPACITY 1 to 2 channels 3 to 10 channels POWER (Downlink) POWER (Uplink) 44. 77 d. Bm (30 W) up to 6 d. Bm (< 4 m. W) 44. 77 d. Bm (30 W) up to 15 d. Bm (< 32 m. W) (See Note)* *Note - As a special case 44. 77 d. Bm (30 W) may be use for the signal preemption uplink on a unique channel. DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash A

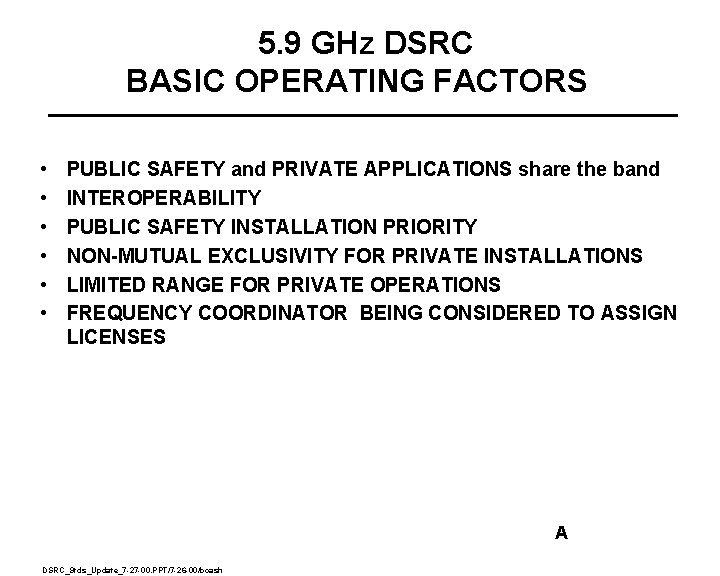

5. 9 GHz DSRC BASIC OPERATING FACTORS • • • PUBLIC SAFETY and PRIVATE APPLICATIONS share the band INTEROPERABILITY PUBLIC SAFETY INSTALLATION PRIORITY NON-MUTUAL EXCLUSIVITY FOR PRIVATE INSTALLATIONS LIMITED RANGE FOR PRIVATE OPERATIONS FREQUENCY COORDINATOR BEING CONSIDERED TO ASSIGN LICENSES A DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash

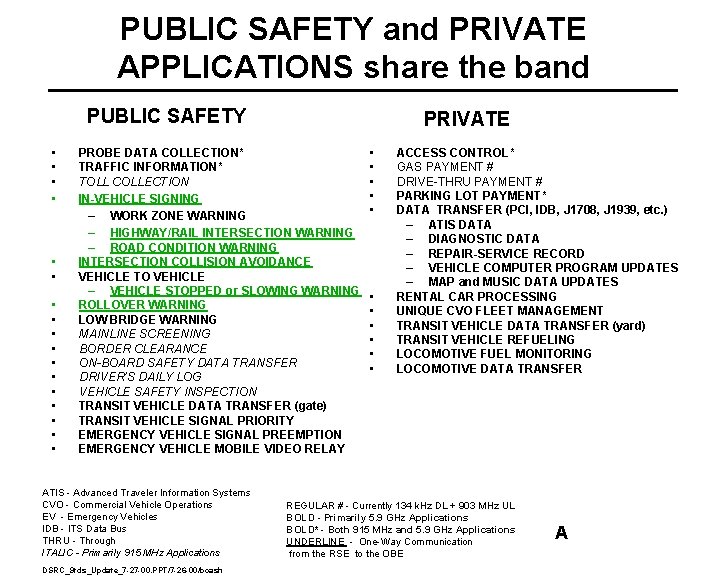

PUBLIC SAFETY and PRIVATE APPLICATIONS share the band PUBLIC SAFETY • • • • • PRIVATE PROBE DATA COLLECTION* TRAFFIC INFORMATION* TOLL COLLECTION IN-VEHICLE SIGNING – WORK ZONE WARNING – HIGHWAY/RAIL INTERSECTION WARNING – ROAD CONDITION WARNING INTERSECTION COLLISION AVOIDANCE VEHICLE TO VEHICLE – VEHICLE STOPPED or SLOWING WARNING ROLLOVER WARNING LOW BRIDGE WARNING MAINLINE SCREENING BORDER CLEARANCE ON-BOARD SAFETY DATA TRANSFER DRIVER’S DAILY LOG VEHICLE SAFETY INSPECTION TRANSIT VEHICLE DATA TRANSFER (gate) TRANSIT VEHICLE SIGNAL PRIORITY EMERGENCY VEHICLE SIGNAL PREEMPTION EMERGENCY VEHICLE MOBILE VIDEO RELAY ATIS - Advanced Traveler Information Systems CVO - Commercial Vehicle Operations EV - Emergency Vehicles IDB - ITS Data Bus THRU - Through ITALIC - Primarily 915 MHz Applications DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash • • • ACCESS CONTROL* GAS PAYMENT # DRIVE-THRU PAYMENT # PARKING LOT PAYMENT* DATA TRANSFER (PCI, IDB, J 1708, J 1939, etc. ) – ATIS DATA – DIAGNOSTIC DATA – REPAIR-SERVICE RECORD – VEHICLE COMPUTER PROGRAM UPDATES – MAP and MUSIC DATA UPDATES RENTAL CAR PROCESSING UNIQUE CVO FLEET MANAGEMENT TRANSIT VEHICLE DATA TRANSFER (yard) TRANSIT VEHICLE REFUELING LOCOMOTIVE FUEL MONITORING LOCOMOTIVE DATA TRANSFER REGULAR # - Currently 134 k. Hz DL + 903 MHz UL BOLD - Primarily 5. 9 GHz Applications BOLD* - Both 915 MHz and 5. 9 GHz Applications UNDERLINE - One-Way Communication from the RSE to the OBE A

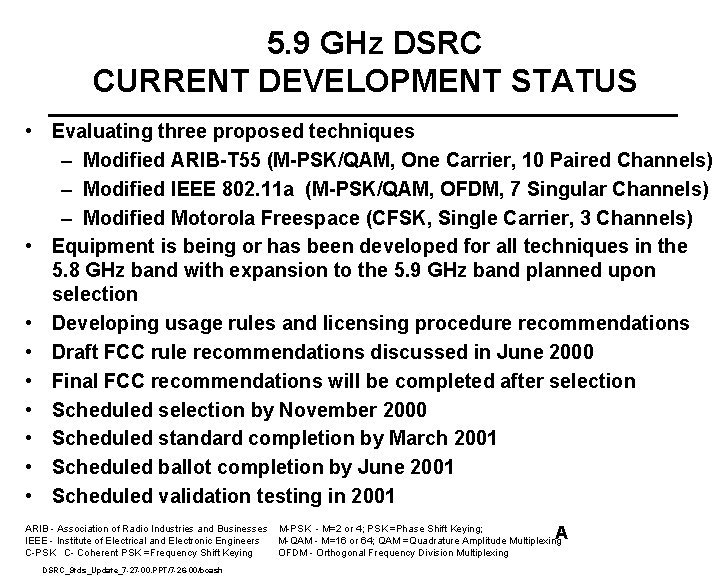

5. 9 GHz DSRC CURRENT DEVELOPMENT STATUS • Evaluating three proposed techniques – Modified ARIB-T 55 (M-PSK/QAM, One Carrier, 10 Paired Channels) – Modified IEEE 802. 11 a (M-PSK/QAM, OFDM, 7 Singular Channels) – Modified Motorola Freespace (CFSK, Single Carrier, 3 Channels) • Equipment is being or has been developed for all techniques in the 5. 8 GHz band with expansion to the 5. 9 GHz band planned upon selection • Developing usage rules and licensing procedure recommendations • Draft FCC rule recommendations discussed in June 2000 • Final FCC recommendations will be completed after selection • Scheduled selection by November 2000 • Scheduled standard completion by March 2001 • Scheduled ballot completion by June 2001 • Scheduled validation testing in 2001 ARIB - Association of Radio Industries and Businesses IEEE - Institute of Electrical and Electronic Engineers C-PSK C- Coherent PSK =Frequency Shift Keying DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash A M-PSK - M=2 or 4; PSK =Phase Shift Keying; M-QAM - M=16 or 64; QAM =Quadrature Amplitude Multiplexing OFDM - Orthogonal Frequency Division Multiplexing

SUMMARY OF 5. 9 GHz DSRC DEVELOPMENT ACTIVITY AREAS • • • • • • • ITS-A - DSRC Service Deployer and Integrator Outreach Deployers - DSRC Application Testing Manufacturers Consortia - DSRC User Outreach Manufacturers Consortia - DSRC Standard Parameters Input ASTM - DSRC Band Use Plan Development ITS-A - DSRC Band Use Rule Input to the FCC ASTM - DSRC Architecture Standard Development ASTM / ITS-A - DSRC Application Experience Review ASTM - DSRC Physical Layer Standard Development ASTM - DSRC Datalink Layer Standard Development ASTM - DSRC Test Procedures Standard Development FCC - DSRC Band Rules Development and Issuance (Speculation) ASTM - DSRC Standard Verification and Validation Testing ASTM - E 17. 51 DSRC Subcommittee Standard Tracking and Review ISO - Resource Manager Standard Development IEEE - 1455 Large File Transfer Procedure and Safety Services Message Development IEEE - Security Procedures Development IEEE - 1455 Verification and ISO Standard Harmonization SAE - OBE Vehicle Installation Standard Development IDB Forum - Acquire AMIC User Requirements Input for DSRC/ IDB Interface IDB Forum (DSRC Special Interest Group [SIG]) - IDB Message Development AASHTO - DSRC Implementation Guideline Development FHWA - DSRC Usage Rule Development and Issuance FHWA - DSRC Application Model Deployment Coordination ASTM - Develop and Implement DSRC Equipment Certification Procedures DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash A

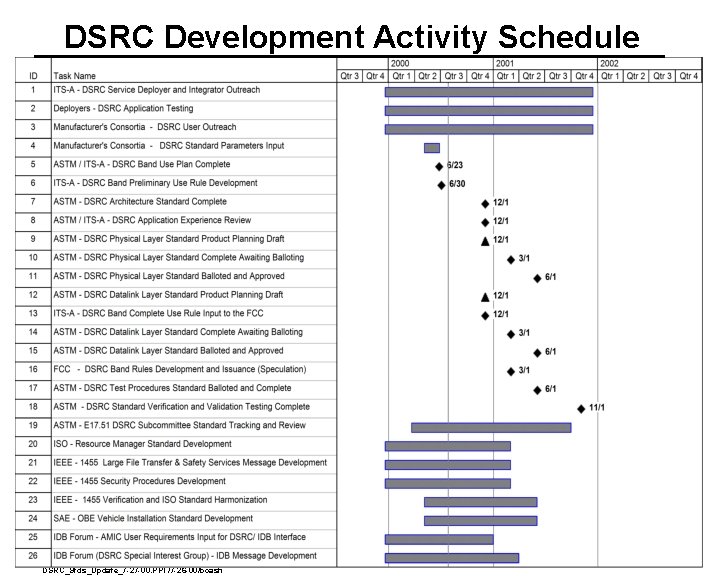

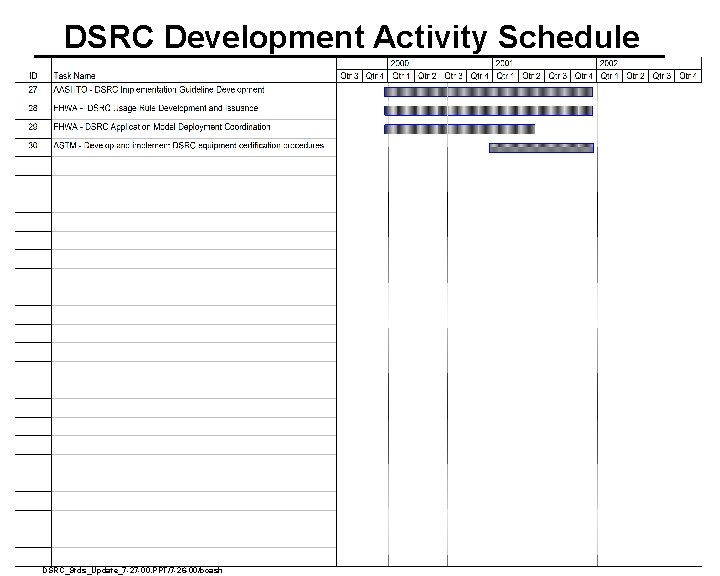

DSRC Development Activity Schedule A DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash

DSRC Development Activity Schedule A DSRC_Stds_Update_7 -27 -00. PPT/7 -26 -00/bcash
