Normalization

Normalization

Third Normal Form • Definition – Transitive functional dependency – if there a set

Third Normal Form • Definition – Transitive functional dependency – if there a set of attribute Z that are neither a primary or candidate key and both X Z and Y Z holds. • By transitive functional dependency, we mean we have the following relationships in the table: A is functionally dependent on B, and B is functionally dependent on C. In this case, C is transitively dependent on A via B.

• Consider the following example:

• Consider the following example:

Example • In the table above, [Book ID] determines [Genre ID], and [Genre ID]

Example • In the table above, [Book ID] determines [Genre ID], and [Genre ID] determines [Genre Type]. Therefore, [Book ID] determines [Genre Type] via [Genre ID] and we have transitive functional dependency.

3 rd Normal Form • 3 rd Normal Form Definition • A database is

3 rd Normal Form • 3 rd Normal Form Definition • A database is in third normal form if it satisfies the following conditions: • It is in second normal form • There is no transitive functional dependency

• To bring this table to third normal form, we split the table

• To bring this table to third normal form, we split the table into two as follows:

• Now all non-key attributes are fully functional dependent only on the primary

• Now all non-key attributes are fully functional dependent only on the primary key. • In [TABLE_BOOK], both [Genre ID] and [Price] are only dependent on [Book ID]. • In [TABLE_GENRE], [Genre Type] is only dependent on [Genre ID].

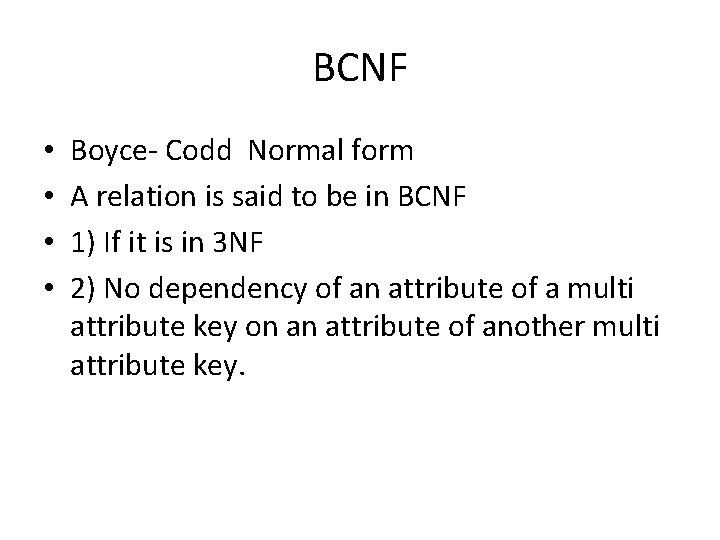

BCNF • • Boyce- Codd Normal form A relation is said to be in

BCNF • • Boyce- Codd Normal form A relation is said to be in BCNF 1) If it is in 3 NF 2) No dependency of an attribute of a multi attribute key on an attribute of another multi attribute key.

BCNF should have • It should have multiple candidate keys i. e, more than

BCNF should have • It should have multiple candidate keys i. e, more than one primary key. • Composite candidate keys. • No dependency of an attribute of a multi attribute key on an attribute of another attribute key i. e, overlapping.

Example Teacher_ID Department HOD Percent_time 100 Computers Vinod Kamboj 50 200 Maths S. S

Example Teacher_ID Department HOD Percent_time 100 Computers Vinod Kamboj 50 200 Maths S. S Sandhu 60 200 PHYSICS S. Prinja 40 300 History Armaan Kamboj 30 In the above table there are two composite keys 1) Teacher_ID, Department 2) Teacher_ID, HOD The above relation is in 3 NF but not in BCNF because Department and HOD which are the part of composite keys are functionally dependant.

• In order to normalize the relation into BCNF we have to create

• In order to normalize the relation into BCNF we have to create a new relation from old relation by breaking it. Teacher_ID 100 200 Department Computers Maths PHYSICS Percent_time 50 60 40 300 History 30 Department Computers Maths PHYSICS HOD Vinod Kamboj S. S Sandhu S. Prinja History Armaan Kamboj
