Normalization - Mr. Ahmad Al-Ghoul

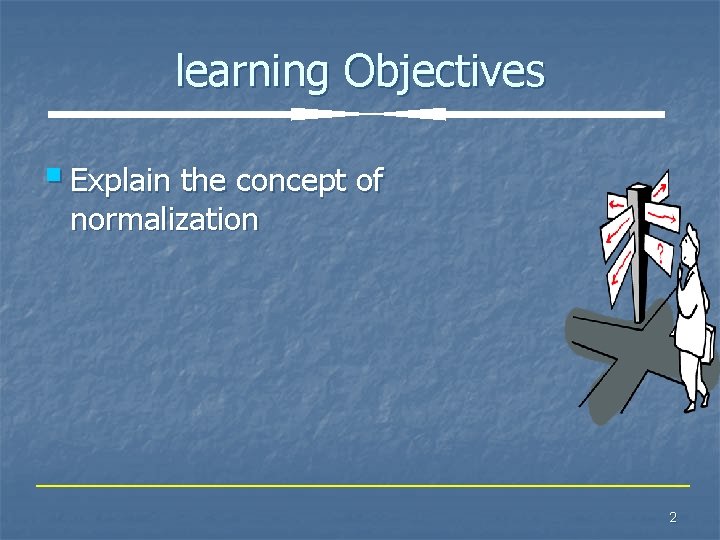

learning Objectives § Explain the concept of normalization 2

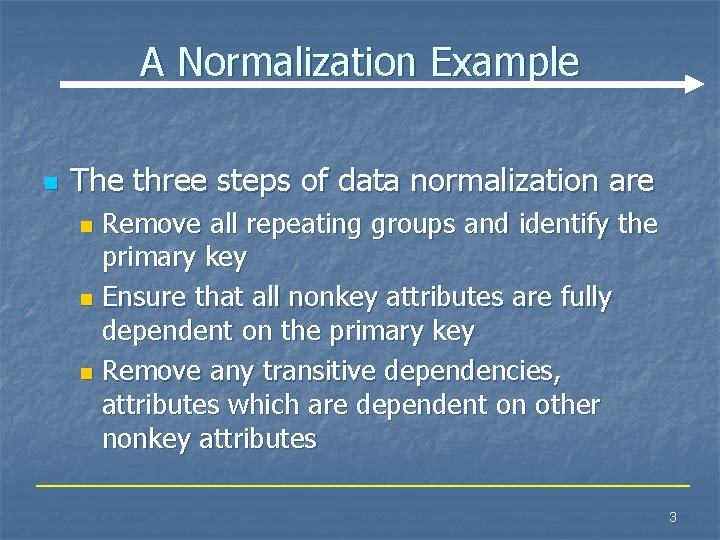

A Normalization Example n The three steps of data normalization are Remove all repeating groups and identify the primary key n Ensure that all nonkey attributes are fully dependent on the primary key n Remove any transitive dependencies, attributes which are dependent on other nonkey attributes n 3
A Normalization Example n n To show the normalization process, consider the familiar situation which might depict several entities in a school advising system: ADVISOR, COURSE, and STUDENT The relationships among the three entities are shown in the ERD below [1] 4
A Normalization Example n n n In this example we will discuss the normalization rules for these three entities, to show you can design a validate ERD Note that the relationship between student and course is many to many relationship (M: N) which can not create physically and as we said previously we must solve this problem by dividing this relationship to two one to many (1: M) relationship by adding a new entity called Associative entity the STUDENT table contains fields that relate to the ADVISOR and COURSE entities, so you can decide to begin with the initial design for the STUDENT table. 5

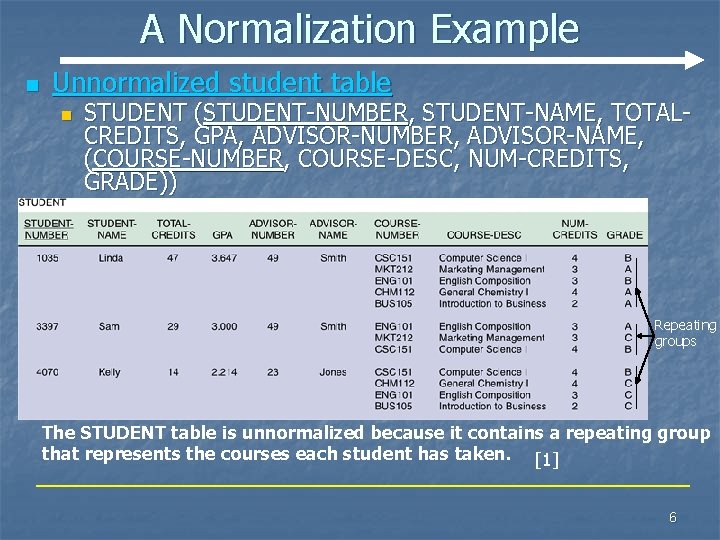

A Normalization Example n Unnormalized student table n STUDENT (STUDENT-NUMBER, STUDENT-NAME, TOTALCREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, (COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE)) Repeating groups The STUDENT table is unnormalized because it contains a repeating group that represents the courses each student has taken. [1] 6

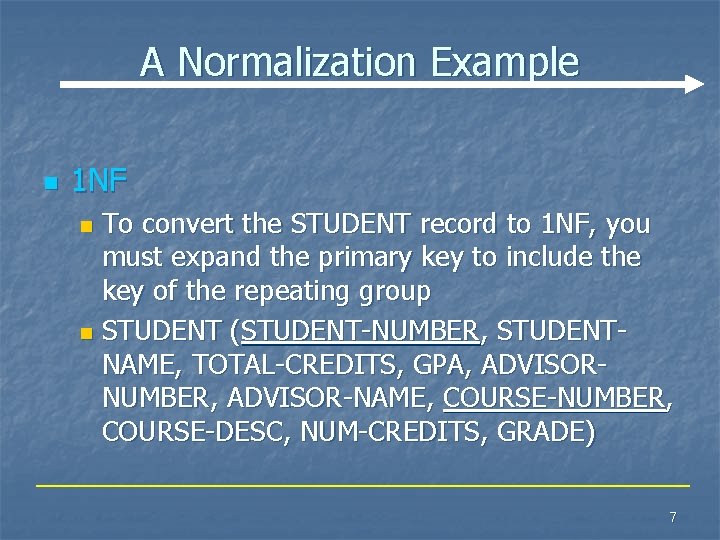

A Normalization Example n 1 NF To convert the STUDENT record to 1 NF, you must expand the primary key to include the key of the repeating group n STUDENT (STUDENT-NUMBER, STUDENTNAME, TOTAL-CREDITS, GPA, ADVISORNUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE) n 7

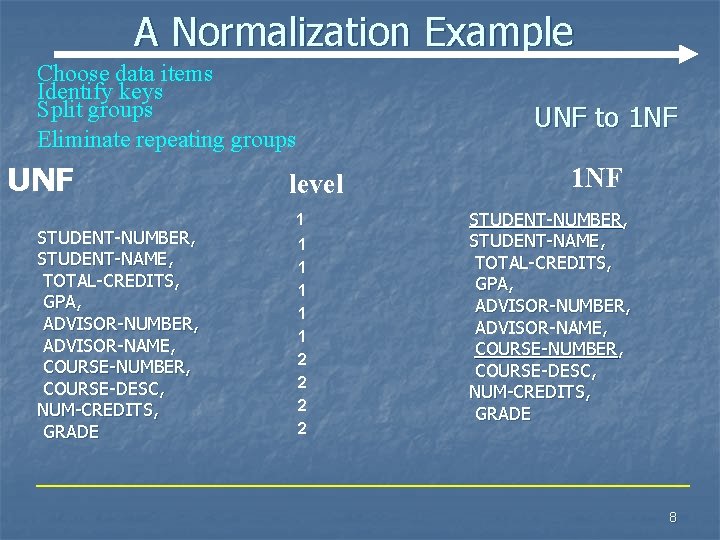

A Normalization Example Choose data items Identify keys Split groups Eliminate repeating groups UNF STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE UNF to 1 NF level 1 1 1 2 2 1 NF STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE 8
A Normalization Example The STUDENT table in 1 NF. Notice that the primary key has been expanded to include STUDENT-NUMBER and COURSE-NUMBER. Also, the repeating group has been eliminated. [1] 9

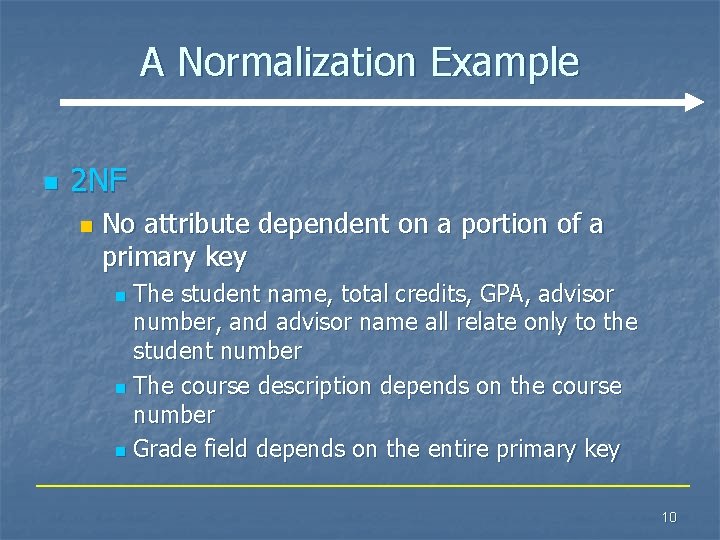

A Normalization Example n 2 NF n No attribute dependent on a portion of a primary key The student name, total credits, GPA, advisor number, and advisor name all relate only to the student number n The course description depends on the course number n Grade field depends on the entire primary key n 10

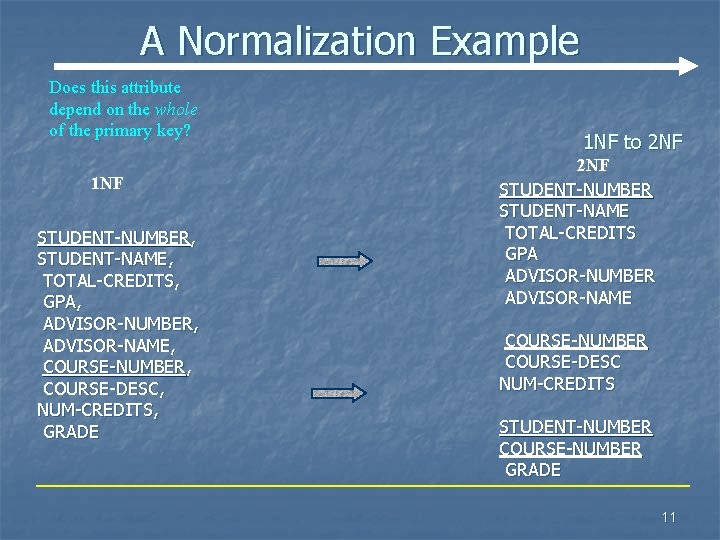

A Normalization Example Does this attribute depend on the whole of the primary key? 1 NF STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISOR-NAME, COURSE-NUMBER, COURSE-DESC, NUM-CREDITS, GRADE 1 NF to 2 NF STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE 11

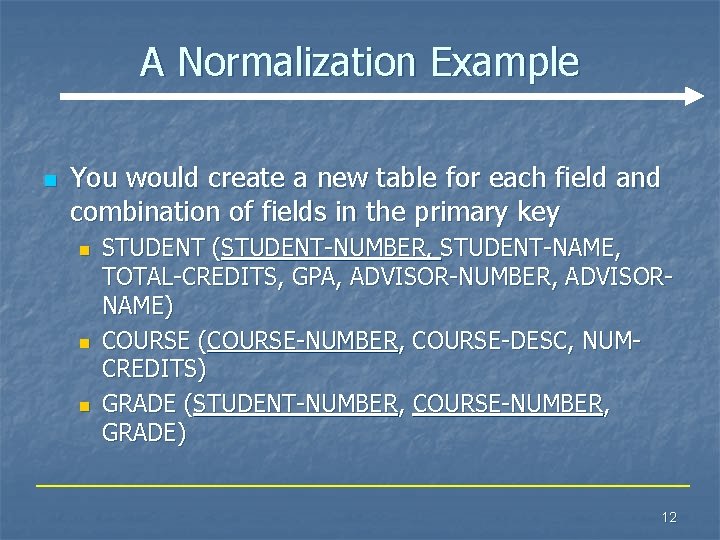

A Normalization Example n You would create a new table for each field and combination of fields in the primary key n n n STUDENT (STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER, ADVISORNAME) COURSE (COURSE-NUMBER, COURSE-DESC, NUMCREDITS) GRADE (STUDENT-NUMBER, COURSE-NUMBER, GRADE) 12

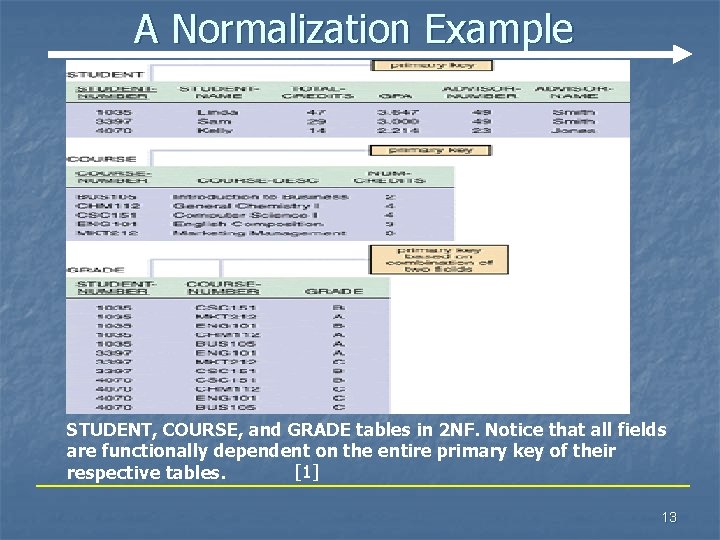

A Normalization Example STUDENT, COURSE, and GRADE tables in 2 NF. Notice that all fields are functionally dependent on the entire primary key of their [1] respective tables. 13
A Normalization Example n 3 NF n n Remove any transitive dependencies No attribute dependent on a nonkey attribute n n n The COURSE and GREADE are in 3 NF STUDENT is not in 3 NF, because the ADVISOR-NAME field depends on the ADVISOR-NUMBER field, which is not part of the STUDENT primary key To convert STUDENT to 3 NF, you remove the ADVISORNAME field from the STUDENT table and place it into a table with ADVISOR-NUMBER as the primary key 14

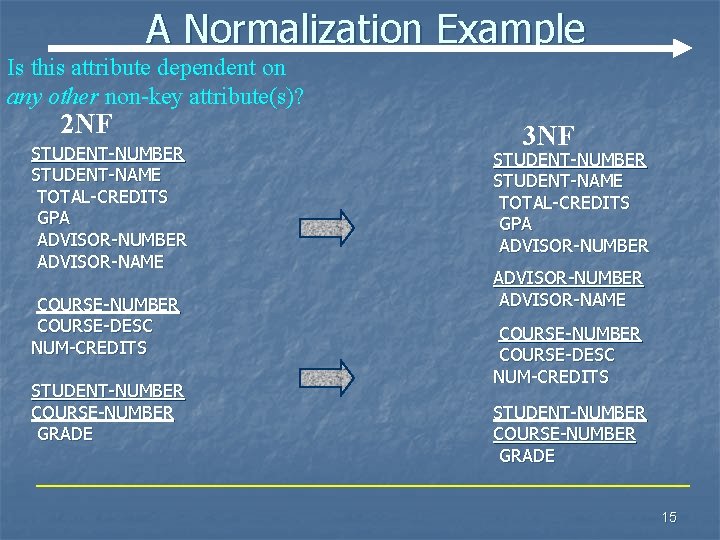

A Normalization Example Is this attribute dependent on any other non-key attribute(s)? 2 NF STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE 3 NF STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE 15

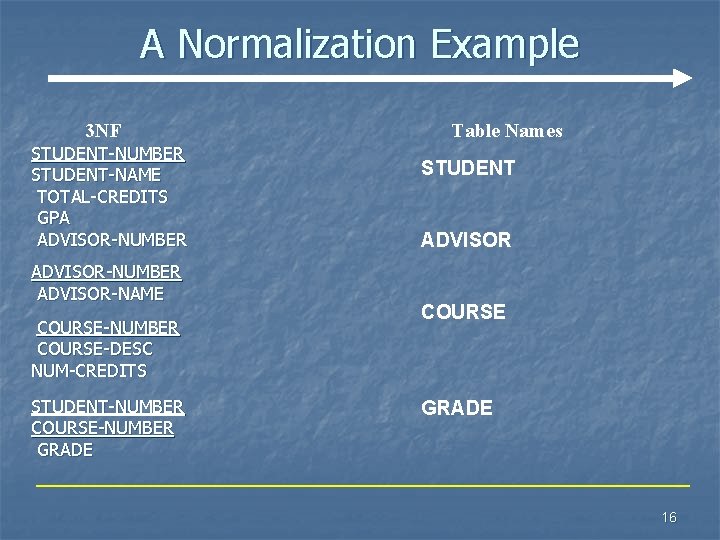

A Normalization Example 3 NF STUDENT-NUMBER STUDENT-NAME TOTAL-CREDITS GPA ADVISOR-NUMBER ADVISOR-NAME COURSE-NUMBER COURSE-DESC NUM-CREDITS STUDENT-NUMBER COURSE-NUMBER GRADE Table Names STUDENT ADVISOR COURSE GRADE 16

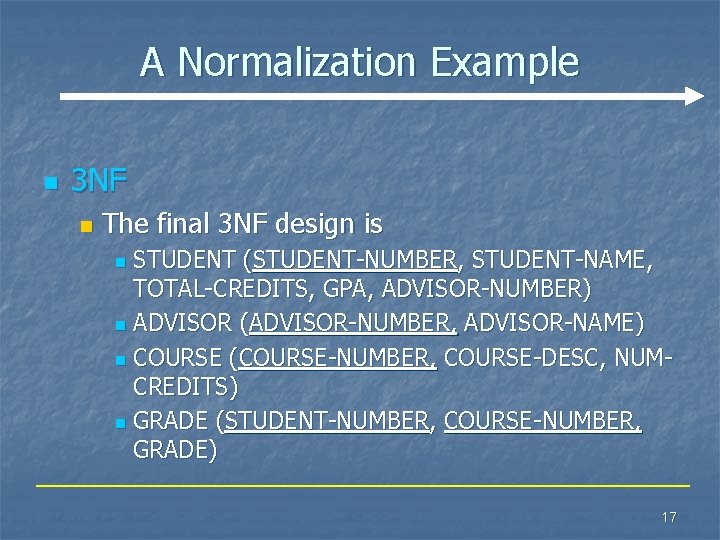

A Normalization Example n 3 NF n The final 3 NF design is STUDENT (STUDENT-NUMBER, STUDENT-NAME, TOTAL-CREDITS, GPA, ADVISOR-NUMBER) n ADVISOR (ADVISOR-NUMBER, ADVISOR-NAME) n COURSE (COURSE-NUMBER, COURSE-DESC, NUMCREDITS) n GRADE (STUDENT-NUMBER, COURSE-NUMBER, GRADE) n 17

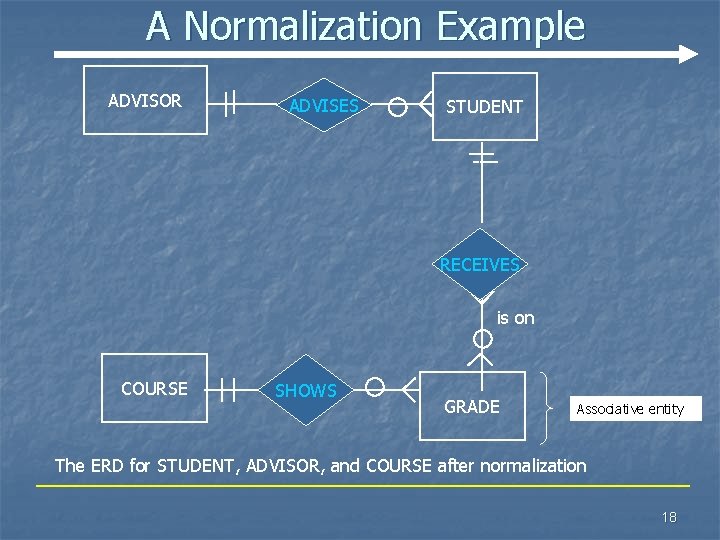

A Normalization Example ADVISOR ADVISES STUDENT RECEIVES is on COURSE SHOWS GRADE Associative entity The ERD for STUDENT, ADVISOR, and COURSE after normalization 18

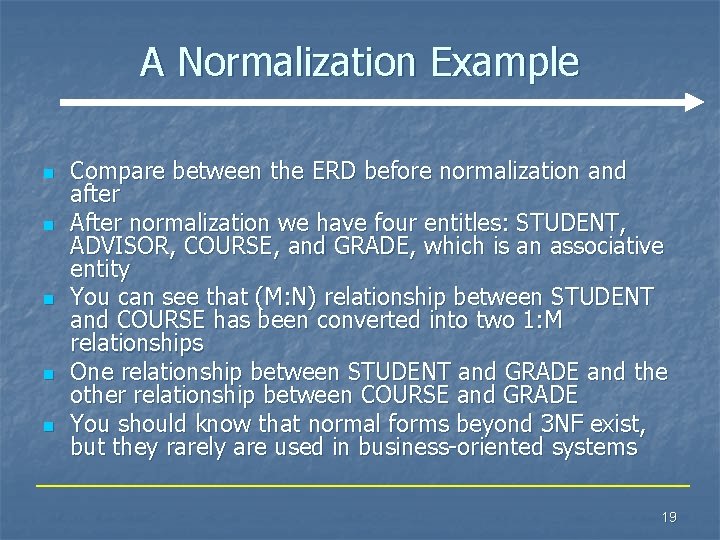

A Normalization Example n n n Compare between the ERD before normalization and after After normalization we have four entitles: STUDENT, ADVISOR, COURSE, and GRADE, which is an associative entity You can see that (M: N) relationship between STUDENT and COURSE has been converted into two 1: M relationships One relationship between STUDENT and GRADE and the other relationship between COURSE and GRADE You should know that normal forms beyond 3 NF exist, but they rarely are used in business-oriented systems 19

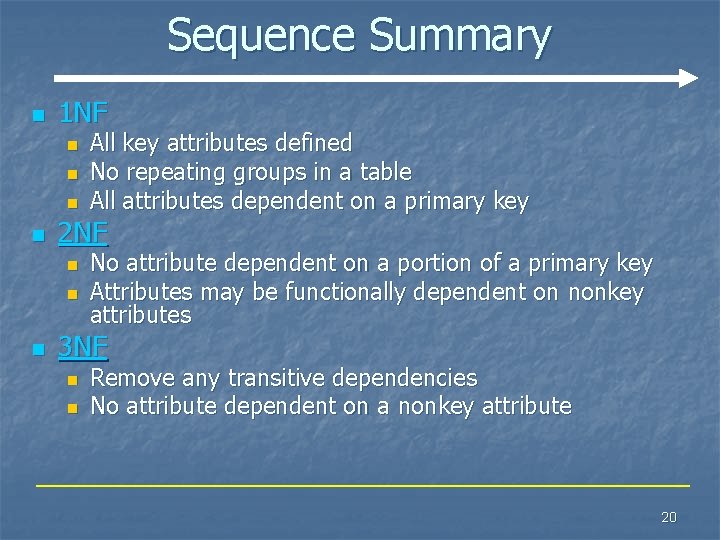

Sequence Summary n 1 NF n n 2 NF n n n All key attributes defined No repeating groups in a table All attributes dependent on a primary key No attribute dependent on a portion of a primary key Attributes may be functionally dependent on nonkey attributes 3 NF n n Remove any transitive dependencies No attribute dependent on a nonkey attribute 20

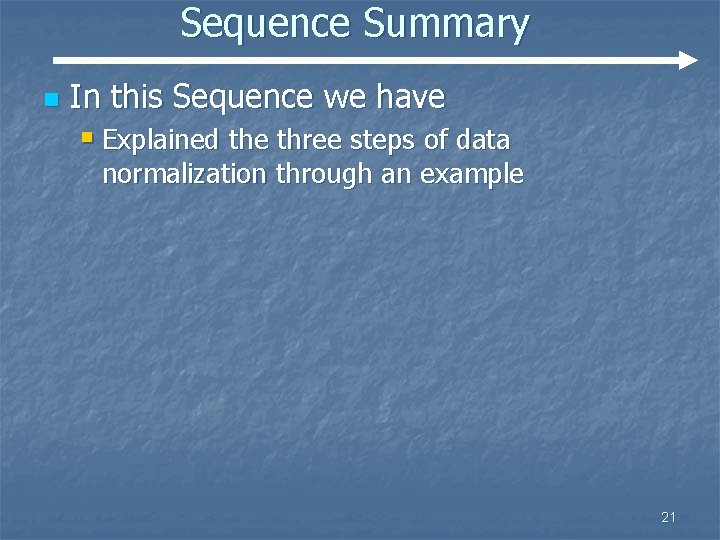

Sequence Summary n In this Sequence we have § Explained the three steps of data normalization through an example 21

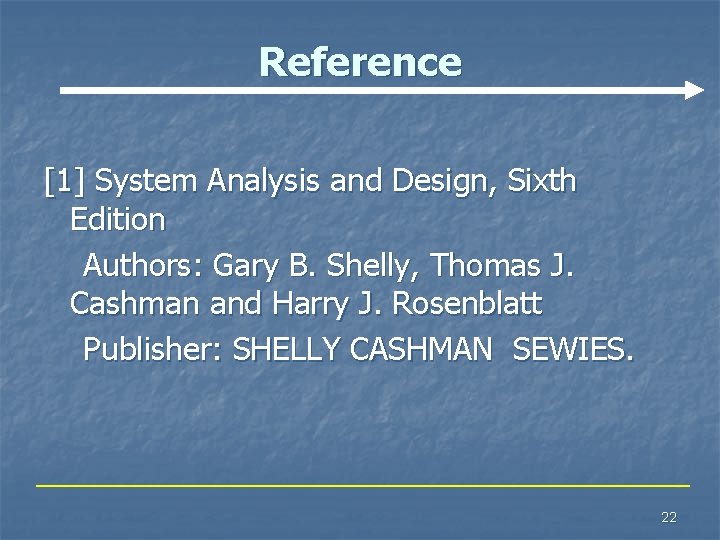

Reference [1] System Analysis and Design, Sixth Edition Authors: Gary B. Shelly, Thomas J. Cashman and Harry J. Rosenblatt Publisher: SHELLY CASHMAN SEWIES. 22
