Nor-140/VID – Integrated Video Recording System Integrating Video into Your Noise Measurements Nor. Level.

Nor-140/VID – Integrated Video Recording System Integrating Video into Your Noise Measurements Nor. Level. Control 10 -2006

Nor-140/VID - Applications Ø Licensing – Smoking shelters Ø Anti Social Behaviour Ø Construction

Nor-140/VID - Applications Ø Licensing – Smoking shelters Ø Anti Social Behaviour Ø Construction noise monitoring Ø Industrial facilities Ø Railway noise Nor. Level. Control 10 -2006

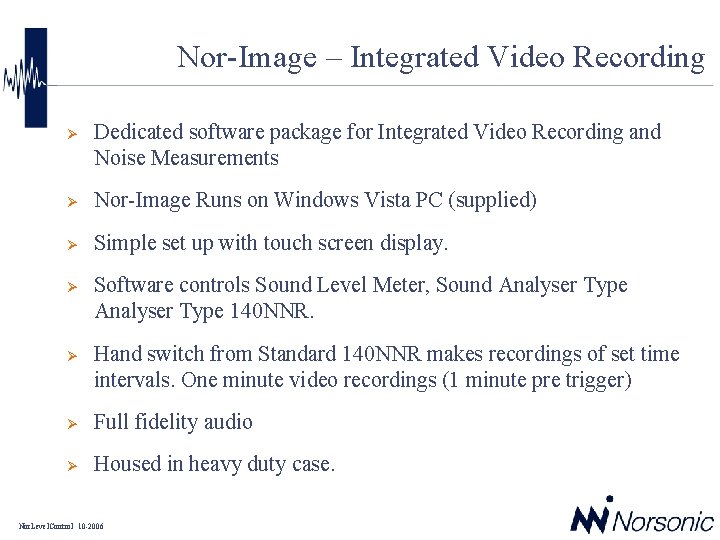

Nor-Image – Integrated Video Recording Ø Dedicated software package for Integrated Video Recording and

Nor-Image – Integrated Video Recording Ø Dedicated software package for Integrated Video Recording and Noise Measurements Ø Nor-Image Runs on Windows Vista PC (supplied) Ø Simple set up with touch screen display. Ø Ø Software controls Sound Level Meter, Sound Analyser Type 140 NNR. Hand switch from Standard 140 NNR makes recordings of set time intervals. One minute video recordings (1 minute pre trigger) Ø Full fidelity audio Ø Housed in heavy duty case. Nor. Level. Control 10 -2006

Nor-140/VID - Hardware Space for accessories in lid Nor-140 Tablet PC Aluminium plate with

Nor-140/VID - Hardware Space for accessories in lid Nor-140 Tablet PC Aluminium plate with power connector and camera connections Cable duct for power supply, microphone cable, Hand switch and camera Nor. Level. Control 10 -2006 Vent and Fan

Nor-140/VID - Hardware Ø Ø Ø New single heavy duty case to house Nor-140

Nor-140/VID - Hardware Ø Ø Ø New single heavy duty case to house Nor-140 Analyser, tablet PC and accessories. Cables are routed underneath the PC and noise meter. High specification touch screen tablet PC. Quiet fan installed under PC which is vented to remove excess heat generated by PC. - This could be a problem in the summer months without this ventilation. Aluminium plate with connector for a single power supply for complete system and connector for video camera New cable duct for all cables coming out of system Nor. Level. Control 10 -2006

Nor-Image – Getting Started ØSimple Setup ØTouch screen display ØPress start! Nor. Level. Control

Nor-Image – Getting Started ØSimple Setup ØTouch screen display ØPress start! Nor. Level. Control 10 -2006

User Interface and Changing Settings Ø Limited options to simplify use. Ø Select View/Show

User Interface and Changing Settings Ø Limited options to simplify use. Ø Select View/Show graph to see real time display Ø Ø Configuration/ Video to change length of video recordings Configuration/ Trigger Nor. Level. Control 10 -2006 § to record video from § hand switch or level § trigger.

Nor-Image – Reviewing Measurements Ø Ø Press stop and backup database. Nor-Image measurements opened

Nor-Image – Reviewing Measurements Ø Ø Press stop and backup database. Nor-Image measurements opened and reviewed in Nor -Review. Ø Measurement data date and time stamped. Ø Data displayed in with video/audio recordings marked. Ø Double click on video to see video playback in parallel with Sound levels Includes moving marker! Fully integrated system! Nor. Level. Control 10 -2006

Nor-140/VID - Summary Ø Ø Ø Simple to use Analysis takes no longer than

Nor-140/VID - Summary Ø Ø Ø Simple to use Analysis takes no longer than standard noise measurements with audio Valuable evidence for source identification in many applications Nor. Level. Control 10 -2006
