NOPQ JEOPARDY HELO OPS AAW ASW RULES SEAMANSHIP

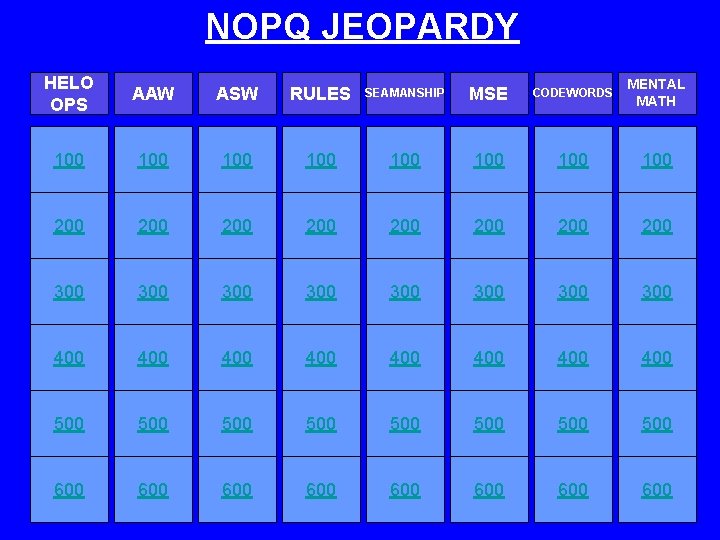

NOPQ JEOPARDY HELO OPS AAW ASW RULES SEAMANSHIP MSE CODEWORDS MENTAL MATH 100 100 200 200 300 300 400 400 500 500 600 600

HELO OPERATIONS THIS PERSON IS ALSO KNOWN AS PADDLES 1. Landing Safety Officer BACK

HELO OPERATIONS THE SHIP SHALL COME TO FLYING STATIONS ON THESE OCCASSIONS. 1) 2) 3) 4) IAW FLYPRO ACTION STATIONS EMERGENCY FLYING STATIONS ENGINE RUN-UPS BACK

HELO OPERATIONS THESE ARE THE MINIMUM CRITERIA REQUIRED TO RECOVER THE HELO DURING EMERGENCY FLYING STATIONS 1) SHIP CLEAR AFT OF FRAME 44 2) SHIP ON THE FLYING COURSE 3) FLYCO CLOSED UP BACK

HELO OPERATIONS THE OOW RECIEVES THESE REPORTS WHEN THE SHIP COMES TO FLYING STATIONS 1) LSO 2) FLYCO 3) HQ 1 4) FOD ROUNDS CORRECT 4) SHIP CLEAR AFT FRAME 44 BACK

HELO OPERATIONS THE LIFEBUOY SENTRY REPORTS HERE FOR EMERGENCY FLYING STATIONS HANGAR BACK

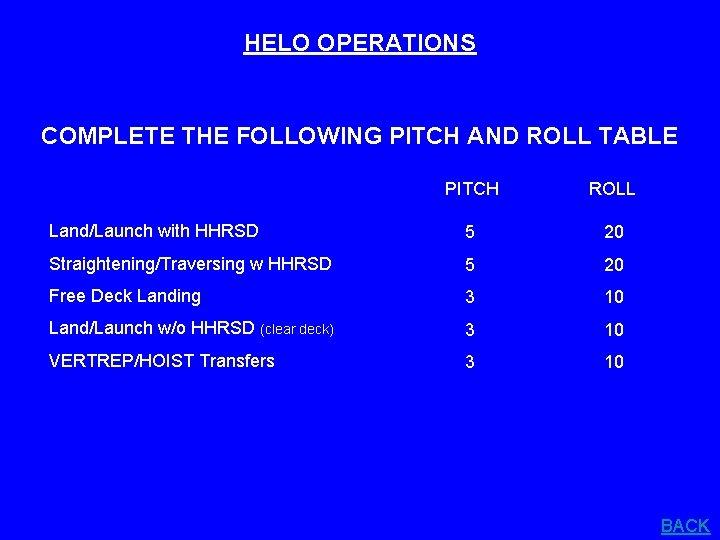

HELO OPERATIONS COMPLETE THE FOLLOWING PITCH AND ROLL TABLE PITCH ROLL Land/Launch with HHRSD 5 20 Straightening/Traversing w HHRSD 5 20 Free Deck Landing 3 Land/Launch w/o HHRSD (clear deck) 3 10 VERTREP/HOIST Transfers 3 10 BACK

AAW ELECTRONICALLY SAFE A safety measure in which a gun or weapon system is prevented from firing through an electrical cut out BACK

AAW 76 mm SURFACE AND AA FIRING ARCS 20, 000 ft BACK

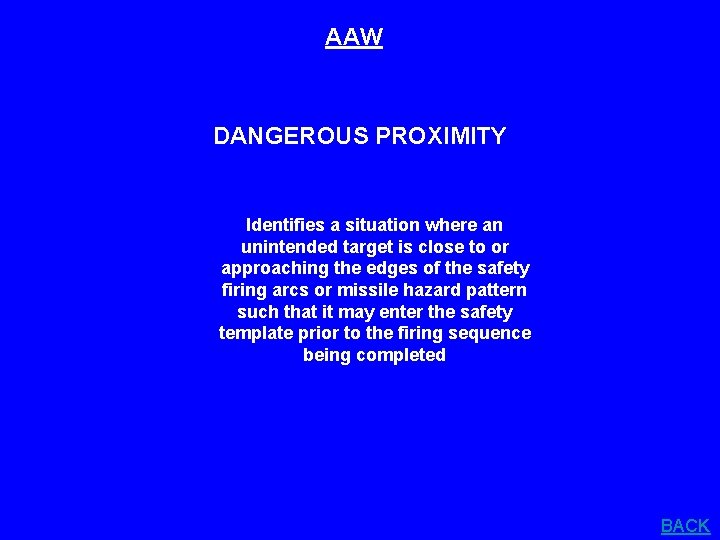

AAW DANGEROUS PROXIMITY Identifies a situation where an unintended target is close to or approaching the edges of the safety firing arcs or missile hazard pattern such that it may enter the safety template prior to the firing sequence being completed BACK

AAW THIS IS WHEN THE 76 mm IS CONSIDERED MECHANICALLY SAFE 1) BREECH EMPTY 2) HYDRAULIC POWER “OFF” 3) LOADING TRAY LOCKING TOOL INSTERTED BACK

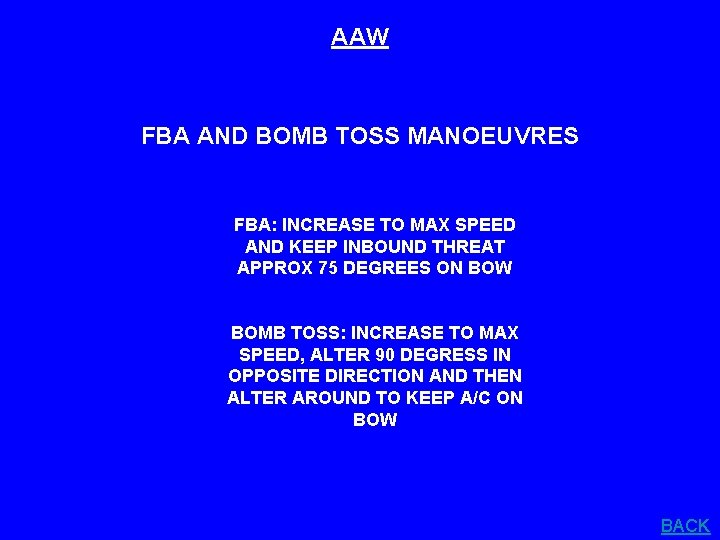

AAW FBA AND BOMB TOSS MANOEUVRES FBA: INCREASE TO MAX SPEED AND KEEP INBOUND THREAT APPROX 75 DEGREES ON BOW BOMB TOSS: INCREASE TO MAX SPEED, ALTER 90 DEGRESS IN OPPOSITE DIRECTION AND THEN ALTER AROUND TO KEEP A/C ON BOW BACK

AAW COMPLETE THE FOLLOWING TABLE FOR OUT-OF-BOUNDS AREA SM 2 Note 4/5 76 mm NULKA SHIELD II CIWS TORPEDO . 50 cal FOC’SLE BRIDGE WINGS FLAG DECK TOP PART HANGAR TOP FLIGHT DECK AX BACK

ASW RED FLARE PROCEDURE 1. BREAK OFF ATTACKS 2. CLEAR IMMEDIATE AREA OF SUBMARINE AND STEER SAFETY COURSE 3. CAVITATE 4. SWITCH NAV LIGHTS ON 5. BROADCAST TO ALL UNITS “EMERGENCY SURFACING” 6. SET WATCH ON UWT 7. SWITCH OFF/RECOVER/CUT DECOYS 8. STANBY TO RENDER ASSISTANCE 9. INFORM OCE/MARK PLOT AND CHART 10. PREPARE TO LAY OFFSET MARKER BUOY 11. CONSIDER RESCUE STATIONS BACK

DAILY DOUBLE

ASW STEP ASIDE MANOEUVRE 1. ALTER COURSE 60 -90 DEGREES IF POSSIBLE TO PLACE S/M ON OPPOSITE BOW/QUARTER 2. DISPLACE SHIP 1000 x ACROSS THE BEARING OF S/M 3. INCREASE/DECREASE SPEED BY AT LEAST 3 KTS (STAY BELOW CAVITATION IF POSSIBLE) 4. DO NOT STEADY UP WITH CONTACT WITHIN 15 DEGREES OF THE BOW BACK

ASW THE DEFINITIONS OF URGENT AND DELIBERATE ATTACK URGENT ATTACK: AN ATTACK DELIVERED WITH MAXIMUM RAPIDITY AGAINST AN ENEMY S/M LOCATED IN A POSITION SUCH THAT IS CONSIDERED AN IMMEDIATE THREAT DELIBERATE ATTACK: AN ATTACK DELIVERED WITH MAXIMUM ACCURACY AGAINST A S/M WHEN THE TACTICAL SITUATION ALLOWS TIME TO OBTAIN ACCURATE ATTACK DATA BACK

ASW METFR, TDA AND TDZ METFR – MAXIMUM EFFECTIVE TORPEDO FIRING RANGE TDA – TORPEDO DANGER AREA TDZ – TORPEDO DANGER ZONE BACK

ASW WHAT CLASS OF SUBMARINE IS THIS? KILO CLASS BACK

ASW WHEN LAUNCHING CANTASS, THE STERN OF THE SHIP MUST BE CLEAR TO THIS RANGE 1 NM BACK

RULES ANY ACTION TAKEN TO AVOID COLLISION SHALL… RULE 8(A) BE TAKEN IN ACCORDANCE WITH THE RULES OF THIS PART AND SHALL, IF THE CIRCUMSTANCES OF THE CASE ADMIT, BE POSITIVE, MADE IN AMPLE TIME AND WITH DUE REGARD TO THE OBSERVANCE OF GOOD SEAMANSHIP BACK

RULES IN CONSTRUING AND COMPLYING WITH THESE RULES DUE REGARD SHALL BE HAD TO…. RULE 2(B) ALL DANGERS OF NAVIGATION AND COLLISION AND TO ANY SPECIAL CIRCUMSTANCES, INCLUDING THE LIMITATIONS OF THE VESSELS INVOLVED, WHICH MAY MAKE A DEPARTURE FROM THESE RULES NECESSARY TO AVOID IMMEDIATE DANGER BACK

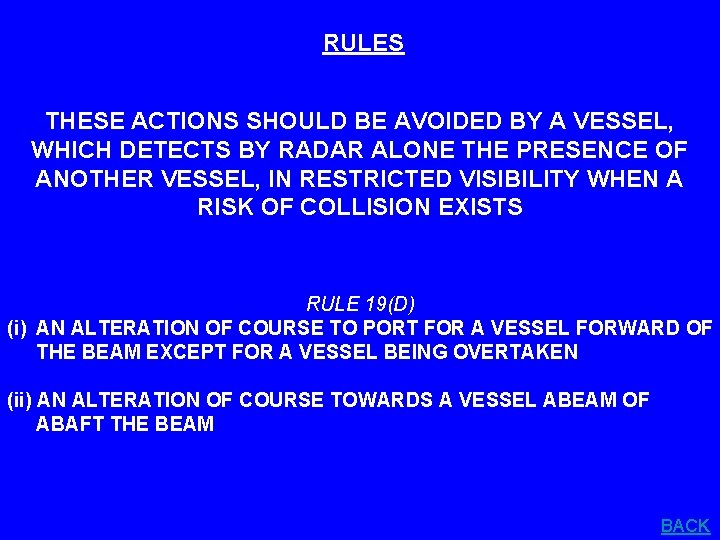

RULES THESE ACTIONS SHOULD BE AVOIDED BY A VESSEL, WHICH DETECTS BY RADAR ALONE THE PRESENCE OF ANOTHER VESSEL, IN RESTRICTED VISIBILITY WHEN A RISK OF COLLISION EXISTS RULE 19(D) (i) AN ALTERATION OF COURSE TO PORT FOR A VESSEL FORWARD OF THE BEAM EXCEPT FOR A VESSEL BEING OVERTAKEN (ii) AN ALTERATION OF COURSE TOWARDS A VESSEL ABEAM OF ABAFT THE BEAM BACK

RULES THESE LIGHTS IDENTIFY THIS TYPE OF VESSEL. IT WOULD ALSO MAKE THIS SOUND SIGNAL IN RESTRICTED VISIBILITY PILOT VESSEL UNDERWAY. ONE LONG BLAST FOLLOWED BY FOUR SHORT BLASTS AT AN INTERVAL NMT 2 MIN BACK

DAILY DOUBLE BACK

RULES PART B OF THE RULES IS CONTAINS THESE THREE SECTIONS SECTION 1: CONDUCT OF VESSELS IN ANY CONDITION OF VISIBILITY SECTION 2: CONDUCT OF VESSELS IN SIGHT OF ONE ANOTHER SECTION 3: CONDUCT OF VESSELS IN RESTRICTED VISIBILITY

RULES RULE 15 CROSSING SITUATION WHEN TWO POWER-DRIVEN VESSELS ARE CROSSING ONE ANOTHER SO AS TO INVOLVE RISK OF COLLISION, THE VESSEL WHICH HAS THE OTHER ON HER OWN STARBOARD SIDE SHALL KEEP OUT OF THE WAY AND SHALL, IF THE CIRCUMSTANCES OF THE CASE ADMIT, AVOID CROSSING AHEAD OF THE OTHER VESSEL BACK

SEAMANSHIP ATHABASKAN HAS THIS TYPE OF ANCHOR WHICH IS THIS HEAVY MARINE FLUKED STOCKLESS ANCHOR 5000 LBS BACK

SEAMANSHIP THE RAS TEAMS OF HMC SHIPS 1. Light Jackstay (supply) 2. Light Jackstay (receive) 3. Liquid RAS 4. Heavy Jackstay 5. Light Line BACK

SEAMANSHIP THESE ARE THE FLAGS OF THE DISTANCE LINE AND THE COLOUR OF LIGHTS ASSOCIATED WITH THEM AT NIGHT Green Red Yellow Blue White Green BACK

SEAMANSHIP THE COMPONENTS OF THE LIGHT LINE TRANSFER 1) LIGHT LINE 2) CENTRE POSITION 3) 6” SNATCH BLOCKS BACK

DAILY DOUBLE

SEAMANSHIP COMPONENTS OF HEAVY JACKSTAY BACK

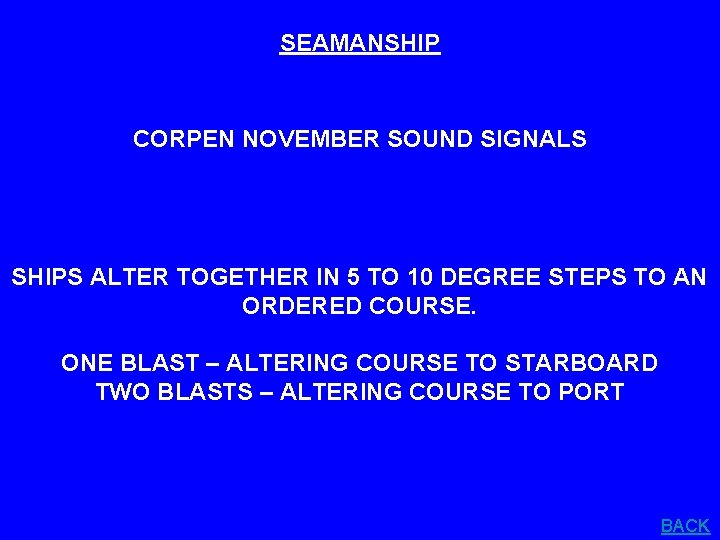

SEAMANSHIP CORPEN NOVEMBER SOUND SIGNALS SHIPS ALTER TOGETHER IN 5 TO 10 DEGREE STEPS TO AN ORDERED COURSE. ONE BLAST – ALTERING COURSE TO STARBOARD TWO BLASTS – ALTERING COURSE TO PORT BACK

ENGINEERING NATO DESIGNATORS FOR DFO AND JP-5 DFO – F 76 JP-5 – F 44 BACK

ENGINEERING THE AUXILIARY GEARBOX SERVES THESE TWO PURPOSES 1) DECREASES THE RPM OF THE CRUISE ENGINE BEFORE THE DRIVE SHAFT ENTERS THE MAIN GEARBOX 2) THE STBD AUX GEARBOX CONTAINS AN IDLER GEAR WHICH REVERSES THE ROTATION OF THE STARBOARD SHAFT TO ALLOW FOR INBOARD OVER-THE-TOP PROPELLER ROTATION BACK

ENGINEERING THIS SYSTEM PROVIDES OIL FOR LUBRICATION AND INTERNAL COOLING OF THE MAIN AND CRUISE ENGINES SYNTHETIC LUBRICATING OIL SYSTEM BACK

ENGINEERING IF FLOODING WERE TO OCCUR, BULKHEAD SEALS PREVENT THE INGRESS OF WATER BETWEEN COMPARTMENTS ALONG THE SHAFTLINE. THEY ARE LOCATED ON THESE FRAMES 1) AFT FACE OF FRAME 38 2) FORWARD FACE OF FRAME 44 BACK

DAILY DOUBLE

ENGINEERING DEFINE COGOG AND CODOG. WHAT IS THE DIFFERENCE? COGOG – Combined Gas Or Gas CODOG – Combined Diesel Or Gas Refers to the type of engine driving NOT the type of fuel used. COGOG vessels only have gas turbine engines and propulsion is produced by a gas turbine driving a shaft line which then transfers thrust to the hull. CODOG vessels have gas turbines and diesel engine(s) ex: PDE. Therefore, propulsion can be produced via a gas turbine or diesel engine driving a shaft line (but cannot be driven by both simultaneously) BACK

ENGINEERING THIS ENABLES FUEL IN THE HEADER TANKS TO BE FED TO THE ENGINE PUMPS WHICH ALLOWS THE ENGINES TO OPERATE FOR A LIMITED TIME BASED ON SPEED GRAVITY BACK

CODEWORDS • ALLIGATOR • LINK 11 • BALL • ASW HELO TRANSDUCER • BLOODHOUND • ASW TORPEDO (CIRCLE SEARCH) • LAST KNOWN POSITION OF SUB AFTER CONTACT HAS BEEN MADE • MAIN ARMAMENT • DATUM • TUCKER BACK

CODEWORDS • PELICAN • POLAR • • • ASW LONG RANGE PATROL A/C CAPABLE OF BOTH SEARH AND ATTACK FRIENDLY NUCLEAR SUBMARINE RAT • ENEMEY FIGHTER • RATFINK • ENEMY BOMBER • SOUR • EQUIPMENT INDICATED IS NOT OPERATING EFFICIENTLY BACK

CODEWORDS • TACAN • TACTICAL AIR NAVIGATION • DOGBOX • AREA WITHIN WHICH UNIT MAY INTERFERE WITH OR BE ENDANGERED BY ASW TORPEDOES • BANDIT • UNKOWN A/C ASSUMED TO BE HOSTILE • ANGELS • ALTITUDE OF A/C IN THOUSANDS OF FEET • BULLPEN • STATIONARY S/M GENERATED SEARCH AREA WITHIN A JOINT ACTION AREA IN WHICH A S/M WILL OPERATE FOR AN EXTENDED PERIOD OF TIME BACK

CODEWORDS • DAISY • MOORED MINE • FEATHER • VISUAL SIGHTING OF PERISCOPE WAKE • WOODPECKER • CIWS • SNEAKER • INTELLIGENCE GATHERING VESSEL • STRANGLE • SWITCH OFF EQUIPMENT INDICATED BACK

CODEWORDS THE ORO WILL ASK THE SWC FOR THIS IF HE WANTS TO KNOW HOW MANY SAMs ARE REMAINING SUGAR REPORT BACK

CODEWORDS • OCTOPUS • CCS • APPLETREE • AIS • VAMPIRE • ENEMY MISSILE • HOOKER • FISHING VESSEL • GINGERBREAD • SPOOFING OR VOICE IMITATIVE DETECTION SUSPECTED ON THIS NET BACK

MENTAL MATH THE TIME IT TAKES TO TRANSIT 1 NM AT 15 KTS 4 MIN BACK

MENTAL MATH 24 NM IN 40 MIN 16 KTS BACK

MENTAL MATH THE NUMBER OF DEGREES YOU MUST ALTER TO AFFECT A 1000 YARD CPA ON A CONTACT BEARING RIGHT AHEAD RANGE 2 NM. SPEED: 15 KTS TCPA: 20 MIN 12 DEGREES BACK

MENTAL MATH WHAT IS THE CPA AND TCPA FOR A VESSEL BEING OVERTAKEN BEARING GREEN 5 RANGE 3 NM SP: 10 KTS. YOUR SPEED: 15 KTS CPA: 500 X TCPA: 36 MIN BACK

MENTAL MATH SPEED REQUIRED TO TRANSIT 432 NM IN 72 HRS 6 KTS BACK

MENTAL MATH DURING A RAS APPROACH THE TANKER IS 6 DEGREES AT 300 YARDS. YOU ARE _______ 1. 20 YARDS INSIDE BACK

FINAL JEOPARDY

ENGINEERING

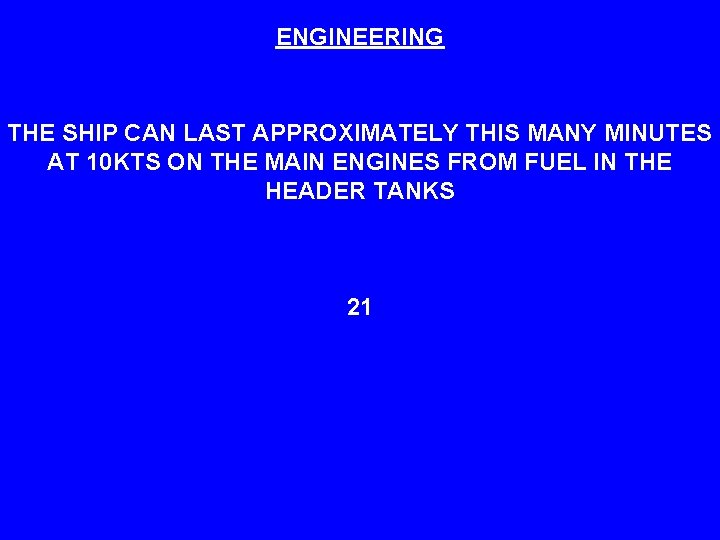

ENGINEERING THE SHIP CAN LAST APPROXIMATELY THIS MANY MINUTES AT 10 KTS ON THE MAIN ENGINES FROM FUEL IN THE HEADER TANKS 21
