Nonparametric Inference

Why Nonparametric Tests? • • We have been primarily discussing parametric tests; i. e. , tests that hold certain assumptions about when they are valid, e. g. t-tests and ANOVA both had assumptions regarding the shape of the distribution (normality) and about the necessity of having similar groups (homogeneity of variance). When these assumptions hold we can use standard sampling distributions (e. g. tdistribution, F-distribution) to find p-values.

Why Nonparametric Tests? • When these assumptions are violated it is necessary to turn to tests that do not have such stringent assumptions ~ nonparametric or "distribution-free" tests. • Specifically, there are three cases which necessitate the use of non-parametric tests: 3)In. There exists severely unequal variances 1) data for the response is notresponse at level leastis the last two cases, we have interval 2) The distribution of the data for the between i. e. our there is obviously a data, but itgroups, violates parametric interval scale, i. e. measurements. not normal. violation homogeneity of variance assumptions. Therefore, we might no longer treat Recall thatofa the relatively normal distribution is For example the response be ordinal. this data as buttests. as ordinal. tests. In a sense, assumption required for parametric assumed forinterval, parametric we demote it because it fails to meet specific assumptions.

Table of Parametric & Nonparametric Tests Parametric Test Two-Sample t-Test (either case) Paired t-Test Oneway ANOVA Nonparametric Purpose of Test Mann-Whitney/ Wilcoxon Rank Sum Test Sign Test or Wilcoxon Signed -Rank Test Compare two independent samples Compare Kruskal-Wallis k-independent Test samples

Mann-Whitney/Wilcoxon Rank Sum Test • • Alternative to two-sample t-Test Use when… - populations being sampled are not normally distributed. - sample sizes are small so assessing normality is not possible (ni < 20). - response is ordinal

Mann-Whitney/Wilcoxon Rank Sum Test General Hypotheses Ho: distribution of pop. A and pop. B are the same, i. e. A = B HA: distribution of pop. A and pop. B are NOT the same, i. e A = B HA: distribution of pop. A is shifted to the right of pop. B, i. e. A > B. HA: distribution of pop. A is shifted to the left of pop. B, i. e. A < B

Mann-Whitney/Wilcoxon Rank Sum Test Ho: A = B vs. H A: A > B Q: Is there evidence that the values in population A are generally larger than those in population B?

Mann-Whitney/Wilcoxon Rank Sum Test (Test Procedure) 1. 2. 3. 4. Rank all N = n. A + n. B observations in the combined sample from both populations in ascending order. Sum the ranks of the observations from populations A and B separately and denote the sums w. A and w. B. Assign average rank to tied observations. For HA: A < B reject Ho if w. A is “small” or w. B is “big”. For HA: A > B reject Ho if w. A is “big” or w. B is “small”. Use tables to determine how “big” or “small” the rank sums must be in order to reject Ho or use software to conduct the test.

Mann-Whitney/Wilcoxon Rank Sum Test (Critical Value Table) This table contains the value the smaller rank sum must be less than in order to reject the Ho for a one-tailed test situation for two significance levels (a =. 05 &. 01) Tables exist for the two-tailed tests as well. n is the sample size with the group with the smaller rank sum.

Example: Huntington’s Disease and Fasting Glucose Levels Davidson et al. studied the responses to oral glucose in patients with Huntington’s disease and in a group of control subjects. The five-hour responses are shown below. Is there evidence to suggest the five-hour glucose (mg present) is greater for patients with Huntington’s disease? Ho: Control = Huntington’s i. e. C = H HA: Control < Huntington’s i. e. C < H

Example: Observations & Ranks Control Group (n. A = 10) Huntington’s Disease (n. B = 11) 10. 5 85 83 9 73 3 89 15 65 1. 5 86 13 91 17 77 77 16 5. 5 93 5. 5 19 78 7 100 21 97 20 82 8 85 10. 5 4 92 18 86 13 13 65 90 75 86 w. A = 78 w. B = 153

Example: Critical Value Table Here, n. C = 10 (control) n. H= 11 (Huntington’s) we will reject Ho : C = H in favor of HA: C < H if the rank sum for the control group is less than 86 at a =. 05 level and less than 77 at a =. 01 level.

Example: Decision/Conclusion Using the Wilcoxon Rank Sum Test we have evidence to suggest that the five hour glucose level for individuals with Huntington’s disease is greater than that for healthy controls (p <. 05). Note: p <. 05 because the observed rank sum for the control group is less than 86 which is the critical value for a =. 05.

Rank Sum Test in JMP The p-values reported based upon large sample approximations which generally should not be used when sample sizes are small. Here the conclusion reached is the same but in general we should use tables if they are available.

Rank Sum Test in SPSS Exact one-tailed p-value =. 024/2 =. 012 *

Sign Test • • The sign test can be used in place of the paired t -test when we have evidence that the paired differences are NOT normally distributed. It can be used when the response is ordinal. Best used when the response is difficult to quantify and only improvement can be measured, i. e. subject got better, got worse, or no change. Magnitude of the paired difference is lost when using this test.

Sign Test • • • The sign test looks at the number of (+) and (-) differences amongst the nonzero paired differences. A preponderance of +’s or –’s can indicate that some type of change has occurred. If the null hypothesis of no change is true we expect +’s and –’s to be equally likely to occur, i. e. P(+) = P(-) =. 50 and the number of each observed follows a binomial distribution.

Example: Sign Test • • A study evaluated hepatic arterial infusion of floxuridine and cisplatin for the treatment of liver metastases of colorectral cancer. Performance scores for 29 patients was recorded before and after infusion. Is there evidence that patients had a better performance score after infusion?

Example: Sign Test Patient Before (B) Infusion After (A) Infusion Differenc e (A – B) 1 2 1 -1 16 0 0 0 2 0 0 0 17 0 3 3 3 0 0 0 18 2 3 1 4 1 0 -1 19 2 3 1 5 3 3 0 20 3 2 -1 6 1 0 2 21 0 4 4 7 1 3 0 22 0 3 3 8 0 0 0 23 1 2 1 9 0 0 0 24 0 3 3 10 0 0 -1 25 0 2 2 11 1 0 0 26 1 1 0 12 1 1 -1 27 3 3 0 13 2 1 -2 28 1 2 1 14 3 1 0 29 0 2 2

Example: Sign Test • Ho: No change in performance score following infusion, or more specifically median change in performance score is 0. • HA: Performance scores improve following infusion, or more specifically median change in performance score > 0. Intuitively we will reject Ho if there is a “large” number of +’s.

Example: Sign Test Before (B) Infusion After (A) Infusion Patient Before (B) Infusion After (A) Infusion Differenc e (A – B) 1 2 1 -1 16 0 0 0 2 0 0 0 17 0 3 3 3 0 0 0 18 2 3 1 4 1 0 -1 19 2 3 1 5 3 3 0 20 3 2 -1 6 1 0 2 21 0 4 4 7 1 3 0 22 0 3 3 8 0 0 0 23 1 2 1 9 0 0 3 3 10 0 0 -1 - 24 25 0 2 2 11 1 0 0 26 1 1 0 12 1 1 -1 27 3 3 0 13 2 1 -2 - 28 1 2 1 14 3 1 0 29 0 2 2 Patient Differenc e (A – B) 17 nonzeros differences, 11 +’s 6 –’s + + +

Example: Sign Test • If Ho is true, X = the number of +’s has a binomial dist. with n = 17 and p = P(+) =. 50. • Therefore the p-value is simply the P(X > 11|n=17, p =. 50)=. 166 > a We fail to reject Ho, there is insufficient evidence to conclude the performance score improves following infusion (p =. 166). •

Wilcoxon Signed-Rank Test • • The problem with the sign test is that the magnitude or size of the paired differences is lost. The Wilcoxon Signed-Rank Test uses ranks of the paired differences to retain some sense of their size. Use when the distribution of the paired differences are NOT normal or when sample size is small. Can be used with an ordinal response.

Wilcoxon Signed Rank Test (Test Procedure) • • Exclude any differences which are zero. Put the rest of differences in ascending order ignoring their signs. Assign them ranks. If any differences are equal, average their ranks.

Example: Wilcoxon Signed Rank Test • Resting Energy Expenditure (REE) for Patient with Cystic Fibrosis A researcher believes that patients with cystic fibrosis (CF) expend greater energy during resting than those without CF. To obtain a fair comparison she matches 13 patients with CF to 13 patients without CF on the basis of age, sex, height, and weight.

Example: Wilcoxon Signed Rank Test Pair CF (C) Healthy (H) Difference Sign of Abs. Diff. Rank |d| d = C - H Difference |d| Signed Rank 1 1153 996 157 + 157 6 6 2 1132 1080 52 + 52 3 3 3 1165 1182 -17 - 17 2 -2 4 1460 1452 8 + 8 1 1 5 1634 1162 472 + 472 13 6 1493 1619 -126 - 126 5 13 -5 7 1358 1140 218 + 218 9 9 8 1453 1123 330 + 330 11 11 9 1185 1113 72 + 72 4 4 10 1824 1463 361 + 361 12 11 1793 1632 161 + 161 7 12 1930 1614 316 + 216 8 12 7 8 13 2075 1836 239 + 239 10 1

Example: Wilcoxon Signed Rank Test Pair CF (C) Healthy (H) Difference d=C-H Signed Rank 1 1153 996 157 6 2 1132 1080 52 3 3 1165 1182 -17 -2 4 1460 1452 8 1 Here we have 5 1634 1162 472 13 6 1493 1619 -126 -5 T+ = 6 + 3 + 13 + 9 + 11 + 4 + 12 + 7 + 8 + 10 = 84 7 1358 1140 218 9 8 1453 1123 330 11 9 1185 1113 72 4 10 1824 1463 361 12 11 1793 1632 161 7 12 1930 1614 316 8 13 2075 1836 239 10 We then calculate the sum of the positive ranks ( T+ ) and the sum of the negative ranks (T- ). and T- = 2 + 5 = 7

Wilcoxon Signed Rank Test (Test Statistic) • Intuitively we will reject the Ho , which states that there is no difference between the populations, if either one of these rank sums is “large” and the other is “small”. • The Wilcoxon Signed Rank Test uses the smaller rank sum, T = min( T+ , T- ) , as the test statistic.

Example: Wilcoxon Signed Rank Test For the cystic fibrosis example we have the following hypotheses: Ho: there is no difference in the resting energy expenditure of individuals with CF and healthy controls who are the same gender, age, height, and weight. MEDIAN PAIRED DIFFERENCE = 0 HA: the resting energy expenditure of individuals with CF is greater than that of healthy individuals who are the same gender, age, MEDIAN PAIRED DIFFERENCE > 0 height, and weight.

Example: Wilcoxon Signed Rank Test HA: the resting energy expenditure of individuals with CF is greater than that of healthy individuals who are the same gender, age, height, and weight. • The alternative is clearly supported if T+ is “large” or T- is “small”. • The test statistic T = min( T+ , T- ) = 7 • Is T = 7 considered small, i. e. what is the corresponding p-value? • To answer this question we need a Wilcoxon Signed Rank Test table or statistical software.

Example: Wilcoxon Signed Rank Test This table gives the value of T = min( T+ , T- ) that our observed value must be less than in order to reject Ho for the both two- and one-tailed tests. Here we have n = 13 & T = 7. We can see that our test statistic is less than 21 (a =. 05) and 12 (a =. 01) so we will reject Ho and we also estimate that our p-value <. 01.

Example: Wilcoxon Signed Rank Test • We conclude that individuals with cystic fibrosis (CF) have a large resting energy expenditure when compared to healthy individuals who are the same gender, age, height, and weight (p <. 01).

Analysis in JMP The test statistic is reported as (T+ - T-)/2 = (84 – 7)/2 = 38. 50 but we only need p-value =. 0023. Select Test Mean from Difference pull-down menu, 0 for null value, and check Wilcoxon option.

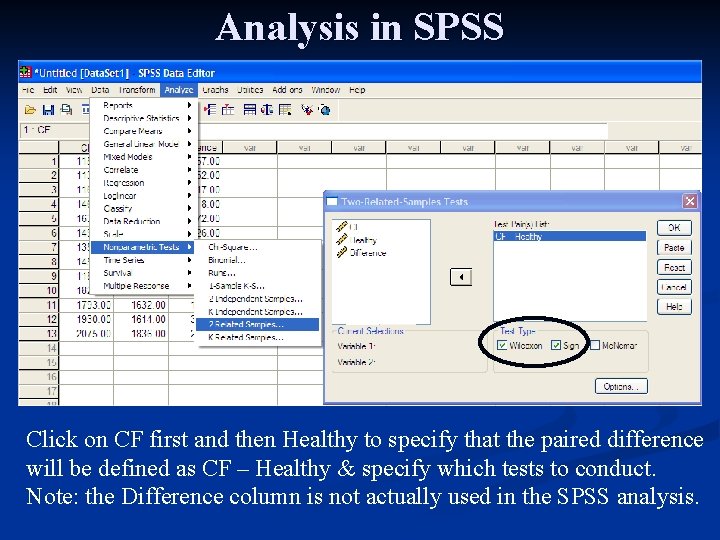

Analysis in SPSS Click on CF first and then Healthy to specify that the paired difference will be defined as CF – Healthy & specify which tests to conduct. Note: the Difference column is not actually used in the SPSS analysis.

Analysis in SPSS For one-tailed Wilcoxon Signed Rank Test our p-value =. 007/2 =. 0035 For the Sign Test we have a one-tailed p-value =. 022/2 =. 011 (not exact!)

Kruskal-Wallis Test • • • Oneway ANOVA for a completely randomized design is based on the assumption of normality and equality of variance. The nonparametric alternative not relying on these assumptions is called the Kruskal-Wallis Test. Like the Mann-Whitney/Wilcoxon Rank Sum Test we use the sum of the ranks assigned to each group when considering the combined sample as the basis for our test statistic.

Kruskal-Wallis Test Basic Idea: 1) Looking at all observations together, rank them. 2) Let R 1, R 2, …, Rk be the sum of the ranks of each group 3) If some Ri’s are much larger than others, it indicates the response values in different groups come from different

Kruskal-Wallis Test • The test statistic is where, N = total sample size = n 1 + n 2 +. . . + nk

Kruskal-Wallis Test • The test statistic is • Under the null hypothesis, this has an approximate chi-square distribution with df = k -1, i. e. . The approximation is OK when each group contains at least 5 observations. N = total sample size = n 1 + n 2 +. . . + nk • •

Chi-squared Distribution and p-value Area = p-value

Example: Kruskal-Wallis Test A clinical trial evaluating the fever reducing effects of aspirin, ibuprofen, and acetaminophen was conducted. Study subjects were adults seen in an ER with diagnoses of flu with body temperatures between 100 o F and 100. 9 o F. Subjects were randomly assigned to treatment. Changes in body temperature were recorded 2 hrs. after administration of treatments.

Example: Kruskal-Wallis Test Resulting Data: Temperature Decrease (deg. F) Aspirin Rank Ibuprofen Rank Acetaminophen . 95 8 . 39 5 . 19 4 1. 48 14 . 44 6 1. 02 9 1. 33 12 1. 31 11. 07 3 1. 28 10 2. 48 15. 01 2 1. 39 13. 62 7 -. 39 (i. e. temp increase) N = 15 R 1 = 44 n 1 = 4 R 2 = 50 n 2 = 5 Rank 1 R 3 = 26 n 3 = 6

Example: Kruskal-Wallis Test N = 15 R 1 = 44 n 1 = 4 R 2 = 50 n 2 = 5 R 3 = 26 n 3 = 6

Chi-squared Distribution and p-value Area =. 033

Kruskal-Wallis in JMP (Demo) Analyze > Fit Y by X RESULTS R 1 = 44 n 1 = 4 R 2 = 50 n 2 = 5 R 3 = 26 n 3 = 6 H = 6. 833 df = 2 p =. 033

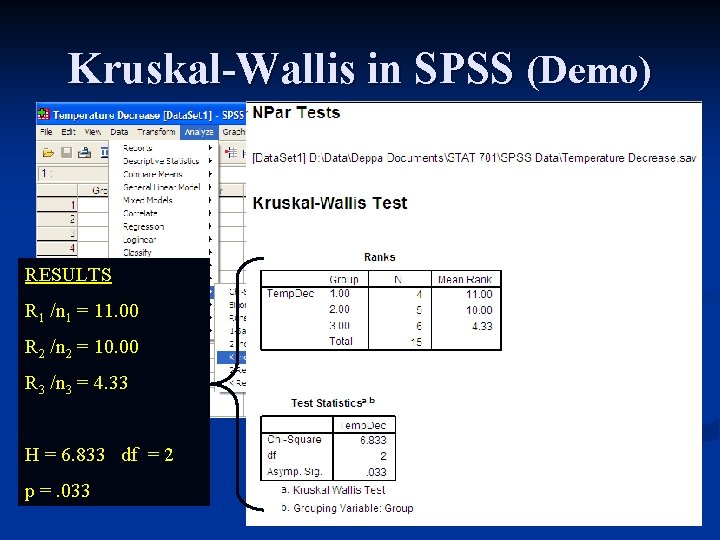

Kruskal-Wallis in SPSS (Demo) RESULTS R 1 /n 1 = 11. 00 R 2 /n 2 = 10. 00 R 3 /n 3 = 4. 33 H = 6. 833 df = 2 p =. 033
