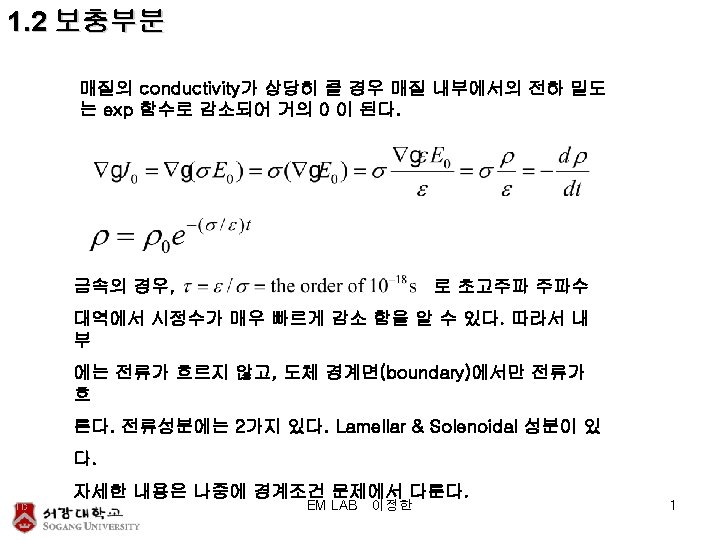

Nonhomogeneous media dispersion EM LAB 2 1 3

Nonhomogeneous media의 경우 dispersion 이란? EM LAB 이정한 2

1. 3 Electromagnetic Energy and Power Flow Time-average, electric field energy (lossless, isotropic, not dispersion) Time-average, magnetic field energy (lossless, isotropic, not dispersion) EM LAB 이정한 3

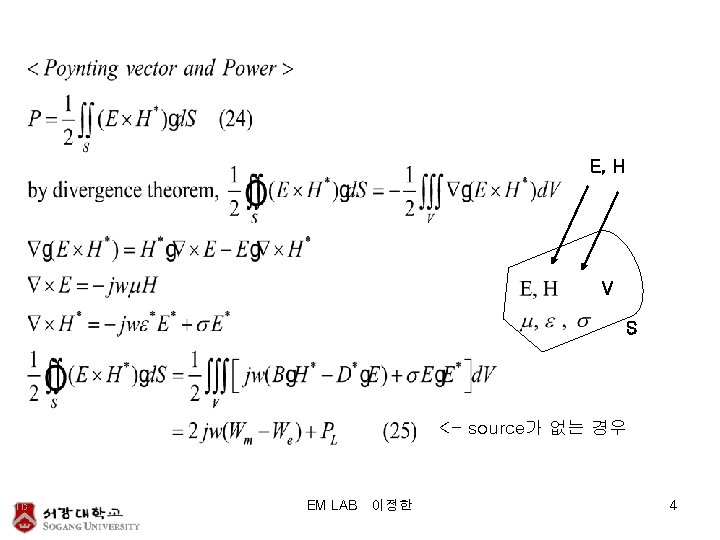

R L V C I EM LAB 이정한 5

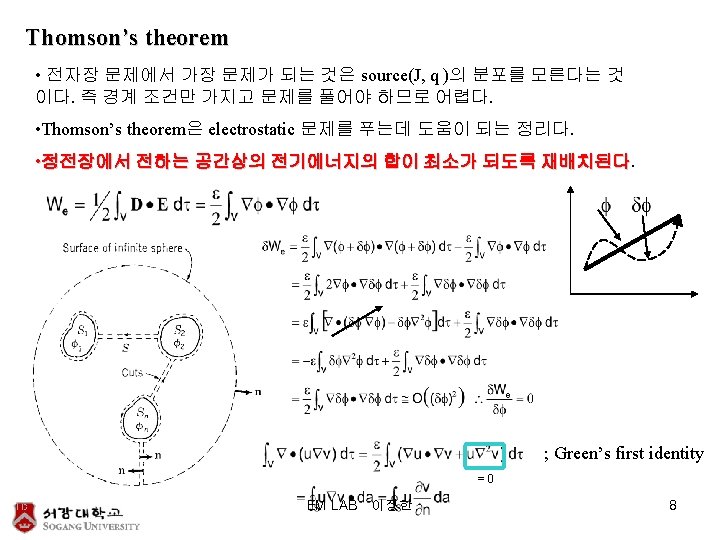

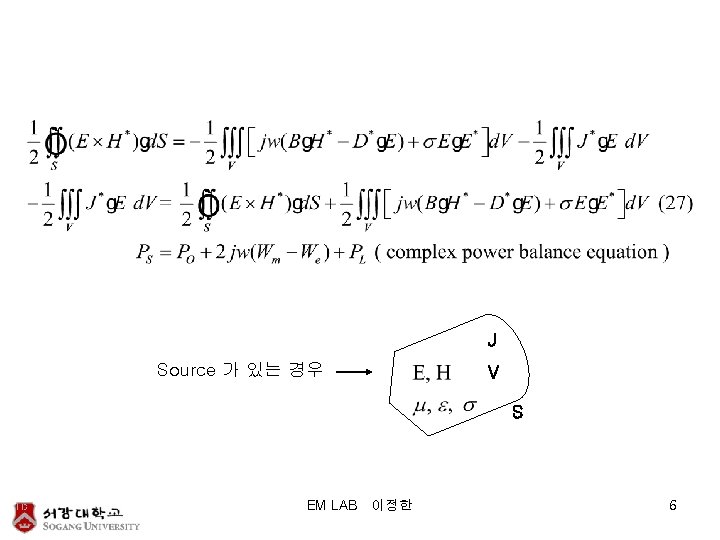

< Thomson’s Theorem > The charge reside on conducting bodies and give rise to the electric field E will distribute themselves in such a way that the energy function We is minimized 0 EM LAB 이정한 7

Example : Coaxial cable EM LAB 이정한 9

< A Variational Theorem > EM LAB 이정한 10

< Derivation of Expression for Stored Energy > EM LAB 이정한 11

0 0 EM LAB 이정한 12

EM LAB 이정한 13

1. 4 Boundary Condition And Field Behavior In Source Regions EM LAB 이정한 15

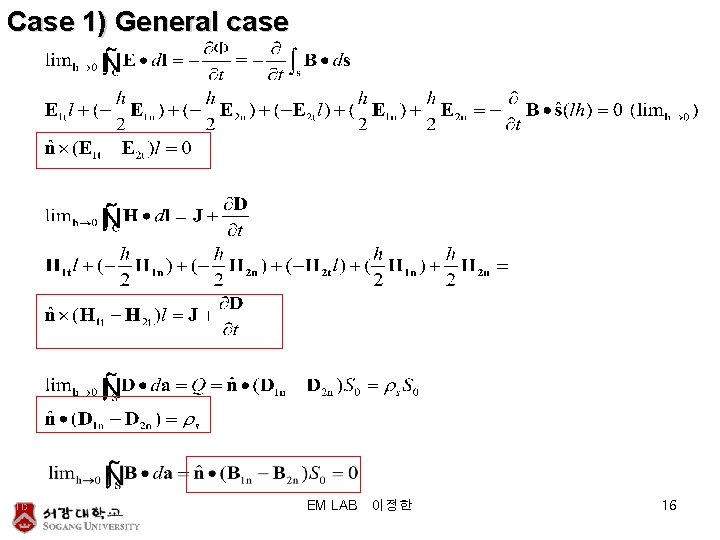

Case 1) General case EM LAB 이정한 16

Case 1) J=D=0 that is, a surface charge density does not exist on the boundary S EM LAB 이정한 17

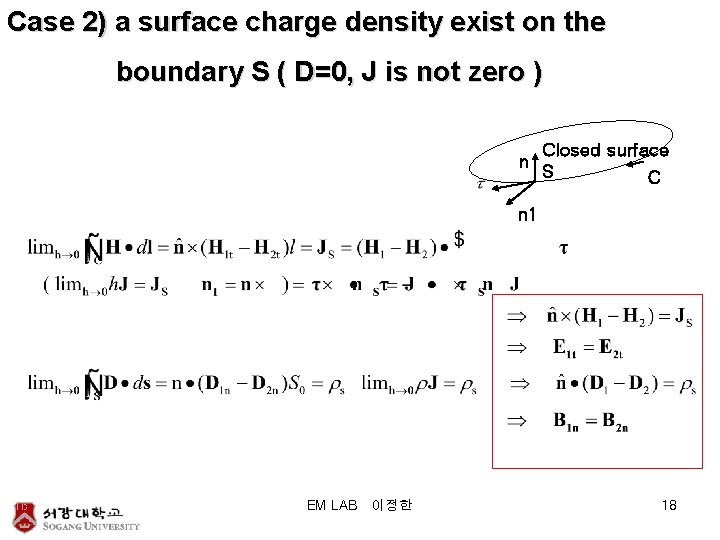

Case 2) a surface charge density exist on the boundary S ( D=0, J is not zero ) n Closed surface S C n 1 EM LAB 이정한 18

ex) At a perfectly conducting boundary conditions EM LAB 이정한 19

Case 3) Diffraction problem 가상 전류 EM LAB 이정한 21

Case 4) n Open surface S C n 1 Js: a current sheet of density flowing toward the boundary C 전하가 쌓임 EM LAB 이정한 22

Case 5) A sheet of current filaments Media 1 Media 2 EM LAB 이정한 23

EM LAB 이정한 24

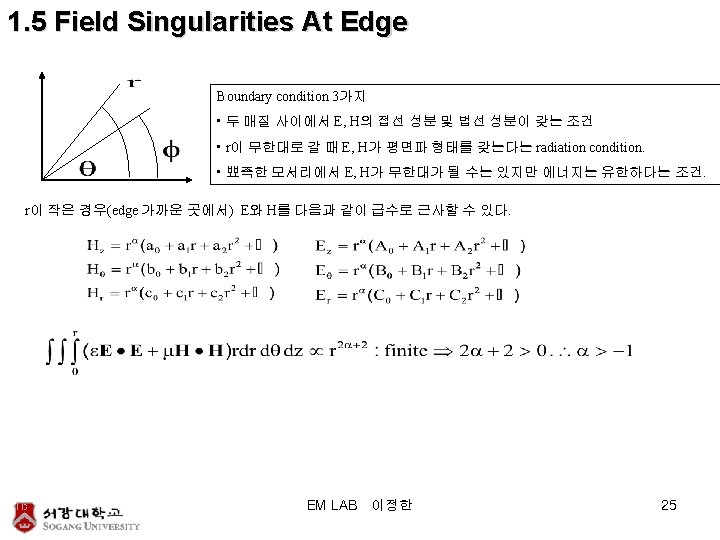

EM LAB 이정한 26

EM LAB 이정한 27

Singular Behavior at a Dielectric Corner EM LAB 이정한 28

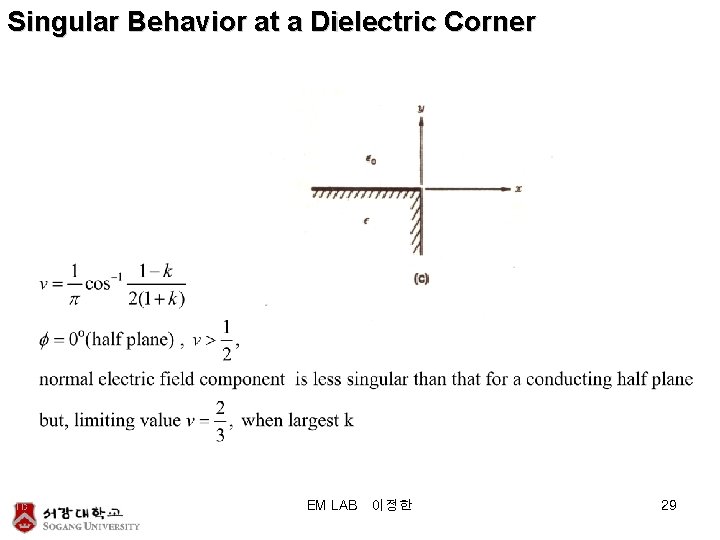

Singular Behavior at a Dielectric Corner EM LAB 이정한 29

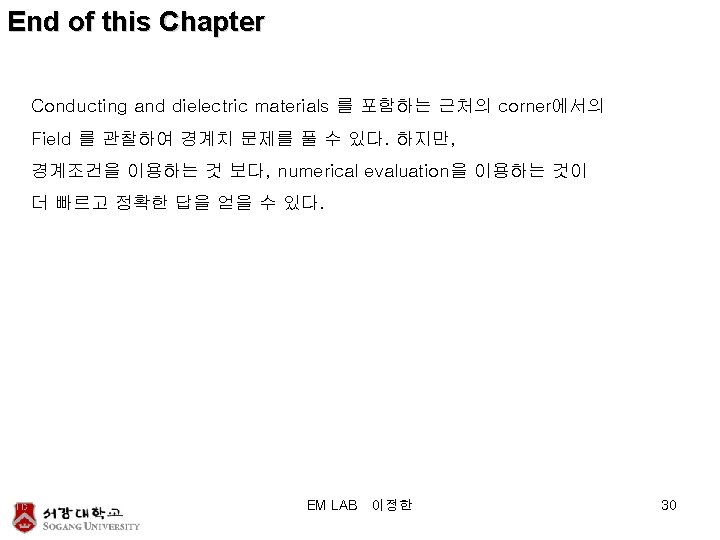

1. 6 The Wave Equation lamellar + solenoidal EM LAB 이정한 31

1. 7 Auxiliary Potential Functions EM LAB 이정한 32

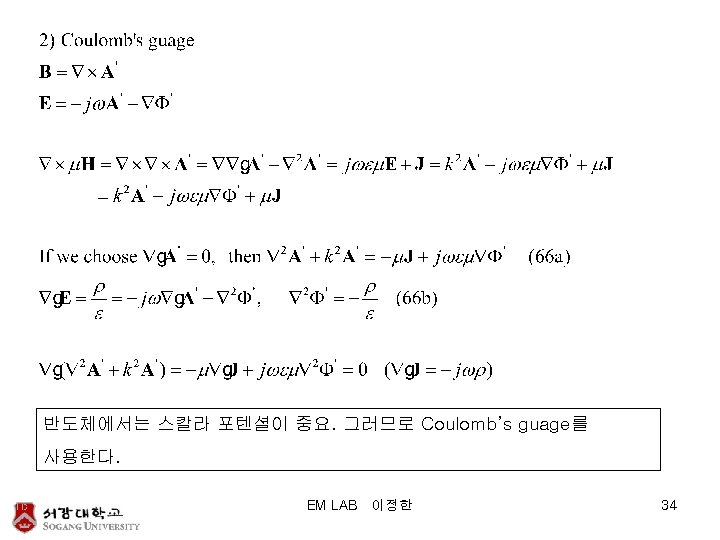

EM LAB 이정한 35

EM LAB 이정한 36

Inhomogeneous 의 경우, magnetic & electric Hertzian potential function이 미분형태로 더 복잡해진다. EM LAB 이정한 37

1. 8 Some Field Equivalence Principles - What’s the Field Equivalence Principles ? - What kind of the Field Equivalence Principles we will study? • Love’s field equivalence theorem • Schelkunoff’s field equivalence principles • Babinet’s principle • The Schwarz reflection principle • Method of images EM LAB 이정한 38

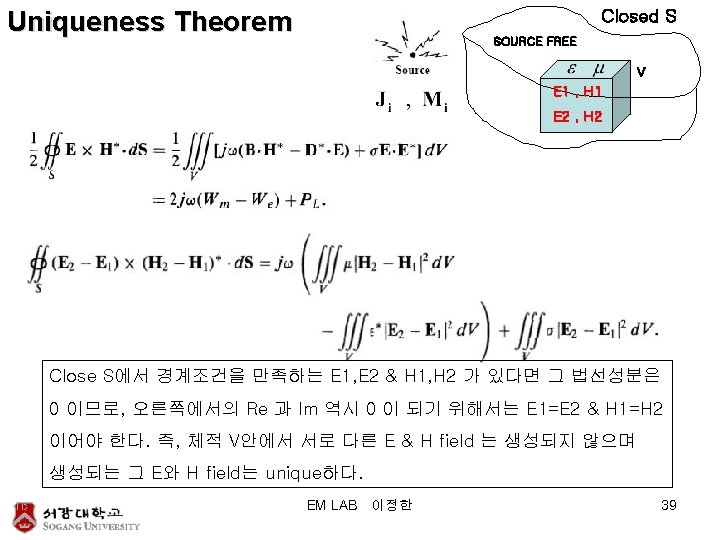

1) Love’s Theorem EM LAB 이정한 41

2) Schelkunoff’s Field Equivalence Principles By image method same EM LAB 이정한 42

EM LAB 이정한 43

3) Babinet’s principle Duality principle of electromagnetic field & Babinet’s priciple Perfectly conducting disk Perfectly conducting screen (magnetic wall) (electric wall) Aperture EM LAB 이정한 44

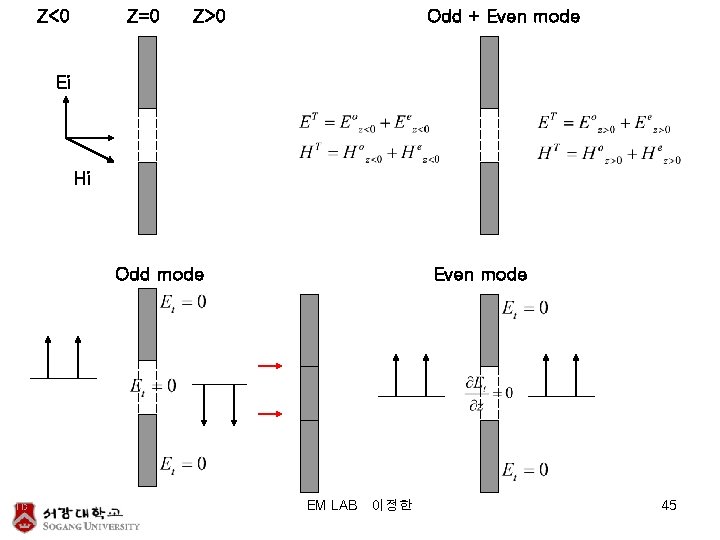

Z<0 Z=0 Z>0 Odd + Even mode Ei Hi Odd mode Even mode EM LAB 이정한 45

<Aperture> Even Odd Even Electric wall <Disk> Magnetic wall EM LAB 이정한 46

odd even odd even EM LAB 이정한 47

even odd odd even odd EM LAB 이정한 49

EM LAB 이정한 50

Z<0 Z>0 EM LAB 이정한 51

EM LAB 이정한 52

EM LAB 이정한 53

Z>0 Z<0 Anti-symmetric Z<0 Z>0 EM LAB 이정한 54

4) The Schwarz Reflection Principle 5) Method of images EM LAB 이정한 55

1. 9 Integration of the inhomogeneous Helmholtz equation S 0 Vo P(x, y, z) , R=0 EM LAB 이정한 56

r 0 a Vo EM LAB 이정한 57

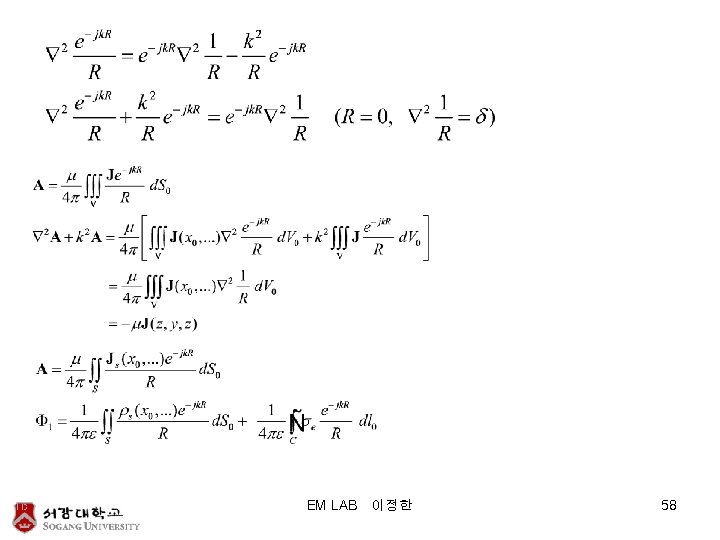

EM LAB 이정한 58

n Open surface S C n 1 Js: a current sheet of density flowing toward the boundary C 전하가 쌓임 EM LAB 이정한 59

EM LAB 이정한 60

1. 10 Lorentz Reciprocity Theorem EM LAB 이정한 61

Lorentz reciprocity theorem 은 많은 경우에 적용가능함. • A volume bounded by perfectly conducting S Reyleigh-Carson reciprocity theorem • source-free volume • no magnetic current sources. • etc EM LAB 이정한 62
