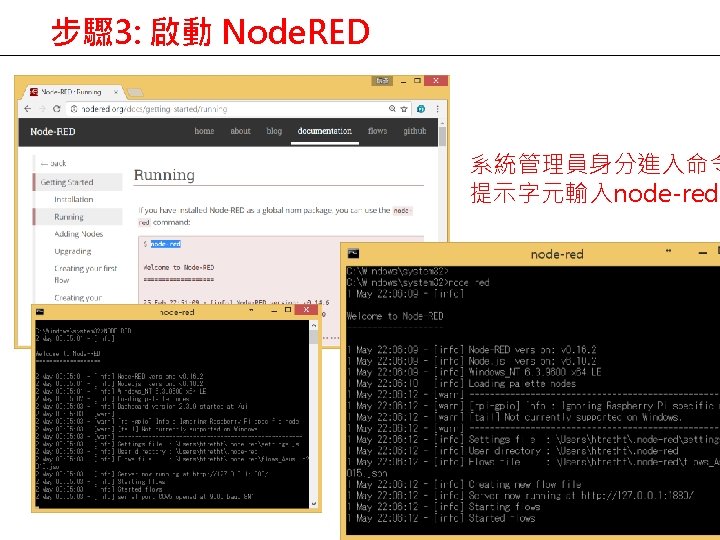

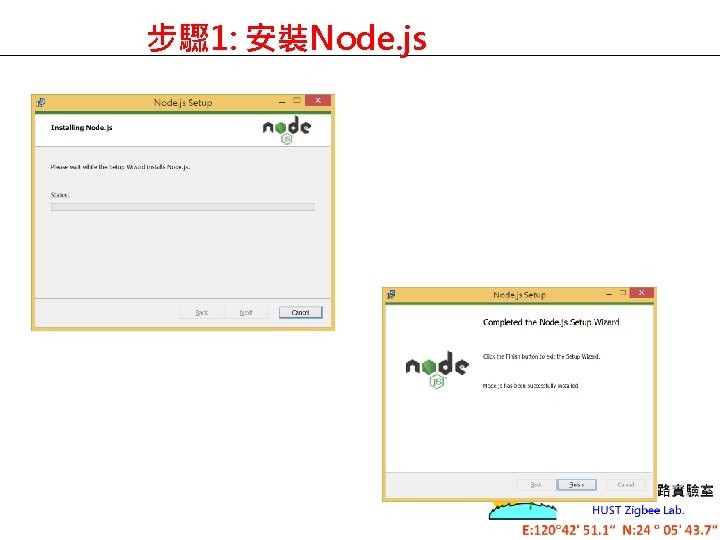

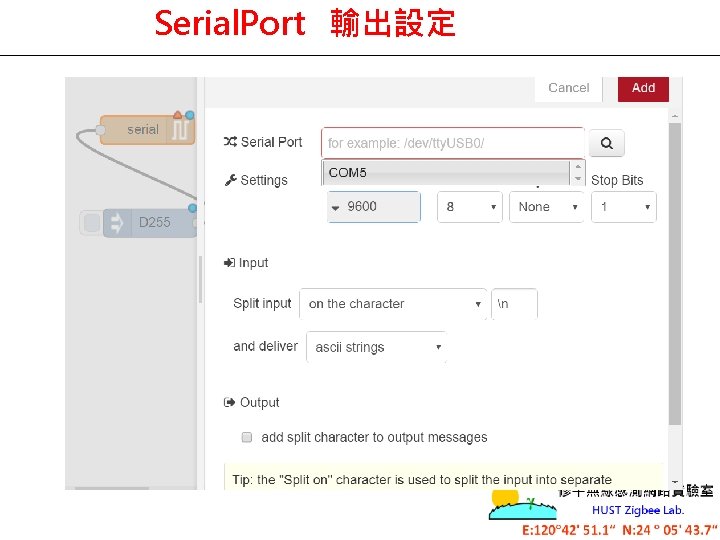

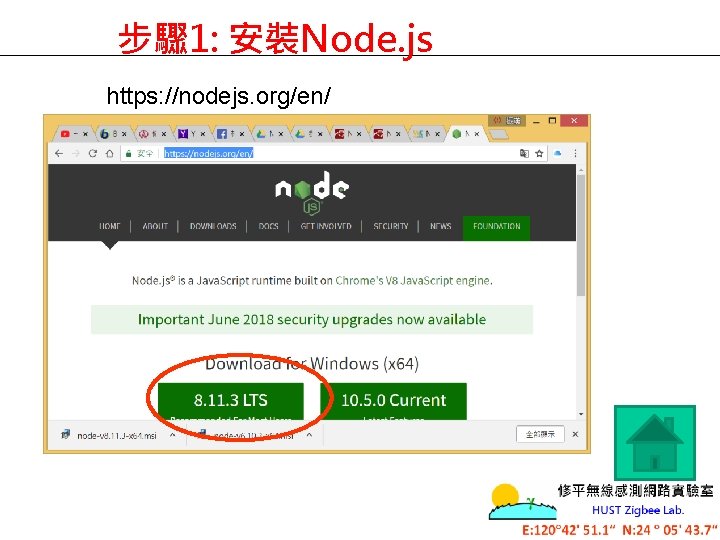

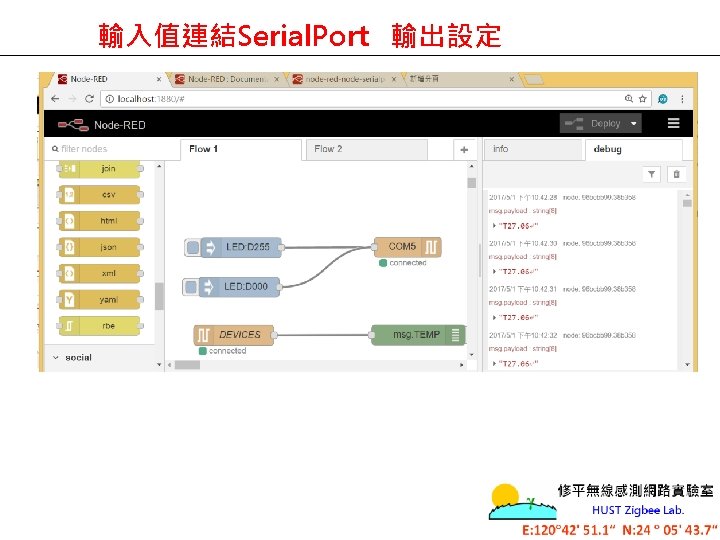

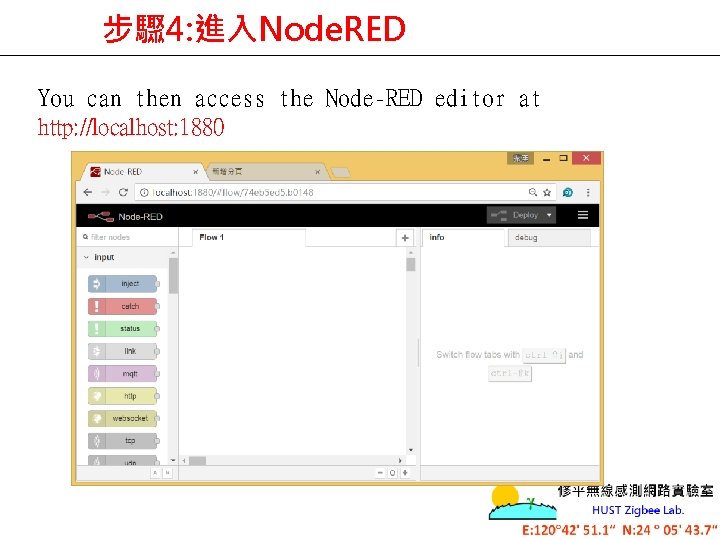

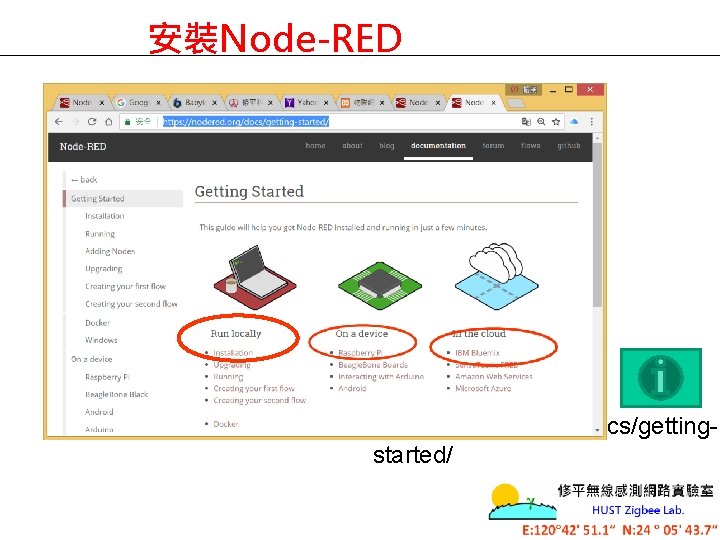

NodeRED https nodered orgdocsgettingstarted 1 Node js https Slides: 43 Download presentation 安裝Node-RED https: //nodered. org/docs/gettingstarted/ 步驟 1: 安裝Node. js https: //nodejs. org/en/ 步驟 2 : 安裝Node. RED npm install -g --unsafe-perm nodered p (在命令提示字元 步驟 4: 進入Node. RED You can then access the Node-RED editor at http: //localhost: 1880 Node-Red 雲端平台 步驟 2 : 安裝Node. RED npm install -g --unsafe-perm nodered p (在命令提示字元 步驟 4: 進入Node. RED You can then access the Node-RED editor at http: //localhost: 1880 安裝COM 埠(serialport) 搜尋serialport 安裝serialport 成功安裝COM 埠(serialport) 安裝dashboard 搜尋 dashboard 安裝 dashboard 成功安裝dashboard 了解JSON的資料格式 n JSON全名叫做Java. Script Object Notation 就是在Java. Script之中,表示物件的一種格式 n 物件(object) 就是用key-value的方式儲存,例如 {"subject": "Math", "score": 80} n 陣列(array)例如數字 [0, 4, 5, 2, 7, 8, 3],或文字(text)的 [“Tom”, “John”, “Amy”, “Ivy”] n 範例如下 [{"name": "Tom", "lastname": "Chen", "report": [{"subject": "Math" , "score": 80}, {"subject": "English", "score": 90}]}, {"name": "Amy", "l astname": "Lin", "report": [{"subject": "Math", "score": 86}, {"subjec t": "English", "score": 88}]}] Serial. Port 輸出設定 Dashboard button/text輸入值設定 Serial. Port 輸入值連結dashboard輸出設定 Serial. Port 輸入值連結dashboard輸出設定- temp Serial. Port 輸入值連結dashboard輸出設定- Light Serial. Port 輸入值連結dashboard輸出設定- ADXL Nodered httpsNode red arduinoTypedef struct nodeReference node and non reference nodeParallel spinReference node and non reference nodeStruct node int data struct node* nextConstructive interference of standing wavesKep ile evrak göndermeContoh component diagramIn each node maintains a vector (table)Sinus nodeInternal nodeSentinel lymph node biopsy indicationsPreauricular lymph nodeAon network project managementAnalisa nodeEfferent lymphaticsTypedef struct tree int info struct *leftNodal plane and radial nodeNon pitting edema differential diagnosisMastering node jsHp node manager0923 what networkCoverage criteria in software testingRouter nodeVcn500 video cloud nodeQuantum nodeThe list adtEpitrochlear lymph nodesSln mammaCircular header listRoot nodeEcg breakdownWhere the dummy nodes added in the branch with unity gainUml nodeVas deferens blood supplyTeradata hardwareDeltopectoral grooveRouter nodeMakalah teori grafUnstable improper nodeV nodeNode in physics
