Noark 5 validator Summary Noark 5 extraction format

Noark 5 validator

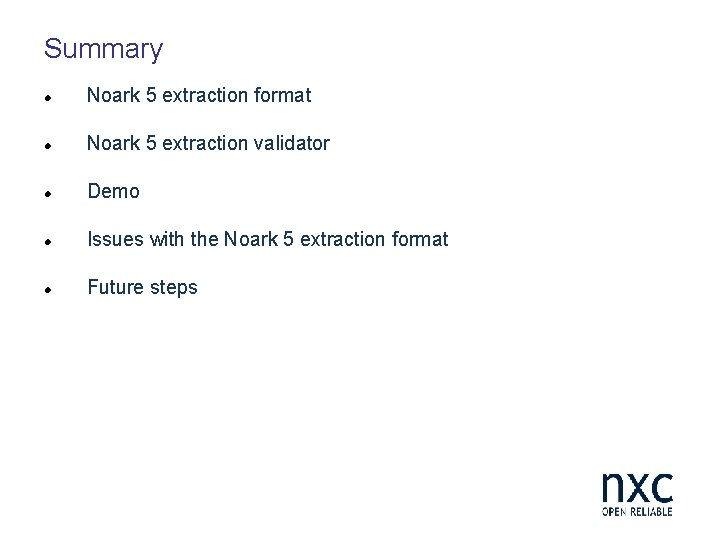

Summary Noark 5 extraction format Noark 5 extraction validator Demo Issues with the Noark 5 extraction format Future steps

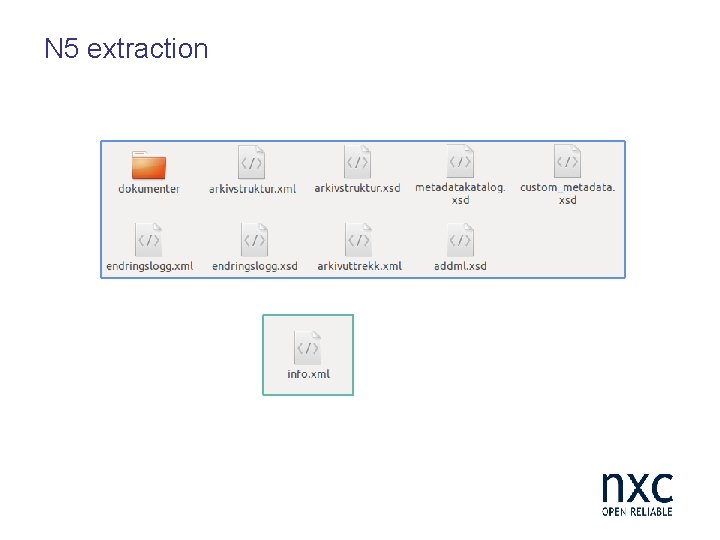

N 5 extraction

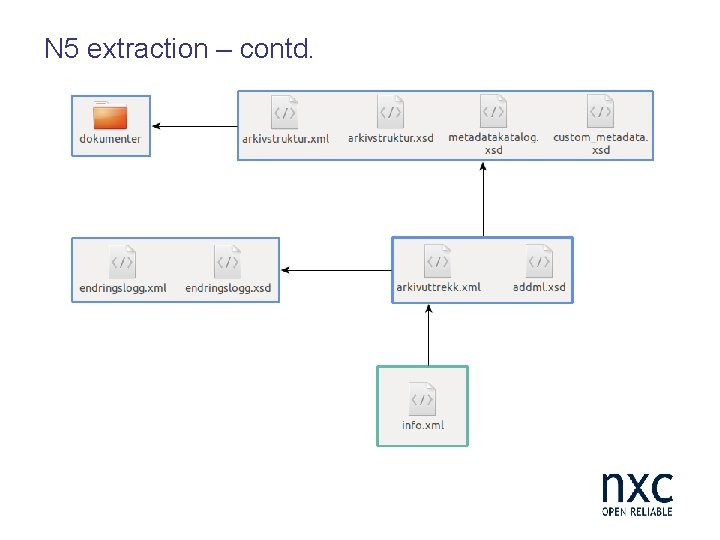

N 5 extraction – contd.

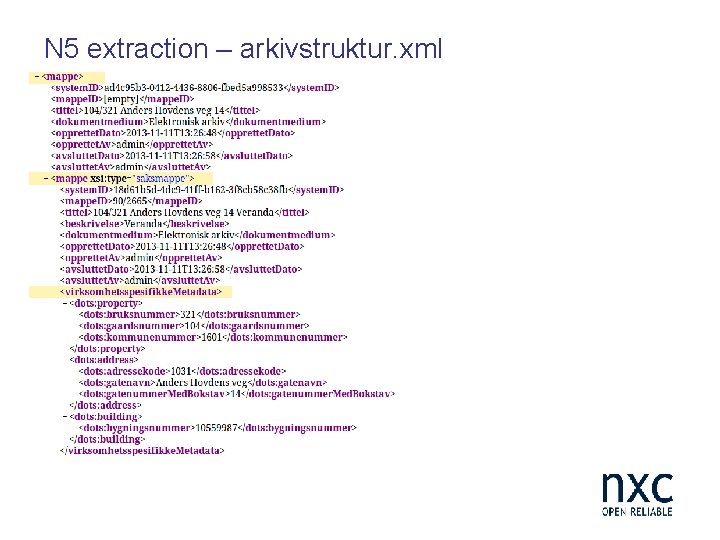

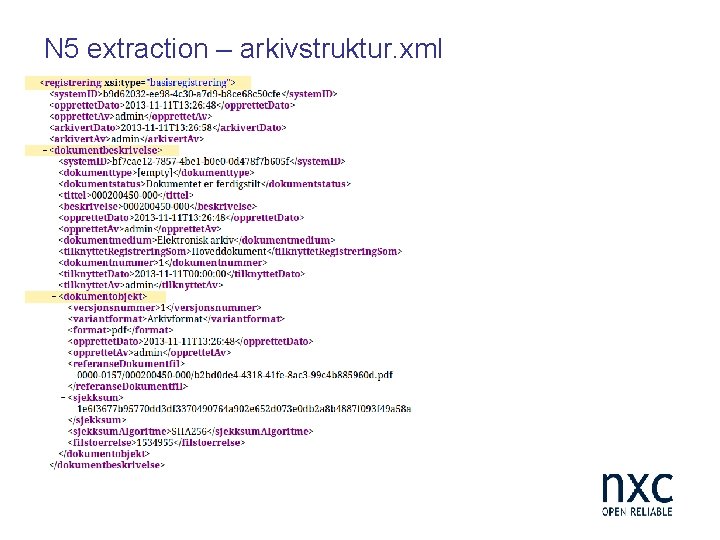

N 5 extraction – arkivstruktur. xml

N 5 extraction – arkivstruktur. xml

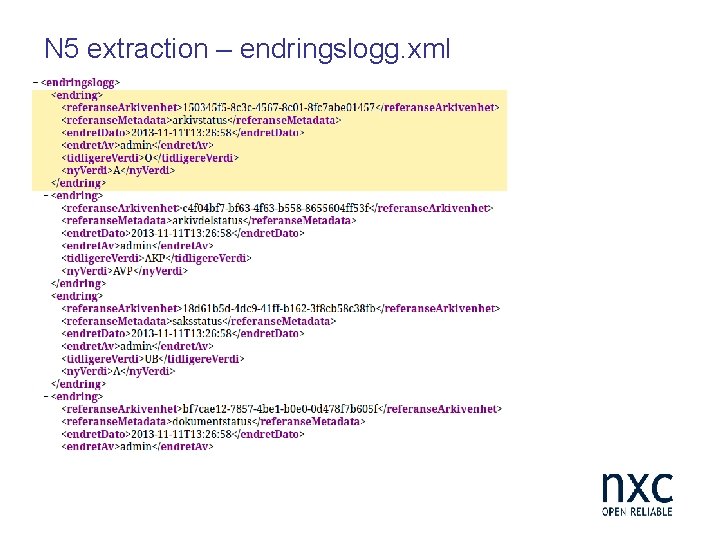

N 5 extraction – endringslogg. xml

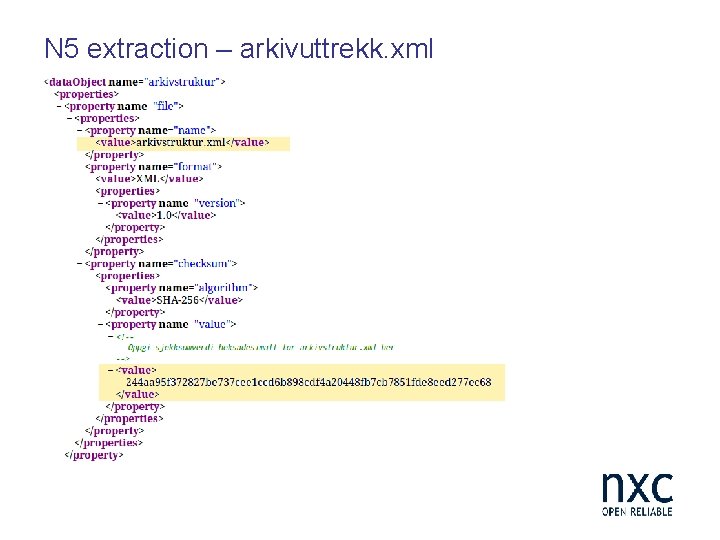

N 5 extraction – arkivuttrekk. xml

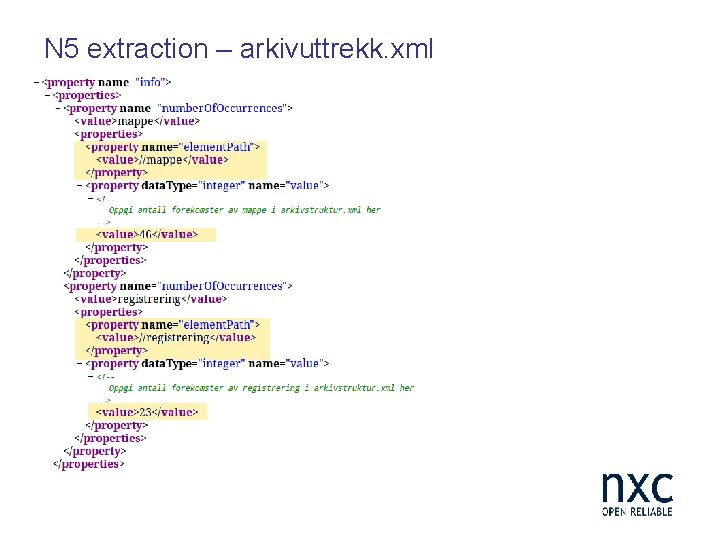

N 5 extraction – arkivuttrekk. xml

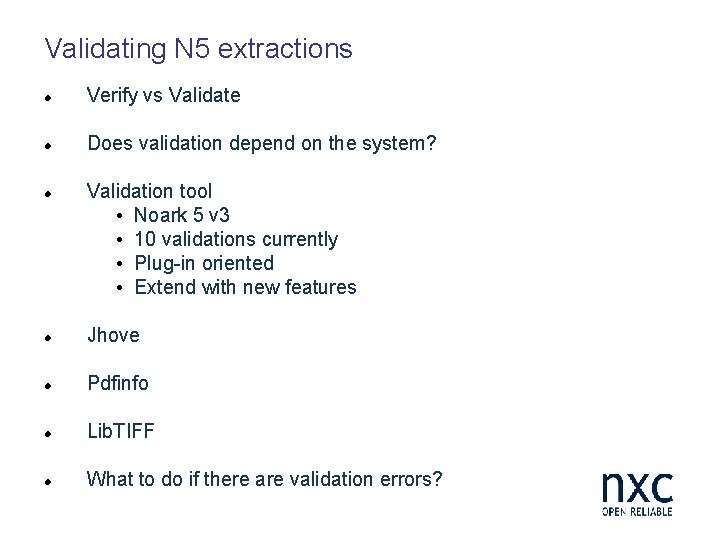

Validating N 5 extractions Verify vs Validate Does validation depend on the system? Validation tool • Noark 5 v 3 • 10 validations currently • Plug-in oriented • Extend with new features Jhove Pdfinfo Lib. TIFF What to do if there are validation errors?

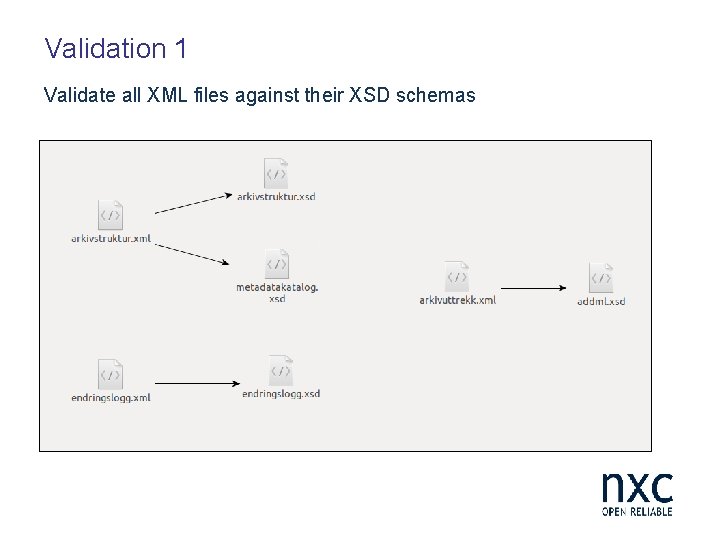

Validation 1 Validate all XML files against their XSD schemas

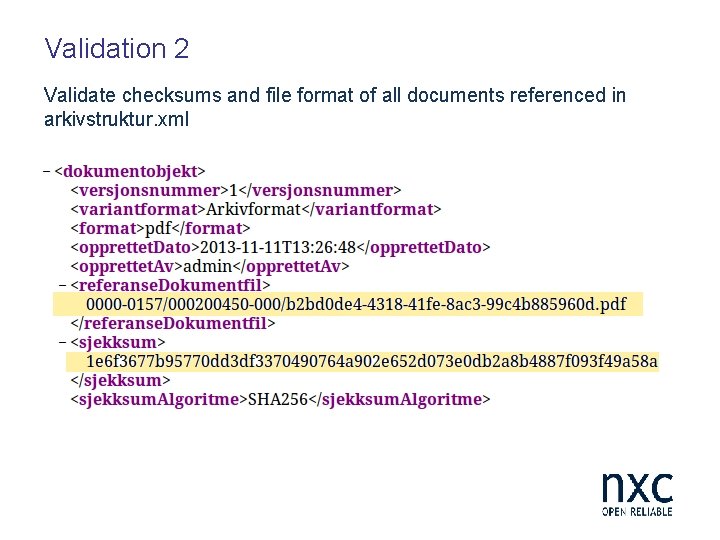

Validation 2 Validate checksums and file format of all documents referenced in arkivstruktur. xml

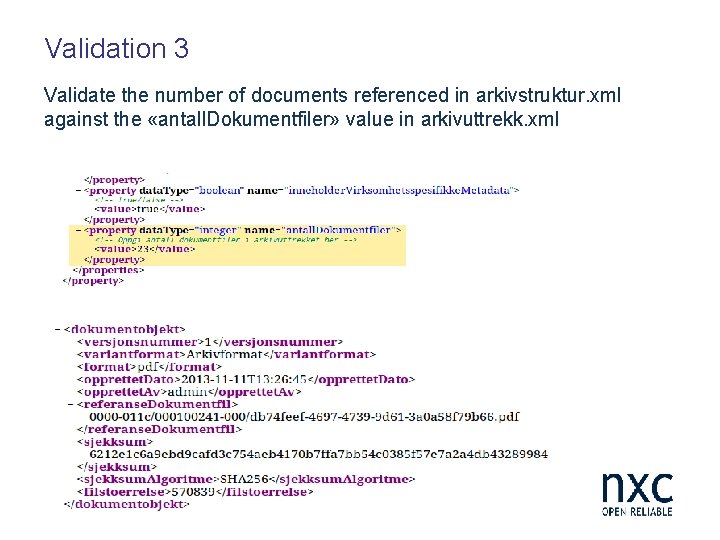

Validation 3 Validate the number of documents referenced in arkivstruktur. xml against the «antall. Dokumentfiler» value in arkivuttrekk. xml

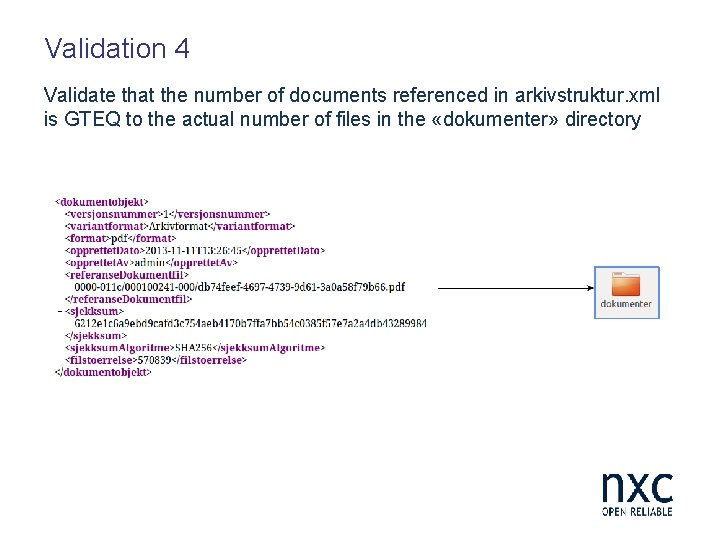

Validation 4 Validate that the number of documents referenced in arkivstruktur. xml is GTEQ to the actual number of files in the «dokumenter» directory

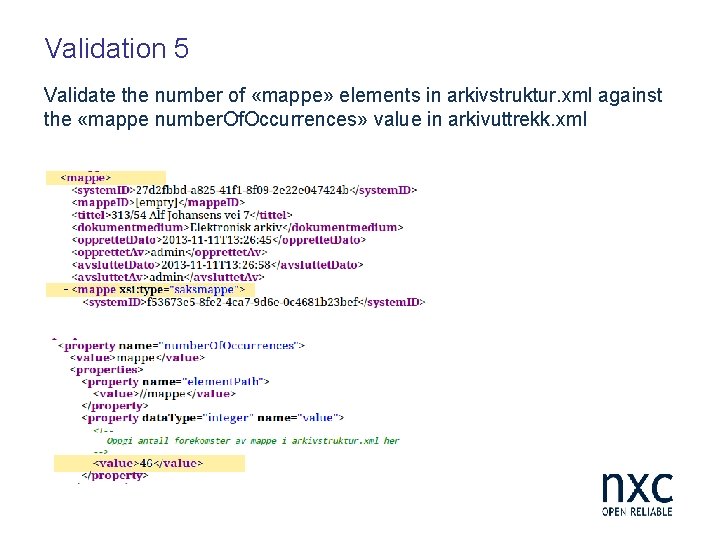

Validation 5 Validate the number of «mappe» elements in arkivstruktur. xml against the «mappe number. Of. Occurrences» value in arkivuttrekk. xml

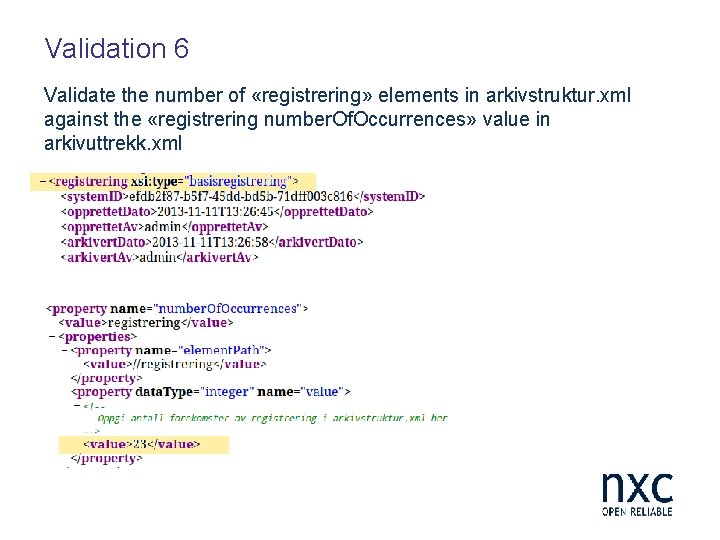

Validation 6 Validate the number of «registrering» elements in arkivstruktur. xml against the «registrering number. Of. Occurrences» value in arkivuttrekk. xml

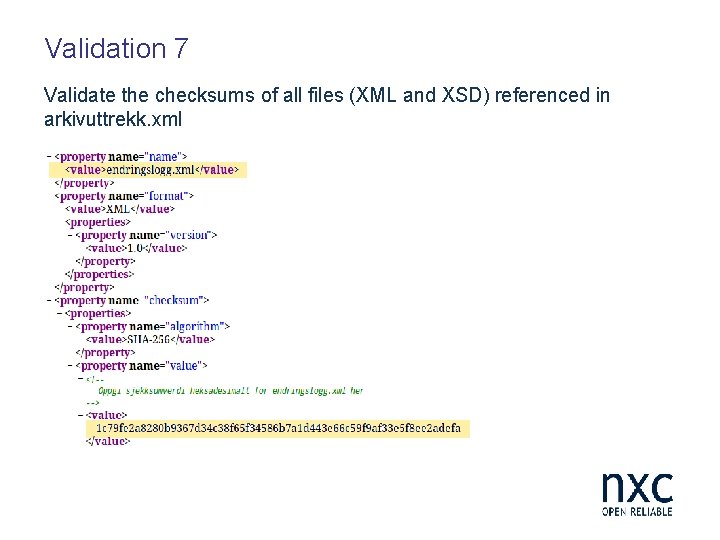

Validation 7 Validate the checksums of all files (XML and XSD) referenced in arkivuttrekk. xml

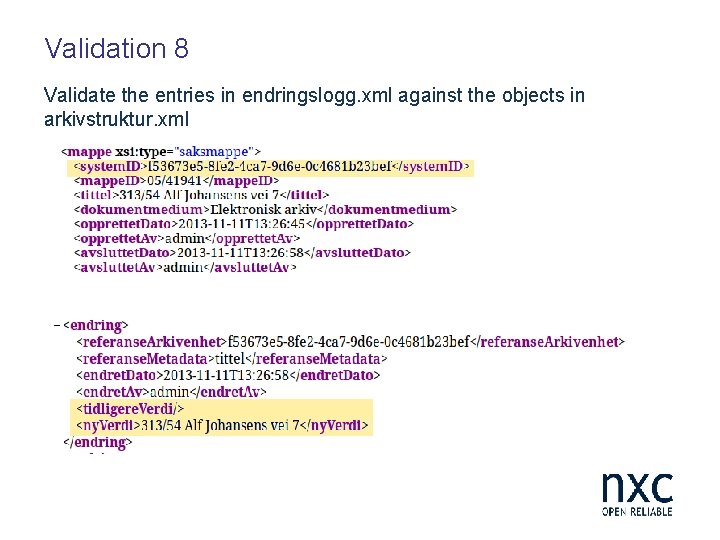

Validation 8 Validate the entries in endringslogg. xml against the objects in arkivstruktur. xml

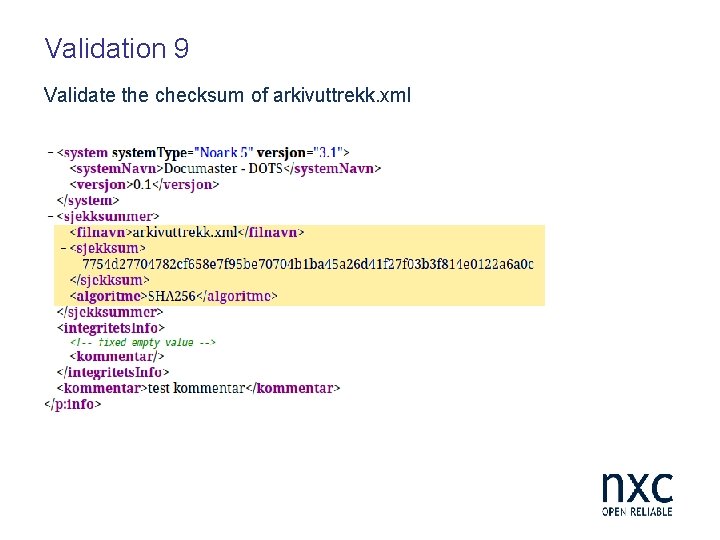

Validation 9 Validate the checksum of arkivuttrekk. xml

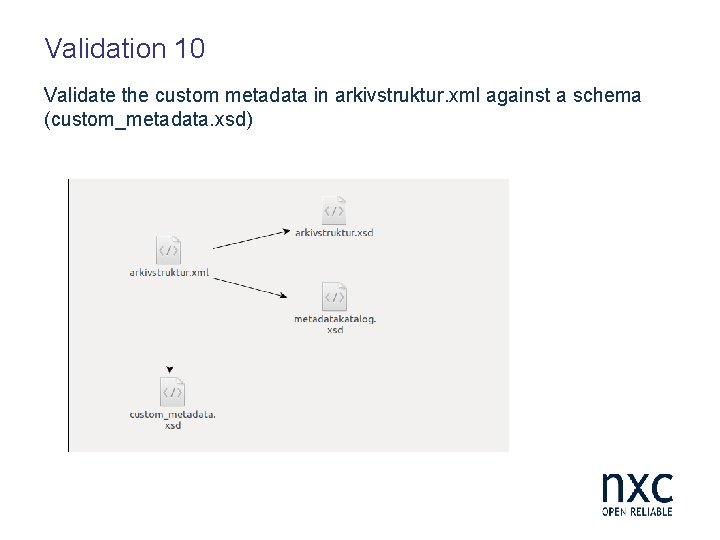

Validation 10 Validate the custom metadata in arkivstruktur. xml against a schema (custom_metadata. xsd)

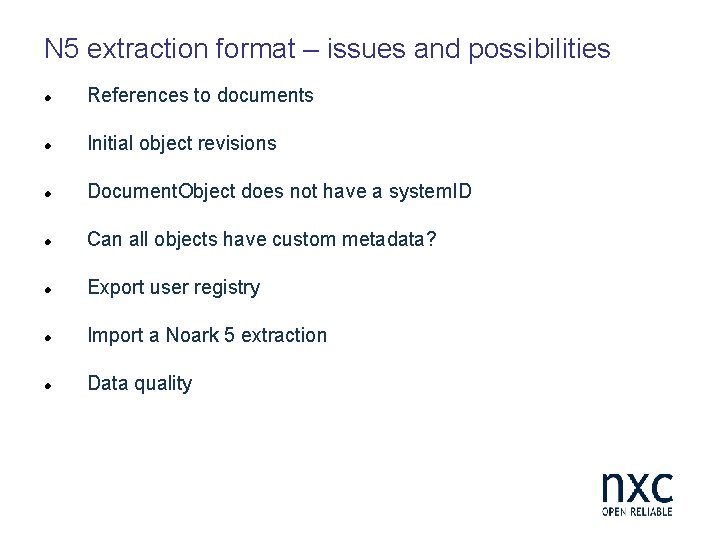

N 5 extraction format – issues and possibilities References to documents Initial object revisions Document. Object does not have a system. ID Can all objects have custom metadata? Export user registry Import a Noark 5 extraction Data quality
