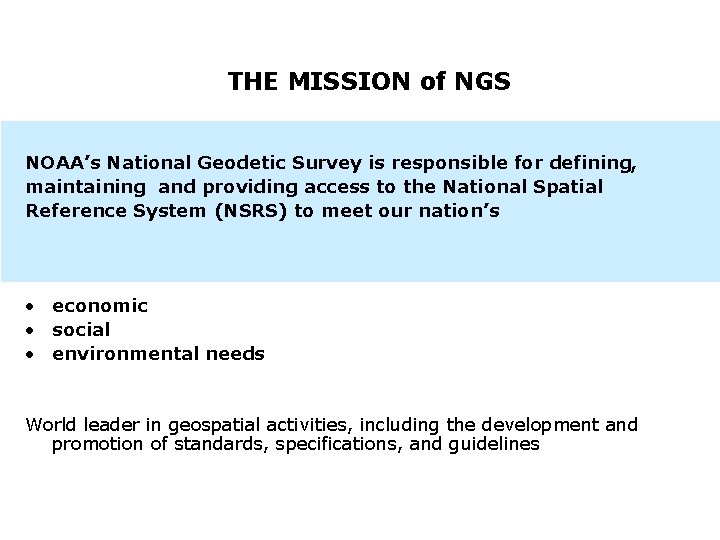

THE MISSION of NGS NOAA’s National Geodetic Survey is responsible for defining, maintaining and providing access to the National Spatial Reference System (NSRS) to meet our nation’s • economic • social • environmental needs World leader in geospatial activities, including the development and promotion of standards, specifications, and guidelines

• NGS Develops Federal standards for geodetic surveys • NGS is Committed to making transportation and navigation safer.

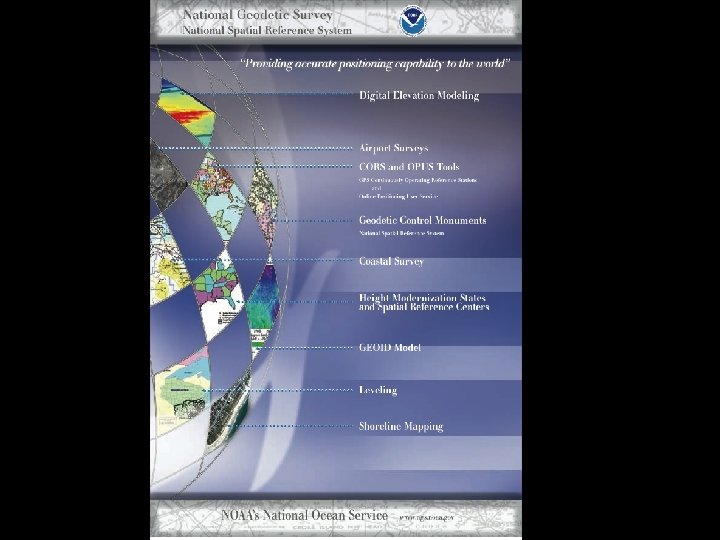

The NSRS is a National Reference Framework The NSRS provides the foundation for: • • Transportation Commerce Mapping and Charting Multitude of scientific and engineering applications.

What is Height Modernization? A program within NOAA's National Geodetic Survey (NGS) that provides: accurate height information by integrating Global Positioning System technology with existing survey techniques. • The program enhances the vertical component of the National Spatial Reference System (NSRS).

Benefits of National Height Modernization • Better integration of geospatial activities within NOAA as well as Federal, state and local government • Improved transportation System • Subsidence Monitoring • Sea Level Rise Estimation • Flood Plain Mapping – Storm Surge Modeling • Emergency Preparedness • Seismic and Infrastructure Monitoring • Saving- Billions

NAVD 88 NSRS GEODETIC CONTROL Reliable Cost-effective Accurate Standardized Legally Established

Spatial Reference Centers and Height Modernization Leaders – Spatial Reference Centers Texas Washington California Louisiana

Spatial Reference Centers

Why is Height Modernization needed. • Accurate positioning and heights are necessary for – engineering and construction projects, – ensure safe transportation of goods and people, by land, air, or sea. • FEMA’s Map Modernization for flood insurance rate maps. – If the maps are “modernized” based on old elevation data, the maps will not accurately depict the risk of flooding in an area.

History of Height Modernization • 1994, California – Meetings to discuss height issues and whether Height modernization would be effective in California and North Carolina; and determine potential benefits to the nation • 1998 – Congress directed the NGS to perform national Height Modernization Study • 2000 – NGS begins Height Modernization planning • 2001 – Height Mod program begins in NC and CA • 2001 – NGS studies in LA and WI

FINDINGS from the studies: The National Height Modernization Program could result in: • Improved disaster preparedness • Accurate digital elevation models, enabling better flood plain analysis and of flood plain needs • Improved coastal and harbor navigation, enabling safer and more cost-effective shipment of goods • Improved aircraft navigational aids, and safer approach and landing procedures • Accurate determination of coastal erosion rates and flood plain boundaries;

More FINDINGS from the studies: • Improved land marine geographic information systems (GIS) • Assessment of environmental effects on regions • Enhanced agricultural practices • More efficient fish farming • Infrastructure monitoring of subsidence and erosion • Better management of natural resources • Improved understanding of tectonic movement • Significant time and cost savings in field surveying. • Both Louisiana and Wisconsin needed improved vertical geodetic control

9. 6 m 9. 0 m 3. 75 m 2. 5 m 3. 75 m 9. 9 m
