NOAAPort Satellite Broadcast Network Scott Christensen NOAA NWS

NOAAPort Satellite Broadcast Network Scott Christensen NOAA NWS Office of Science and Technology 2011 Satellite Direct Readout Conference, Miami FL April 7, 2011

Contents • • What is NOAAPort? Approximate Coverage Area Channels and Network Expansion Technical Specifications NOAAPort Product Types & Future Additions Reference and Contact Information Acronyms

What is NOAAPort? NOAA’s Satellite Broadcast Network NOAAPort– also known as the Satellite Broadcast Network (SBN)– is the primary vehicle through which hydrometeorological products are provided to NWS field office AWIPS systems. The vast majority of NOAAPort products are freely available to NOAA’s partners.

What is NOAAPort? NOAA’s Satellite Broadcast Network GOES POES DCS GVAR AVHRR HIRS/AMSU SES-1 Satellite Other Environmental Satellite Products NOAA/NWS NCEP Guidance & Model Products Satellite Product Generation AWIPS NCF TOC NWSTG NOAAPort Uplink Facility (NY) Satellite imagery NOAA/NESDIS Hydromet Sensor Products (e. g. , radar, ASOS, Profiler, River Gages) WFO/RFC Forecasts, Watches Warnings NOAAPort Users Includes Many Users – Inside and Outside of NOAA

NOAAPort Approximate Coverage Area

NOAAPort Channels and Network Expansion NOAAPort Channels - There are four NOAAPort data streams, each with a unique DVB PID: GOES/NESDIS NCEP/NWSTG 2 OCONUS Imagery/Model/DCP Expansion Drivers – Existing NOAAPort channels are highly utilized. Emerging requirements, such as for NPP, GOES-R, JPSS, NCEP model, and dual polarization radar, necessitate network expansion.

NOAAPort Network Expansion • Expansion currently underway! • Network bandwidth increase from 10 to 30 Mbps. • Transition from DVB-S to DVB-S 2. • Supports MPE and VCM. • 30 day window of “dual illumination, ” April 18 to May 17, 2011. • AWIPS SBN Channel Resizing – New product additions, starting in July-August 2011.

NOAAPort Technical Specifications Parameter Before Expansion After Expansion* 10240 kbps 30240 kbps 4 8 Coding Rate 7/8 2/3 Satellite SES-1 (101° West Longitude) Data Rate Modulation Phases Transponder Input Backoff 7. 0 d. B Transponder Output Backoff 4. 0 d. B Attenuator Setting 10 d. B 14 d. B Carrier to Interference Ratio 16. 0 d. B Transponder Usable Bandwidth 35 MHz Faded System Margin 1. 0 d. B Uplink Site / Master Ground Station Hauppauge, NY Transponder Center Frequency 6185 MHz 6225 MHz Transmit EIRP 59. 2 d. BW 68. 8 d. BW * Scheduled for mid-May 2011.

NOAAPort Technical Specifications (Continued) Parameter Digital Video Broadcast Input Stream Identifier (ISI) Before Expansion After Expansion* DVB-S 2 NA 13 Free Space Path Loss 199. 9 d. B Uplink Rain Margin 1. 0 d. B Saturated Satellite Flux Density -98. 5 d. BW/m 2 -98. 2 d. BW/m 2 Effective Satellite Flux Density -88. 5 d. BW/m 2 -84. 2 d. BW/m 2 Downlink Frequency (C Band) 3956. 5 MHz 4008. 0 MHz Downlink Polarization Vertical NWS Field Node Dish Diameter CONUS, excluding fringe CONUS, fringe Alaska, Hawaii, and Puerto Rico Two sizes: 3. 7 and 3. 8 meters 4. 5 meters 7. 3 meters Uplink Dish Size (MGS – Hauppauge, NY) 9. 3 meters Uplink Dish Size (BMGS – Fairmont, WV) 7. 3 meters * Scheduled for mid-May 2011.

NOAAPort Product Types* * Based on 2009 analysis.

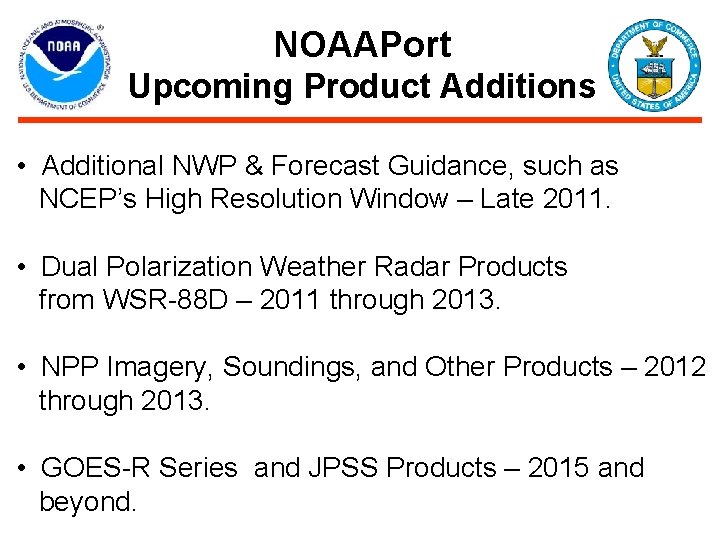

NOAAPort Upcoming Product Additions • Additional NWP & Forecast Guidance, such as NCEP’s High Resolution Window – Late 2011. • Dual Polarization Weather Radar Products from WSR-88 D – 2011 through 2013. • NPP Imagery, Soundings, and Other Products – 2012 through 2013. • GOES-R Series and JPSS Products – 2015 and beyond.

NOAAPort Reference and Contact Information http: //www. weather. gov/noaaport/html/noaaport. shtml NOAAPort Contacts Data and Products: NWS. HQ. OPS 31. DM@noaa. gov Engineering/Technical: NWS. NOAAPORT. SUPPORT@noaa. gov

Questions?

NOAAPort Primary Acronyms ASOS AWIPS BUFR CONUS d. BW DCP DVB-S, DVB-S 2 EIRP GINI GOES GRIB JPSS (B)MGS MPE NCEP NCF NESDIS NPP NWSTG – – – – – OCONUS PID POES RFC SBN VCM WFO – – – – Automated Surface Observing System Advanced Weather Interactive Processing System Binary Universal Form for Representation of Meteorological Data Continental US decibel watts Data Collection Platform Digital Video Broadcast by Satellite (First & Second Generations) Equivalent Isotropically Radiated Power GOES Ingest/NOAAPORT Interface Geostationary Operational Environmental Satellite Gridded Binary (Editions 1 and 2) Joint Polar Satellite System (Backup) Master Ground Station Multi-Protocol Encapsulation National Centers for Environmental Prediction Network Control Facility National Environmental Satellite, Data, and Information Service NPOESS Preparatory Project National Weather Service Telecommunications Gateway also, the NOAAPort Channel that carries numerous NWSTG products Off CONUS Packet ID Polar-Orbiting Operational Environmental Satellite River Forecast Center Satellite Broadcast Network (NOAAPort) Variable Coding and Modulation Weather Forecast Office
