Marking Out • It means scribing of lines on a metal surface to indicate

Marking Out • It means scribing of lines on a metal surface to indicate the profile or outline of the finished component. Issa al-tobi

The need for marking out • It is usually advisable to mark out a

The need for marking out • It is usually advisable to mark out a component before commencing to work on it. • So that the finished component will have correct size. • It is useful to give allowances for casting & forming components Issa al-tobi

Tools • Location tools (surface plate) • Scribing equipment (scriber) • General purpose tools

Tools • Location tools (surface plate) • Scribing equipment (scriber) • General purpose tools (straight edge) Issa al-tobi

Protractor Issa al-tobi

Protractor Issa al-tobi

Scribing block & combination square Issa al-tobi

Scribing block & combination square Issa al-tobi

Vernier height gauge Issa al-tobi

Vernier height gauge Issa al-tobi

Engineers Square Issa al-tobi

Engineers Square Issa al-tobi

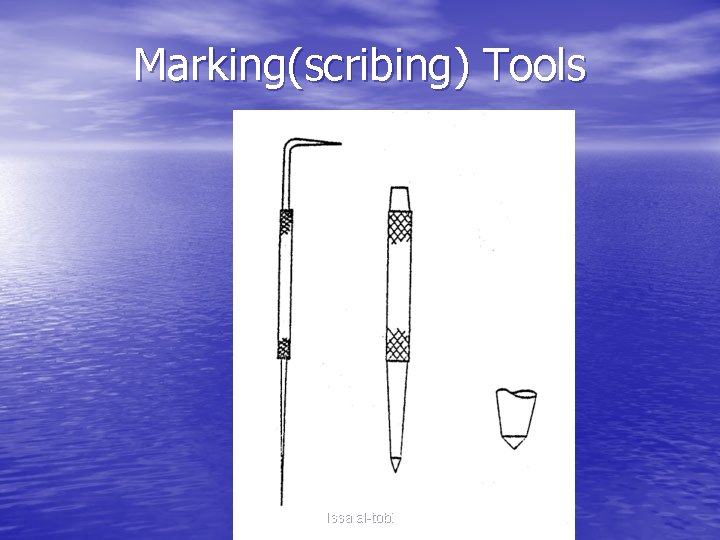

Marking(scribing) Tools Issa al-tobi

Marking(scribing) Tools Issa al-tobi

Use of the scriber Issa al-tobi

Use of the scriber Issa al-tobi

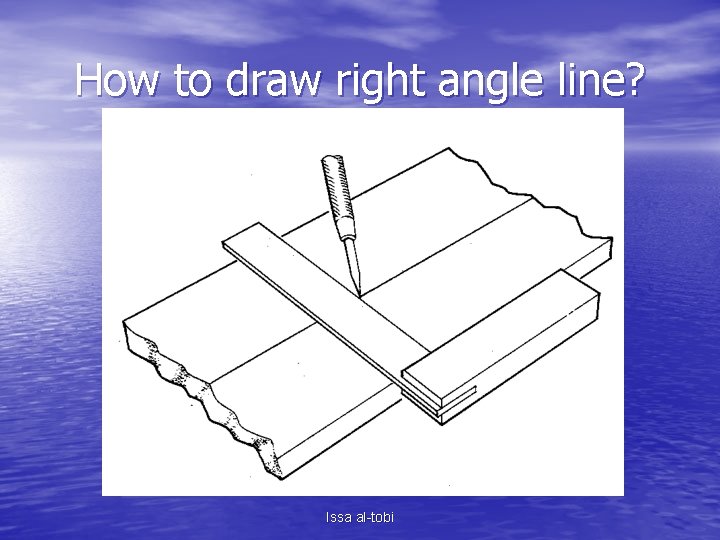

How to draw right angle line? Issa al-tobi

How to draw right angle line? Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

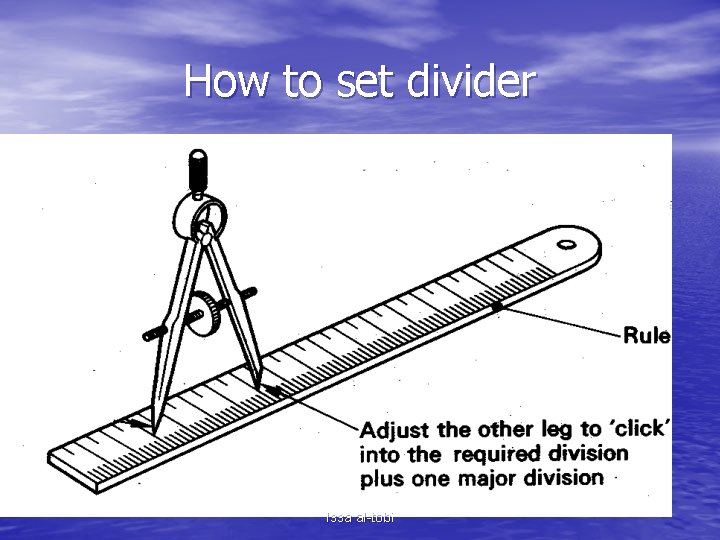

How to set divider Issa al-tobi

How to set divider Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

How to mark on cylindrical components? Issa al-tobi

How to mark on cylindrical components? Issa al-tobi

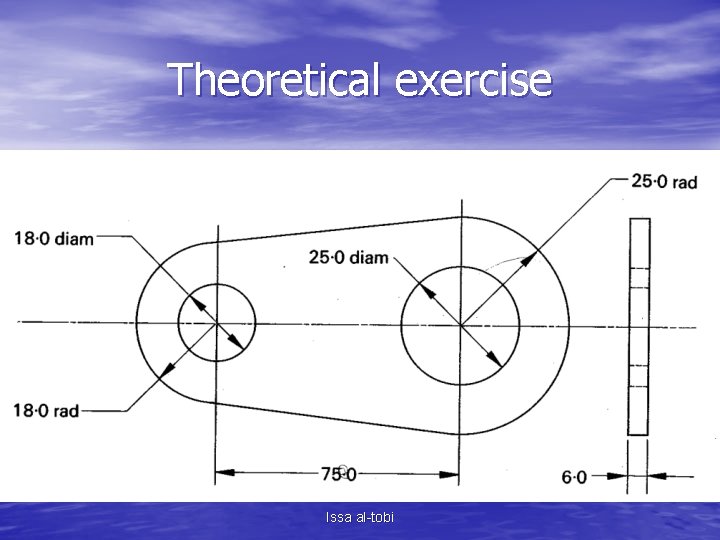

Theoretical exercise Issa al-tobi

Theoretical exercise Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

Continued Issa al-tobi

Practical exercise (side 1) Issa al-tobi

Practical exercise (side 1) Issa al-tobi

Continued (side 2) Issa al-tobi

Continued (side 2) Issa al-tobi
