Nirvana Technologies Pvt. Ltd. G-15/16, Upper Ground Floor, Dreams The Mall, LBS Road, Bhandup (W), Mumbai – 400078. Phone : +91 -22 -21661600 Fax : +91 -22 -39167297 Email Id : info@nirvanatec. com Website : http: //www. nirvanatec. com

About the Company … Based in Mumbai commercial capital of India Dedicated to providing quality CAD/CAM solutions at lower total cost of ownership. Unit under the Software Technology Park of India

Team Members “A highly qualified motivated and committed team which identifies the needs of our customers and delivers high quality solutions on time and within budgets” budgets

Services offered … PLUS 2 D Nesting Software Suite Material Optimization Technologies CAD CAM VENDORS WORLDWIDE Custom Software Development Complex Engineering Analysis

Applications For Wood Working. . PLUS 2 D Wood Optimization Solution PLUS 1 D Bar Nesting Software PLUS BOMGEN Bill Of Material Generation Software PLUS Replicam Digitizing Software to Replicate Templates

Applications for Sheet Metal, Glass PLUS 2 D PLUS 1 D PLUS Glass Manager PLUS Bend PLUS Slitting PLUS Sections

Worldwide Customer Base

Customers in a range of industries… Larsen & Toubro Godrej Asahi Glass India Integral Coach Factory

Events… Glasstech 2004 Glasstech 2005 Acmee 2002

Events… Glasstech 2005

Events… GLASSTEC 2006, Germany

Events… Glasscon 2006, Mumbai

Events… Glasstech India 2007, Mumbai

“Pack it Like Sardines” with PLUS 2 D A comprehensive Nesting and Optimization solution PROVEN POWERFUL PROFITABLE Available in many Languages Chinese English German Italian Portuguese Spanish Turkish Russian Korean French Bulgarian

Application Areas of PLUS 2 D Optimization Solutions Sheet Metal For Glass Wood

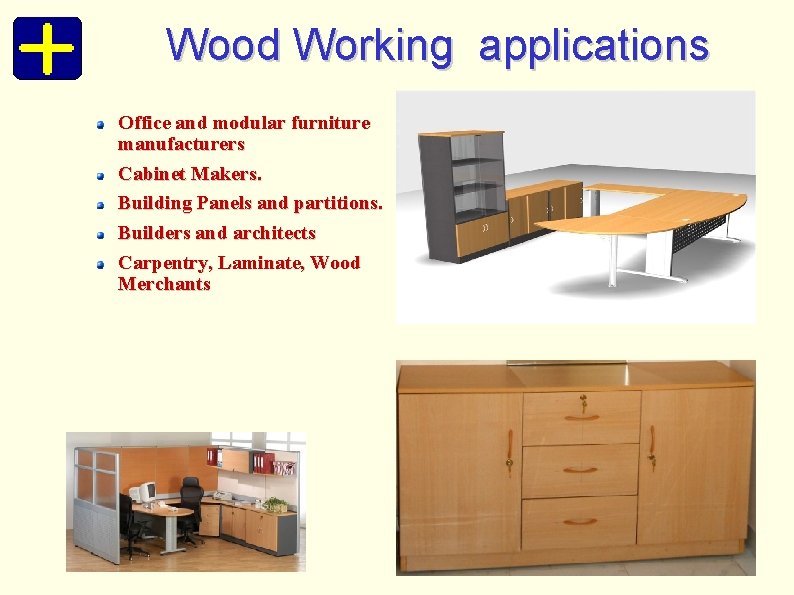

Wood Working applications Office and modular furniture manufacturers Cabinet Makers. Building Panels and partitions. Builders and architects Carpentry, Laminate, Wood Merchants

General flow of PLUS 2 D Machine parameters Required parts list Stock sheets Click optimise View patterns generated Job summary Generate NC code Transfer to cutting machine

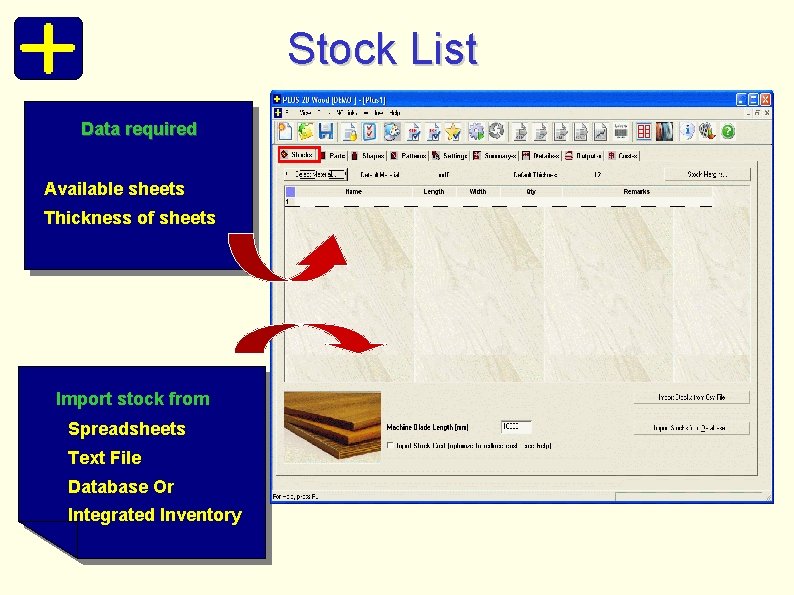

Stock List Data required Available sheets Thickness of sheets Import stock from Spreadsheets Text File Database Or Integrated Inventory

Part List No limit on Number of Parts. Import Cutting List from your Database Data Base File

Machine Parameters Part trimming Margin Cut Complexity Kerf Cutting Allowance

Optimization Select the Cut Complexity Optimize on the basis of Cost Optimizes even a large job very quickly We have Maximum Number of Algorithms, around 10, running at this position. Giving best possible results

Summary Report Summary with Utilization, Sheets used, weight of stocks and Parts. Minimize Racks Stocks Used Parts Nested

Layouts View the patterns in the details page

NC Link to Cutting Tables Transfer NC code via LAN Transfer NC using Memory Devices like Floppies or Pen-drives CNC Cutting Table

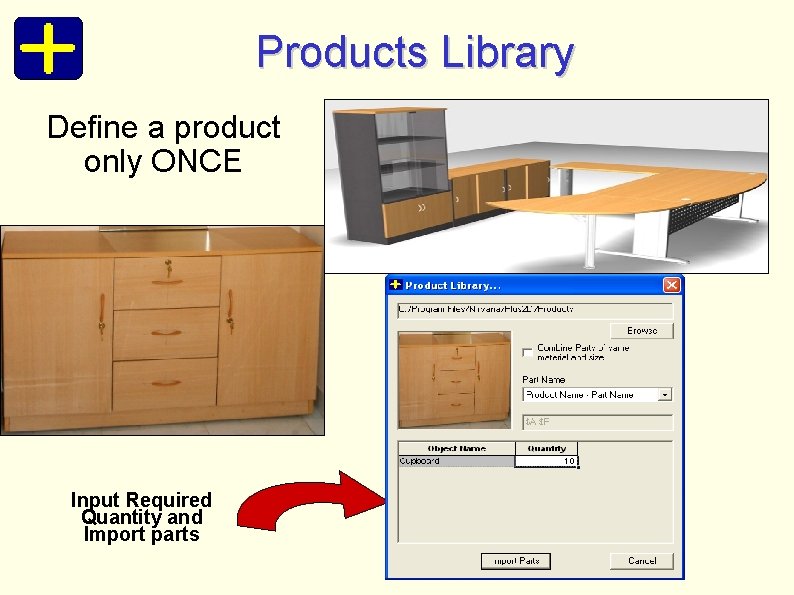

Products Library Define a product only ONCE Input Required Quantity and Import parts

Parametric Products Library Set Variables Set Formulae’s for each part. Insert the product with values, say W = 150 & H = 130.

Shapes Control Pairing for parts individually. Pairing of Parts. No Pairing. Each shape is nested in a rectangular BLOCK.

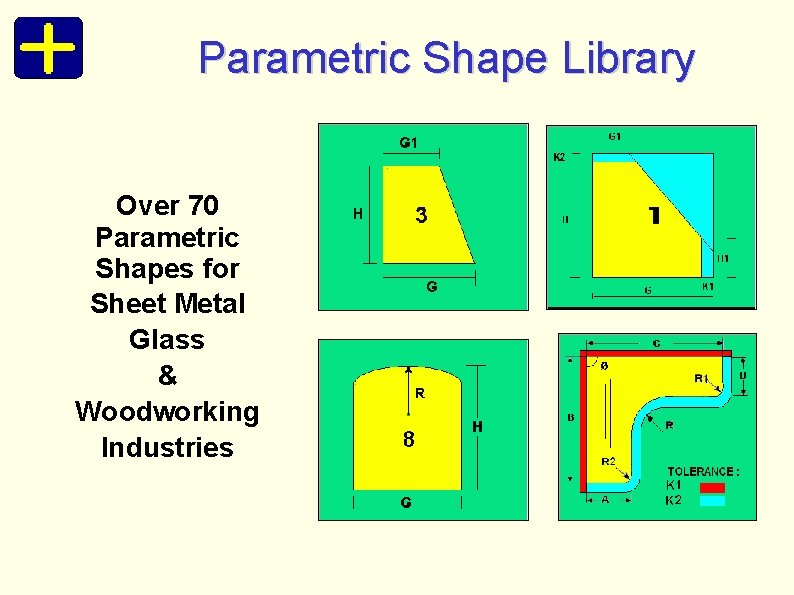

Parametric Shape Library Over 70 Parametric Shapes for Sheet Metal Glass & Woodworking Industries

Edge Banding Calculations Integrated Database of Edge Banding Materials Specify different Edging for each side of the parts Calculation of cutting list (contains cutting and finished sizes. )

Offcut Management Update Offcuts into the Inventory for Reuse in future jobs. Offcut Database Offcut Generated

Print Labels Multiple Layouts on single page Output Customizable Job Report Export DXF Layouts

Costing and Estimation Cost of standard items Include your Processing charges too Charged Sizes

Other Features Re Nesting – Facility to accept the results partially, reject some patterns and solve the remaining problem incrementally Edit Stock quantities Change Cut Complexity Edit Part quantities

Other Features Database Connectivity – Open Software design gives ability to work with any database via ODBC.

Other Features De stacking – Minimize the number of open stacks (racks)

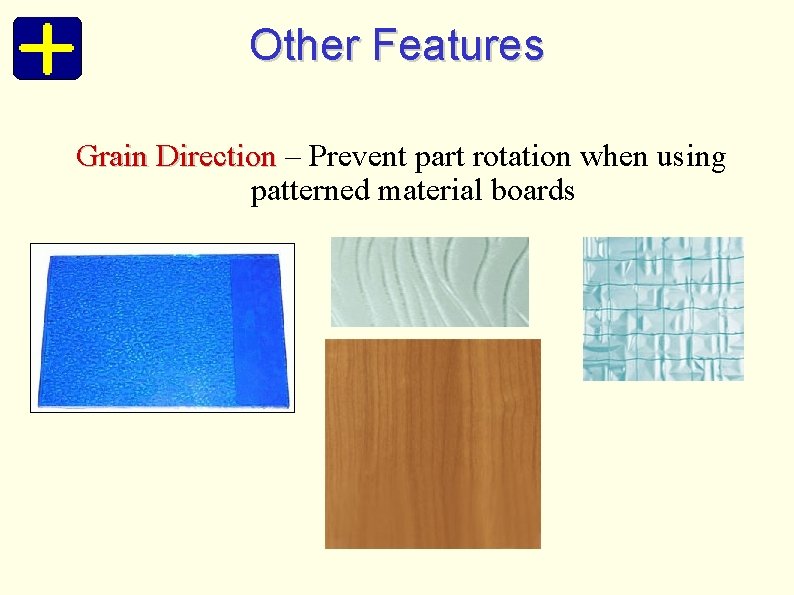

Other Features Grain Direction – Prevent part rotation when using patterned material boards

Help Complete On-Line Help, with detailed information of available options.

Input any Number of Stocks & Parts PLUS 1 D Powder Coating Database & Estimation Easily Integrates with in house Database Detailed Report Import Data from DBF Integrated Inventory Bar Nesting Software to reduce waste in cutting 1 D materials.

PLUS Replicam Digitizing Software to Replicate Templates. Trace shape outline automatically or manually using drawing entities like Lines, Arcs, Polylines and Splines. Template to be Cut Convert into a smooth tangential contour suitable for CNC. Auto Corner to automatically join segments at the corners. Ensures accuracy while saving time and effort. Flexibility, there is no limits on size of templates. No investment on expensive digitizer or digitizing table. CAD Output of PLUS Replicam

PLUS Glass Manager Order processing and Inventory software for Processors, Fabricars and Glaziers Provides for multiple price lists like dealer, customer, retail, standard, etc. Regenerate estimates with change in parameters. Integrated Inventory to track various raw materials and Offcuts. Customer and Contact Management. Extensive Summary and Detailed reports.

PLUS Label Maker Optional Add-On Module with PLUS 2 D for Bar Code Label Printing, using ordinary printers. Design labels as per your requirements or choose from installed templates. Edit both size and content. Use low cost off the shelf labels. Directly interfaces with PLUS 2 D, to print labels as per the layouts. Add part pictures or layout pictures on every label. Choose from over 15 different standard formats for generating Barcodes.

PLUS BOMGEN Easy to Learn, application with Online Help and Tutorials. Input any Number of Parametric Products. Estimation and Quotation software also generates Bill of Materials. Interfaces with PLUS 1 D and PLUS 2 D software.

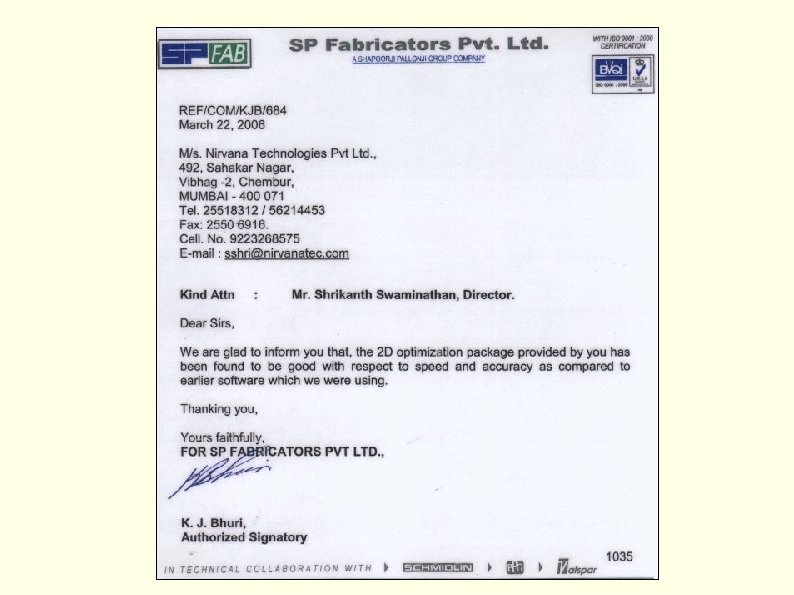

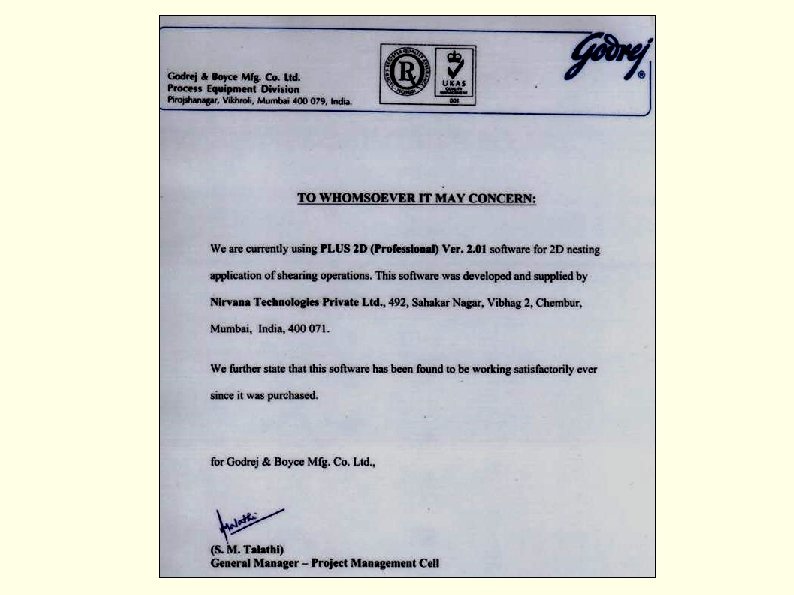

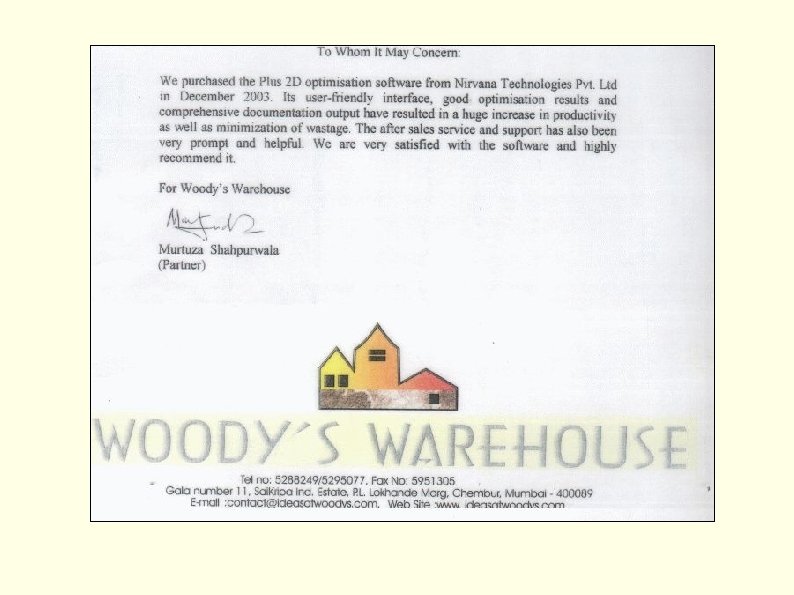

References & Testimonials “A great program, does exactly what we need” need Robert Berger, Window Tech. , USA “PLUS 2 D is easy to deploy and use. It has resulted in substantial savings for our company” Information System Coordinator, Frigoglas “I really appreciate the time you took to answer my questions. I find this attitude both rare and refreshing in a world that seems to be built on the concept of sell and run” Tony Feuer, Mazatlan, Mexico “We are looking for the right optimization software for some time and finally came to Nirvanatec which offers an excellent solution simplified to use. Your support has been a unique experience in speed and accurate answers. We are glad to have chosen PLUS 2 D” Eddy Jansen Project Manager, Poly. Vision NV
