NICOTINE ADDICTION Neal L Benowitz MD University of

NICOTINE ADDICTION Neal L. Benowitz, MD University of California San Francisco February 8, 2017

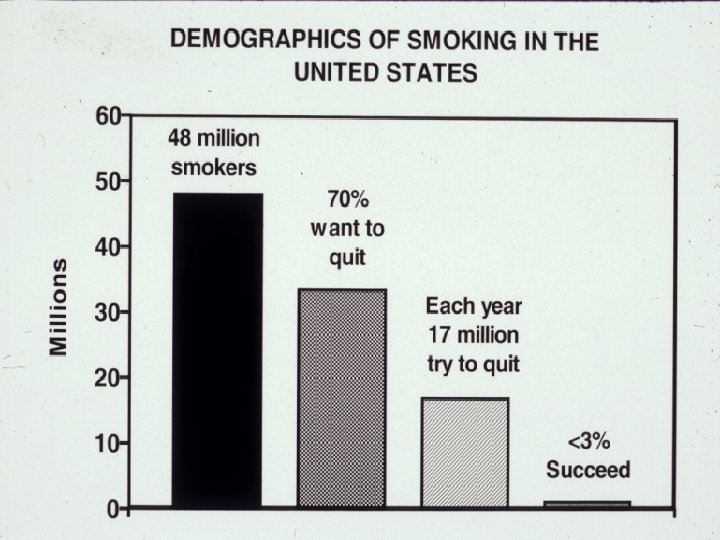

The Problem

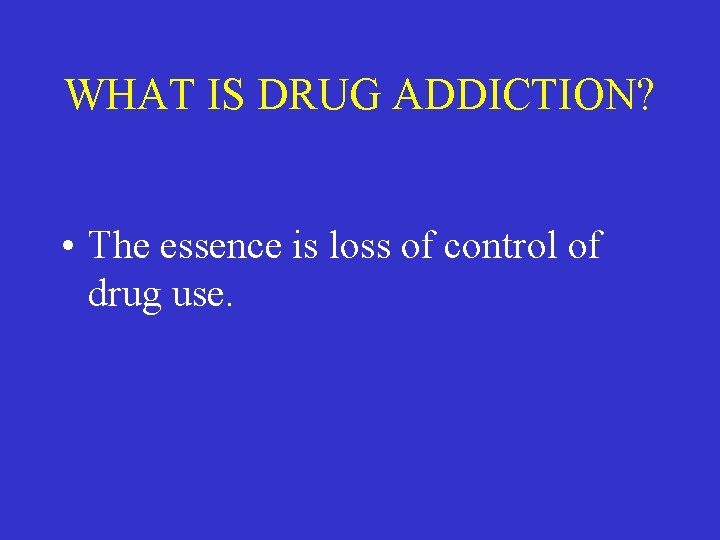

WHAT IS DRUG ADDICTION? • The essence is loss of control of drug use.

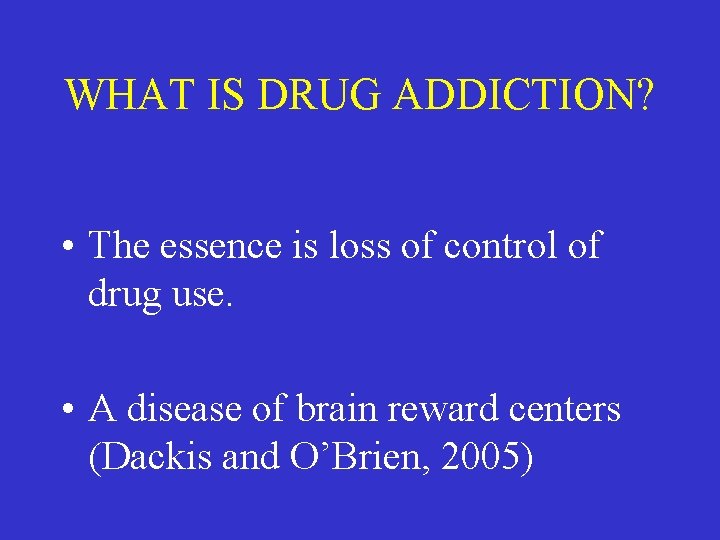

WHAT IS DRUG ADDICTION? • The essence is loss of control of drug use. • A disease of brain reward centers (Dackis and O’Brien, 2005)

DEFINITION OF A DRUG “…Articles other than food intended to affect the structure or any function of the body of man…” (F. D. A. , 1938)

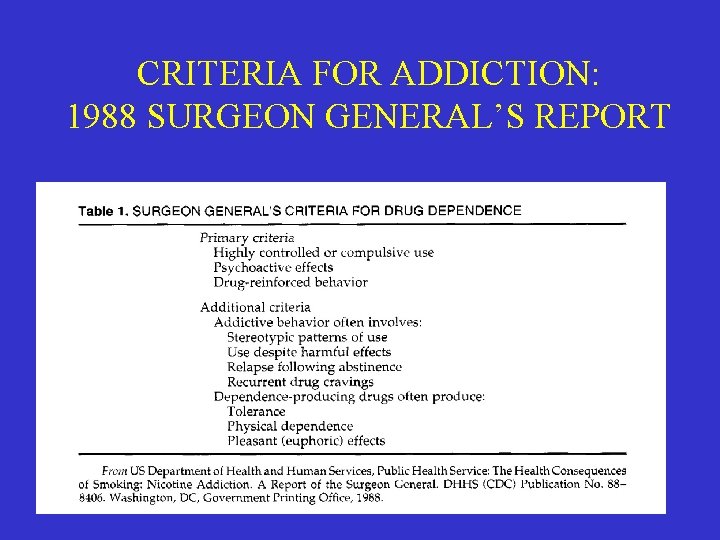

CRITERIA FOR ADDICTION: 1988 SURGEON GENERAL’S REPORT

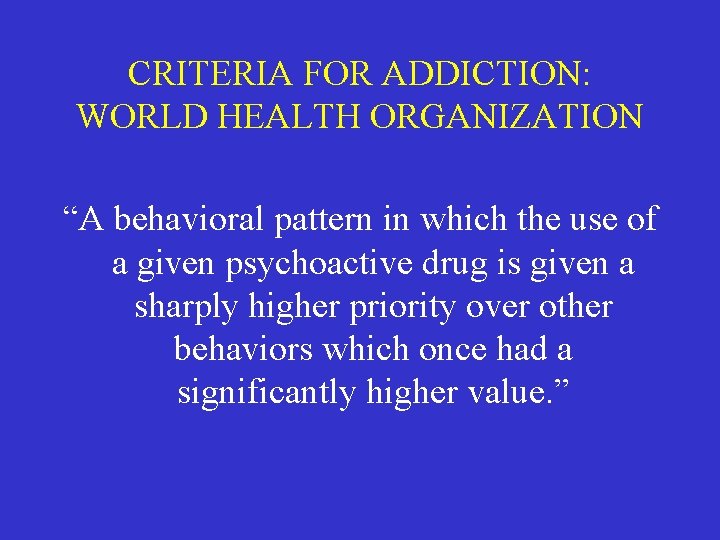

CRITERIA FOR ADDICTION: WORLD HEALTH ORGANIZATION “A behavioral pattern in which the use of a given psychoactive drug is given a sharply higher priority over other behaviors which once had a significantly higher value. ”

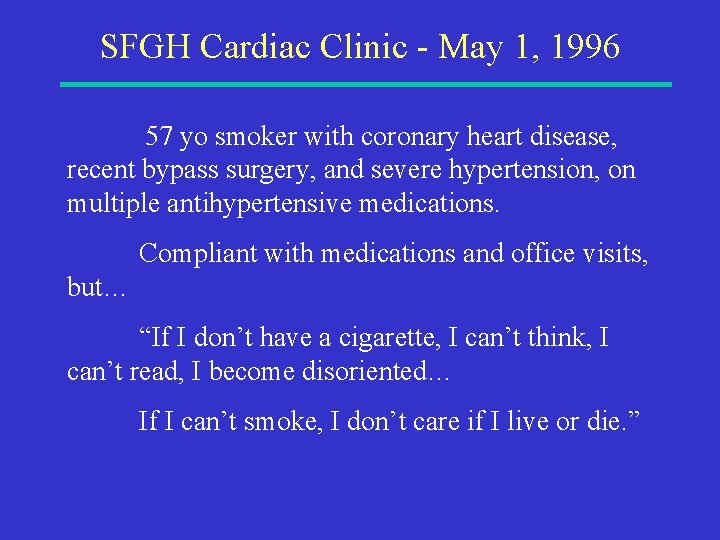

SFGH Cardiac Clinic - May 1, 1996 57 yo smoker with coronary heart disease, recent bypass surgery, and severe hypertension, on multiple antihypertensive medications. Compliant with medications and office visits, but… “If I don’t have a cigarette, I can’t think, I can’t read, I become disoriented… If I can’t smoke, I don’t care if I live or die. ”

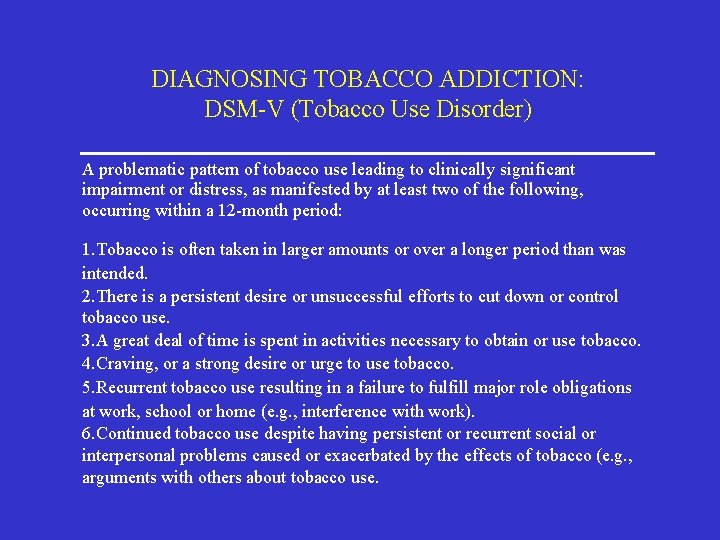

DIAGNOSING TOBACCO ADDICTION: DSM-V (Tobacco Use Disorder) A problematic pattern of tobacco use leading to clinically significant impairment or distress, as manifested by at least two of the following, occurring within a 12 -month period: 1. Tobacco is often taken in larger amounts or over a longer period than was intended. 2. There is a persistent desire or unsuccessful efforts to cut down or control tobacco use. 3. A great deal of time is spent in activities necessary to obtain or use tobacco. 4. Craving, or a strong desire or urge to use tobacco. 5. Recurrent tobacco use resulting in a failure to fulfill major role obligations at work, school or home (e. g. , interference with work). 6. Continued tobacco use despite having persistent or recurrent social or interpersonal problems caused or exacerbated by the effects of tobacco (e. g. , arguments with others about tobacco use.

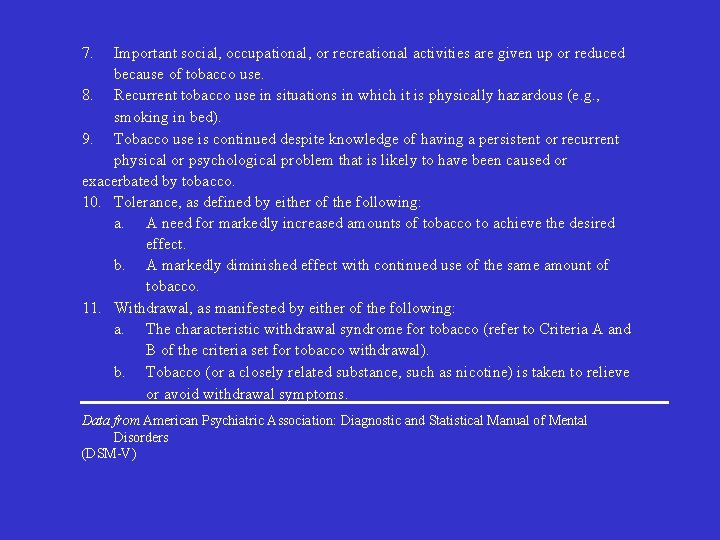

7. Important social, occupational, or recreational activities are given up or reduced because of tobacco use. 8. Recurrent tobacco use in situations in which it is physically hazardous (e. g. , smoking in bed). 9. Tobacco use is continued despite knowledge of having a persistent or recurrent physical or psychological problem that is likely to have been caused or exacerbated by tobacco. 10. Tolerance, as defined by either of the following: a. A need for markedly increased amounts of tobacco to achieve the desired effect. b. A markedly diminished effect with continued use of the same amount of tobacco. 11. Withdrawal, as manifested by either of the following: a. The characteristic withdrawal syndrome for tobacco (refer to Criteria A and B of the criteria set for tobacco withdrawal). b. Tobacco (or a closely related substance, such as nicotine) is taken to relieve or avoid withdrawal symptoms. Data from American Psychiatric Association: Diagnostic and Statistical Manual of Mental Disorders (DSM-V)

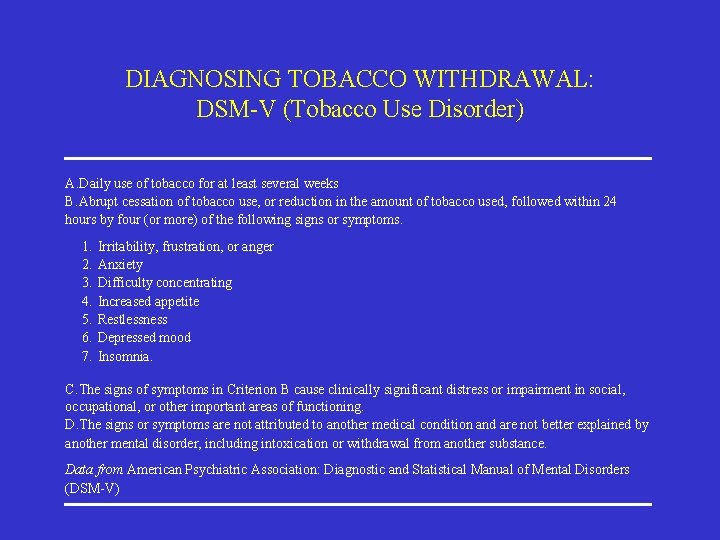

DIAGNOSING TOBACCO WITHDRAWAL: DSM-V (Tobacco Use Disorder) A. Daily use of tobacco for at least several weeks B. Abrupt cessation of tobacco use, or reduction in the amount of tobacco used, followed within 24 hours by four (or more) of the following signs or symptoms. 1. 2. 3. 4. 5. 6. 7. Irritability, frustration, or anger Anxiety Difficulty concentrating Increased appetite Restlessness Depressed mood Insomnia. C. The signs of symptoms in Criterion B cause clinically significant distress or impairment in social, occupational, or other important areas of functioning. D. The signs or symptoms are not attributed to another medical condition and are not better explained by another mental disorder, including intoxication or withdrawal from another substance. Data from American Psychiatric Association: Diagnostic and Statistical Manual of Mental Disorders (DSM-V)

SEVERITY OF ADDICTION: FAGERSTROM TEST FOR CIGARETTE DEPENDENCE Items 1. How soon after you wake up do you smoke your first cigarette? * 2. Do you find it difficult to refrain from smoking in places where it is forbidden, e. g. in a church, at the library, in cinema, etc. ? 3. Which cigarette would you hate most to give up? 4. How many cigarettes/day do you smoke? * 5. Do you smoke more frequently during the first hours after waking than during the rest of the day? 6. Do you smoke when your are so ill that you are in bed most of the day? *HSI items. Response options Points Within 5 minutes 6± 30 minutes 31± 60 minutes After 60 minutes 3 2 1 0 Yes 1 No 0 The first one in the morning All others 10 or less 11± 20 21± 30 31 or more 1 0 0 1 2 3 Yes No 1 0

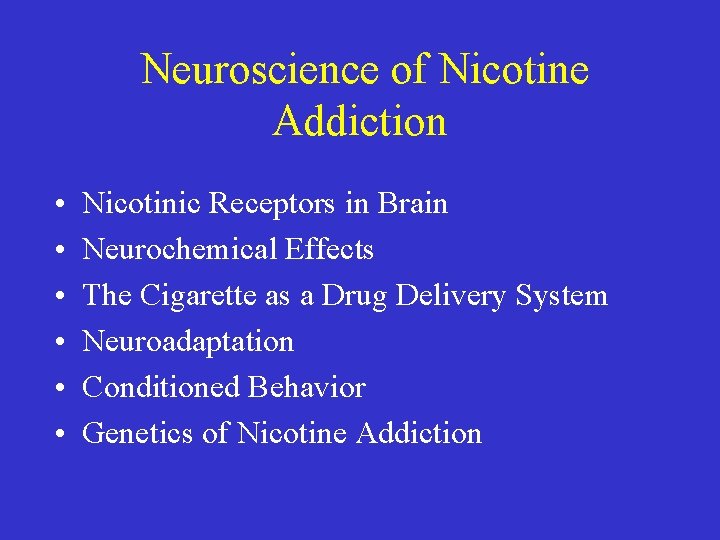

Neuroscience of Nicotine Addiction • • • Nicotinic Receptors in Brain Neurochemical Effects The Cigarette as a Drug Delivery System Neuroadaptation Conditioned Behavior Genetics of Nicotine Addiction

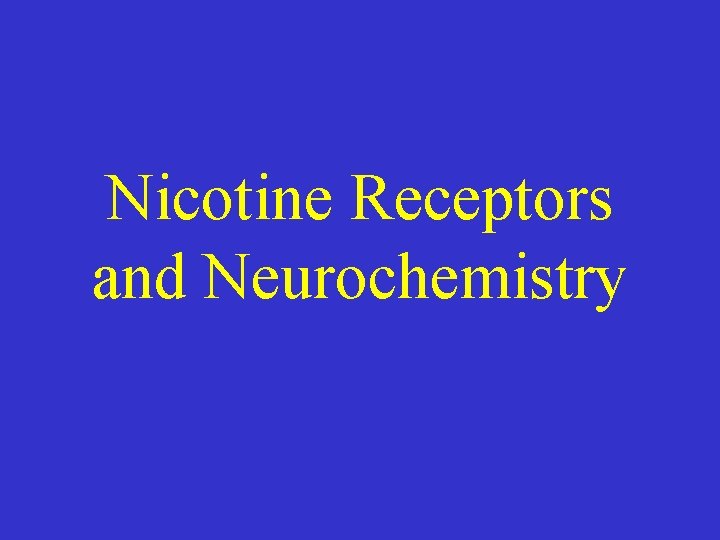

Nicotine Receptors and Neurochemistry

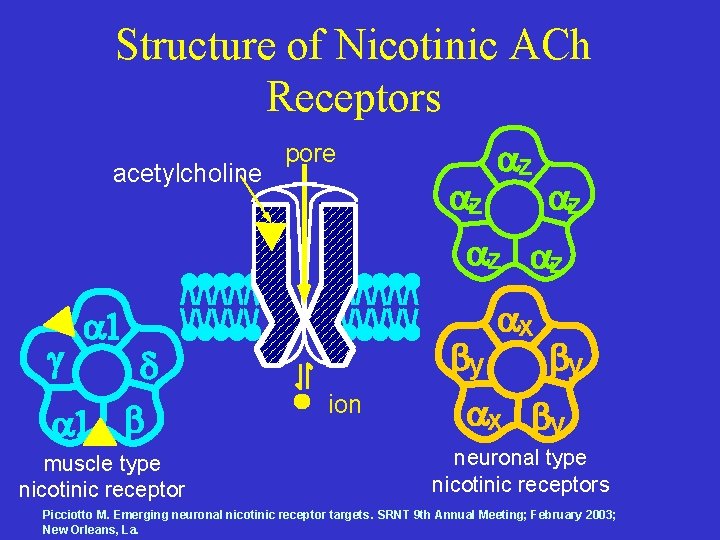

Structure of Nicotinic ACh Receptors acetylcholine pore z z z muscle type nicotinic receptor y ion x y x y neuronal type nicotinic receptors Picciotto M. Emerging neuronal nicotinic receptor targets. SRNT 9 th Annual Meeting; February 2003; New Orleans, La.

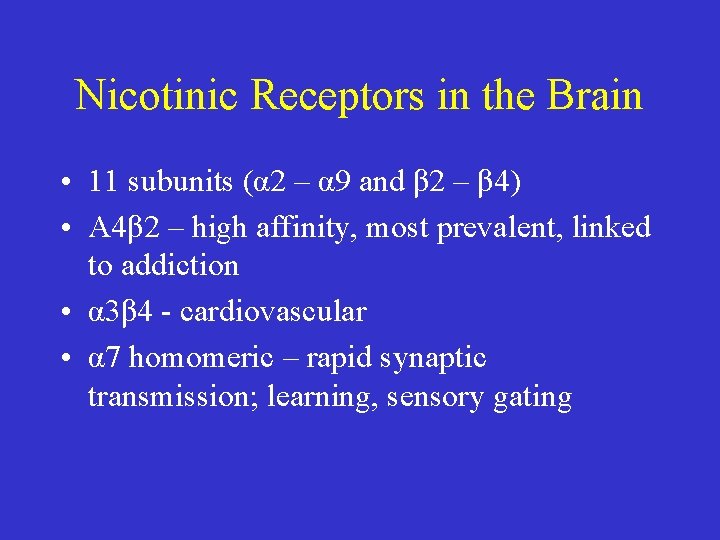

Nicotinic Receptors in the Brain • 11 subunits (α 2 – α 9 and β 2 – β 4) • Α 4β 2 – high affinity, most prevalent, linked to addiction • α 3β 4 - cardiovascular • α 7 homomeric – rapid synaptic transmission; learning, sensory gating

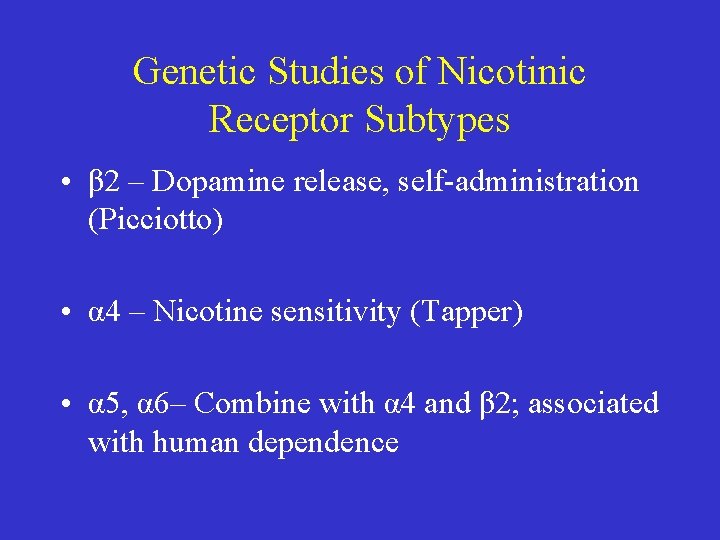

Genetic Studies of Nicotinic Receptor Subtypes • β 2 – Dopamine release, self-administration (Picciotto) • α 4 – Nicotine sensitivity (Tapper) • α 5, α 6– Combine with α 4 and β 2; associated with human dependence

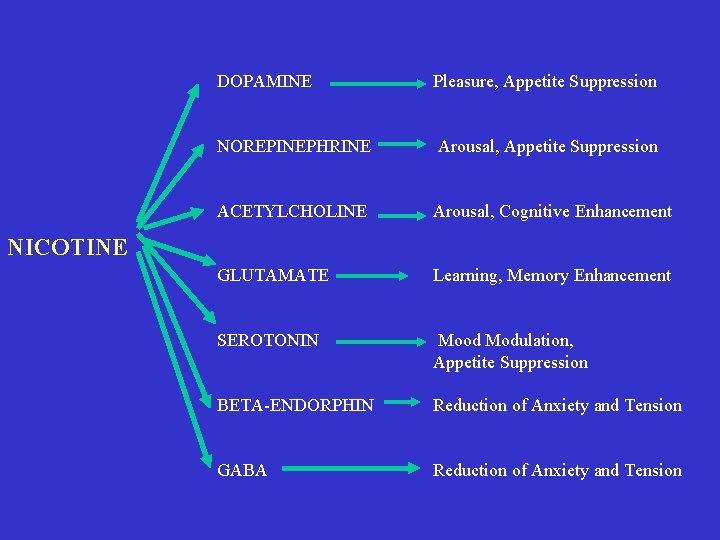

DOPAMINE Pleasure, Appetite Suppression NOREPINEPHRINE Arousal, Appetite Suppression ACETYLCHOLINE Arousal, Cognitive Enhancement GLUTAMATE Learning, Memory Enhancement SEROTONIN Mood Modulation, Appetite Suppression BETA-ENDORPHIN Reduction of Anxiety and Tension GABA Reduction of Anxiety and Tension NICOTINE

Nicotine Addiction: Reinforcing Behavior 2 2 4 4 2 n. ACh. R Dopamine GABA nicotine GLU • Nicotine activates n. ACh. Rs on DA and GABA neurons (VTA) and Glu neurons • Net result of stimulatory and inhibitory effects and differential desensitization of n. ACh. Rs is enhanced DA release in the n. accumbens • Studies in transgenic mice: crucial role of a 4 and b 2 n. ACh. R subunits - courtesy of H. Rollema, Pfizer

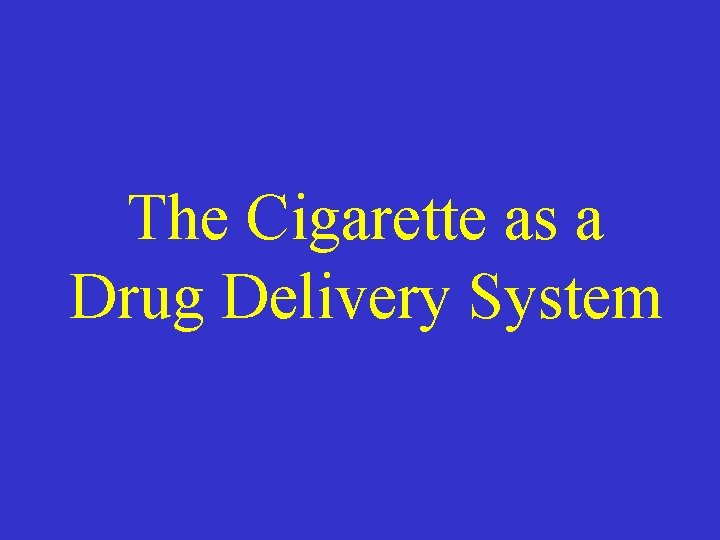

The Cigarette as a Drug Delivery System

Neuroadaptation

Neuroadaptation and Nicotine Dependence • Upregulation of nicotinic receptors • Neuroplasticity – Induction of gene products (c-Fos) – Changes in protein expression – Altered cell signaling

NICOTINIC RECEPTOR UPREGULATION IN SMOKERS

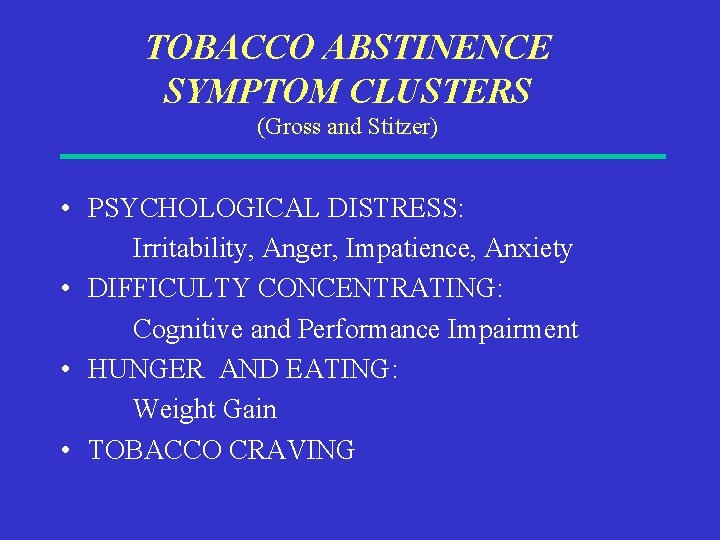

TOBACCO ABSTINENCE SYMPTOM CLUSTERS (Gross and Stitzer) • PSYCHOLOGICAL DISTRESS: Irritability, Anger, Impatience, Anxiety • DIFFICULTY CONCENTRATING: Cognitive and Performance Impairment • HUNGER AND EATING: Weight Gain • TOBACCO CRAVING

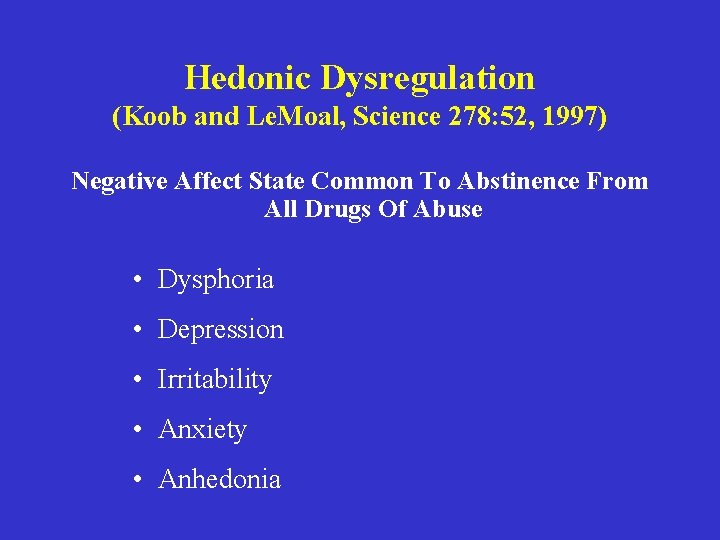

Hedonic Dysregulation (Koob and Le. Moal, Science 278: 52, 1997) Negative Affect State Common To Abstinence From All Drugs Of Abuse • Dysphoria • Depression • Irritability • Anxiety • Anhedonia

MAINTAINING NICOTINE ADDICTION • Positive reinforcement – Liking a drug is part of addiction • Physical dependence – Avoiding withdrawal symptoms

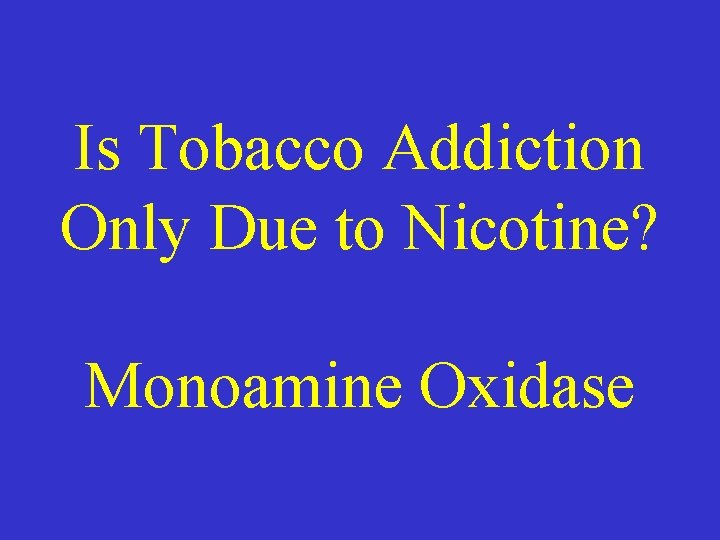

Is Tobacco Addiction Only Due to Nicotine? Monoamine Oxidase

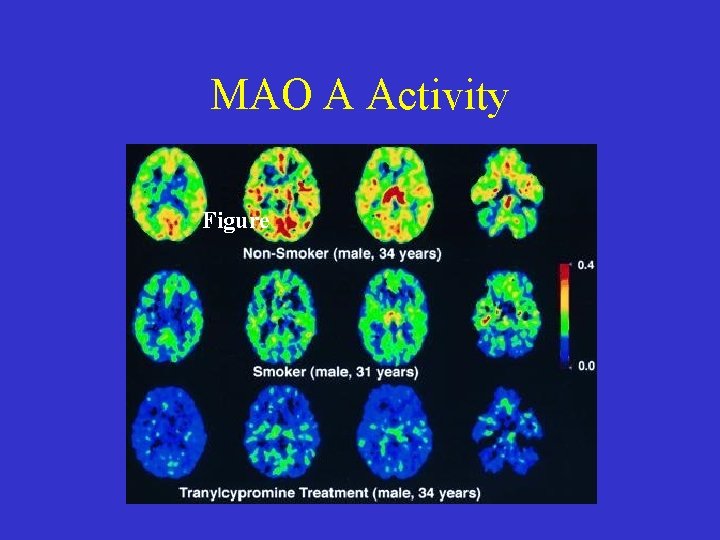

MAO A Activity Figure

Monoamine Oxidase and Tobacco Addiction • Smoking inhibits brain MAO-A and MAO-B • Effect due to benzoquinones, 2 -naphylamine, harmon and other chemicals, but not nicotine • MAO inhibition enhances nicotine selfadministration in animals • MAO inhibitors may be useful in treating nicotine addiction

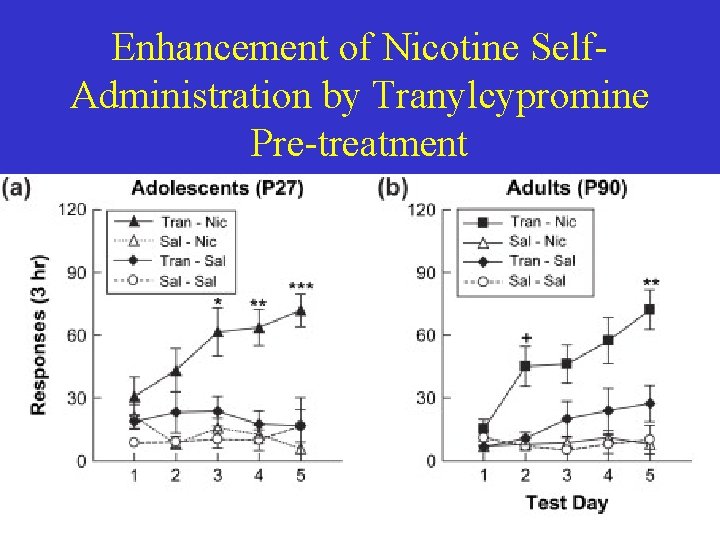

Enhancement of Nicotine Self. Administration by Tranylcypromine Pre-treatment Fig

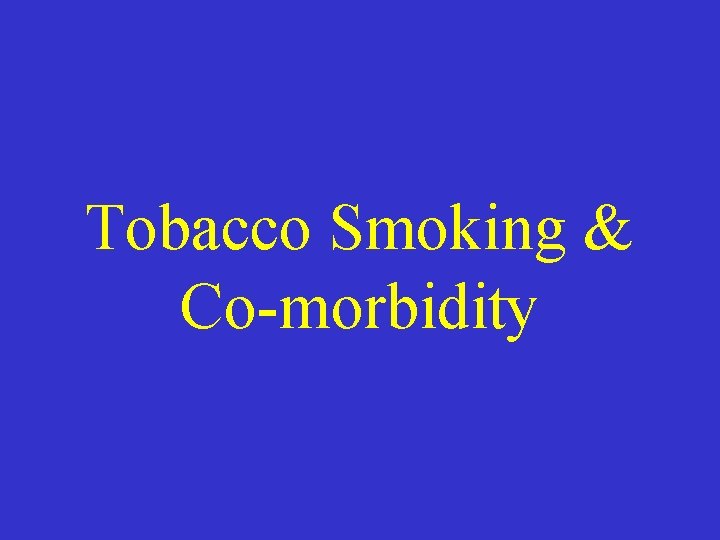

Tobacco Smoking & Co-morbidity

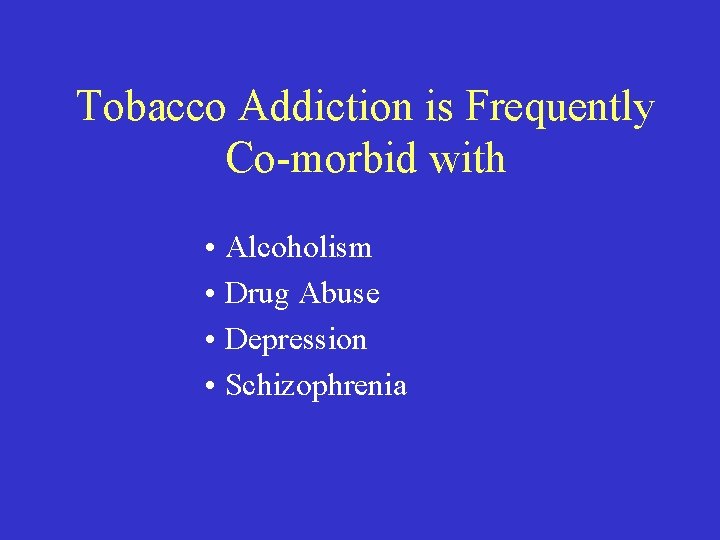

Tobacco Addiction is Frequently Co-morbid with • Alcoholism • Drug Abuse • Depression • Schizophrenia

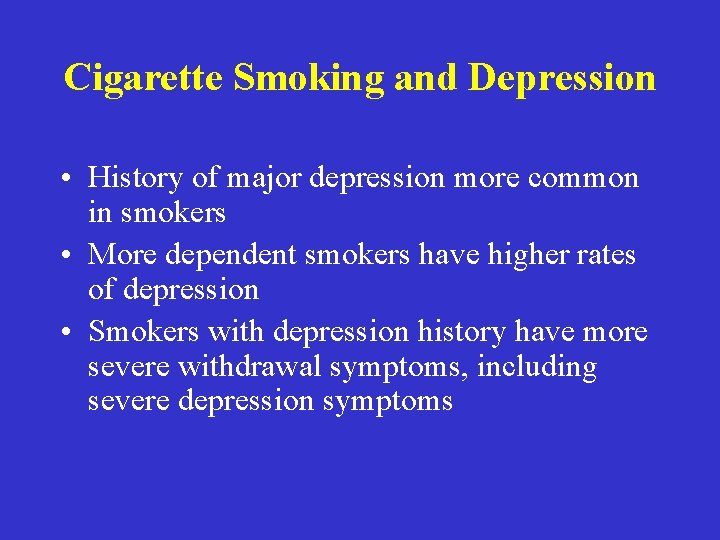

Cigarette Smoking and Depression • History of major depression more common in smokers • More dependent smokers have higher rates of depression • Smokers with depression history have more severe withdrawal symptoms, including severe depression symptoms

Smoking and Conditioned Behavior

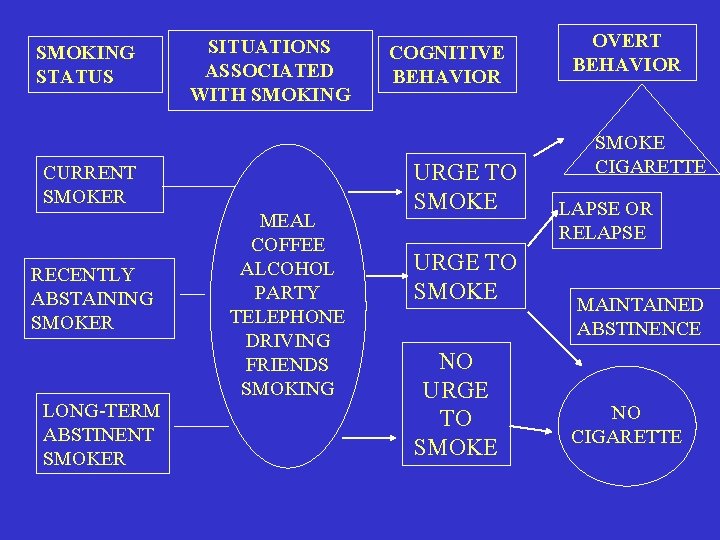

SMOKING STATUS SITUATIONS ASSOCIATED WITH SMOKING CURRENT SMOKER RECENTLY ABSTAINING SMOKER LONG-TERM ABSTINENT SMOKER MEAL COFFEE ALCOHOL PARTY TELEPHONE DRIVING FRIENDS SMOKING COGNITIVE BEHAVIOR URGE TO SMOKE NO URGE TO SMOKE OVERT BEHAVIOR SMOKE CIGARETTE LAPSE OR RELAPSE MAINTAINED ABSTINENCE NO CIGARETTE

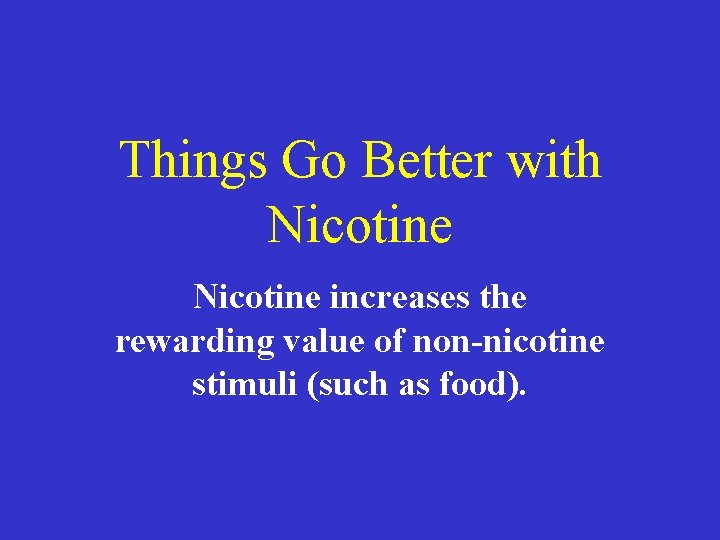

Things Go Better with Nicotine increases the rewarding value of non-nicotine stimuli (such as food).

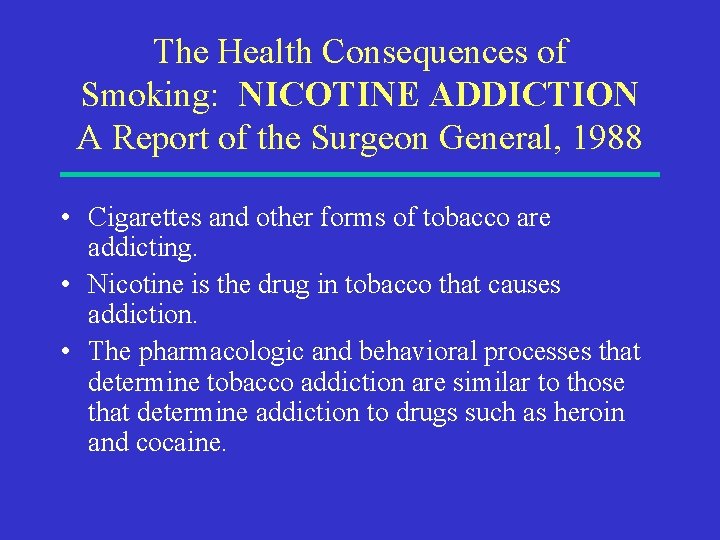

The Health Consequences of Smoking: NICOTINE ADDICTION A Report of the Surgeon General, 1988 • Cigarettes and other forms of tobacco are addicting. • Nicotine is the drug in tobacco that causes addiction. • The pharmacologic and behavioral processes that determine tobacco addiction are similar to those that determine addiction to drugs such as heroin and cocaine.

COMPARISON OF NICOTINE DEPENDENCE AND DEPENDENCE ON OTHER DRUGS OF ABUSE

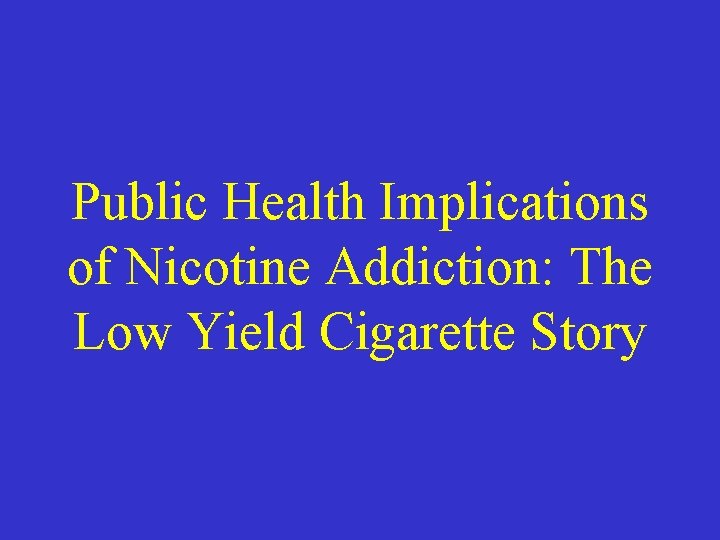

Public Health Implications of Nicotine Addiction: The Low Yield Cigarette Story

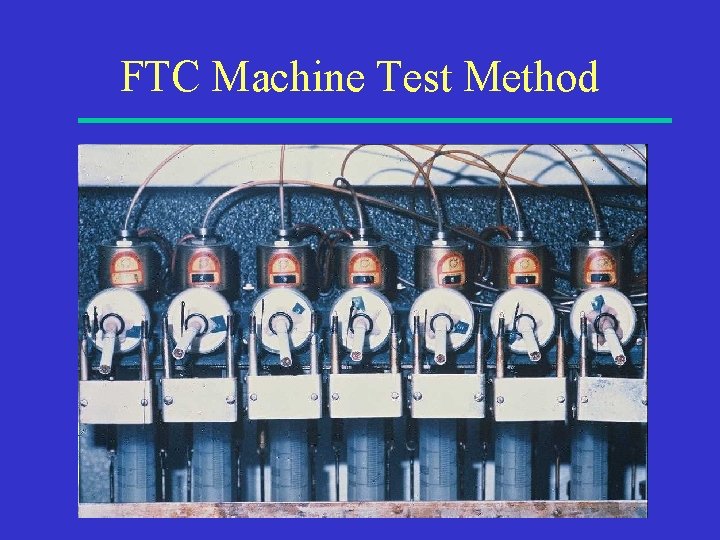

FTC Machine Test Method

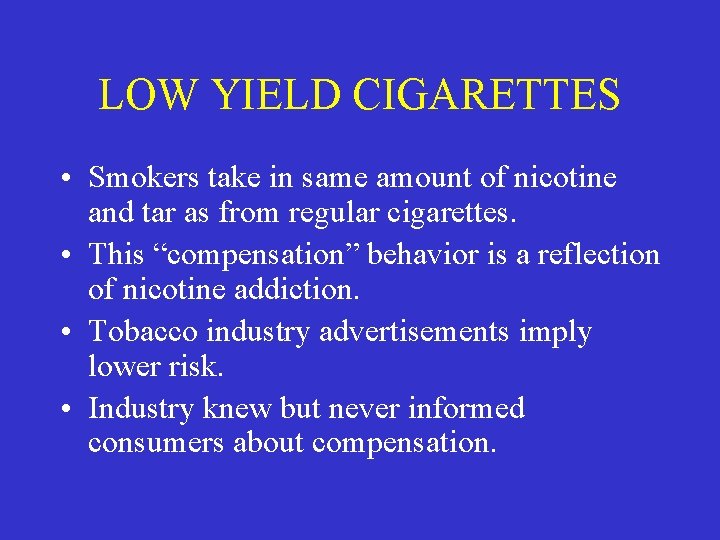

LOW YIELD CIGARETTES • Smokers take in same amount of nicotine and tar as from regular cigarettes. • This “compensation” behavior is a reflection of nicotine addiction. • Tobacco industry advertisements imply lower risk. • Industry knew but never informed consumers about compensation.

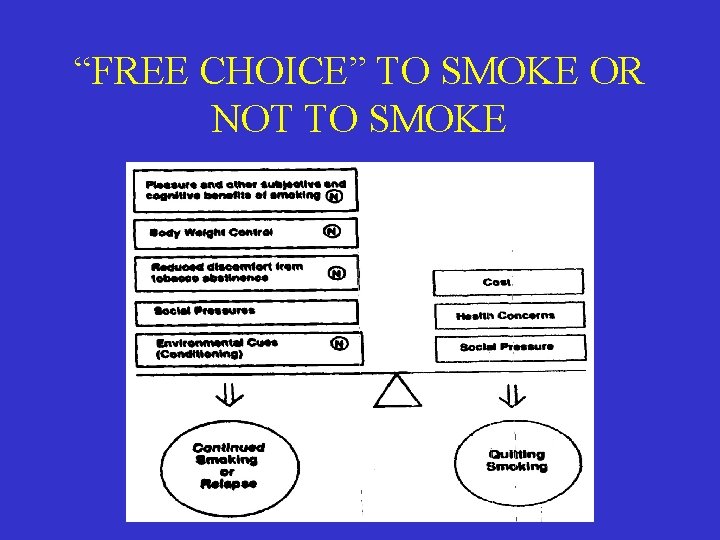

“FREE CHOICE” TO SMOKE OR NOT TO SMOKE

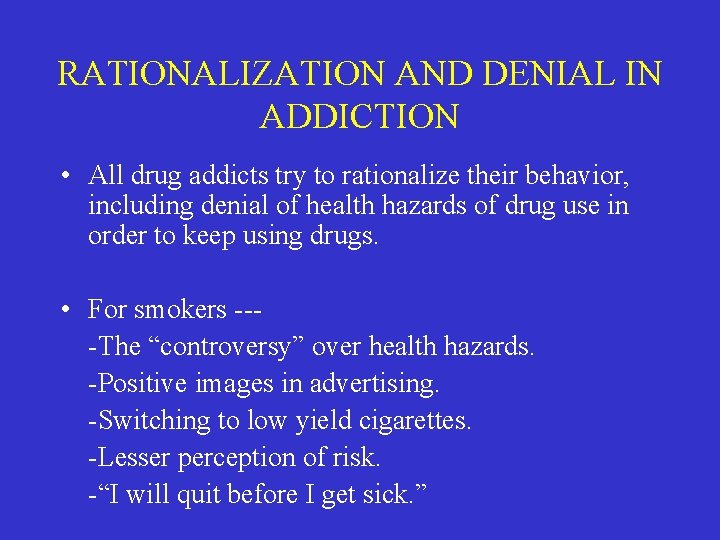

RATIONALIZATION AND DENIAL IN ADDICTION • All drug addicts try to rationalize their behavior, including denial of health hazards of drug use in order to keep using drugs. • For smokers ---The “controversy” over health hazards. -Positive images in advertising. -Switching to low yield cigarettes. -Lesser perception of risk. -“I will quit before I get sick. ”

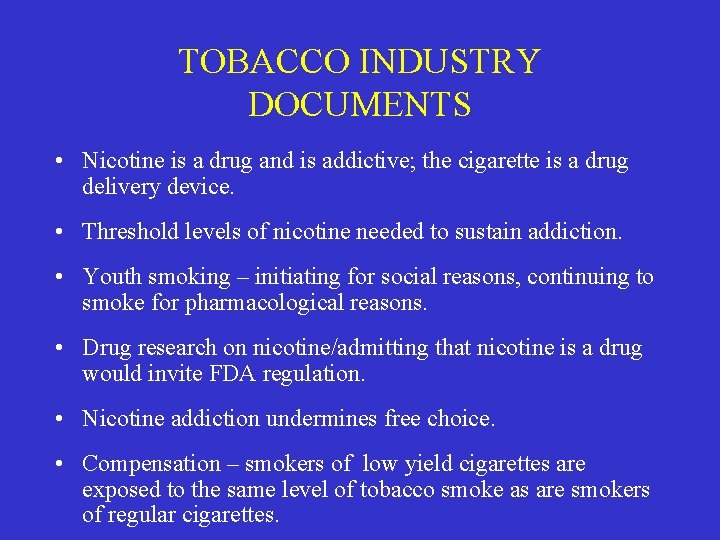

TOBACCO INDUSTRY DOCUMENTS • Nicotine is a drug and is addictive; the cigarette is a drug delivery device. • Threshold levels of nicotine needed to sustain addiction. • Youth smoking – initiating for social reasons, continuing to smoke for pharmacological reasons. • Drug research on nicotine/admitting that nicotine is a drug would invite FDA regulation. • Nicotine addiction undermines free choice. • Compensation – smokers of low yield cigarettes are exposed to the same level of tobacco smoke as are smokers of regular cigarettes.

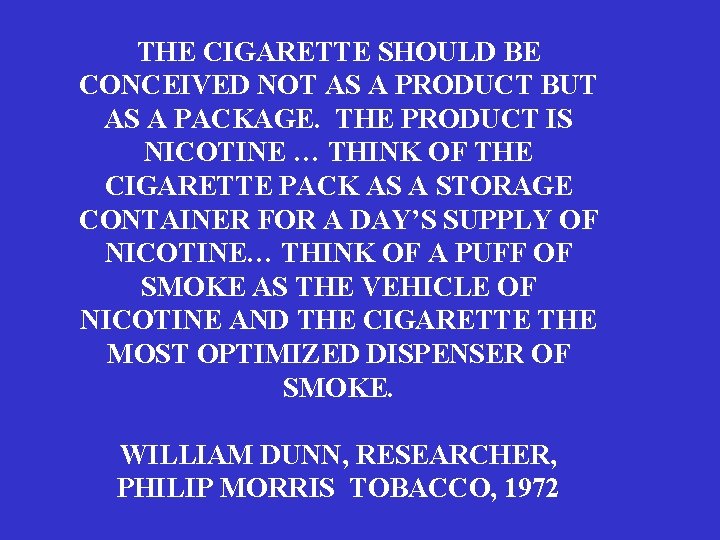

THE CIGARETTE SHOULD BE CONCEIVED NOT AS A PRODUCT BUT AS A PACKAGE. THE PRODUCT IS NICOTINE … THINK OF THE CIGARETTE PACK AS A STORAGE CONTAINER FOR A DAY’S SUPPLY OF NICOTINE… THINK OF A PUFF OF SMOKE AS THE VEHICLE OF NICOTINE AND THE CIGARETTE THE MOST OPTIMIZED DISPENSER OF SMOKE. WILLIAM DUNN, RESEARCHER, PHILIP MORRIS TOBACCO, 1972
