NICAMPD project Flagship HEP project at JINR Dubna
NICA/MPD project Flagship HEP project at JINR Dubna September 27, 2011 A. Vodopyanov, CERN 1

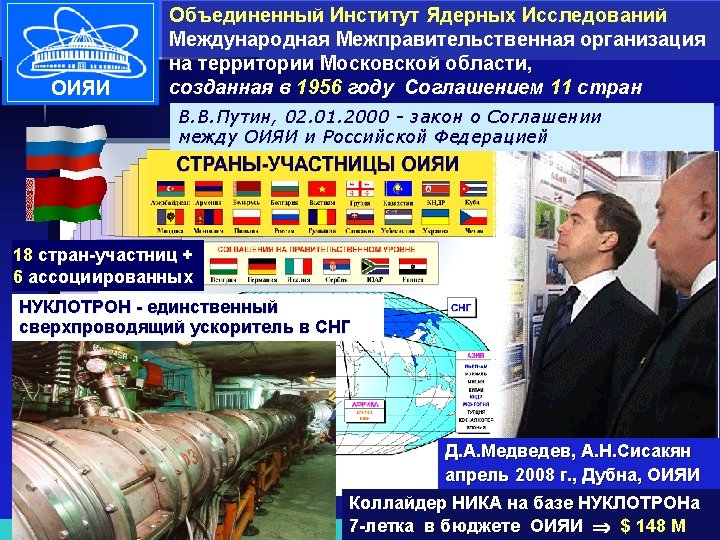

2 Joint Institute for Nuclear Research (JINR) – International Intergovernmental Organization JINR established through the Convention signed on 26 March 1956 by eleven founding States and registered with the United Nations on 1 February 1957 18 Member States and 6 Associated countries
3 About history and structure of JINR 1 км Accelerator Volga river EPh. LAN AS USSR LHEP Dubna LTP LNP Veksler and Baldin Laboratory of High Energy Physics LNR LIT INR AS USSR LRB LNP § staff totals ~ 900 employee § from 11 Member States § territory ~ 1 km^2
The pioneer accelerator for HEP: Synchrophasotron • designed & constructed under the leadership of acad. V. I. Veksler • put into operation in April, 1957 • the world largest accelerator at that time 10 Ge. V protons 4

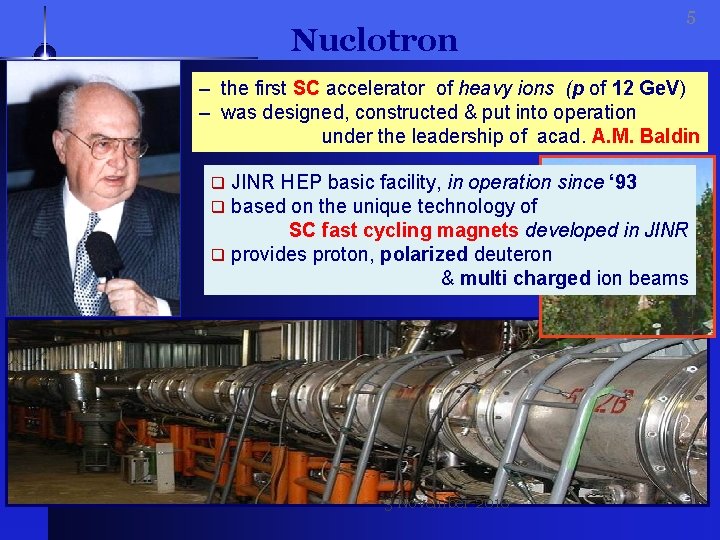

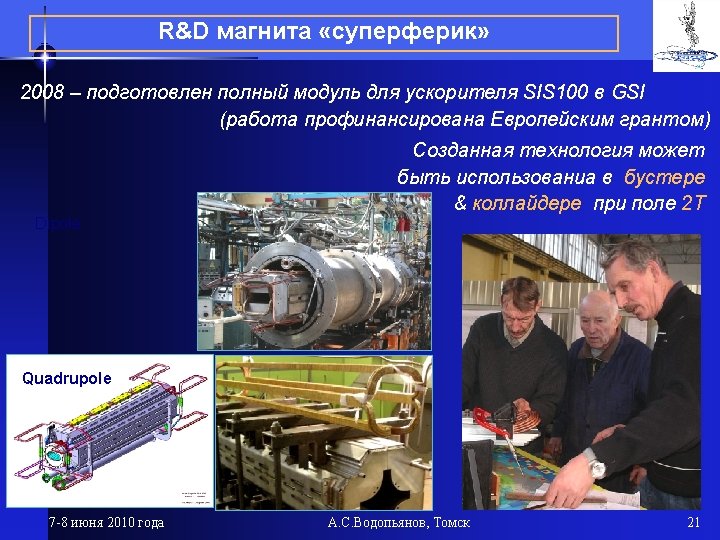

Nuclotron 5 – the first SC accelerator of heavy ions (p of 12 Ge. V) – was designed, constructed & put into operation under the leadership of acad. A. M. Baldin JINR HEP basic facility, in operation since ‘ 93 based on the unique technology of SC fast cycling magnets developed in JINR q provides proton, polarized deuteron & multi charged ion beams q q 3 November 2010
JINR HEP Scientific Links Termalization Accelerator research FNAL CDF D 0 ALICE NA 61 ATLAS CMS NA 48, NA 62 COMPASS LHC DAMPER H 1 HERMES STAR CBM, HADES PANDA, SIS 100 September 27, 2011 A. Vodopyanov, CERN 6
размер: 16 x 26 метров вес: 10, 000 тонн TOF TRD HMPID ITS PMD Muon Arm PHOS TPC ALICE Set-up
HISTORY of various options of the ALICE magnet design 1. Thin superconducting solenoid surrounded with detectors; 2. Large solenoid housing all barrel detectors; 3. Superconducting Dipole for the forward muon spectrometer with the saddle shaped coil (“a la Morpurgo”); 4. Warm Dipole with the saddle shaped coil; September 27, 2011 A. Vodopyanov, CERN
Largest dipole magnet (850 ton, 9 7 4. 5 м) and particle detectors
Magnet system for the PANDA experiment Instrumented flux return yoke Sliding door Dipole magnet coil Target production Laminated sliding door Anantiprotonbebeam direction Beam pipe Cryostat Target recovery Movable platform Superconducting solenoid coil Target Forward 10
FUTURE PROGRAMME NICA/MPD project Nuclotron based Ion Collider f. Acility http: //nica. jinr. ru/ (continuous data base update)
12 Veksler & Baldin Laboratory of High Energy Physics accelerator facility Collider FT experiment area (bdg. 205) New Linac Lu 20 Booster Nuclotron

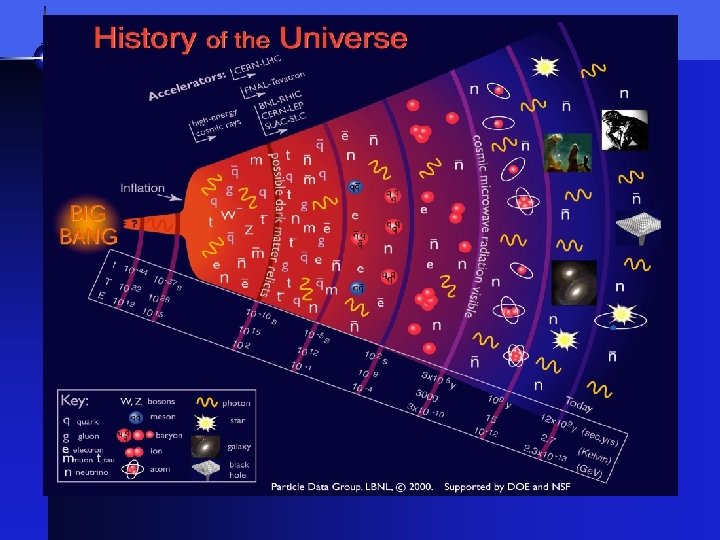

13 NICA/MPD physics (at SNN = 4 - 11 Ge. V) Creation of deconfined QGP state in HI collisions, study of fundamental properties of QCD in various regions of QCD PD QCD phase diagram

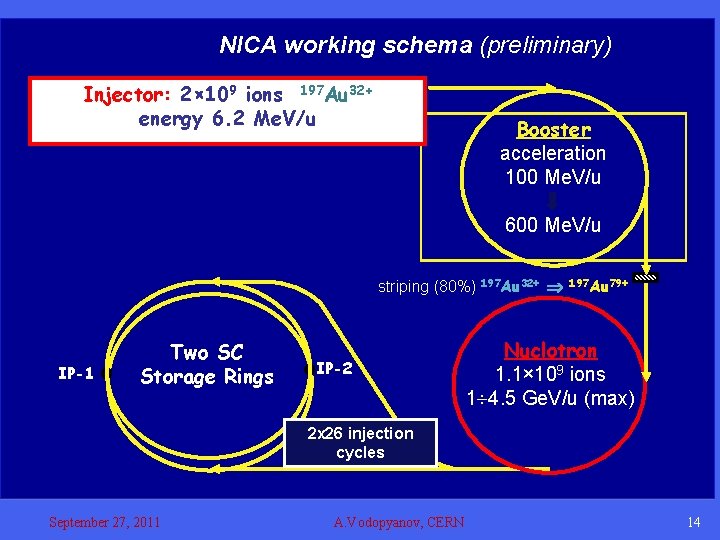

NICA working schema (preliminary) Injector: 2× 109 ions 197 Au 32+ energy 6. 2 Мe. V/u Booster acceleration 100 Мe. V/u 600 Мe. V/u striping (80%) 197 Au 32+ IP-1 Two SC Storage Rings IP-2 197 Au 79+ Nuclotron 1. 1× 109 ions 1 4. 5 Ge. V/u (max) 2 х26 injection cycles September 27, 2011 A. Vodopyanov, CERN 14

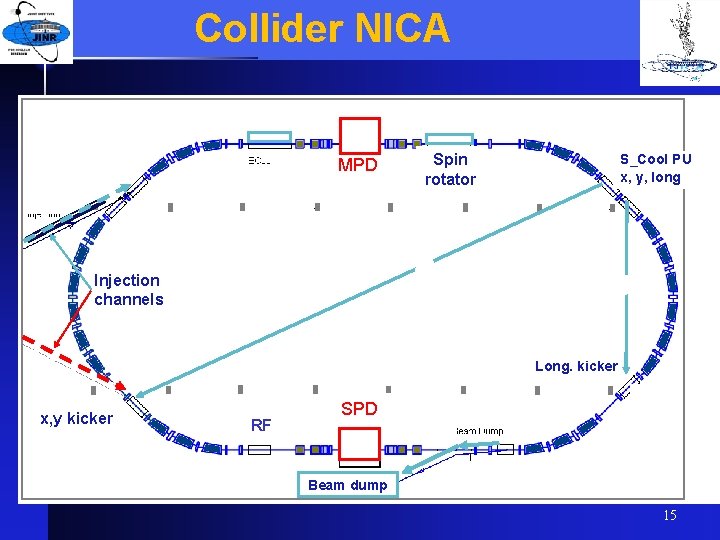

15 Collider NICA MPD Spin rotator S_Cool PU x, y, long Injection channels 10 m x, y kicker RF Long. kicker SPD Beam dump 15
MPD: 3 stages of putting into operation 16 2 -nd stage IT, EC-subdetectors 3 -d stage F-spectrometers (optional ? ) SC Solenoid 1 -st stage barrel part (TPC, Ecal, TOF) + ZDC, FFD, BBC, magnet, … Toroid
P. S. § the state commission on mega-science projects chaired by V. Putin hold in Dubna on 5 july §the commission proposed to prepare the appropriate application with the corresponding Road Map § following the suggestion of this commission the RM was prepared & submitted today for support of cooperation with RF Institutions RF Prime Minister V. V. Putin at NICA, 5 July 2011 A. Vodopyanov, CERN 17 17
THANK YOU FOR YOUR ATTENTION February 9, 2011 A. Vodopyanov, Pretoria, SA 18
SPARES February 9, 2011 A. Vodopyanov , Pretoria, South Africa 19
P. S. § the state commission on mega-science projects chaired by V. Putin hold in Dubna on 5 july §the commission proposed to prepare the appropriate application with the corresponding Road Map § following the suggestion of this commission the RM was prepared & submitted today for support of cooperation with RF Institutions RF Prime Minister V. V. Putin at NICA, 5 July 2011 A. Vodopyanov, CERN 23
