NFPA 1403 and Adjunct Positions Terminal Objective At
![NFPA 1403 and Adjunct Positions NFPA 1403 and Adjunct Positions](https://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-1.jpg)
NFPA 1403 and Adjunct Positions
![Terminal Objective At the end of class; the student will be able to match Terminal Objective At the end of class; the student will be able to match](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-2.jpg)
Terminal Objective At the end of class; the student will be able to match responsibilities with live fire adjunct positions, identify safety concerns, describe rehab requirements, and documentation procedures according to the Gwinnett Live Fire Guidelines and NFPA 1403.
![Enabling Objectives 1. After lecture, discussion, demonstration, and practice, the student will describe an Enabling Objectives 1. After lecture, discussion, demonstration, and practice, the student will describe an](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-3.jpg)

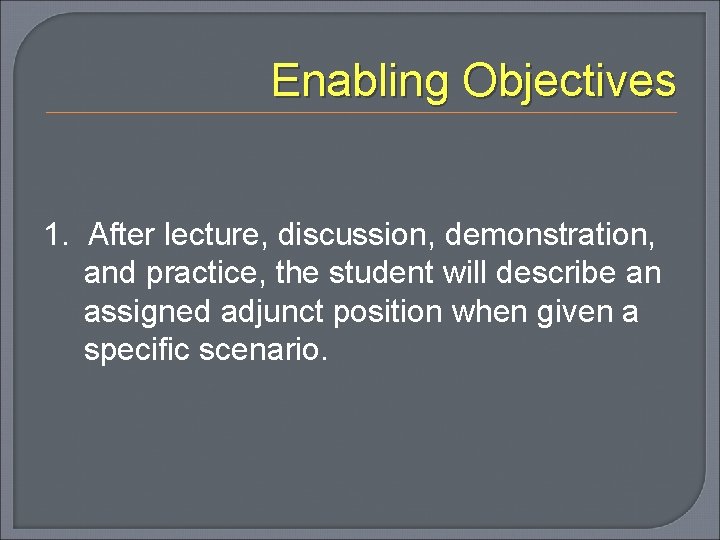

Enabling Objectives 1. After lecture, discussion, demonstration, and practice, the student will describe an assigned adjunct position when given a specific scenario.
![Enabling Objectives 2. After lecture, discussion, demonstration, and practice, the student will be able Enabling Objectives 2. After lecture, discussion, demonstration, and practice, the student will be able](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-4.jpg)
Enabling Objectives 2. After lecture, discussion, demonstration, and practice, the student will be able to identify possible consequences associated with unsafe actions in live fire training.
![Enabling Objectives 3. After lecture, discussion, demonstration, and practice, the student will be able Enabling Objectives 3. After lecture, discussion, demonstration, and practice, the student will be able](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-5.jpg)
Enabling Objectives 3. After lecture, discussion, demonstration, and practice, the student will be able to determine rehab requirements associated with a given situation.
![Enabling Objectives 4. After lecture, discussion, demonstration, and practice, the student will be able Enabling Objectives 4. After lecture, discussion, demonstration, and practice, the student will be able](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-6.jpg)
Enabling Objectives 4. After lecture, discussion, demonstration, and practice, the student will be able to recognize the components of the Gwinnett Fire Heat Stress Prevention System.
![Enabling Objectives 5. At the conclusion of class, the student will be able to Enabling Objectives 5. At the conclusion of class, the student will be able to](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-7.jpg)
Enabling Objectives 5. At the conclusion of class, the student will be able to choose the proper method to document training associated with performing as a Live Fire Adjunct Instructor with Gwinnett County Fire.
![NFPA 1403 Standard on Live Fire Training Evolutions NFPA 1403 Standard on Live Fire Training Evolutions](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-8.jpg)
NFPA 1403 Standard on Live Fire Training Evolutions
![NFPA 1403 Scope • This is the guideline that governs us, and is in NFPA 1403 Scope • This is the guideline that governs us, and is in](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-9.jpg)
NFPA 1403 Scope • This is the guideline that governs us, and is in place to help keep us as instructors and the students safe. • Contains the minimum requirements for training all fire suppression personnel engaged in firefighting operations under live fire conditions.
![NFPA 1403 The purpose of this standard is to provide a process for conducting NFPA 1403 The purpose of this standard is to provide a process for conducting](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-10.jpg)

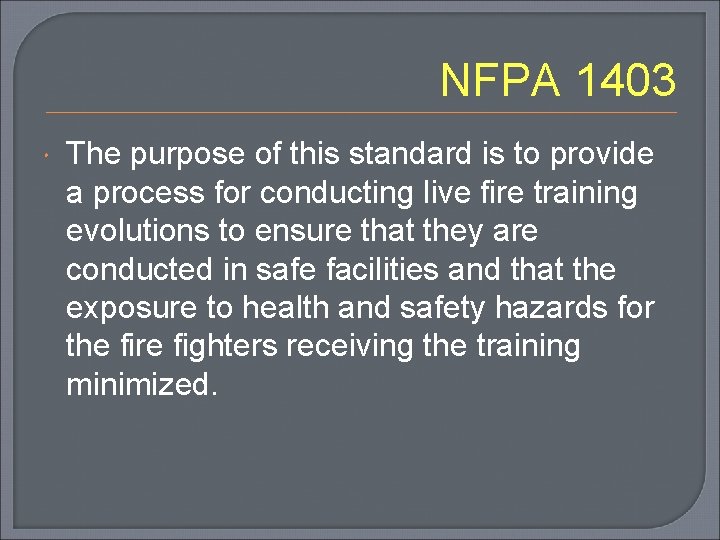

NFPA 1403 The purpose of this standard is to provide a process for conducting live fire training evolutions to ensure that they are conducted in safe facilities and that the exposure to health and safety hazards for the fire fighters receiving the training minimized.
![Prerequisites NFPA 1403 – Firefighter I G. C. Fire Academy – Relief Driver Prerequisites NFPA 1403 – Firefighter I G. C. Fire Academy – Relief Driver](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-11.jpg)
Prerequisites NFPA 1403 – Firefighter I G. C. Fire Academy – Relief Driver
![Burn Building Layout Built in 1998. High Temperature linings. Two story concrete structure, with Burn Building Layout Built in 1998. High Temperature linings. Two story concrete structure, with](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-12.jpg)
Burn Building Layout Built in 1998. High Temperature linings. Two story concrete structure, with eight rooms, five of which are constructed for actual fires. An interior stairwell with standpipe system, a roof with ventilation simulator, and an attic simulator are also part of the structure.
![Burn Building Layout The interior is equipped with thermal couplers that read temperatures in Burn Building Layout The interior is equipped with thermal couplers that read temperatures in](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-13.jpg)

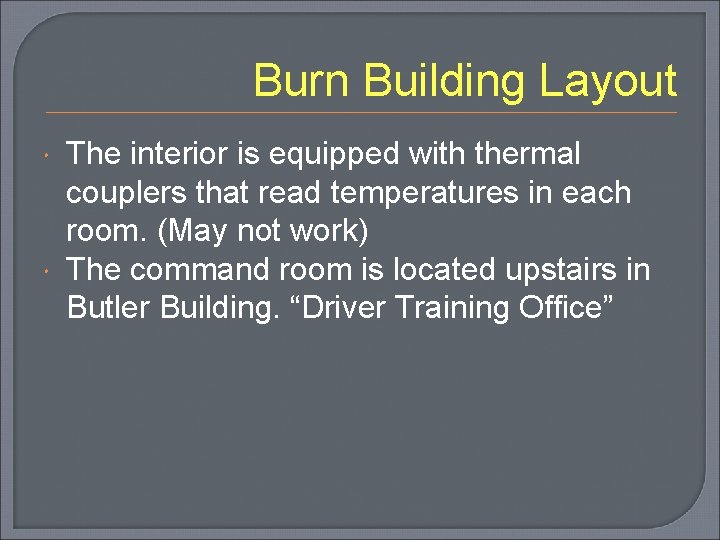

Burn Building Layout The interior is equipped with thermal couplers that read temperatures in each room. (May not work) The command room is located upstairs in Butler Building. “Driver Training Office”
![Burn Building Layout There is also a quick vent system for smoke evacuation, controls Burn Building Layout There is also a quick vent system for smoke evacuation, controls](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-14.jpg)

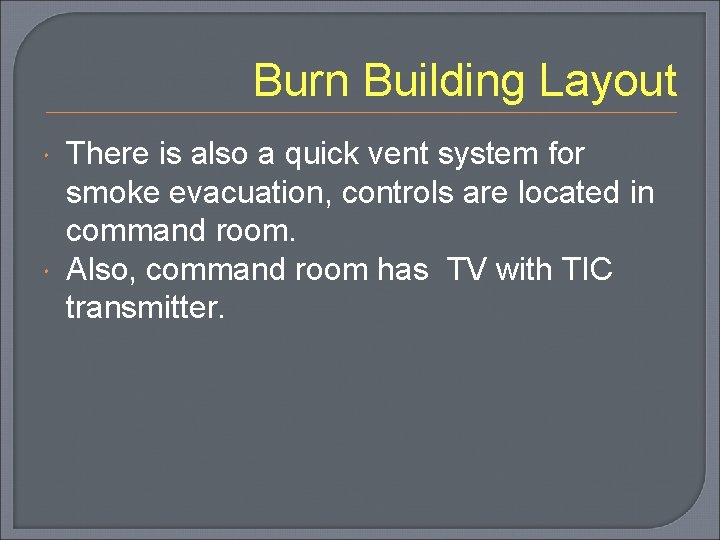

Burn Building Layout There is also a quick vent system for smoke evacuation, controls are located in command room. Also, command room has TV with TIC transmitter.
![Structure Preparation Burn building should be inspected once every year for any structure that Structure Preparation Burn building should be inspected once every year for any structure that](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-15.jpg)

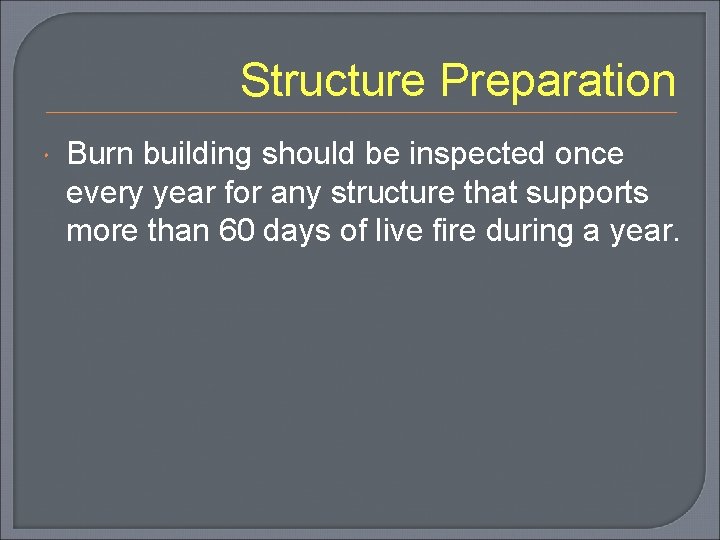

Structure Preparation Burn building should be inspected once every year for any structure that supports more than 60 days of live fire during a year.
![Structure Preparation Building shall be inspected for damage prior to live fire training and Structure Preparation Building shall be inspected for damage prior to live fire training and](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-16.jpg)
Structure Preparation Building shall be inspected for damage prior to live fire training and documented. • All doors, window, ventilation systems, standpipes, etc…. All hazardous conditions shall be removed. Debris should be removed. Exits should be identified and evaluated. Should be no fire located in exit paths.
![Structure Preparation Instructor-in-charge shall determine the GPM and that a positive water source is Structure Preparation Instructor-in-charge shall determine the GPM and that a positive water source is](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-17.jpg)
Structure Preparation Instructor-in-charge shall determine the GPM and that a positive water source is obtained for the entire duration of the operation. • Should have 50% of the fire flow required available for unforeseen situations. • 95 GPM minimum flow rate. Separate sources shall be utilized for the supply of attack lines and backup lines.
![Facility Preparation Areas for staging, operating, and parking of fire apparatus that are used Facility Preparation Areas for staging, operating, and parking of fire apparatus that are used](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-18.jpg)
Facility Preparation Areas for staging, operating, and parking of fire apparatus that are used in the live fire training evolution shall be designated. Parking area for an ambulance shall be designated and located where it will facilitate a prompt response in the event of personal injury to participants.
![Student and Instructor Preparation Pre-fire briefing session shall be conducted for all participants, in Student and Instructor Preparation Pre-fire briefing session shall be conducted for all participants, in](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-19.jpg)

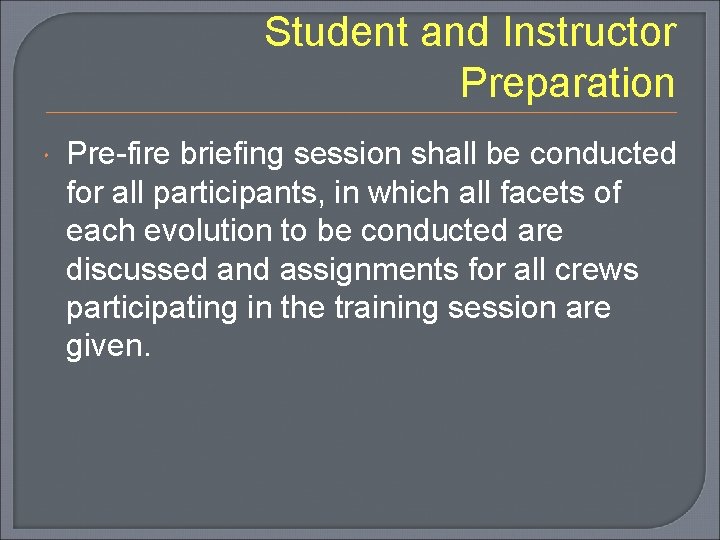

Student and Instructor Preparation Pre-fire briefing session shall be conducted for all participants, in which all facets of each evolution to be conducted are discussed and assignments for all crews participating in the training session are given.
![Student and Instructor Preparation The location of simulated victims shall not be required to Student and Instructor Preparation The location of simulated victims shall not be required to](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-20.jpg)
Student and Instructor Preparation The location of simulated victims shall not be required to be disclosed, provided that the possibility of victims is discussed during pre-fire briefing. NO REAL LIFE VICTIMS, NO EXCEPTIONS!!!!
![Student and Instructor Preparation A pre-fire plan shall be prepared and shall be utilized Student and Instructor Preparation A pre-fire plan shall be prepared and shall be utilized](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-21.jpg)

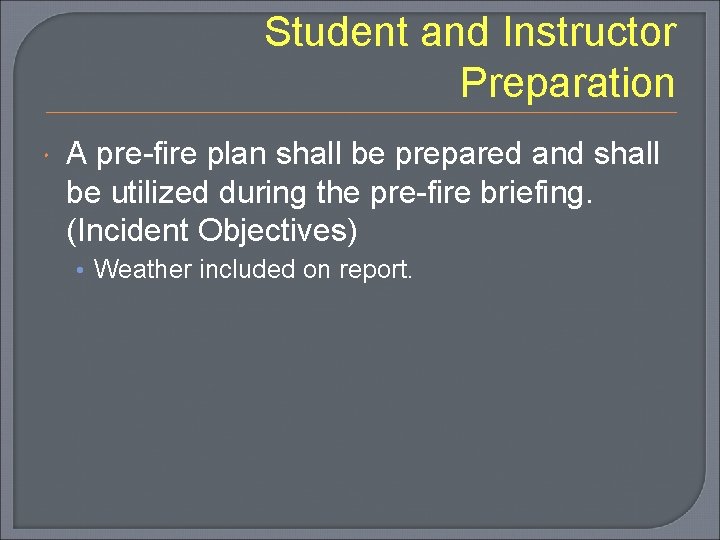

Student and Instructor Preparation A pre-fire plan shall be prepared and shall be utilized during the pre-fire briefing. (Incident Objectives) • Weather included on report.
![Student and Instructor Preparation All participants shall be required to conduct a walk-through of Student and Instructor Preparation All participants shall be required to conduct a walk-through of](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-22.jpg)

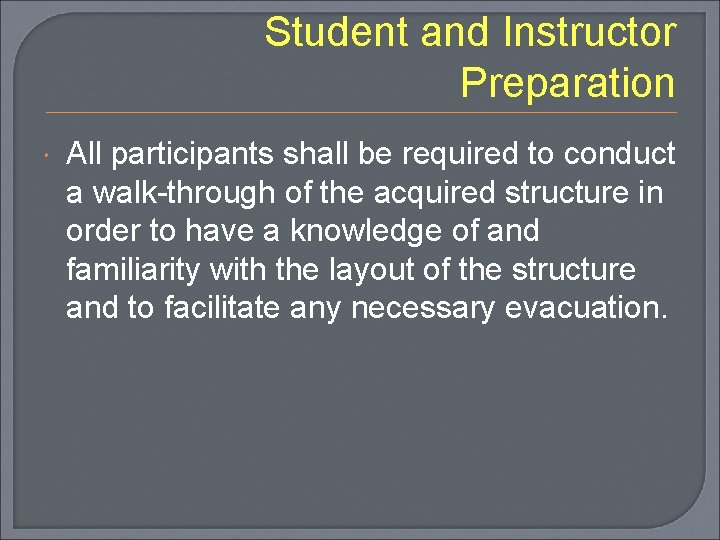

Student and Instructor Preparation All participants shall be required to conduct a walk-through of the acquired structure in order to have a knowledge of and familiarity with the layout of the structure and to facilitate any necessary evacuation.
![Fuels Shall have known burning characteristics that are controllable. Pressure treated wood, rubber, plastic, Fuels Shall have known burning characteristics that are controllable. Pressure treated wood, rubber, plastic,](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-23.jpg)
Fuels Shall have known burning characteristics that are controllable. Pressure treated wood, rubber, plastic, straw or hay treated with pesticides or other harmful chemicals shall not be used. Avoid fuel loads that could cause a backdraft or flashover.
![Fuels Combustible or flammable liquids shall not be used unless designed for. Ordinary combustibles Fuels Combustible or flammable liquids shall not be used unless designed for. Ordinary combustibles](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-24.jpg)
Fuels Combustible or flammable liquids shall not be used unless designed for. Ordinary combustibles ONLY.
![Other Preparation Considerations All visitors shall be identified and escorted at all times. Safety Other Preparation Considerations All visitors shall be identified and escorted at all times. Safety](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-25.jpg)
Other Preparation Considerations All visitors shall be identified and escorted at all times. Safety Officer will identify parameters for the visitors to stay in. All possible sources of ignition shall be removed from the operations area. Shall not exceed a student-to-instructor ratio greater than 5 to 1.
![Other Preparation Considerations Ensure all PPE is in proper working order and is worn Other Preparation Considerations Ensure all PPE is in proper working order and is worn](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-26.jpg)
Other Preparation Considerations Ensure all PPE is in proper working order and is worn to manufactures specifications.
![Positions Recorder Incident Commander (IC) Team Leader Safety (Interior and Exterior) Rapid Intervention (RIC) Positions Recorder Incident Commander (IC) Team Leader Safety (Interior and Exterior) Rapid Intervention (RIC)](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-27.jpg)
Positions Recorder Incident Commander (IC) Team Leader Safety (Interior and Exterior) Rapid Intervention (RIC) Rehab Medical Treatment Apparatus Operator Ignition
![Recorder Located in upstairs of butler building Needs to document everything Will be provided Recorder Located in upstairs of butler building Needs to document everything Will be provided](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-28.jpg)
Recorder Located in upstairs of butler building Needs to document everything Will be provided forms to use Has access to video feed from thermal imagers
![Recorder Shall maintain report on all live fire training evolutions, including: • • • Recorder Shall maintain report on all live fire training evolutions, including: • • •](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-29.jpg)
Recorder Shall maintain report on all live fire training evolutions, including: • • • Accounting of activities Instructors present/assignments Students present/assignments Documentation of unusual conditions Any injuries Any structural changes Should help with post-training critique
![Incident Commander (IC) Incident Commander (IC)](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-30.jpg)
Incident Commander (IC)
![Incident Commander Responsible for the overall training scenario just as an IC would be Incident Commander Responsible for the overall training scenario just as an IC would be](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-31.jpg)
Incident Commander Responsible for the overall training scenario just as an IC would be at a actual scene. (Instructor-in-Charge) Needs to be an academy staff member to ensure familiarity with the scenario. Follow incident objectives (Preselected).
![Incident Commander Briefs all instructors and students Ensures a radio check is completed Monitors Incident Commander Briefs all instructors and students Ensures a radio check is completed Monitors](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-32.jpg)
Incident Commander Briefs all instructors and students Ensures a radio check is completed Monitors the location of all personnel Responsible for the overall safety and smooth operation of the training Determines Rehab times based on conditions.
![Team Leader This role is very important Will be leading the students during the Team Leader This role is very important Will be leading the students during the](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-33.jpg)

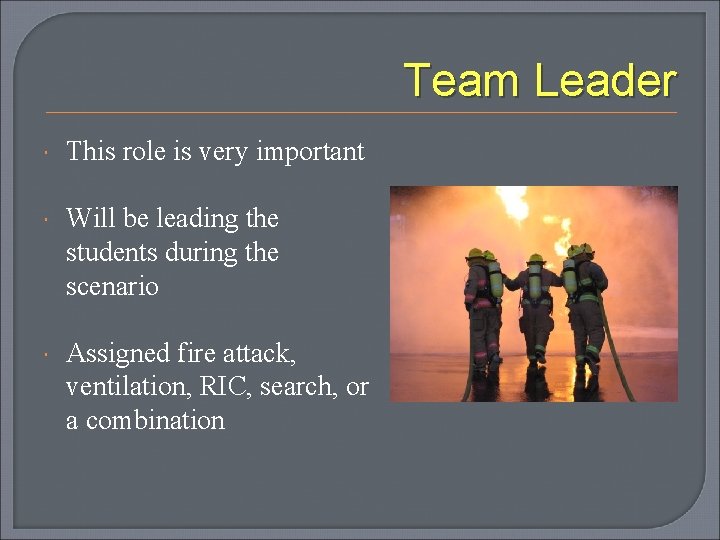

Team Leader This role is very important Will be leading the students during the scenario Assigned fire attack, ventilation, RIC, search, or a combination
![Team Leader Double check student’s protective gear before the scenario begins You must stop Team Leader Double check student’s protective gear before the scenario begins You must stop](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-34.jpg)

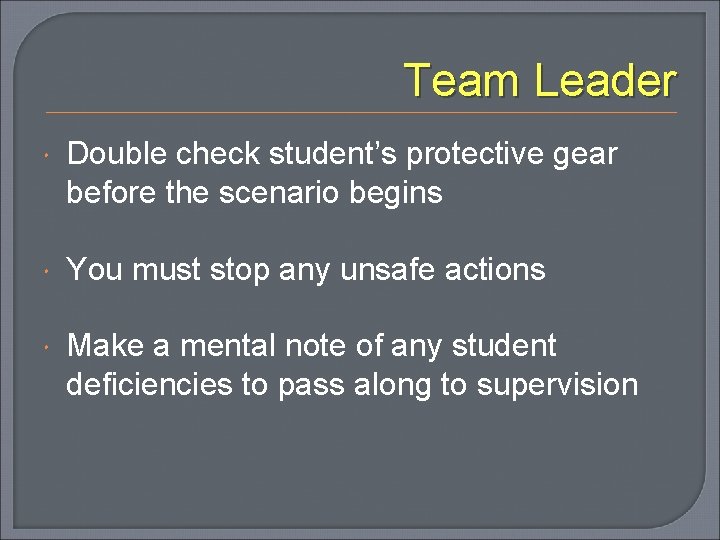

Team Leader Double check student’s protective gear before the scenario begins You must stop any unsafe actions Make a mental note of any student deficiencies to pass along to supervision
![Team Leader Shall monitor and supervise all assigned students during live fire training. Perform Team Leader Shall monitor and supervise all assigned students during live fire training. Perform](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-35.jpg)

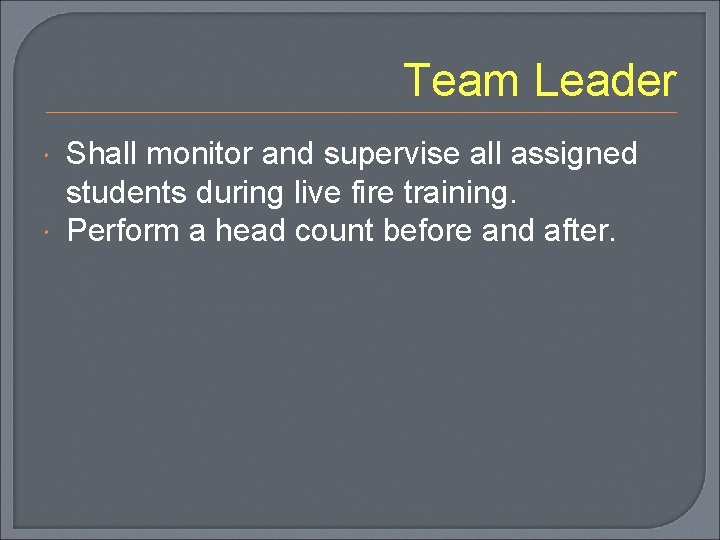

Team Leader Shall monitor and supervise all assigned students during live fire training. Perform a head count before and after.
![Safety Interior and Exterior • Ensures the safety of all personnel including instructors, students, Safety Interior and Exterior • Ensures the safety of all personnel including instructors, students,](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-36.jpg)
Safety Interior and Exterior • Ensures the safety of all personnel including instructors, students, and visitors. • Shall be appointed for all live fire training. • Must wear minimum of helmet and jacket, including a radio.
![Safety At least one exterior safety At least one interior safety on each fire Safety At least one exterior safety At least one interior safety on each fire](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-37.jpg)

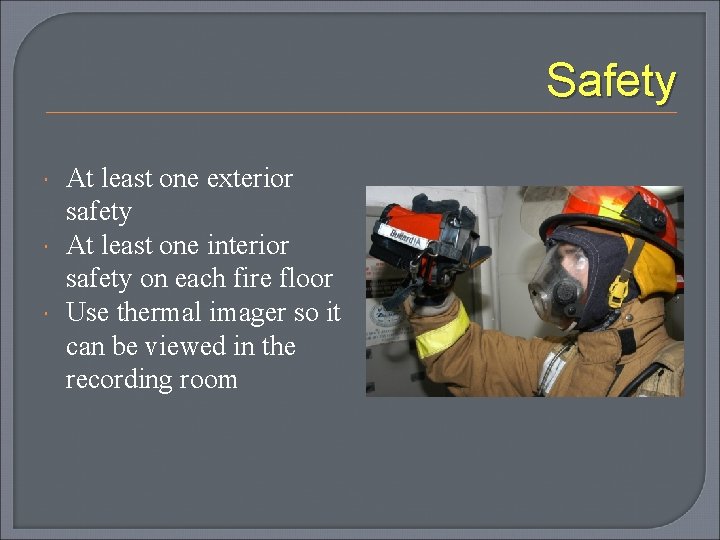

Safety At least one exterior safety At least one interior safety on each fire floor Use thermal imager so it can be viewed in the recording room
![Safety Interior- Check and clear your area before exiting (“Interior out of structure, all Safety Interior- Check and clear your area before exiting (“Interior out of structure, all](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-38.jpg)
Safety Interior- Check and clear your area before exiting (“Interior out of structure, all clear”) Exterior- Be alert until everyone has exited the drill area (“Everyone is accounted for, this drill is called”)
![Safety Get your mind focused on safety Forecast what might happen • Prevention of Safety Get your mind focused on safety Forecast what might happen • Prevention of](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-39.jpg)
Safety Get your mind focused on safety Forecast what might happen • Prevention of unsafe acts • Elimination of unsafe conditions
![Questions ? Questions ?](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-40.jpg)
Questions ?
![Rapid Intervention (RIC) Will be positioned to respond quickly Charged hoseline Have all PPE Rapid Intervention (RIC) Will be positioned to respond quickly Charged hoseline Have all PPE](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-41.jpg)
Rapid Intervention (RIC) Will be positioned to respond quickly Charged hoseline Have all PPE on and “ready to click in”
![Rehab Will have liquids and medical equipment Monitor and record vital signs Use matrix Rehab Will have liquids and medical equipment Monitor and record vital signs Use matrix](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-42.jpg)
Rehab Will have liquids and medical equipment Monitor and record vital signs Use matrix form to ensure everyone reports as scheduled
![Rehab Do not release anyone who doesn’t meet guidelines Report any problems to IC Rehab Do not release anyone who doesn’t meet guidelines Report any problems to IC](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-43.jpg)
Rehab Do not release anyone who doesn’t meet guidelines Report any problems to IC • Includes all instructors and students.
![Questions? Questions?](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-44.jpg)
Questions?
![Medical Treatment For treatment of injuries or emergencies Med unit on scene if available Medical Treatment For treatment of injuries or emergencies Med unit on scene if available](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-45.jpg)

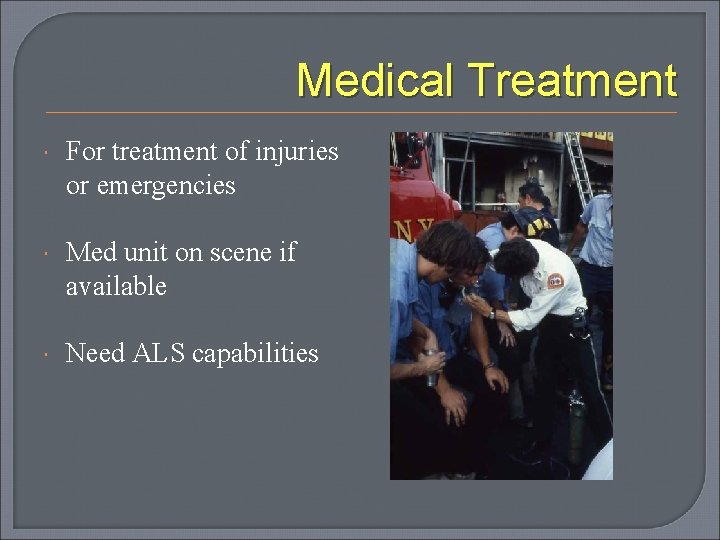

Medical Treatment For treatment of injuries or emergencies Med unit on scene if available Need ALS capabilities
![Apparatus Operator Guidelines require backup line on each fire floor Backup lines shall have Apparatus Operator Guidelines require backup line on each fire floor Backup lines shall have](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-46.jpg)
Apparatus Operator Guidelines require backup line on each fire floor Backup lines shall have an independent water source Two full tanks of water maintained
![Apparatus Operator Conserve water Tighten connections Shut down tank fill if it overflows Drafting Apparatus Operator Conserve water Tighten connections Shut down tank fill if it overflows Drafting](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-47.jpg)

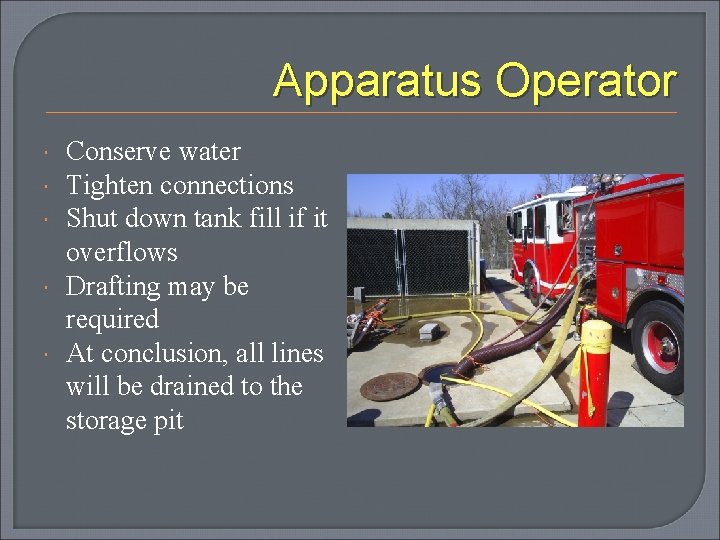

Apparatus Operator Conserve water Tighten connections Shut down tank fill if it overflows Drafting may be required At conclusion, all lines will be drained to the storage pit
![Ignition Only responsible for ignition Can not enter the building until all safety and Ignition Only responsible for ignition Can not enter the building until all safety and](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-48.jpg)
Ignition Only responsible for ignition Can not enter the building until all safety and RIC personnel are in place with charged hoseline. Command will give you permission to enter Shall not be assigned any students.
![Ignition Communicate when you enter and exit the building. • Ignition must leave the Ignition Communicate when you enter and exit the building. • Ignition must leave the](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-49.jpg)

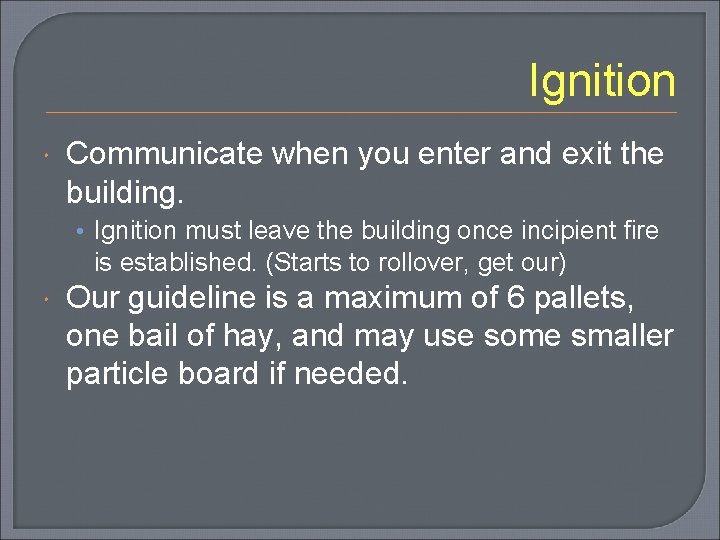

Ignition Communicate when you enter and exit the building. • Ignition must leave the building once incipient fire is established. (Starts to rollover, get our) Our guideline is a maximum of 6 pallets, one bail of hay, and may use some smaller particle board if needed.
![Questions? Questions?](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-50.jpg)
Questions?
![Evacuations If an evacuation is deemed necessary, the Fire Academy Guidelines shall be followed. Evacuations If an evacuation is deemed necessary, the Fire Academy Guidelines shall be followed.](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-51.jpg)
Evacuations If an evacuation is deemed necessary, the Fire Academy Guidelines shall be followed. Participants shall hear over the radio “Emergency Traffic- All personnel evacuate. ” 3 blast on air horn, each 3 seconds long.
![Evacuations If team leader advise students to drop lines, account for all personnel and Evacuations If team leader advise students to drop lines, account for all personnel and](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-52.jpg)
Evacuations If team leader advise students to drop lines, account for all personnel and get out. Once your outside account for all personnel again. A PAR shall follow. The proper response is E 1 acknowledge PAR: “E 1 OK”.
![Communications All personnel assigned a position shall be issued a radio. Use Talk-Around, “all Communications All personnel assigned a position shall be issued a radio. Use Talk-Around, “all](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-53.jpg)

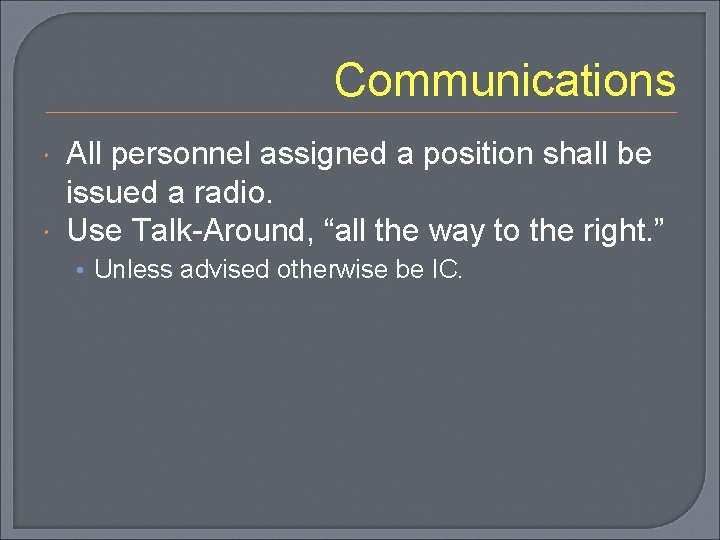

Communications All personnel assigned a position shall be issued a radio. Use Talk-Around, “all the way to the right. ” • Unless advised otherwise be IC.
![Safety Issues Injuries Low air alarms Recruits/lack of experience Exposure to fire/high heat Physical/Medical Safety Issues Injuries Low air alarms Recruits/lack of experience Exposure to fire/high heat Physical/Medical](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-54.jpg)
Safety Issues Injuries Low air alarms Recruits/lack of experience Exposure to fire/high heat Physical/Medical conditions Proper rehab Weather concerns
![How Does Hot Weather Effect Firefighters? How Does Hot Weather Effect Firefighters?](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-55.jpg)

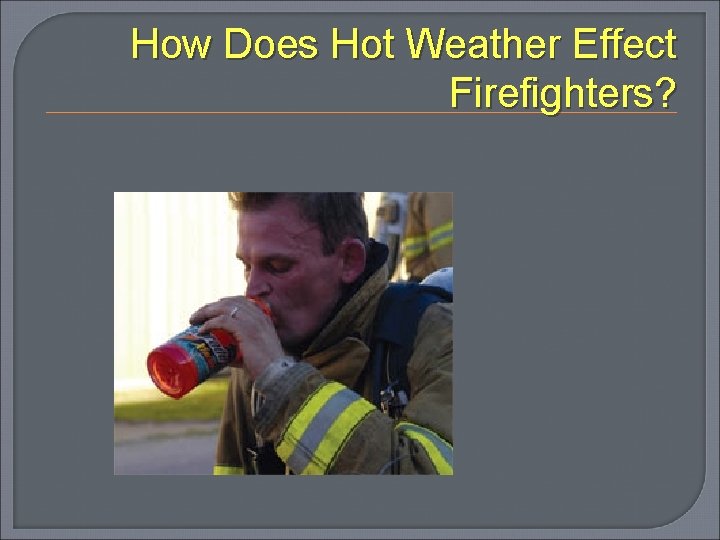

How Does Hot Weather Effect Firefighters?
![Weather Flags Mounted on academy wall on B/C corner Work levels (easy, moderate, strenuous) Weather Flags Mounted on academy wall on B/C corner Work levels (easy, moderate, strenuous)](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-56.jpg)

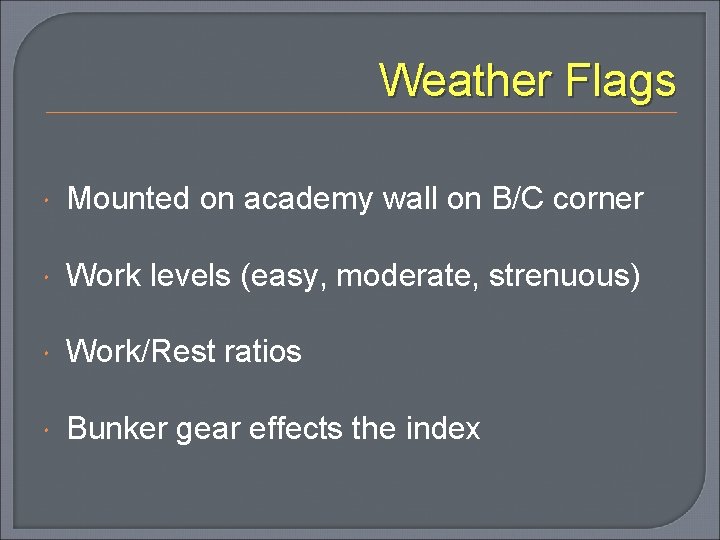

Weather Flags Mounted on academy wall on B/C corner Work levels (easy, moderate, strenuous) Work/Rest ratios Bunker gear effects the index
![You Calculate What would the work/rest ratio be for a person training in the You Calculate What would the work/rest ratio be for a person training in the](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-57.jpg)
You Calculate What would the work/rest ratio be for a person training in the burn building in full PPE and breathing air if the WBGT was reading 82?
![You Calculate What would the work/rest ratio be for a person training in the You Calculate What would the work/rest ratio be for a person training in the](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-58.jpg)
You Calculate What would the work/rest ratio be for a person training in the burn building in full PPE and breathing air if the WBGT was reading 82? Strenuous work 82 plus 5 for the gear= 87 Answer is 30/30
![Questions? Questions?](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-59.jpg)
Questions?
![Summary Live Fire Adjunct Positions Evacuations Communications Safety Concerns Rehab Documentation Procedures Summary Live Fire Adjunct Positions Evacuations Communications Safety Concerns Rehab Documentation Procedures](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-60.jpg)
Summary Live Fire Adjunct Positions Evacuations Communications Safety Concerns Rehab Documentation Procedures
![Questions Questions](http://slidetodoc.com/presentation_image/0e7aee68b81b7cf37789061e8321ee8e/image-61.jpg)
Questions
