NextGeneration Graphics APIs Similarities and Differences Tim Foley
- Slides: 59
Next-Generation Graphics APIs: Similarities and Differences Tim Foley NVIDIA Corporation
Next-Generation Graphics APIs • Vulkan, D 3 D 12, and Metal • Coming to platforms you care about • Why do we want new APIs? • How are they different?
Why new Graphics APIs? • Reduce CPU overhead/bottlenecks • More stable/predictable driver performance • Explicit, console-like control
CPU Bottlenecks • Only single app thread creating GPU work • Can become bottleneck for complex scenes • Try to do as little on this thread as possible • Multi-threaded driver helps a bit • New APIs: multi-threaded work creation
Driver Overhead, Predictability • App submits a draw call, maps a buffer, etc. • Driver might • • Compile shaders Insert fences into GPU schedule Flush caches Allocate memory
Explicit, Console-Like Control • Explicit synchronization • CPU/GPU sharing, RMW hazards, etc. • Explicit memory management • Allocate large memory region at load time • Handle sub-allocation in application code
This Talk • Bootstrap your mental model • Introduce concepts shared across APIs • Point out major differences • Try to hand-wave the small ones
Big Topics • Command buffers • Pipeline state objects • Tiling • Resources / Binding • Hazards / Lifetime D 3 D 12 Metal Vulkan
Command Buffers D 3 D 12 Metal Vulkan

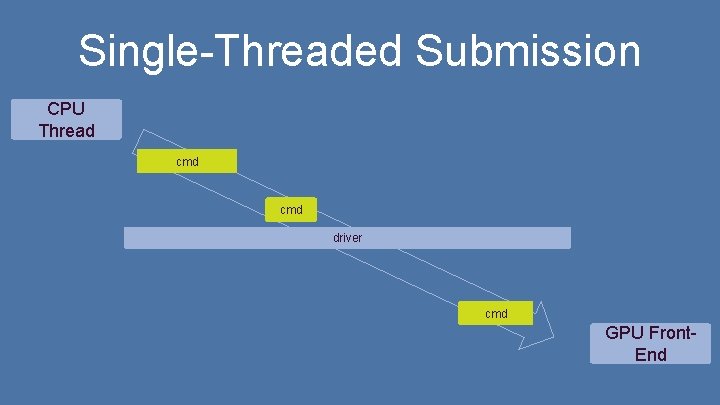

Single-Threaded Submission CPU Thread cmd driver cmd GPU Front. End
Writing to a Command Buffer CPU Thread cmd cmd driver GPU Front. End

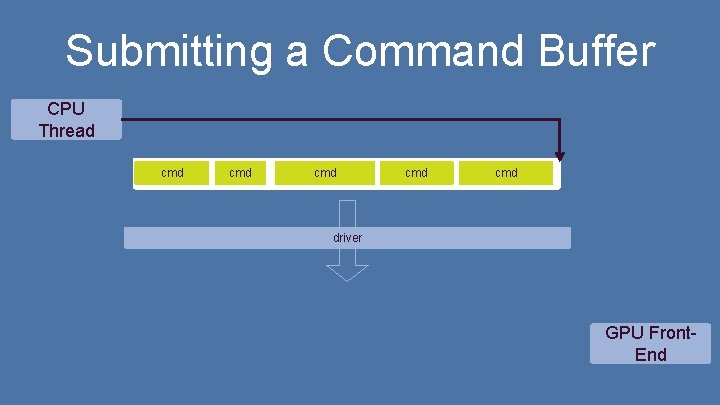

Submitting a Command Buffer CPU Thread cmd cmd cmd driver GPU Front. End
Submitting a Command Buffer CPU Thread driver Queue cmd cmd cmd GPU Front. End
Start Writing to a New Buffer CPU Thread driver Queue cmd cmd cmd GPU Front. End
CPU-GPU Asynchrony CPU Thread cmd driver Queue cmd cmd GPU Front. End
CPU-GPU Asynchrony CPU Thread cmd driver Queue cmd GPU Front. End
Command Buffers and Queues D 3 D 12 ID 3 D 12 Command. List ID 3 D 12 Command. Queue Metal MTLCommand. Buffer MTLCommand. Queue Vulkan Vk. Cmd. Buffer Vk. Cmd. Queue

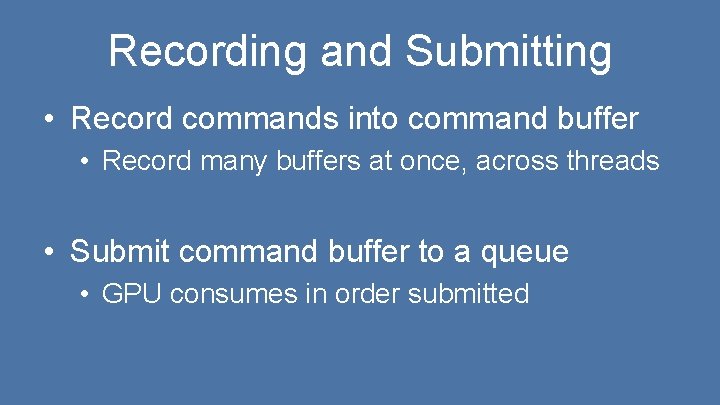

Recording and Submitting • Record commands into command buffer • Record many buffers at once, across threads • Submit command buffer to a queue • GPU consumes in order submitted

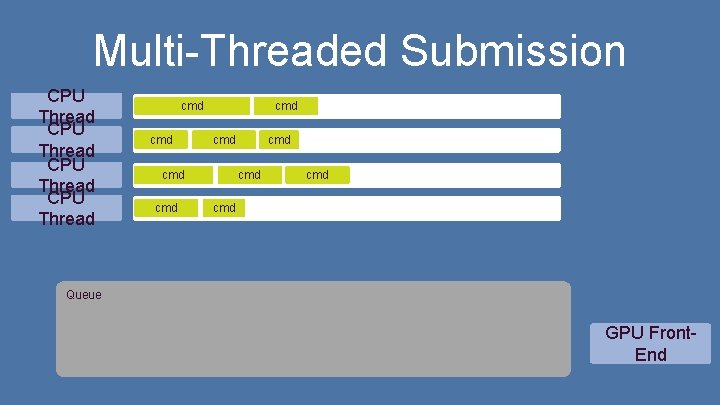

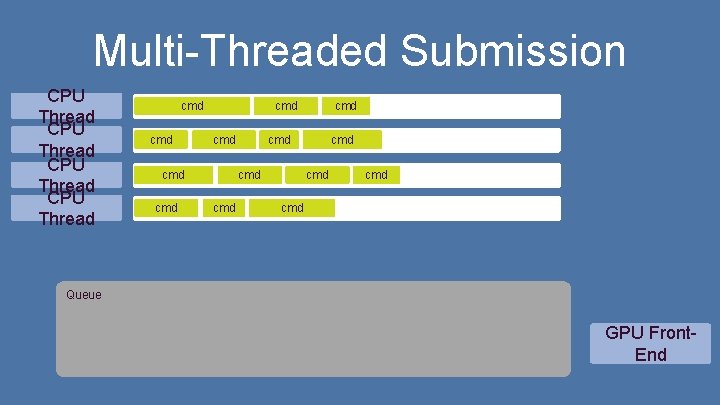

Multi-Threaded Submission CPU Thread cmd cmd cmd Queue GPU Front. End
Multi-Threaded Submission CPU Thread cmd cmd cmd Queue GPU Front. End
Multi-Threaded Submission CPU Thread cmd cmd cmd cmd Queue GPU Front. End
Multi-Threaded Submission CPU Thread cmd cmd cmd cmd done! cmd Queue GPU Front. End

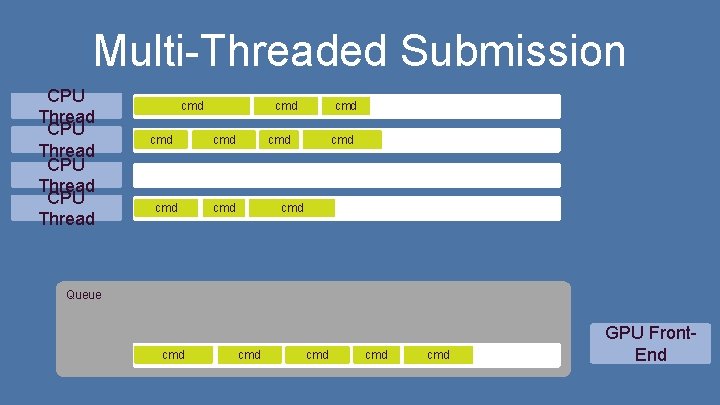

Multi-Threaded Submission CPU Thread cmd cmd cmd Queue cmd cmd cmd GPU Front. End
Multi-Threaded Submission CPU Thread cmd cmd cmd Queue cmd cmd cmd GPU Front. End

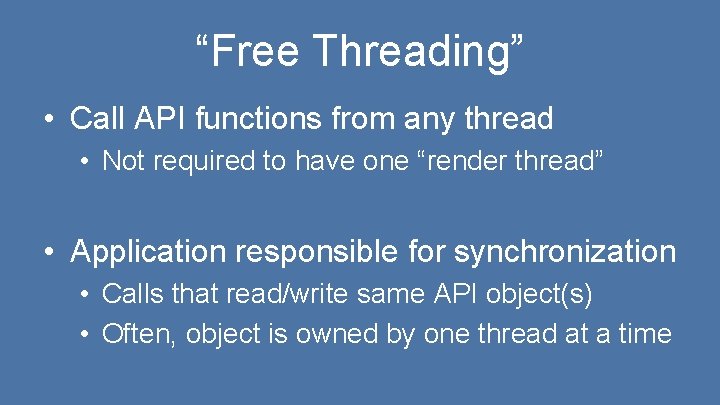

“Free Threading” • Call API functions from any thread • Not required to have one “render thread” • Application responsible for synchronization • Calls that read/write same API object(s) • Often, object is owned by one thread at a time
Similarities • Free-threaded record + submit • Command buffer contents are opaque • Can’t ship pre-built buffers like on console • No state inheritance across buffers

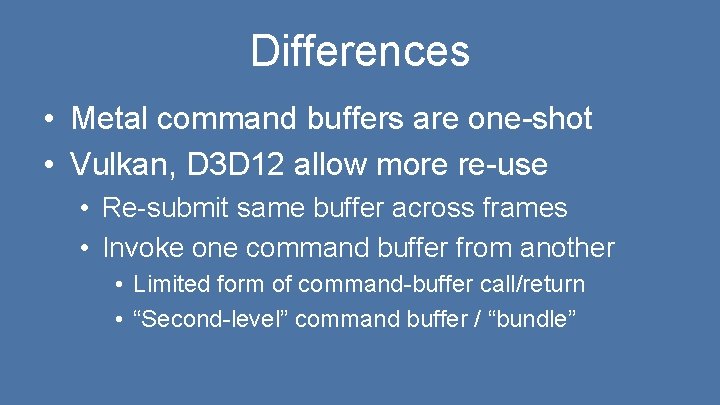

Differences • Metal command buffers are one-shot • Vulkan, D 3 D 12 allow more re-use • Re-submit same buffer across frames • Invoke one command buffer from another • Limited form of command-buffer call/return • “Second-level” command buffer / “bundle”
Pipeline State Objects D 3 D 12 Metal Vulkan
State-Change Granularity • GL 1. 0: “the Open. GL State Machine” gl. Enable(GL_BLEND); gl. Blend. Func(GL_ONE, GL_ONE_MINUS_SRC_ALPHA); • D 3 D 10: aggregate state objects d 3 d. Device->Create. Blend. State(&blend. Desc, &blend. State. Obj); . . . d 3 d. Context->OMSet. Blend. State(blend. State. Obj);
Pipeline State Object (PSO) • Encapsulates most of GPU state vector • Application switches between full PSOs • Compile and validate early • Avoid driver pauses when changing state • May not play nice with some engine designs
What goes in a PSO? • Shader for each active stage • Much fixed-function state • Blend, rasterizer, depth/stencil • Format information • Vertex attributes • Color, depth targets
What doesn’t go in a PSO • Resource bindings • Vertex/index/constant buffers, textures, . . . • Some pieces of fixed-function state • A bit different for each API

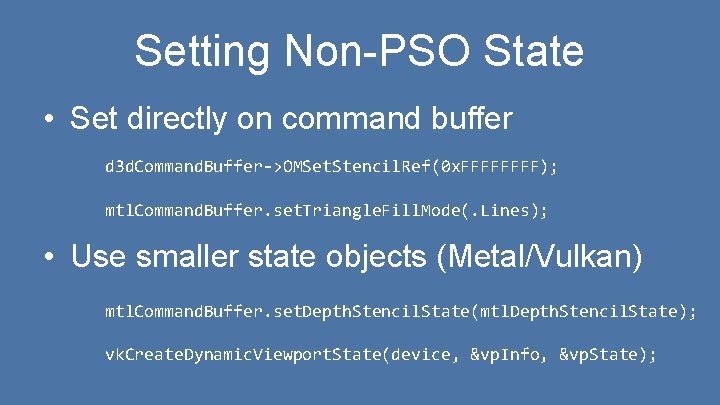

Setting Non-PSO State • Set directly on command buffer d 3 d. Command. Buffer->OMSet. Stencil. Ref(0 x. FFFF); mtl. Command. Buffer. set. Triangle. Fill. Mode(. Lines); • Use smaller state objects (Metal/Vulkan) mtl. Command. Buffer. set. Depth. Stencil. State(mtl. Depth. Stencil. State); vk. Create. Dynamic. Viewport. State(device, &vp. Info, &vp. State);
Tiled Architectures and “Passes” • Pass • Sequence of draw calls • Sharing same target(s) • Explicit in Metal/Vulkan • Simplifies/enables optimizations • Jesse’s talk will go in depth D 3 D 12 Metal Vulkan
Memory and Resources D 3 D 12 Metal Vulkan
Concepts • Allocation: range of virtual addresses • Resource: memory + layout • View: resource + format/usage
Concepts • Allocation: range of virtual addresses • Caching, visibility, … • Resource: memory + layout • Buffer, Texture 3 D, Texture 2 DMSArray, … • View: resource + format/usage • Depth-stencil view, …

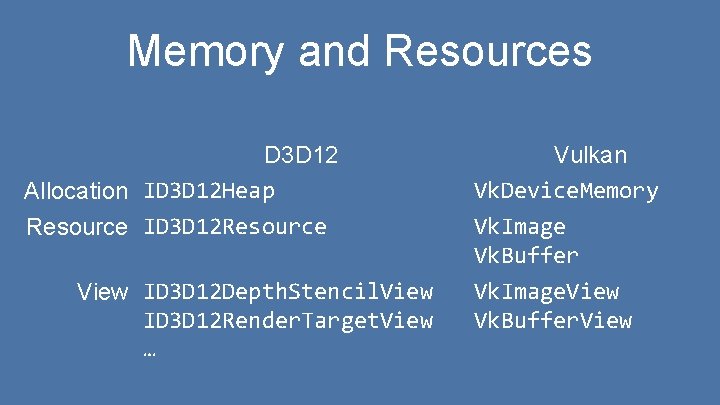

Memory and Resources D 3 D 12 Allocation ID 3 D 12 Heap Resource ID 3 D 12 Resource View ID 3 D 12 Depth. Stencil. View ID 3 D 12 Render. Target. View … Vulkan Vk. Device. Memory Vk. Image Vk. Buffer Vk. Image. View Vk. Buffer. View
Resource Binding D 3 D 12 Metal Vulkan
Samplers Textures Buffers Binding Tables GPU State Vector Pipeline State Object
Descriptor • GPU-specific encoding of a resource view • Size and format opaque to applications • Multiple types, based on usage • Texture, constant buffer, sampler, etc. • Just a block of data; not an allocation
Descriptor Table • An API object that holds multiple descriptors • Kind of like a buffer, but contents are opaque • Table may hold multiple types of descriptors • D 3 D 12, Vulkan have different rules on this
Samplers Textures Buffers Descriptor Tables GPU State Vector Pipeline State Object

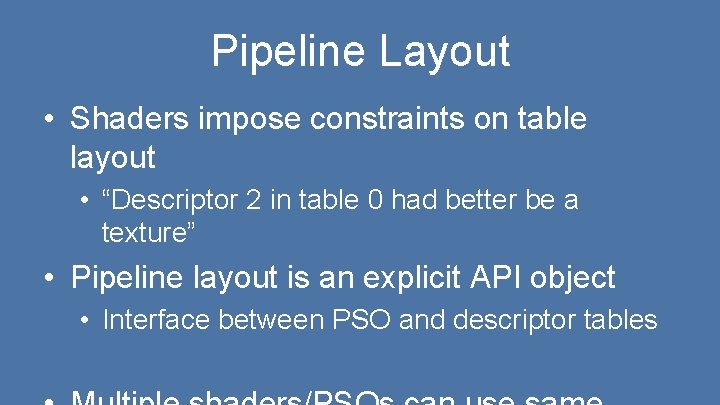

Pipeline Layout • Shaders impose constraints on table layout • “Descriptor 2 in table 0 had better be a texture” • Pipeline layout is an explicit API object • Interface between PSO and descriptor tables
Samplers Textures Buffers Descriptor Tables Root Table GPU State Vector Pipeline Layout Pipeline State Object
Samplers Textures Buffers Descriptor Tables Root Table GPU State Vector Pipeline Layout Pipeline State Object
Descriptor Tables and Layouts D 3 D 12 ID 3 D 12 Descriptor. Heap - Vulkan Vk. Descriptor. Pool Vk. Descriptor. Set D 3 D 12_ROOT_DESCRIPTOR_TABLE ID 3 D 12 Root. Layout Vk. Descriptor. Set. Layout Vk. Pipeline. Layout
Data Hazards and Object Lifetimes D 3 D 12 Metal Vulkan
Old APIs: Driver Does it For You • Map a buffer that is in use? • Driver will wait, or allocate a fresh “version” • Render to image, then use as texture? • Driver notices the change, makes it work • Allocate more texture than fit in GPU mem? • Driver will page stuff in/out to make room
New APIs: You Do It Yourself • • Explicitly synchronize CPU/GPU Explicitly manage object lifetimes Explicitly manage residency (D 3 D 12) Explicitly signal resource transitions • Done drawing to target, about to use as texture
Explicitly Synchronize CPU/GPU • No automatic “versioning” of resources • No “map discard” or equivalent • Don’t write to something GPU might be reading • Use explicit events to synchronize ID 3 D 12 Fence Vk. Event
Explicitly Manage Object Lifetimes • Don’t delete something GPU is using • Same basic problem as not writing to it • Use explicit events to synchronize • Sounds like a lot of busy-work, right? • Not actually that bad in practice • Other speakers will share strategies
Explicitly Signal Resource Transitions • Done rendering image, use as texture • Driver may need to do “stuff” • Insert execution barriers • Flush caches • Decompress data
Resource Transitions • Conceptually every resource is in one “state” • Texture, color target, depth target, … • Switching state is an explicit command • Well-defined time for driver to insert “stuff” • Use resource when in wrong state: error
Summary
It is all about trade-offs • You get more control, predictability • More like programming for a console • In return, you get more responsibility • App must do what driver used to • More like programming for a console…

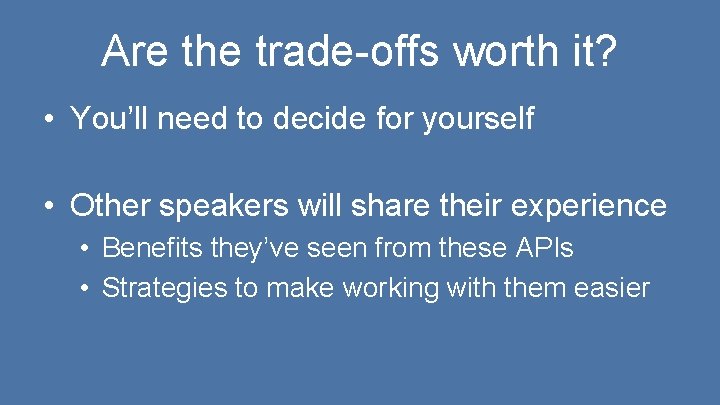

Are the trade-offs worth it? • You’ll need to decide for yourself • Other speakers will share their experience • Benefits they’ve seen from these APIs • Strategies to make working with them easier
