Next Generation Network Grupo de Trabalho de Engenharia

Next Generation Network Grupo de Trabalho de Engenharia e Operações de Redes The opinions presented here may or may not be those of my company. Wilson Cardoso (Ph. D. ) Data and Voice Convergence Manager © Siemens Ltda 2001 Information and Communications http: //www. siemens. com/mobile-business 1

“Prepare the roof as long as the sun is shining” Ernest Miller Hemingway, born July 21, 1899, at age 6 Information and Communications http: //www. siemens. com/mobile-business

Human perception Bandwidth of Receptors Neuronal Transmission Eyes 200 Gbit/s 200 Mbit/s Ears 4 Mbit/s 2 Mbit/s Skin 1, 5 Gbit/s 10 Mbit/s Tongue 150 Mbit/s 11 Mbit/s Nose 20 Gbit/s 30 Mbit/s = ca. 230 Gbit/s ca. 250 Mbit/s Human communication needs 250 Mbit/s. Information and Communications http: //www. siemens. com/mobile-business

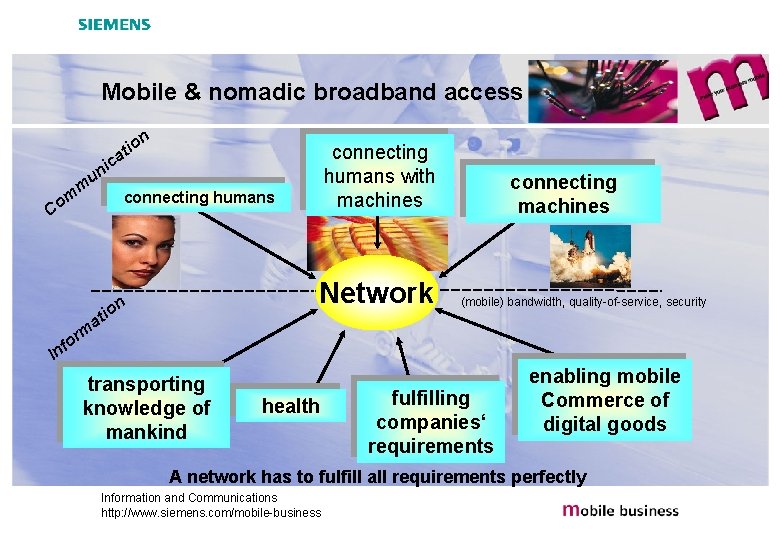

Mobile & nomadic broadband access n it o m m o C connecting humans with machines ca i n u connecting humans Network on i at connecting machines (mobile) bandwidth, quality-of-service, security rm o nf I transporting knowledge of mankind health fulfilling companies‘ requirements enabling mobile Commerce of digital goods A network has to fulfill all requirements perfectly Information and Communications http: //www. siemens. com/mobile-business

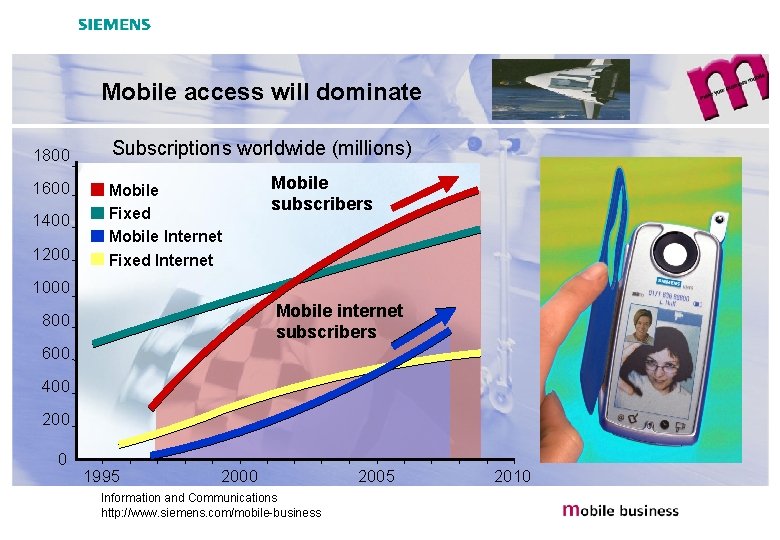

Mobile access will dominate 1800 1600 1400 1200 Subscriptions worldwide (millions) Mobile Fixed Mobile Internet Fixed Internet Mobile subscribers 1000 Mobile internet subscribers 800 600 400 200 0 1995 2000 Information and Communications http: //www. siemens. com/mobile-business 2005 2010

Portable Devices become wearable Information and Communications http: //www. siemens. com/mobile-business

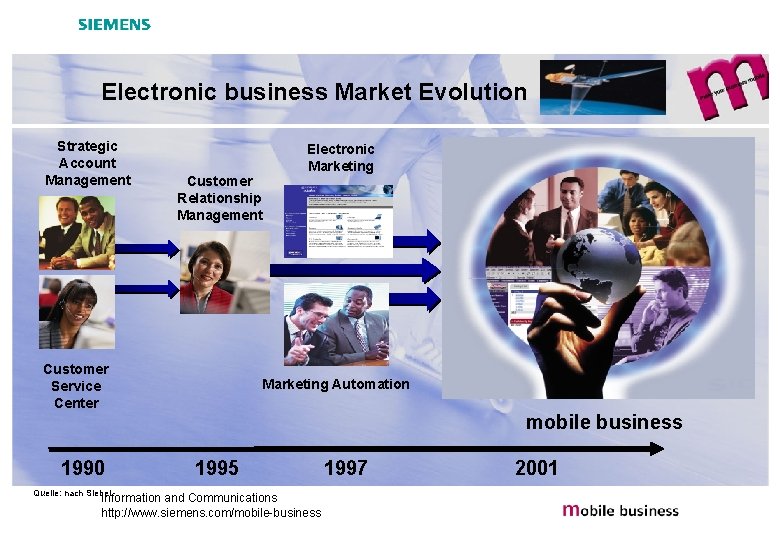

Electronic business Market Evolution Strategic Account Management Customer Relationship Management Customer Service Center 1990 Quelle: nach Siebel Electronic Marketing Automation mobile business 1995 Information and Communications http: //www. siemens. com/mobile-business 1997 2001

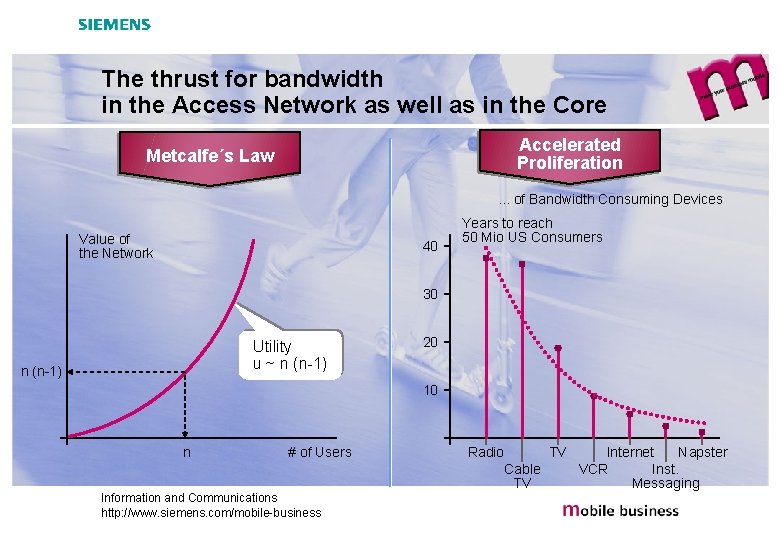

The thrust for bandwidth in the Access Network as well as in the Core Accelerated Proliferation Metcalfe´s Law . . . of Bandwidth Consuming Devices Value of the Network 40 Years to reach 50 Mio US Consumers 30 Utility u ~ n (n-1) 20 10 n # of Users Information and Communications http: //www. siemens. com/mobile-business Radio TV Internet Napster Cable Inst. VCR TV Messaging

The Net is our future. . . and we the “Networkers” will connect everything to everything 6 billion chips We are moving away from crunching Chips in objects . . . to connecting Chips in computers 1970 Source: Kevin Kelly, “New Rules of a New Economy” Information and Communications http: //www. siemens. com/mobile-business 1997 2020

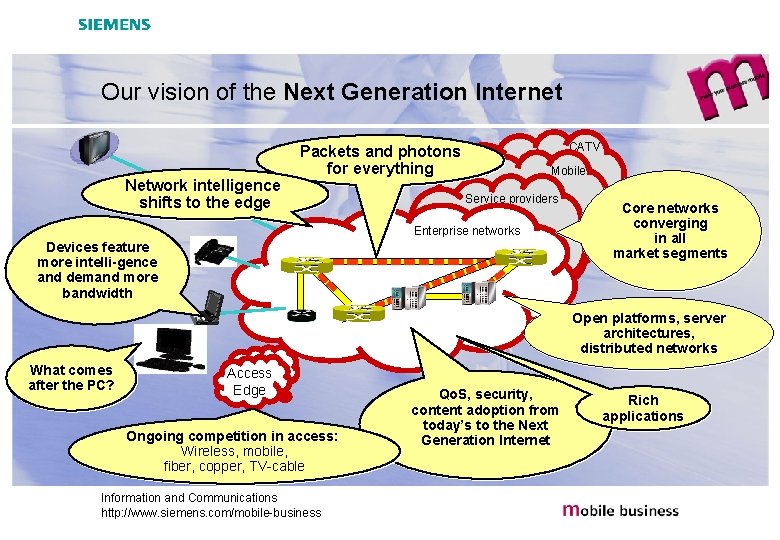

Our vision of the Next Generation Internet Network intelligence shifts to the edge CATV Packets and photons for everything Mobile Service providers Enterprise networks Devices feature more intelli-gence and demand more bandwidth Core networks converging in all market segments Open platforms, server architectures, distributed networks What comes after the PC? Access Edge Ongoing competition in access: Wireless, mobile, fiber, copper, TV-cable Information and Communications http: //www. siemens. com/mobile-business Qo. S, security, content adoption from today’s to the Next Generation Internet Rich applications

The next generation networks Enterprise Networks PSTN/ISDN The Next Generation Networks • Converged, individualized services • Anywhere, anytime, any media communication • Guaranteed service quality • High reliability • Bandwidth is unlimited • Distance independent tariffs Mobile Networks Information and Communications http: //www. siemens. com/mobile-business IP/Data Networks

We need to converge the networks ! Who will drive the convergence? Bellheads versus Netheads Information and Communications http: //www. siemens. com/mobile-business

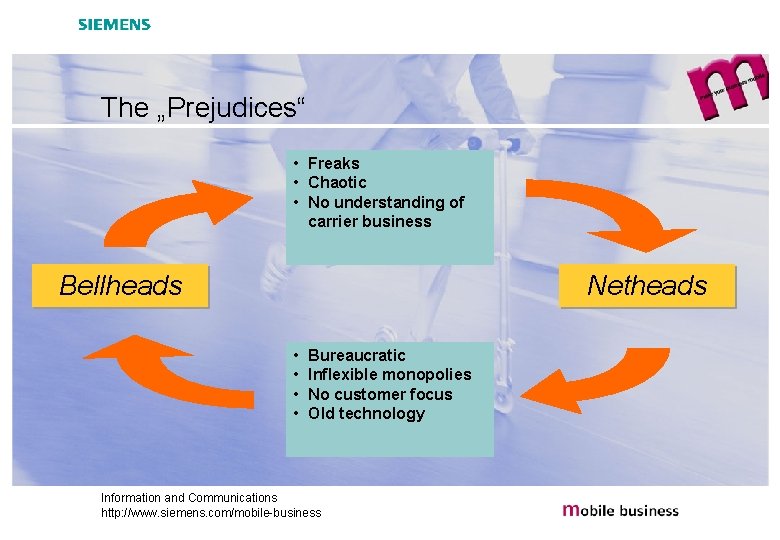

The „Prejudices“ • Freaks • Chaotic • No understanding of carrier business Bellheads Netheads • • Bureaucratic Inflexible monopolies No customer focus Old technology Information and Communications http: //www. siemens. com/mobile-business

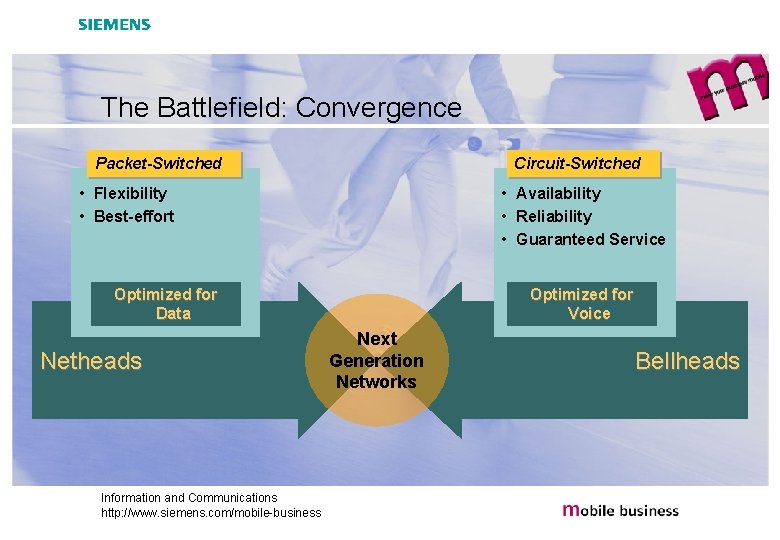

The Battlefield: Convergence Packet-Switched Circuit-Switched • Flexibility • Best-effort • Availability • Reliability • Guaranteed Service Optimized for Data Netheads Information and Communications http: //www. siemens. com/mobile-business Optimized for Voice Next Generation Networks Bellheads

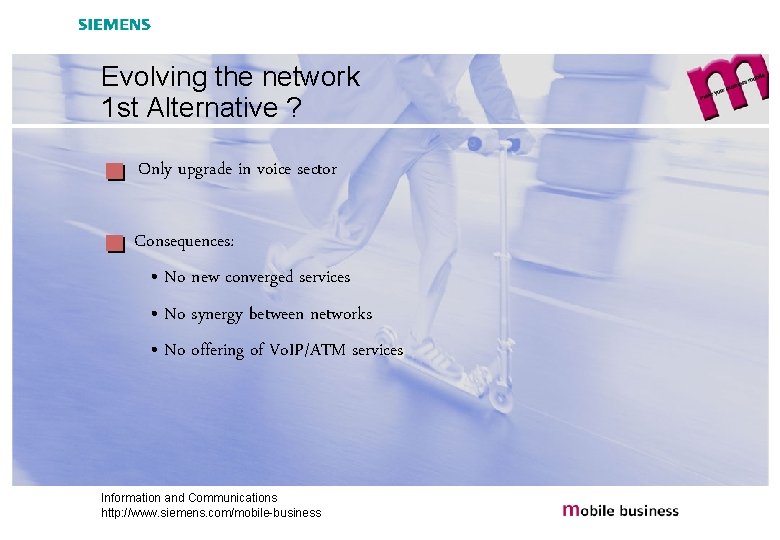

Evolving the network 1 st Alternative ? Only upgrade in voice sector Consequences: • No new converged services • No synergy between networks • No offering of Vo. IP/ATM services Information and Communications http: //www. siemens. com/mobile-business

Evolving the network 1 st Alternative ? Your competitors will win! Information and Communications http: //www. siemens. com/mobile-business

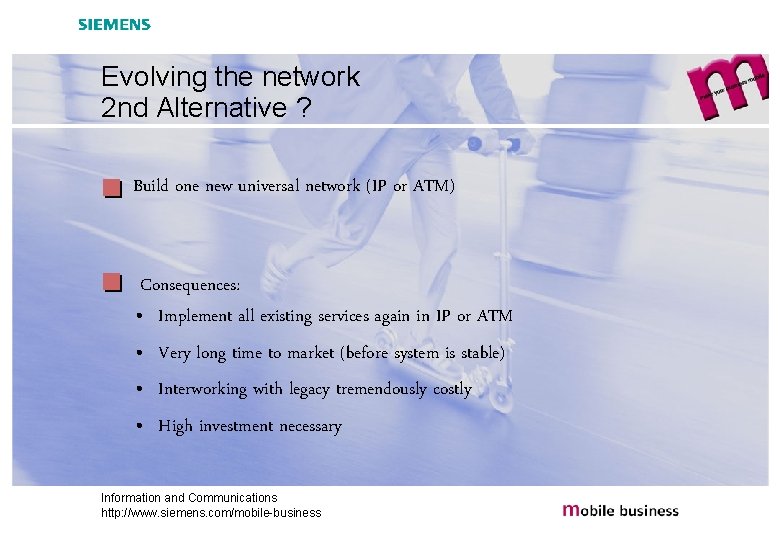

Evolving the network 2 nd Alternative ? Build one new universal network (IP or ATM) Consequences: • Implement all existing services again in IP or ATM • Very long time to market (before system is stable) • Interworking with legacy tremendously costly • High investment necessary Information and Communications http: //www. siemens. com/mobile-business

Evolving the network 2 nd Alternative ? “Engineer’s dream” Information and Communications http: //www. siemens. com/mobile-business

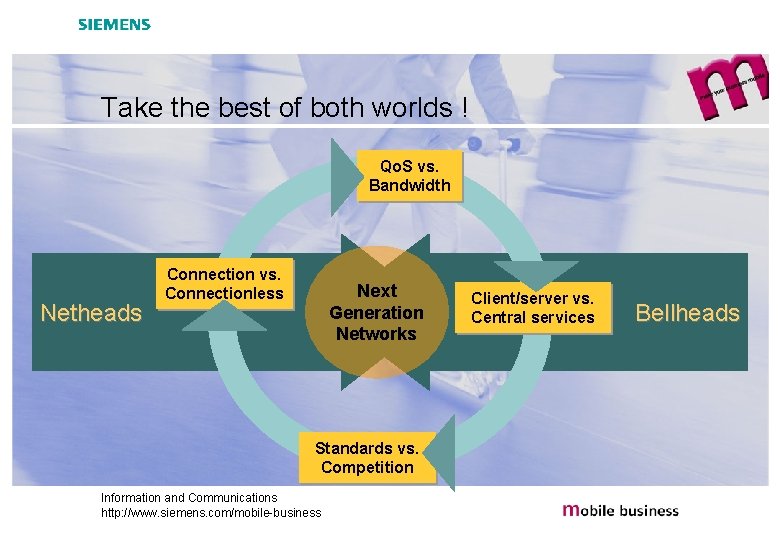

Take the best of both worlds ! Qo. S vs. Bandwidth Netheads Connection vs. Connectionless Next Generation Networks Standards vs. Competition Information and Communications http: //www. siemens. com/mobile-business Client/server vs. Central services Bellheads

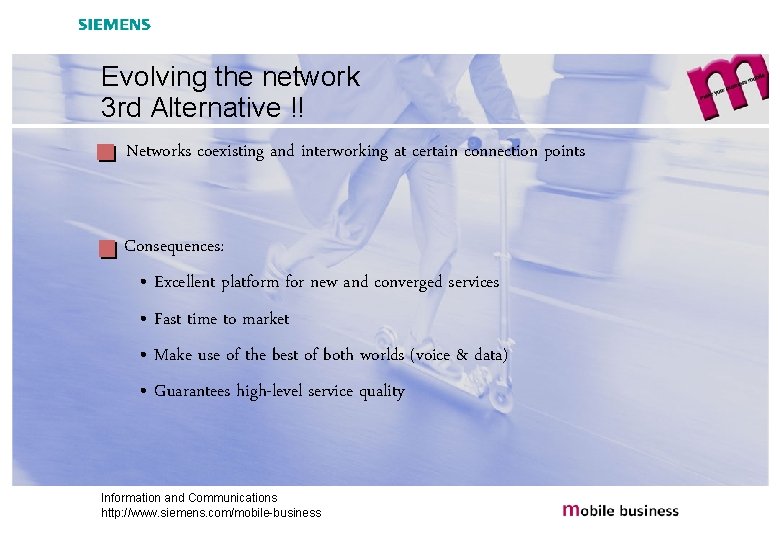

Evolving the network 3 rd Alternative !! Networks coexisting and interworking at certain connection points Consequences: • Excellent platform for new and converged services • Fast time to market • Make use of the best of both worlds (voice & data) • Guarantees high-level service quality Information and Communications http: //www. siemens. com/mobile-business

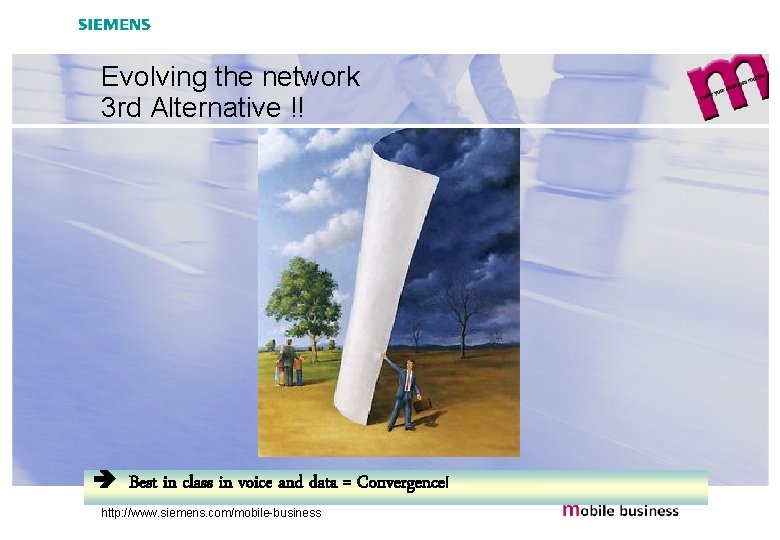

Evolving the network 3 rd Alternative !! Best in class in voice and data = Convergence! Information and Communications http: //www. siemens. com/mobile-business

IP will dominate technology and networks ! Services / Applications Growing number of services and applications = business Various Unifi opportunitie infrastructu ed s re ne platforms tw for : or • soft k migration la for data ye services r • flexible platform for competitive services • support for application Information and Communications s and http: //www. siemens. com/mobile-business services requiremen Web cache E-commerce Call center VPN Intranets / Extranets Internet access IP ATM FR SDH WDM PSTN AON Infrastructure GSM

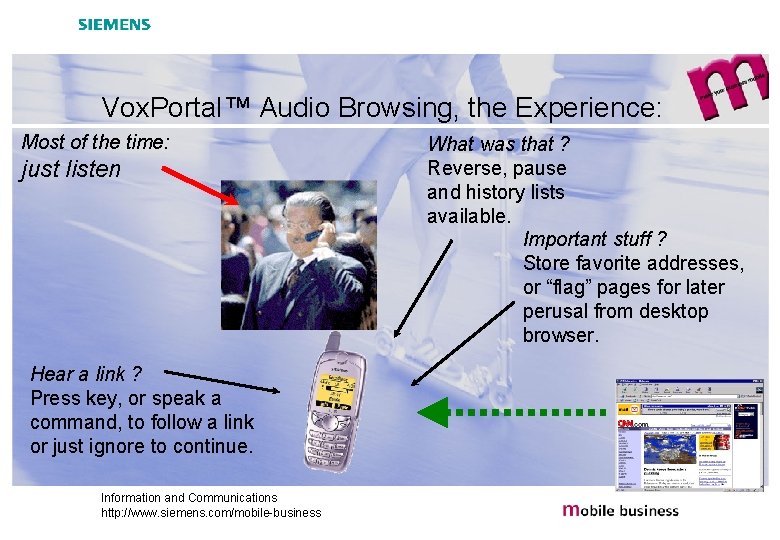

Vox. Portal™ Audio Browsing, the Experience: Most of the time: just listen Hear a link ? Press key, or speak a command, to follow a link or just ignore to continue. Information and Communications http: //www. siemens. com/mobile-business What was that ? Reverse, pause and history lists available. Important stuff ? Store favorite addresses, or “flag” pages for later perusal from desktop browser.

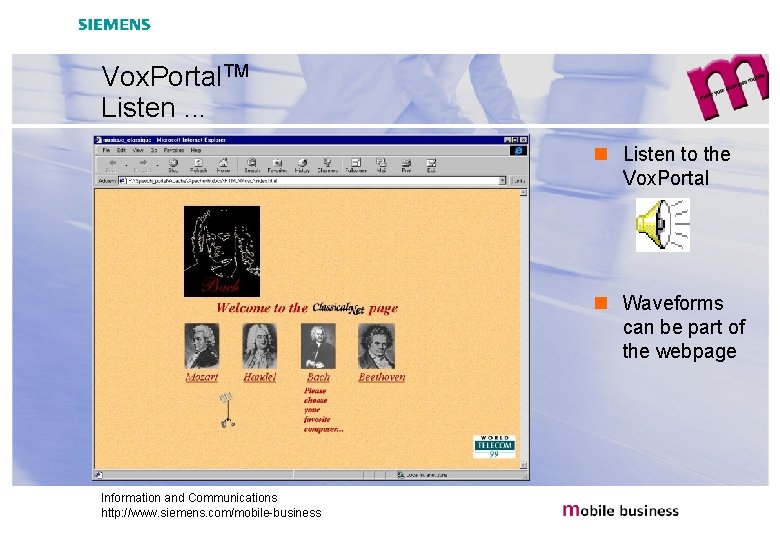

Vox. Portal. TM Listen. . . n Listen to the Vox. Portal n Waveforms can be part of the webpage Information and Communications http: //www. siemens. com/mobile-business

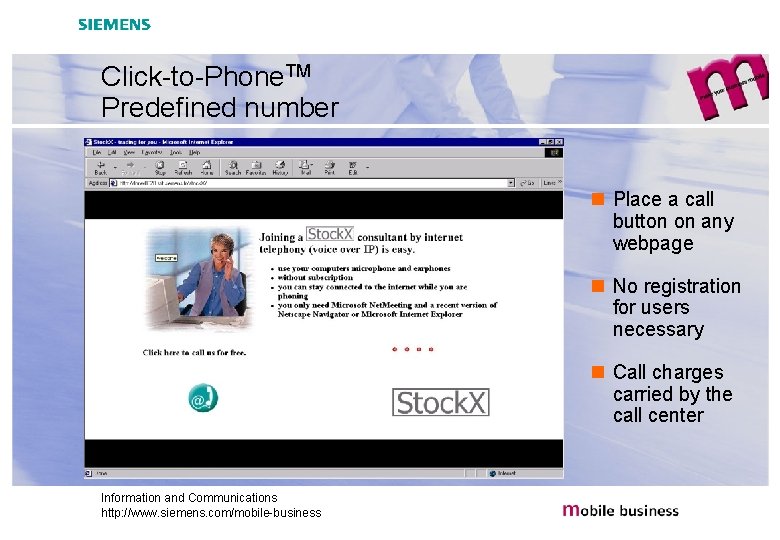

Click-to-Phone. TM Predefined number n Place a call button on any webpage n No registration for users necessary n Call charges carried by the call center Information and Communications http: //www. siemens. com/mobile-business

Click-to-Phone. TM Any number n Enter the phone number via: keypad favorites n or choose one from: personal directory online directory n High security for the call: unique key check at all involved components Information and Communications http: //www. siemens. com/mobile-business

Adding Voice IP based Call Centers Customer Screen ACD events and dialing provided by CTI Features Agent Image sent to Customer Information and Communications http: //www. siemens. com/mobile-business Agent Screen

Information and Communications http: //www. siemens. com/mobile-business

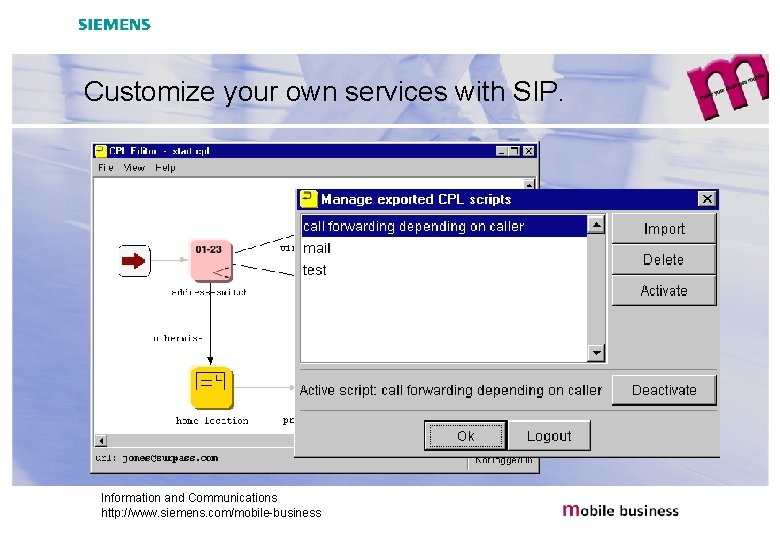

Customize your own services with SIP. Information and Communications http: //www. siemens. com/mobile-business

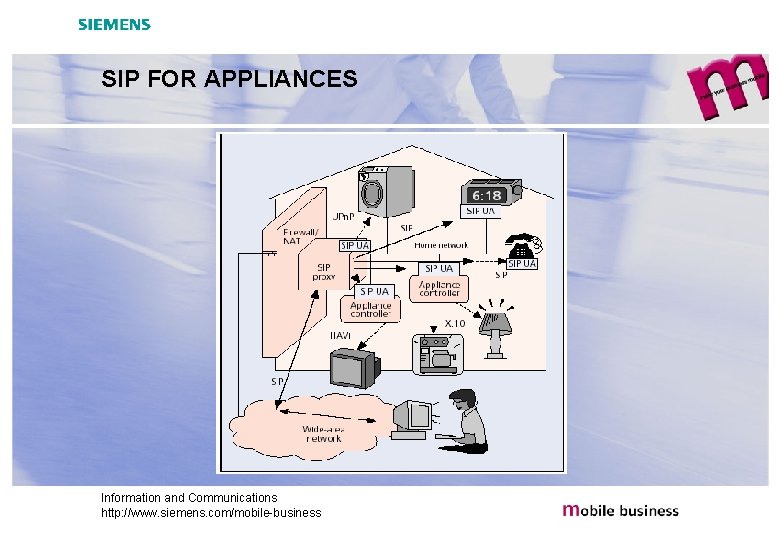

SIP FOR APPLIANCES Information and Communications http: //www. siemens. com/mobile-business

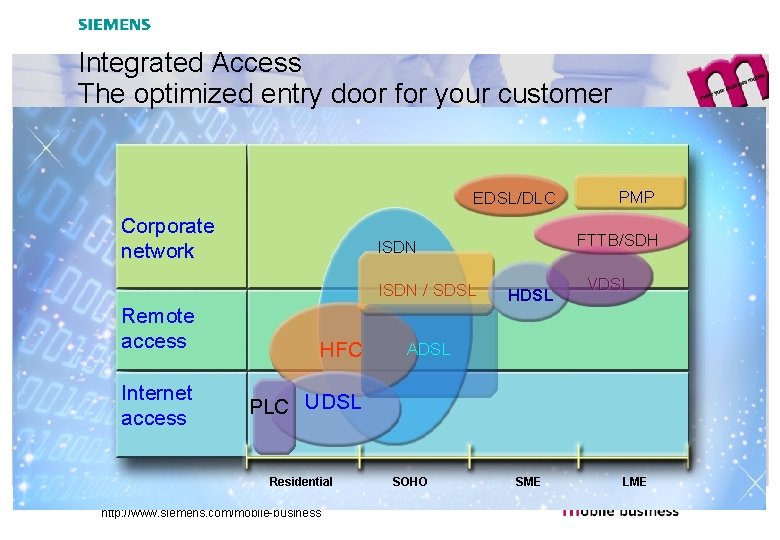

Integrated Access The optimized entry door for your customer EDSL/DLC Corporate network Remote access Internet access FTTB/SDH ISDN / SDSL HFC PMP HDSL VDSL ADSL PLC UDSL Residential Information and Communications http: //www. siemens. com/mobile-business SOHO SME LME

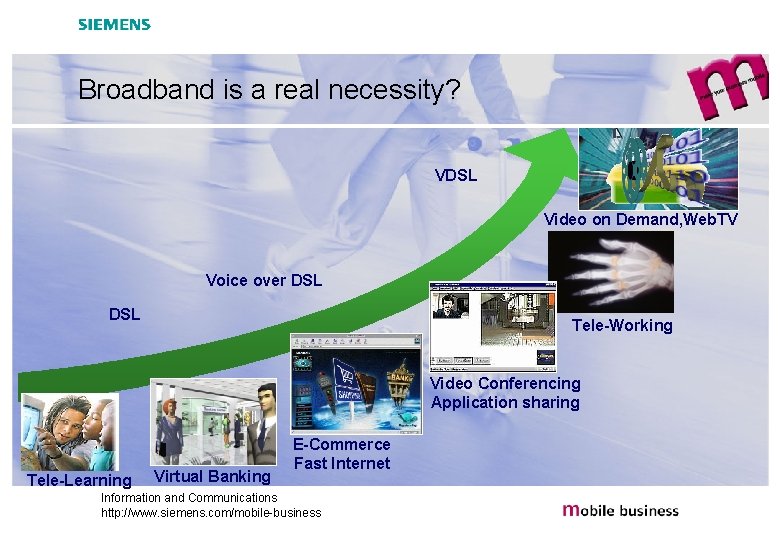

Broadband is a real necessity? VDSL Video on Demand, Web. TV Voice over DSL Tele-Working Video Conferencing Application sharing Tele-Learning Virtual Banking E-Commerce Fast Internet Information and Communications http: //www. siemens. com/mobile-business

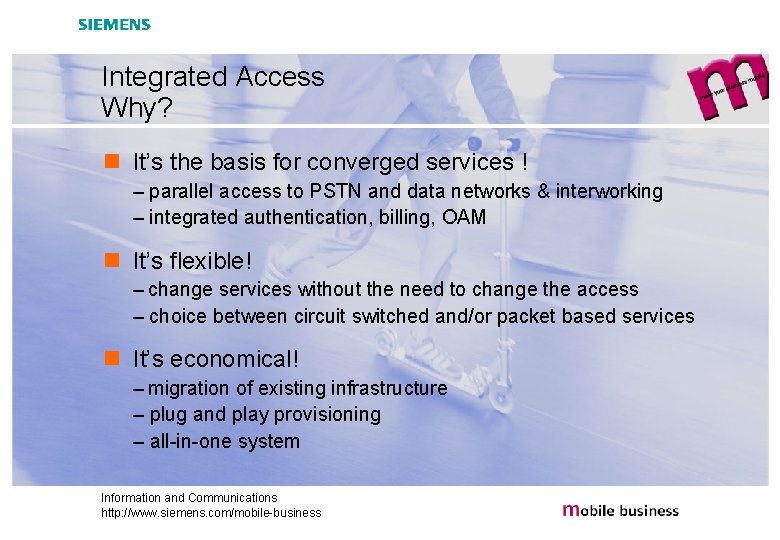

Integrated Access Why? n It’s the basis for converged services ! – parallel access to PSTN and data networks & interworking – integrated authentication, billing, OAM n It’s flexible! – change services without the need to change the access – choice between circuit switched and/or packet based services n It’s economical! – migration of existing infrastructure – plug and play provisioning – all-in-one system Information and Communications http: //www. siemens. com/mobile-business

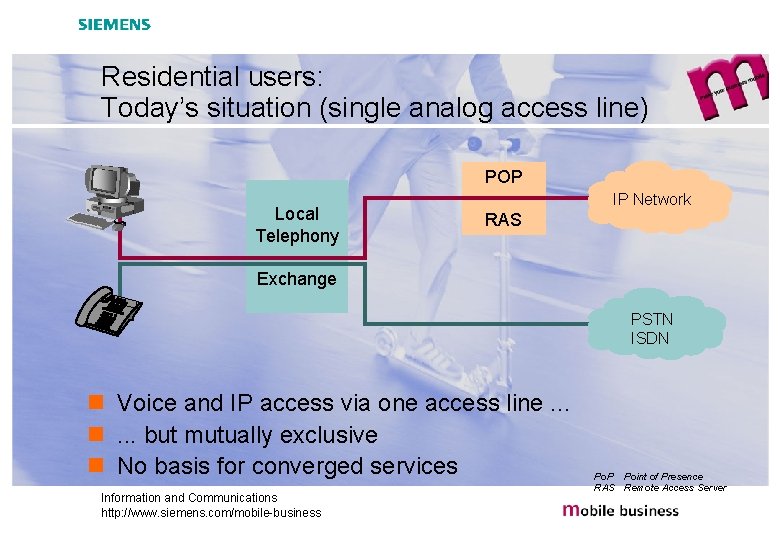

Residential users: Today’s situation (single analog access line) POP Local Telephony IP Network RAS Exchange SIEMENS PSTN ISDN n Voice and IP access via one access line. . . n. . . but mutually exclusive n No basis for converged services Information and Communications http: //www. siemens. com/mobile-business Po. P Point of Presence RAS Remote Access Server

New applications require more bandwidth SIEMEN S Access device Internet service provider Public Internet SIEMEN S n Every day new applications based-on IP are developed. Information and Communications http: //www. siemens. com/mobile-business

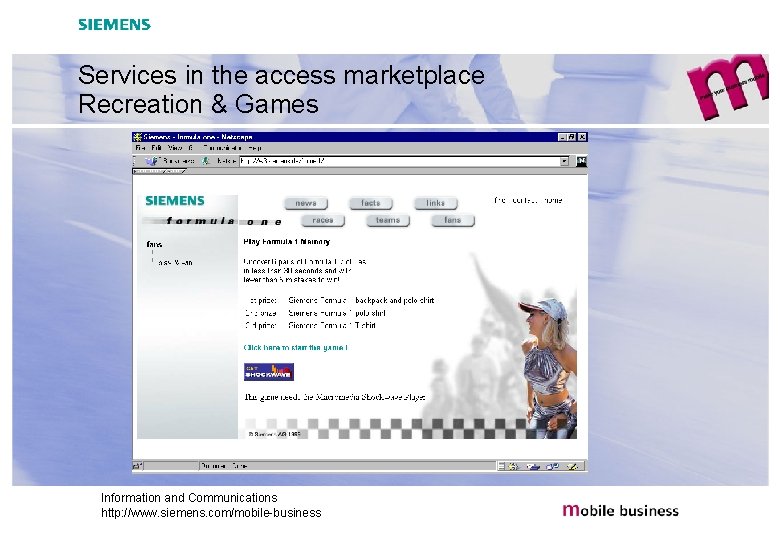

Services in the access marketplace Recreation & Games Information and Communications http: //www. siemens. com/mobile-business

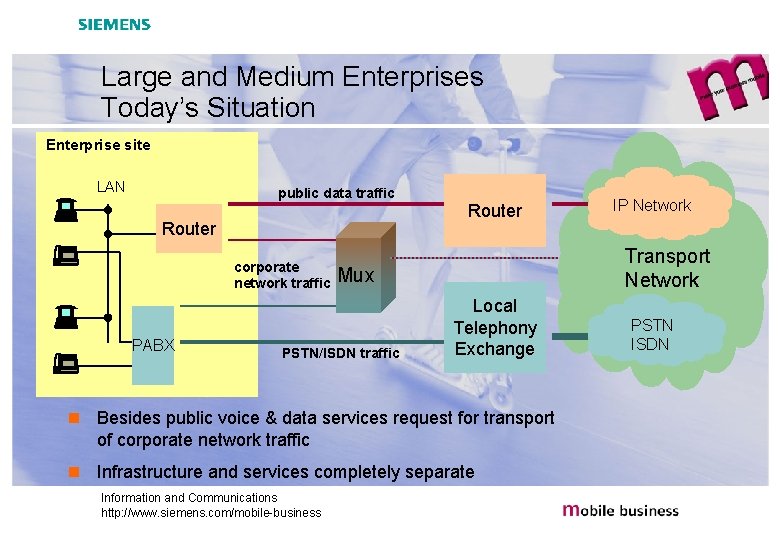

Large and Medium Enterprises Today’s Situation Enterprise site LAN public data traffic Router corporate network traffic PABX Router Transport Network Mux PSTN/ISDN traffic Local Telephony Exchange n Besides public voice & data services request for transport of corporate network traffic n Infrastructure and services completely separate Information and Communications http: //www. siemens. com/mobile-business IP Network PSTN ISDN

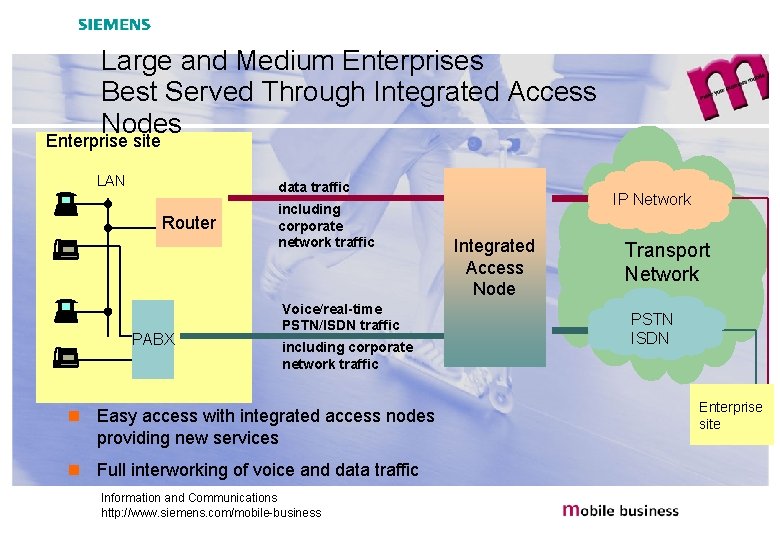

Large and Medium Enterprises Best Served Through Integrated Access Nodes Enterprise site LAN data traffic Router PABX including corporate network traffic Voice/real-time PSTN/ISDN traffic including corporate network traffic n Easy access with integrated access nodes providing new services n Full interworking of voice and data traffic Information and Communications http: //www. siemens. com/mobile-business Router Integrated Access Node Local Telephony Exchange IP Network Transport Network PSTN ISDN Enterprise site

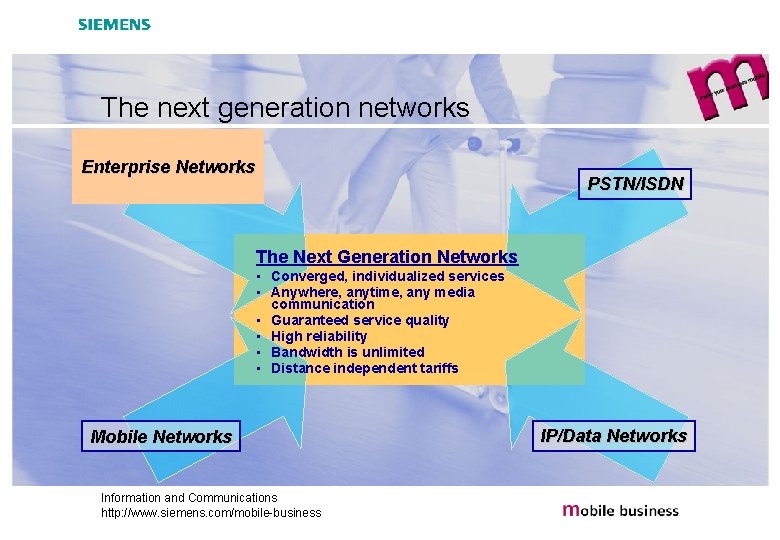

The next generation networks Enterprise Networks PSTN/ISDN The Next Generation Networks • Converged, individualized services • Anywhere, anytime, any media communication • Guaranteed service quality • High reliability • Bandwidth is unlimited • Distance independent tariffs Mobile Networks Information and Communications http: //www. siemens. com/mobile-business IP/Data Networks

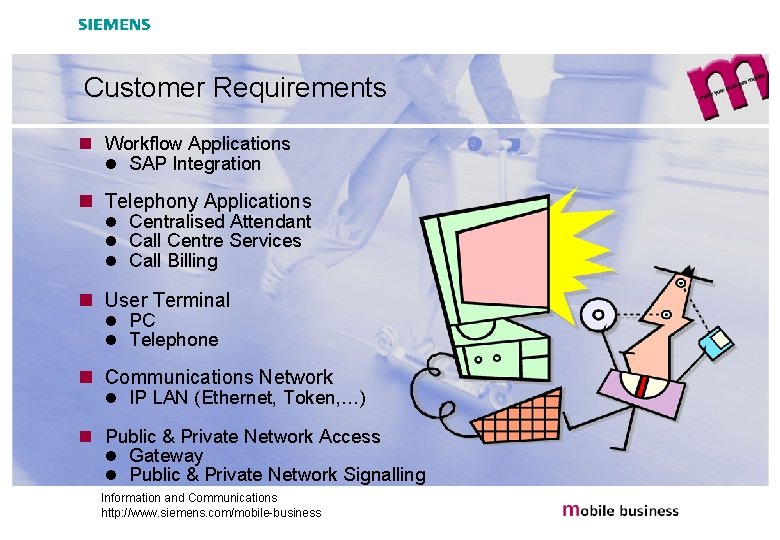

Customer Requirements n Workflow Applications l SAP Integration n Telephony Applications l Centralised Attendant l Call Centre Services l Call Billing n User Terminal l PC l Telephone n Communications Network l IP LAN (Ethernet, Token, …) n Public & Private Network Access l Gateway l Public & Private Network Signalling Information and Communications http: //www. siemens. com/mobile-business

IP PABX typical enviroment PSTN Phone IP Phone Fax Internet / Chat Video Mobile Voice E-Mail One Queue Business Process Communication Workflow Customers Current Database Information and Communications http: //www. siemens. com/mobile-business

IP Convergence: Worldwide supervision with video over IP Bobst Gmb. H Printer manufactring Solution: Video-Monitoring System n Voice and images transmistion over IP Results Worldwide Service from main office Less trips and service personal Increase productivity for Bobst‘s clients: short interruption time for repair n Better image and new orders. n n n Information and Communications http: //www. siemens. com/mobile-business

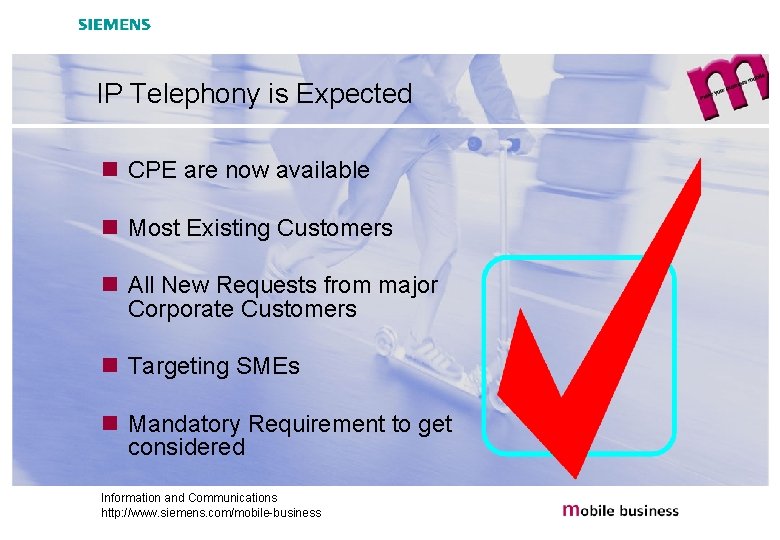

IP Telephony is Expected n CPE are now available n Most Existing Customers n All New Requests from major Corporate Customers n Targeting SMEs n Mandatory Requirement to get considered Information and Communications http: //www. siemens. com/mobile-business

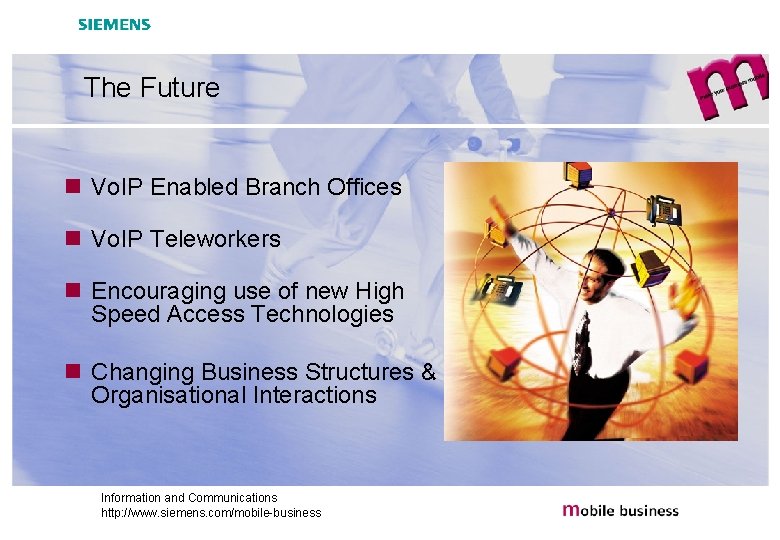

The Future n Vo. IP Enabled Branch Offices n Vo. IP Teleworkers n Encouraging use of new High Speed Access Technologies n Changing Business Structures & Organisational Interactions Information and Communications http: //www. siemens. com/mobile-business

Conclusion n Vo. IP is not a goal in its own right Convergence is the customer need n Customer demands are not uniform address the solution carefully n Customer Acceptance is growing albeit slowly n It is The Way Forward Information and Communications http: //www. siemens. com/mobile-business

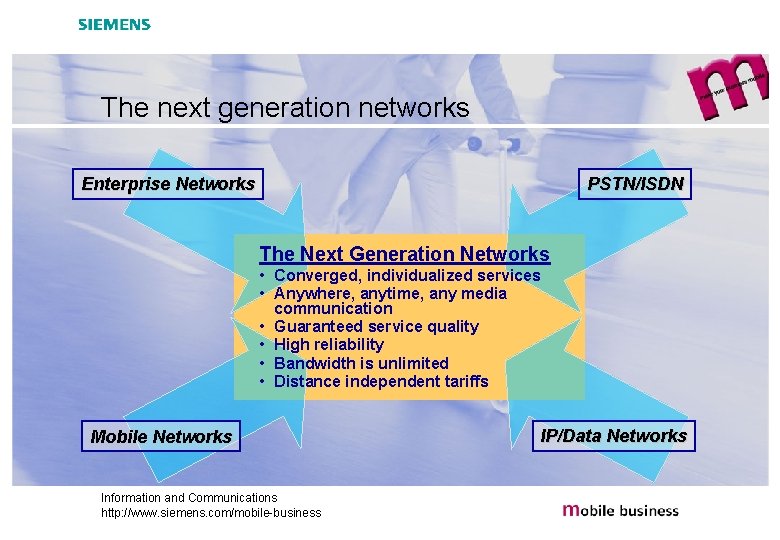

The next generation networks Enterprise Networks PSTN/ISDN The Next Generation Networks • Converged, individualized services • Anywhere, anytime, any media communication • Guaranteed service quality • High reliability • Bandwidth is unlimited • Distance independent tariffs Mobile Networks Information and Communications http: //www. siemens. com/mobile-business IP/Data Networks

Thank you for your kind attendance Information and Communications http: //www. siemens. com/mobile-business
