next EATON PDD Power Xpert XP 2 Busbar

next EATON PDD Power Xpert XP 2 Busbar ® Product Features Benefits Applications • • • IEC/EN 61439 -6 • Fire Resistance according to EN 135012: 2007+A 1: 2009 • IP 55 Indoor • 100% N • 100% PE option • 3 Bar up to 6 Bar • Low Impedance sandwich busbar system • Compact type tested design • Epoxy coated busbars • Fast assembling: No special tools required for assembly • NZM Range of MCCB fitted in tap-off units • • • Transformer – Switchboard links Switchboard – Switchboard links Riser Busbar • Area -> Industrial -> Data Center -> Commercial -> Hotels -> Hospitals -> Schools -> Factories -> Renovations Busbar Trunking Alu housing Copper or Alu conductor Color white RAL 7035 Rating Ue = up to 1000 V AC Ie = up to 6600 A 0 800 A 1000 A 1250 A 1350 A 1600 A 2000 A 6600 A © 2014 Eaton. All Rights Reserved. . 2500 A 3200 A 4000 A 5000 A 1

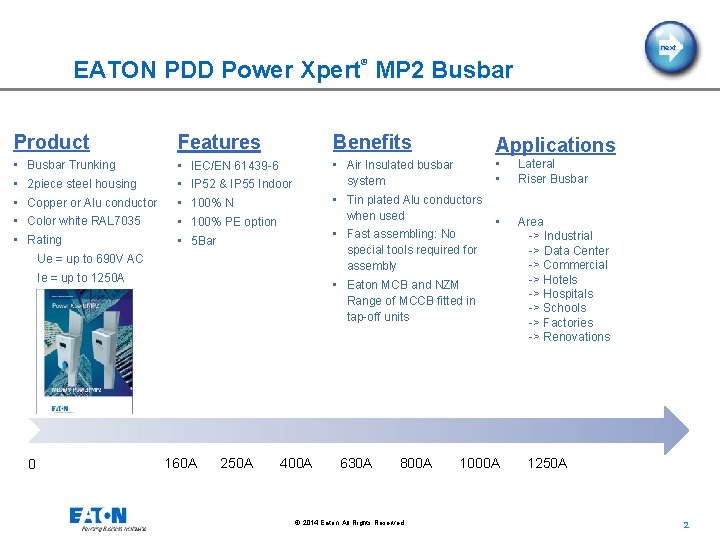

next EATON PDD Power Xpert MP 2 Busbar ® Product Features Benefits Applications • • • Air Insulated busbar system • Tin plated Alu conductors when used • Fast assembling: No special tools required for assembly • Eaton MCB and NZM Range of MCCB fitted in tap-off units • • Lateral Riser Busbar • Area -> Industrial -> Data Center -> Commercial -> Hotels -> Hospitals -> Schools -> Factories -> Renovations Busbar Trunking 2 piece steel housing Copper or Alu conductor Color white RAL 7035 Rating IEC/EN 61439 -6 IP 52 & IP 55 Indoor 100% N 100% PE option 5 Bar Ue = up to 690 V AC Ie = up to 1250 A 0 160 A 250 A 400 A 630 A 800 A © 2014 Eaton. All Rights Reserved. . 1000 A 1250 A 2
