Nexans 2012 1 Extraction Principle Cable 2 Extract
© Nexans 2012 - 1

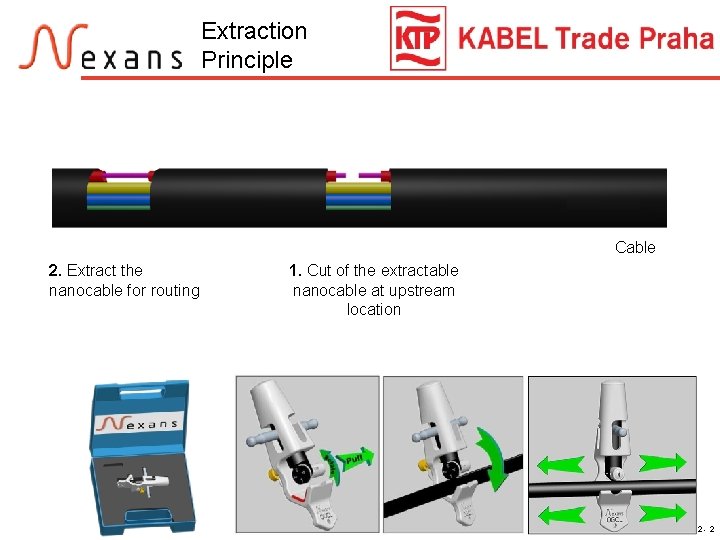

Extraction Principle Cable 2. Extract the nanocable for routing 1. Cut of the extractable nanocable at upstream location © Nexans 2012 - 2

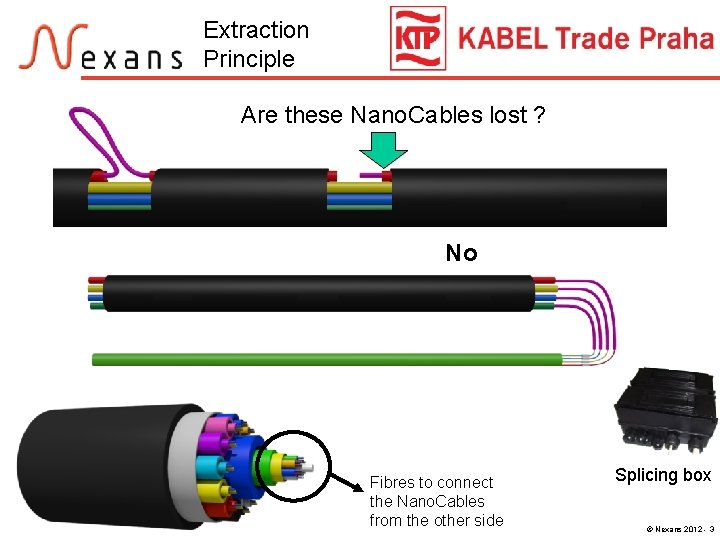

Extraction Principle Are these Nano. Cables lost ? No Fibres to connect the Nano. Cables from the other side Splicing box © Nexans 2012 - 3

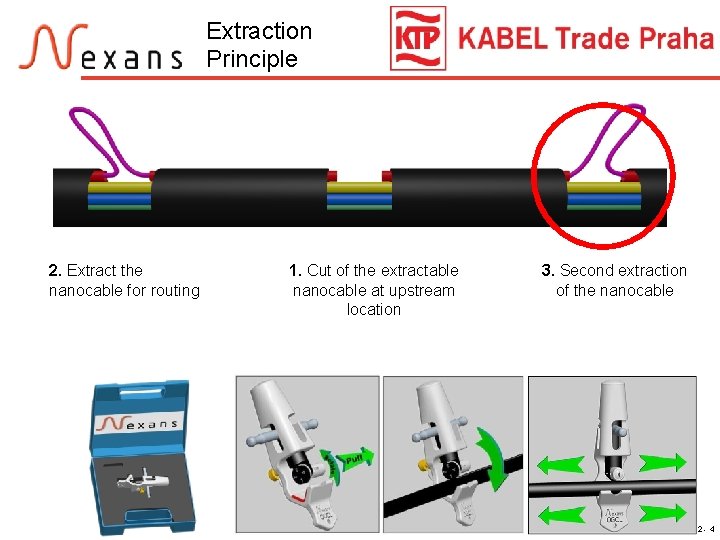

Extraction Principle 2. Extract the nanocable for routing 1. Cut of the extractable nanocable at upstream location 3. Second extraction of the nanocable © Nexans 2012 - 4

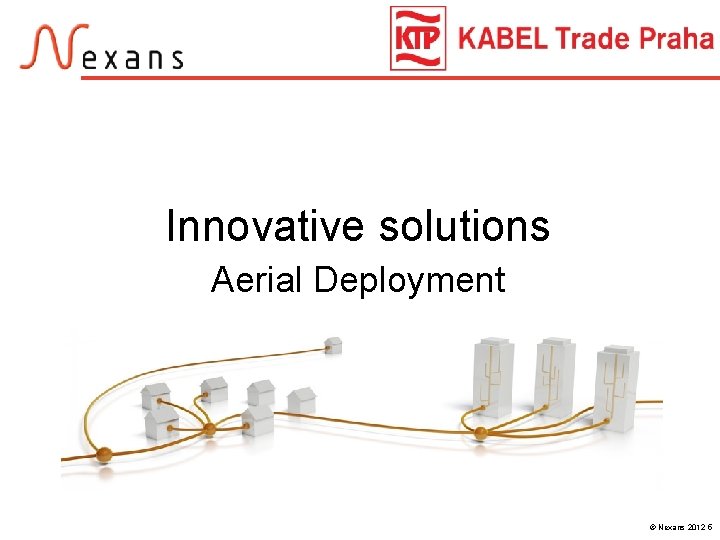

Innovative solutions Aerial Deployment © Nexans 2012 5

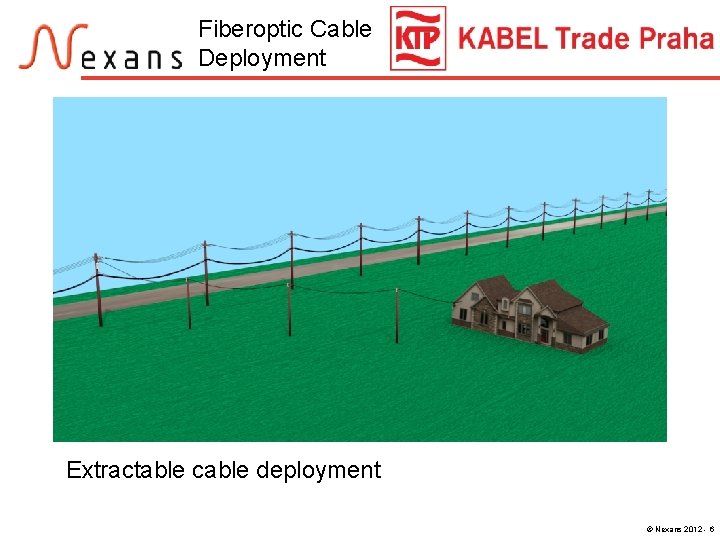

Fiberoptic Cable Deployment Traditional Box Extractable connection Omega cable if subscribers deployment © Nexans 2012 - 6

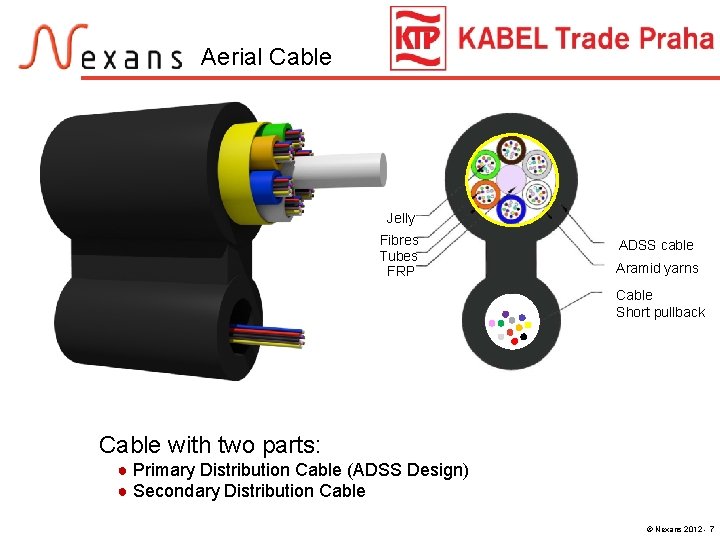

Aerial Cable Jelly Fibres Tubes FRP ADSS cable Aramid yarns Cable Short pullback Cable with two parts: ● Primary Distribution Cable (ADSS Design) ● Secondary Distribution Cable © Nexans 2012 - 7

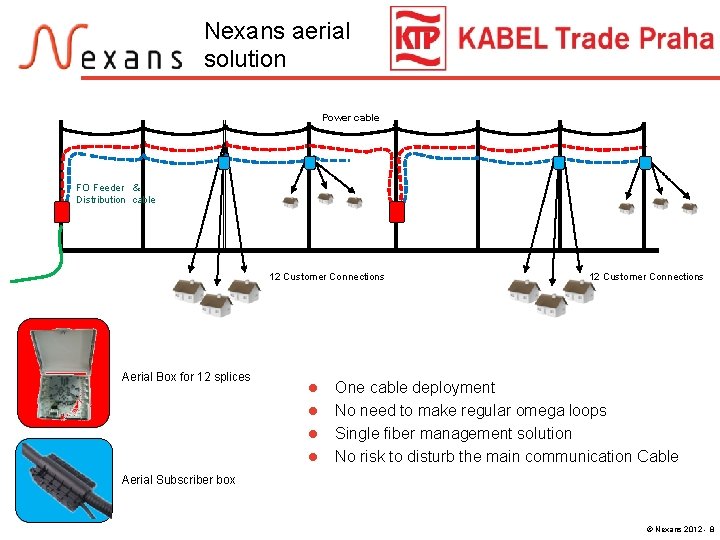

Nexans aerial solution Power cable FO Feeder & Distribution cable 12 Customer Connections Aerial Box for 12 splices l l 12 Customer Connections One cable deployment No need to make regular omega loops Single fiber management solution No risk to disturb the main communication Cable Aerial Subscriber box © Nexans 2012 - 8

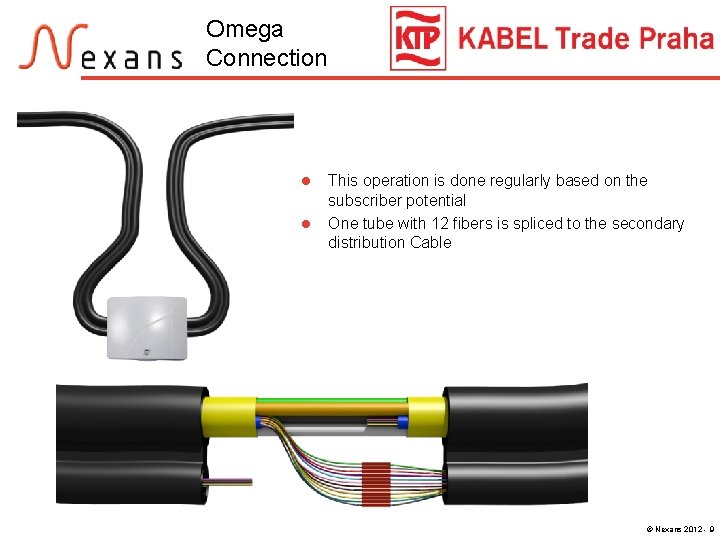

Omega Connection l l This operation is done regularly based on the subscriber potential One tube with 12 fibers is spliced to the secondary distribution Cable © Nexans 2012 - 9

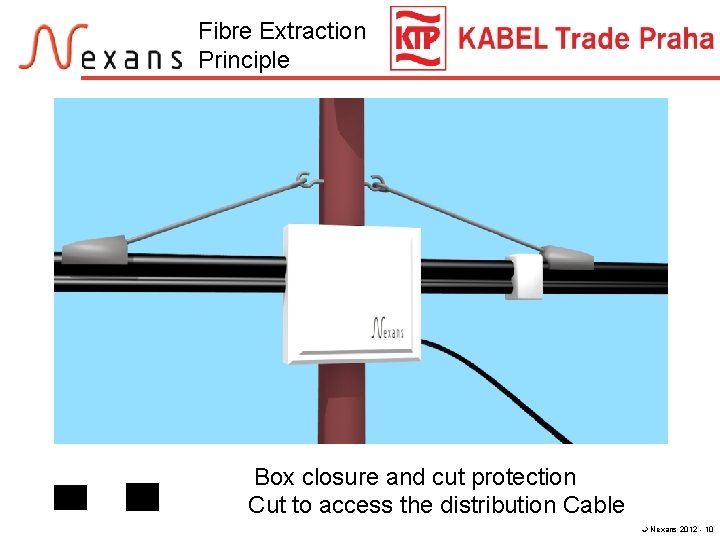

Fibre Extraction Principle Protection Box and Boxthe closure and cut protection On subscriber extraction phase: Cut to access thebackbone distribution Cable No action on the cable © Nexans 2012 - 10

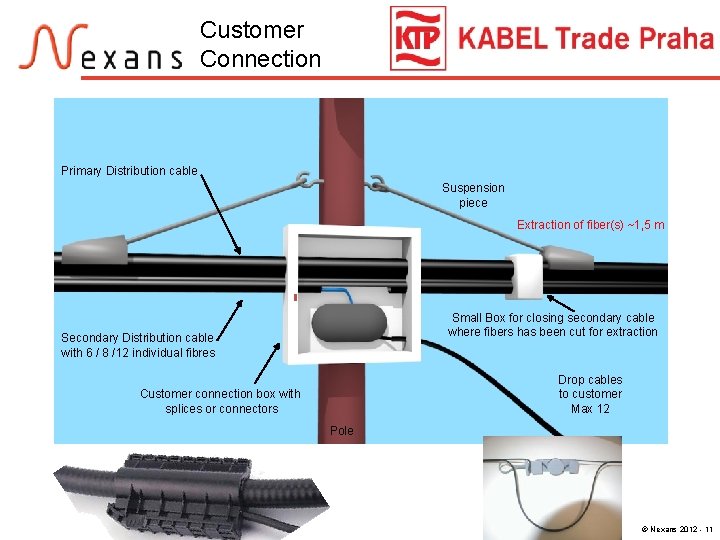

Customer Connection Primary Distribution cable Suspension piece Extraction of fiber(s) ~1, 5 m Small Box for closing secondary cable where fibers has been cut for extraction Secondary Distribution cable with 6 / 8 /12 individual fibres Drop cables to customer Max 12 Customer connection box with splices or connectors Pole © Nexans 2012 - 11

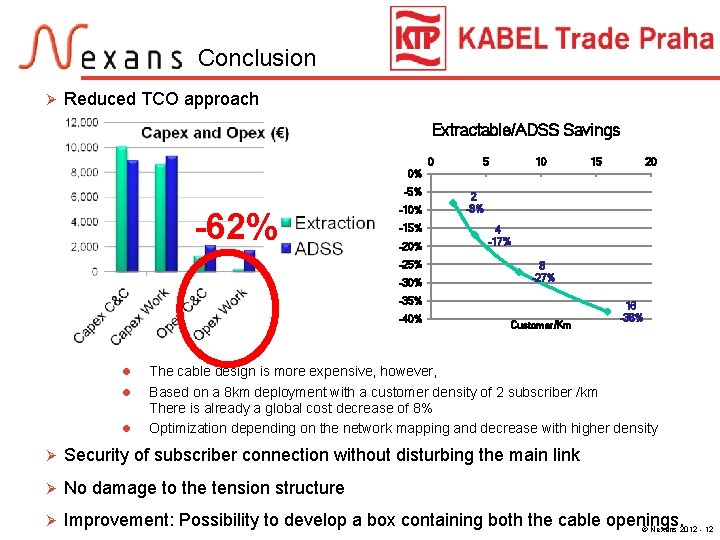

Conclusion Ø Reduced TCO approach Extractable/ADSS Savings 0 5 10 15 20 0% -5% -62% -10% -15% -20% -25% -30% 2 -8% 4 -17% 8 -27% -35% -40% l l l Customer/Km 16 -38% The cable design is more expensive, however, Based on a 8 km deployment with a customer density of 2 subscriber /km There is already a global cost decrease of 8% Optimization depending on the network mapping and decrease with higher density Ø Security of subscriber connection without disturbing the main link Ø No damage to the tension structure Ø Improvement: Possibility to develop a box containing both the cable openings. © Nexans 2012 - 12

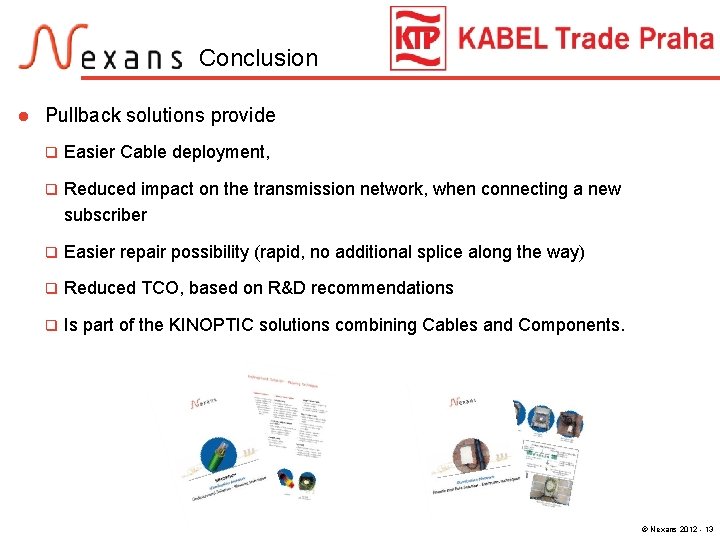

Conclusion l Pullback solutions provide q Easier Cable deployment, q Reduced impact on the transmission network, when connecting a new subscriber q Easier repair possibility (rapid, no additional splice along the way) q Reduced TCO, based on R&D recommendations q Is part of the KINOPTIC solutions combining Cables and Components. © Nexans 2012 - 13

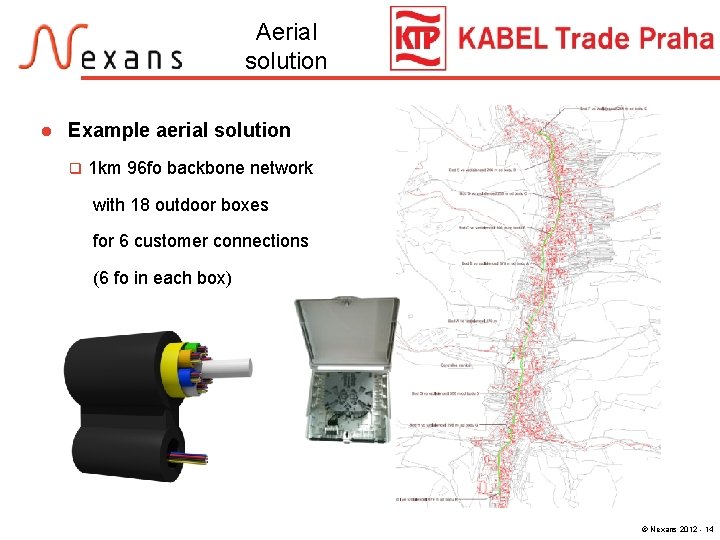

Aerial solution l Example aerial solution q 1 km 96 fo backbone network with 18 outdoor boxes for 6 customer connections (6 fo in each box) © Nexans 2012 - 14

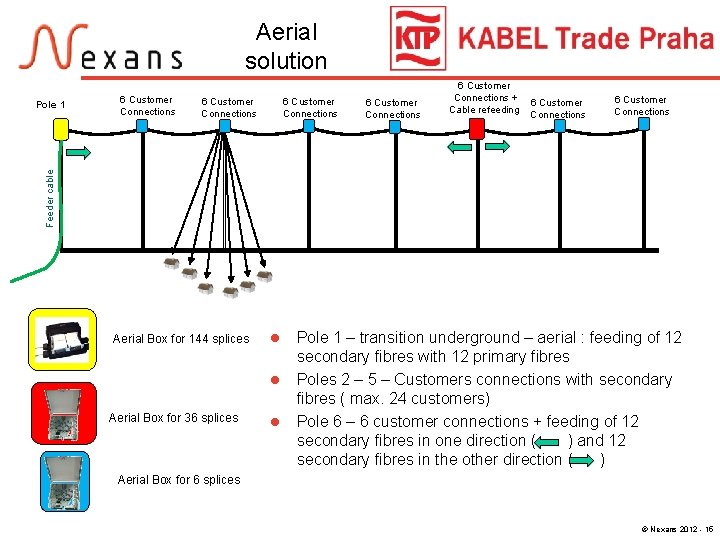

Aerial solution 6 Customer Connections + Cable refeeding 6 Customer Connections Feeder cable Pole 1 6 Customer Connections Aerial Box for 144 splices l l Aerial Box for 36 splices l Pole 1 – transition underground – aerial : feeding of 12 secondary fibres with 12 primary fibres Poles 2 – 5 – Customers connections with secondary fibres ( max. 24 customers) Pole 6 – 6 customer connections + feeding of 12 secondary fibres in one direction ( ) and 12 secondary fibres in the other direction ( ) Aerial Box for 6 splices © Nexans 2012 - 15

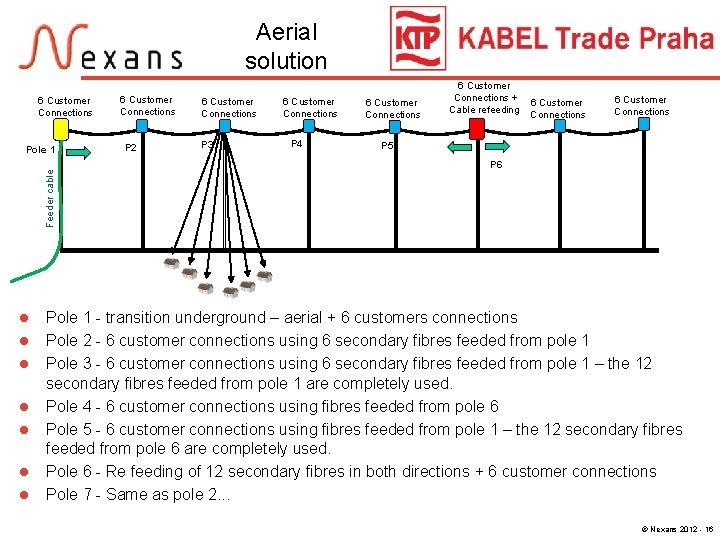

Aerial solution 6 Customer Connections Feeder cable Pole 1 l l l l 6 Customer Connections P 2 6 Customer Connections P 3 6 Customer Connections P 4 6 Customer Connections + Cable refeeding 6 Customer Connections P 5 P 6 Pole 1 - transition underground – aerial + 6 customers connections Pole 2 - 6 customer connections using 6 secondary fibres feeded from pole 1 Pole 3 - 6 customer connections using 6 secondary fibres feeded from pole 1 – the 12 secondary fibres feeded from pole 1 are completely used. Pole 4 - 6 customer connections using fibres feeded from pole 6 Pole 5 - 6 customer connections using fibres feeded from pole 1 – the 12 secondary fibres feeded from pole 6 are completely used. Pole 6 - Re feeding of 12 secondary fibres in both directions + 6 customer connections Pole 7 - Same as pole 2. . . © Nexans 2012 - 16

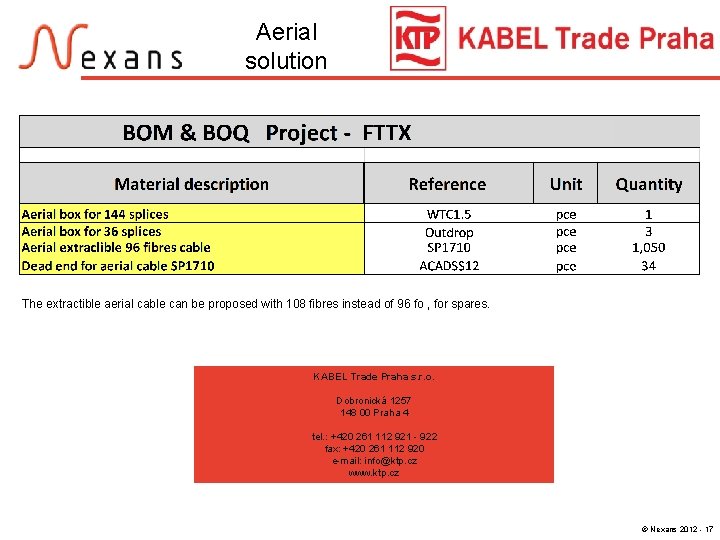

Aerial solution The extractible aerial cable can be proposed with 108 fibres instead of 96 fo , for spares. KABEL Trade Praha s. r. o. Dobronická 1257 148 00 Praha 4 tel. : +420 261 112 921 - 922 fax: +420 261 112 920 e-mail: info@ktp. cz www. ktp. cz © Nexans 2012 - 17
