Product features [Concept] designed for end users ・ Improved installation - Easy installation by USB connection. - Installation without installer. USB connector New adapter 56. 7 X 34 X 9. 7 mm Current adapter 71(91) X 38 X 15 mm 4 Copyright 2018 FUJITSU GENERAL LIMITED

Product features [Concept] designed for end users ・ Color package (available in stores and online shopping) (depending on region and sales strategy) ・ more compact than the current model. USB connector New adapter 56. 7 X 34 X 9. 7 mm Current adapter 71(91) X 38 X 15 mm 6 Copyright 2018 FUJITSU GENERAL LIMITED

2019 Available air conditioner Available area: Europe W-LAN adapter: UTY-TFSXF 2 ASYG 07 KETA ASYG 07 KPCA ASYG 09 KETA ASYG 09 KPCA ASYG 12 KETA ASYG 12 KPCA ASYG 14 KETA ASYG 18 KMTA ASYG 24 KMTA ASHG 07 KPCA ASHG 09 KPCA ASHG 12 KPCA ASHG 18 KMTA ASHG 24 KMTA RSG 07 KPCA RSG 09 KPCA RSG 12 KPCA RSG 18 KMTA RSG 24 KMTA NOTE: RF/Safety/EMC Certification In order to sell a wireless LAN adapter, it is necessary to satisfy these certification. Please do not sell outside the available area. 9 Copyright 2018 FUJITSU GENERAL LIMITED

Specifications System Configuration Aircon PCB （Router） Aircon Ayla APP : FGLAir No change from current. * The Cloud system uses the platform of Ayla networks. 11 Copyright 2018 FUJITSU GENERAL LIMITED

Specifications ■ Models We developed 4 types of adapters, with the difference between connecting cloud servers. Model name Connection server Location Available area UTY-TFSXF 1 US US, Canada, Middle east UTY-TFSXF 2 Euro UTY-TFSXF 3 US Australia, New Zealand, Asia UTY-TFSXF 4 China ■ Adapter specifications 　・　IEEE 802. 11 b/g/n (2. 4 GHz) 　　 * No change from current. 12 Copyright 2018 FUJITSU GENERAL LIMITED

Specification (W-LAN LED) * Lamp color is Orange ■　 Display during the pairing process Off ----------------- No Wirelss LAN connection Blinking (On/Off=１ sec/1 sec) --- Starts Manual mode or button mode Blinking (On/Off=2 sec/0. 5 sec) --- Connection of router and adapter completed On ----------------- Registration completed by mobile app ■　 Status of error Blinking (On/Off=2 sec/0. 5 sec) --- Communication error between the router and the adapter 13 Copyright 2018 FUJITSU GENERAL LIMITED

Setting method ■ Perform pairing using the LED on the air conditioner and IR remote controller. Add 3 function for wireless LAN settings to the remote controller. (1) To Start Manual mode / Button mode (2) Adapter-Initialization (3) Wireless LAN communication On / Off * There are two types of remote controller now. For KM series 15 For KP series Copyright 2018 FUJITSU GENERAL LIMITED

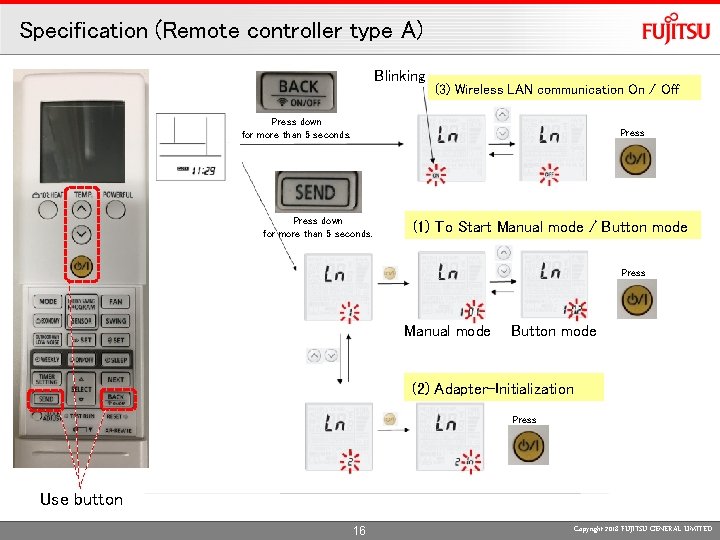

Specification (Remote controller type A) Blinking (3) Wireless LAN communication On / Off Press down for more than 5 seconds. (1) To Start Manual mode / Button mode Press Manual mode Button mode (2) Adapter-Initialization Press Use button 16 Copyright 2018 FUJITSU GENERAL LIMITED

Specification (Remote controller type B) (3) Wireless LAN communication On / Off Press down for more than 5 seconds. (1) To Start Manual mode / Button model Press Manual mode Button mode (2) Adapter-Initialization Press Use button 17 Copyright 2018 FUJITSU GENERAL LIMITED
