NEW Pro 6410 Neon Color Printer Key Features

NEW Pro 6410 Neon. Color Printer ● ● ● Key Features Target Audience & Applications Specifications Driver Overview Understanding White Toner (WT) and Neon Color Questions? © Copyright 2016 Oki Data Americas, Inc. 1 1

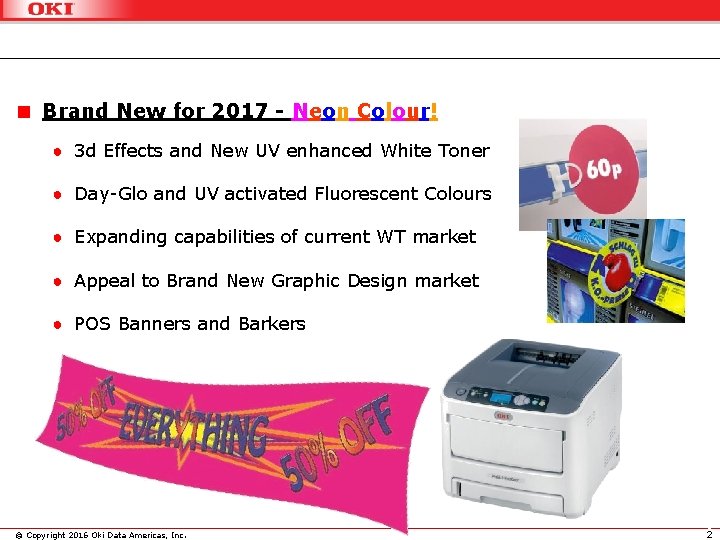

Brand New for 2017 - Neon Colour! ● 3 d Effects and New UV enhanced White Toner ● Day-Glo and UV activated Fluorescent Colours ● Expanding capabilities of current WT market ● Appeal to Brand New Graphic Design market ● POS Banners and Barkers © Copyright 2016 Oki Data Americas, Inc. 2 2

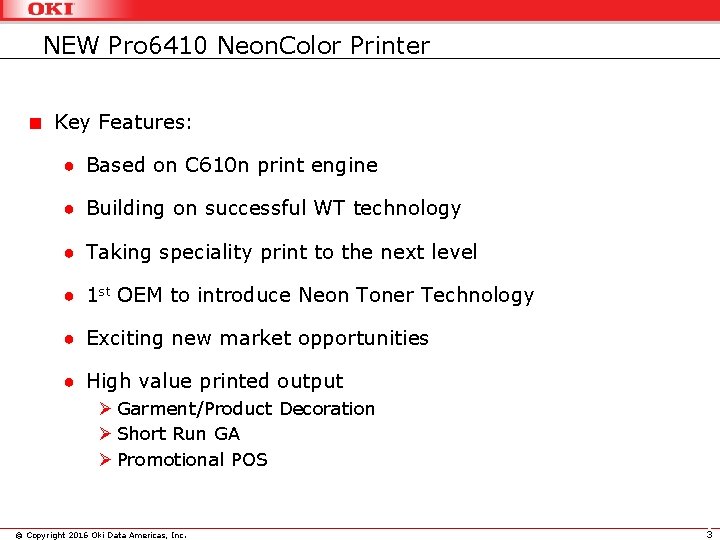

NEW Pro 6410 Neon. Color Printer Key Features: ● Based on C 610 n print engine ● Building on successful WT technology ● Taking speciality print to the next level ● 1 st OEM to introduce Neon Toner Technology ● Exciting new market opportunities ● High value printed output Ø Garment/Product Decoration Ø Short Run GA Ø Promotional POS © Copyright 2016 Oki Data Americas, Inc. 3 3

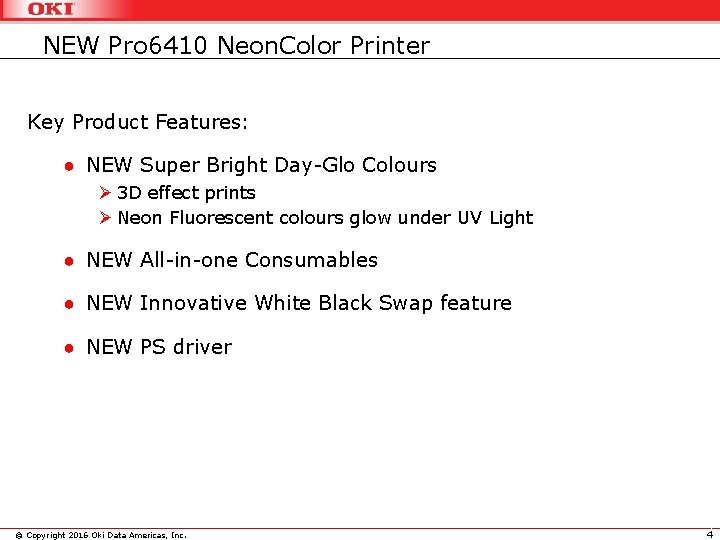

NEW Pro 6410 Neon. Color Printer Key Product Features: ● NEW Super Bright Day-Glo Colours Ø 3 D effect prints Ø Neon Fluorescent colours glow under UV Light ● NEW All-in-one Consumables ● NEW Innovative White Black Swap feature ● NEW PS driver © Copyright 2016 Oki Data Americas, Inc. 4 4

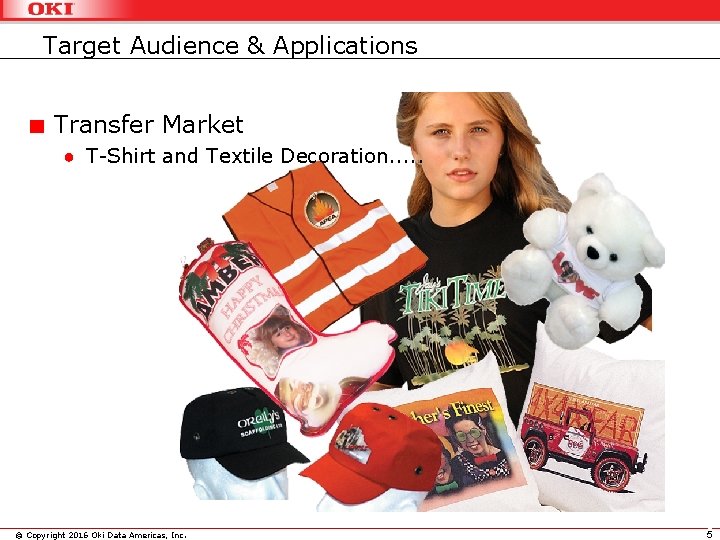

Target Audience & Applications Transfer Market ● T-Shirt and Textile Decoration. . . © Copyright 2016 Oki Data Americas, Inc. 5 5

Target Audience & Applications Transfer Market ● Leather and Fashion Decoration © Copyright 2016 Oki Data Americas, Inc. 6 6

Target Audience & Applications Transfer Market ● Body Art © Copyright 2016 Oki Data Americas, Inc. 7 7

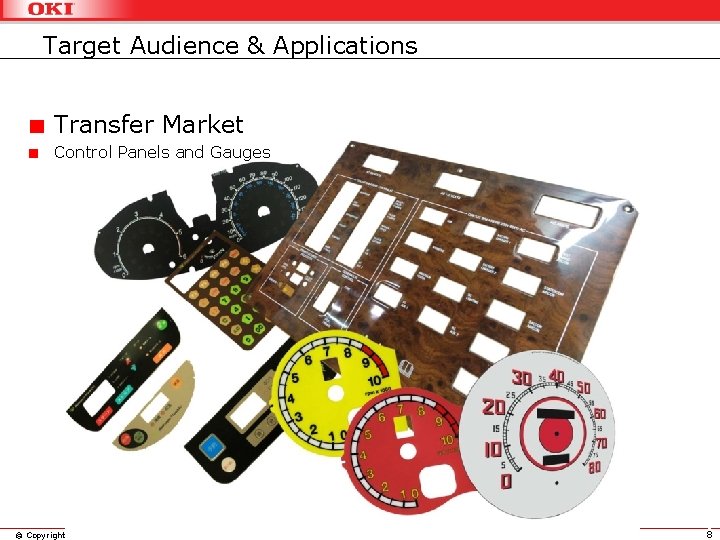

Target Audience & Applications Transfer Market Control Panels and Gauges © Copyright 2016 Oki Data Americas, Inc. 8 8

Target Audience & Applications Transfer Market ● Water Slide Decals - Model Making, Candles – Religious and Celebration, Soap – Hotels and Novelty Gifts © Copyright 2016 Oki Data Americas, Inc. 9 9

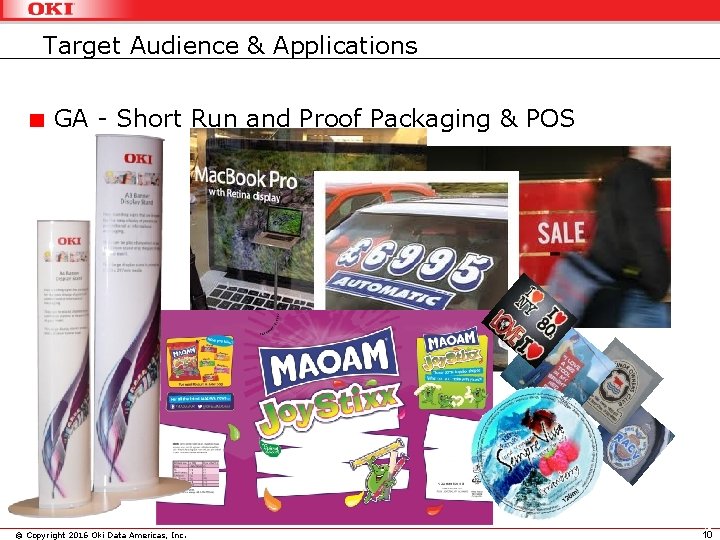

Target Audience & Applications GA - Short Run and Proof Packaging & POS 10 © Copyright 2016 Oki Data Americas, Inc. 10 10

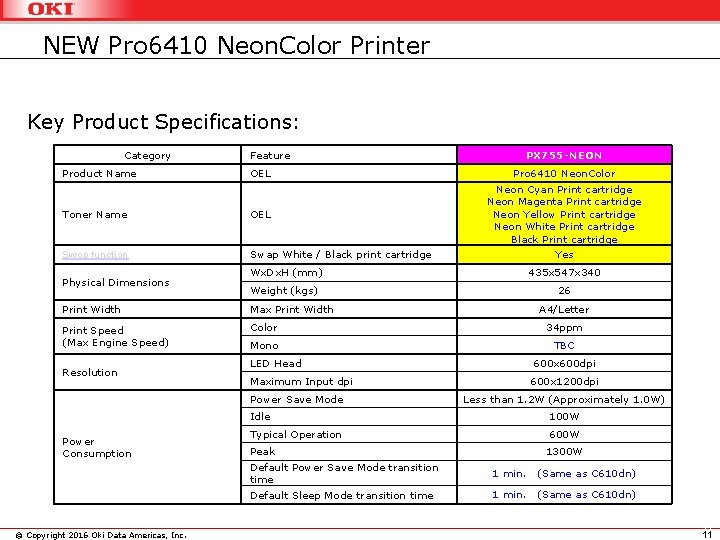

NEW Pro 6410 Neon. Color Printer Key Product Specifications: Category Feature Product Name OEL Toner Name OEL Swop function Swap White / Black print cartridge Physical Dimensions PX 755 -NEON Pro 6410 Neon. Color Neon Cyan Print cartridge Neon Magenta Print cartridge Neon Yellow Print cartridge Neon White Print cartridge Black Print cartridge Yes Wx. Dx. H (mm) 435 x 547 x 340 Weight (kgs) 26 Print Width Max Print Width Print Speed (Max Engine Speed) Color 34 ppm Mono TBC Resolution LED Head © Copyright 2016 Oki Data Americas, Inc. 600 x 600 dpi Maximum Input dpi Power Save Mode Power Consumption A 4/Letter 600 x 1200 dpi Less than 1. 2 W (Approximately 1. 0 W) Idle 100 W Typical Operation 600 W Peak Default Power Save Mode transition time Default Sleep Mode transition time 1300 W 1 min. (Same as C 610 dn) 11 11

NEW Pro 6410 Neon. Color Printer Key Product Specifications Cont. Category Feature Printer Life 420 K or 5 years Toner & ID Combined type Starter Toner Life Toner life - CMY Toner life - KW Fuser Life 30 K 5 Print cartridges Compatibility (Toner) No compatibility against C 610/C 711 WT Compatibility (Fuser) compatibility between C 610. Compatibility (Belt) compatibility between C 610. Operating Noise - Sound Pressure Standby Noise - Sound Power Standby Noise - Sound Pressure Power Save Mode Noise © Copyright 2016 Oki Data Americas, Inc. K 5%: 6 K W 5%: 4 K 30 K Operating Noise - Sound Power Acoustic Noise All model CMY 5%: 3. 5 K 3 K W 5%: 2. 3 K 2 K CMY 5%: 6 K Transfer Belt Life Consumables Count Compatibility PX 755 -NEON 67 d. B or less 54 d. B(A) or less (Without option units) 50 d. B or less (Since 1 min. after print end) 37 d. B(A) or less (Since 1 min. after print end) Inaudible 12 12

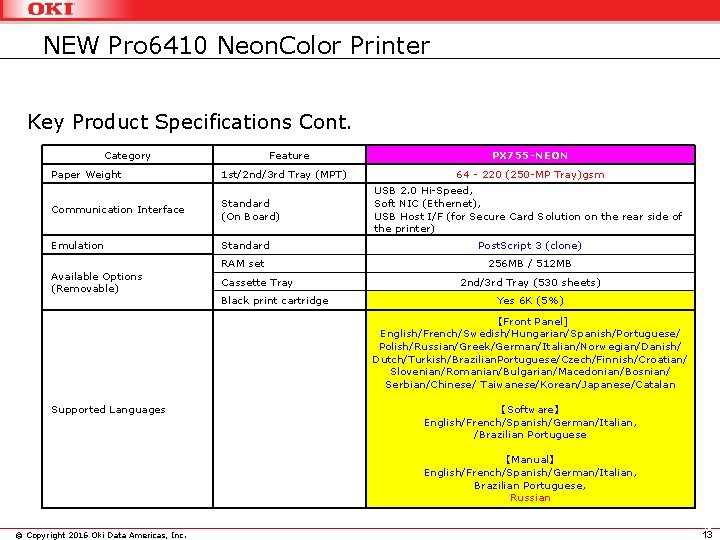

NEW Pro 6410 Neon. Color Printer Key Product Specifications Cont. Category Feature PX 755 -NEON Paper Weight 1 st/2 nd/3 rd Tray (MPT) Communication Interface Standard (On Board) Emulation Standard Post. Script 3 (clone) RAM set 256 MB / 512 MB Available Options (Removable) Cassette Tray Black print cartridge 64 - 220 (250 -MP Tray)gsm USB 2. 0 Hi-Speed, Soft NIC (Ethernet), USB Host I/F (for Secure Card Solution on the rear side of the printer) 2 nd/3 rd Tray (530 sheets) Yes 6 K (5%) 【Front Panel] English/French/Swedish/Hungarian/Spanish/Portuguese/ Polish/Russian/Greek/German/Italian/Norwegian/Danish/ Dutch/Turkish/Brazilian. Portuguese/Czech/Finnish/Croatian/ Slovenian/Romanian/Bulgarian/Macedonian/Bosnian/ Serbian/Chinese/ Taiwanese/Korean/Japanese/Catalan Supported Languages 【Software】 English/French/Spanish/German/Italian, /Brazilian Portuguese 【Manual】 English/French/Spanish/German/Italian, Brazilian Portuguese, Russian © Copyright 2016 Oki Data Americas, Inc. 13 13

NEW Pro 6410 Neon. Color Printer Driver Features ● Differences between WT and Neon Drivers “Colour Tab” © Copyright 2016 Oki Data Americas, Inc. 14 14

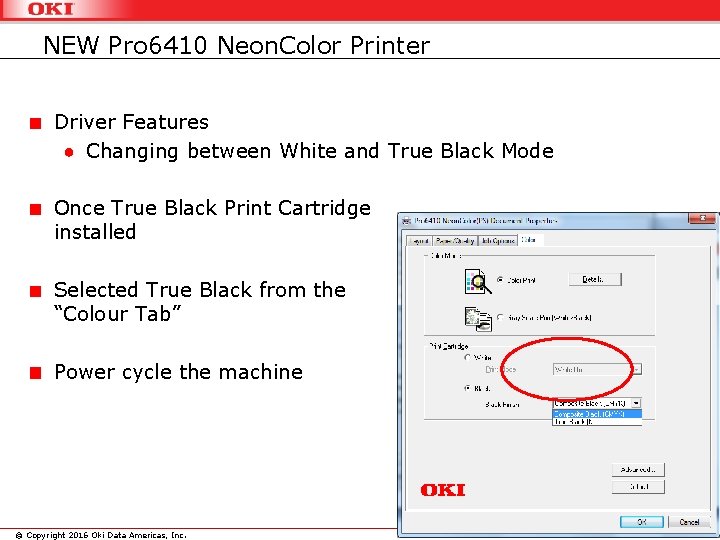

NEW Pro 6410 Neon. Color Printer Driver Features ● Changing between White and True Black Mode Once True Black Print Cartridge installed Selected True Black from the “Colour Tab” Power cycle the machine © Copyright 2016 Oki Data Americas, Inc. 15 15

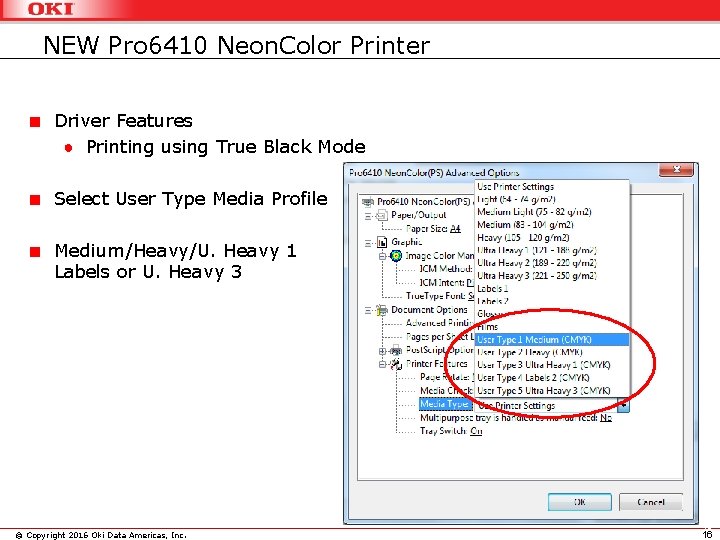

NEW Pro 6410 Neon. Color Printer Driver Features ● Printing using True Black Mode Select User Type Media Profile Medium/Heavy/U. Heavy 1 Labels or U. Heavy 3 © Copyright 2016 Oki Data Americas, Inc. 16 16

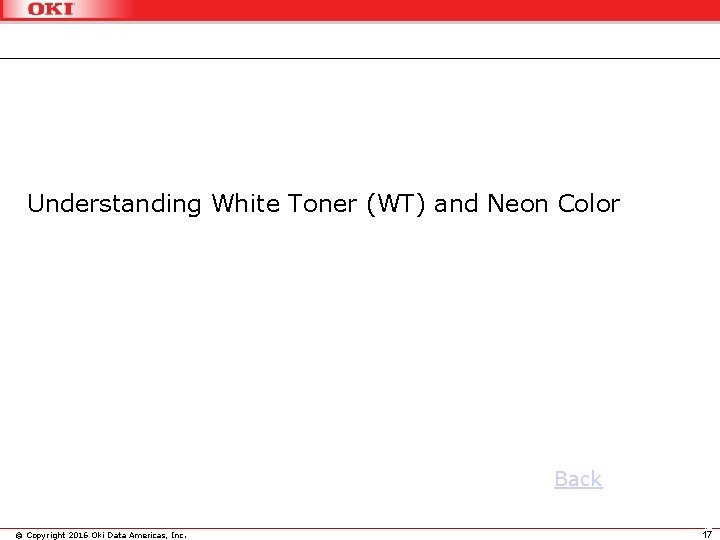

Understanding White Toner (WT) and Neon Color Back © Copyright 2016 Oki Data Americas, Inc. 17 17

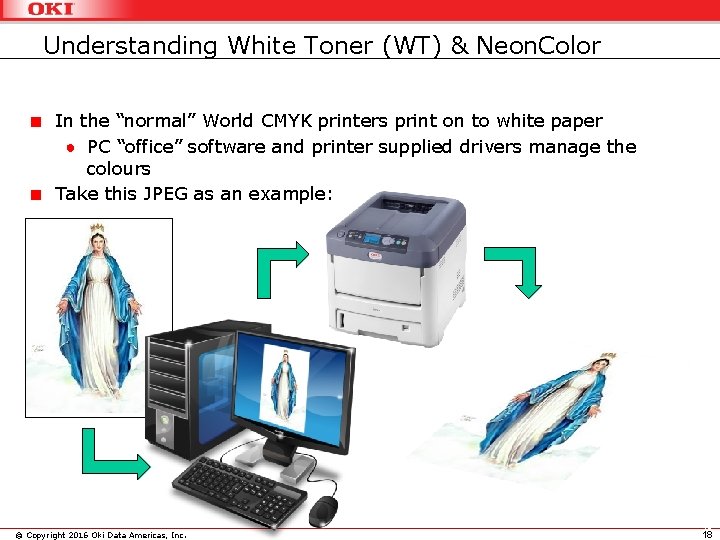

Understanding White Toner (WT) & Neon. Color In the “normal” World CMYK printers print on to white paper ● PC “office” software and printer supplied drivers manage the colours Take this JPEG as an example: © Copyright 2016 Oki Data Americas, Inc. 18 18

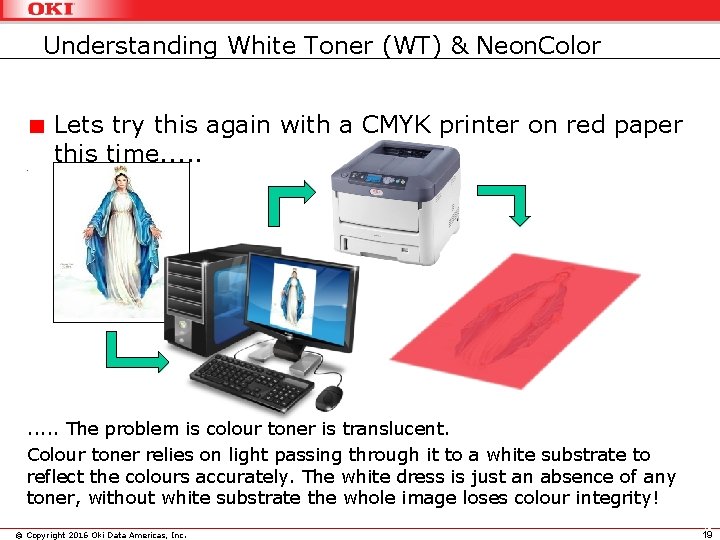

Understanding White Toner (WT) & Neon. Color Lets try this again with a CMYK printer on red paper this time. . . I I. . . The problem is colour toner is translucent. Colour toner relies on light passing through it to a white substrate to reflect the colours accurately. The white dress is just an absence of any toner, without white substrate the whole image loses colour integrity! © Copyright 2016 Oki Data Americas, Inc. 19 19

Understanding White Toner (WT) & Neon. Color Now we try this JPEG* using a Pro 9542 white toner printer ideal for printing coloured paper. . . because Pro 9542 prints white under the image *N. B. JPEG image format doesn’t support transparency produces white background colours are represented accurately Postscript driver provides basic control of white channel. N. B. Pro “Neon & WT” printers are white over so the actual image is under the white toner (ideal for transfers or transparent media) © Copyright 2016 Oki Data Americas, Inc. 20 20

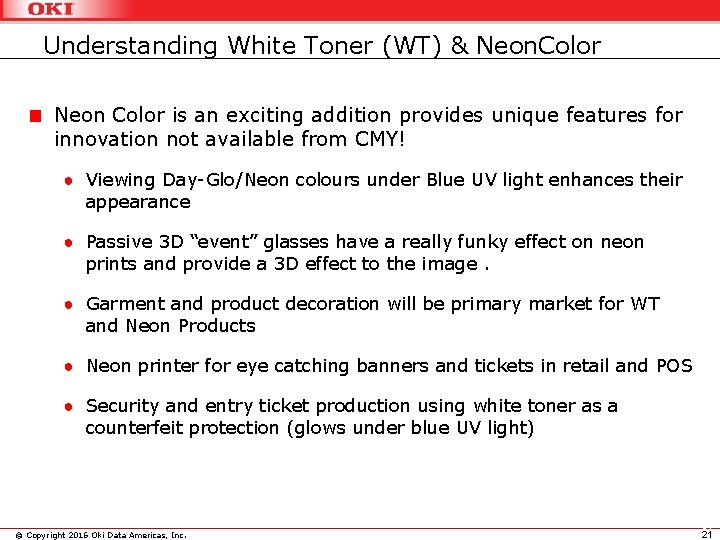

Understanding White Toner (WT) & Neon. Color Neon Color is an exciting addition provides unique features for innovation not available from CMY! ● Viewing Day-Glo/Neon colours under Blue UV light enhances their appearance ● Passive 3 D “event” glasses have a really funky effect on neon prints and provide a 3 D effect to the image. ● Garment and product decoration will be primary market for WT and Neon Products ● Neon printer for eye catching banners and tickets in retail and POS ● Security and entry ticket production using white toner as a counterfeit protection (glows under blue UV light) © Copyright 2016 Oki Data Americas, Inc. 21 21

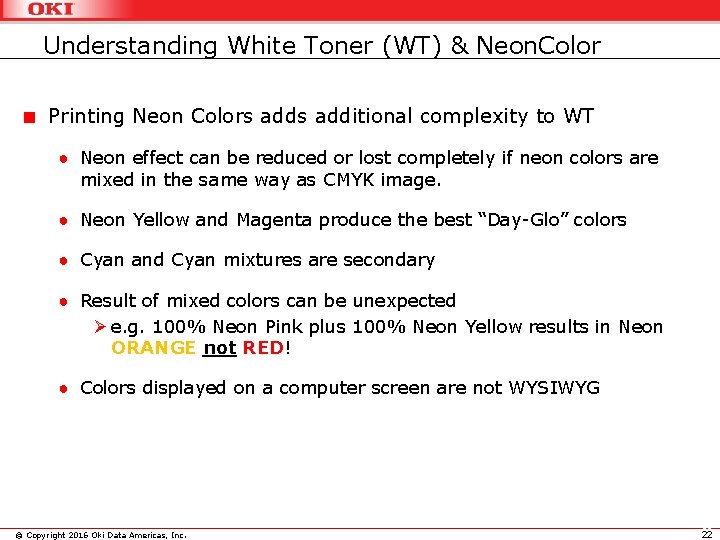

Understanding White Toner (WT) & Neon. Color Printing Neon Colors additional complexity to WT ● Neon effect can be reduced or lost completely if neon colors are mixed in the same way as CMYK image. ● Neon Yellow and Magenta produce the best “Day-Glo” colors ● Cyan and Cyan mixtures are secondary ● Result of mixed colors can be unexpected Ø e. g. 100% Neon Pink plus 100% Neon Yellow results in Neon ORANGE not RED! ● Colors displayed on a computer screen are not WYSIWYG © Copyright 2016 Oki Data Americas, Inc. 22 22

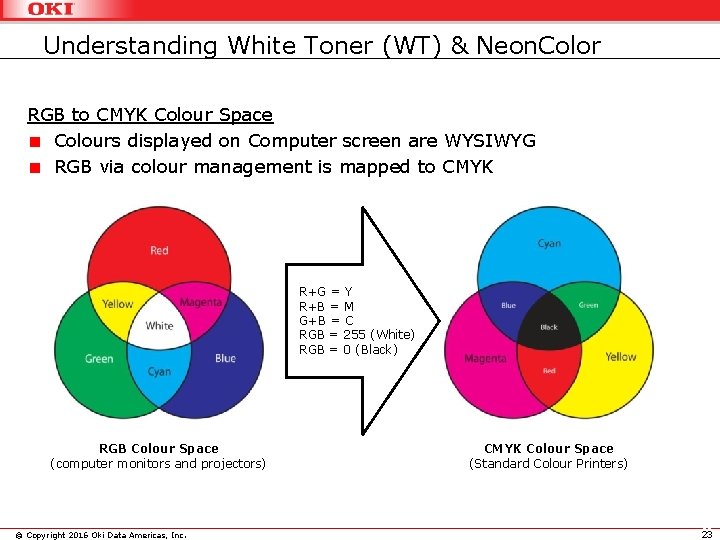

Understanding White Toner (WT) & Neon. Color RGB to CMYK Colour Space Colours displayed on Computer screen are WYSIWYG RGB via colour management is mapped to CMYK R+G = Y R+B = M G+B = C RGB = 255 (White) RGB = 0 (Black) RGB Colour Space (computer monitors and projectors) © Copyright 2016 Oki Data Americas, Inc. CMYK Colour Space (Standard Colour Printers) 23 23

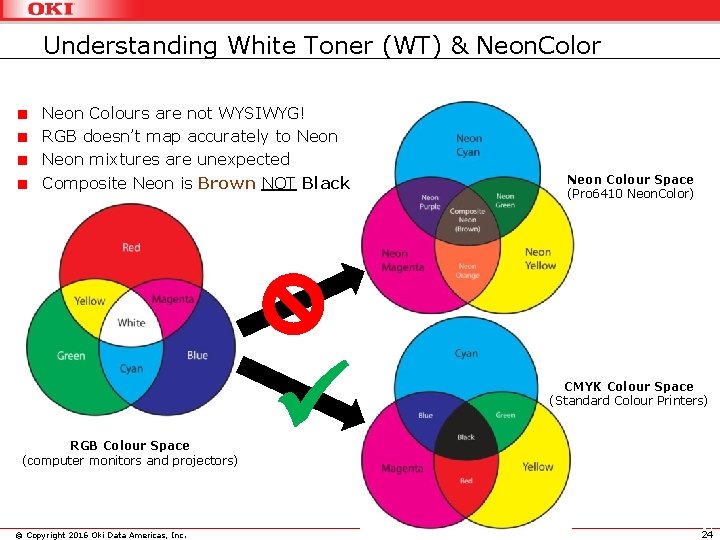

Understanding White Toner (WT) & Neon. Color Neon Colours are not WYSIWYG! RGB doesn’t map accurately to Neon mixtures are unexpected Composite Neon is Brown NOT Black RGB Colour Space (computer monitors and projectors) © Copyright 2016 Oki Data Americas, Inc. Neon Colour Space (Pro 6410 Neon. Color) CMYK Colour Space (Standard Colour Printers) 24 24

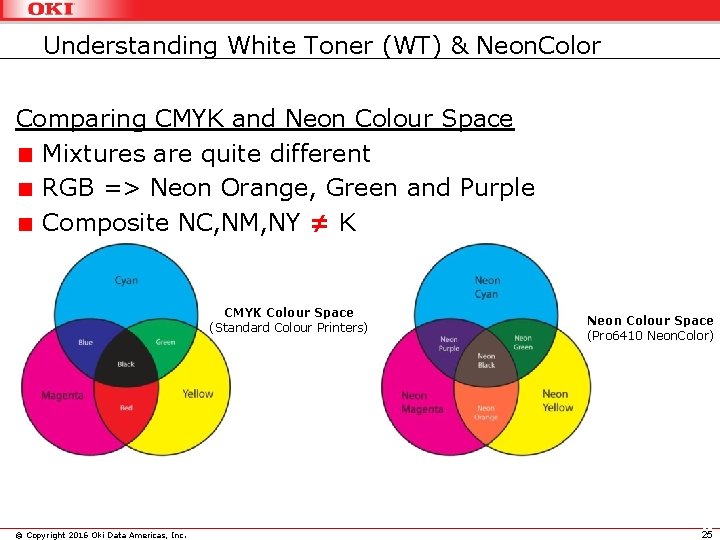

Understanding White Toner (WT) & Neon. Color Comparing CMYK and Neon Colour Space Mixtures are quite different RGB => Neon Orange, Green and Purple Composite NC, NM, NY ≠ K CMYK Colour Space (Standard Colour Printers) © Copyright 2016 Oki Data Americas, Inc. Neon Colour Space (Pro 6410 Neon. Color) 25 25

Questions? ? ? © Copyright 2016 Oki Data Americas, Inc. 26 26
