New Morehead State Bowling Facility IET 499 C

New Morehead State Bowling Facility IET 499 C, Fall 2012 Stephen Glossner

Why the need for a new bowling facility? �The current bowling facility is § § § Too small No restrooms Outdated Font desk area is cramped No space for maintenance/repairs

Site Work �Site location �Site survey �Cut and fill analysis

Site location

Photo of site location 1 of 2 Site Pictures Photo of site location 2 of 2

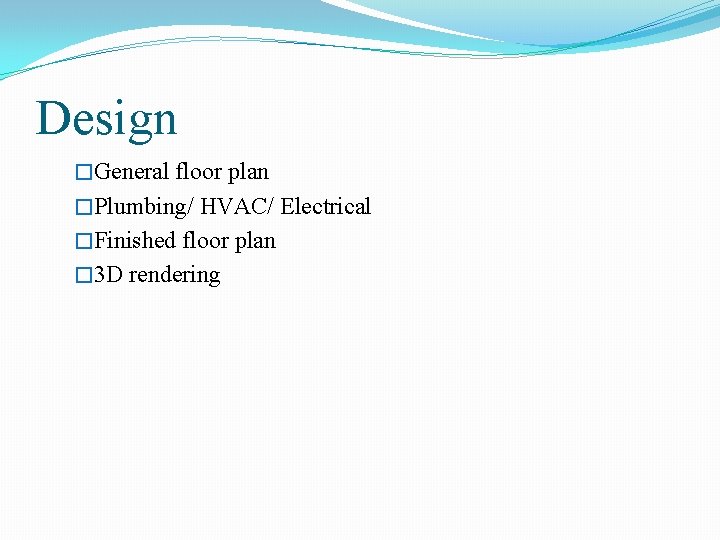

Design �General floor plan �Plumbing/ HVAC/ Electrical �Finished floor plan � 3 D rendering

36’ Current Floor Plan 4’ Total square feet = 3, 640 sq. /ft. Dimensions = 96’ X 36’ 68’ 96’ 15’ 13’ 28’ 23’ 8’

10’ 7” New Floor Plan Total square feet = 16, 172 sq. /ft. Dimensions = 151’ 6” X 106’ 9” 15’ 151’ 6” 33’ 20’ 106’ 9”

Comparison Current Floor Plan �Total square feet = 3, 640 sq. /ft. �Available standing room = 468 sq. /ft. �Area behind front desk = 184 sq. /ft. �Maintenance area = 144 sq. /ft. New Floor Plan �Total square feet = 16, 172 sq. /ft. �Available standing room = 5618 sq. /ft. �Area behind front desk = 380 sq. /ft. Maintenance area = 1121 sq. /ft.

Plumbing Plan Men’s restroom -handicapped stall -three urinals -double sink Woman’s restroom -handicapped stall -two additional stalls -double sink

HVAC Plan • Forced centralized air system with outside unit mounted on the roof • Fourteen, ceiling hung, air vents

Electrical Plan Electrical Key Electrical outlet Recessed can light Fluorescent tube light Single switch

Finished Floor Plan

Current Bowling Facility Pictures

Area behind front desk Area behind pin-setters

New Bowling Facility Design

Cost/ Schedule �Material and Labor estimate �Cost analysis �Project schedule

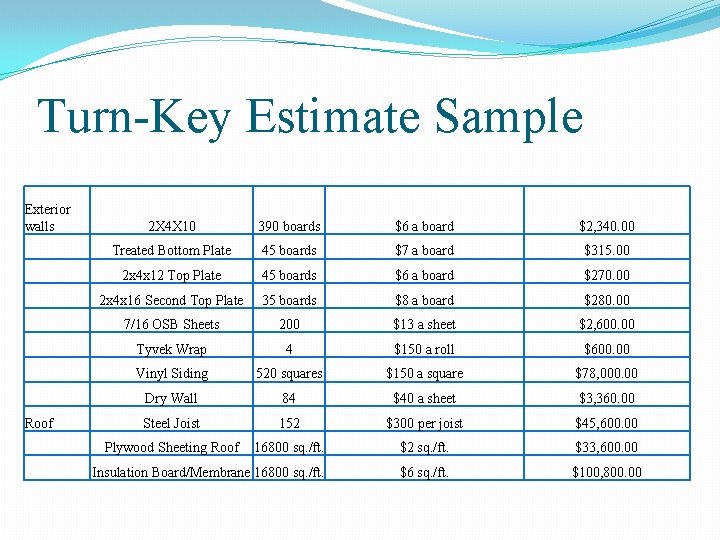

Turn-Key Estimate Sample Exterior walls Roof 2 X 4 X 10 390 boards $6 a board $2, 340. 00 Treated Bottom Plate 45 boards $7 a board $315. 00 2 x 4 x 12 Top Plate 45 boards $6 a board $270. 00 2 x 4 x 16 Second Top Plate 35 boards $8 a board $280. 00 7/16 OSB Sheets 200 $13 a sheet $2, 600. 00 Tyvek Wrap 4 $150 a roll $600. 00 Vinyl Siding 520 squares $150 a square $78, 000. 00 Dry Wall 84 $40 a sheet $3, 360. 00 Steel Joist 152 $300 per joist $45, 600. 00 Plywood Sheeting Roof 16800 sq. /ft. $2 sq. /ft. $33, 600. 00 Insulation Board/Membrane 16800 sq. /ft. $6 sq. /ft. $100, 800. 00

Overview of Estimate Lot/Site Work $750, 000. 00 Foundation $102, 875. 00 Exterior $133, 365. 00 Roof $134, 400. 00 Slippage 5% Interior $347, 682. 00 Overhead 15% Plumbing $8, 575. 00 Profit 10% HVAC $51, 830. 00 Total project cost $2, 705, 289. 60 Electrical $58, 800. 00 Bowling Equipment $464, 600. 00 Other Equipment $28, 865. 00 Material/Labor Cost $2, 080, 992

Cost Analysis �Expected annual income for new bowling facility = $157, 800 �It would take just over 17 years to cover the initial cost of the project.

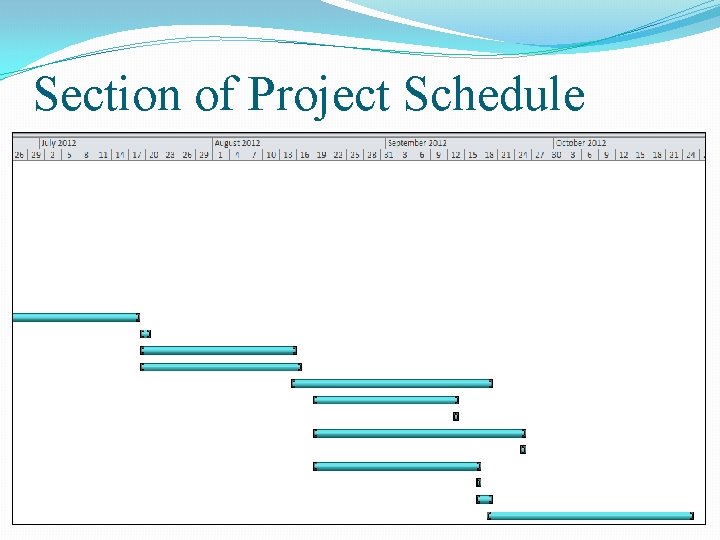

Section of Project Schedule

Project Schedule: 296 working days Start Date Half Way Date End Date May/1/2012 December/7/2012 June/18/202

Conclusion A new bowling facility would benefit the university, the bowling team and the city of Morehead �The university �Increased revenue �greater appeal for potential students �The bowling team �Bigger, better facility �More members can join �Updated machines/equipment �The city of Morehead �Something new and exciting �New place to take family
