New Model Evaluation Report Model KWP 193 Brand

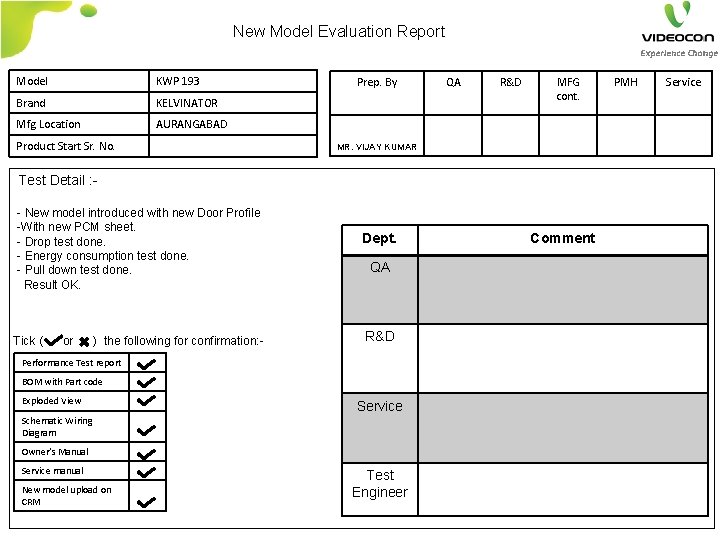

New Model Evaluation Report Model KWP 193 Brand KELVINATOR Mfg Location AURANGABAD Product Start Sr. No. Prep. By QA R&D MFG cont. MR. VIJAY KUMAR Test Detail : - New model introduced with new Door Profile -With new PCM sheet. - Drop test done. - Energy consumption test done. - Pull down test done. Result OK. Tick ( or ) the following for confirmation: - Dept. QA R&D Performance Test report BOM with Part code Exploded View Service Schematic Wiring Diagram Owner’s Manual Service manual New model upload on CRM Test Engineer Comment PMH Service

New Model : - Feature List OLD MODEL NEW MODEL Features : • Transparent Accessories • Wire Shelves • 3 Star Old Model Name KHE 193 New Model Name : KWP 193 New Model Sap Code : KWP 193 XXRDA • Capacity kg • Product • Input wattage • Product Dim L x W x H • Packing Dim L x W x H • Weight kg • Voltage • Colour 190 L Direct cool Refrigerator 115 524 x 650 x 1137 570 x 670 x 1205 Net 33 , Gross 37 220 -240 V/50 Hz Blue plant

New Model – Change part list S. r. No. Object ID Object description Quantity 1 1200034185 CABINET, FOAMED, S 192, DARK GREY 1 2 1200033517 ASSY, DOOR, FOAMED, KWP 194, SILVER HAIR LINE 1 3 1100033142 COVER, HINGE, TOP, S 192, DARK GREY 1 4 1100052208 SUPPORT, GPPS, UTILITY, KWP 194 2 5 1100052209 SUPPORT, GPPS, BOTTLE, KWP 194 2 6 1200027391 ASSY, DOOR, EVAP, WELDED, GPPS, KHL 194 1 7 1200027389 TRAY, GPPS, CHILL, WITH INSULA, KHL 194 1 8 1100043630 CRISPER, GPPS, KHL 194 1 9 1100052939 STICKER, PVC COATED, STAR RATING KWP 193 1 10 1100000493 TRAY, GPPS, EGG 6, S 215 1

New Model : - PACKING BOX FRONT SIDE

New Model : - EXPLODED VIEWS SL NO SAP CODE DESCRIPTION UNIT 1 1200035014 ASSY, DOOR, FOAMED, KWP 193, BLACK ONE POINT PC 1 1200035012 ASSY, DOOR, FOAMED, KWP 193, LIGHT BLUE POINT PC 1 1200035011 ASSY, DOOR, FOAMED, KWP 193, MAROON ONE POINT PC 1 1200033517 ASSY, DOOR, FOAMED, KWP 194, SILVER HAIR LINE PC 1 1200034885 ASSY, DOOR, FOAMED, KWP 194, SILVER LOTUS PC 1 1200035013 ASSY, DOOR, FOAMED, KWP 193, SILVER ONE POINT PC 2 1100000493 TRAY, GPPS, EGG 6, S 215 PC 3 1100052208 SUPPORT, GPPS, UTILITY, KWP 194 PC 4 1100052209 SUPPORT, GPPS, BOTTLE, KWP 194 PC 5 1100043799 GASKET, DOOR, VAE 173, LIGHT GREY PC 6 1100053161 HANDLE, BASE, KWE 193, DARK GREY PC 6 1100054592 HANDLE, BASE, KWE 193, LIGHT BLUE PC 6 1100052196 HANDLE, BASE, KWE 193, BURGUNDY RED PC 6 1100052199 HANDLE, BASE, KWE 193, SILKY GREY PC 7 1100052205 HANDLE , INSERT, KWP 194, CHROME PLATED PC 8 1100053165 HANDLE, DECO, KWE 193, DARK GREY PC 8 1100054593 HANDLE, DECO, KWE 193, LIGHT BLUE PC 8 1100052200 HANDLE, DECO, KWE 193, BURGUNDY RED PC 8 1100052203 HANDLE, DECO, KWE 193, SILKY GREY PC

New Model : - EXPLODED VIEWS SL NO SAP CODE DESCRIPTION UNIT 1 1100033142 COVER, HINGE, TOP, S 192, DARK GREY PC 1 1100052903 COVER, HINGE, TOP, S 192, LIGHT BLUE PC 1 1100029225 COVER, HINGE, TOP, S 192, BURGUNDY RED PC 1 1100033555 COVER, HINGE, TOP, S 192, SILKY GREY PC 2 1100029221 HINGE, TOP, S 192 PC 3 1100000454 SWITCH, DOOR S 169 PC 4 1100041111 HINGE, BOTTOM, WITH ADJUSTER BOLT, S 192 PC 5 1100031414 BOLT, ADJUSTER, 40 MM, GREY PC 6 1100000506 TRAY, ICE, COMMON PC 7 1100029239 PANEL, ROLL BOND, S 192, PAINTED PC 8 1100029240 THERMOSTAT, S 192 PC 9 1100029242 SOCKET, ROOM LAMP, S 192 PC 10 1100000298 LAMP 10/12 W - 240 V PC 11 1100029227 DIAL, THERMOSTAT, S 192 PC 12 1100031517 BUTTON, PUSH, DEFROST, S 192, APPLIANCES BLUE PC 13 1100031591 TRIM, EVAPORATOR, S 192 PC 14 1100043633 DOOR, EVAPORATOR, GPPS, KHL 194 PC 15 1200027389 TRAY, GPPS, CHILL, WITH INSULA, KHL 194 PC 16 1100000399 SHELF NET W/O PROJ. S 173 DLX/S 175/S 215 PC 17 1100000159 CRISPER, GLASS, BIG PC 18 1100043630 CRISPER, GPPS, KHL 194 PC

New Model : - EXPLODED VIEWS SL NO SAP CODE DESCRIPTION UNIT 1 1100000127 CONDENSER, WITHOUT OIL COOLER, S 169 PC 2 1100000199 DRYER, XH-, 7, PP (7. 5 GMS) PC 3 1100000086 PC 4 1100016372 COVER, PROTECTOR, NECCHI PC 5 1100040657 MAINS CORD, FOR KULTHRON COMPRESSOR PC 6 1100045467 COMPRESSOR, HHETR, 5 TV PC 7 1100045854 OLP, 166 RFB YY 53 PC 8 1100045252 PTC, START RELAY, 8 EA 19 C 3 PC CANOPY, COMPRESSOR, S 169

New Model : - WIRING DIAGRAM

Model Test report

Format No. : PRODUCT TEST REPORT Rev. No. : 00 Rev. Date: Event MP Duration Tested by Swapnil Area Test Name Startability Test 43°C Report No. Modification Ref. 190 Lts 12. 09. 2009 to 12. 09 A/B Page : 1 of 6 Model Ref. 190 Lts J U D G E OK

Format No. : PRODUCT TEST REPORT Rev. No. : 00 Rev. Date: Event MP Duration Tested by Swapnil Area Test Name Pull Down Test 43°C Report No. Modification Ref. 190 Lts 13. 09. 2009 to 13. 0. 09 A/B Page : 1 of 3 Model Ref. 190 Lts J U D G E OK

Format No. : PRODUCT TEST REPORT Rev. No. : 00 Rev. Date: Event ES Duration Tested by Swapnil Area Test Name Pull Down Test 32°C Report No. Modification Ref. 190 Lts 13. 09. 2009 to 14. 09 A/C Page : 2 of 6 Model Ref. 190 Lts J U D G E OK

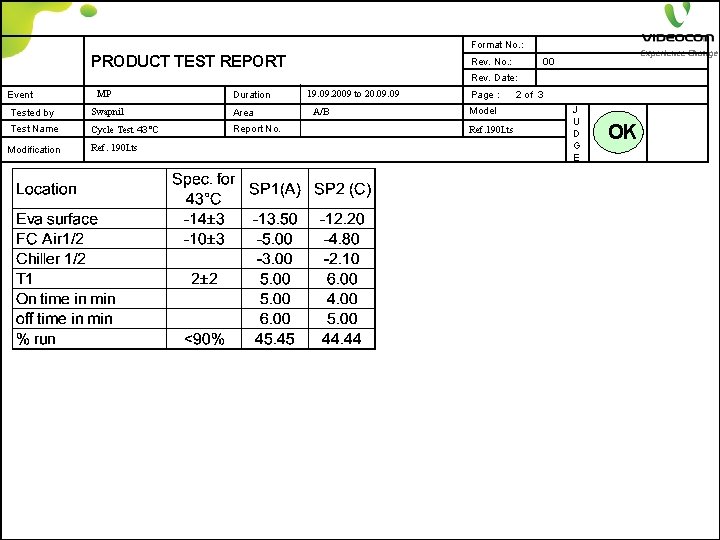

Format No. : PRODUCT TEST REPORT Rev. No. : 00 Rev. Date: Event MP Duration Tested by Swapnil Area Test Name Cycle Test 43°C Report No. Modification Ref. 190 Lts 19. 09. 2009 to 20. 09 A/B Page : 2 of 3 Model Ref. 190 Lts J U D G E OK

Format No. : PRODUCT TEST REPORT Rev. No. : 00 Rev. Date: Event MP Duration Tested by Swapnil Area Test Name Cycle Test 32°C Report No. Modification Ref. 190 Lts 17. 09. 2009 to 18. 09 A/B Page : 3 of 3 Model Ref. 190 Lts J U D G E OK

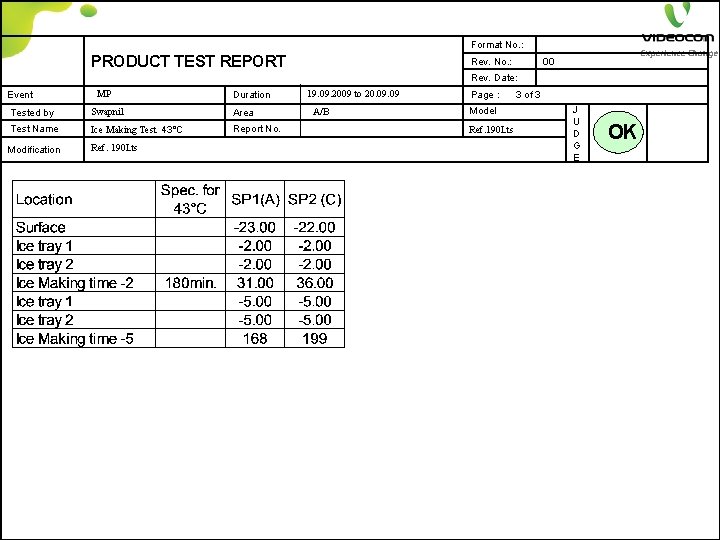

Format No. : PRODUCT TEST REPORT Rev. No. : 00 Rev. Date: Event MP Duration Tested by Swapnil Area Test Name Ice Making Test 43°C Report No. Modification Ref. 190 Lts 19. 09. 2009 to 20. 09 A/B Page : 3 of 3 Model Ref. 190 Lts J U D G E OK

Format No. : PRODUCT TEST REPORT Rev. No. : 00 Rev. Date: Event ES Duration Tested by Swapnil Area Test Name Door Open Close Test Report No. Modification Ref. 190 Lts 27. 11. 2009 to 30. 11. . 09 In OQA Page : 1 of 1 Model Ref. 190 Lts J U D G E OK Test Condition: 1. one liters 8 bottles in Ref. . door. 2. 10000 time Ref door open close
