NEW MEDICAL FACILITY BUILDING By Vincent Cannatella and

NEW MEDICAL FACILITY BUILDING By: Vincent Cannatella and Shelbi Remy Advisor: Edward Rode Instructor: Cris Koutsougeras ET 493 - Senior Design 1

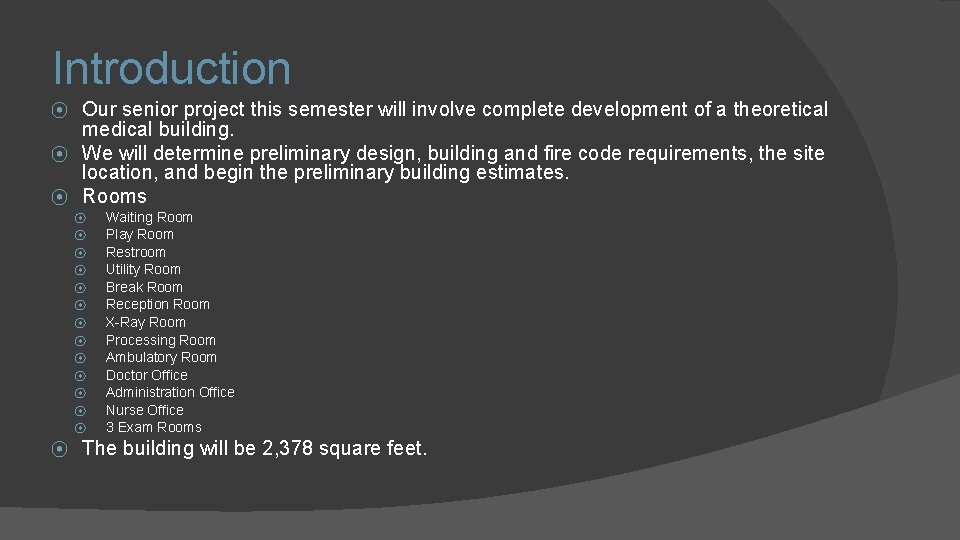

Introduction Our senior project this semester will involve complete development of a theoretical medical building. ⦿ We will determine preliminary design, building and fire code requirements, the site location, and begin the preliminary building estimates. ⦿ Rooms ⦿ ⦿ ⦿ ⦿ Waiting Room Play Room Restroom Utility Room Break Room Reception Room X-Ray Room Processing Room Ambulatory Room Doctor Office Administration Office Nurse Office 3 Exam Rooms The building will be 2, 378 square feet.

Preliminary Drawings ⦿ Floor Plan

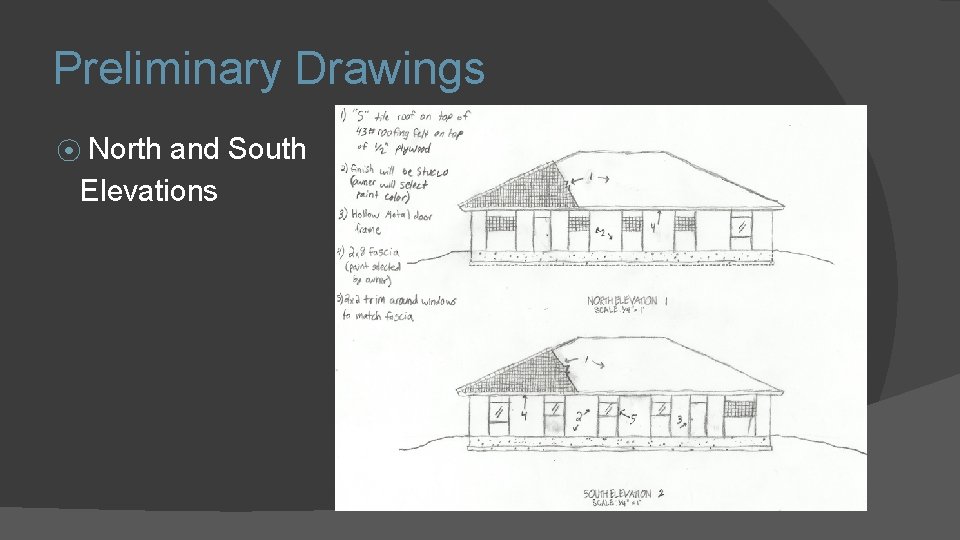

Preliminary Drawings ⦿ North and South Elevations

Preliminary Drawings ⦿ East and West Elevations

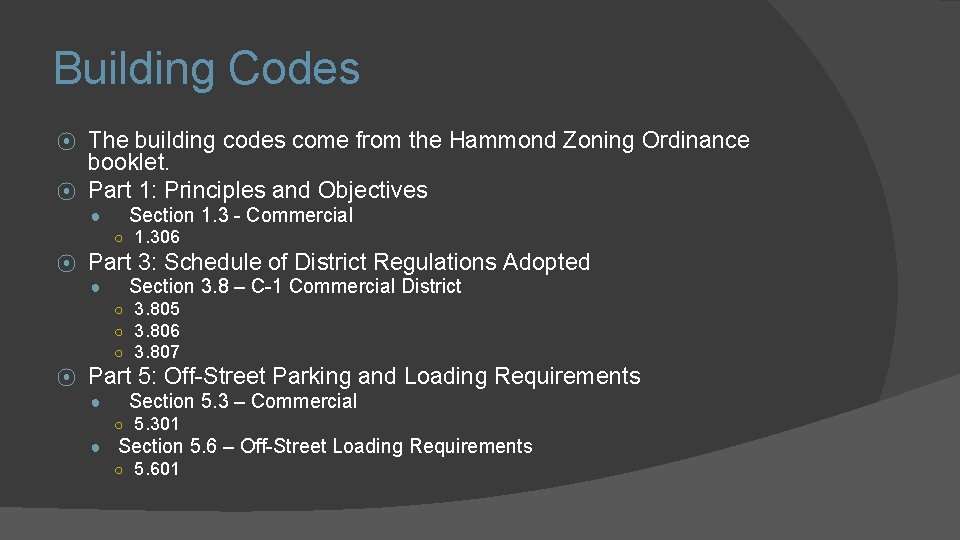

Building Codes The building codes come from the Hammond Zoning Ordinance booklet. ⦿ Part 1: Principles and Objectives ⦿ ● Section 1. 3 - Commercial ○ 1. 306 ⦿ Part 3: Schedule of District Regulations Adopted ● Section 3. 8 – C-1 Commercial District ○ 3. 805 ○ 3. 806 ○ 3. 807 ⦿ Part 5: Off-Street Parking and Loading Requirements ● Section 5. 3 – Commercial ○ 5. 301 ● Section 5. 6 – Off-Street Loading Requirements ○ 5. 601

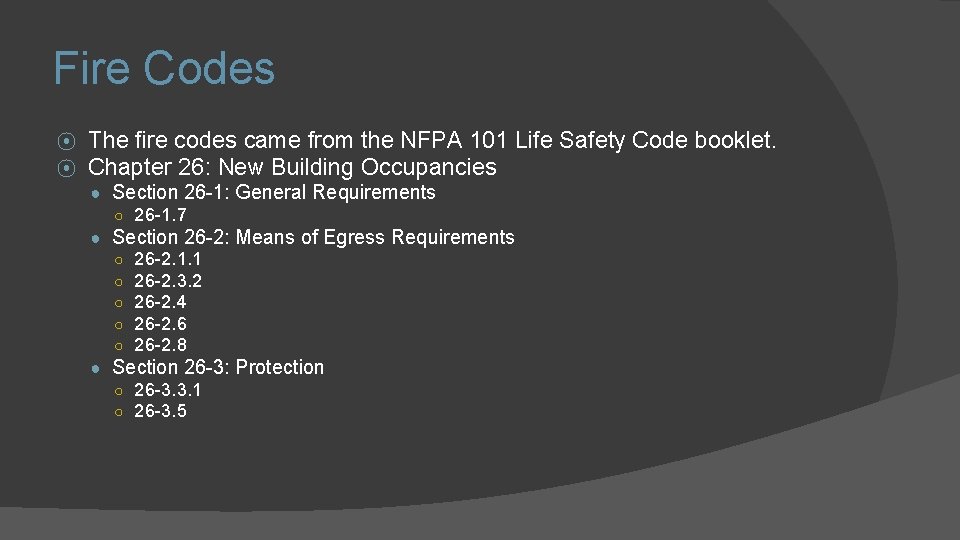

Fire Codes ⦿ ⦿ The fire codes came from the NFPA 101 Life Safety Code booklet. Chapter 26: New Building Occupancies ● Section 26 -1: General Requirements ○ 26 -1. 7 ● Section 26 -2: Means of Egress Requirements ○ 26 -2. 1. 1 ○ 26 -2. 3. 2 ○ 26 -2. 4 ○ 26 -2. 6 ○ 26 -2. 8 ● Section 26 -3: Protection ○ 26 -3. 3. 1 ○ 26 -3. 5

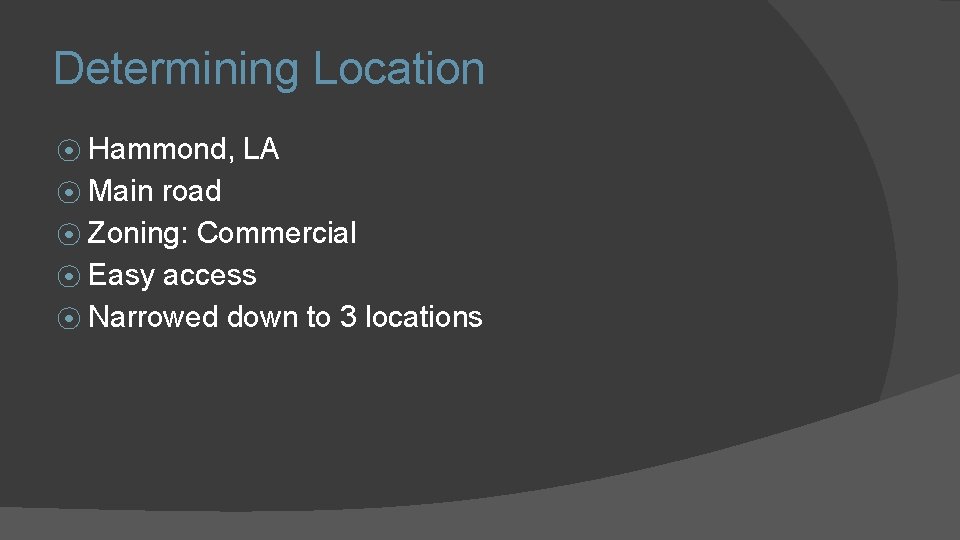

Determining Location ⦿ Hammond, ⦿ Main LA road ⦿ Zoning: Commercial ⦿ Easy access ⦿ Narrowed down to 3 locations

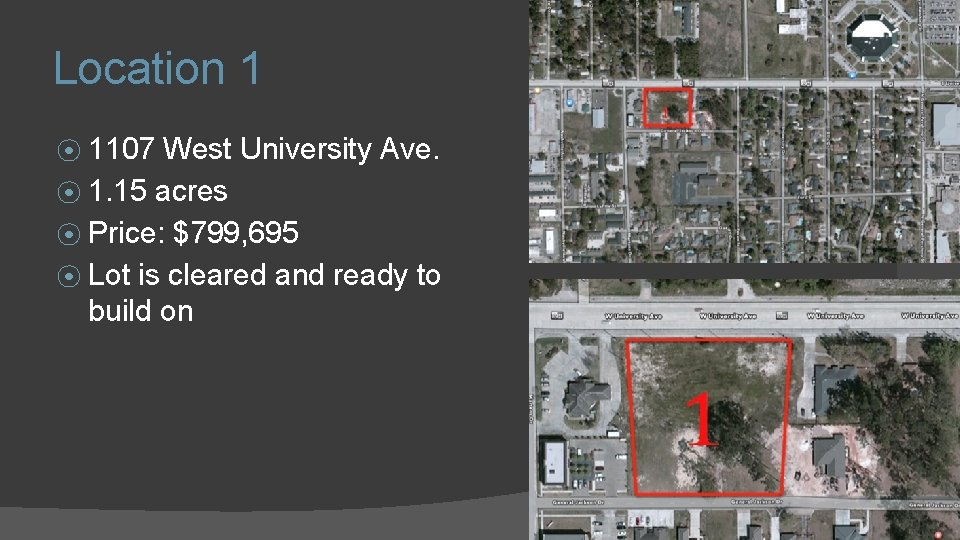

Location 1 ⦿ 1107 West University Ave. ⦿ 1. 15 acres ⦿ Price: $799, 695 ⦿ Lot is cleared and ready to build on

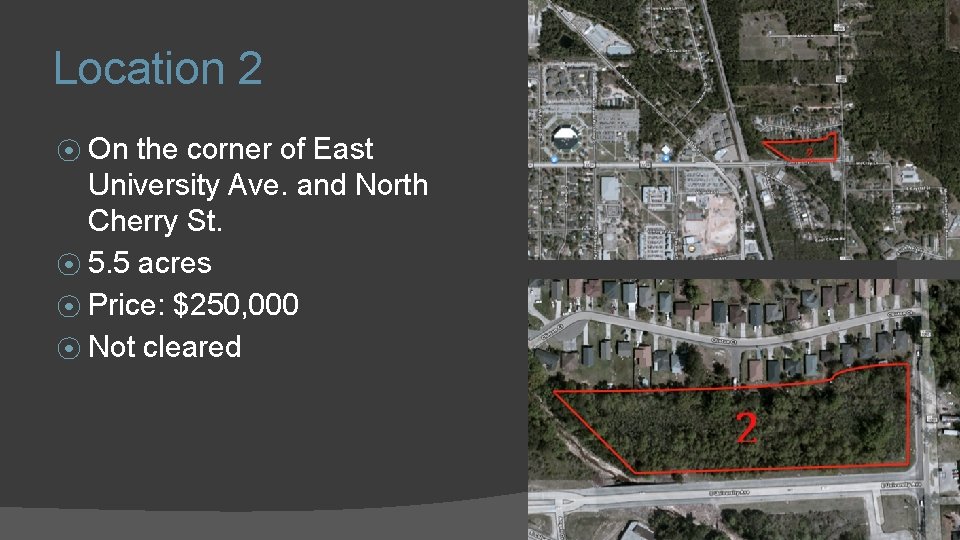

Location 2 ⦿ On the corner of East University Ave. and North Cherry St. ⦿ 5. 5 acres ⦿ Price: $250, 000 ⦿ Not cleared

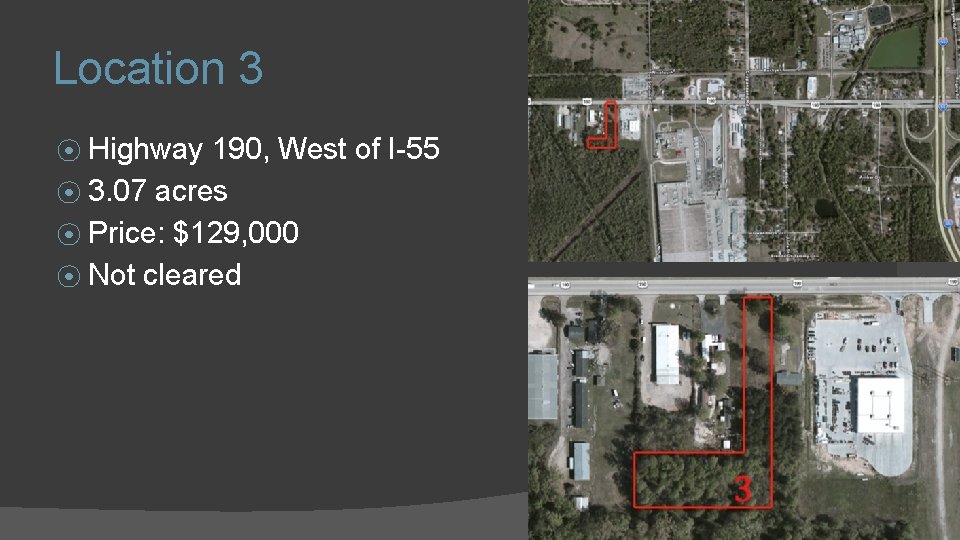

Location 3 ⦿ Highway 190, West of I-55 ⦿ 3. 07 acres ⦿ Price: $129, 000 ⦿ Not cleared

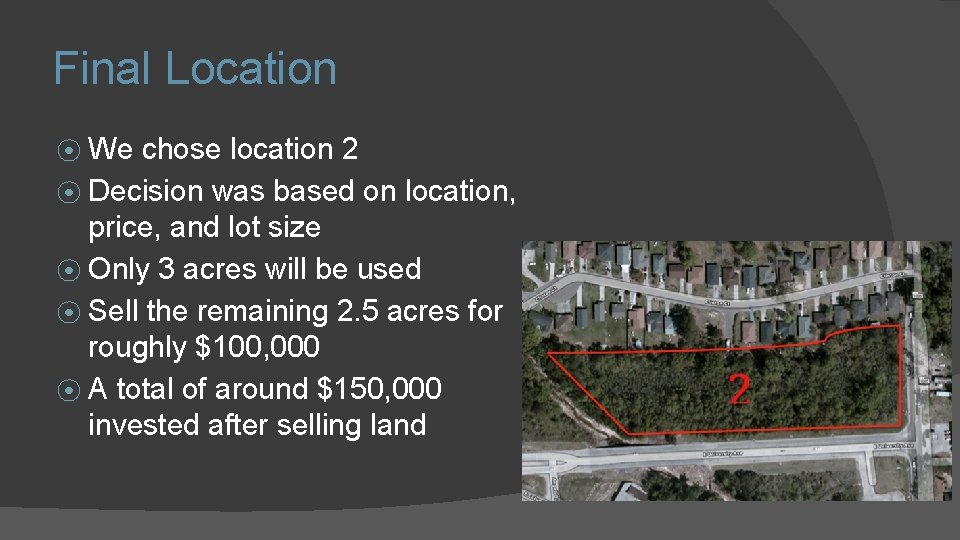

Final Location ⦿ We chose location 2 ⦿ Decision was based on location, price, and lot size ⦿ Only 3 acres will be used ⦿ Sell the remaining 2. 5 acres for roughly $100, 000 ⦿ A total of around $150, 000 invested after selling land

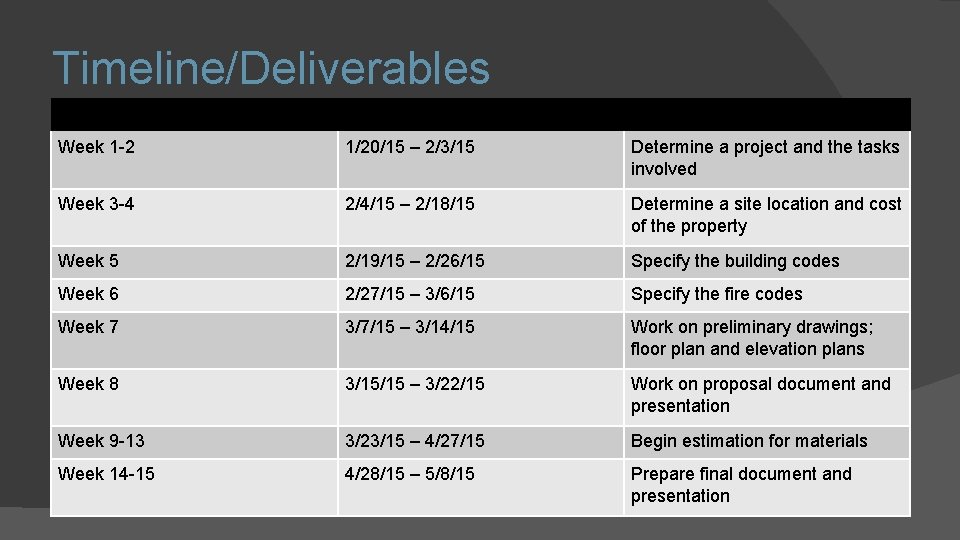

Timeline/Deliverables Week 1 -2 1/20/15 – 2/3/15 Determine a project and the tasks involved Week 3 -4 2/4/15 – 2/18/15 Determine a site location and cost of the property Week 5 2/19/15 – 2/26/15 Specify the building codes Week 6 2/27/15 – 3/6/15 Specify the fire codes Week 7 3/7/15 – 3/14/15 Work on preliminary drawings; floor plan and elevation plans Week 8 3/15/15 – 3/22/15 Work on proposal document and presentation Week 9 -13 3/23/15 – 4/27/15 Begin estimation for materials Week 14 -15 4/28/15 – 5/8/15 Prepare final document and presentation

Any Questions?
