New Investigations of Liquid Marbles Ed. Bormashenko, The Ariel University, Ariel, Israel Харьковский национальный университет имени В. Н. Каразина, Октябрь, 2013

What is a Liquid Marble? A liquid Marbles Are Non-Stick Droplets Coated with Macro- or Nano-Scaled Powder P. Aussillous, D. Quéré, Nature, 411 (2001) 924 -927

Deformation of water marbles by gravity V=10 μl V=50 μl

Marbles Sit on Air! Hydrophobic particles liquid Solid substrate

E. Bormashenko, Ye. Bormashenko, A. Musin, Z. Barkay, Chem. Phys. Chem 2009, 10, 654 15 μl marble containing 0. 3 M Coloring after puncturing the Na. OH water solution floating on marble the water containing phenolphthalein alcohol solution (0. 1% wt. )

E. Bormashenko, Ye. Bormashenko, A. Musin, Z. Barkay, Chem. Phys. Chem 2009, 10, 654 30 μl marble containing 0. 1 M Ca. CO 3 precipitate formed after Ca. Cl 2 water solution floating on puncturing the marble the 0. 1 M Na 2 CO 3 water solution before puncturing with a needle

Floating Marbles Journal of Colloid and Interface Science, 333, 2009, 419. Ed. Bormashenko, Ye. Bormashenko, Al. Musin

Revealing Water Surface Pollution with Liquid Marbles E. Bormashenko, A. Musin Applied Surface Science, 255, 12, 2009, 6429 -6431

Superhydrophobic Behavior of Liquid Marbles

Motivation Liquid marbles – an alternative approach to manufacturing non-stick surfaces n Study of physical properties of liquid marbles n Study of the possibility of remote actuation of liquid marbles n

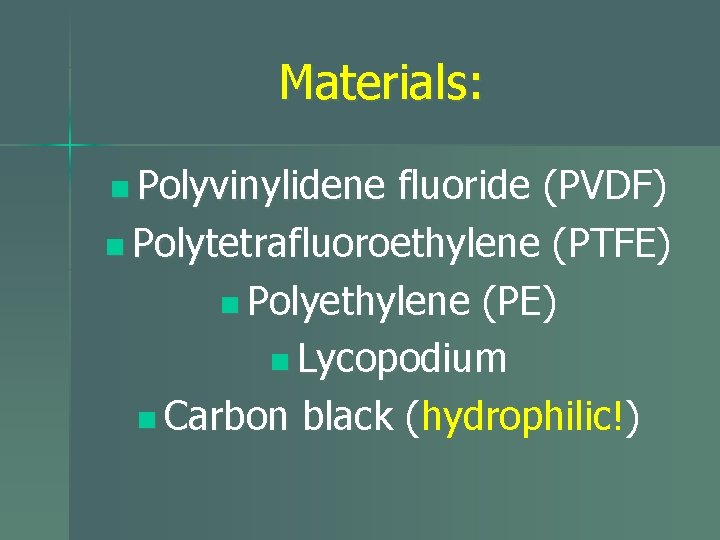

Materials: n Polyvinylidene fluoride (PVDF) n Polytetrafluoroethylene (PTFE) n Polyethylene (PE) n Lycopodium n Carbon black (hydrophilic!)

Lycopodium Particles

ESEM Image of the Marble Surface (Coated with Lycopodium)

ESEM Image of Marble Surface (Coated with PVDF) Ed. Bormashenko, R. Pogreb, G. Whyman, Al. Musin, Ye. Bormashenko, Z. Barkay, Langmuir, 2009, 25 , 1893– 1896

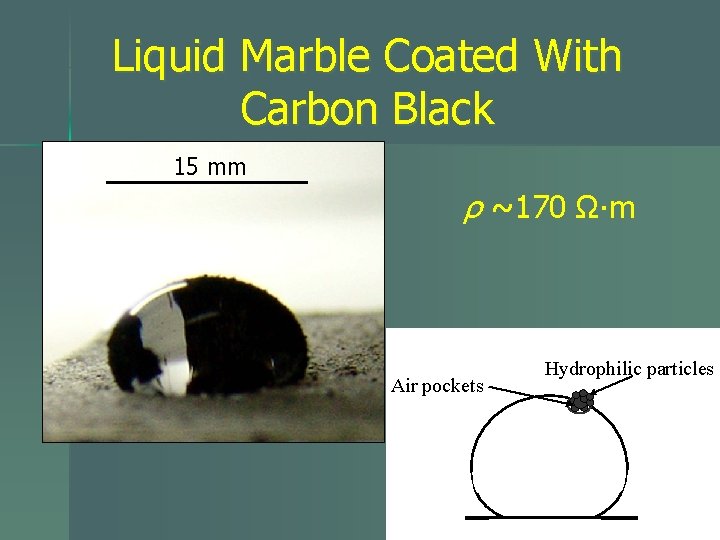

Liquid Marble Coated With Carbon Black 15 mm ρ ~170 Ω∙m Air pockets Hydrophilic particles

Properties of Liquid Marbles n What is the effective surface tension of liquid marbles? n n Aussillous and D. Quéré Proceedings Royal Soc. A, 2006, 462, 973. G. Mc. Hale, S. J. Elliott, M. I. Newton, D. L. Herbertson, K. Esmer, Langmuir, 2009, 25, 529. n T. Arbatan, W. Shen Langmuir, 2011, 27, 12923 n C. Planchette, E. Lorenceau, A. -L. Biance, Soft Matter, 2012, 8, 2444.

Surface Tension of Marbles Established with Vibrations R θ-δθ θ+δθ θ Ed. Bormashenko, R. Pogreb, G. Whyman, Al. Musin, Ye. Bormashenko, Z. , Langmuir, 2009, 25 (4), 1893– 1896.

Values of surface tension measured with different methods. Marbles γ, m. J/m 2 maximal height marble shape vibration method analysis method PVDF 70± 7 79± 5 75± 3 PE 66± 5 63± 3 60± 4 Teflon 60± 6 53± 5 53± 3 Lycopodium 50± 5 60± 5 43± 3 Carbon black 66± 4 68± 3 -

Effective Surface Tension of Marbles A B Pendant marbles: (A) lycopodium and (B) carbon black

Establishment of the effective surface tension with the pendant marble method E. Bormashenko, Al. Musin, G. Whyman, Z. Barkay, A. Starostin, V. Valtsifer, Vl. Strelnikov Colloids and Surfaces A: 425 (2013) 15 -23

Dependence of the effective surface tension on the volume during inflation (open circles) and evaporation . (solid circles) for the lycopodium coated marbles

Dependence of the effective surface tension on the volume during inflation (open circles) and evaporation . (solid circles) for the PVDF coated marbles

Surface Tension of Liquid Marbles is of a Pronounced Hysteretic Nature E. Bormashenko, Al. Musin, G. Whyman, Z. Barkay, A. Starostin, V. Valtsifer, Vl. Strelnikov Colloids and Surfaces A: 425 (2013) 15 -23

Actuation of Liquid Marbles

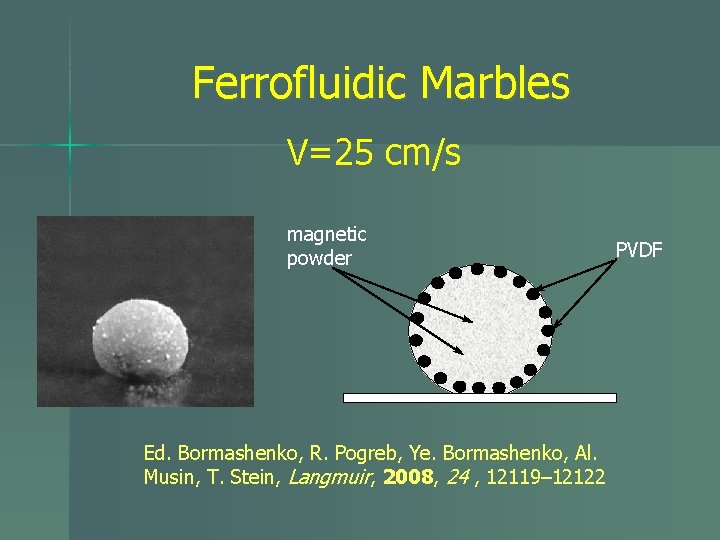

Ferrofluidic Marbles V=25 cm/s magnetic powder Ed. Bormashenko, R. Pogreb, Ye. Bormashenko, Al. Musin, T. Stein, Langmuir, 2008, 24 , 12119– 12122 PVDF

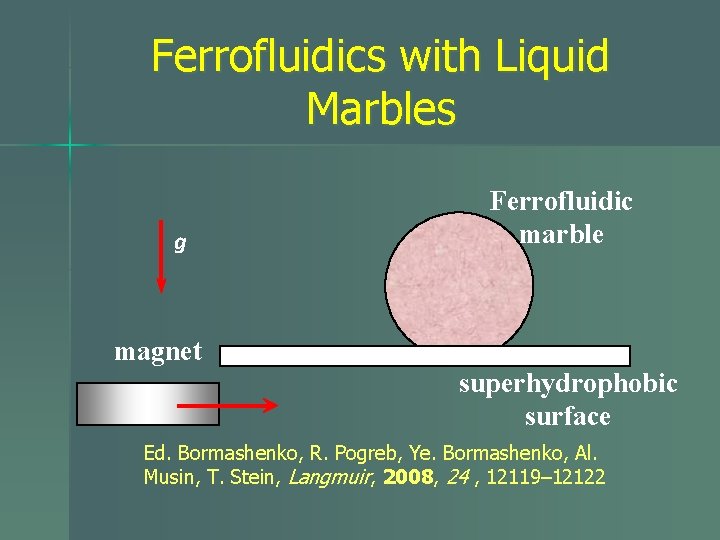

Ferrofluidics with Liquid Marbles g Ferrofluidic marble magnet superhydrophobic surface Ed. Bormashenko, R. Pogreb, Ye. Bormashenko, Al. Musin, T. Stein, Langmuir, 2008, 24 , 12119– 12122

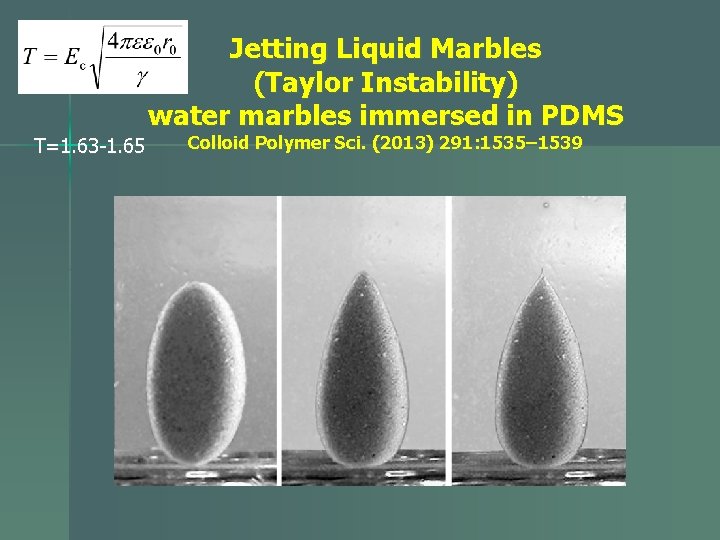

Jetting Liquid Marbles (Taylor Instability) water marbles immersed in PDMS T=1. 63 -1. 65 Colloid Polymer Sci. (2013) 291: 1535– 1539

Squared critical electric field versus inverse radius, of the spherical marble of an equivalent volume. Different slopes resemble different surface energies at the marble/oil interfaces.

Micro-Pump Based on Liquid Bormashenko, E. et al, Applied Physics Letters, Marbles 97 (2010) 091908

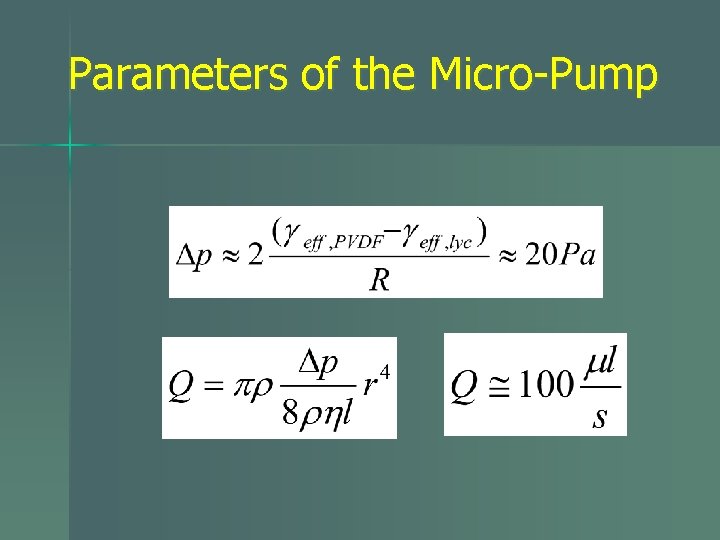

Parameters of the Micro-Pump

Marbles Swallowing One Another

Composite Liquid Marbles and Their Actuation

PTFE (white) and carbon black coated (black) 20 µl liquid marbles

Preparing Janus Marbles vibration Ed Bormashenko, Ye. Bormashenko, R. Pogreb, O. Gendelman, Janus Droplets: Liquid Marbles Coated with Dielectric/Semiconductor Particles Langmuir 2011, 27(1), 7– 10

Composite 40 µl Janus liquid marble

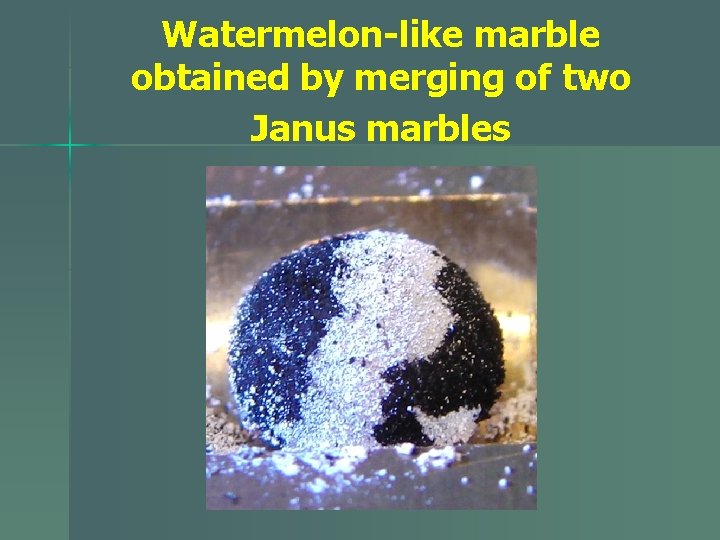

Watermelon-like marble obtained by merging of two Janus marbles

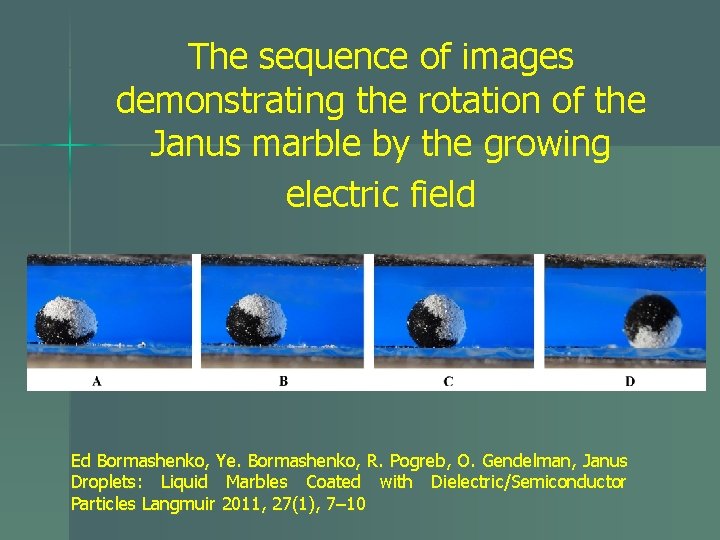

The sequence of images demonstrating the rotation of the Janus marble by the growing electric field Ed Bormashenko, Ye. Bormashenko, R. Pogreb, O. Gendelman, Janus Droplets: Liquid Marbles Coated with Dielectric/Semiconductor Particles Langmuir 2011, 27(1), 7– 10

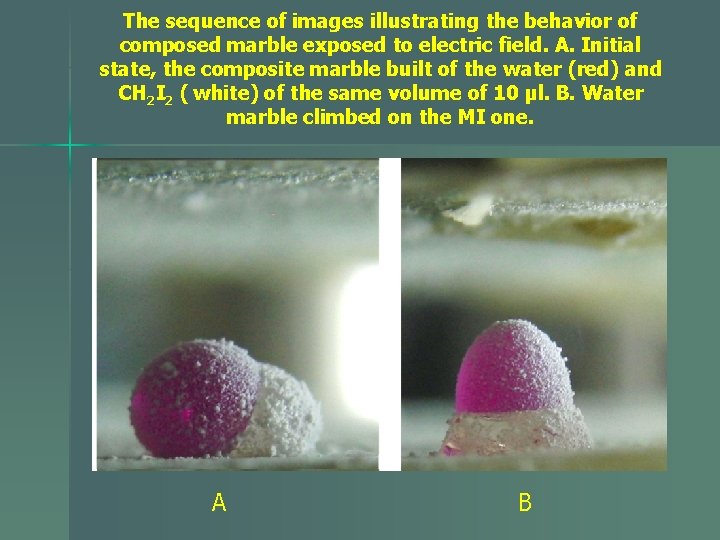

The sequence of images illustrating the behavior of composed marble exposed to electric field. A. Initial state, the composite marble built of the water (red) and CH 2 I 2 ( white) of the same volume of 10 µl. B. Water marble climbed on the MI one. A B

10 µl MI (white) and 10 µl water (red) marbles exposed to the electric field. The initial state E=0, B. The marbles exposed to E=7 × 105 V/m C. 10 µl MI (white) and 40 µl water (red) marbles exposed to the electric field. The initial state E=0, D. The marbles exposed to E=7 × 105 V/m

Sensitivity of water and diiodomethane (CH 2 I 2) marbles to electric field

Sensitivity of water and diiodomethane (CH 2 I 2) marbles to electric field same radii

Manufacturing “sandwich marbles” containing solid particles powder foamed PS ball liquid

Sandwich water marbles containing spherical particle of foamed PS

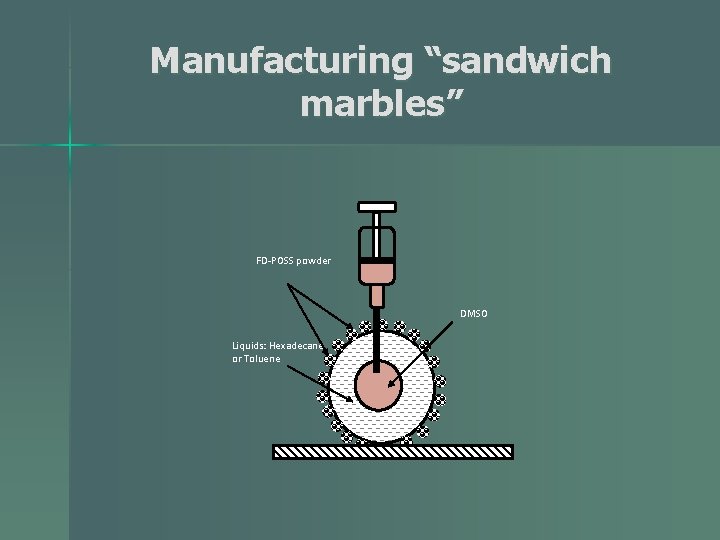

Manufacturing “sandwich marbles” FD-POSS powder DMSO Liquids: Hexadecane or Toluene

Sandwich Marbles: Hexadecane Marble Comprising DMSO (Red)

Micro-Reactors Based on Marbles The shell enwrapping the marble is permeable for gases Marbles containing a solution of ammonia acetate, acetic acid and acetylacetone exposed to the formaldehyde vapor Bormashenko E, et al International Journal of Chemical Reactor Engineering, 9 (2011) S 10.

Pickering-like emulsions obtained via liquid marbles (water marbles immersed in PDMS) Bormashenko E. , Pogreb R. , Musin Al. , Stable water and glycerol marbles immersed in organic liquids: From liquid marbles to Pickering-like emulsions, Journal of Colloid and Interface Science 366 (2012) 196– 199.

Lycopodium-coated shaped marbles

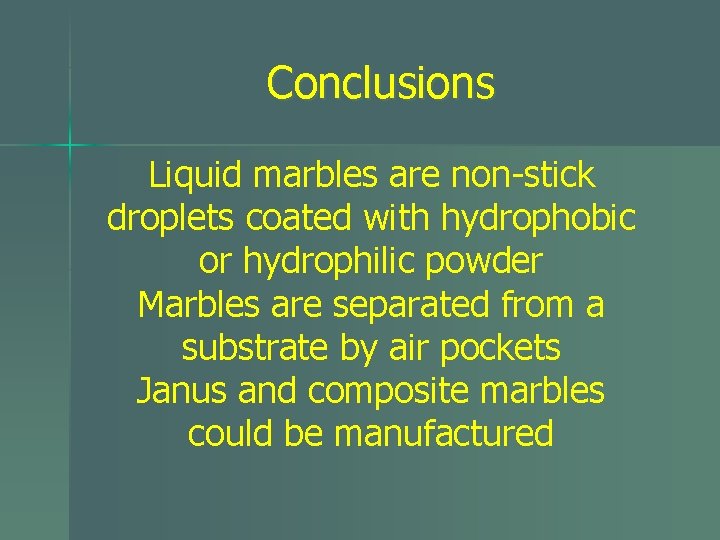

Conclusions Liquid marbles are non-stick droplets coated with hydrophobic or hydrophilic powder Marbles are separated from a substrate by air pockets Janus and composite marbles could be manufactured

Conclusions *Surface Tension of Liquid Marbles is of a Pronounced Hysteretic Nature *Marbles could be actuated with magnetic and electric fields *Possible applications of marbles: Micro-fluidic devices, Gas sensing Precise transport of small quantities of liquids, Revealing of water pollution, blood typing
