New Generation Automation Controller PAC Overview and Trend

New Generation Automation Controller (PAC) Overview and Trend e. Automation Group Γιάννης Στάβαρης Technical Manager Ιούνιος 26, 2007

The Evolution of the Automation Controller Relay PLC Programmable Automation Controller (PAC) IPC Embedded Controller

Advantech’s PAC Solutions Multiple Hardware Platforms & Multiple Application Domains Through One Complete PAC System

ADAM-5500 Open PAC Series ADAM-5510 EKW/TP 8 -slot Ethernet Soft. Logic Controller ADAM-5550 KW Programmable Automation Controller With Ethernet ADAM-5510 KW 4 -slot Soft. Logic Controller Without Ethernet ADAM-5510 EKW 8 -slot Soft. Logic Controller

ADAM-5550 KW Open PAC System CPU: AMD Geode GX 533 RS-232/485 Port VGA Port for Connecting to Display Directly 128 MB DDR with 512 KB Battery Backup SRAM RS-232/485 Port Support Motion Control Modules 2 USB Port for KB/Mouse or USB Devices RS-232 Port RS-485 Port 2 PCI Slot for Hispeed I/O Modules Dual Ethernet Port 1. Connecting to HMI/SCADA Software 2. Sending Email Alarm/SMS Alarm 3. Connecting Modbus/TCP Remote I/O 4. HTTP and FTP Server SD Storage Module Deterministic I/O at 1 ms

Robust Design of ADAM-5550 KW RS-485 Port - 1500 Vdc Isolation - EMS: IEC-61000 -6 -2 - EMI: IEC-61000 -6 -2 - Vibration: IEC 60068 -2 -6 - Shock: IEC 60068 -2 -27 RS-485 Port - 1500 Vdc Isolation I/O Modules Power Module - Hot Swap (Coming Soon) - Grounding Design - Power Surge 1 k. V - EFT 2 k. V RS-485 Port - 2000 Vdc Isolation ADAM-5017 UH - Software Filter

Distributed PAC: AMAX-2050 KW ü Ethernetenabled platform Ethernet for uplink RS-485 for I/O ü Long Distance ü Various IO LAN CAN bus ü Motion Control ü High speed DIO AMONet GX 2 CPU ü 256 MB SRAM ü 128 KB Backup

Compact PAC: UNO-2171 KW § Compact PAC with Video, Motion & Remote I/O – – PC-104+ Video Card PC-104+ AMONet Master Card ADAM-4 K/5 K/6 K Modules 3 rd Party Modbus Devices UNO-2171 + PC/104+ AMONet Master Card

Embedded Fanless IPC Kernel

Reliable COTS Peripheral Components § Fanless Design – System is Stable and Save Maintenance Cost § Industrial CF Card – Wide Operating Temperature: -40~80°C § Industrial-grade Ethernet Chip – Wide Operating Temperature: -40~80°C

Stable Embedded Operating Systems § Windows CE. NET – Hard real-time embedded OS; fulfill your time-critical requests § Windows XP Embedded Componentized version of Windows XP, seamlessly integrate specific application into Windows XP Embedded easily – EWF (Enhanced Write Filter) & HORM (Hibernate Once / Resume Many), which help to write protect and quick boot up time in around 30 seconds – § Embedded Linux – Unix compatible, open source embedded OS IAG

Support Multi-domain Functionalities

Open Architecture Design § Adapt IT Technology: OPC/SQL/XML…

Compress the Automation Architecture HMI PAC

Built-in SQL Mobile Server ADAM-5550 KW Kernel Local HMI OPC or Modbus/TCP Other Applications KW Pro. Con. OS IEC-61131 -3 Enterprise DB SQL MS Access SQL Mobile Server SQL

Common Programming Tool for All Form Factors § You just do one-time design and you can easily leverage the control know-how into different control platforms to meet versatile automation projects needs

Flexible Programming by Mixed Languages Save Develop Time & Easy Maintenance

Seamless Integration for HMI Software § Seamless Integration between Soft. Logic Control Software and HMI Software – Export I/O Tags Information from Soft. Logic Control Software – Import I/O Tags Information into HMI Software – Not Necessary for Users to Create I/O Tags in HMI Software One More Time

Complex Control Function Deterministic I/O with Multiple Speed § Support Deterministic I/O with Multiple Speed – Complex control system usually needs several control cycles with different cycle time – ADAM-5550 KW PAC can run multiple programs simultaneously – ADAM-5550 KW PAC supports 4 types of Tasks § § Default Task Cyclic Task Event Task System Task

Complex Control Function Custom Function Block & Floating Point calculation § Allow creating Custom Function Block for advanced control algorithm such as fuzzy logic control or neural network control function § Provide powerful Floating Point Calculation and Memory for complex control

Utilize De-facto Communication Protocol

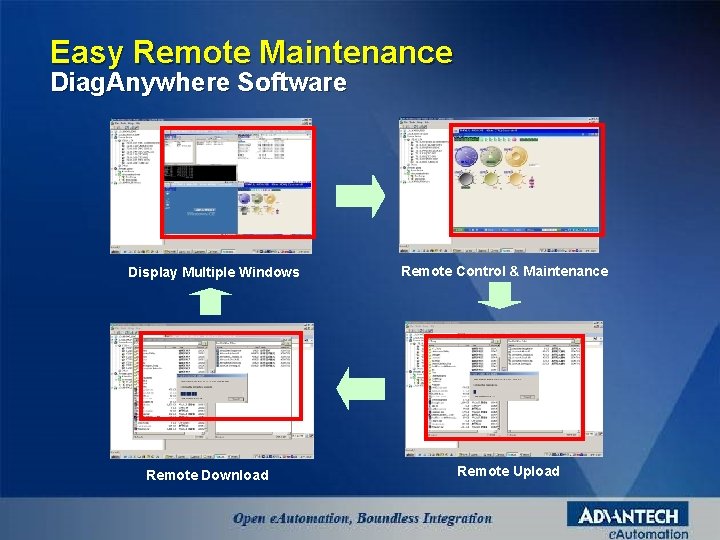

Easy Remote Maintenance Diag. Anywhere Software Display Multiple Windows Remote Download Remote Control & Maintenance Remote Upload

ADAM-5550 KW vs. PLC § Reduce Cost & Stock – – § – – Custom Function Block Multi-program support Powerful Calculation Capability – – – Floating Point Calculation Real-time Analysis Deterministic I/O Powerful Network Functions – – Confront IEC-61131 -3 Standard Cross Language Support for 3 Graphical Language Easy to Implement Complex Control – § Multi-domain Functionality Built-in VGA Display (HMI) Save Training & Maintenance Efforts – § § – – – § Supports Local Storage – § SD Card I/O Module Built-in Backup SRAM – § Built-in Dual LAN Ports SQL Database Access Remote Maintenance tool Built-in Web Server Built-in FTP Server Email Alarm Function SMS Alarm Function Save important Data Modbus Support – – Complete ADAM I/O Expansion Integrate with 3 rd Party Modbus Device
