New Gamma-spectroscopy system for Nuclear Resonance Fluorescence at Turkish Accelerator and Radiation Laboratory Dr. Haris Ðapo Ankara University Institute of Accelerator Technologies, TARLA

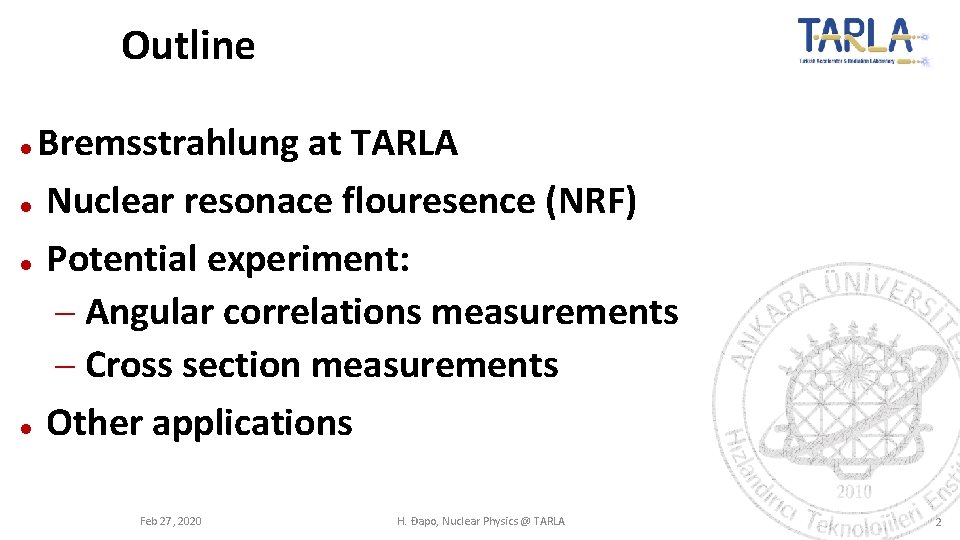

Outline Bremsstrahlung at TARLA Nuclear resonace flouresence (NRF) Potential experiment: – Angular correlations measurements – Cross section measurements Other applications Feb 27, 2020 H. Ðapo, Nuclear Physics @ TARLA 2

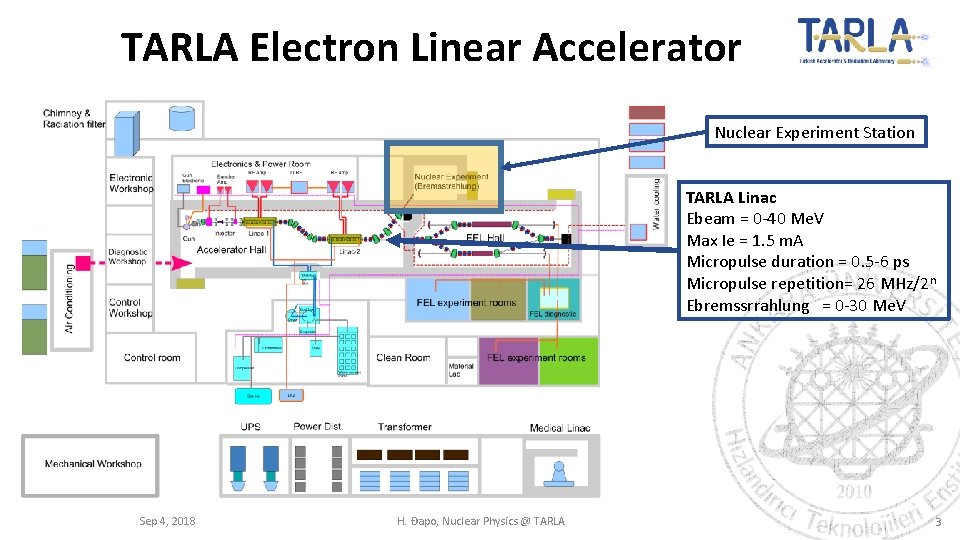

TARLA Electron Linear Accelerator Nuclear Experiment Station TARLA Linac Ebeam = 0 -40 Me. V Max Ie = 1. 5 m. A Micropulse duration = 0. 5 -6 ps Micropulse repetition= 26 MHz/2 n Ebremssrrahlung = 0 -30 Me. V Sep 4, 2018 H. Ðapo, Nuclear Physics @ TARLA 3

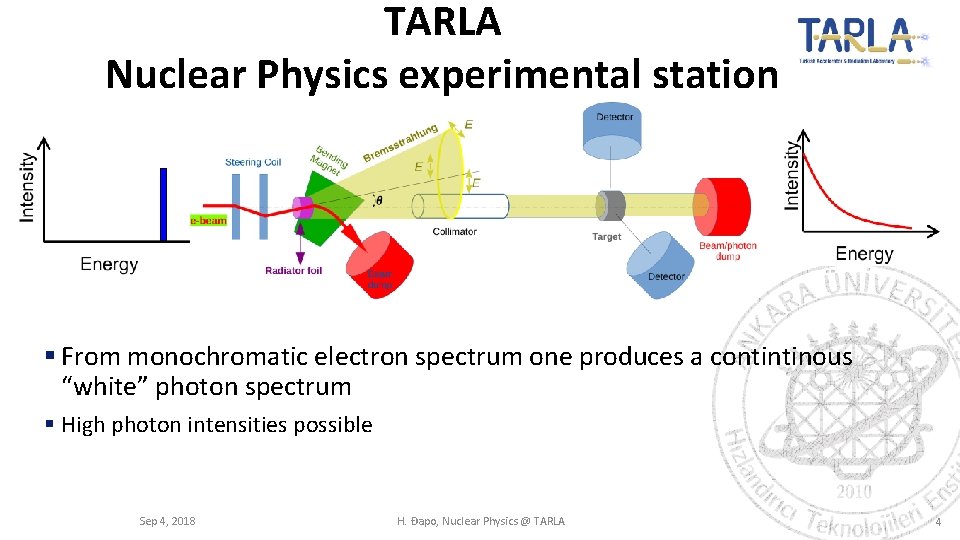

TARLA Nuclear Physics experimental station From monochromatic electron spectrum one produces a contintinous “white” photon spectrum High photon intensities possible Sep 4, 2018 H. Ðapo, Nuclear Physics @ TARLA 4

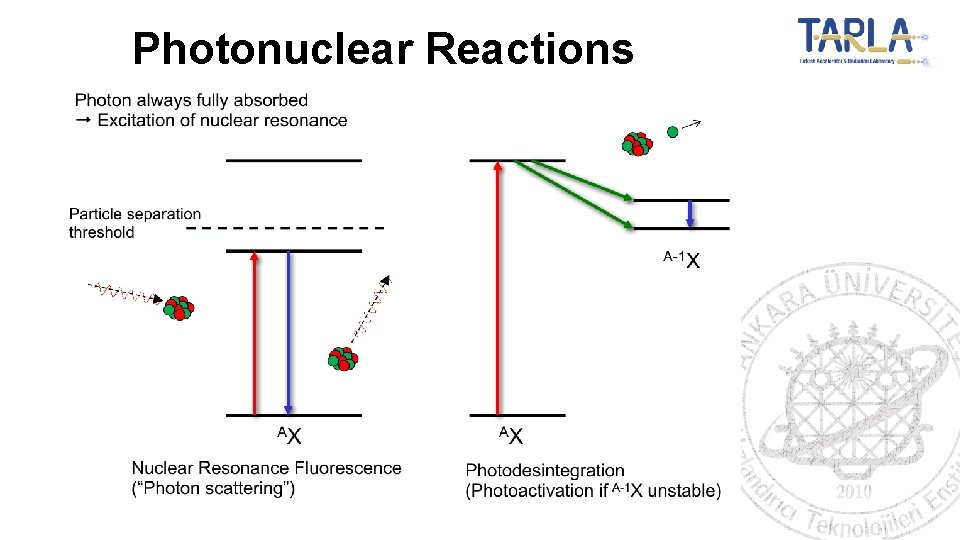

Photonuclear Reactions

Nuclear Resonance Fluorescence

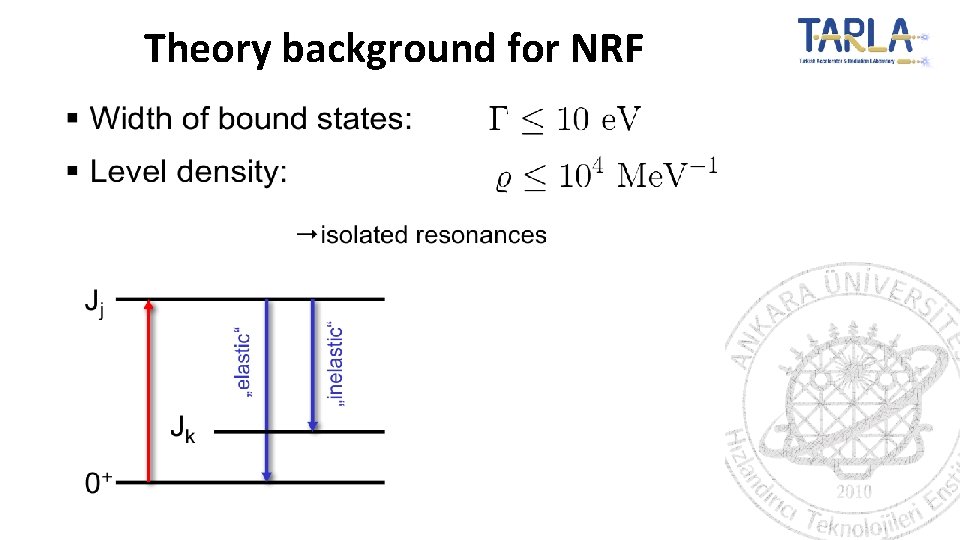

Theory background for NRF

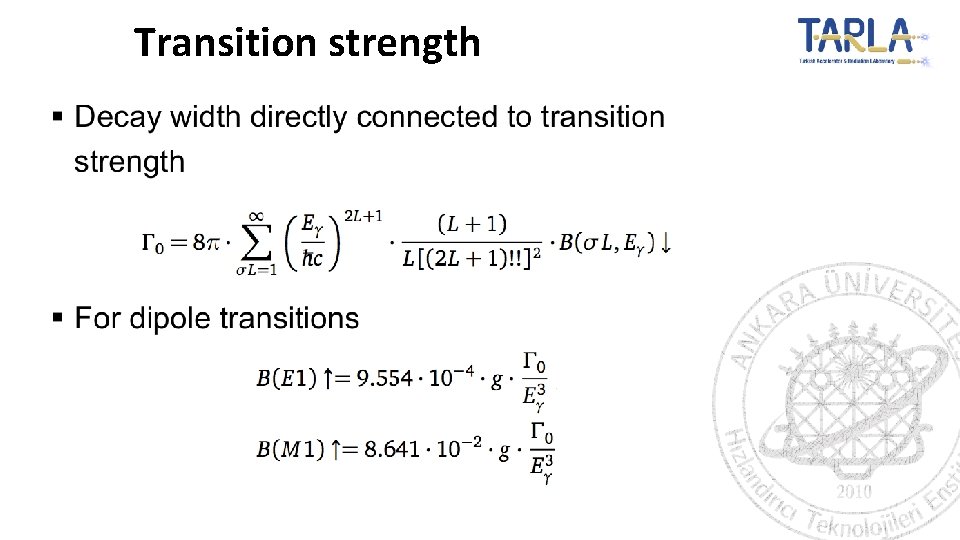

Transition strength

Angular distribution

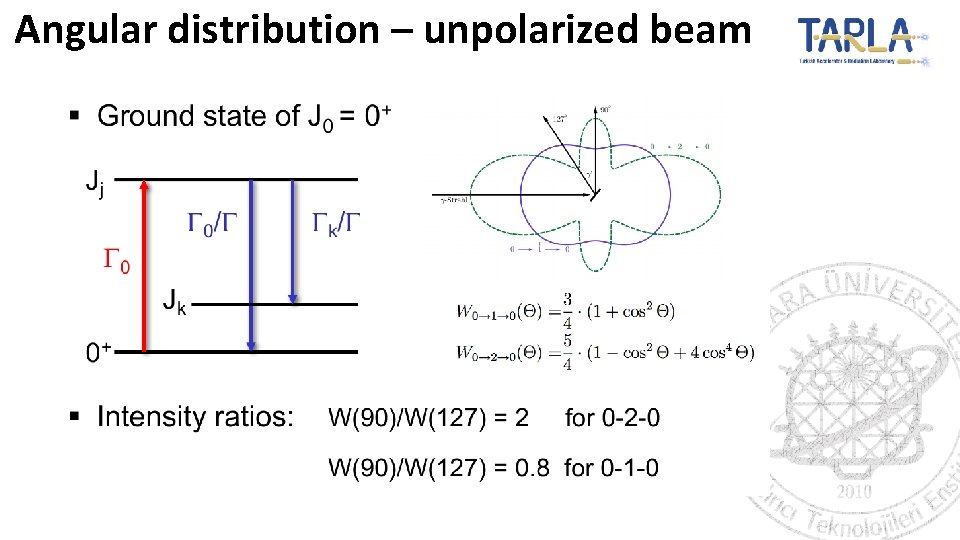

Angular distribution – unpolarized beam

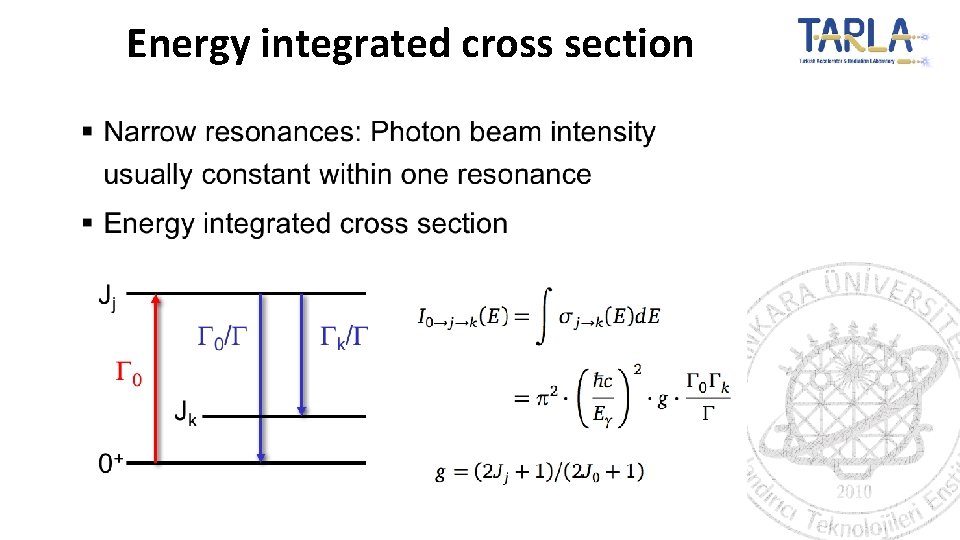

Energy integrated cross section

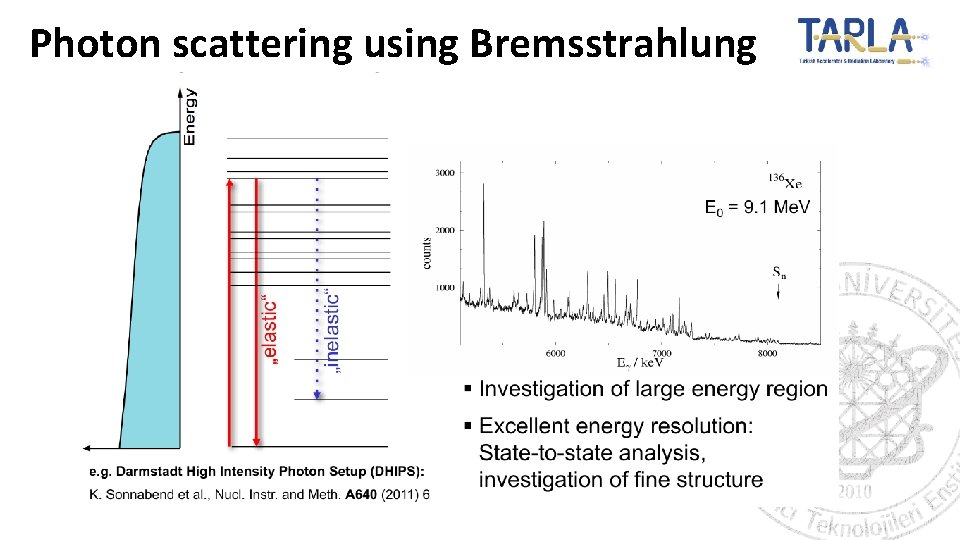

Photon scattering using Bremsstrahlung

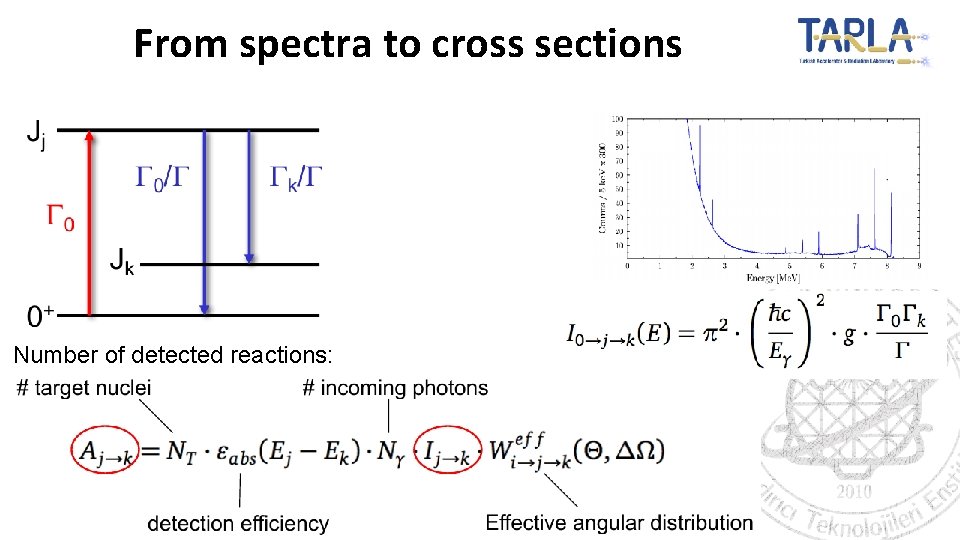

From spectra to cross sections Number of detected reactions:

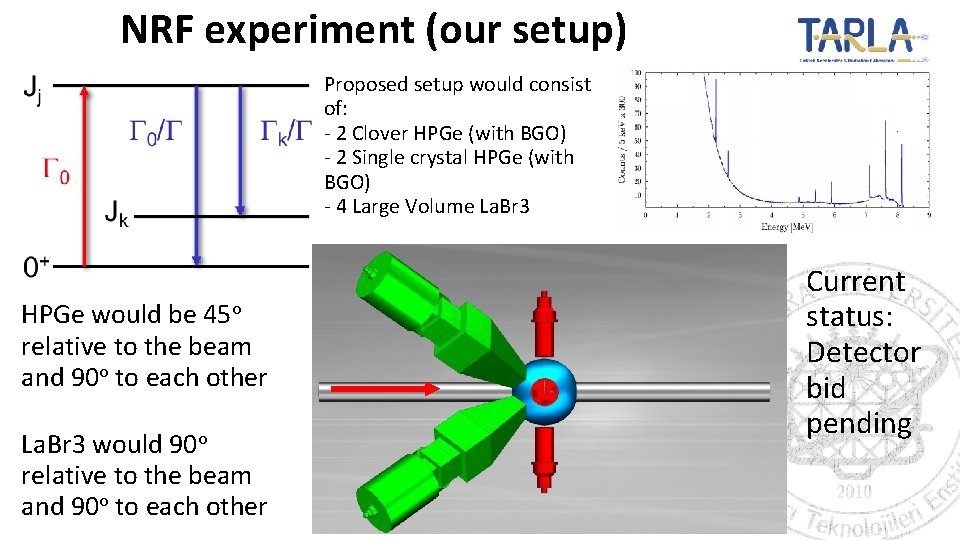

NRF experiment (our setup) Proposed setup would consist of: - 2 Clover HPGe (with BGO) - 2 Single crystal HPGe (with BGO) - 4 Large Volume La. Br 3 HPGe would be 45 o relative to the beam and 90 o to each other La. Br 3 would 90 o relative to the beam and 90 o to each other Current status: Detector bid pending

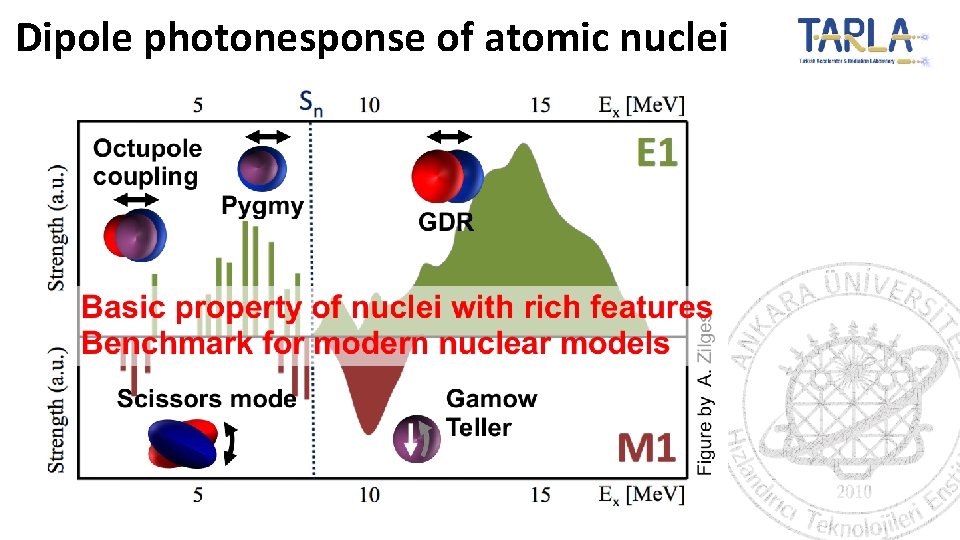

Dipole photonesponse of atomic nuclei

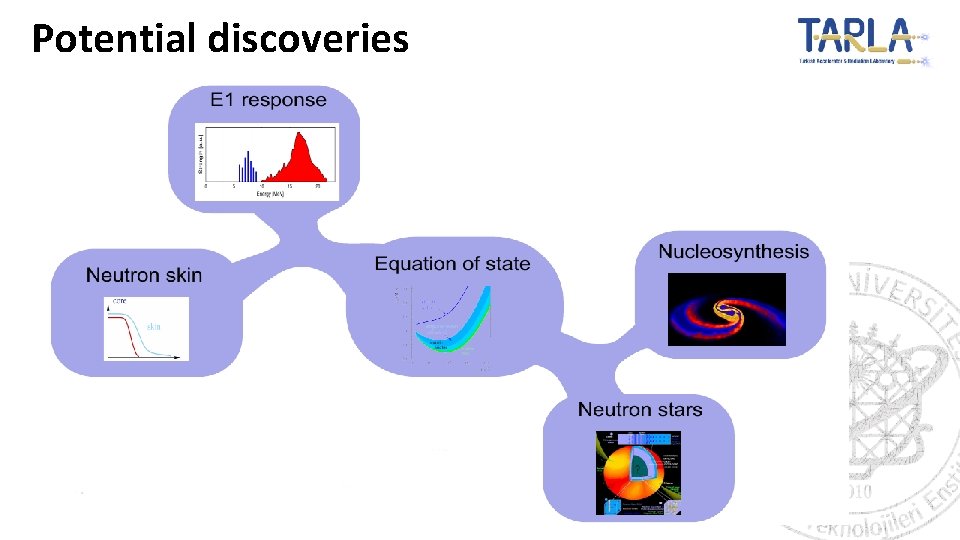

Potential discoveries

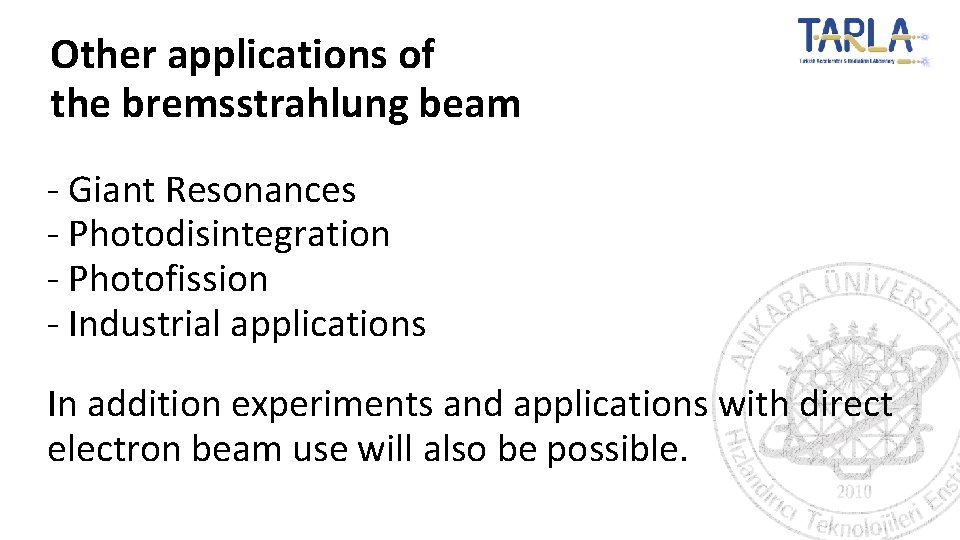

Other applications of the bremsstrahlung beam - Giant Resonances - Photodisintegration - Photofission - Industrial applications In addition experiments and applications with direct electron beam use will also be possible.

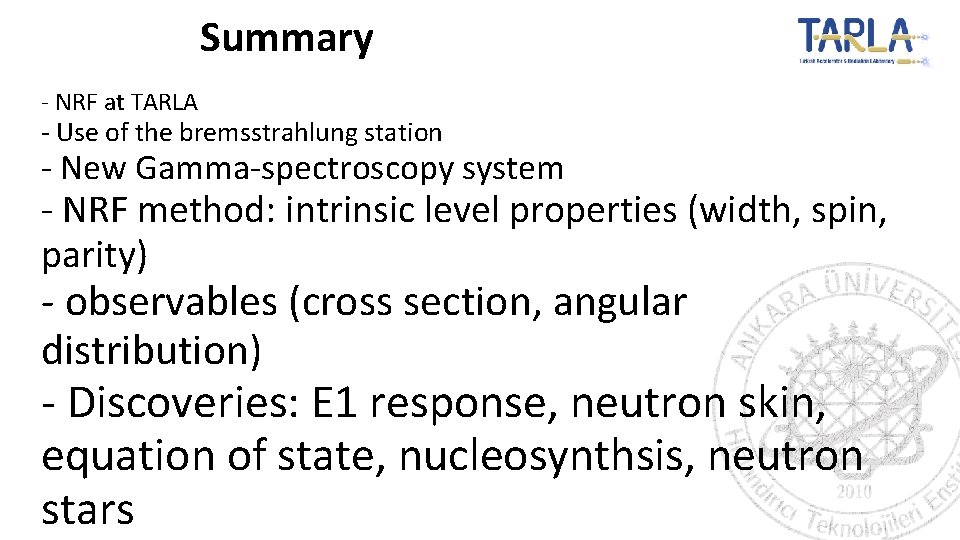

Summary - NRF at TARLA - Use of the bremsstrahlung station - New Gamma-spectroscopy system - NRF method: intrinsic level properties (width, spin, parity) - observables (cross section, angular distribution) - Discoveries: E 1 response, neutron skin, equation of state, nucleosynthsis, neutron stars
