New ALICE Exercise: Nuclear Modification Factor Ralf Averbeck Extre. Me Matter Institute EMMI and Research Division GSI Helmholtzzentrum für Schwerionenforschung Darmstadt, Germany IPPOG pre-Meeting WG International Masterclass Innsbruck, Austria, 04/19/2012

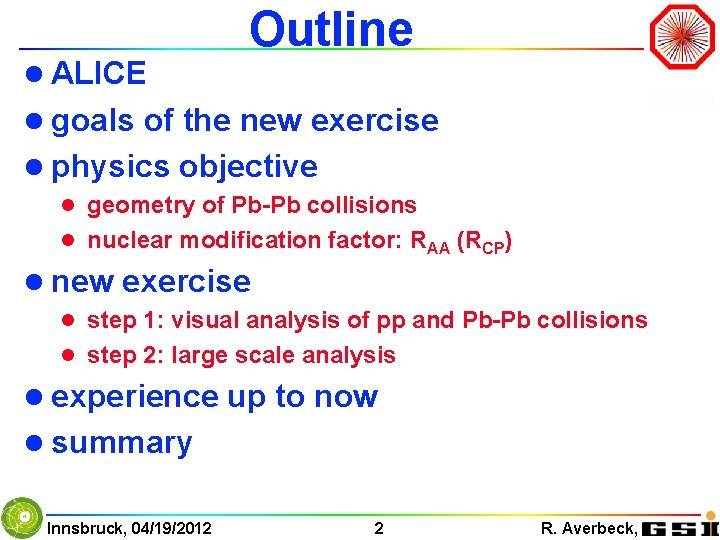

l ALICE Outline l goals of the new exercise l physics objective l geometry of Pb-Pb collisions l nuclear modification factor: RAA (RCP) l new exercise l step 1: visual analysis of pp and Pb-Pb collisions l step 2: large scale analysis l experience up to now l summary Innsbruck, 04/19/2012 2 R. Averbeck,

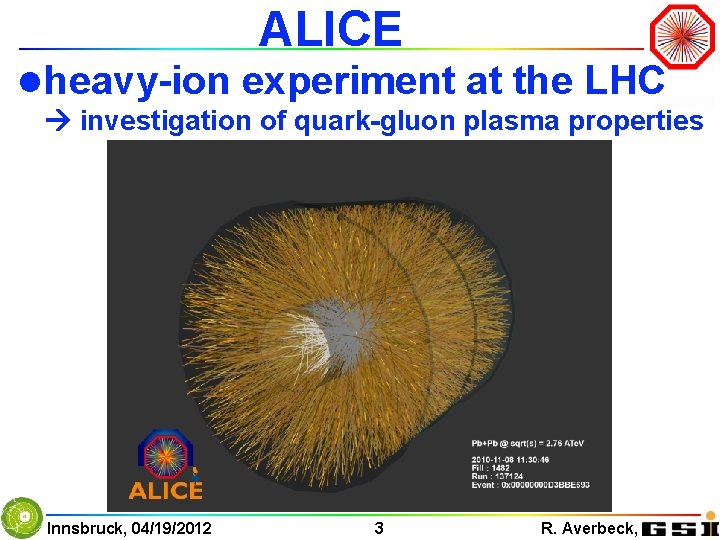

ALICE l heavy-ion experiment at the LHC investigation of quark-gluon plasma properties Innsbruck, 04/19/2012 3 R. Averbeck,

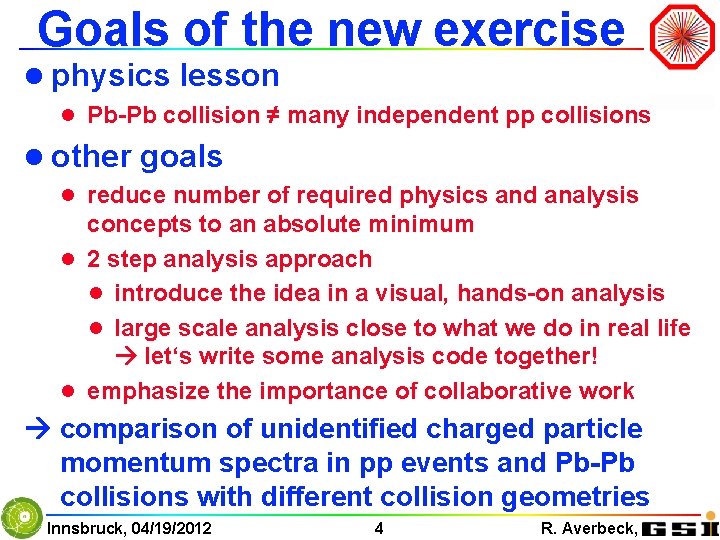

Goals of the new exercise l physics lesson l Pb-Pb collision ≠ many independent pp collisions l other goals l reduce number of required physics and analysis concepts to an absolute minimum l 2 step analysis approach l introduce the idea in a visual, hands-on analysis l large scale analysis close to what we do in real life let‘s write some analysis code together! l emphasize the importance of collaborative work comparison of unidentified charged particle momentum spectra in pp events and Pb-Pb collisions with different collision geometries Innsbruck, 04/19/2012 4 R. Averbeck,

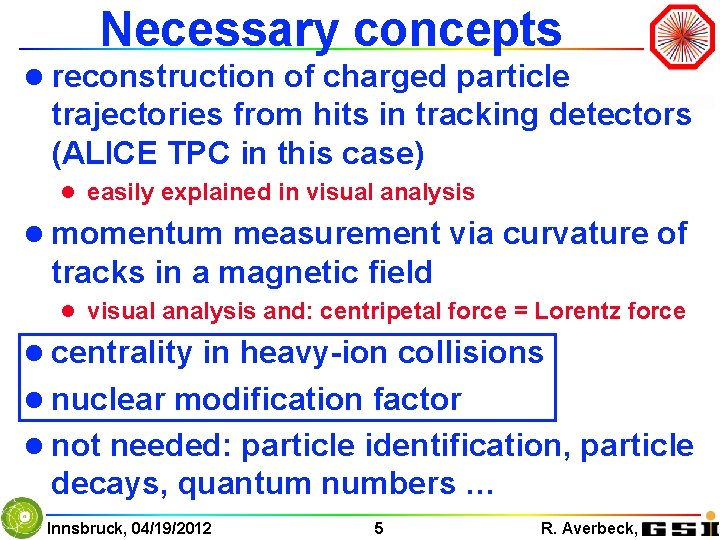

Necessary concepts l reconstruction of charged particle trajectories from hits in tracking detectors (ALICE TPC in this case) l easily explained in visual analysis l momentum measurement via curvature of tracks in a magnetic field l visual analysis and: centripetal force = Lorentz force l centrality in heavy-ion collisions l nuclear modification factor l not needed: particle identification, particle decays, quantum numbers … Innsbruck, 04/19/2012 5 R. Averbeck,

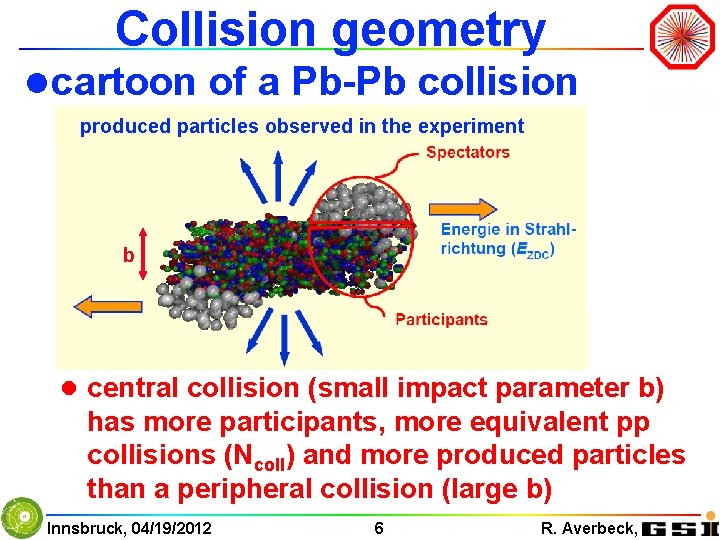

Collision geometry l cartoon of a Pb-Pb collision produced particles observed in the experiment b l central collision (small impact parameter b) has more participants, more equivalent pp collisions (Ncoll) and more produced particles than a peripheral collision (large b) Innsbruck, 04/19/2012 6 R. Averbeck,

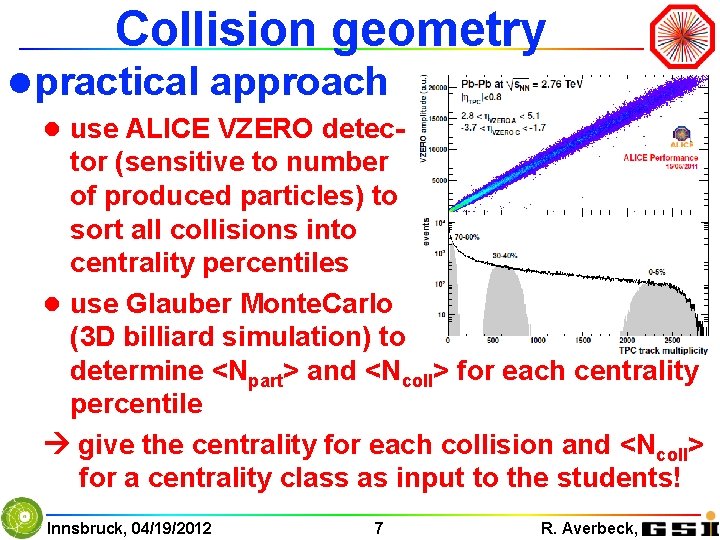

Collision geometry l practical approach l use ALICE VZERO detec- tor (sensitive to number of produced particles) to sort all collisions into centrality percentiles l use Glauber Monte. Carlo (3 D billiard simulation) to determine <Npart> and <Ncoll> for each centrality percentile give the centrality for each collision and <Ncoll> for a centrality class as input to the students! Innsbruck, 04/19/2012 7 R. Averbeck,

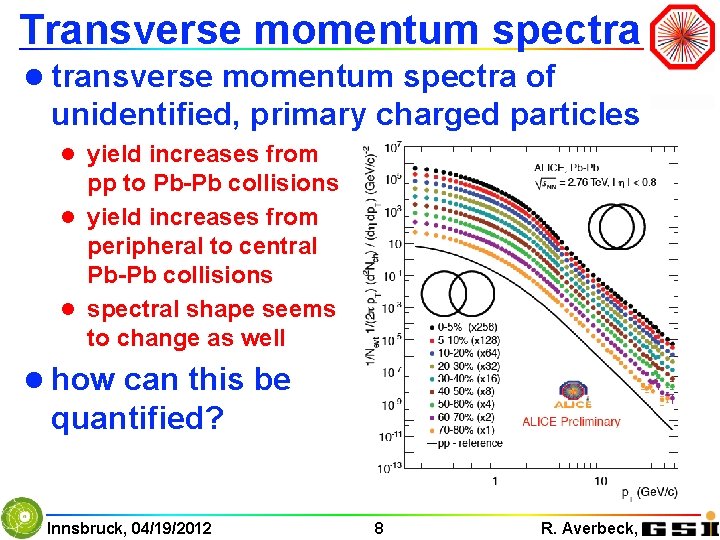

Transverse momentum spectra l transverse momentum spectra of unidentified, primary charged particles l yield increases from pp to Pb-Pb collisions l yield increases from peripheral to central Pb-Pb collisions l spectral shape seems to change as well l how can this be quantified? Innsbruck, 04/19/2012 8 R. Averbeck,

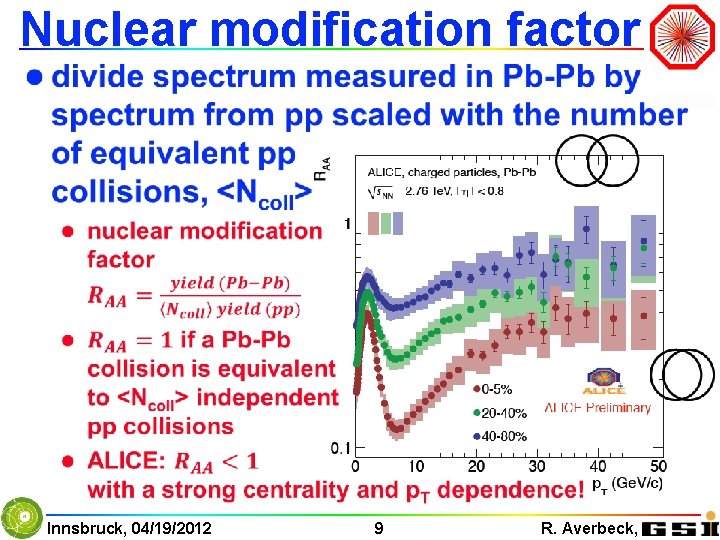

Nuclear modification factor Innsbruck, 04/19/2012 9 R. Averbeck,

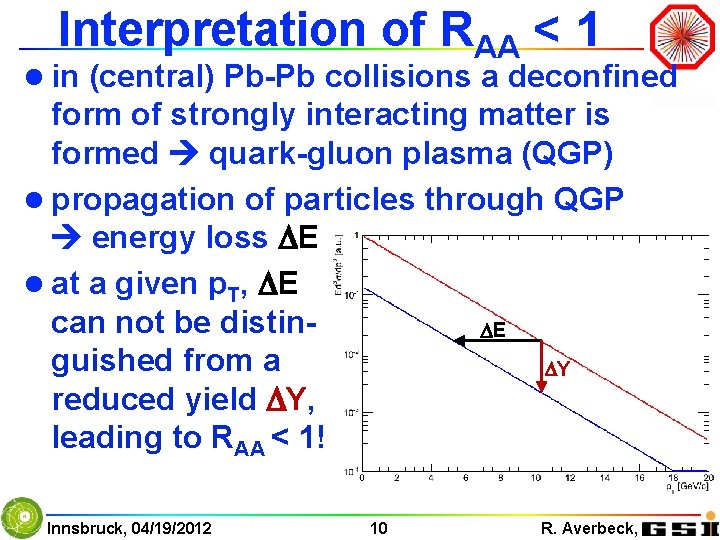

Interpretation of RAA < 1 l in (central) Pb-Pb collisions a deconfined form of strongly interacting matter is formed quark-gluon plasma (QGP) l propagation of particles through QGP energy loss DE l at a given p. T, DE can not be distin. DE guished from a DY reduced yield DY, leading to RAA < 1! Innsbruck, 04/19/2012 10 R. Averbeck,
How to teach these concepts to the students in a Masterclass exercise? Innsbruck, 04/19/2012 11 R. Averbeck,

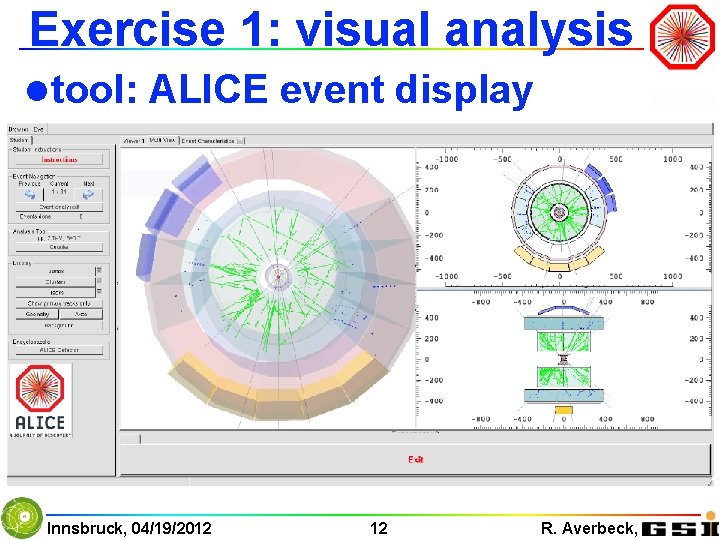

Exercise 1: visual analysis l tool: ALICE event display Innsbruck, 04/19/2012 12 R. Averbeck,

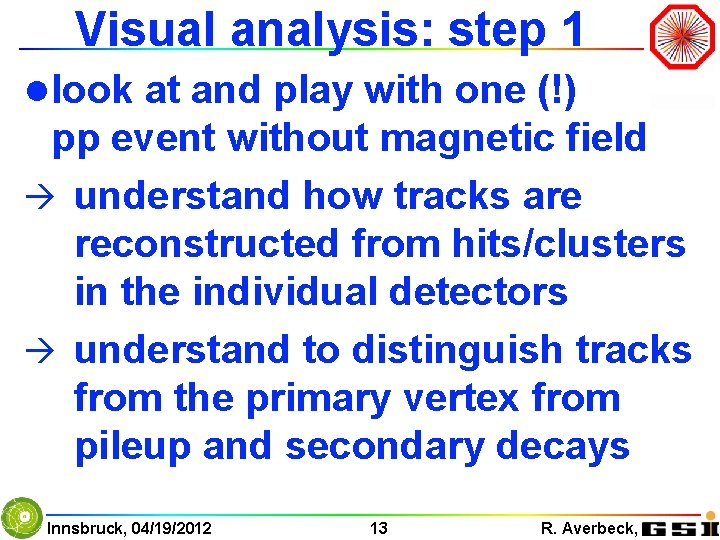

Visual analysis: step 1 l look at and play with one (!) pp event without magnetic field à understand how tracks are reconstructed from hits/clusters in the individual detectors à understand to distinguish tracks from the primary vertex from pileup and secondary decays Innsbruck, 04/19/2012 13 R. Averbeck,

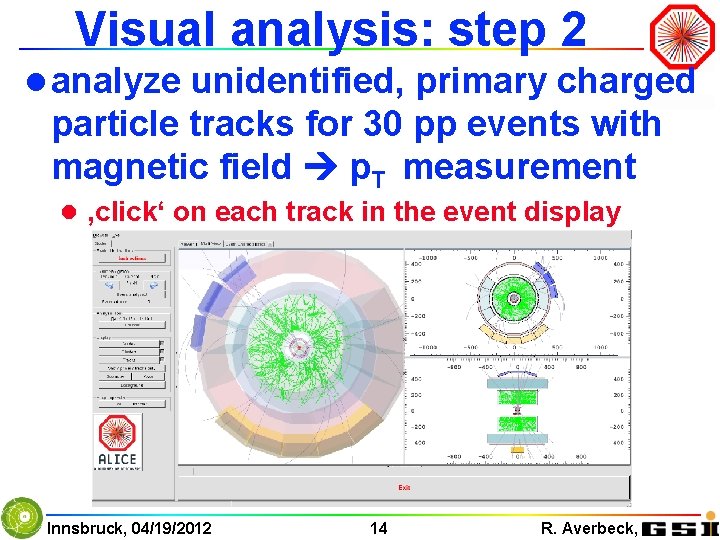

Visual analysis: step 2 l analyze unidentified, primary charged particle tracks for 30 pp events with magnetic field p. T measurement l ‚click‘ on each track in the event display Innsbruck, 04/19/2012 14 R. Averbeck,

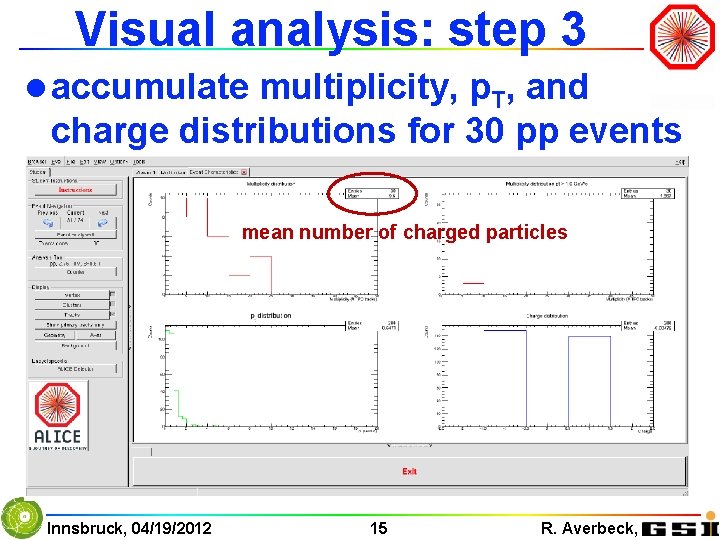

Visual analysis: step 3 l accumulate multiplicity, p. T, and charge distributions for 30 pp events mean number of charged particles Innsbruck, 04/19/2012 15 R. Averbeck,

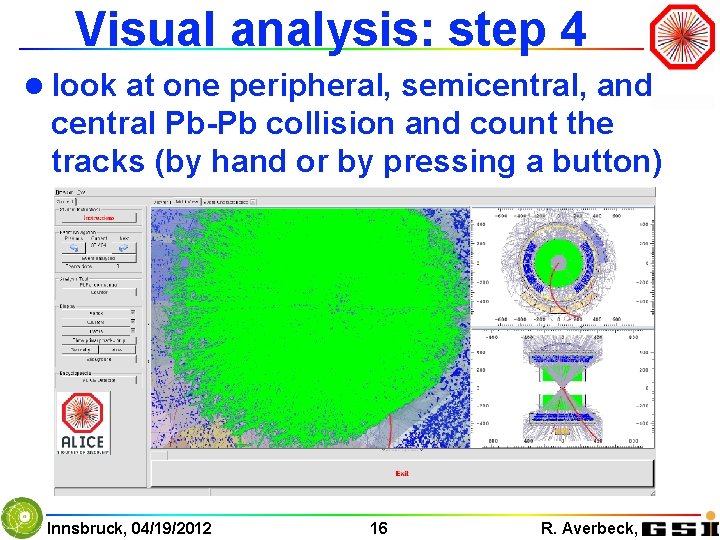

Visual analysis: step 4 l look at one peripheral, semicentral, and central Pb-Pb collision and count the tracks (by hand or by pressing a button) Innsbruck, 04/19/2012 16 R. Averbeck,

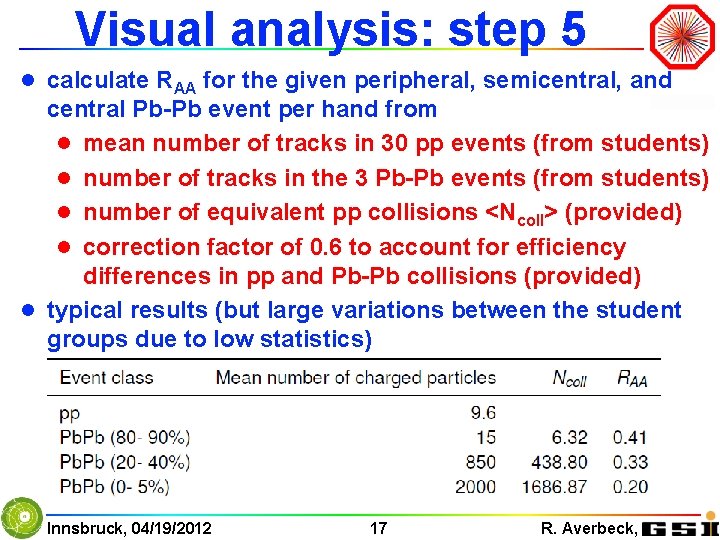

Visual analysis: step 5 l calculate RAA for the given peripheral, semicentral, and central Pb-Pb event per hand from l mean number of tracks in 30 pp events (from students) l number of tracks in the 3 Pb-Pb events (from students) l number of equivalent pp collisions <Ncoll> (provided) l correction factor of 0. 6 to account for efficiency differences in pp and Pb-Pb collisions (provided) l typical results (but large variations between the student groups due to low statistics) Innsbruck, 04/19/2012 17 R. Averbeck,

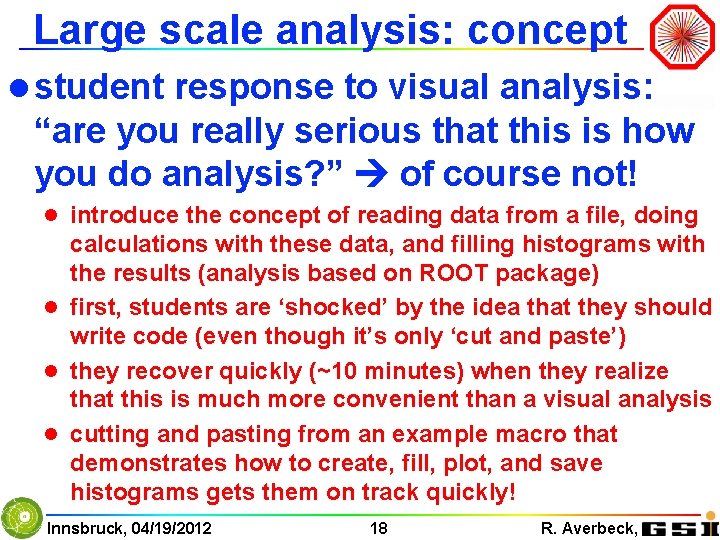

Large scale analysis: concept l student response to visual analysis: “are you really serious that this is how you do analysis? ” of course not! l introduce the concept of reading data from a file, doing calculations with these data, and filling histograms with the results (analysis based on ROOT package) l first, students are ‘shocked’ by the idea that they should write code (even though it’s only ‘cut and paste’) l they recover quickly (~10 minutes) when they realize that this is much more convenient than a visual analysis l cutting and pasting from an example macro that demonstrates how to create, fill, plot, and save histograms gets them on track quickly! Innsbruck, 04/19/2012 18 R. Averbeck,

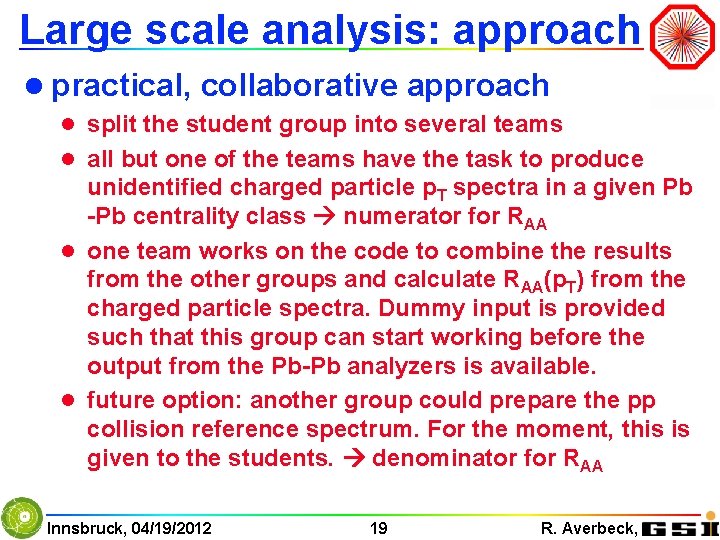

Large scale analysis: approach l practical, collaborative approach l split the student group into several teams l all but one of the teams have the task to produce unidentified charged particle p. T spectra in a given Pb -Pb centrality class numerator for RAA l one team works on the code to combine the results from the other groups and calculate RAA(p. T) from the charged particle spectra. Dummy input is provided such that this group can start working before the output from the Pb-Pb analyzers is available. l future option: another group could prepare the pp collision reference spectrum. For the moment, this is given to the students. denominator for RAA Innsbruck, 04/19/2012 19 R. Averbeck,

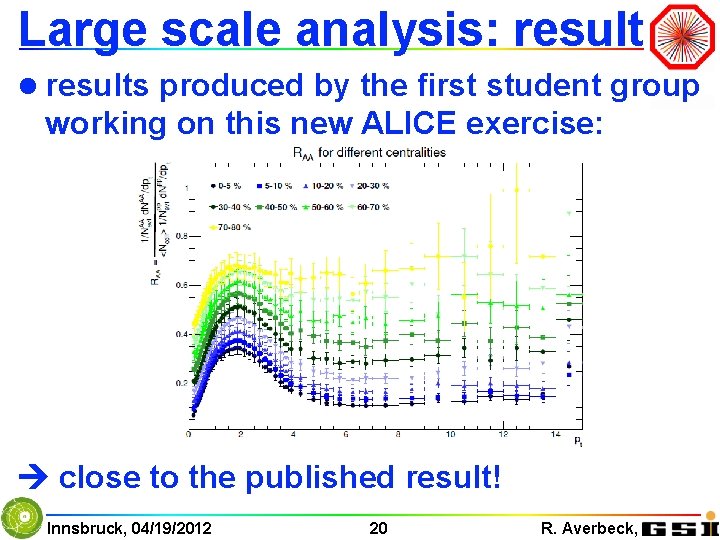

Large scale analysis: result l results produced by the first student group working on this new ALICE exercise: close to the published result! Innsbruck, 04/19/2012 20 R. Averbeck,

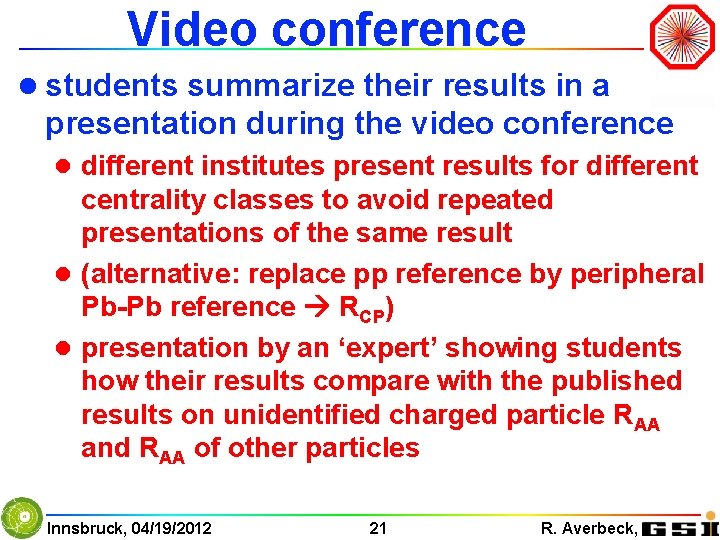

Video conference l students summarize their results in a presentation during the video conference l different institutes present results for different centrality classes to avoid repeated presentations of the same result l (alternative: replace pp reference by peripheral Pb-Pb reference RCP) l presentation by an ‘expert’ showing students how their results compare with the published results on unidentified charged particle RAA and RAA of other particles Innsbruck, 04/19/2012 21 R. Averbeck,

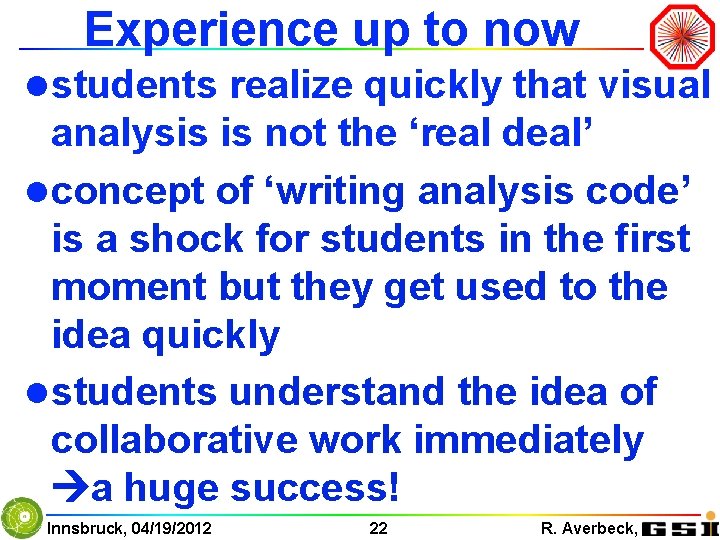

Experience up to now l students realize quickly that visual analysis is not the ‘real deal’ l concept of ‘writing analysis code’ is a shock for students in the first moment but they get used to the idea quickly l students understand the idea of collaborative work immediately a huge success! Innsbruck, 04/19/2012 22 R. Averbeck,

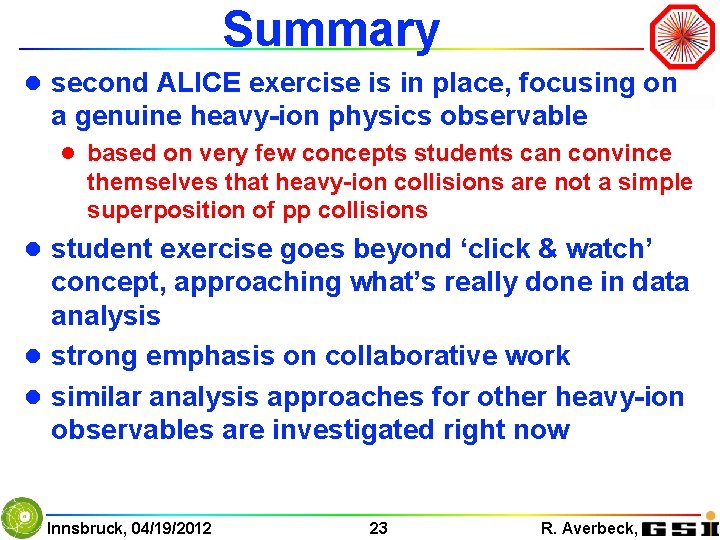

Summary l second ALICE exercise is in place, focusing on a genuine heavy-ion physics observable l based on very few concepts students can convince themselves that heavy-ion collisions are not a simple superposition of pp collisions l student exercise goes beyond ‘click & watch’ concept, approaching what’s really done in data analysis l strong emphasis on collaborative work l similar analysis approaches for other heavy-ion observables are investigated right now Innsbruck, 04/19/2012 23 R. Averbeck,
ALICE RAA exercise developed by: Ralf Averbeck 1, Friederike Bock 2, Benjamin Doenigus 1, Yiota Foka 1, Philipp Luettig 3, Kilian Schwarz 1, Reinhard Simon 1, Jochen Thaeder 1 1 Extre. Me Matter Institute EMMI, GSI Darmstadt, 2 Physikalisches Institut, University Heidelberg, 3 Institut für Kernphysik, University Frankfurt Innsbruck, 04/19/2012 24 R. Averbeck,
