New Air Handler Platform BCS 3 Air Handler

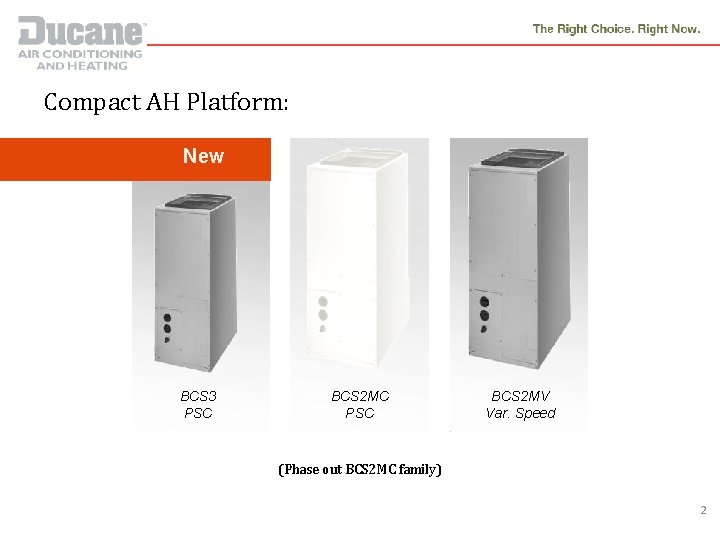

Compact AH Platform: New BCS 3 PSC BCS 2 MC PSC BCS 2 MV Var. Speed (Phase out BCS 2 MC family) 2

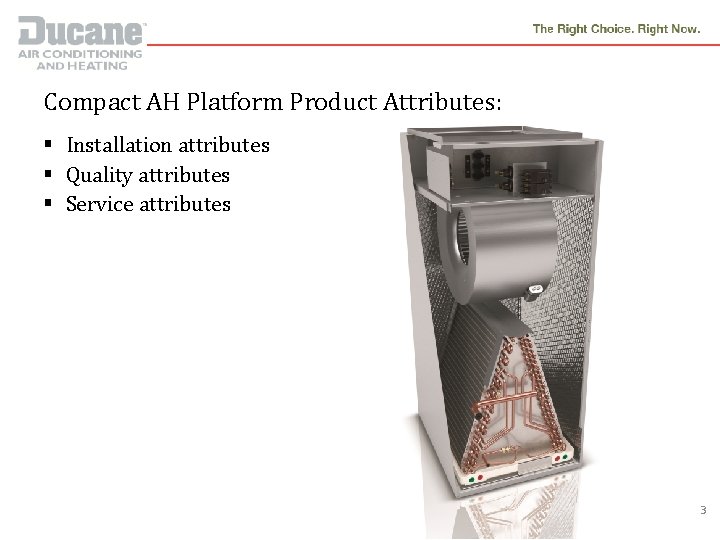

Compact AH Platform Product Attributes: § Installation attributes § Quality attributes § Service attributes 3

Compact AH Platform Installation: Improved application flexibility in tight spaces vs. the competition We now easily fit in here! …and a better fit here versus other brands! 4

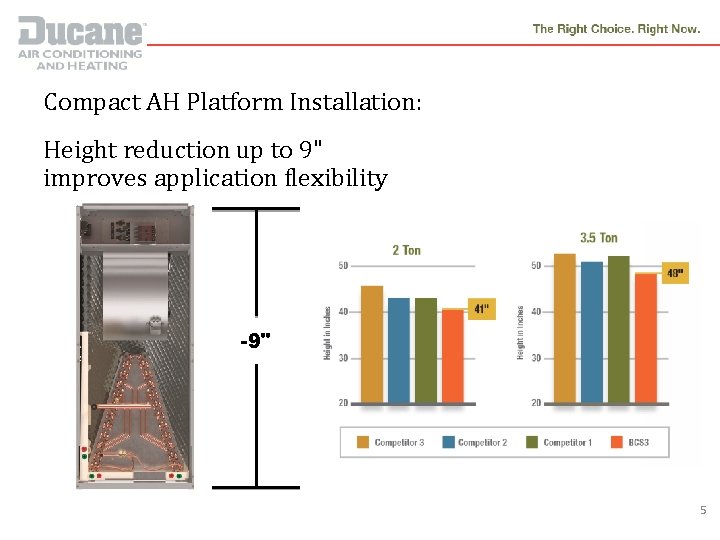

Compact AH Platform Installation: Height reduction up to 9" improves application flexibility -9" 5

Compact AH Platform Installation: FIXED ORIFICE § Eliminates the need for a thermal expansion valve (TXV) in 13 SEER applications (2 – 4 ton) § Ensures reliable operation § Simplified installation & reduces the chance for callbacks Saves $75 per install 6

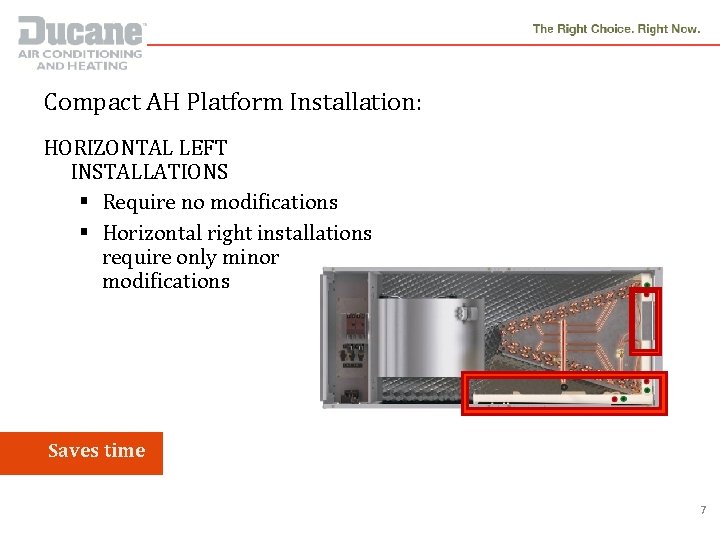

Compact AH Platform Installation: HORIZONTAL LEFT INSTALLATIONS § Require no modifications § Horizontal right installations require only minor modifications Saves time 7

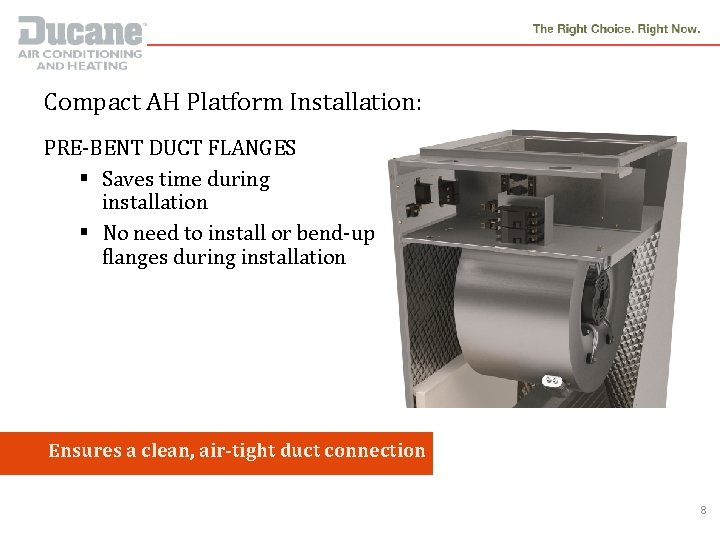

Compact AH Platform Installation: PRE-BENT DUCT FLANGES § Saves time during installation § No need to install or bend-up flanges during installation Ensures a clean, air-tight duct connection 8

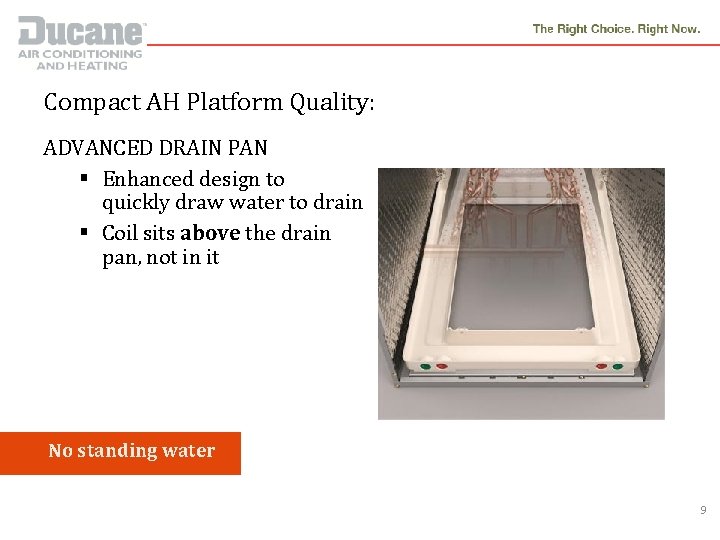

Compact AH Platform Quality: ADVANCED DRAIN PAN § Enhanced design to quickly draw water to drain § Coil sits above the drain pan, not in it No standing water 9

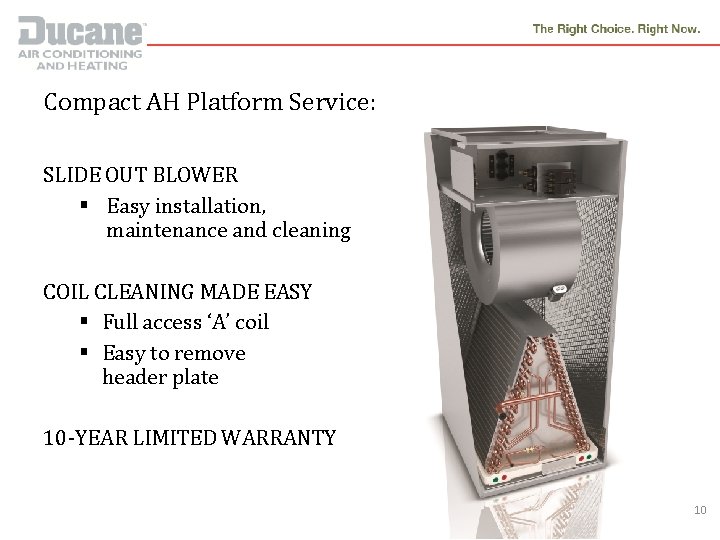

Compact AH Platform Service: SLIDE OUT BLOWER § Easy installation, maintenance and cleaning COIL CLEANING MADE EASY § Full access ‘A’ coil § Easy to remove header plate 10 -YEAR LIMITED WARRANTY 10

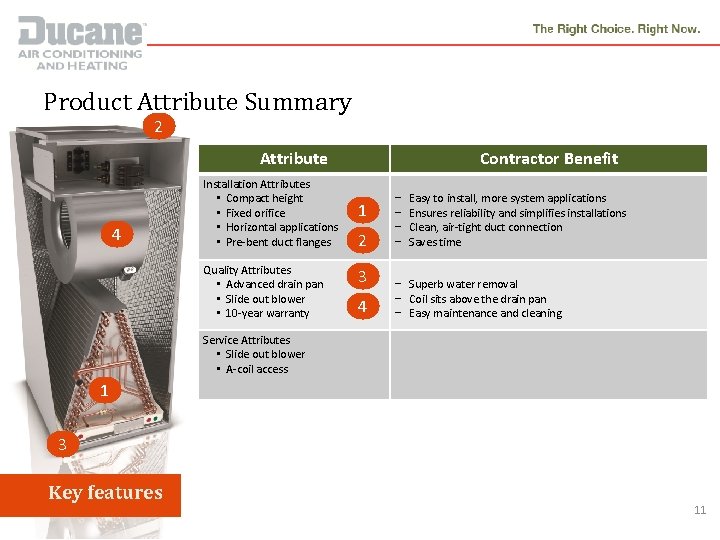

Product Attribute Summary 2 Attribute 4 Installation Attributes • Compact height • Fixed orifice • Horizontal applications • Pre-bent duct flanges Quality Attributes • Advanced drain pan • Slide out blower • 10 -year warranty Contractor Benefit 1 2 3 4 − − Easy to install, more system applications Ensures reliability and simplifies installations Clean, air-tight duct connection Saves time − Superb water removal − Coil sits above the drain pan − Easy maintenance and cleaning Service Attributes • Slide out blower • A-coil access 1 3 Key features 11

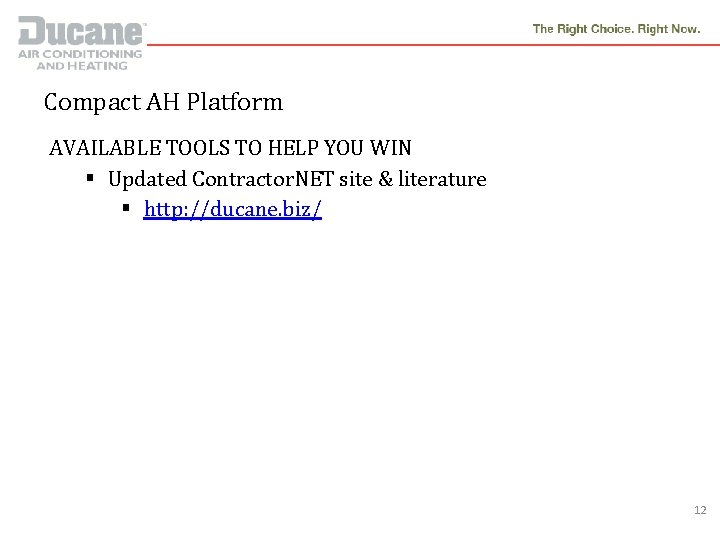

Compact AH Platform AVAILABLE TOOLS TO HELP YOU WIN § Updated Contractor. NET site & literature § http: //ducane. biz/ 12
