Neutrons and chirality Virginie Simonet Institut Nel CNRS

Neutrons and chirality Virginie Simonet Institut Néel, CNRS & Université Grenoble Alpes, Grenoble, France 50 th anniversary of the ILL, 19 January 2017

Introduction to chirality �Casual definition of chirality (handedness): what distinguishes a phenomenon from its materialization in a mirror (or through an inversion center) Χειρ Hand in Greek o Called « dissymetry » by Pasteur (1848) He succeeded in separating the two enantiomorphs of paratartaric acid o Word « chirality » proposed by lord Kelvin (1904) 50 th anniversary of the ILL, 19 January 2017

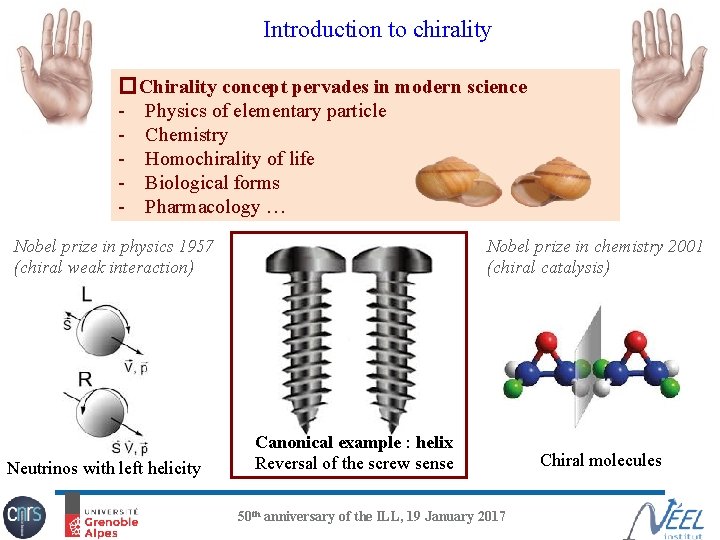

Introduction to chirality �Chirality concept pervades in modern science - Physics of elementary particle - Chemistry - Homochirality of life - Biological forms - Pharmacology … Nobel prize in physics 1957 (chiral weak interaction) Neutrinos with left helicity Nobel prize in chemistry 2001 (chiral catalysis) Canonical example : helix Reversal of the screw sense 50 th anniversary of the ILL, 19 January 2017 Chiral molecules

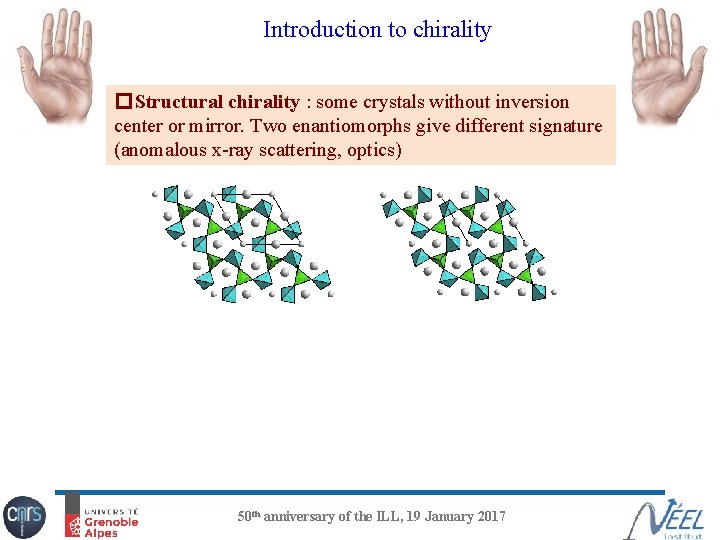

Introduction to chirality �Structural chirality : some crystals without inversion center or mirror. Two enantiomorphs give different signature (anomalous x-ray scattering, optics) 50 th anniversary of the ILL, 19 January 2017

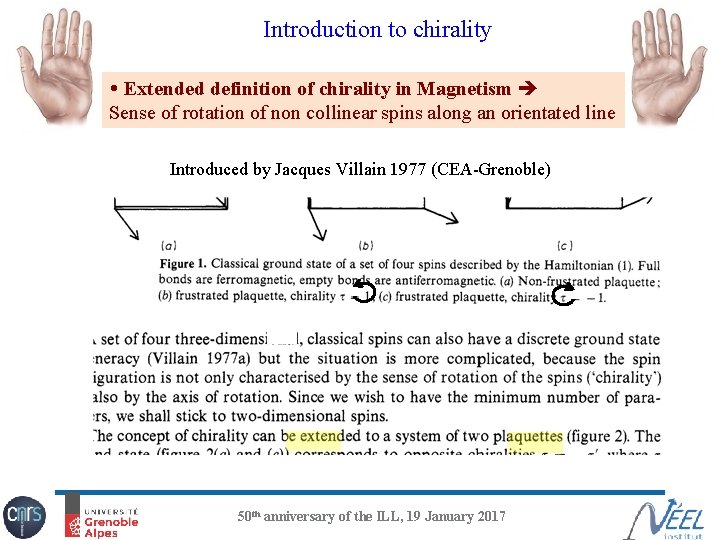

Introduction to chirality Extended definition of chirality in Magnetism Sense of rotation of non collinear spins along an orientated line Introduced by Jacques Villain 1977 (CEA-Grenoble) 50 th anniversary of the ILL, 19 January 2017

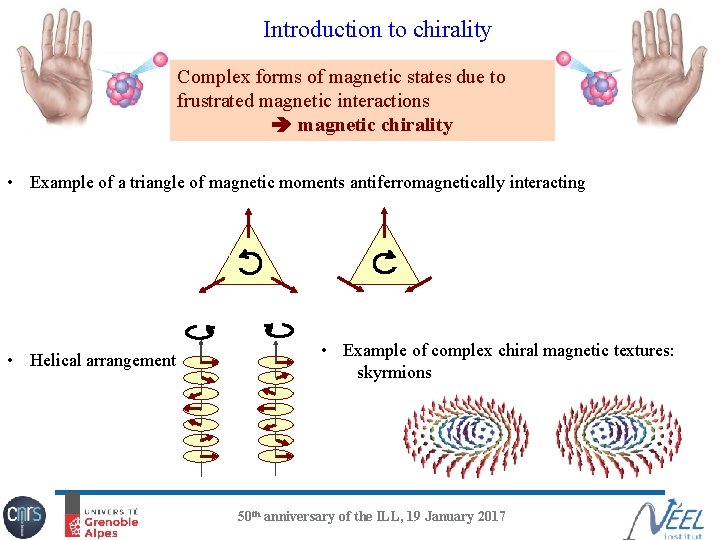

Introduction to chirality Complex forms of magnetic states due to frustrated magnetic interactions magnetic chirality • Example of a triangle of magnetic moments antiferromagnetically interacting • Helical arrangement • Example of complex chiral magnetic textures: skyrmions 50 th anniversary of the ILL, 19 January 2017

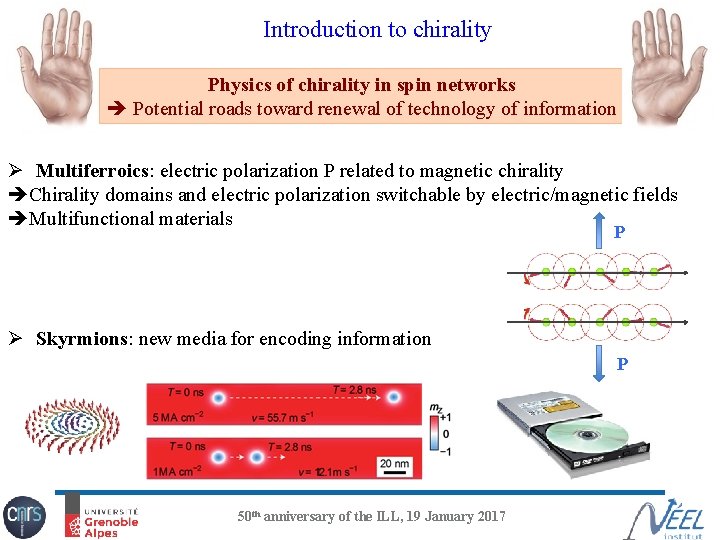

Introduction to chirality Physics of chirality in spin networks Potential roads toward renewal of technology of information Ø Multiferroics: electric polarization P related to magnetic chirality Chirality domains and electric polarization switchable by electric/magnetic fields Multifunctional materials P Ø Skyrmions: new media for encoding information P 50 th anniversary of the ILL, 19 January 2017

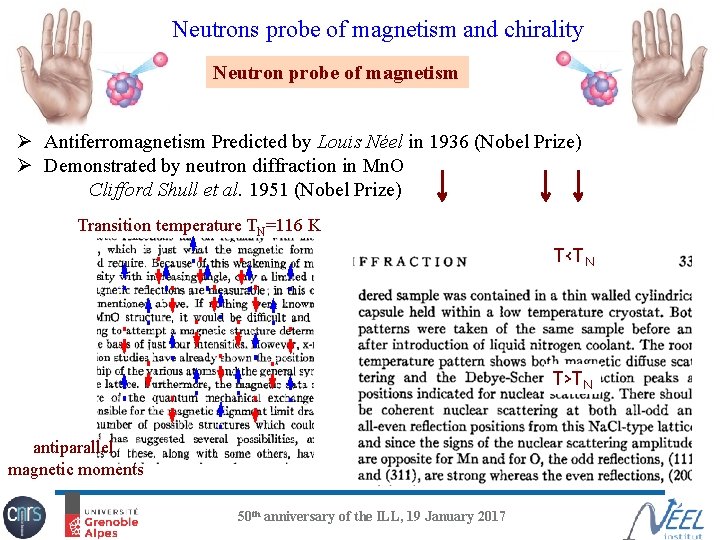

Neutrons probe of magnetism and chirality Neutron probe of magnetism Ø Antiferromagnetism Predicted by Louis Néel in 1936 (Nobel Prize) Ø Demonstrated by neutron diffraction in Mn. O Clifford Shull et al. 1951 (Nobel Prize) Transition temperature TN=116 K T<TN T>TN antiparallel magnetic moments 50 th anniversary of the ILL, 19 January 2017

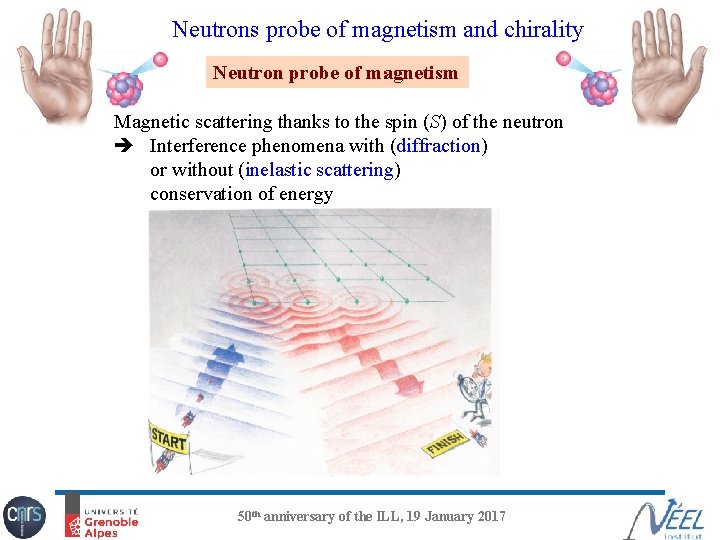

Neutrons probe of magnetism and chirality Neutron probe of magnetism Magnetic scattering thanks to the spin (S) of the neutron Interference phenomena with (diffraction) or without (inelastic scattering) conservation of energy 50 th anniversary of the ILL, 19 January 2017

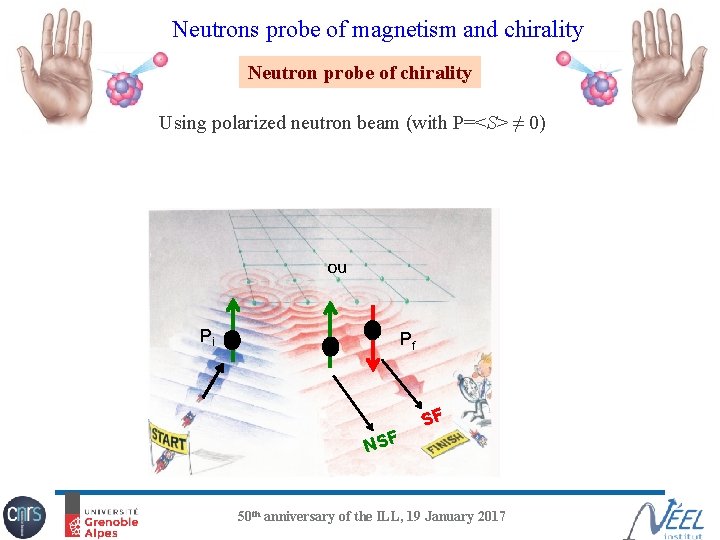

Neutrons probe of magnetism and chirality Neutron probe of chirality Using polarized neutron beam (with P=<S> ≠ 0) ou Pi Pf NSF SF 50 th anniversary of the ILL, 19 January 2017

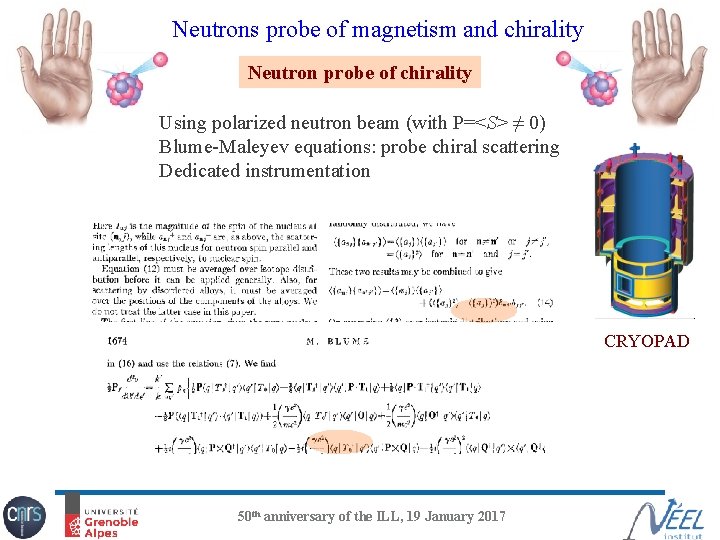

Neutrons probe of magnetism and chirality Neutron probe of chirality Using polarized neutron beam (with P=<S> ≠ 0) Blume-Maleyev equations: probe chiral scattering Dedicated instrumentation CRYOPAD 50 th anniversary of the ILL, 19 January 2017

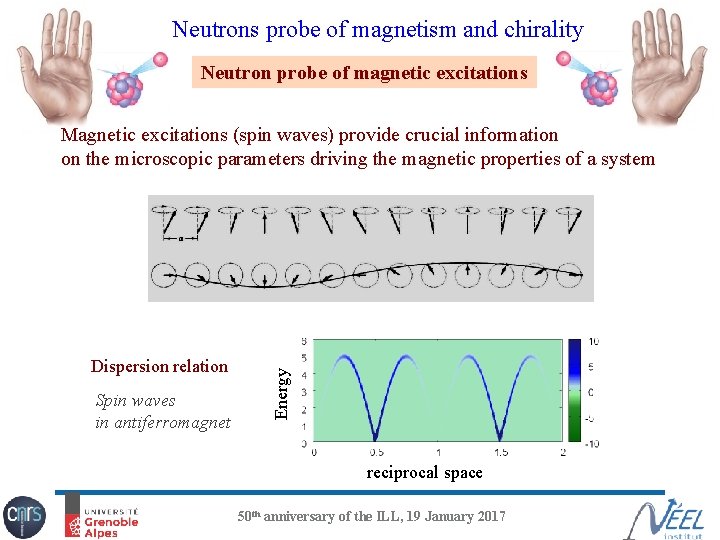

Neutrons probe of magnetism and chirality Neutron probe of magnetic excitations Dispersion relation Spin waves in antiferromagnet Energy Magnetic excitations (spin waves) provide crucial information on the microscopic parameters driving the magnetic properties of a system reciprocal space 50 th anniversary of the ILL, 19 January 2017

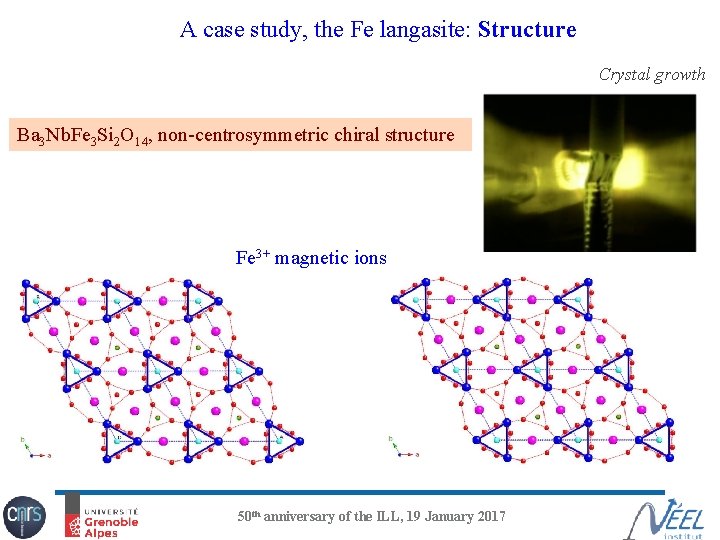

A case study, the Fe langasite: Structure Crystal growth Ba 3 Nb. Fe 3 Si 2 O 14, non-centrosymmetric chiral structure Fe 3+ magnetic ions 50 th anniversary of the ILL, 19 January 2017

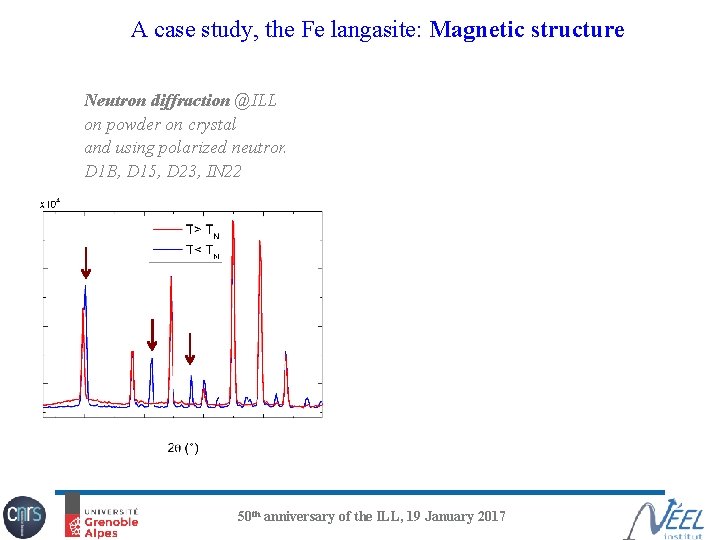

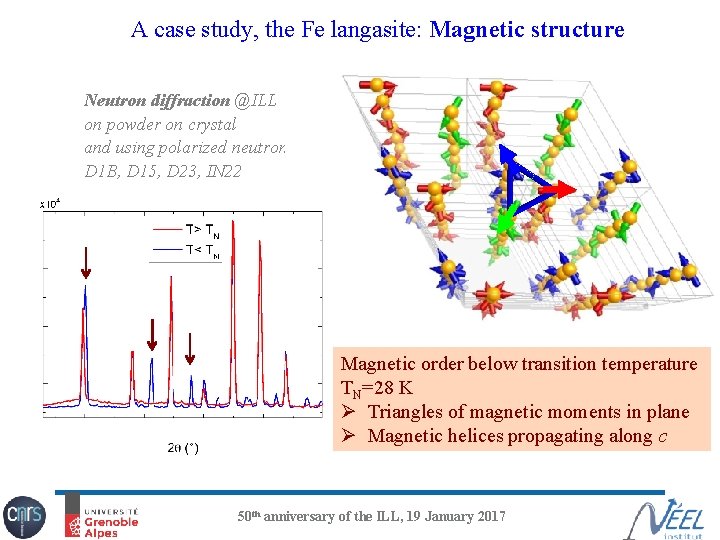

A case study, the Fe langasite: Magnetic structure Neutron diffraction @ILL on powder on crystal and using polarized neutrons D 1 B, D 15, D 23, IN 22 50 th anniversary of the ILL, 19 January 2017

A case study, the Fe langasite: Magnetic structure Neutron diffraction @ILL on powder on crystal and using polarized neutrons D 1 B, D 15, D 23, IN 22 Magnetic order below transition temperature TN=28 K Ø Triangles of magnetic moments in plane Ø Magnetic helices propagating along c 50 th anniversary of the ILL, 19 January 2017

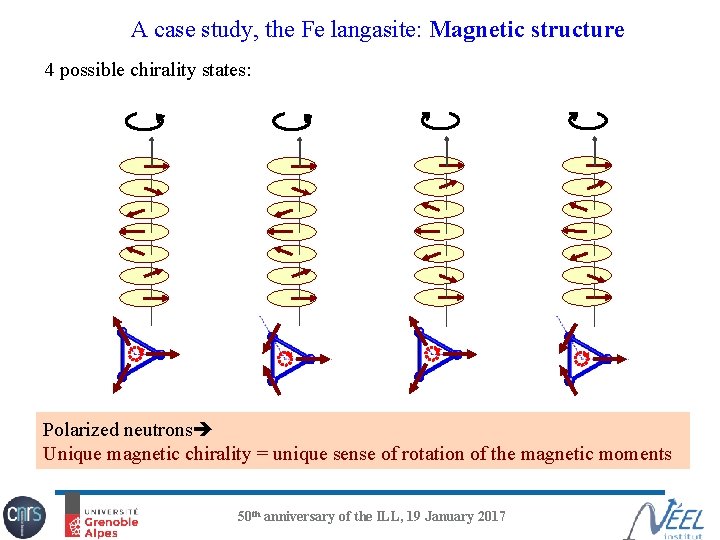

A case study, the Fe langasite: Magnetic structure 4 possible chirality states: Polarized neutrons Unique magnetic chirality = unique sense of rotation of the magnetic moments 50 th anniversary of the ILL, 19 January 2017

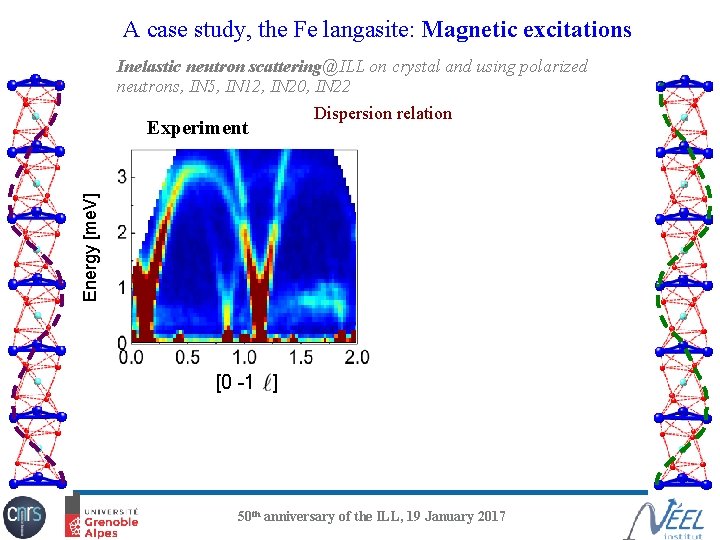

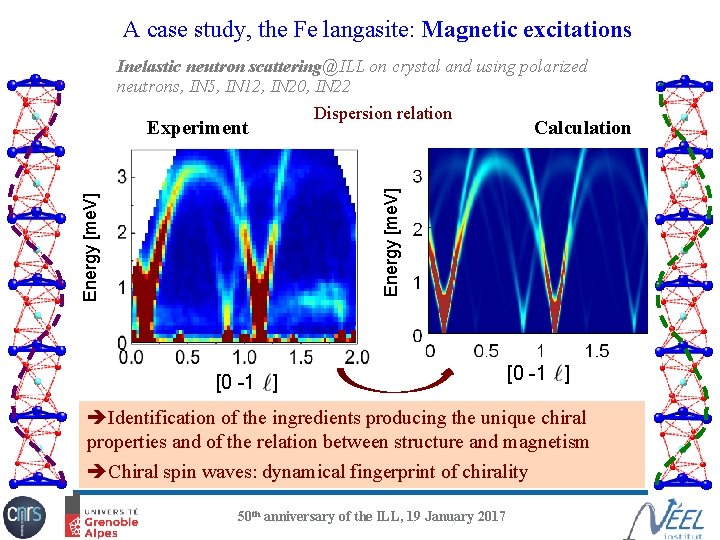

A case study, the Fe langasite: Magnetic excitations Inelastic neutron scattering@ILL on crystal and using polarized neutrons, IN 5, IN 12, IN 20, IN 22 Dispersion relation Experiment Energy [me. V] (a) [0 -1 ] 50 th anniversary of the ILL, 19 January 2017

A case study, the Fe langasite: Magnetic excitations Inelastic neutron scattering@ILL on crystal and using polarized neutrons, IN 5, IN 12, IN 20, IN 22 Dispersion relation Experiment Calculation Energy [me. V] (a) [0 -1 ] Identification of the ingredients producing the unique chiral properties and of the relation between structure and magnetism Chiral spin waves: dynamical fingerprint of chirality 50 th anniversary of the ILL, 19 January 2017

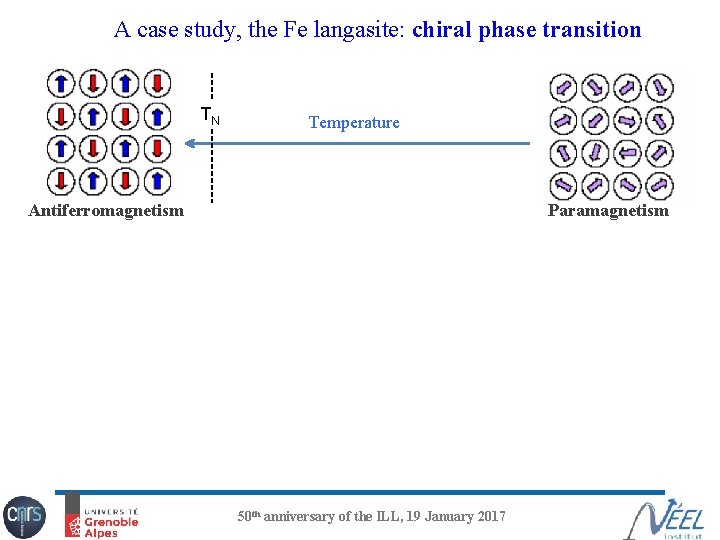

A case study, the Fe langasite: chiral phase transition TN Temperature Antiferromagnetism Paramagnetism 50 th anniversary of the ILL, 19 January 2017

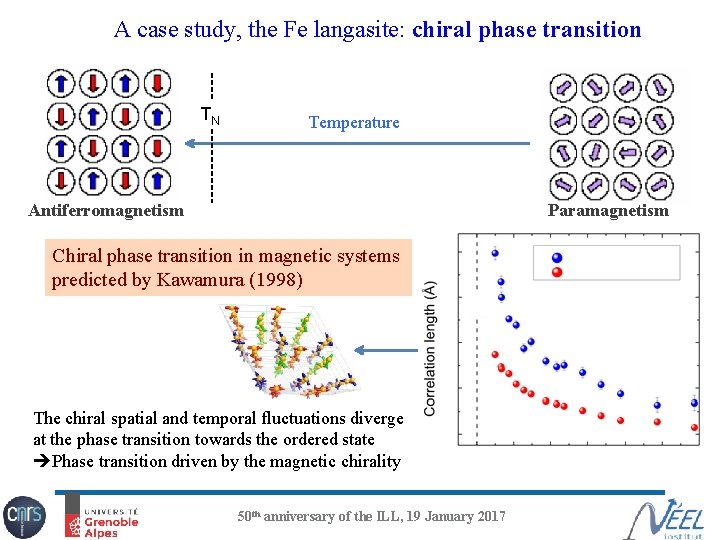

A case study, the Fe langasite: chiral phase transition TN Temperature Antiferromagnetism Paramagnetism Chiral phase transition in magnetic systems predicted by Kawamura (1998) The chiral spatial and temporal fluctuations diverge at the phase transition towards the ordered state Phase transition driven by the magnetic chirality 50 th anniversary of the ILL, 19 January 2017

Conclusion Non-centrosymmetric Ba 3 Nb. Fe 3 Si 2 O 14 langasite, a model system Ø remarkable chiral static and dynamical properties: unique sense of rotation of the magnetic moments Ø Giving rise to interesting properties (multiferroicity, magnetoelectrics) Ø First direct evidence of phase transition driven by the magnetic chirality Ø Probed by neutron scattering (elastic, inelastic, using polarized neutrons) = unique tool for understanding of magnetic chirality 50 th anniversary of the ILL, 19 January 2017

Collaborations: K. Marty, M. Loire, L. Chaix, E. Constable, R. Ballou, P. Bordet, S. de. Brion, P. Lejay, C. V. Colin (NEEL), E. Ressouche, L. -P. Regnault (INAC-MEM-MDN, GEA-Grenoble), S. Petit (LLB, CEA-Saclay), J. Ollivier, M. Enderle, P. Steffens, L. C. Chapon (ILL), V. Scagnoli (PSI/ETH, Switzerland), A. Zorko (Jozef Stefan Institute, Slovenia), A. Cano (ICMCB, Bordeaux) Instruments at the ILL: D 1 B, D 23, D 15, IN 12, IN 20, IN 22 50 th anniversary of the ILL, 19 January 2017
