Neurobiology of sleep Christian Benedict Dept of Neuroscience

Neurobiology of sleep Christian Benedict Dept. of Neuroscience, UU Email: christian. benedict@neuro. uu. se

Why do we sleep?

Neural systems involved in human sleep/wakefulness TMN = tuberomammillary nucleus VLPO = Ventrolateral preoptic nucleus PPT/LDT = pedunculopontine and laterodorsal tegmental nucleus

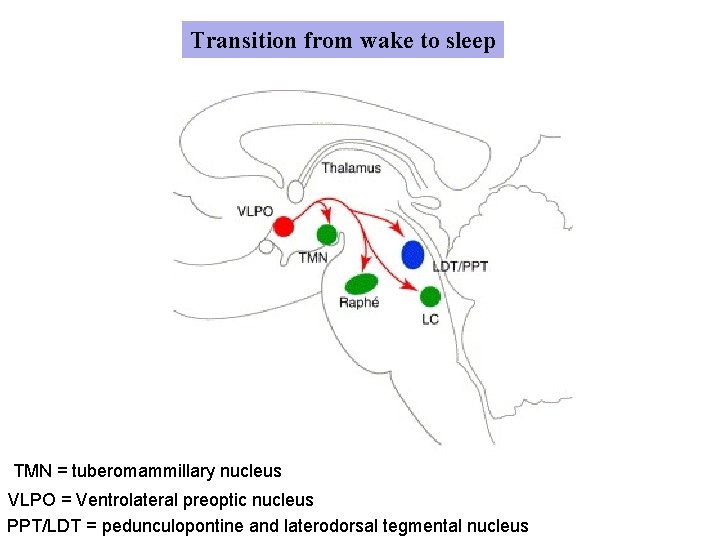

Transition from wake to sleep TMN = tuberomammillary nucleus VLPO = Ventrolateral preoptic nucleus PPT/LDT = pedunculopontine and laterodorsal tegmental nucleus

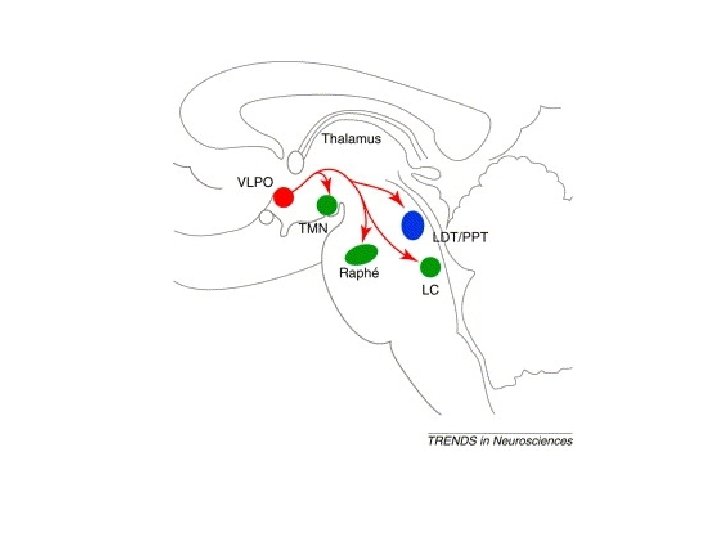

Transition from wake to sleep

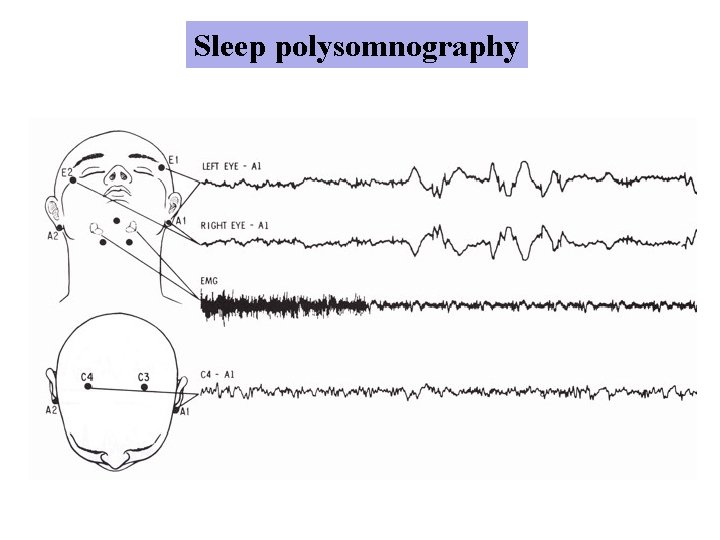

Sleep polysomnography

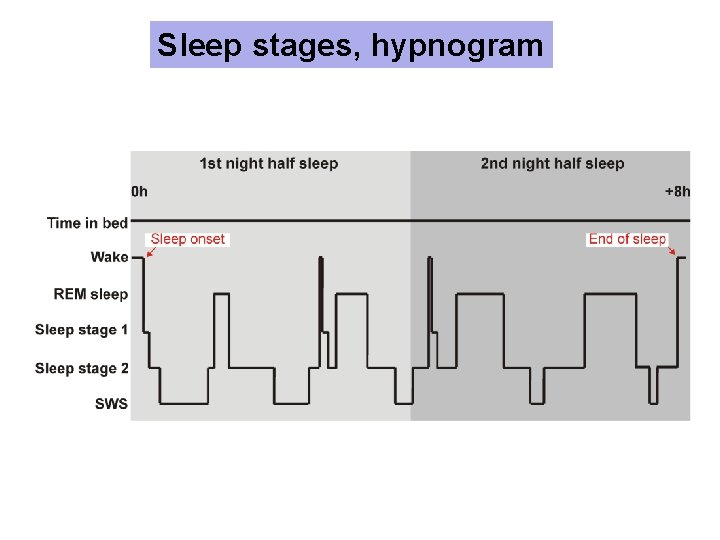

Sleep stages, hypnogram

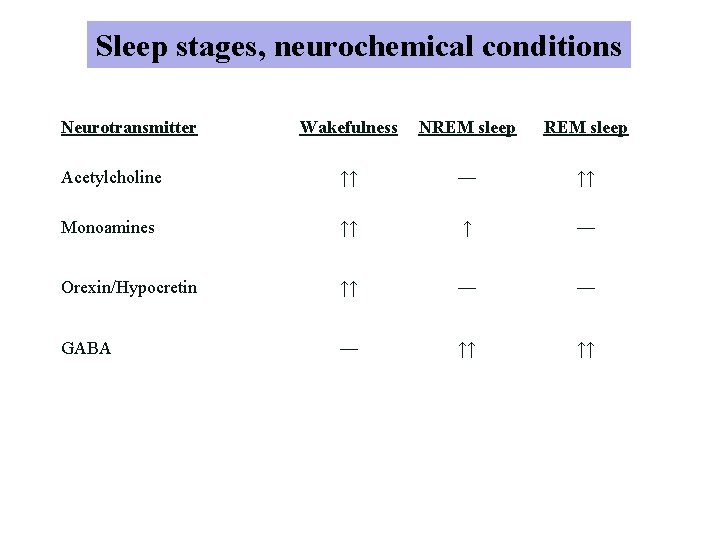

Sleep stages, neurochemical conditions Neurotransmitter Wakefulness NREM sleep Acetylcholine ↑↑ — ↑↑ Monoamines ↑↑ ↑ — Orexin/Hypocretin ↑↑ — — GABA — ↑↑ ↑↑

Sleep stages, hypnogram

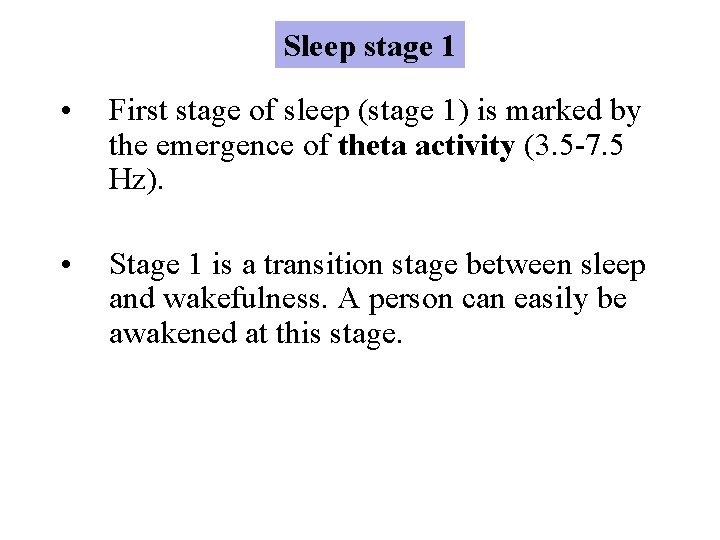

Sleep stage 1 • First stage of sleep (stage 1) is marked by the emergence of theta activity (3. 5 -7. 5 Hz). • Stage 1 is a transition stage between sleep and wakefulness. A person can easily be awakened at this stage.

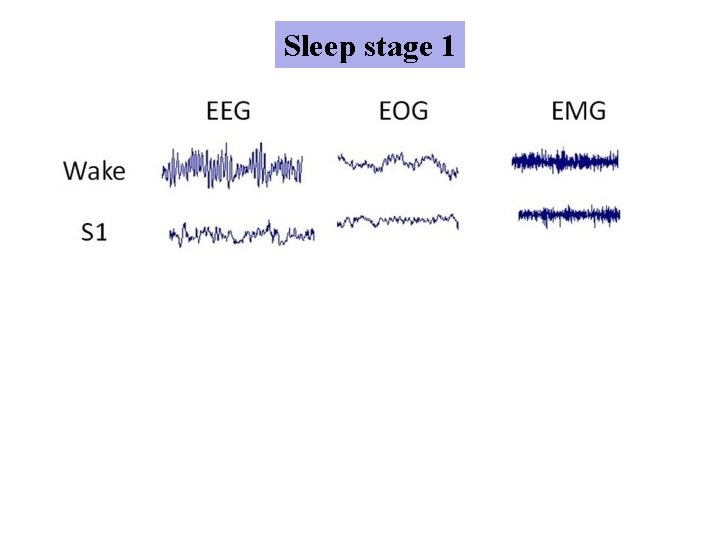

Sleep stage 1

Sleep stages, hypnogram

Sleep stage 2 • Sleep spindles (periodic 1 to 2 second bursts of rapid brain-wave activity, 12 to 15 Hz). • K-Complex (largest event in healthy human EEG, suppressing cortical arousal in response to stimuli that the sleeping brain evaluates not to signal danger).

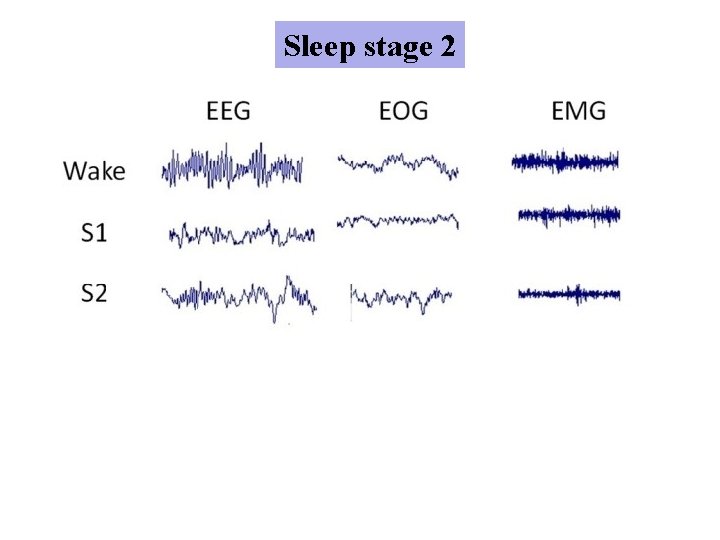

Sleep stage 2

Sleep stages, hypnogram

Sleep stage SWS • • • also known as deep sleep. high-amplitude waves occurring at less than 3. 5 Hz. less responsive to environment and difficult to awaken.

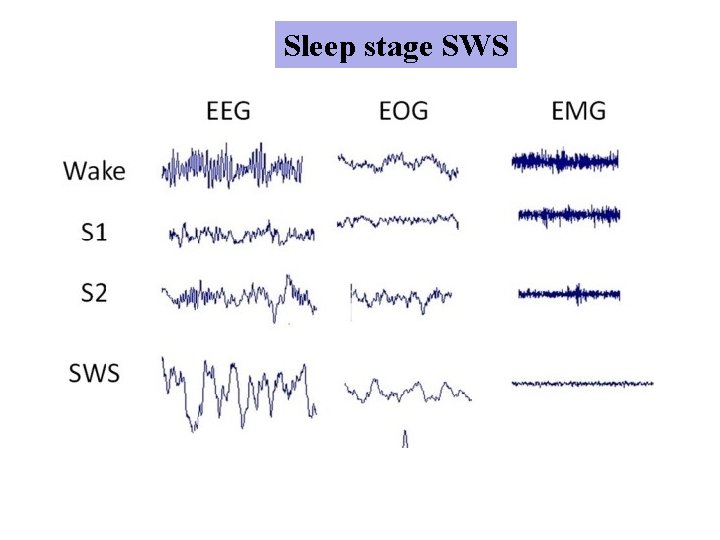

Sleep stage SWS

Sleep stages, hypnogram

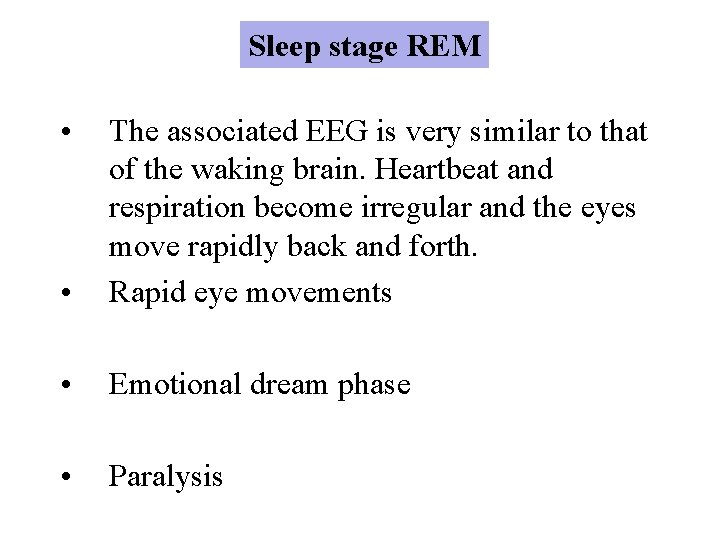

Sleep stage REM • • The associated EEG is very similar to that of the waking brain. Heartbeat and respiration become irregular and the eyes move rapidly back and forth. Rapid eye movements • Emotional dream phase • Paralysis

Sleep stage REM

Pharmacological Therapies • Benzodiazepines • Many end in “pam” or “lam” – clonazepam (Klonopin) – lorazepam (Ativan) – diazepam (Valium) – alprazolam (Xanax) – temazepam (Restoril) – triazolam (Halcion)

GABA receptor BZ’s bind to the gamma-subunit of the GABA rec

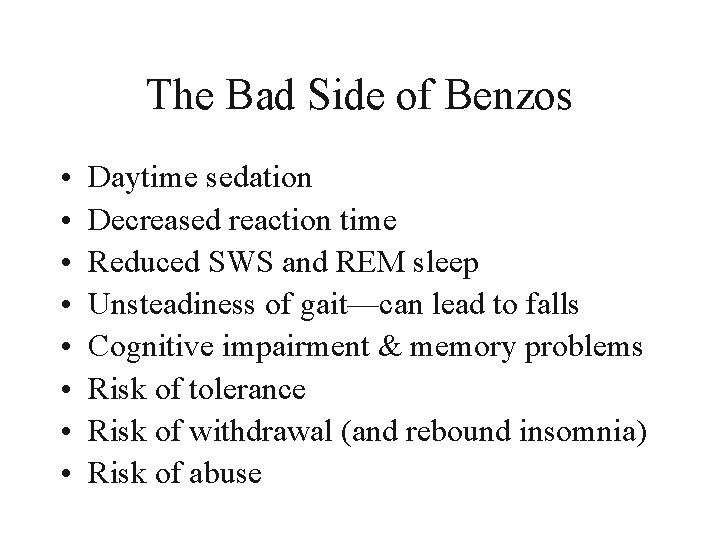

The Bad Side of Benzos • • Daytime sedation Decreased reaction time Reduced SWS and REM sleep Unsteadiness of gait—can lead to falls Cognitive impairment & memory problems Risk of tolerance Risk of withdrawal (and rebound insomnia) Risk of abuse

Examples Pharmacologic Effect Neurobiologic Mechanism Clinical Effects   Selective serotonin reuptake inhibitors (SSRIs) Fluoxetine Fluvoxamine Citalopram Increase extracellular levels of 5 -HT inhibits REM sleepproducing cells Decreased REM sleep   Tricyclic antidepressants Amitriptyline Nortriptyline Clomipramine Desipramine Increase extracellular levels of 5 -HT and NE inhibit REM sleep-producing cells Decreased REM sleep Amphetamine Dextroamphetamine Methylphenidate Increase extracellular levels of DA and NE Increased DA and NE signaling Increased wakefulness Increase extracellular levels of DA Increased DA signaling Increased wakefulness Enhance GABA signaling via GABAA receptors GABA inhibits the arousal systems Increased sleep Block HA H 1 receptors Reduced HA signaling Increased sleep Block DA receptors Reduced DA signaling Increased sleep   Traditional, amphetamine-like stimulants   Wake-promoting, non-traditional stimulants   Benzodiazepines   Non-benzodiazepine sedative hypnotics   Classic antihistamines   Typical antipsychotics Modafinil Armodafinil Diazepam Clonazepam Lorazepam Triazolam Zolpidem Zaleplon Zopiclone Diphenhydramine Triprolidine Haloperidol Chlorpromazine

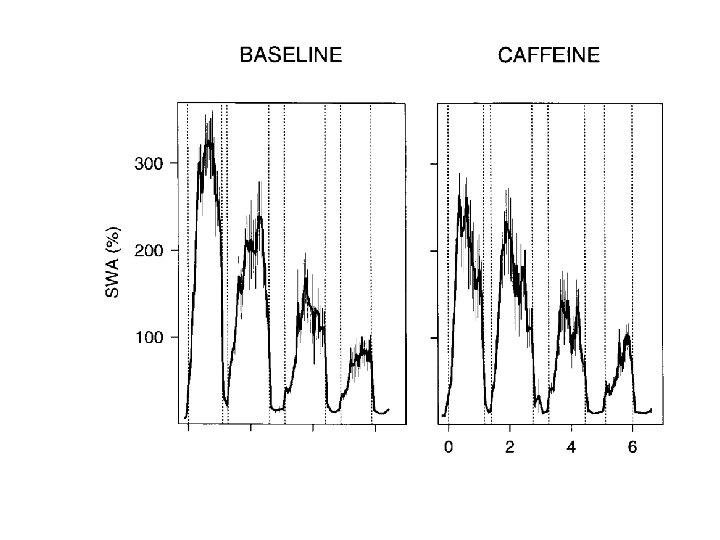

Caffeine

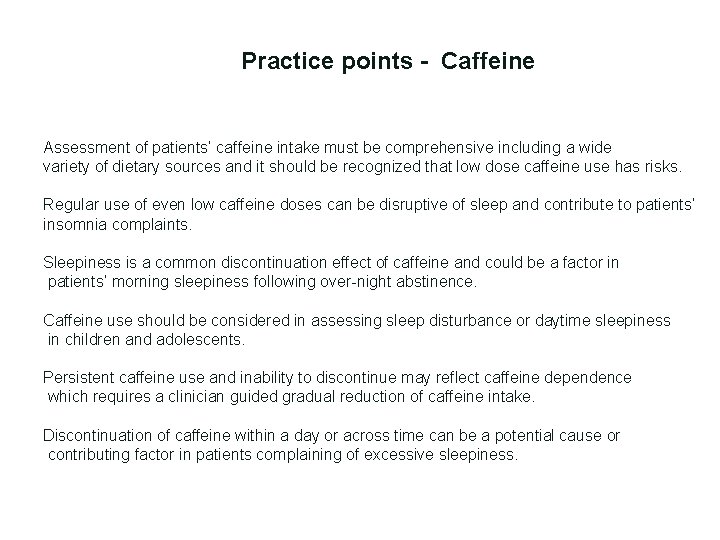

Practice points - Caffeine Assessment of patients’ caffeine intake must be comprehensive including a wide variety of dietary sources and it should be recognized that low dose caffeine use has risks. Regular use of even low caffeine doses can be disruptive of sleep and contribute to patients’ insomnia complaints. Sleepiness is a common discontinuation effect of caffeine and could be a factor in patients’ morning sleepiness following over-night abstinence. Caffeine use should be considered in assessing sleep disturbance or daytime sleepiness in children and adolescents. Persistent caffeine use and inability to discontinue may reflect caffeine dependence which requires a clinician guided gradual reduction of caffeine intake. Discontinuation of caffeine within a day or across time can be a potential cause or contributing factor in patients complaining of excessive sleepiness.
