NETWORKING NETWORK DEVICES LAN CARDS Also called as

NETWORKING NETWORK DEVICES

LAN CARDS Also called as Ethernet card or Network Interface Card. Basic thing required in PC for LAN Connectivity. The main thing in LAN card is the Mac address. Some features about Mac / hardware / physical address. It is burned / written in LAN card by manufacturer during creating it. It is unique in the world It is 48 bits long, in which they are divided into 6 groups of 8 bits separated by : or – It is presented in hexadecimal format Ex. - 0 A-0 B-01 -55 -5 A-44

TYPES OF LAN CARDS Ethernet card Fiber optic LAN card Wireless LAN card

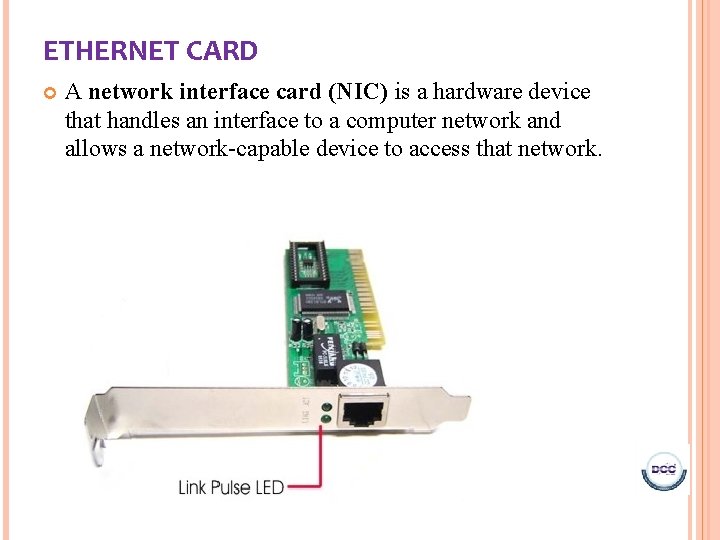

ETHERNET CARD A network interface card (NIC) is a hardware device that handles an interface to a computer network and allows a network-capable device to access that network.

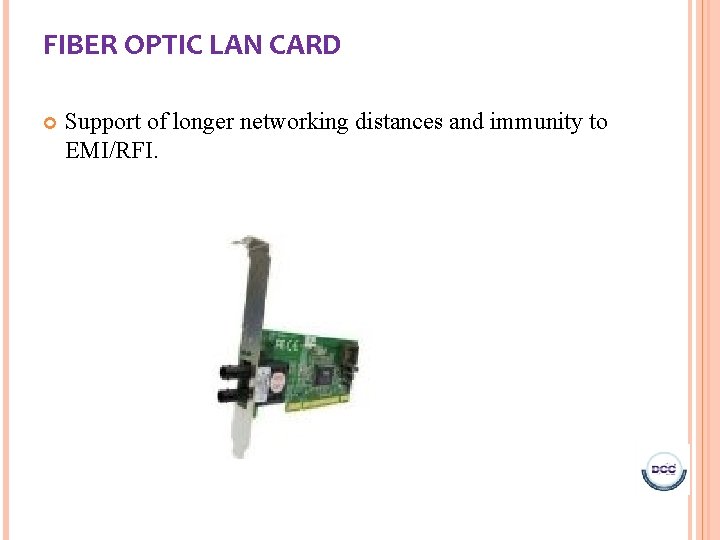

FIBER OPTIC LAN CARD Support of longer networking distances and immunity to EMI/RFI.

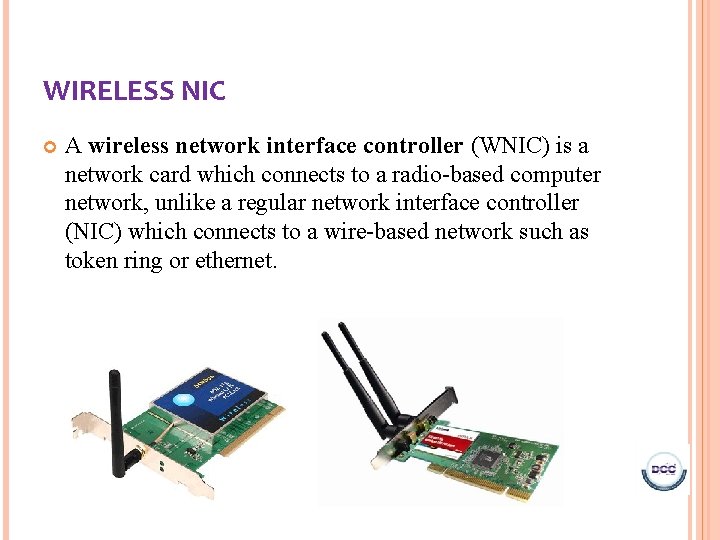

WIRELESS NIC A wireless network interface controller (WNIC) is a network card which connects to a radio-based computer network, unlike a regular network interface controller (NIC) which connects to a wire-based network such as token ring or ethernet.

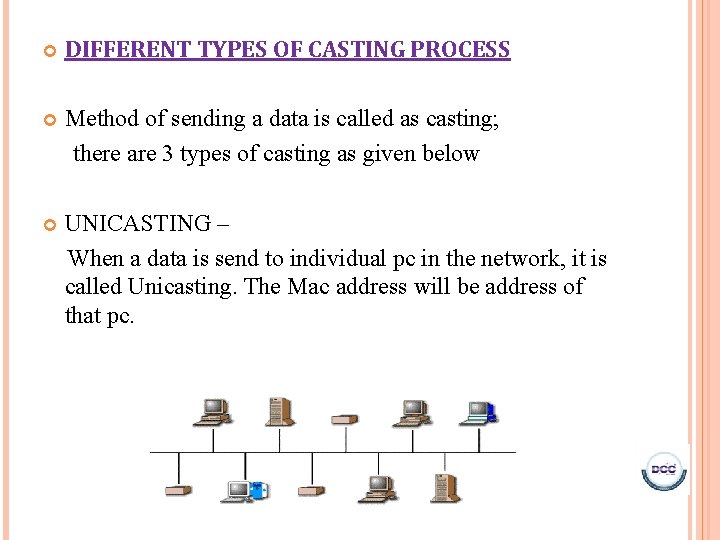

DIFFERENT TYPES OF CASTING PROCESS Method of sending a data is called as casting; there are 3 types of casting as given below UNICASTING – When a data is send to individual pc in the network, it is called Unicasting. The Mac address will be address of that pc.

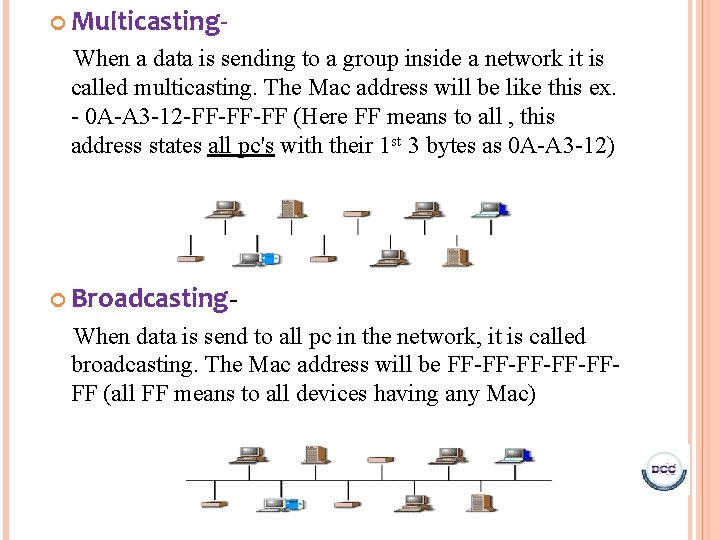

Multicasting- When a data is sending to a group inside a network it is called multicasting. The Mac address will be like this ex. - 0 A-A 3 -12 -FF-FF-FF (Here FF means to all , this address states all pc's with their 1 st 3 bytes as 0 A-A 3 -12) Broadcasting- When data is send to all pc in the network, it is called broadcasting. The Mac address will be FF-FF-FFFF (all FF means to all devices having any Mac)

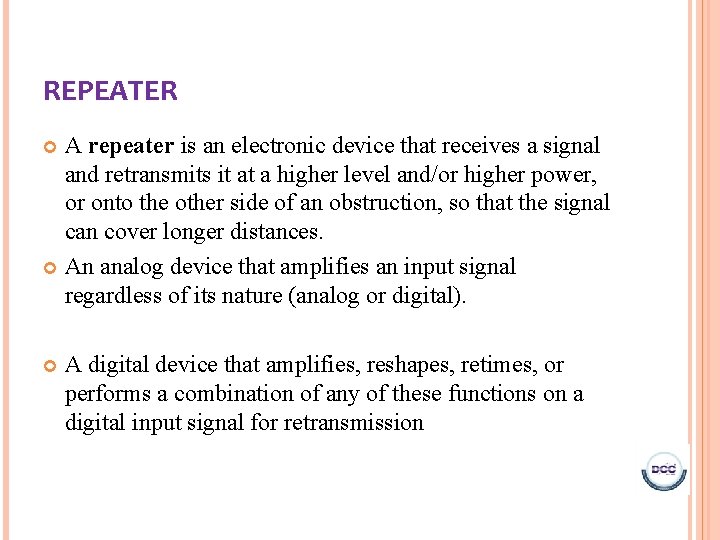

REPEATER A repeater is an electronic device that receives a signal and retransmits it at a higher level and/or higher power, or onto the other side of an obstruction, so that the signal can cover longer distances. An analog device that amplifies an input signal regardless of its nature (analog or digital). A digital device that amplifies, reshapes, retimes, or performs a combination of any of these functions on a digital input signal for retransmission

REPEATER

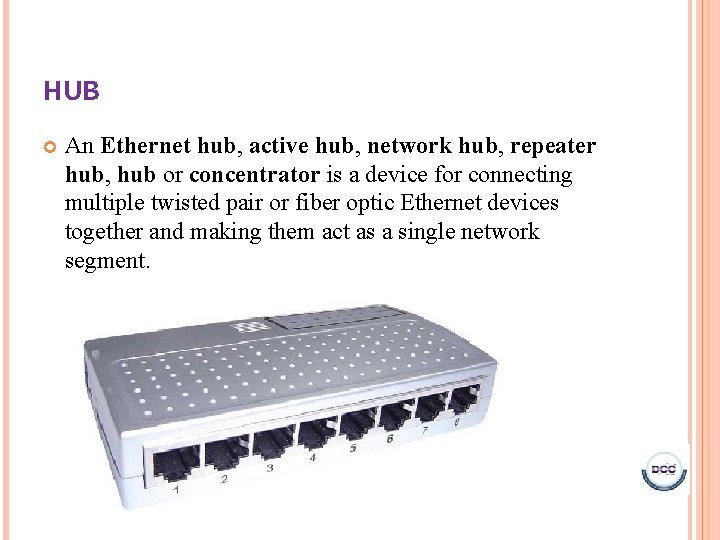

HUB An Ethernet hub, active hub, network hub, repeater hub, hub or concentrator is a device for connecting multiple twisted pair or fiber optic Ethernet devices together and making them act as a single network segment.

WORKING OF HUB
