NETWORKING MEDIA COMMON NETWORK CABLES The connection between

NETWORKING MEDIA

COMMON NETWORK CABLES The connection between the source and destination may either be direct or indirect, and may span multiple media types. • Copper Media • Optical Media • Wireless Media

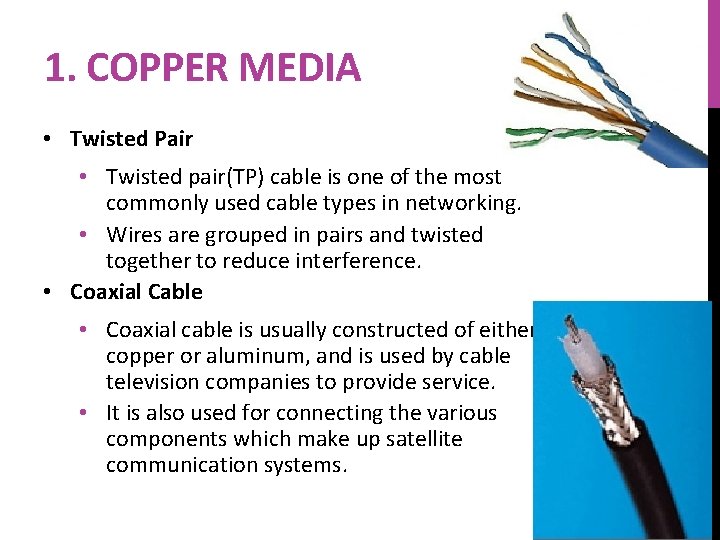

1. COPPER MEDIA • Twisted Pair • Twisted pair(TP) cable is one of the most commonly used cable types in networking. • Wires are grouped in pairs and twisted together to reduce interference. • Coaxial Cable • Coaxial cable is usually constructed of either copper or aluminum, and is used by cable television companies to provide service. • It is also used for connecting the various components which make up satellite communication systems.

1. 1 TWISTED PAIR There are three types of twisted pair cable: • Unshielded twisted pair (UTP) is the most commonly encountered type of network cable in North America and many other areas. • Shielded twisted-pair (STP) • Screened twisted-pair (Sc. TP) • Unfortunately both STP and Sc. TP are very expensive, not as flexible, and have additional requirements due to the shielding that make them difficult to work with.

1. 1 TWISTED PAIR Unshielded twisted pair (UTP) • is inexpensive, • offers a high bandwidth, • is easy to install. • This type of cable is used to connect workstations, hosts and network devices. • All Categories of data grade UTP cable are traditionally terminated into an RJ-45 connector.

1. 1 TWISTED PAIR • Used for Voice communication • Most often used for phone lines • Used for Data transmission • Individual pairs are wrapped in a shield • Supports 1000 Mbps - 10 Gbps • Used for Data transmission • An added separator is between each pair of wires allowing it to function at higher speeds • Supports 1000 Mbps - 10 Gbps • Used for Data transmission • Cat 5 supports 100 Mbps and can support 1000 Mbps

UTP Twisted pair cable is most commonly used in network installations. The TIA/EIA organization defines two different patterns, or wiring scheme, called T 568 A and T 568 B.

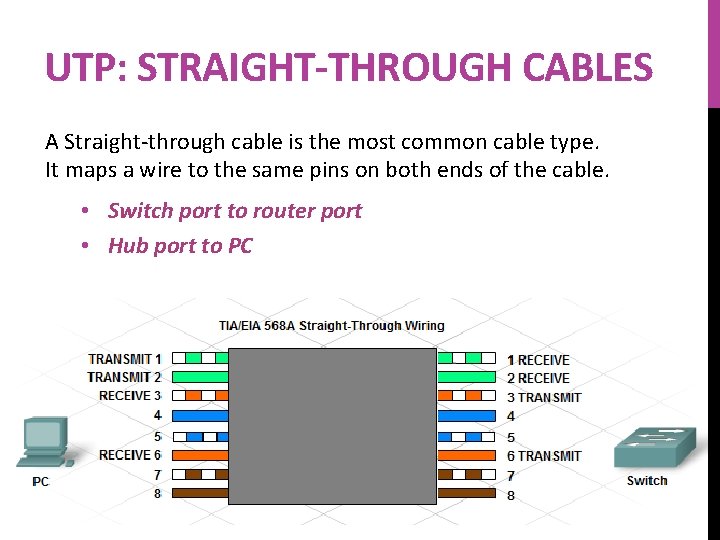

UTP: STRAIGHT-THROUGH CABLES A Straight-through cable is the most common cable type. It maps a wire to the same pins on both ends of the cable. • Switch port to router port • Hub port to PC

UTP: CROSSOVER CABLE A crossover cable uses both wiring schemes. T 568 A on one end of the cable and T 568 B on the other end of the same cable. • • • Switch port to switch port Switch port to hub port Hub port to hub port Router port to router port PC to PC

1. 2 COAXIAL CABLE • provides improved shielding compared to UTP, so has a lower signal-to-noise ratio and can therefore carry more data. • often used to connect a TV set to the signal source, be it a cable TV outlet, satellite TV, or conventional antenna. • used at NOCs to connect to the cable modem termination system (CMTS) and to connect to some high-speed interfaces. harder to install and is more expensive.

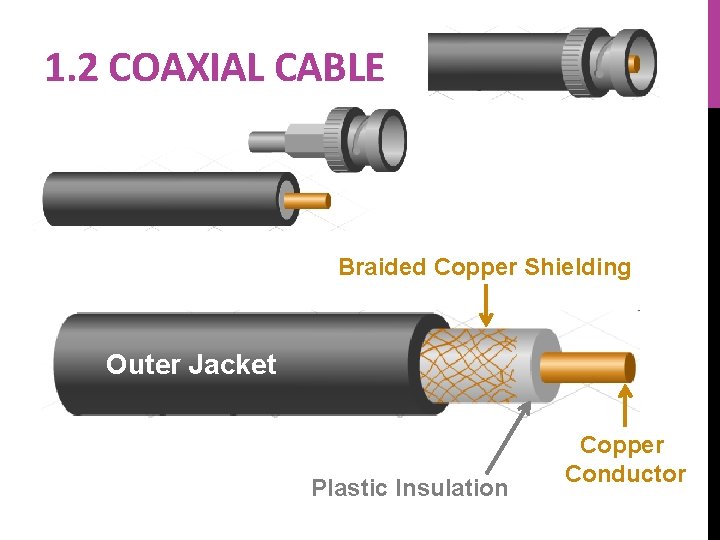

1. 2 COAXIAL CABLE Braided Copper Shielding Outer Jacket Plastic Insulation Copper Conductor

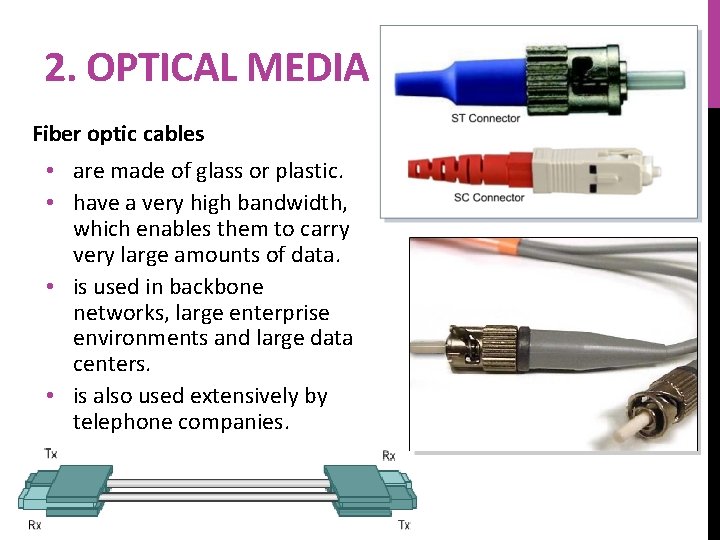

2. OPTICAL MEDIA Fiber optic cables • are made of glass or plastic. • have a very high bandwidth, which enables them to carry very large amounts of data. • is used in backbone networks, large enterprise environments and large data centers. • is also used extensively by telephone companies.

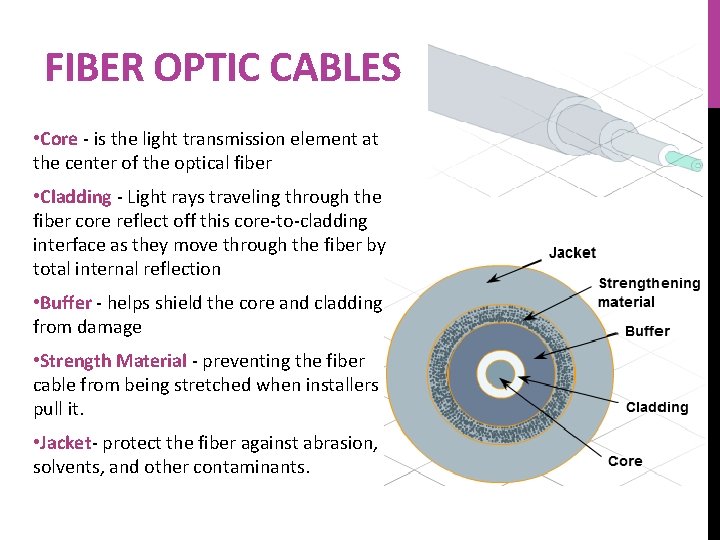

FIBER OPTIC CABLES • Core - is the light transmission element at the center of the optical fiber • Cladding - Light rays traveling through the fiber core reflect off this core-to-cladding interface as they move through the fiber by total internal reflection • Buffer - helps shield the core and cladding from damage • Strength Material - preventing the fiber cable from being stretched when installers pull it. • Jacket- protect the fiber against abrasion, solvents, and other contaminants.

FIBER OPTIC CABLES

LAB Straight-through Cables Crossover Cable

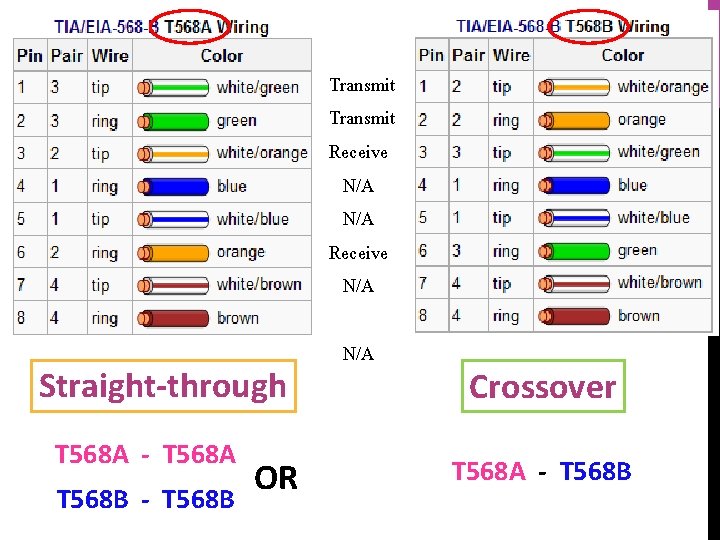

Transmit Receive N/A Receive N/A Straight-through T 568 A - T 568 A T 568 B - T 568 B OR N/A Crossover T 568 A - T 568 B
