NETWORKING DEVICES

NETWORKING DEVICES What is a networking device? What are the different networking devices?

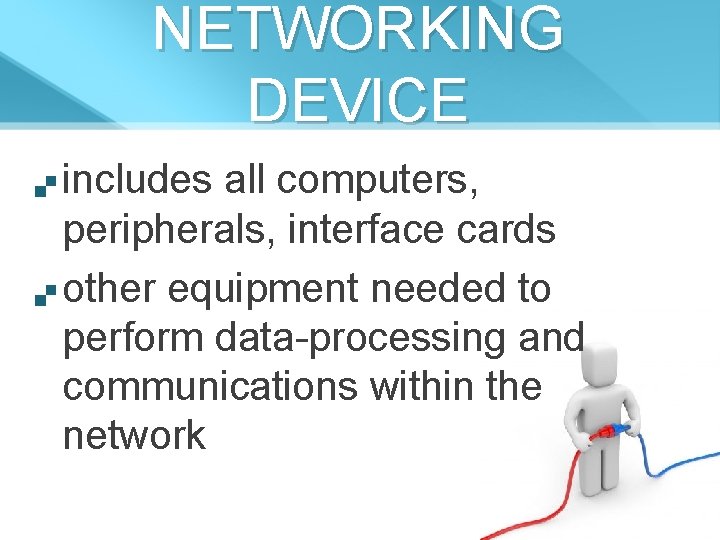

NETWORKING DEVICE includes all computers, peripherals, interface cards other equipment needed to perform data-processing and communications within the network

NETWORKING DEVICES Network Interface Card (NIC) Hubs Switches Repeaters Bridge Router Modem

NETWORK INTERFACE CARD provides the physical connection between the network and the computer workstation also referred to as Ethernet adapters, network adapters, LAN cards, or LAN adapters

How NICs Work Before sending data from a computer, a NIC converts the data into a signal that is appropriate for network cabling. Transceiver v Combo cards v

HUB sometimes referred to as a concentrator acts as a convergence point of a network, allowing the transfer of data packets

HUB a hub works by duplicating the data packets received via one Port, and making it available to all ports, therefore allowing data sharing between all devices connected to the hub

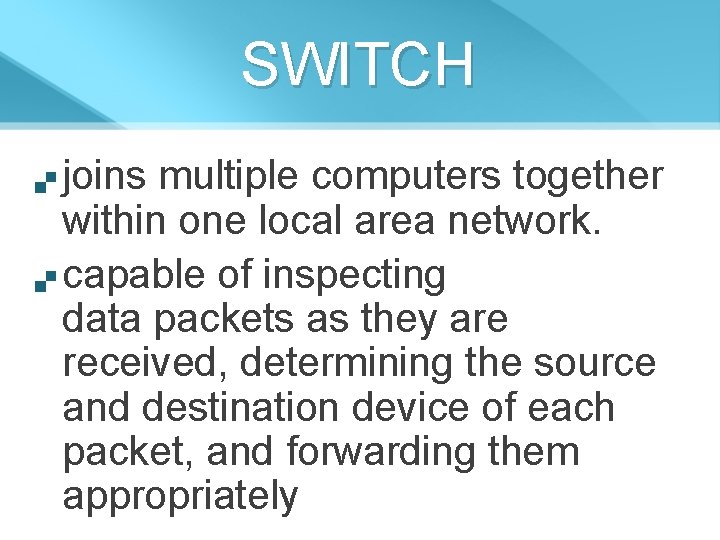

SWITCH joins multiple computers together within one local area network. capable of inspecting data packets as they are received, determining the source and destination device of each packet, and forwarding them appropriately

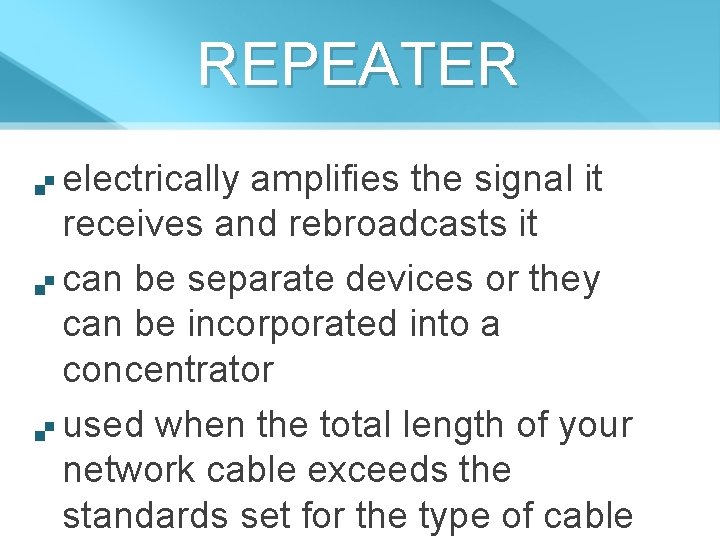

REPEATER electrically amplifies the signal it receives and rebroadcasts it can be separate devices or they can be incorporated into a concentrator used when the total length of your network cable exceeds the standards set for the type of cable

BRIDGE used to create a connection between two separate computer networks or to divide one network into two.

ROUTER

ROUTER connects at least two networks forwards and routes data packets along networks.

ROUTER The router ensures that information doesn't go where it's not needed. The router makes sure that information does make it to the intended destination.

MODEM A modem is a communication device that is used to provide the connectivity with the internet.

NETWORKING DEVICES

Draw a Computer Networking Model using recycle materials. (Manila Papaer) 1. 2. 3. 4. What type of Network? What kind of N. Topology? What are N. Devices being used? How does it work?
