The goal • Estimation of the costs for : • the different components of campus networking • supporting teams • connectivity to the NREN and the Internet. Varies from country to country (need more work) Depend on the committment of the university and the extend of services provided by the team Almost deterministic if agreement on rules

Assumptions and guidelines § One campus § medium size (in the european standard) § 15000 undergraduate students § 1500 staff (with post-graduate) § 10 000 installed Ethernet ports § 5 000 active simultaneously § Costs are expressed by installed ports (wired) § Depreciation §Cabling (local, inter-building, MANs, …) 15 years, §Equipment 5 years.

Items of cost (if you had to pay for all) § Cabling the proximity (wired, wireless) § Interconnecting buildings to reach the core network § Equipments : §Switches from local ports to network core §Core routers, switches, security and basic services equipments § Personnel (installation, supervision, maintenance, services) + [MANs, [Regional network]] , NREN

Internet Res. & Educ. Internet NREN Includes GEANT and CIT Very simple case Total cost = campus costs + NREN costs!

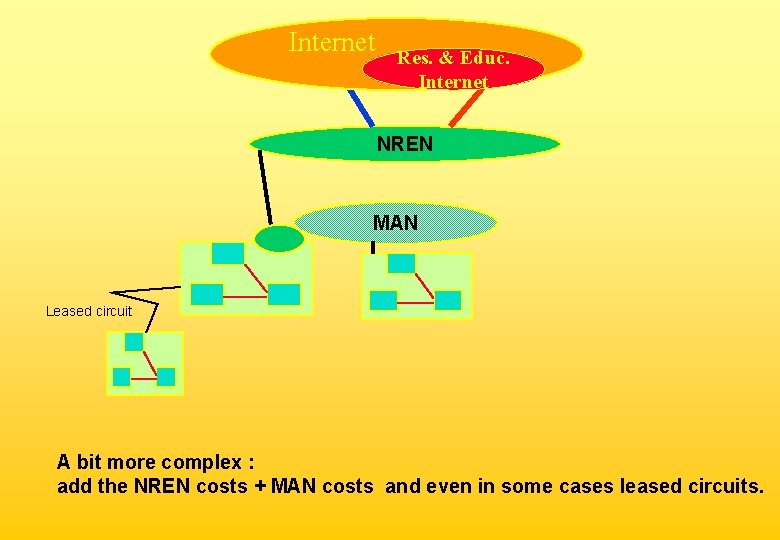

Internet Res. & Educ. Internet NREN MAN Leased circuit A bit more complex : add the NREN costs + MAN costs and even in some cases leased circuits.

Internet Res. & Educ. Internet NREN Regional network Even more complicated for Some countries (France, Spain, …) Need to add costs of regional nets. MAN

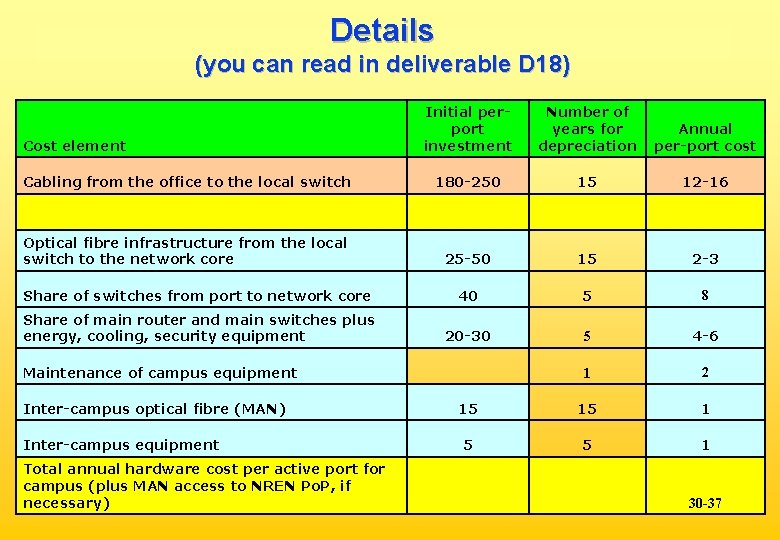

Details (you can read in deliverable D 18) Initial perport investment Number of years for depreciation Annual per-port cost Cabling from the office to the local switch 180 -250 15 12 -16 Optical fibre infrastructure from the local switch to the network core 25 -50 15 2 -3 Share of switches from port to network core 40 5 8 Share of main router and main switches plus energy, cooling, security equipment 20 -30 5 4 -6 1 2 15 15 1 5 5 1 Cost element Maintenance of campus equipment Inter-campus optical fibre (MAN) Inter-campus equipment Total annual hardware cost per active port for campus (plus MAN access to NREN Po. P, if necessary) 30 -37

Details (you can read in deliverable D 18) Cost element Initial per-port investment Personnel for maintenance, installation, services, security, … Number of years for depreciation Annual per-port cost 1 25 -50 Total annual cost per active port for campus, including personnel. 55 -87 NREN cost per active Ethernet connection 1 Total annual cost per active port for campus including NREN connectivity 80 -112 Regional network cost (if any) per active Ethernet connection Wireless access from the office to the local switch – can sometimes be an alternative to cabled access 25 30 1 3(? ) 5 6

Remarks (1) § All the numbers proposed may be subject for discussion § particularly NRENs and Regional network costs per port § and the cost of supporting teams § Wireless will soon spread all around the campuses § this will lower the costs a bit but not so much actually § and security is still an issue, which put constraints on the network architecture and the personnel in charge § wired (copper or even fiber) will still be necessary for medium and high levels of usage.

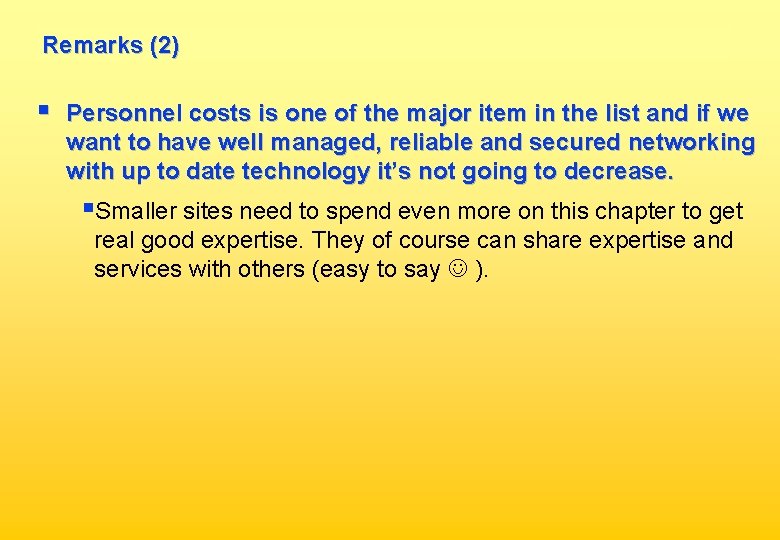

Remarks (2) § Personnel costs is one of the major item in the list and if we want to have well managed, reliable and secured networking with up to date technology it’s not going to decrease. §Smaller sites need to spend even more on this chapter to get real good expertise. They of course can share expertise and services with others (easy to say ).
