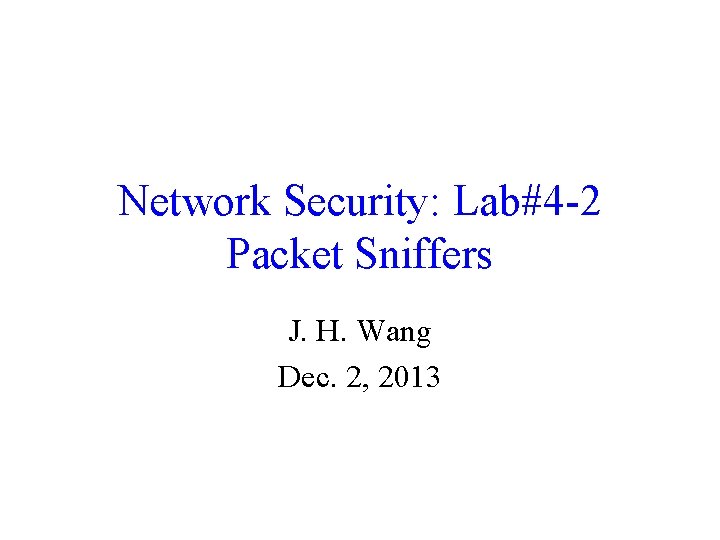

Network Security: Lab#4 -2 Packet Sniffers J. H. Wang Dec. 2, 2013

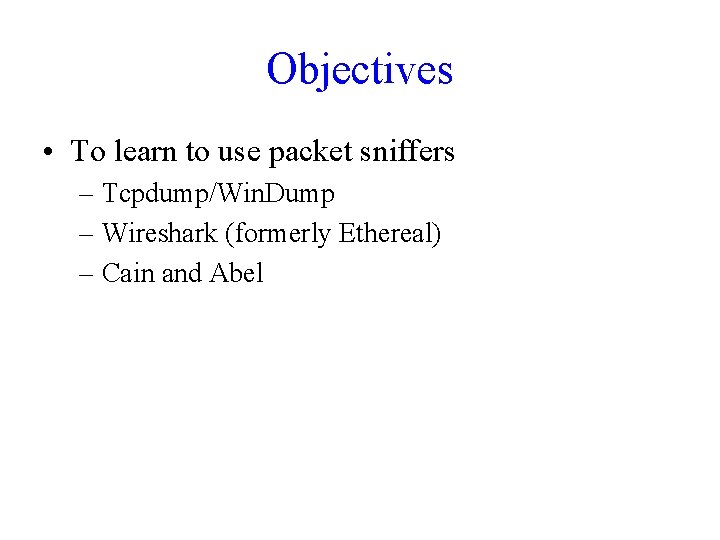

Objectives • To learn to use packet sniffers – Tcpdump/Win. Dump – Wireshark (formerly Ethereal) – Cain and Abel

Packages Used in this Lab • Packages – tcpdump/Win. Dump – Wire. Shark – Cain and Abel

Experiment Scenario • To test the basic functions of a packet sniffer – Dump packets – Check packet details: IP, port, protocol, … – Packet statistics • To test the vulnerability of some protocols – Use FTP to login and transfer files – Use sftp to login and transfer files

Packet Sniffers • • tcpdump/Win. Dump Wireshark Cain and Abel ettercap

tcpdump • Homepage: http: //www. tcpdump. org/ • Current version (for Linux): – tcpdump 4. 5. 1: a powerful command-line packet analyzer – libpcap 1. 5. 1: and a C/C++ library for network traffic capture • For Windows: – Win. Dump 3. 9. 5: http: //www. winpcap. org/windump/ • Windows version of tcpdump – Win. Pcap 4. 1. 3: http: //www. winpcap. org/ • Windows version of libpcap – A driver for low-level network access – A library for low-level network analysis

Example Commands • To display all network adapters – Win. Dump -D • To listen to all traffic in network adapter #1 – Win. Dump -i 1 • To listen to all traffic with source or destination port number 80 – Win. Dump -i 1 port 80 • To dump all captured packets in file – Win. Dump -r <file>

Wireshark • Homepage: http: //www. wireshark. org/ • Latest version: 1. 10. 3 (formerly Ethereal) • Also includes the latest Win. Pcap library

Example Usage for Wireshark • To display all network interfaces – Choose [Capture/Interfaces] • To start capturing packets – Click [Start] • To stop capturing packets – [Capture/Stop]

• To display statistics about packets – [Statistics/Summary] – [Statistics/Protocol Hierarchy] – [Statistics/Endpoints] – [Statistics/IO Graphs] – [Statistics/Flow Graph] – [Statistics/WLAN Traffic]

Cain and Abel • Homepage: http: //www. oxid. it/cain. html • Version: 4. 9. 47 • A “password recovery tool” for Microsoft operating systems – Using dictionary, brute-force, cryptanalysis attacks • A packet sniffer • Man-in-the-middle attack using ARP spoofing • Installation steps – Cain and Abel – Win. Pcap 4. 1. 2 library for packet capturing

• Packet sniffer – [Configure]: to select the network adapter – [Filters and Ports]: to select the ports to be monitored – Right click on sniffer, then [Scan MAC Address] – ARP Poison Routing (APR)

ettercap • Homepage: http: //ettercap. sourceforge. net/ • Version: 0. 8. 0 -Lacassagne • Platforms: Linux/Free. BSD/Mac OS X/Windows XP/Solaris • Man-in-the-middle attack using ARP spoofing • It uses libpcap library • Installation

Another Usage of Packet Sniffer: Vulnerability of FTP • First, open the packet sniffer • Second, use FTP to login – Under [Start], type “cmd” – ftp 140. 124. 13. 2 – Type in username & password – bye • Then, check the username and password in packet sniffer

Example for sftp • First, open the packet sniffer • Second, use psftp to login and transfer files – Start “psftp” – open 140. 124. 13. 2 – Type in username & password – bye • Then, check the username and password in packet sniffer

Other Examples • You can also check the vulnerability for the following protocols – Telnet vs. ssh – SMTP vs. SMTPS (with SSL) or SMTPAuth – POP 3 –…

Summary • Packet sniffer – tcpdump/Win. Dump – Wireshark – Cain & Abel – Ettercap • Vulnerability of protocols – FTP
