Network Programmability Separate ControlData plane L 2 topologies

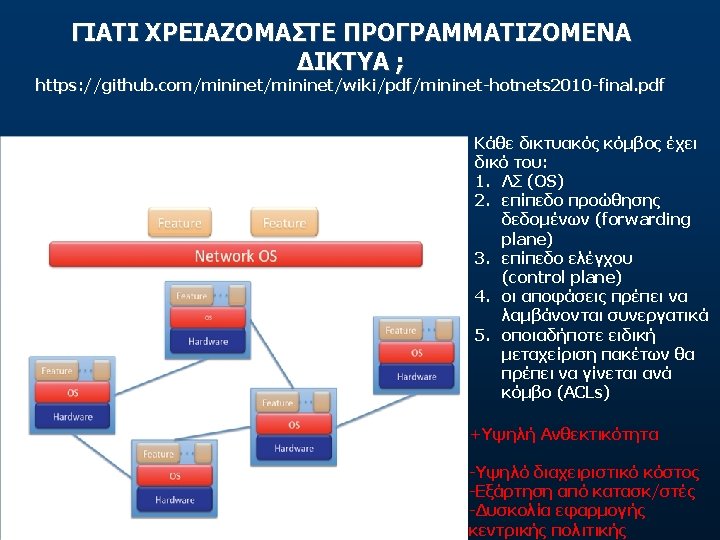

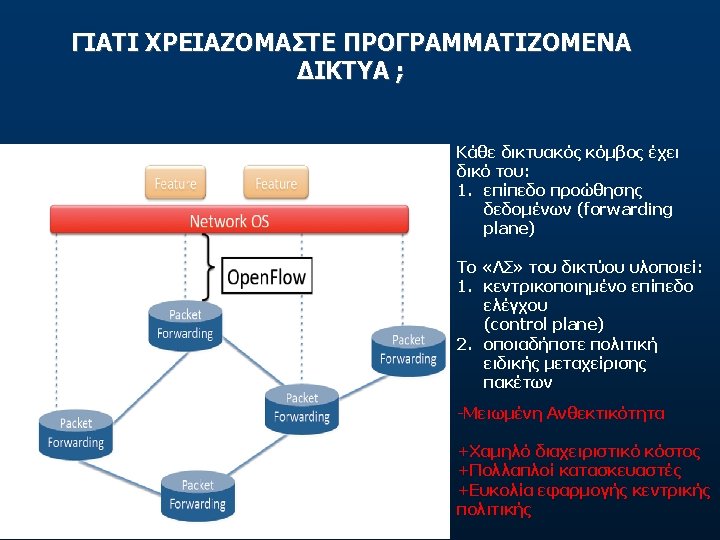

ΓΙΑΤΙ ΧΡΕΙΑΖΟΜΑΣΤΕ ΠΡΟΓΡΑΜΜΑΤΙΖΟΜΕΝΑ ΔΙΚΤΥΑ ; Network Programmability Separate Control-Data plane L 2 topologies L 2 -L 4 forwarding
ΠΙΝΑΚΑΣ ΠΡΟΩΘΗΣΗΣ ΔΕΔΟΜΕΝΩΝ Forwarding Table (as defined in Open. Flow)

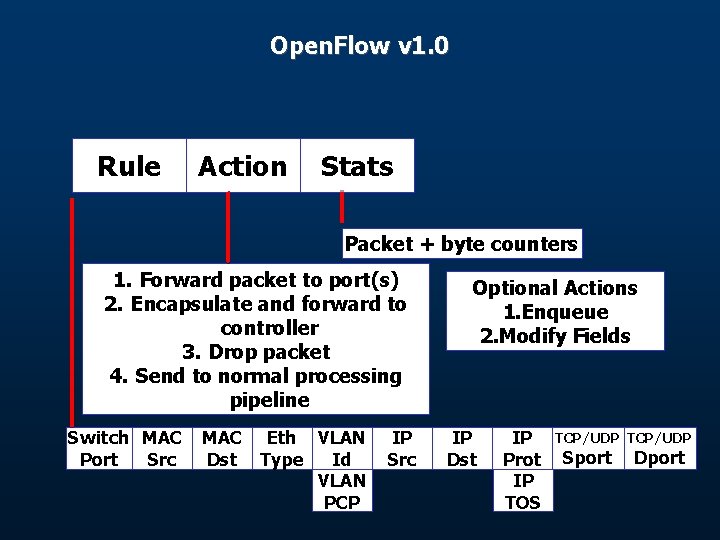

Open. Flow v 1. 0 Rule Action Stats Packet + byte counters 1. Forward packet to port(s) 2. Encapsulate and forward to controller 3. Drop packet 4. Send to normal processing pipeline Switch MAC Port Src MAC Dst Eth VLAN Type Id VLAN PCP IP Src Optional Actions 1. Enqueue 2. Modify Fields IP Dst IP Prot IP TOS TCP/UDP Sport Dport

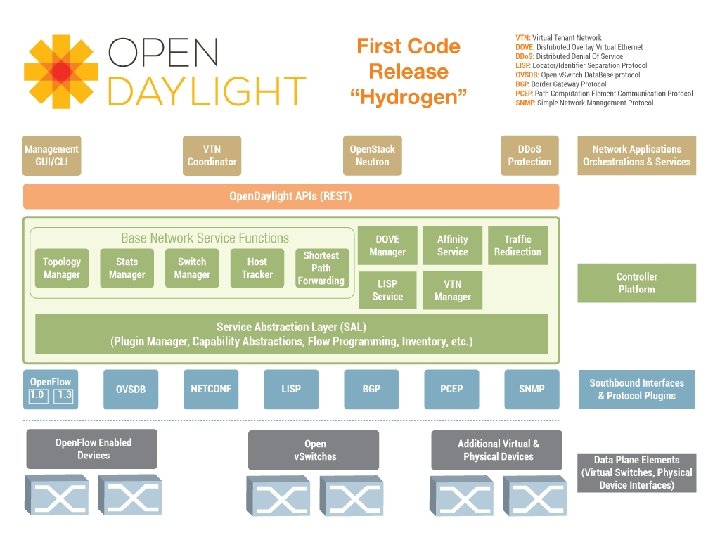

ΔΙΕΠΑΦΕΣ ΕΛΕΓΧΟΥ & ΔΙΑΧΕΙΡΙΣΗΣ Control & Management interfaces (as defined from ONF) Management interface Control interfaces
ΠΑΡΑΔΕΙΓΜΑ ΤΟΠΟΛΟΓΙΑΣ Εκτέλεση Mininet Χρήση των built-in μεθόδων για τη δημιουργία τοπολογίας: # sudo mn --topo single, 3 --controller remote, ip=127. 0. 0. 1, port=6633 Δημιουργία custom τοπολογίας: --custom /home/mininet/custom/topo-4 sw -3 host. py --topo mytopo Έλεγχος των Hosts mininet> <hostname> command mininet> h 1 ifconfig –a mininet> h 1 ping h 2 mininet> pingall Έλεγχος των OF-Switches mininet> ovs-vsctl show mininet> s 1 dpctl add-flow tcp: 127. 0. 0. 1: 6634 in_port=1, actions=output: 2 mininet> s 1 dpctl dump-flows tcp: 127. 0. 0. 1: 6634
ΠΑΡΑΔΕΙΓΜΑ ΠΡΟΣΠΕΛΑΣΗΣ FLOW-TABLE dump-flows σε flowtable από γραμμή εντολών mininet> s 1 dpctl dump-flows tcp: 127. 0. 0. 1: 6634 stats_reply (xid=0 x 92 adc 26 a): flags=none type=1(flow) cookie=0, duration_sec=10 s, duration_nsec=171000000 s, table_id=0, priority=65535, n_packets=1, n_bytes=98, idle_timeout=10, hard_timeout=30, icmp, in_port=2, dl_vlan=0 xffff, dl_src=26: 46: 9 f: 12: 6 a: 91, dl_dst=f 6: 02: 84: d 2: e 4: 99, nw_src=10. 0. 0. 2, nw_dst=10. 0. 0. 1, nw_tos=0 x 00, icmp_type=0, icmp_code=0, actions=output: 1 cookie=0, duration_sec=10 s, duration_nsec=144000000 s, table_id=0, priority=65535, n_packets=1, n_bytes=98, idle_timeout=10, hard_timeout=30, icmp, in_port=1, dl_vlan=0 xffff, dl_src=f 6: 02: 84: d 2: e 4: 99, dl_dst=6 a: 40: ea: a 3: 73: 57, nw_src=10. 0. 0. 1, nw_dst=10. 0. 0. 3, nw_tos=0 x 00, icmp_type=8, icmp_code=0, actions=output: 2
